Wireless Touch Screen RFID NFC Bluetooths Access Control Keypad System WiFi with CE Certification for Outdoor Gate Opener
Product Description
i
Basic Specifications
Model NO.
CT9 PRO
Reading Distance
10cm-15m
Product
Access Control Terminal with Reader
Operating System
Linux OS
Display
3.5" Touch Screen Display
Identification
RFID, NFC, BLE, Pin Code, QR Code
RFID
MIFARE Plus, MIFARE, DESFire EV1/EV2/EV3, 125kHz
Interfaces
4G, WiFi, TCP/IP, RS485 Osdp, Wiegand
Power
12-24V DC; Poe IEEE 802.3af
IP Protection
IP65 Waterproof, UV Resistance
Certification
CE, FCC
Origin
China
★

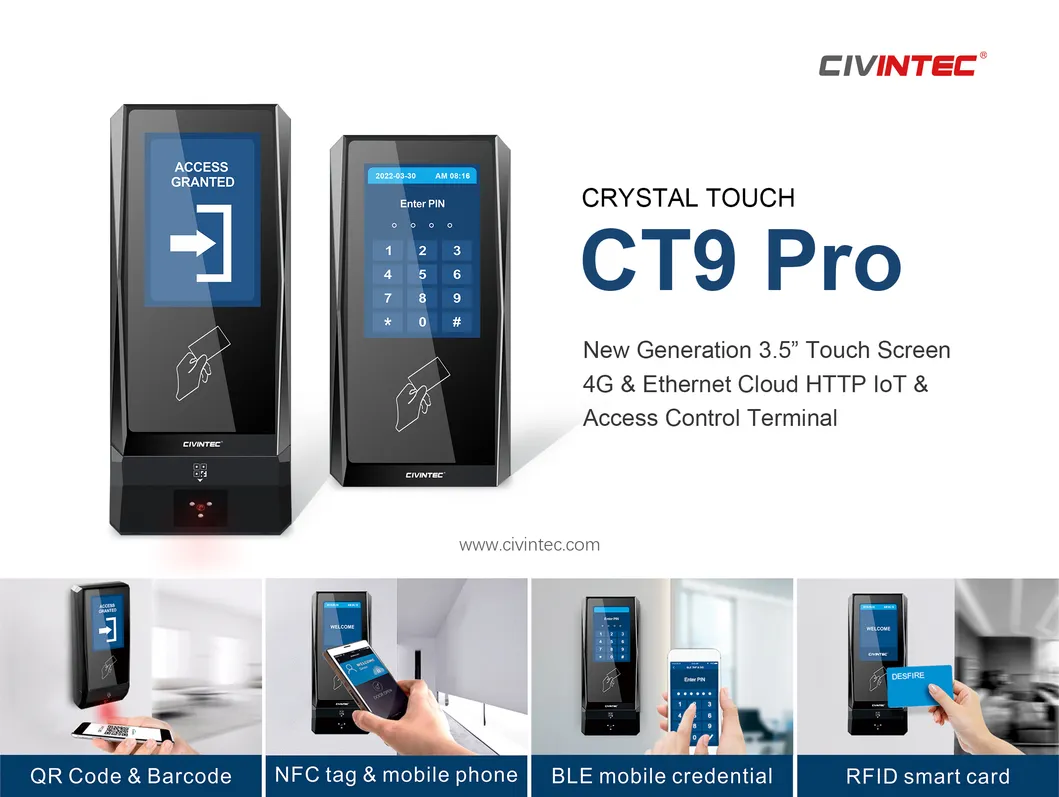

Product Overview

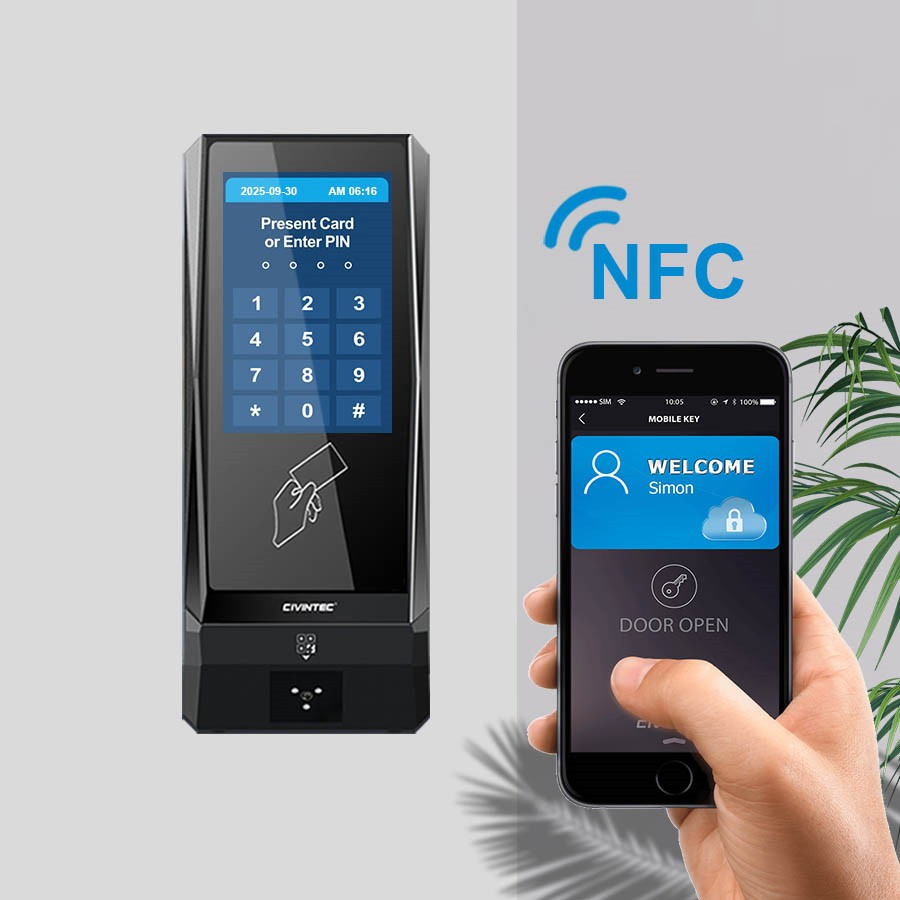

CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet. It is suitable for both LAN and Internet cloud server software communication, with embedded relay to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies: touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE / barcode scanning via mobile phone.
| Display | 3.5" capacitive touch screen |
| QR code | Multiple formats supported (1D & 2D Codes): QR Code, Micro QR code, PDF417, Code 128, Code 39, etc. |
| Mobile ID | BLE, NFC (iOS & Android supported) |
| RFID Smart Card | EM 125KHz, 13.56MHz ISO14443A Mifare Classic, Plus, DESFire EV1/EV2/EV3, Seos smart cards |
| Communication | 4G, WiFi, TCP/IP, Wiegand, RS485 protocol OSDP 1&2 |
| I/O Port | 1~2 relay outputs, Tamper alarm, door contact, door exit |
| Offline Logs | 10,000 users / 50,000 logs |
| Protection | IP65 outdoor/indoor use, UV-resistance |
✔
Product Features

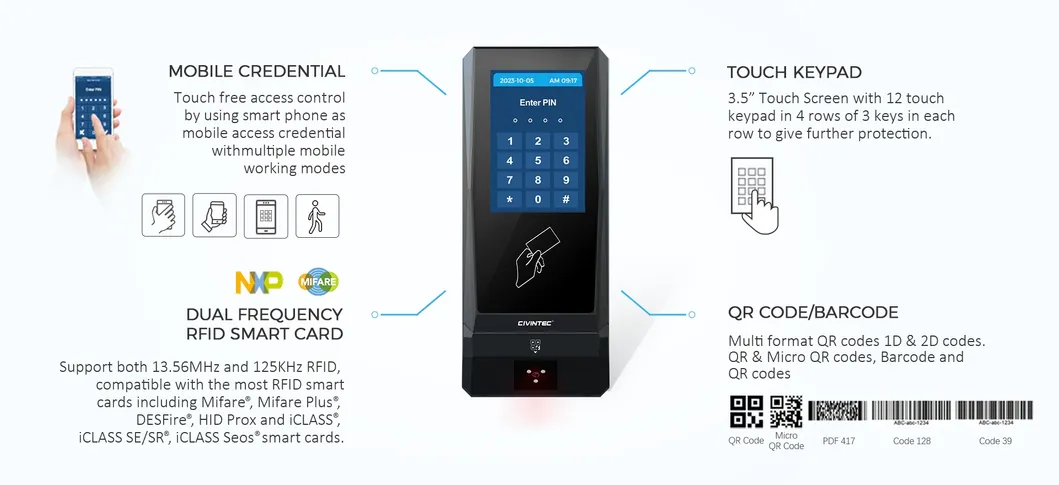

Incorporates 5-in-1 technologies including touch keypad, dual RFID (125KHz & 13.56MHz), BLE/NFC mobile access, and QR CODE/barcode scanning for comprehensive visitor management.

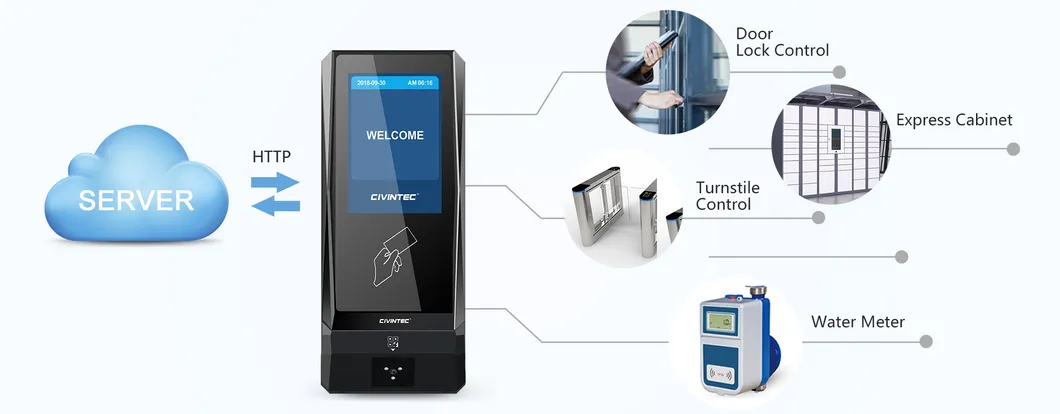

Cloud Server Remote Control
Bi-directional communication via standard HTTP & HTTPs between the terminal and server to remotely control door locks and various IoT facility management systems.

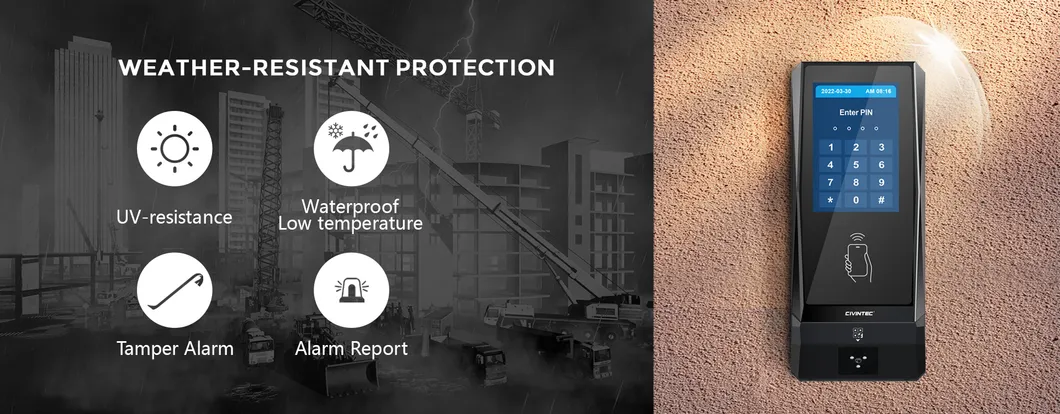

Weather-Resistant Protection
With IP65 ratings, CT9 PRO is resistant to rain, dust, and strong sunlight, making it ideal for outdoor use and rugged environments.
⚙

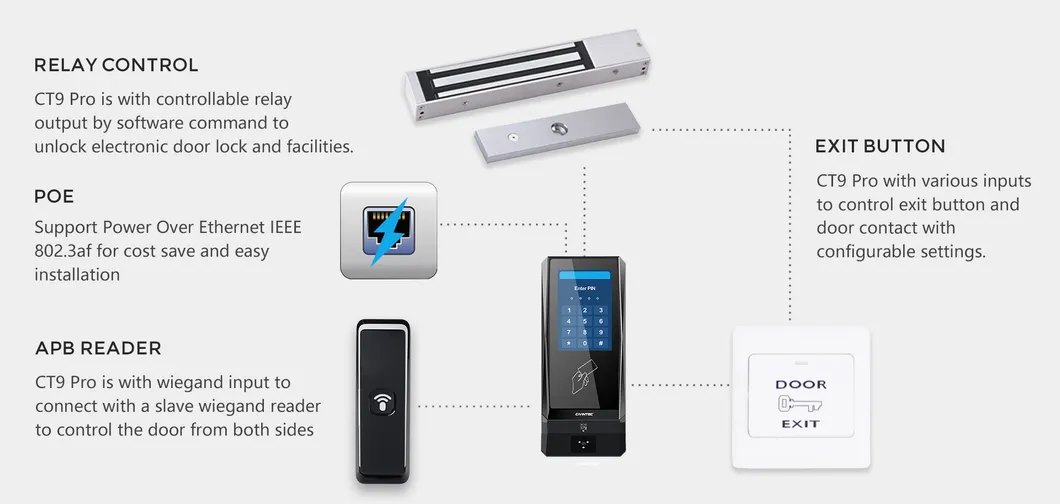

System Configuration
◈
Customization Services

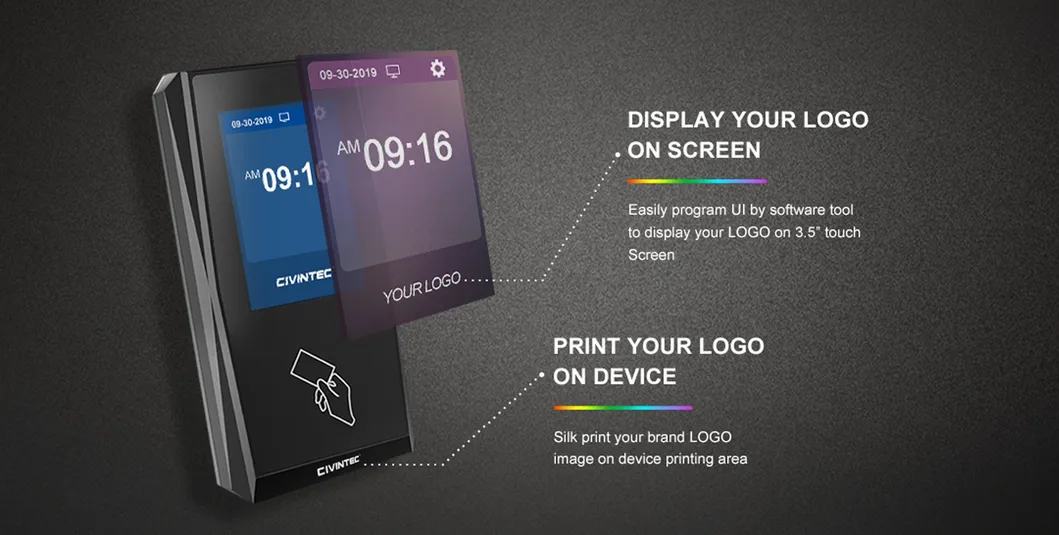

We offer ODM customization on hardware, housing, firmware, and software design. Users can program and display their own LOGO on the 3.5" touch screen. OEM LOGO printing on the reader body is also available.
✚
Related Products
?
Frequently Asked Questions
What identification methods does the CT9 PRO support?
The CT9 PRO supports multiple identification methods including RFID (125KHz & 13.56MHz), NFC, BLE mobile credentials, Touch PIN codes, and QR Code/Barcode scanning.
Is the terminal suitable for outdoor installation?
Yes, the device is IP65 waterproof rated and features UV resistance, making it ideal for outdoor gates and various rugged environments.
How does the device communicate with the server?
It supports encrypted communication via standard HTTP or HTTPs protocols over 4G, WiFi, or TCP/IP Ethernet connections.
Can I use Power over Ethernet (PoE) for this device?
Yes, the terminal is compatible with PoE IEEE 802.3af, allowing for both power and data delivery through a single cable.
What is the user and log capacity of the CT9 PRO?
The standard configuration supports up to 10,000 offline card users and 50,000 event logs. Higher capacities can be requested for specific needs.
Does it support integration with other security hardware?
Absolutely. It includes Wiegand and RS485 OSDP interfaces, as well as relay outputs to control door locks and other IoT facilities.
