Civintec CT9 Qr Code Advance HTTP Mqtt System RFID Door Lock Hotel Access Control Video Doorbell with 4G WiFi
Product Description

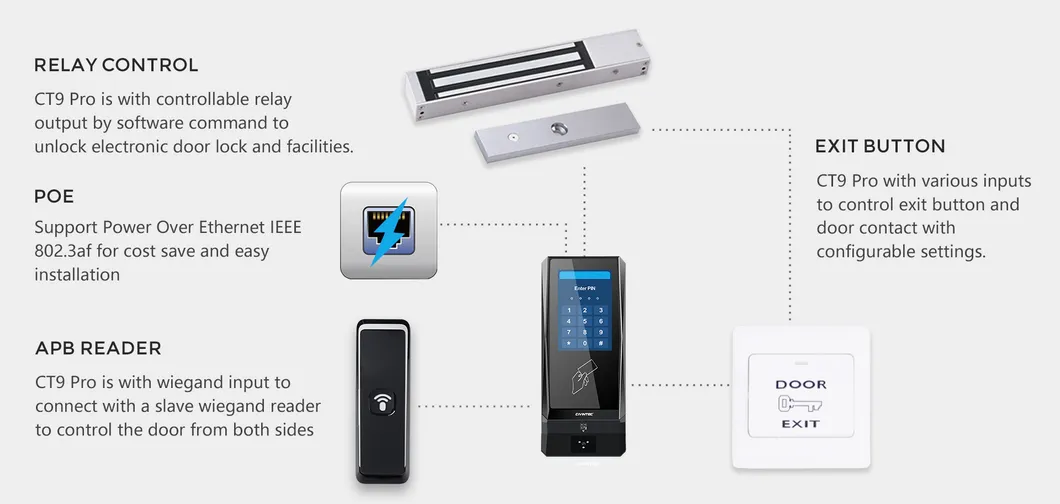

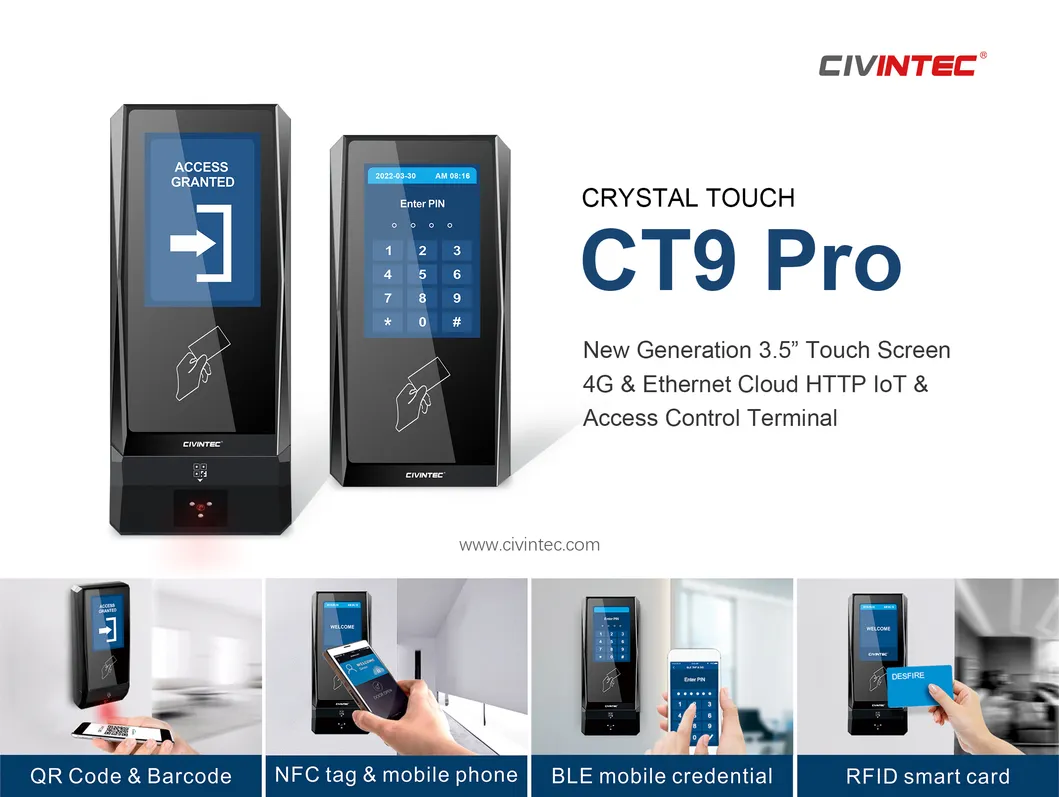

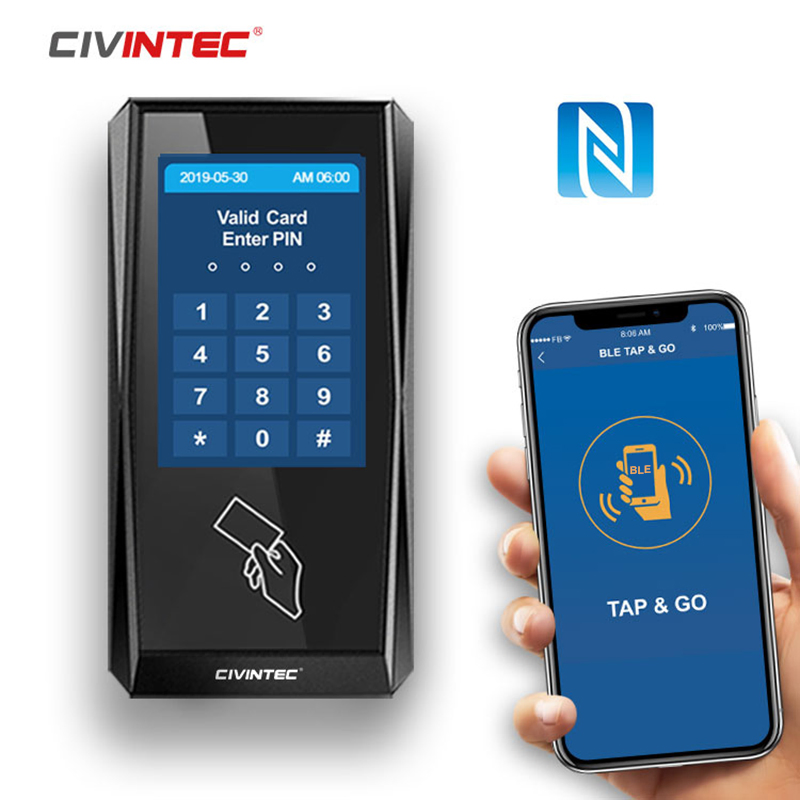

The CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal. Featuring wireless 4G and TCP/IP Ethernet, it is perfectly suited for both LAN and Internet cloud server software communication. With an embedded relay, it allows for the construction of versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, including a touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE/barcode scanning via mobile devices.
| Display | 3.5" capacitive touch screen |
| QR code | Multiple formats: QR Code, Micro QR code, PDF417, Code 128, Code 39, and most 1D/2D barcodes. |
| Mobile ID | BLE, NFC |
| RFID Smart Card | EM 125KHz, 13.56MHz ISO14443A Mifare® Classic, Plus, DESFire® EV1/EV2, NFC tags, HID Prox, iCLASS®. |
| Communication | 4G, TCP/IP, Wiegand, RS485 protocol OSDP 1&2 |
| Power Supply | 12-30V DC; PoE IEEE 802.3af |
| Capacity | 10,000 users / 50,000 logs |
| Protection | IP65 outdoor/indoor use, UV-resistance |
Incorporates 5-in-1 technologies: touch keypad, RFID dual frequencies, BLE & NFC mobile access, and QR CODE scanning for comprehensive visitor management.

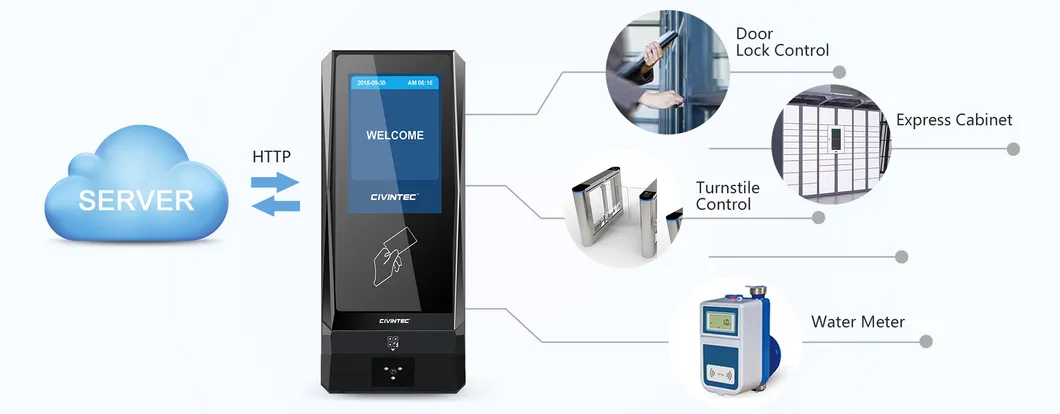

Bidirectional communication via standard HTTP & HTTPs protocols allows for remote door lock control and facility management through web-based platforms.

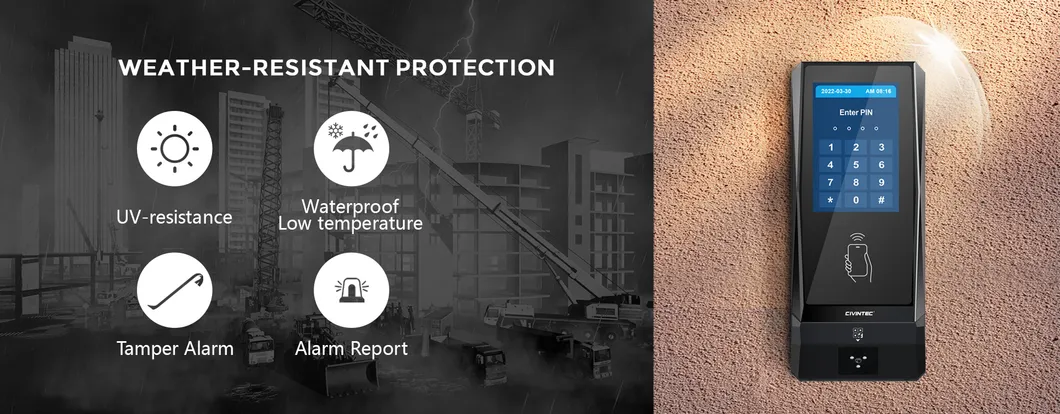

With an IP65 rating, the device is resistant to rain, dust, and strong sunlight, making it ideal for rugged outdoor environments and low temperatures.

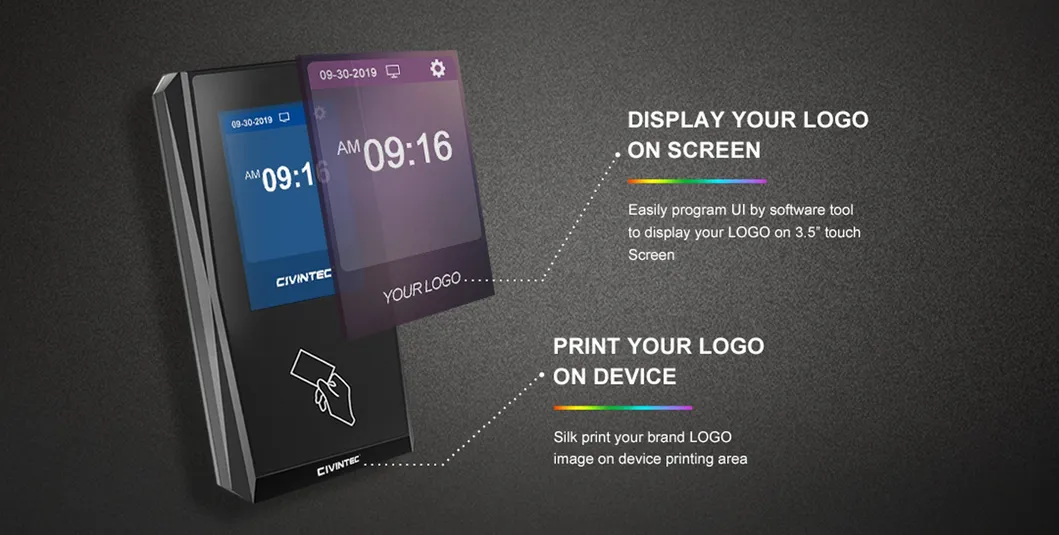

We offer specialized customization on hardware, reader housing, firmware, and software design. Users can program and display their own logos on the 3.5" touch screen and request OEM logo printing on the device body.
