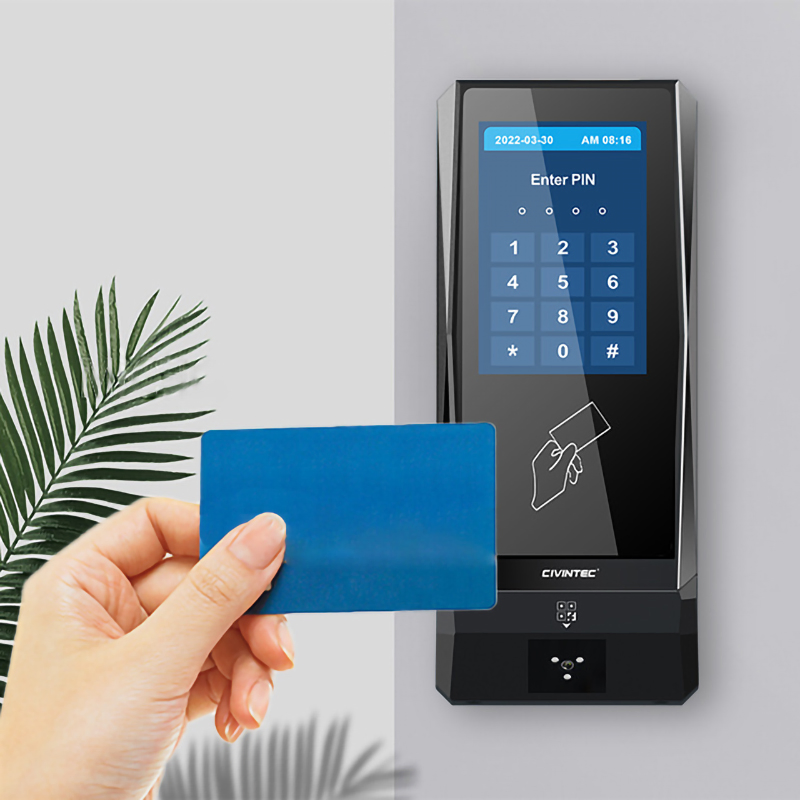

3.5 Inch Touch Screen RFID NFC Door Access Control System for Home Apartment Buildings
Product Description
Basic Information
Model NO.
CT9 PRO
Interface
Serial Port, 4G, WiFi, TCP/IP, RS485, Weigand
Reading Distance
10cm-15m
Application
Parking, Hospital, Library, Company, Bank, Store
Product
4G WiFi TCP/IP Access Control Terminal
Operating System
Linux OS
Display
3.5" Touch Screen Display
Identification
RFID, NFC, BLE, Pin Code
RFID Card
13.56MHz 125kHz
Mobile Credential
NFC, BLE
Qr Code
Qr Code, Barcode
Password
Touch Pincode
Card Holders
10,000 Users
Secure Module
ISO7816 Sam Modules
Work Mode
Standalone & Network Mode
Power
12-30V, Poe
IP Protection
Waterproof Outdoor Use
Certification
CE, FCC
Origin
China
HS Code
8471900090

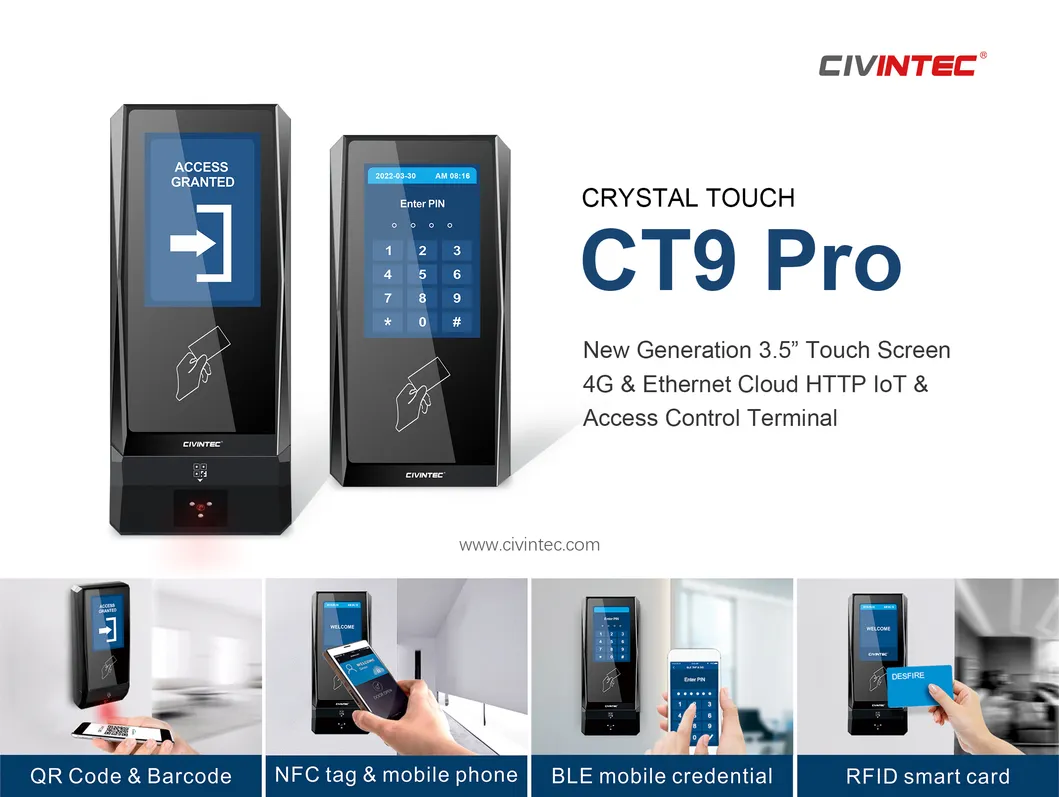

Product Overview

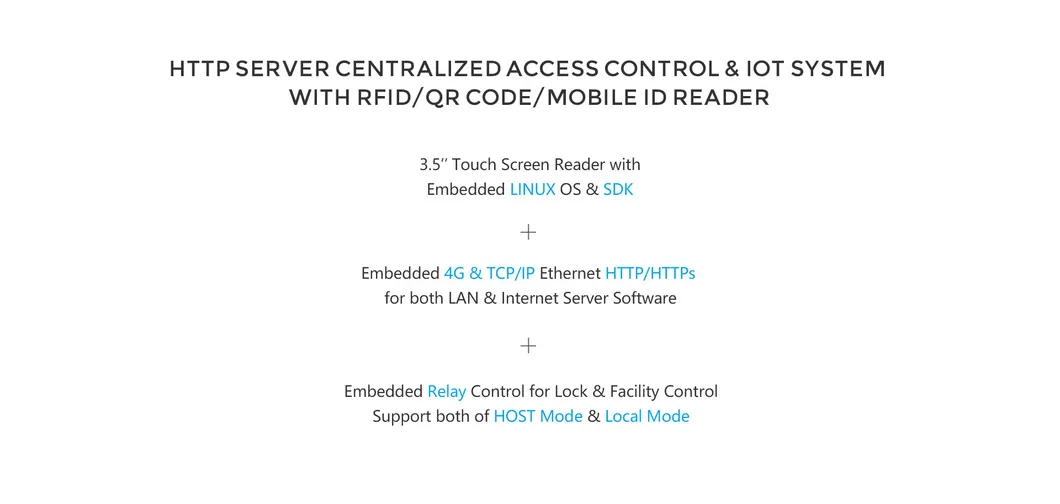

CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication, with embedded reply to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, QR CODE/barcode by using mobile phone.
| Display | 3.5" capacitive touch screen |
| QR code | Multiple formats supported (1D & 2D Codes): QR Code, Micro QR code, PDF417, Code 128, Code 39 and most mainstream 1D and 2D barcodes. |
| Mobile ID | BLE, NFC |
| RFID smart card | EM 125KHz, 13.56MHz ISO14443A Mifare® Classic, Mifare® Plus, DESFire® EV1, EV2, EV3, NFC tags (T2T, T4T), ISO14443B |
| SAM slot | ISO7816(T=0,T=1) 1 SAM module, more on request |
| Communication interface | 4G, WiFi, TCP/IP, Wiegand, RS485 protocol OSDP 1&2, customizing protocol on request |
| Power Supply | 12-30V DC; PoE IEEE 802.3af |
| I/O Port | 1~2 relay outputs Tamper alarm switch, door contact, door exit, Buzzer control, output Buzzer control |
| Offline Capacity | 10,000 users / 50,000 logs (more on request) |
| IP protection | IP65 outdoor/indoor use, UV-resistance |
| Certification | CE approved |
Product Features

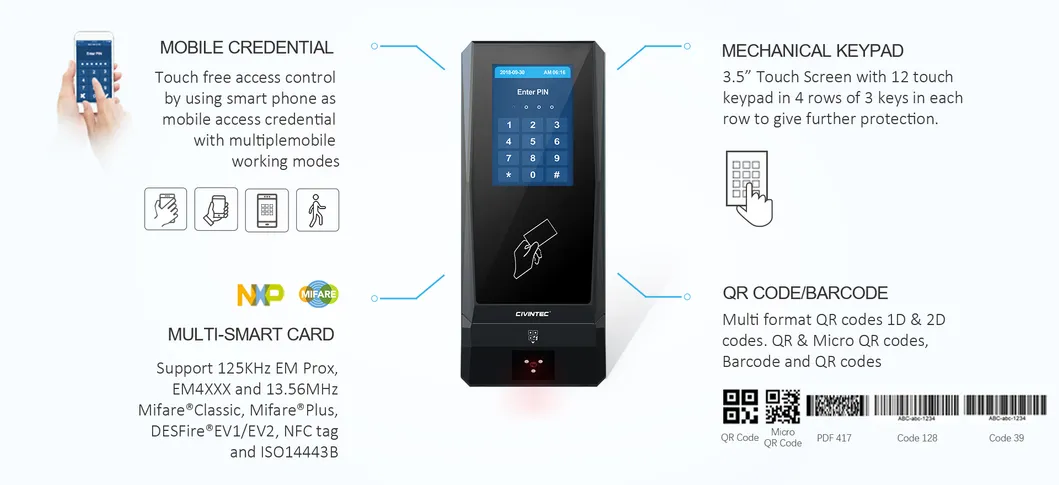

Multiple Access Credential
CT9 Pro incorporates with 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, QR CODE/barcode by using mobile phone for visitor access control management.

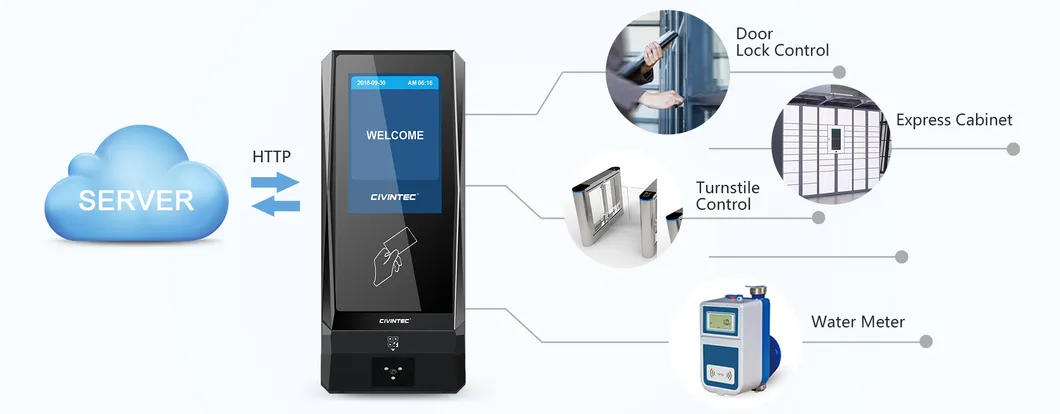

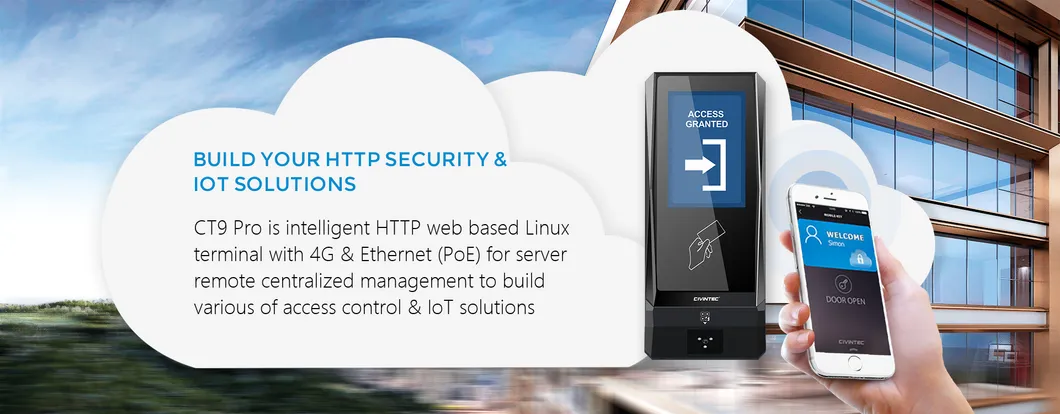

Cloud Server Remote Control
Bio-direction communication via standard HTTP & HTTPs between CT9 Pro and server to remotely control door lock and various IoT facility management.
Multiple Application Solutions
Crystal Touch CT9 is IP access control door reader remotely controlled by cloud web based software in real time via HTTP or HTTPs encrypted communication. It is with embedded relay output to control door lock as ACCESS DENIED or ACCESS GRANTED.

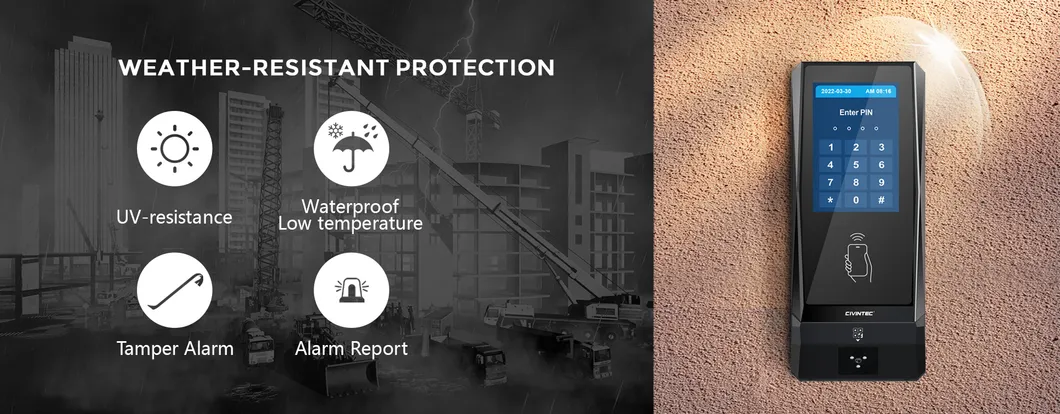

Weather-Resistant Protection
With IP65 ratings, CT9 PRO is weather resistant to rain, dust, strong sunlight, ideal for outdoor use, low temperature various rugged working environments.

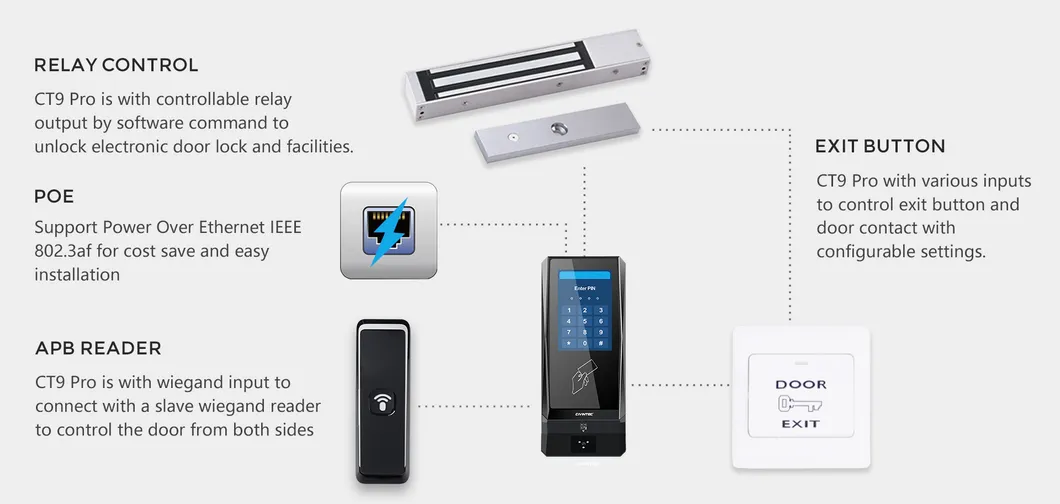

System Configuration
Customization Services
We offer ODM customization on both hardware, reader housing, firmware and software design service. Users can program and display their own LOGO on the 3.5" touch screen. OEM LOGO printing on the reader body is also available.
Related Products
Frequently Asked Questions
What types of access credentials does the CT9 Pro support?
The CT9 Pro supports 5-in-1 technologies including RFID (125KHz & 13.56MHz), BLE, NFC mobile access, QR codes/barcodes, and a touch PIN code keypad.
Can this terminal be installed outdoors?
Yes, the device has an IP65 rating, making it waterproof and resistant to UV rays, dust, and low temperatures, which is ideal for outdoor environments.
How does the device communicate with a server?
It uses bi-directional communication via standard HTTP or HTTPs protocols. Connection options include 4G wireless, WiFi, and TCP/IP Ethernet.
Does the CT9 Pro support Power over Ethernet (PoE)?
Yes, it supports PoE IEEE 802.3af, as well as a standard 12-30V DC power supply.
What is the user capacity for offline mode?
The terminal can store up to 10,000 users and 50,000 event logs offline. Higher capacities are available upon request.
Can I customize the interface with my own logo?
Absolutely. The 3.5" touch screen allows users to program and display their own logo, and we also offer physical OEM logo printing on the device body.
