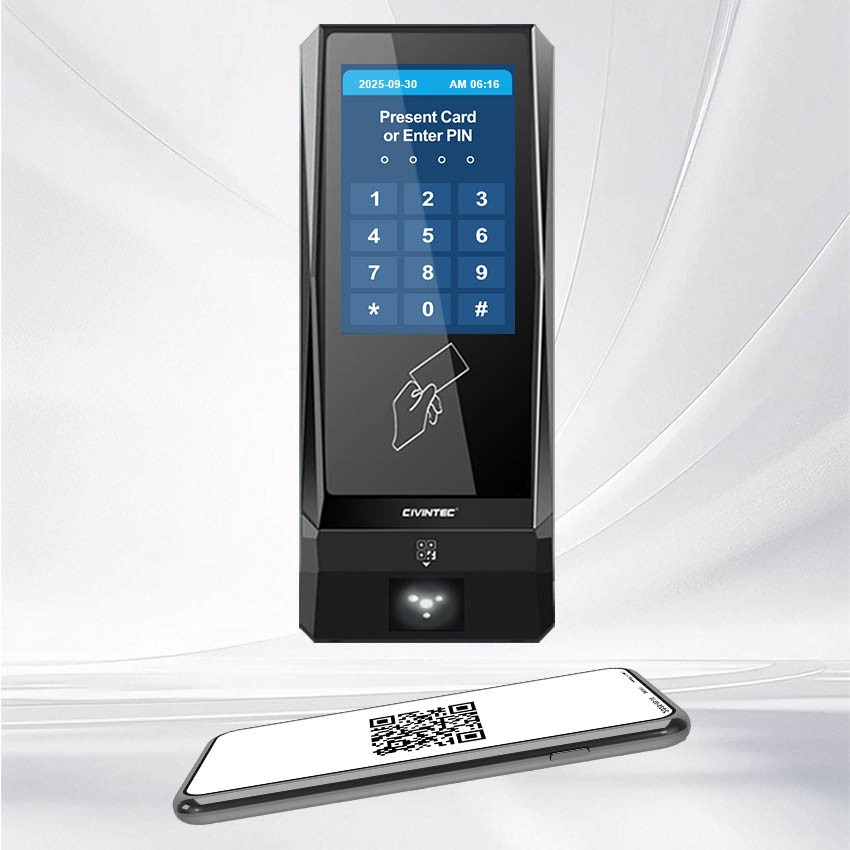

Cloud Gym Entry Door Gate Access Control System WiFi with Barcode Scanners RFID Access Control Keypad Reader
Product Description
i
Basic Information
| Model NO. | CT9 PRO |
| Reading Distance | 10cm-15m |
| Application | Parking, Hospital, Library, Company, Bank, Store, Office, Factory, School, Data Center, Airport, Gym |
| Product | Access Control Terminal with Reader |
| Operating System | Linux OS |
| Display | 3.5" Touch Screen Display |
| Identification | RFID, NFC, BLE, Pin Code, Optional QR Code |
| RFID Support | MIFARE Plus, MIFARE, DESFire EV1/EV2/EV3, 125kHz |
| Mobile Credential | NFC, BLE |
| Output | 1~2 Relay |
| Interfaces | 4G, WiFi, TCP/IP, RS485 Osdp, Wiegand |
| IP Protection | IP65 Waterproof, UV Resistance |
| Certification | CE, FCC |
✓

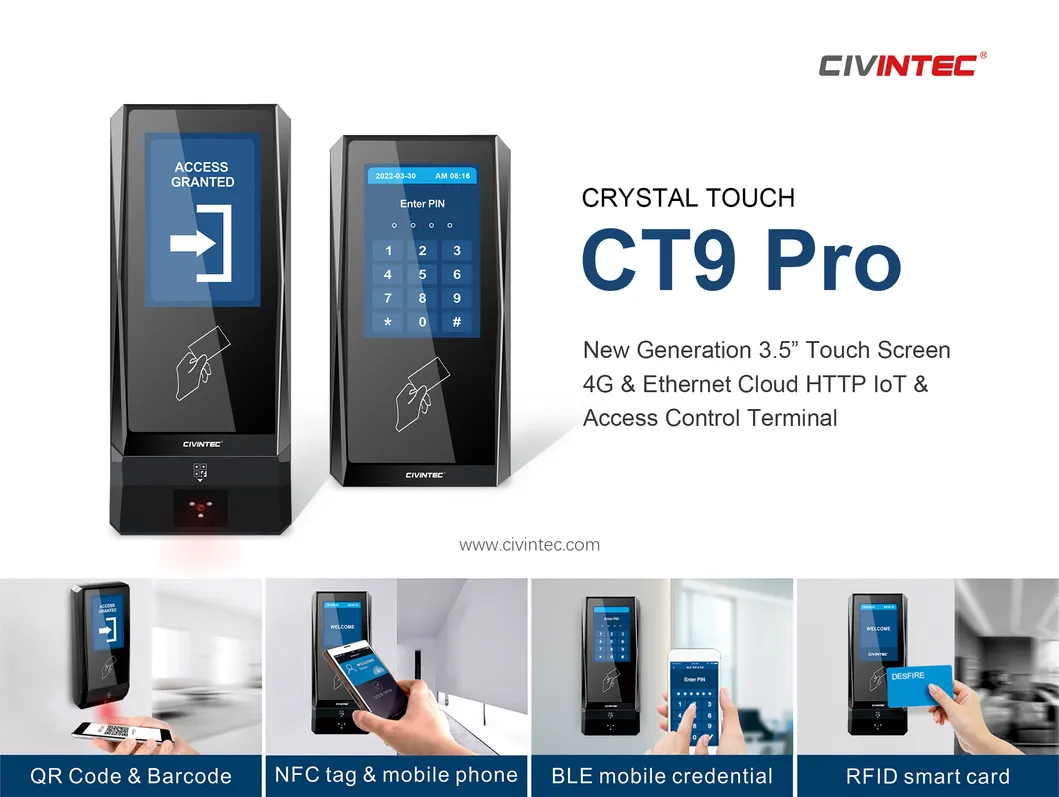

Product Overview

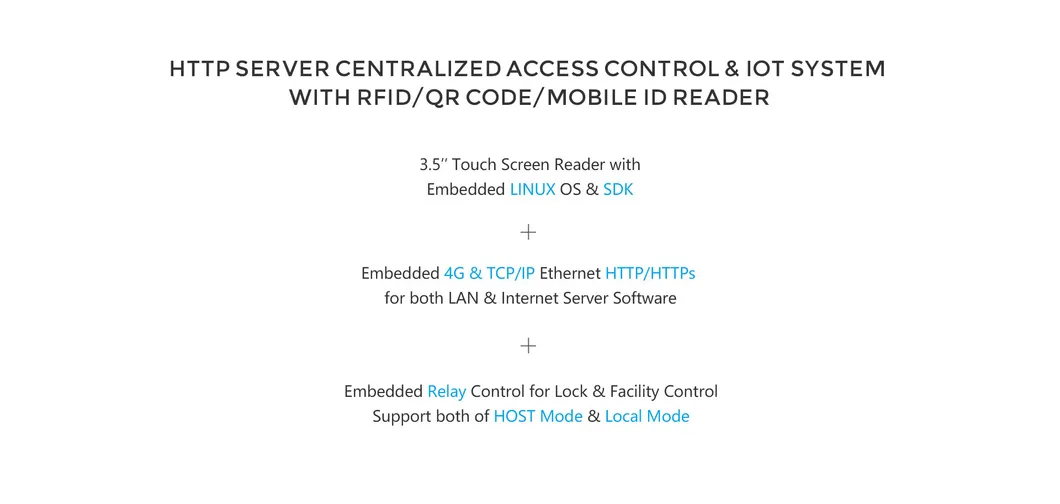

CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet. It is suitable for both LAN and Internet cloud server software communication, with an embedded relay to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE / barcode via mobile phone.
★
Product Features

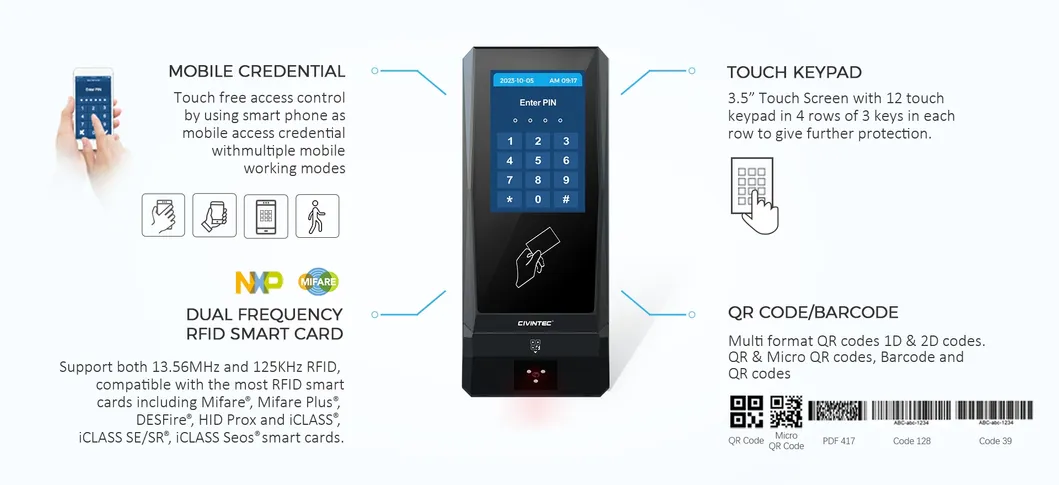

Multiple Access Credential
CT9 Pro incorporates 5-in-1 multiple access technologies: touch keypad, RFID dual frequency (125KHz & 13.56MHz), BLE & NFC mobile access, and QR CODE/barcode scanning for visitor management.

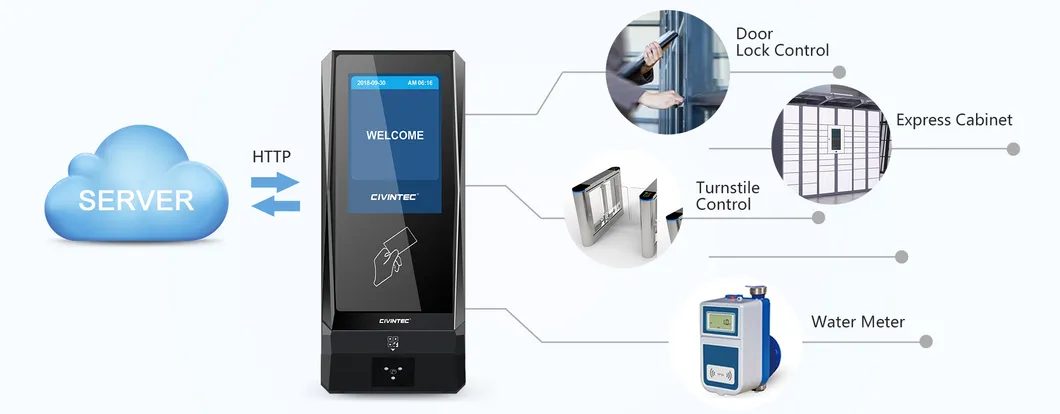

Cloud Server Remote Control
Bi-directional communication via standard HTTP & HTTPs between CT9 Pro and the server allows for remote control of door locks and various IoT facility management tasks.

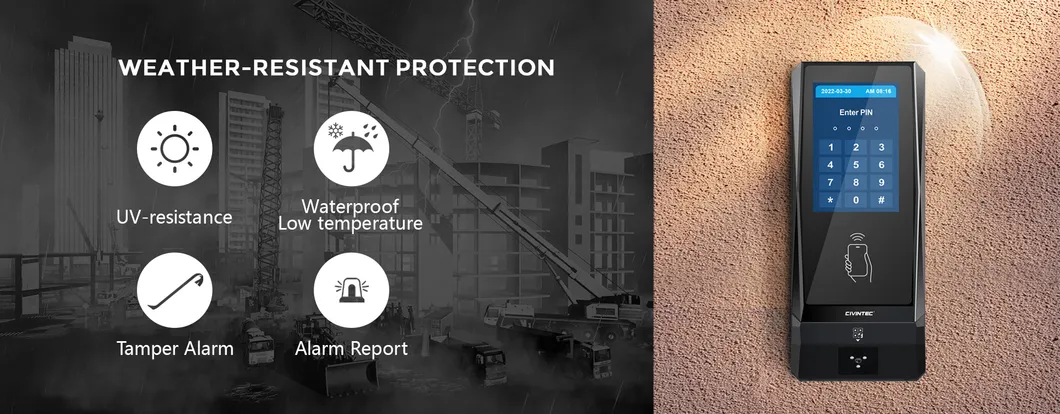

Weather-Resistant Protection
With an IP65 rating, the CT9 PRO is resistant to rain, dust, and strong sunlight, making it ideal for outdoor use and rugged environments.
⚙

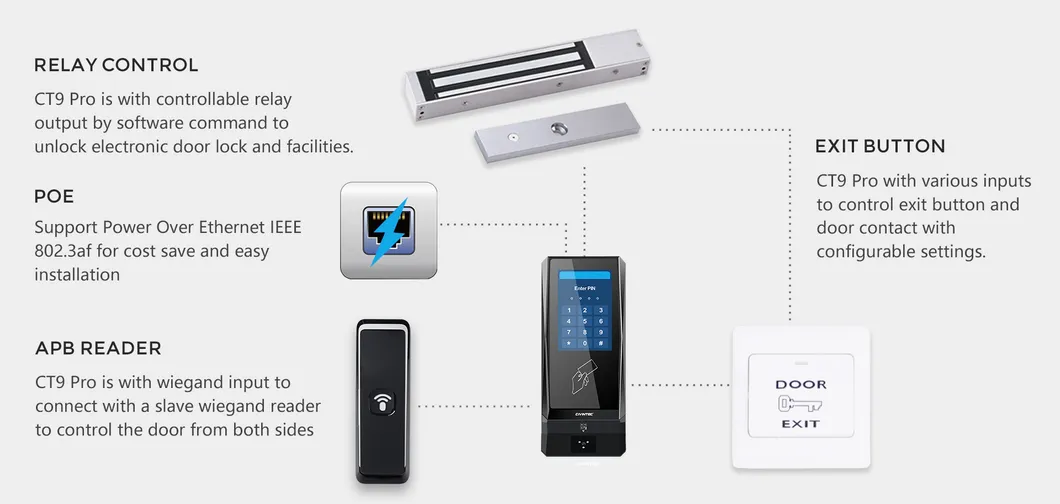

System Configuration
🛠
Our Service

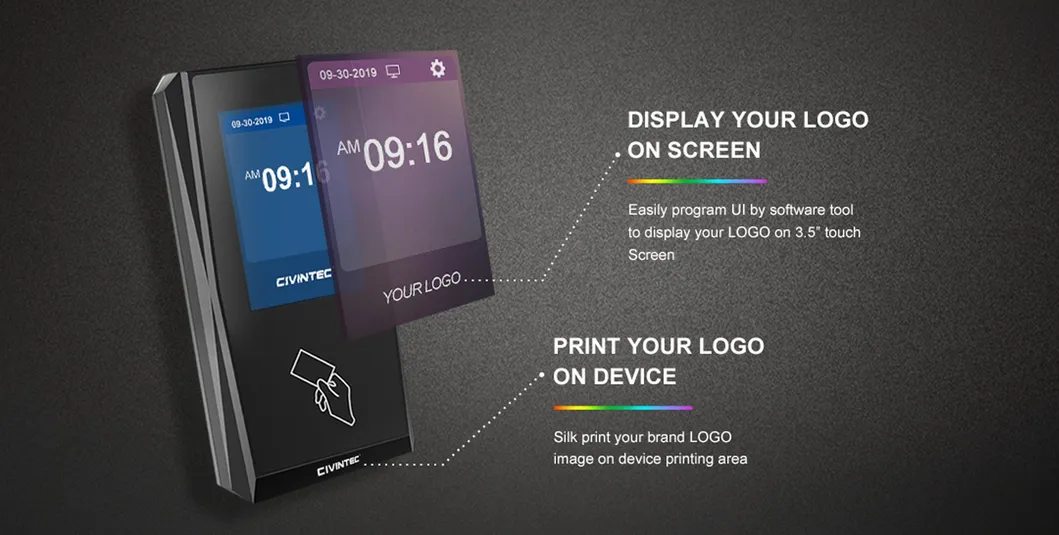

We offer ODM customization on hardware, reader housing, firmware, and software design services. Users can program and display their own LOGO on the 3.5" touch screen. OEM LOGO printing on the reader body is also available.
▦

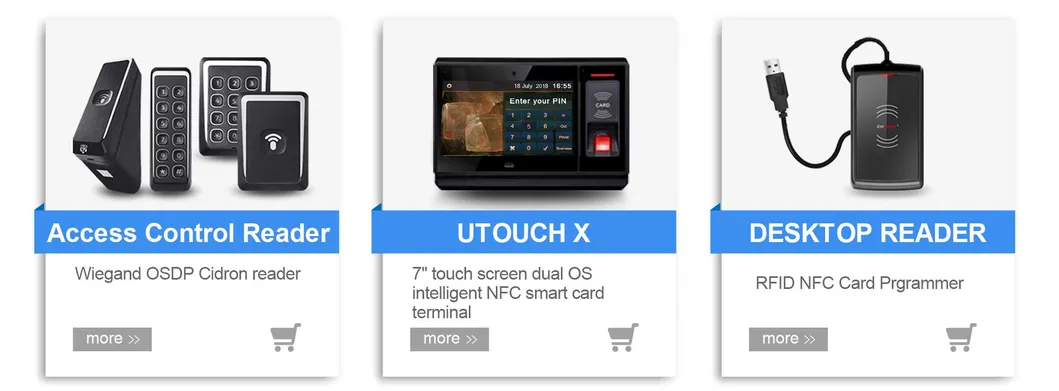

Related Products
?
Frequently Asked Questions
What access methods does the CT9 PRO support?
The CT9 PRO supports 5-in-1 access technologies including RFID (125KHz & 13.56MHz), NFC, BLE mobile access, Pin Code via touch screen, and QR Code/Barcode scanning.
Is the device suitable for outdoor installation?
Yes, the device features an IP65 waterproof rating and UV resistance, making it ideal for both indoor and outdoor environments.
Does the terminal support Power over Ethernet (PoE)?
Yes, it supports PoE IEEE 802.3af, allowing for both power and data transmission over a single Ethernet cable.
What is the operating system of the CT9 PRO?
The terminal runs on a stable Linux-based operating system, ensuring high performance and security.
Can I customize the display on the touch screen?
Yes, the 3.5" capacitive touch screen allows users to program and display their own custom logos and interfaces.
What communication interfaces are available?
The device supports multiple interfaces including 4G, WiFi, TCP/IP, RS485 (OSDP protocol), and Wiegand.
