Touch Keypad Metal Standalone RFID Door Access Control System with Backlit Keyboard
Product Description
Basic Information
Model NO.
ZDAC-2700W
Technology
32-Bit Technology
Way of Control
Hand Control
Type
One-way Controller
Application
Office Building etc
Color
Silver
Card Type
125kHz Em ID Cards
Access Ways
Cards, Code, Card & Code
Capacity
4000 Users
Keypad Housing
Metal
Warranty
1 Year
Specification
CE, RoHS
Product Description

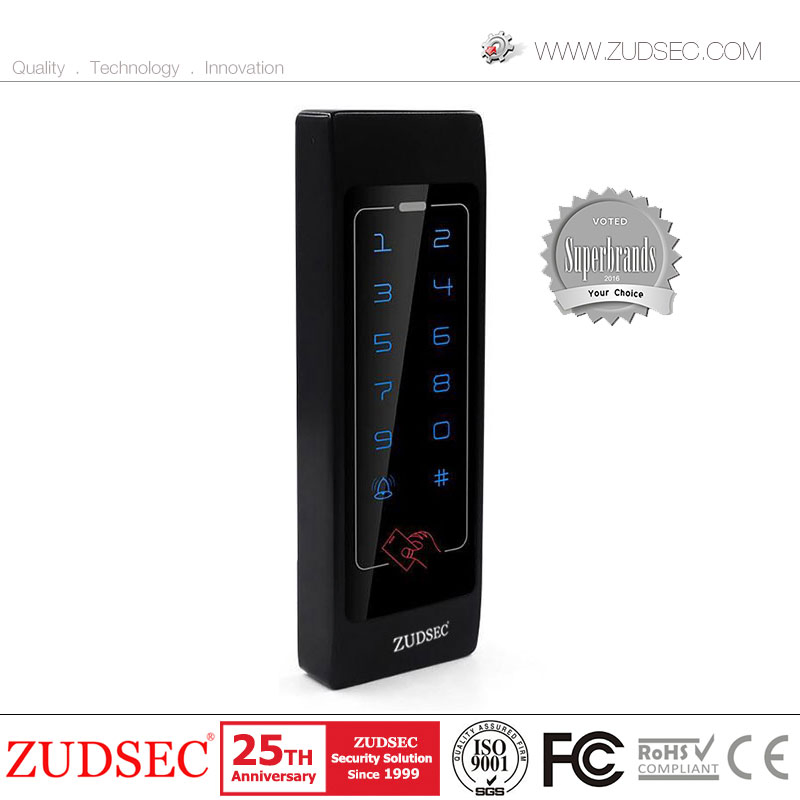

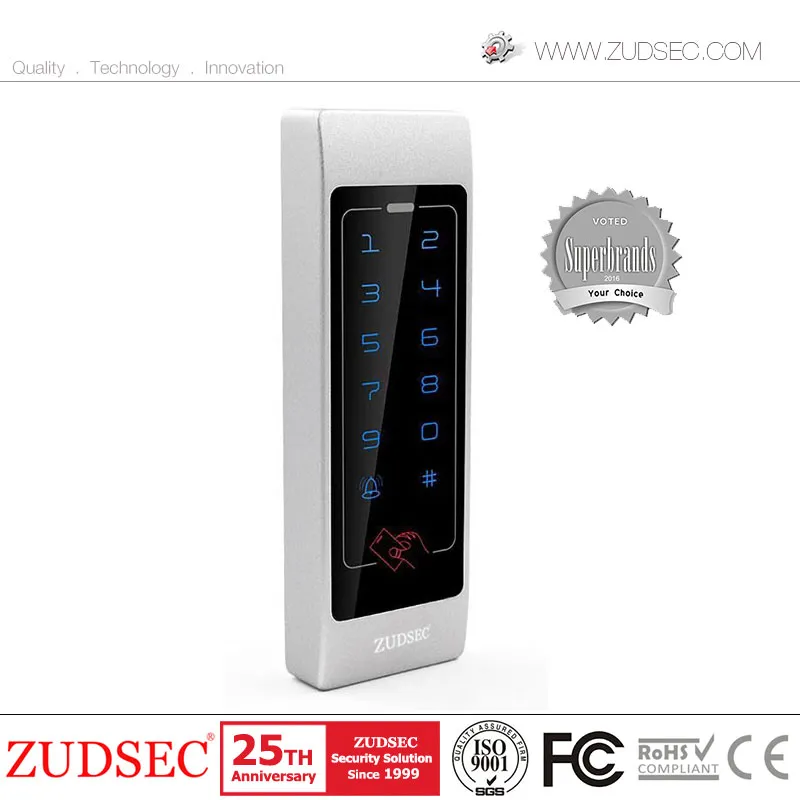

Touch keypad Metal Standalone RFID Door Access Control System with Backlit Keyboard
Touch Keypad, Metal structure, IP68 Waterproof design, 125KHz EM card (IC card optional), Multi-function with built-in door bell function, operating as slave reader etc. Can realize the card reading and keypad operation functions, lock, ring bell, exit button and the magnetic contact switch on the door. Suitable for various occasions.
Key Features
- Metal case, waterproof design
- Touch Panel backlit keypad
- With door bell function, can connect with any external doorbell
- Built-in 125KHz EM card reader
- 4000 users available, keystroke backlight
- Built-in buzzer alarm for anti-tamper
- Relay control to open
- Special card reader model: Wiegand 26 output
Technical Specifications
| Parameter | Detail |
|---|---|
| Model | ZDAC-2700W |
| Card Types | EM or EM compatible |
| Operating Voltage | DC 12V±10% |
| User Capacity | 4000 |
| Reading Distance | 3~6cm |
| Active Current | <60mA |
| Lock Output Load | Max 3A |
| Operating Temperature | -45ºC~60ºC |
| Operating Humidity | 10%- 90% RH |
| Door Relay time | 0 - 99 seconds |
| Wiegand Interface | Wiegand 26 bit |
| Dimensions | 120L x 78W x 22D (mm) |
| Weight | 500g |
Product Gallery

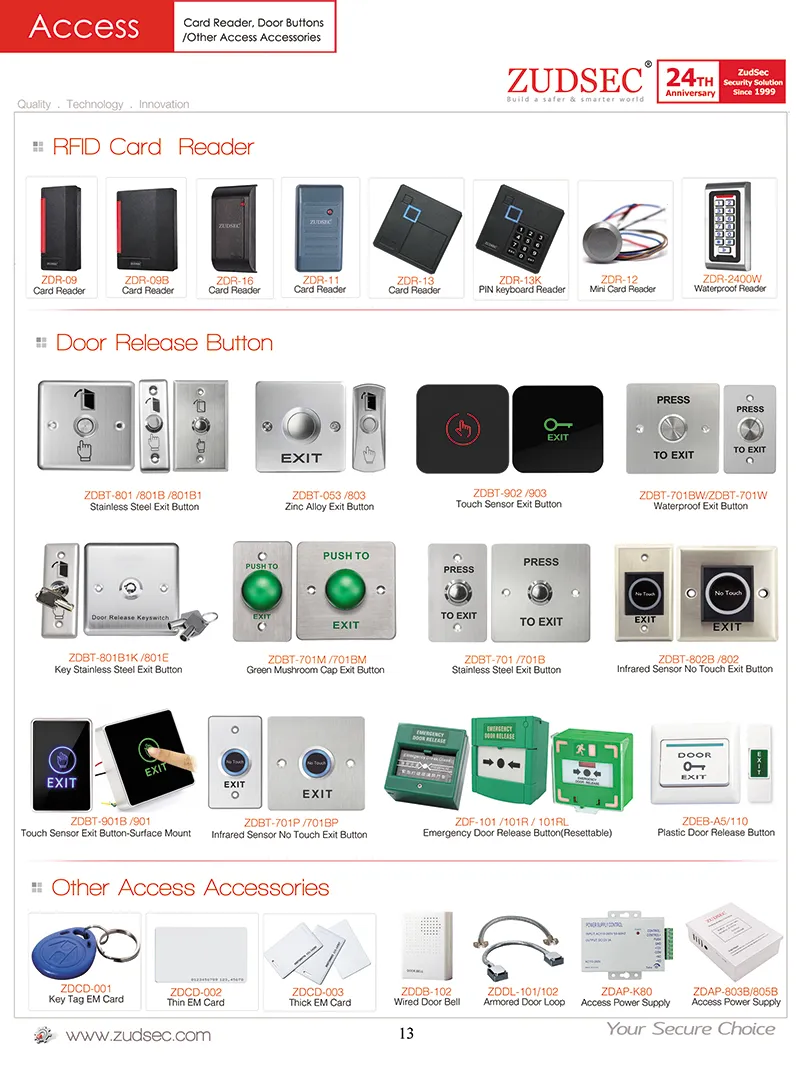

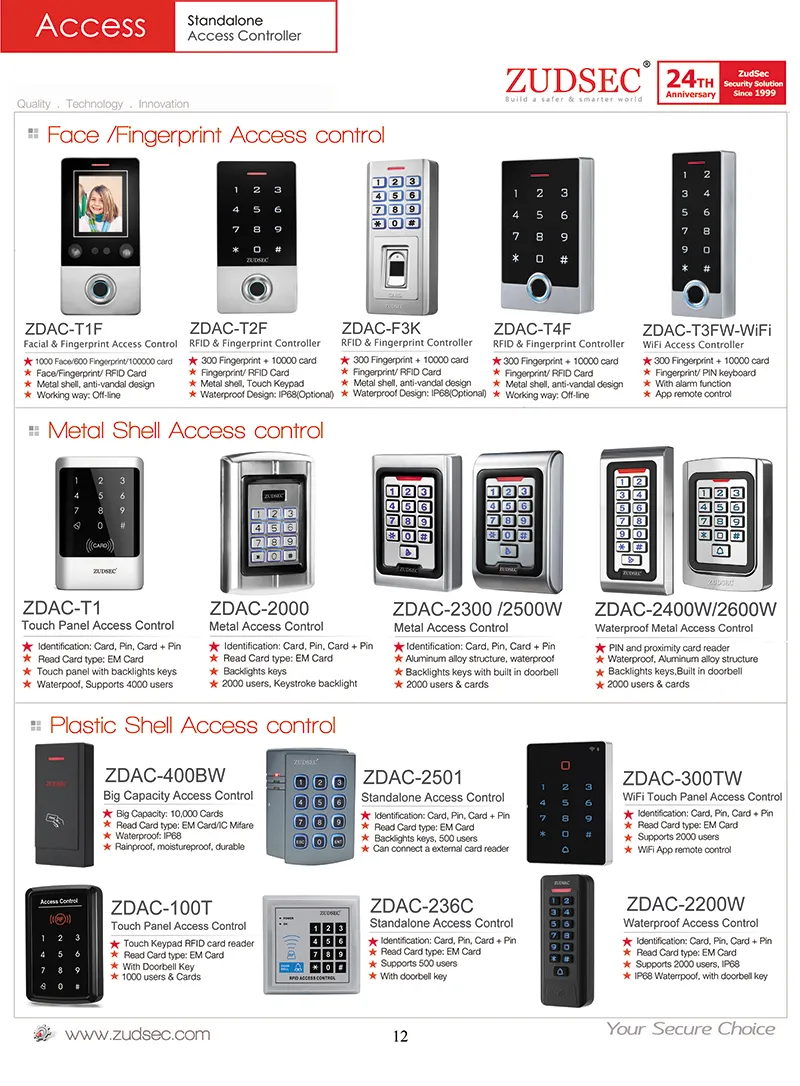

Related Products
Frequently Asked Questions
How many users can this system support?
This standalone access control system can support up to 4000 users.
Is the device suitable for outdoor installation?
Yes, it features a metal case and an IP68 waterproof design, making it suitable for various environments.
What types of cards are compatible with this reader?
It is primarily designed for 125kHz EM cards or EM compatible cards. IC card options are also available.
Does the keypad have a backlight for night use?
Yes, the touch panel features a backlit keyboard for easy operation in low-light conditions.
Can I connect an external doorbell to this system?
Yes, it has a built-in doorbell function and can be connected to any external doorbell.
What are the available access methods?
Users can gain access via Card only, Code only, or a combination of Card and Code.
