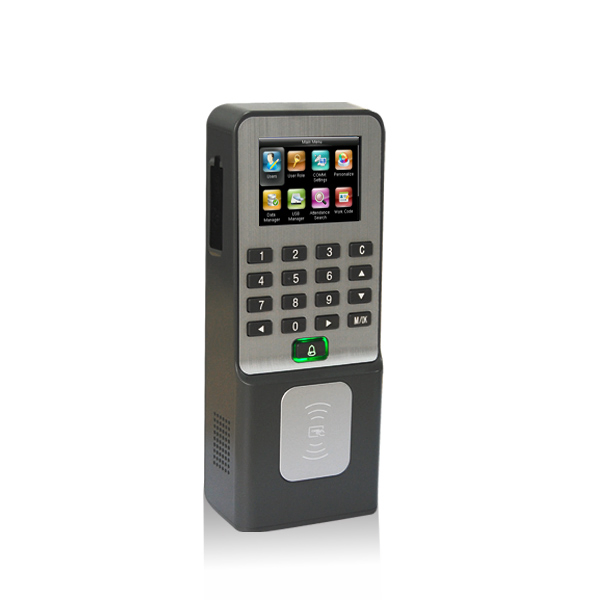

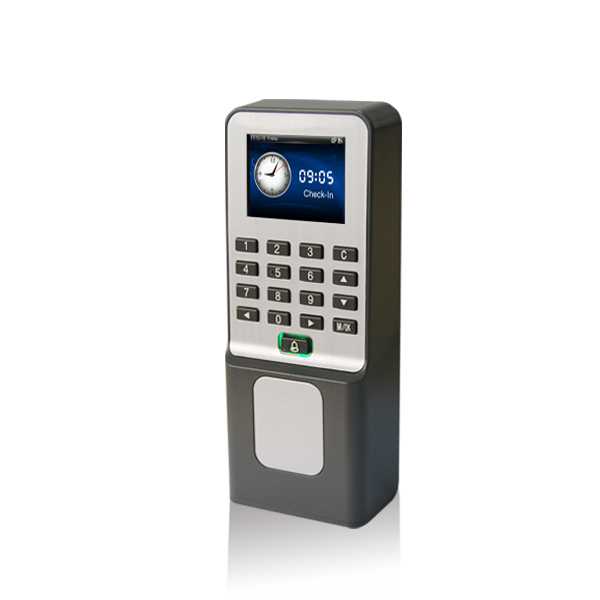

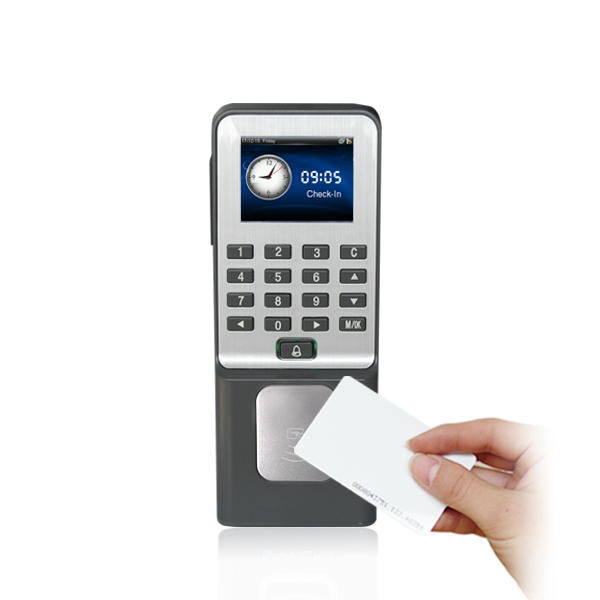

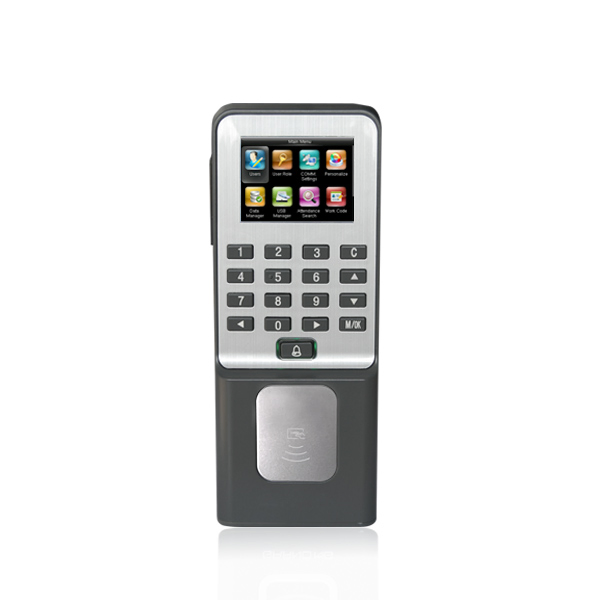

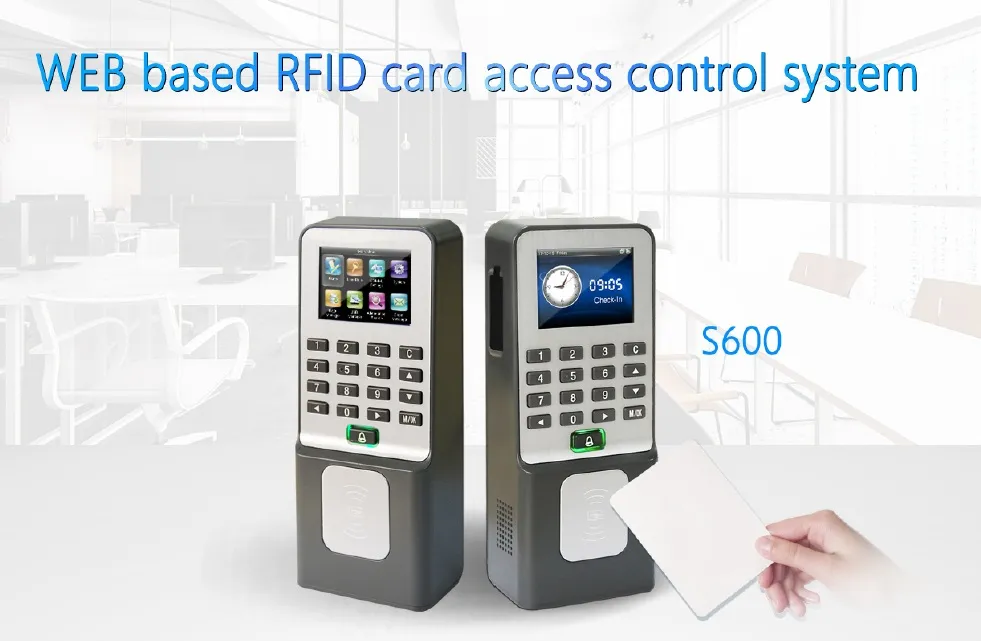

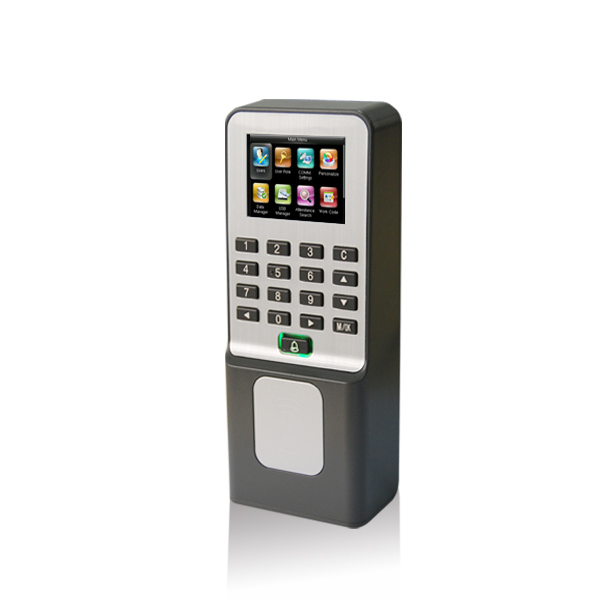

TCP/IP Web Based RFID Card Access Control System (S600)
Product Description
Basic Information
Model NO.
S600
Power Supply
110/220VAC ~ 12VDC (PS-3A Is Optional)
Attendance Status
Check in, Check out
Communications
TCP/IP RS232/485 USB Host Wiegand in/out
Usage
Access Controller, Access Machine
Data Reading
Card
Specification
CE, FCC, ROHS, ISO9001
HS Code
8543709990
S600 Biometric Access Control System
The S600 is a sophisticated biometric time attendance and access control system designed for high-efficiency user recognition and secure entrance management.
Key Features
◈
Composite algorithm system with high speed operating
◈
1 touch a-second user recognition
◈
Standalone or network environment support
◈
Professional access control system with real-time logs transferring
◈
24 hours continuous operation availability
◈
Support for 125Khz ID card and wired door bell connection
Technical Specifications
| Category | Details |
|---|---|
| Display | 2.4 TFT color LCD screen with Voice Prompt |
| Language | Multi-language (English, French, Spanish, Arabic, etc. 40+ choices) |
| Capacity | Card: 50,000 | Logs: 100,000 |
| Verification Speed | 1:1 ≤0.5s | 1:N ≤1s |
| Verification Accuracy | FRR ≤0.01% | FAR ≤0.0001% |
| Communication | TCP/IP, RS232/485, USB Host, Wiegand In/out |
| Access Control | Built-in relay, 50 time zones, 5 groups, 10 combinations |

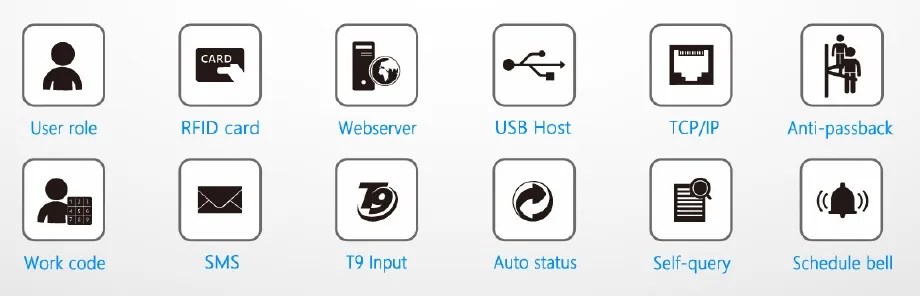

| Special Functions | Anti-pass back, SMS, Webserver, Work code, Scheduled bell |
| Dimensions | 185(L)*75(W)*40(H)mm |
Frequently Asked Questions (FAQ)
Q1: How many users and logs can the S600 system handle?
A1: The system supports up to 50,000 cards and can store up to 100,000 log records, making it ideal for medium to large organizations.
Q2: Does the device support real-time data tracking?

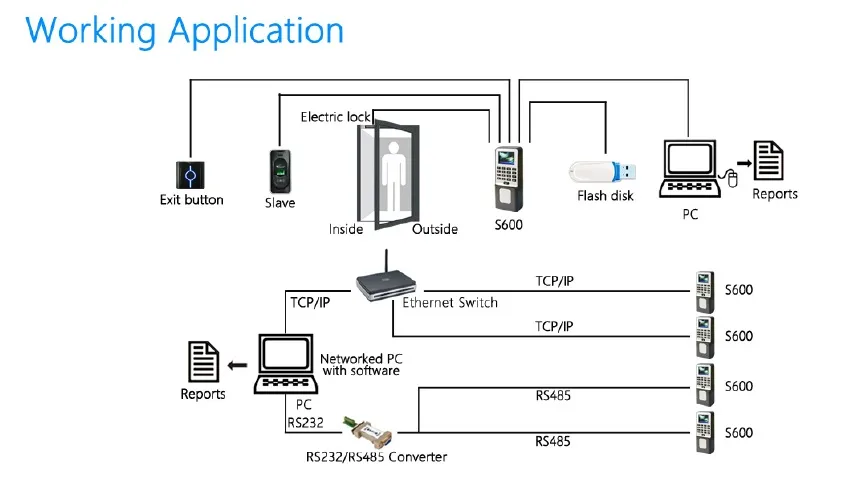

A2: Yes, the S600 supports real-time entrance logs transferring and can be integrated into a network environment via TCP/IP or RS232/485.
Q3: Is the S600 compatible with international languages?
A3: Absolutely. The device supports over 40 languages, including English, French, Spanish, and Arabic.
Q4: What type of RFID cards are compatible?
A4: It primarily supports 125Khz ID cards, with optional support for Mifare and HID readers.
Q5: Can it be used for professional access control?
A5: Yes, it includes professional features like 50 time zones, anti-passback, and built-in relay for direct door lock connection.
Q6: What are the power requirements for this model?
A6: The S600 operates on 110/220VAC ~ 12VDC, and an optional 3A power supply is available for enhanced stability.
