Em ID 125kHz or 13.56MHz Metal Standalone RFID Proximity Card RFID Vehicle Access Control System
Product Description
Basic Information
Model NO.
NT-120S-1 rfid vehicle access control system
Operating Voltage
12VDC
Current Drain
<90mA
Opening Mode
Card, Code, Card +Code
Lock Relay Output
No/Nc Output.
Programming
Through Keypad
Dimension
120*76*27mm
Gross Weight
0.40kg
HS Code
123456
Capacity
20000
Product Description

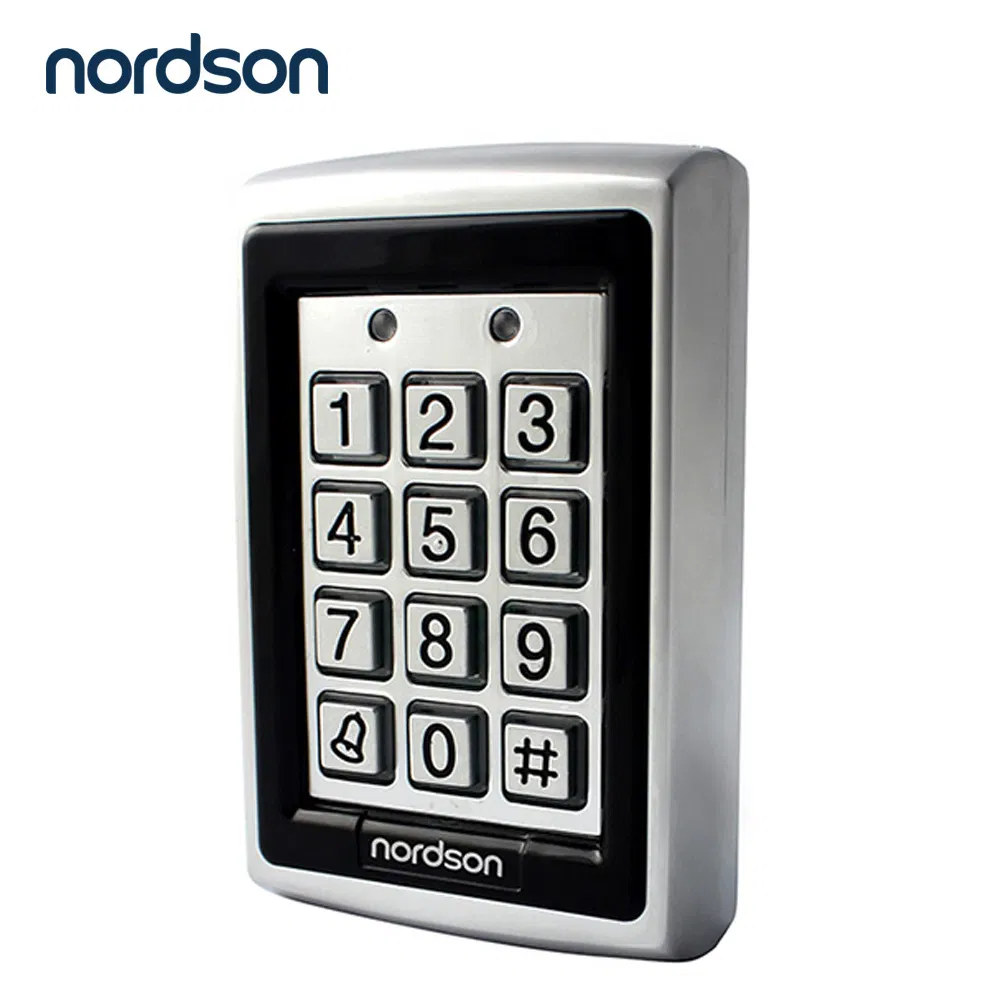

Em ID 125kHz or 13.56MHz Metal Standalone RFID Proximity Card
NT-120S waterproof metal emitting single door access one machine, for single door entrance, with card reader and keyboard input in one function, easy to install, easy to use, stable performance. Support Wiegand 26 protocol, can be used with a card reader. Built-in data memory, quickly identify proximity readers, with short circuit protection, safety interference, to meet a variety of automated office space, industrial and mining enterprises, government agencies, intelligence community, telecom base stations, and other public access entrance access control system application demand.
| EM-Marin Card format (125KHz) |
| Support up to 500 users/500 cards/4 digit PIN Code |
| 1n relay outputs |
| Operating Voltage: 12VDC |
| Current Drain: <90mA |
| Opening Mode: Card, Code, Card +Code |

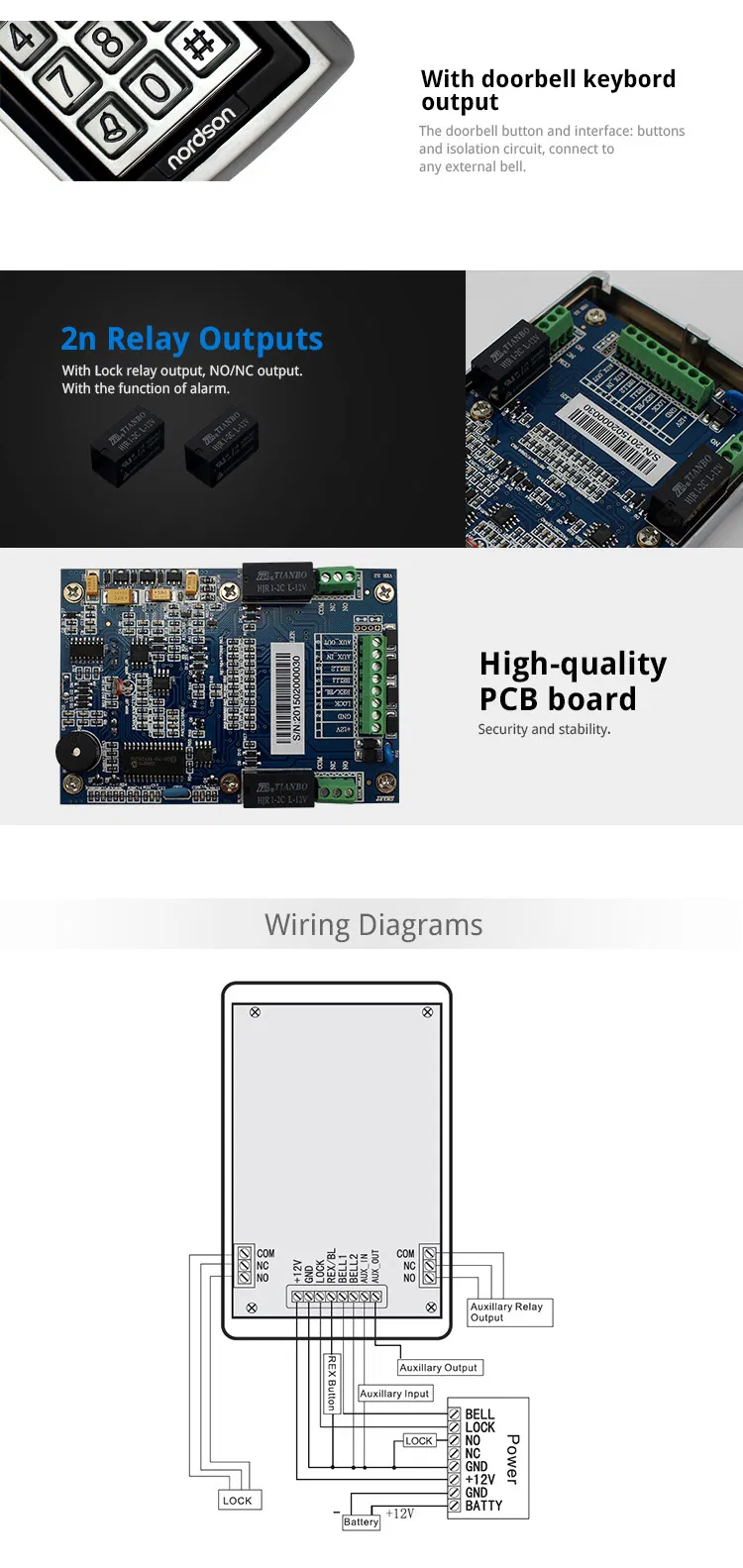

| With Lock relay output, NO/NC output. |
| Can be Connected with Door-open Button and Doorbell |
| Muti-function device, Support external wg26 card reader. |
| Programming through keypad |

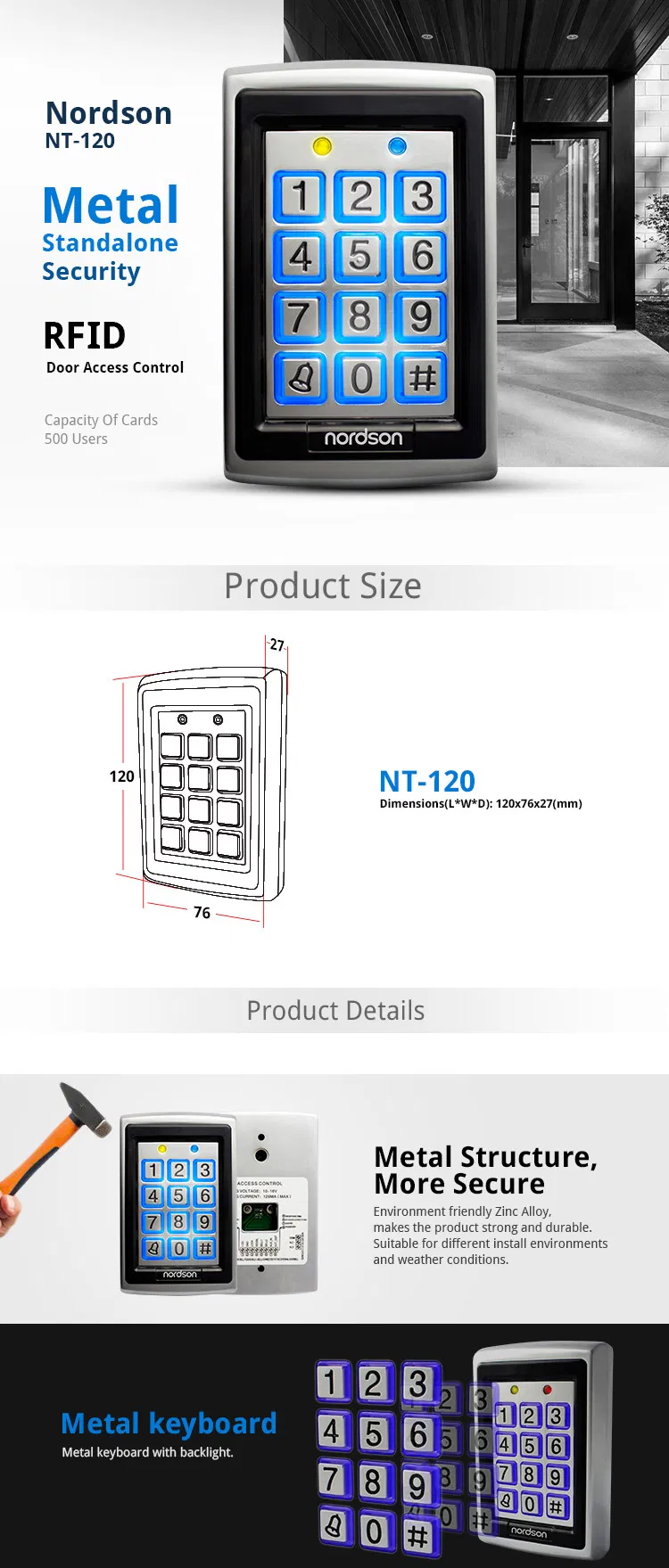

| Dimension: 120*76*27mm |
| Gross Weight: 0.40kg |
Packaging & Delivery
| Packaging Details: | Neutral package |
| Delivery Detail: | 3-5 days after received your remittance |
Frequently Asked Questions
What access modes does the NT-120S-1 support?
The system supports three opening modes: Card only, PIN Code only, or a combination of Card + PIN Code for enhanced security.
Is this access control system waterproof?
Yes, the NT-120S features a waterproof metal housing, making it suitable for various environments including industrial and public access areas.
How many users can the device store?
The device supports up to 500 users, 500 cards, and 4-digit PIN codes, with a production capacity of up to 20,000 units.
What is the required operating voltage?
The system operates on a standard 12VDC power supply with a low current drain of less than 90mA.
Can I connect an external card reader?
Yes, it is a multi-function device that supports the Wiegand 26 protocol, allowing connection to an external WG26 card reader.
How do I program the access control settings?
Programming is conveniently handled directly through the built-in keypad, requiring no complex external software for basic setup.
