Outswinging Waterproof Door RFID Access Control System with Keypad ID Card for Card Access System
Product Description
Technical Specifications
Model NO.
K10-R
IP Rating
IP66
Certification
CE
User Capacity
1000 Cards/Pins
Card Type
Em Card
Radio Frequency
125 KHz

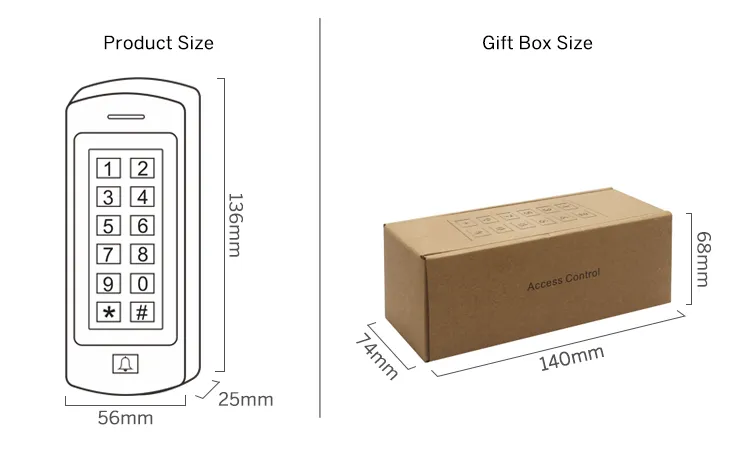

Dimensions
136L x 56W x 25H (mm)
HS Code
8543709990
Production Capacity
20000 pieces Per Month
Product Overview

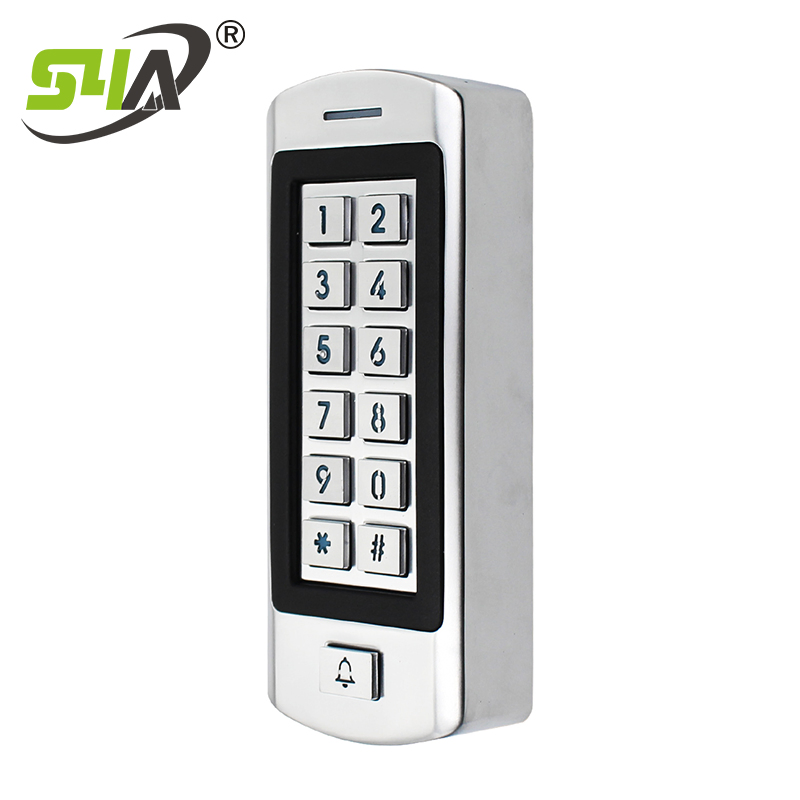

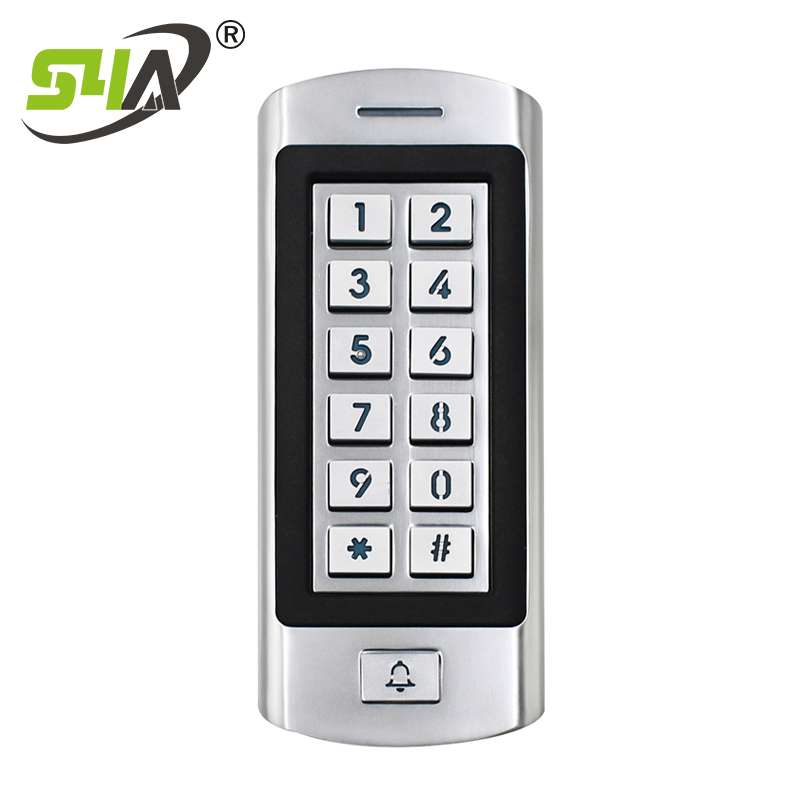

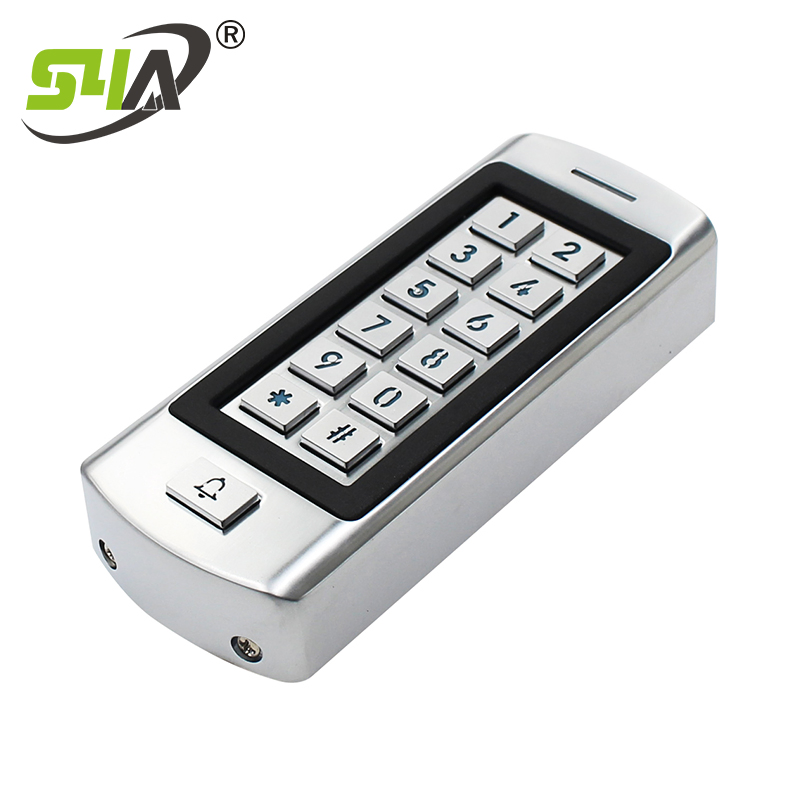

Outswinging Waterproof Door RFID Access Control System with Keypad ID Card
Model No.: K10-R EM with 2pcs Remote Control
What is an access control keypad?
Access control keypad locks offer basic access control capabilities. Typically programmed by visiting the door, these locks provide security using a keypad only. K10-R is a single entry standalone access control with an integrated keypad and card reader. It is easy to install and operate, featuring a doorbell and support for remote control door opening.
Access control keypad locks offer basic access control capabilities. Typically programmed by visiting the door, these locks provide security using a keypad only. K10-R is a single entry standalone access control with an integrated keypad and card reader. It is easy to install and operate, featuring a doorbell and support for remote control door opening.

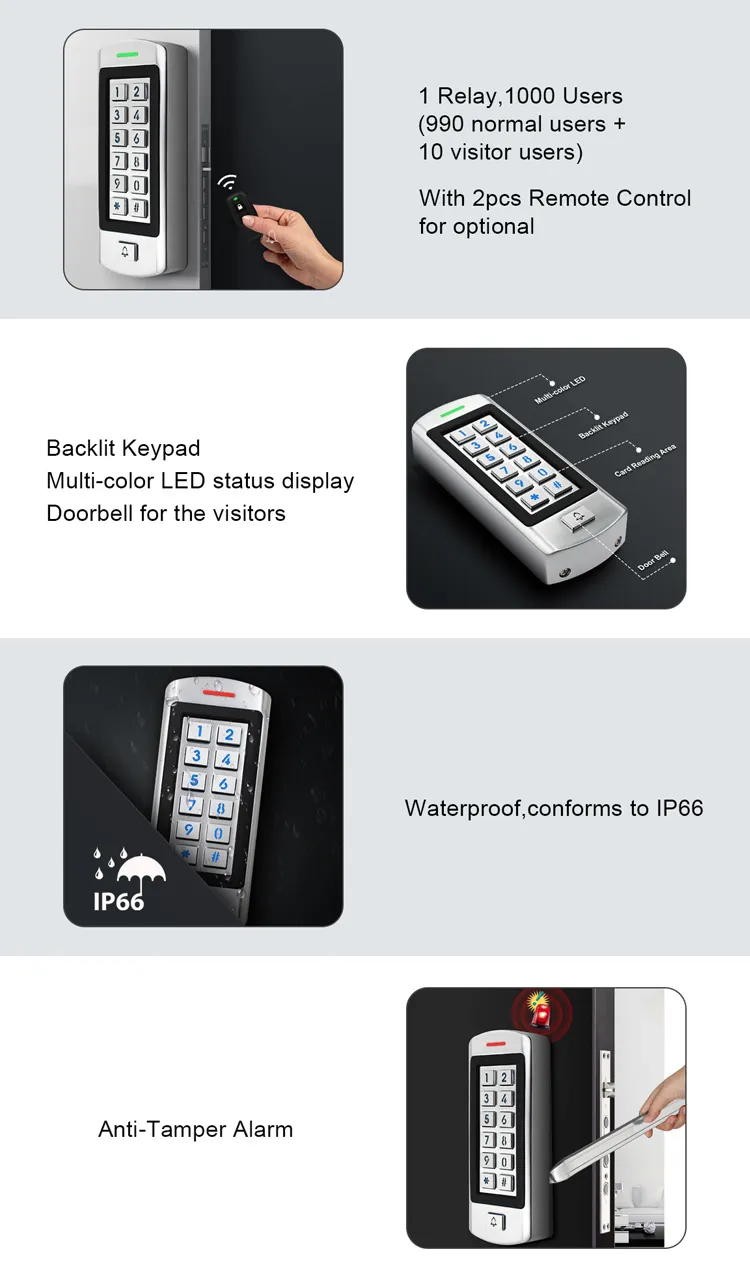

Key Features
- Metal case with backlit keypad
- Waterproof design (conforms to IP66)
- 1000 users (990 Normal + 10 Visitors)
- 3 modes: Card, PIN, Card + PIN
- Anti-tamper alarm system
- Integrated doorbell for visitors
- Remote control functionality
- Zinc-alloy enclosure with powder coat
Detailed Parameters
| Operating Voltage | 9~18V DC |
| Idle Current | 50mA |
| Active Current | 80mA |
| Keypad | 12 Key (2*6) |
| Proximity Card Reader | EM |
| Read Range | 2-6 cm |

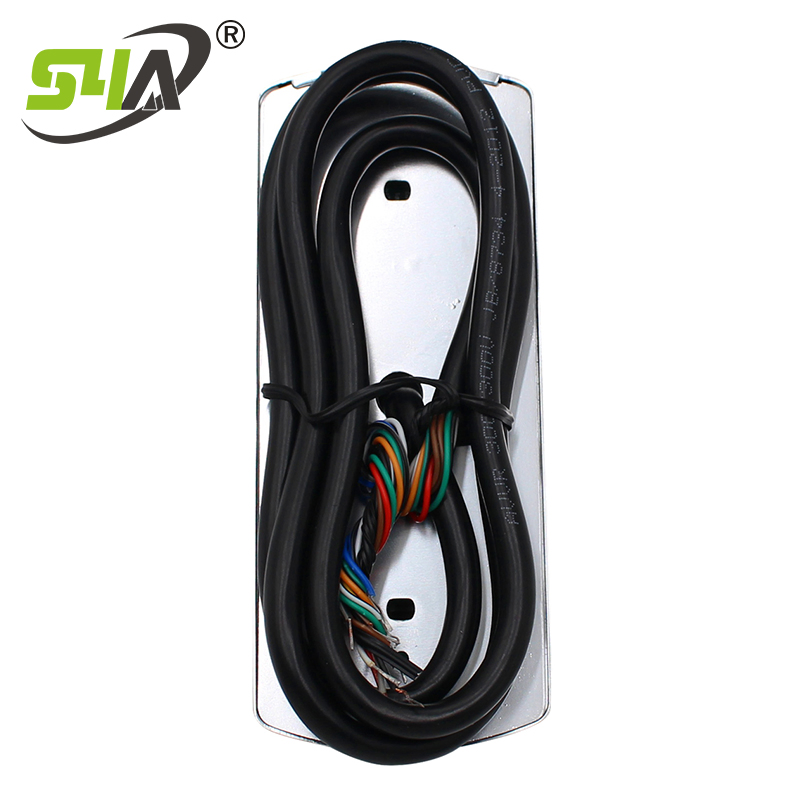

| Wiring Connections | Relay Output, Exit Button |
| Relay | One (NO, NC, Common) |
| Adjustable Relay Time | 0-99 Seconds (5s default) |
| Lock Output Load | 3 Amp Maximum |
| Operating Temperature | -40ºC ~ 60ºC (-40°F ~ 140°F) |
| Operating Humidity | 10%RH-90%RH Non-Condensing |
| Unit Weight | 490g |

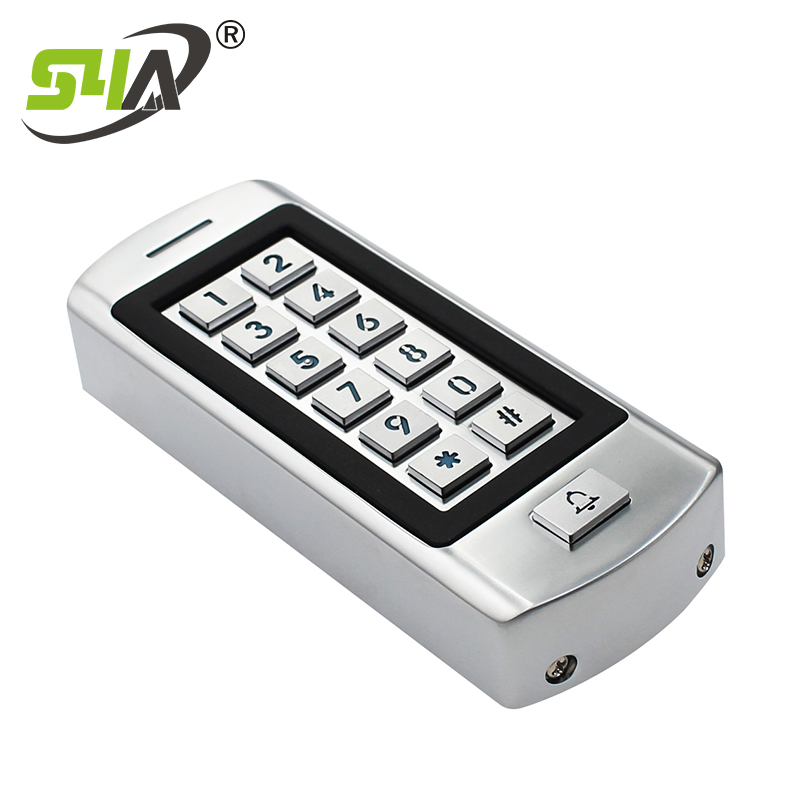

Product Display
Frequently Asked Questions
Is the K10-R access control system suitable for outdoor use?
Yes, it features a metal case and is waterproof, conforming to the IP66 standard, making it ideal for outdoor installations.
How many users can be registered on this device?
The system supports up to 1000 users, including 990 normal users and 10 visitor users.
What are the different ways to unlock the door?
There are 3 access modes: using an EM Card, entering a 4-6 digit PIN, or a combination of both Card + PIN.
Does the system come with a remote control?
Yes, this model includes 2 remote controls for convenient wireless door opening.
What is the operating temperature range?
The device is designed to operate in extreme conditions ranging from -40ºC to 60ºC (-40°F to 140°F).
What card type is compatible with the reader?
The built-in proximity reader is compatible with 125KHz EM industry-standard cards.
