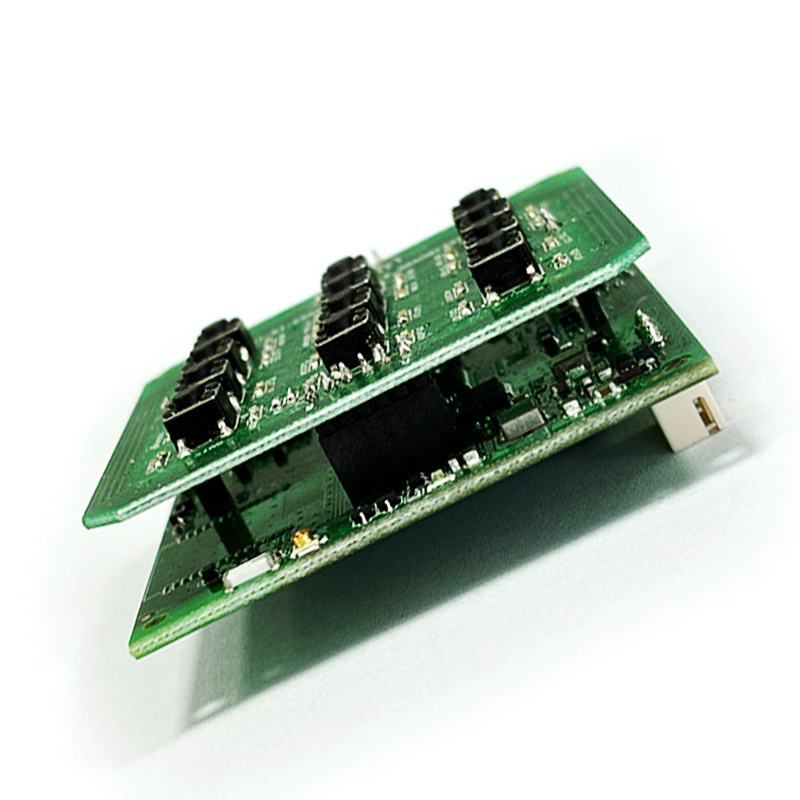

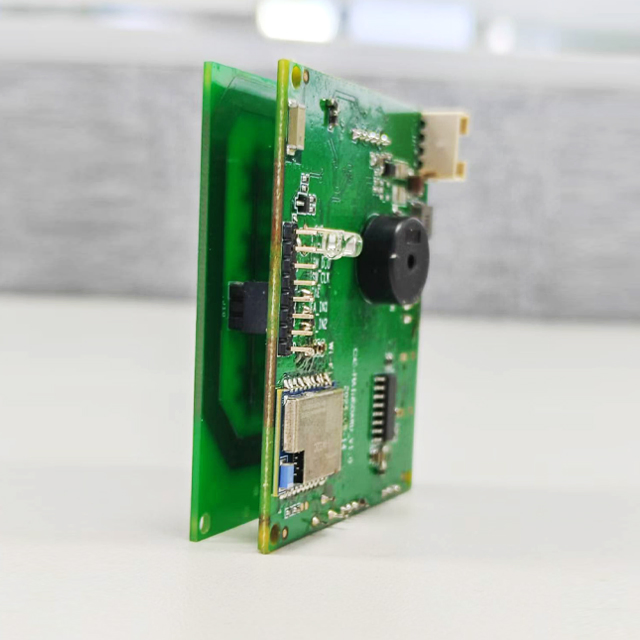

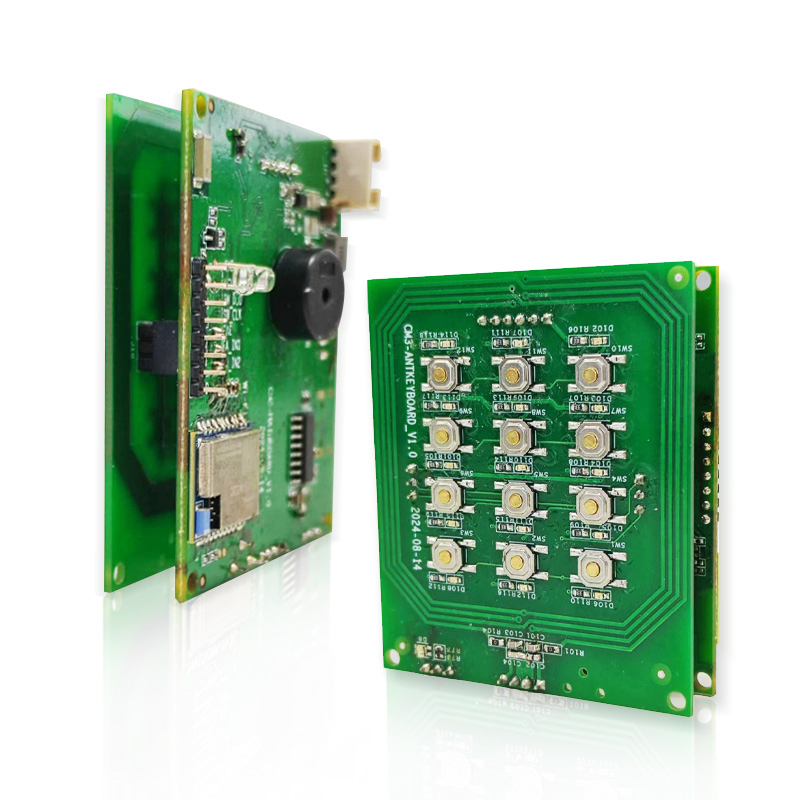

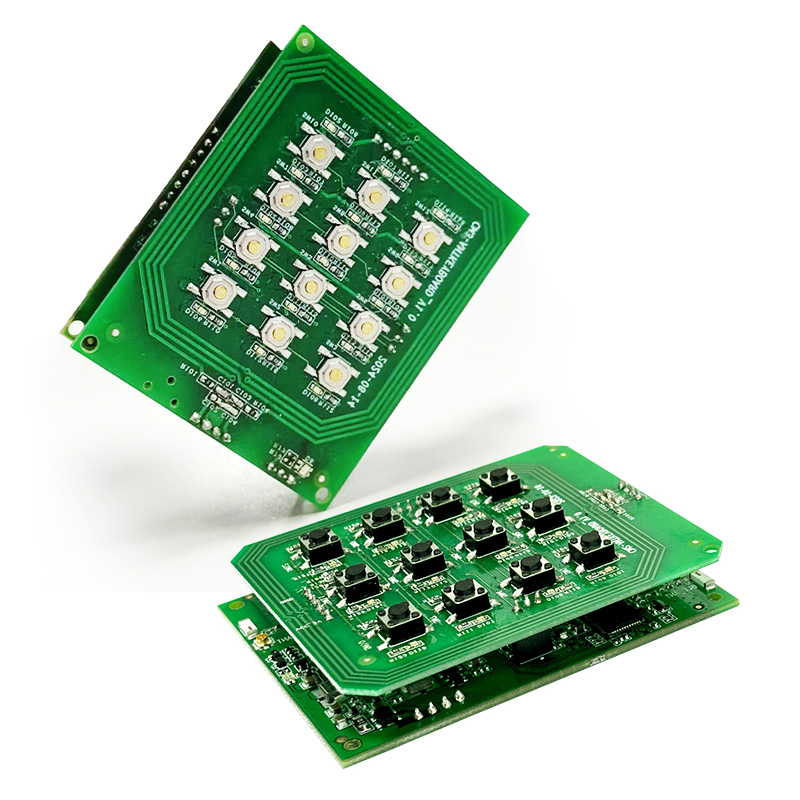

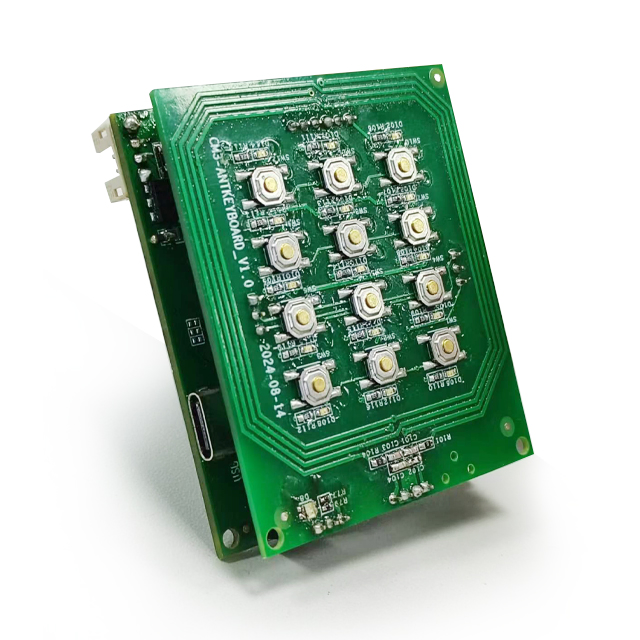

Wireless Door Access Control Smart Building Access Control Multiple Door Access Control System
Product Description
Model NO.
CM3
Material
Aluminum Alloy
Type
Combination Lock
Style
European
Shape
Mortise Door Lock
Anti-theft Standard
A
Backset
70mm
Power
3V, 4 * Battery
Origin
China
Production Capacity
1000PCS/Month

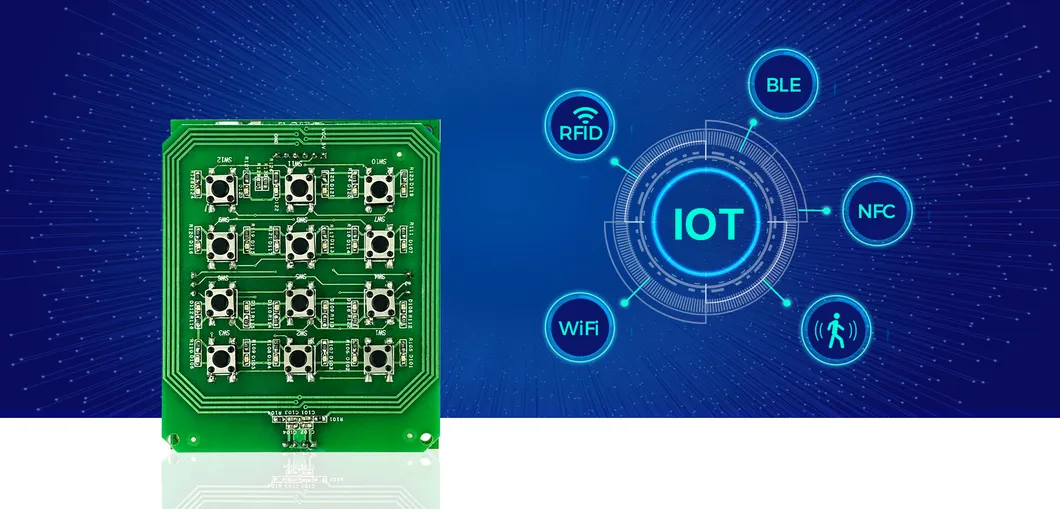

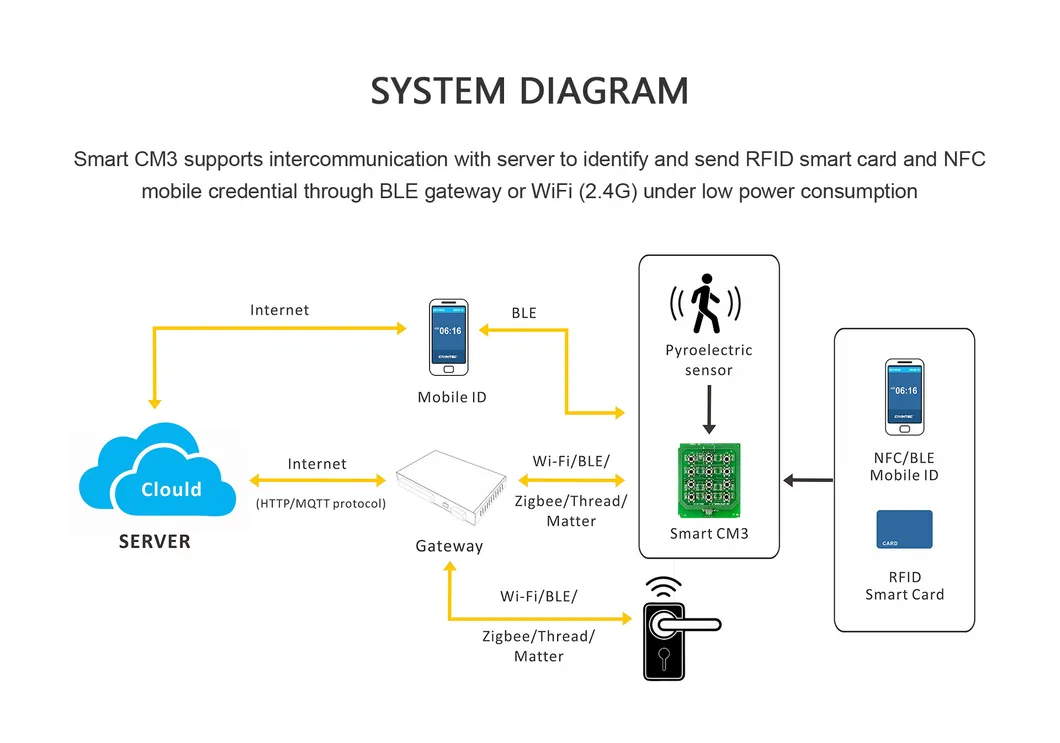

Smart CM3 is the new generation of BLE 5.4 wireless high-performance multi technology platform. It provides an ultra-low battery-operated power consumption design, which contain the latest wireless interfacing and multiple identification technologies for customized design of access control, wireless electric lock, canteen management, asset tracking and different handheld applications.
Smart CM3 supports almost all RFID 13.56MHz contactless technologies, including desfire EV1/EV2/EV3. It also supports NFC and BLE Mobile credentials for mobile application. Together with supporting Arm® TrustZone® and securable I/Os features, it meet the high security application.
Smart CM3 supports almost all RFID 13.56MHz contactless technologies, including desfire EV1/EV2/EV3. It also supports NFC and BLE Mobile credentials for mobile application. Together with supporting Arm® TrustZone® and securable I/Os features, it meet the high security application.

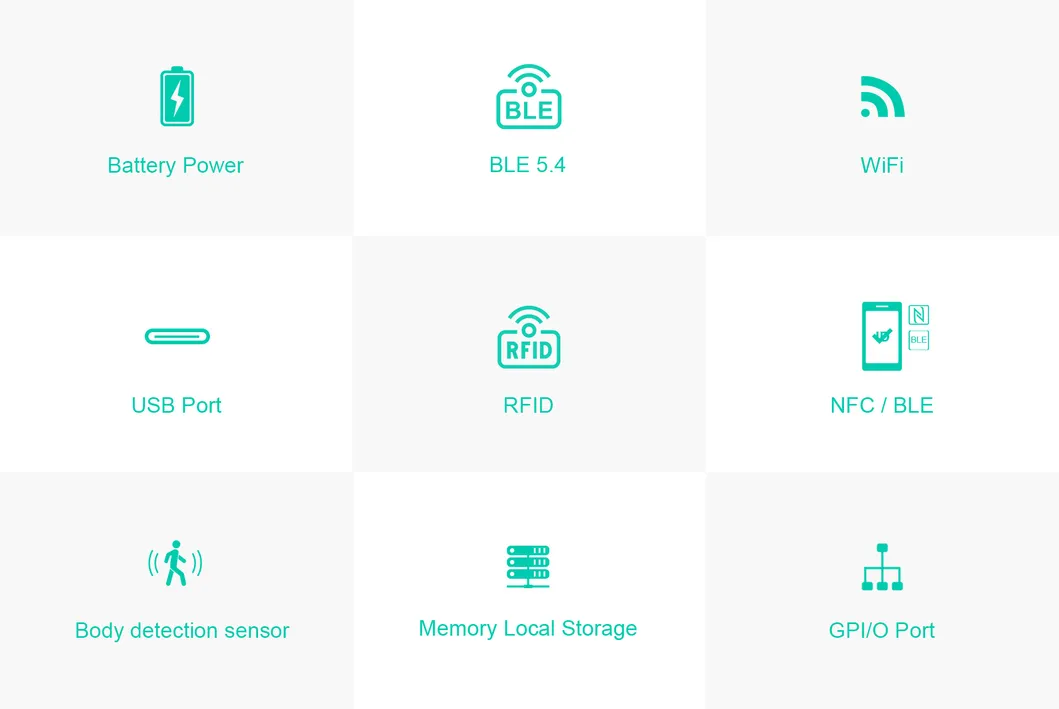

- Support 13.56MHz Desfire EV1/EV2/EV3 and NFC
- Support Arm® TrustZone® for high security
- Rich I/O port for electric lock control
- With memory for local data storage
- Economic solution for battery powered ultra-low power consumption reader
- Supports BLE 5.4 Zigbee, Thread/Matter/MQTT protocol
- Embedded software development
- With Body detection function
| Memory | 4M BYTE |
| Power Supply | - USB - 3V / 4 * battery |
| RFID Standards & Cards | 13.56MHz ISO14443A, ISO15693 and ISO18092 standard - Mifare Classic CSN & Sector - DESfire EV1/EV2/EV3(2k/4k/8k) CSN & Sector - Ultralight/Ultralight C CSN & Sector - Mifare plus S,X CSN & Sector - NFC tag - HID iCLASS CSN |
| Secure Interface | - Optional SAM slot ISO7816 T=0, T=1 - Support SAM AV2 for 13.56MHz read/write EAL5+ encryption - Secure IC for MCU communication protection EAL5+ Level |
| Mobile Communication | - NFC mobile phone - BLE 5.3 |
| Keypad | 12 digit mechanical keypad |
| Interfaces | - WiFi - BLE 5.3 (Master & Slave mode, Beacon, Thread, Zigbee, Mesh) - USB |
| Operating Temp | -20ºC ~ 60ºC |
What types of RFID cards are compatible with the CM3?
The CM3 supports a wide range of 13.56MHz technologies including Mifare Classic, DESfire EV1/EV2/EV3, Ultralight, Mifare Plus, NFC tags, and HID iCLASS CSN.
Does this device support mobile phone access?
Yes, it supports both NFC mobile phone communication and BLE 5.3 for mobile credentials.
What is the power requirement for the CM3?
The device is designed for ultra-low power consumption and can be powered by either a USB connection or a 3V battery setup (4 * batteries).
How secure is the wireless communication?
It features high-level security with support for Arm® TrustZone®, optional SAM slot (ISO7816), and Secure IC for MCU communication protection at EAL5+ level.
Can the CM3 be used in outdoor environments?
The device has an operating temperature range of -20ºC to 60ºC, making it suitable for various indoor and protected outdoor environments.
What wireless protocols are supported for integration?
It supports multiple protocols including WiFi, BLE 5.3 (Master & Slave, Beacon), Zigbee, Thread, and Mesh.
