Smart Home and Building Automation Knx Control Panel System
Product Description
Basic Information
Product and Function Overview
The control panel is mainly used in building control systems, installed together with other devices on the bus to form a system, and its functions are simple and intuitive to operate. Users can plan and systematically execute these functions according to their own needs.
The control panel can be used to control switches, dimming, blinds, etc. Each channel on the panel includes buttons and LED indicator lights. It is a standard 86 bottom box installation device with 1-4 or 1-8 button outputs. Connect to the EIB/KNX system via the EIB bus and use the engineering design tool software ETS (version ETS4 or above) to allocate physical and group addresses.

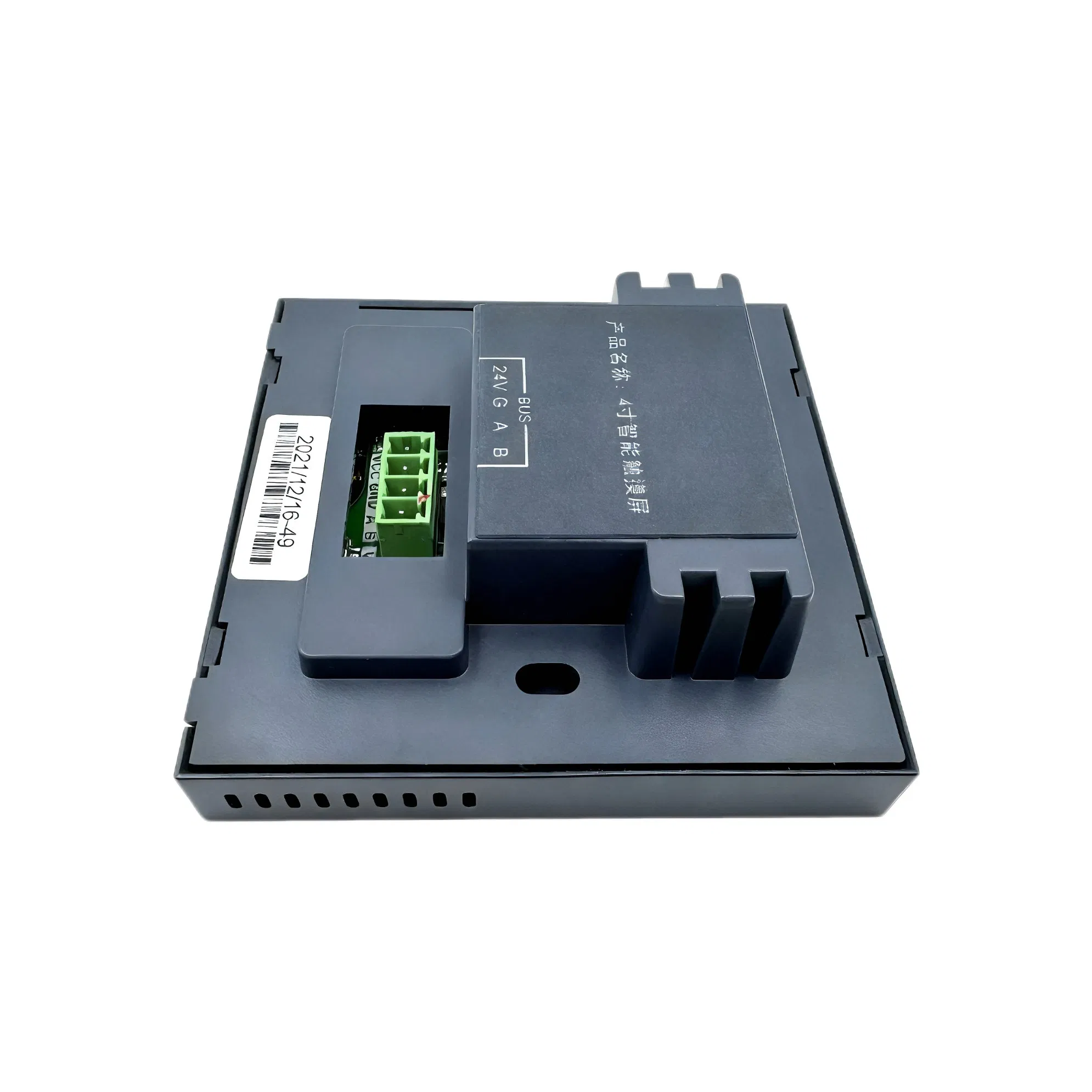

The control panel is directly connected to the bus through wiring terminals and requires 24VDC auxiliary power supply. Each channel of the panel can utilize the various functions described and is independent of each other.
Function Description
- Switching lighting, curtain opening/closing, and projection screen lifting with long/short press functions.
- Dimming device control with relative and absolute dimming output functions.
- 8-bit scene control and call pre-set scene functions.
- LED indicator function with multiple display states (normally on, off, flashing).
- LED interlocking grouping and LED brightness adjustment function.
- Status and backlight LEDs with brightness wake-up and delayed extinguishing functions.
Detailed Parameters
| Bus Voltage | 21-30 VDC, KNX bus power supply |
| Bus Current | ≤12mA |
| Bus Power | <360mW |
| Shell Material | Metal+ABS+PC |
| Size (Hx W xD) | 86X86X33 mm |
| Weight | Approx. 0.1kg |
| Operation Temp. | -5℃ to +45℃ |
| Relative Humidity | Max 90% |
| Auxiliary Voltage | 24VDC |
| Auxiliary Current | ≤27.5mA |

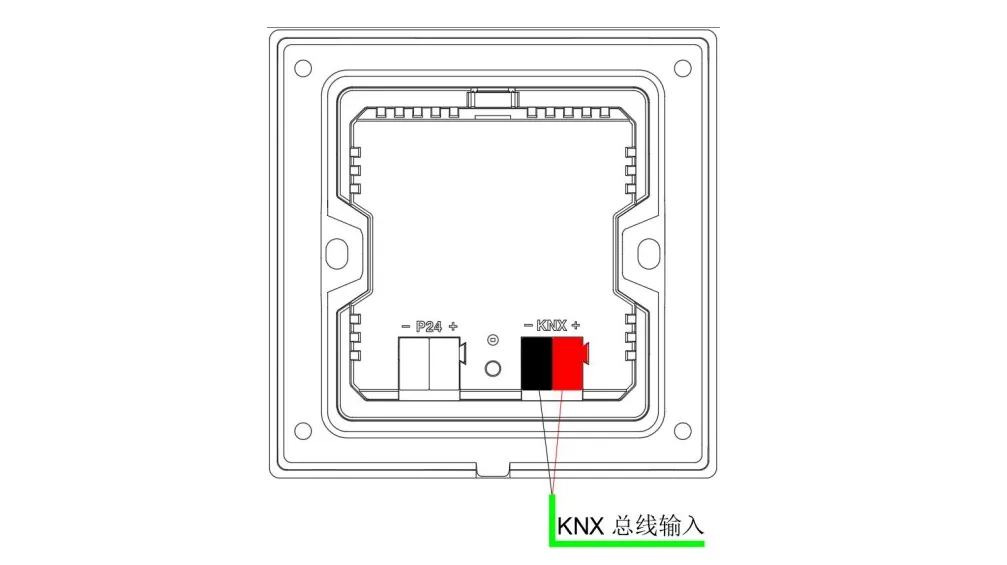

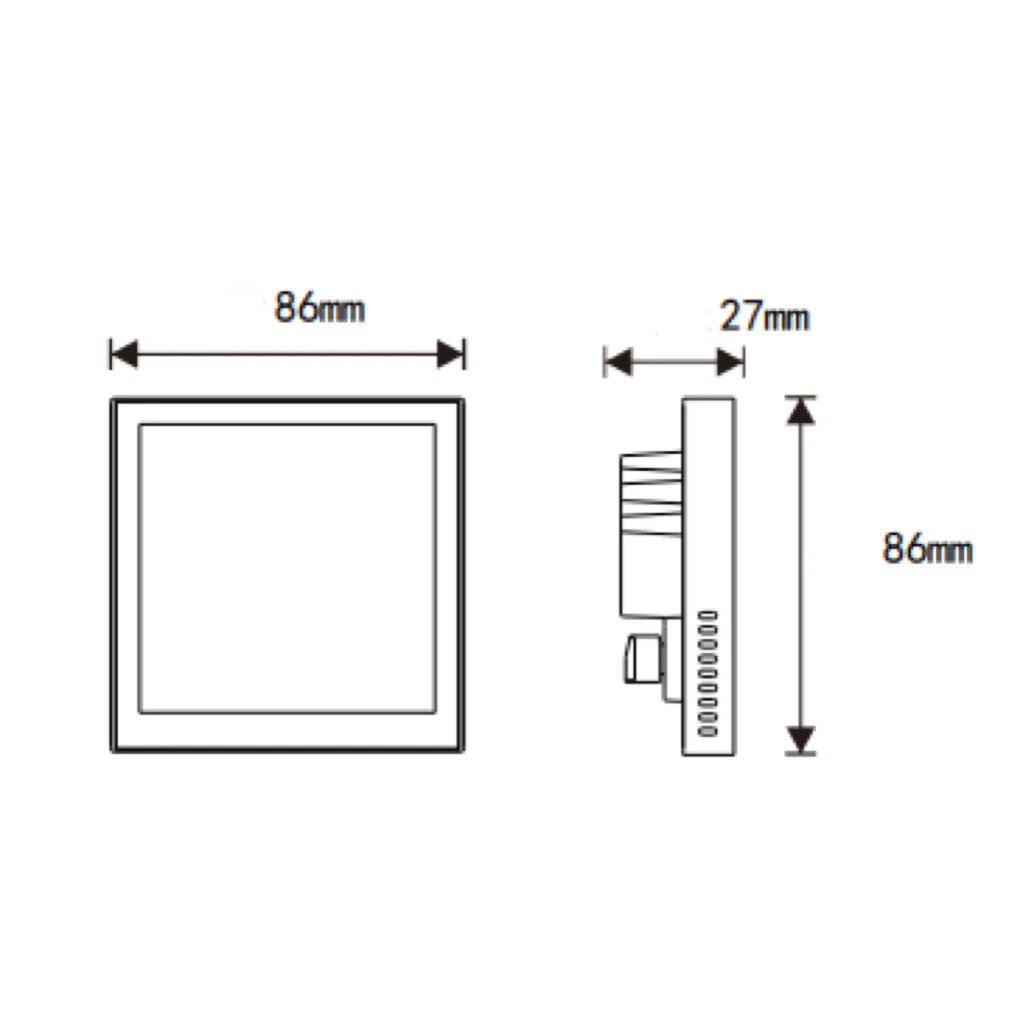

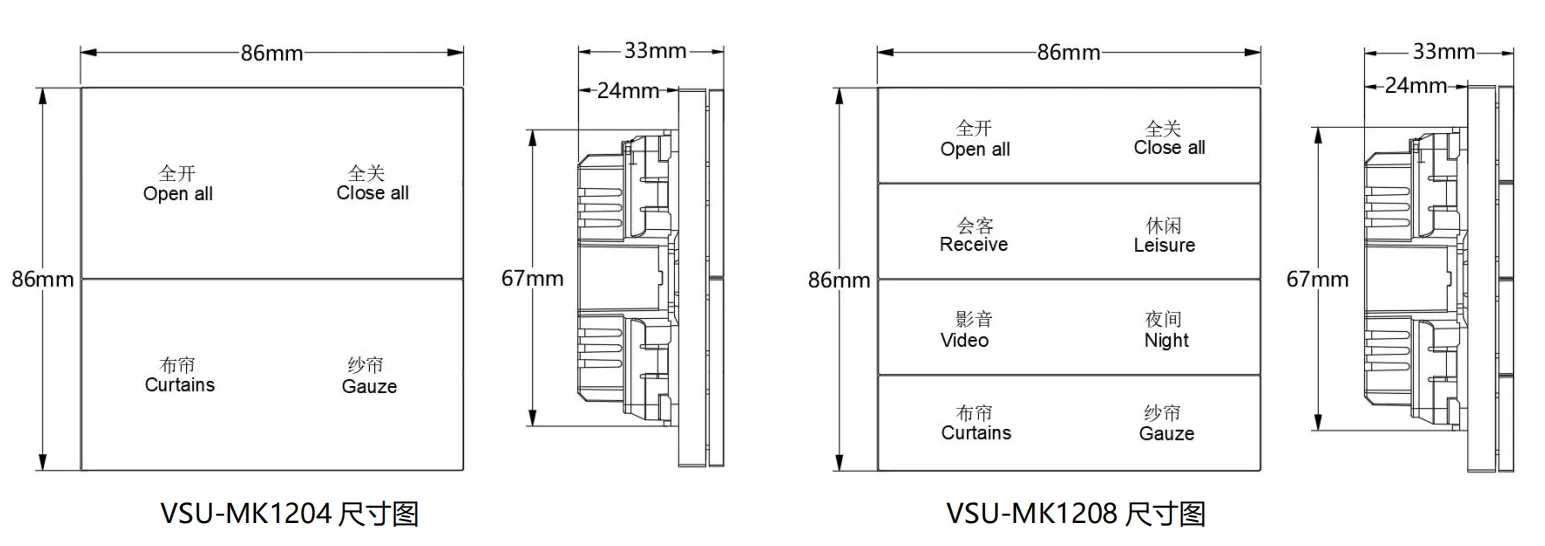

Dimensional and Wiring Diagrams

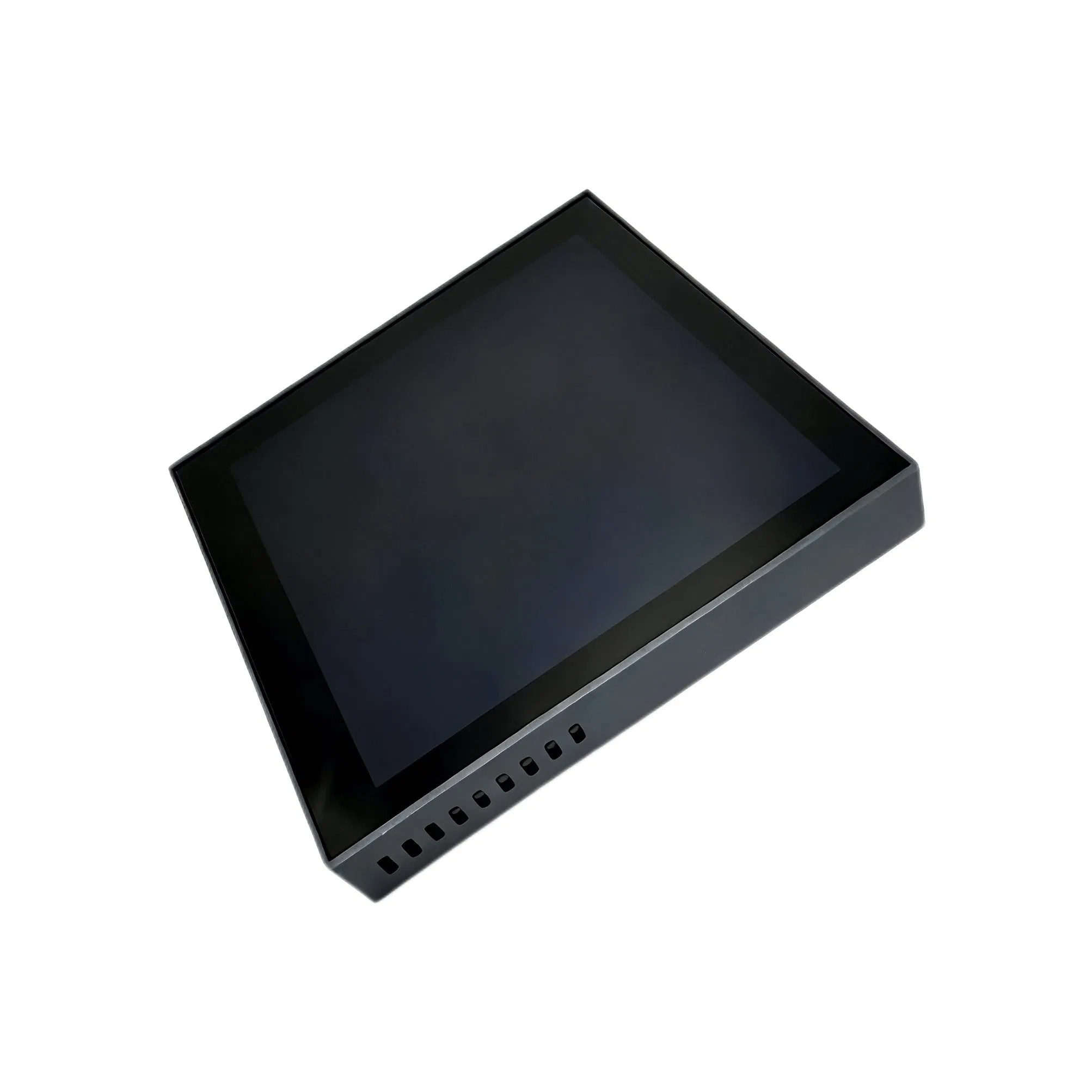

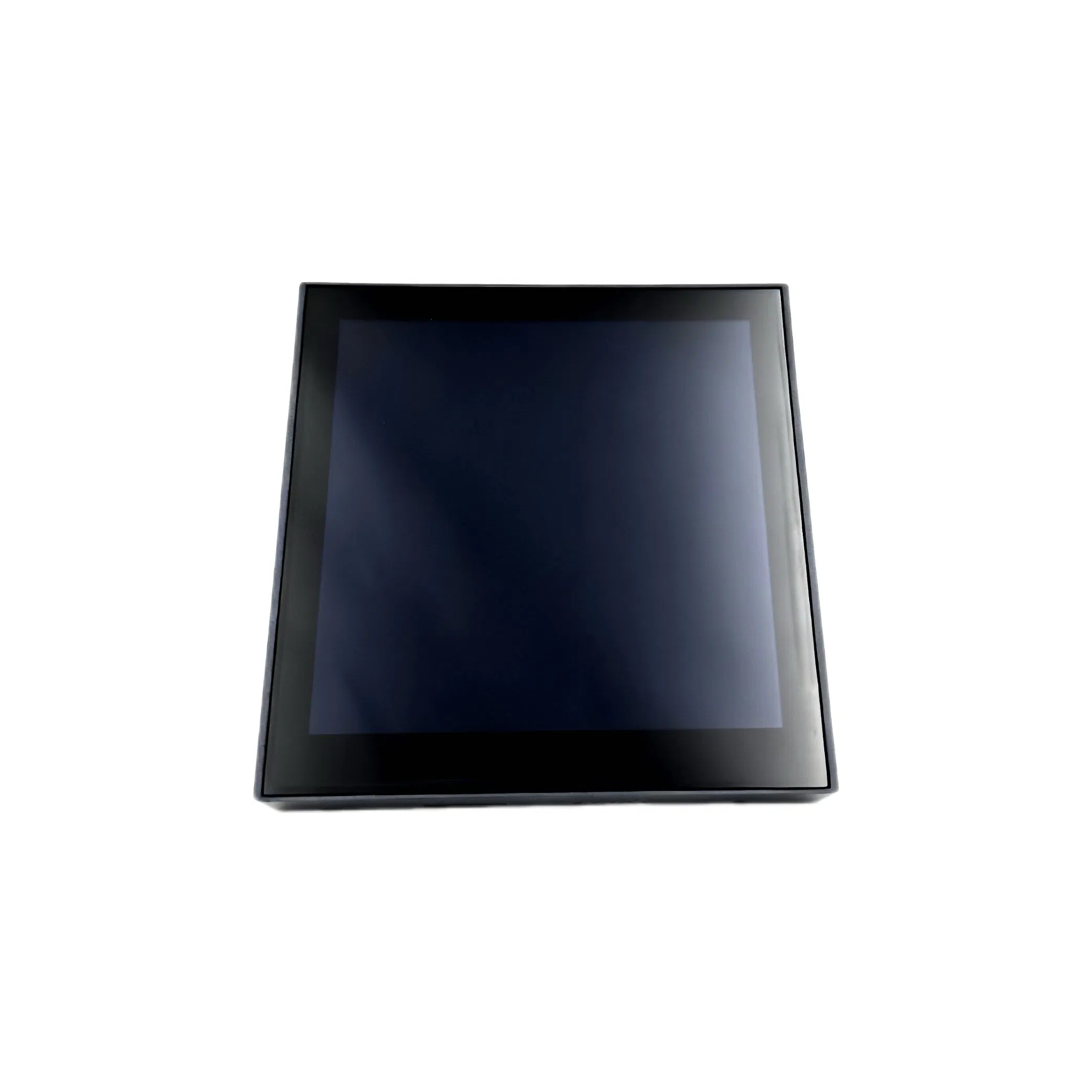

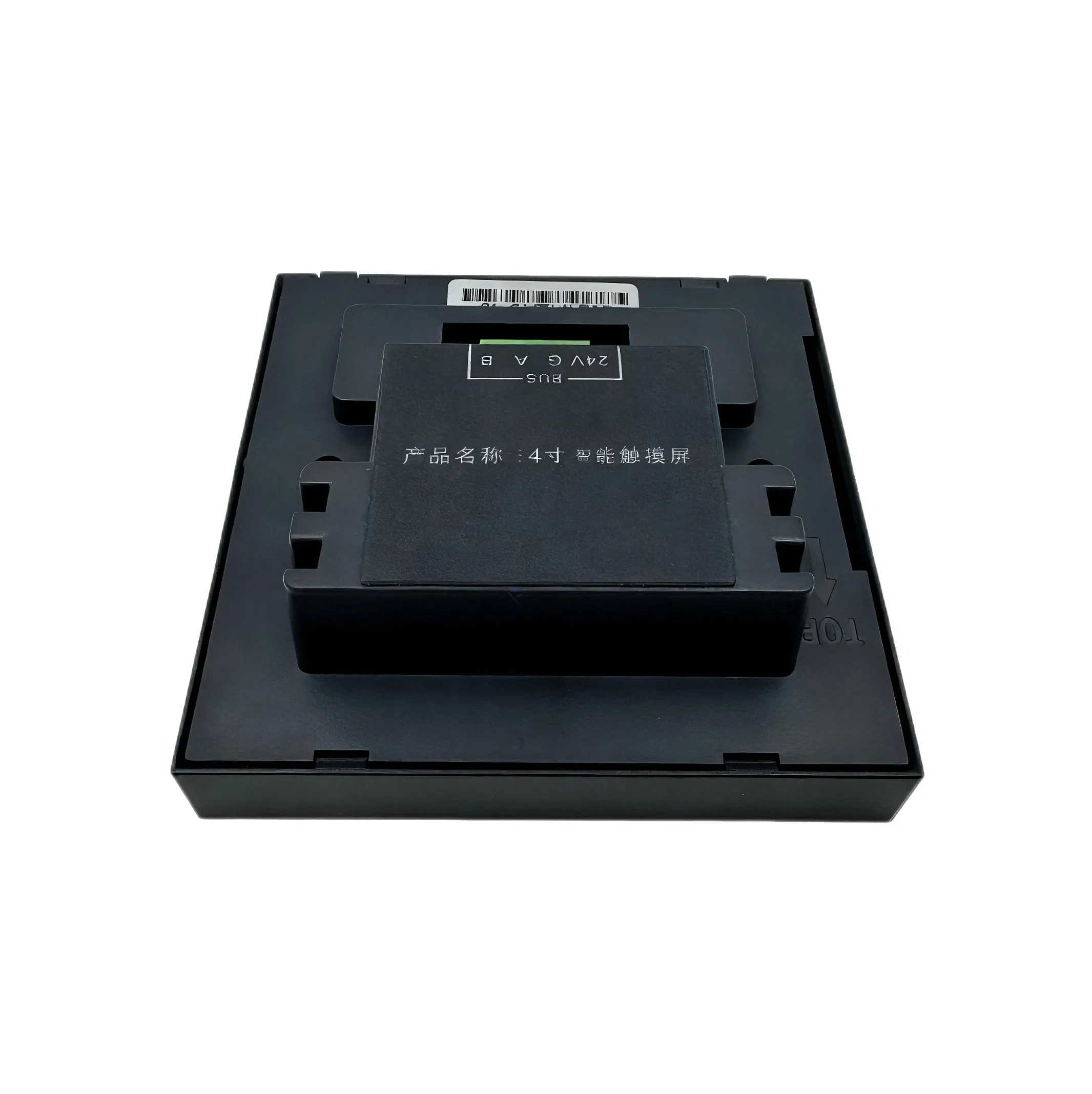

Product Gallery
