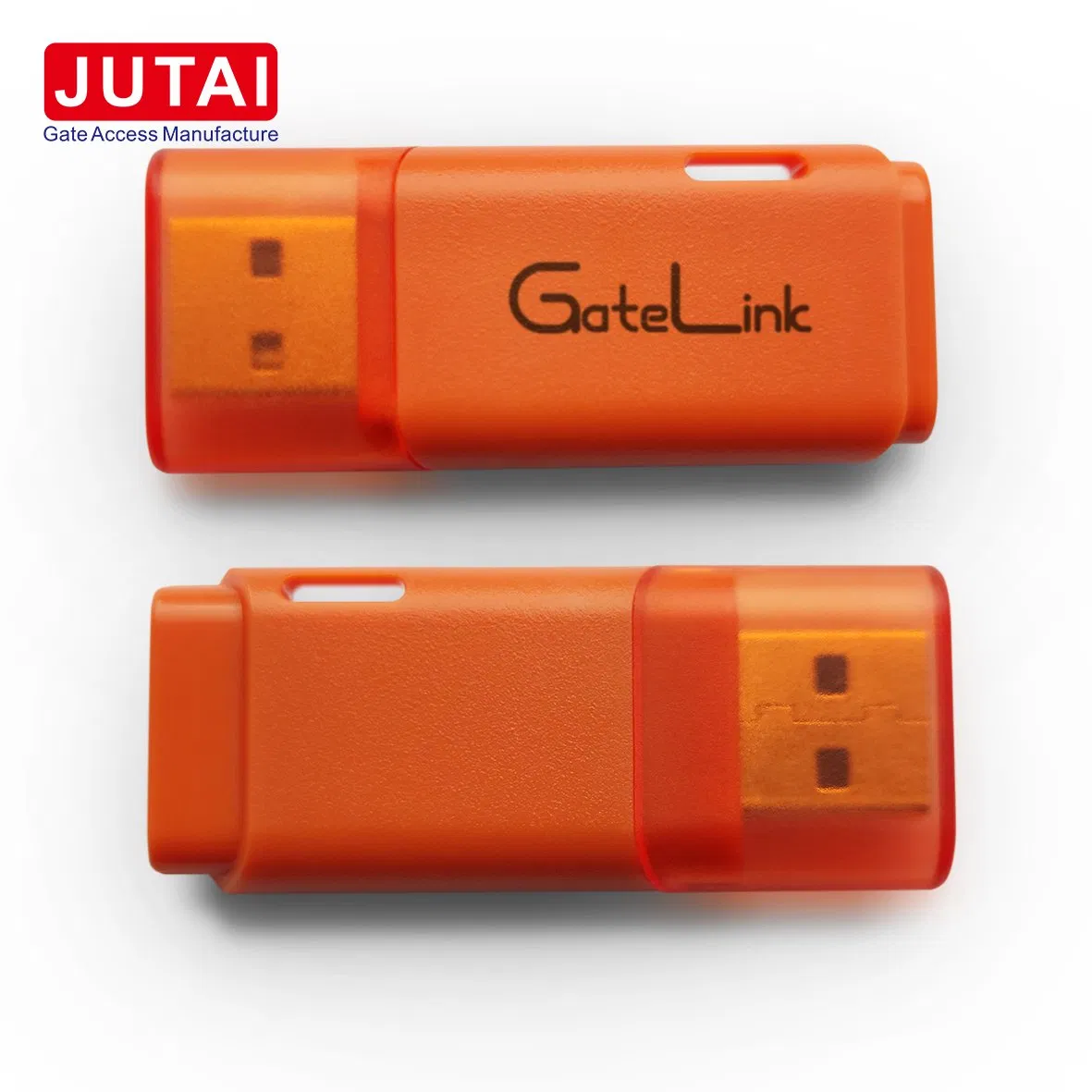

Security System Automatic Swing Gate Opener Smart WiFi Automatic Gate Opener
Product Description
Basic Specifications
Product Introduction

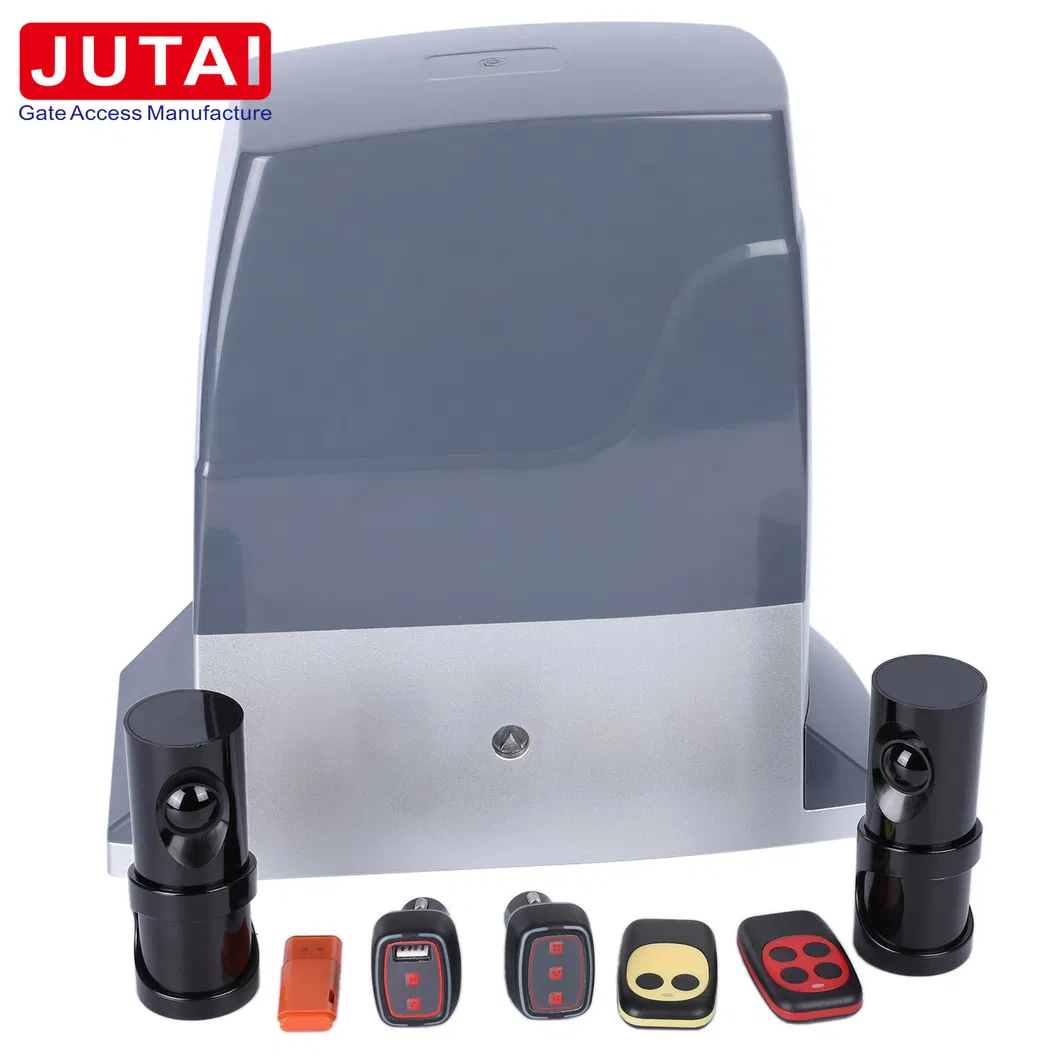

The SDM-10G32/SDM-20G32 Encryption Sliding Gate Motor is an intelligent solution designed for easy installation and configuration. Featuring a one-button learning control board with an advanced microcomputer chip, it offers digital control, enhanced safety, and practical functionality. It is fully compatible with smartphone networks (WiFi/3G/4G/5G) and Bluetooth control.
Key Features
- Anti-rush Design: Motor runs in slow motion during the first operation after power-on to prevent limit overruns.
- Master-slave Mode: Synchronize two motors for seamless operation of infrared and ground sensors.
- Runtime Protection: Automatically learns motor running time with a 10s safety margin.
- Auto-close Function: Adjustable timer from 1s to 250s for automatic closing.
- Soft Start & Slow Stop: Adjustable speed and distance for smooth gate movement.
- Resistance Rebound: Switchable stop or rebound settings when encountering obstacles.

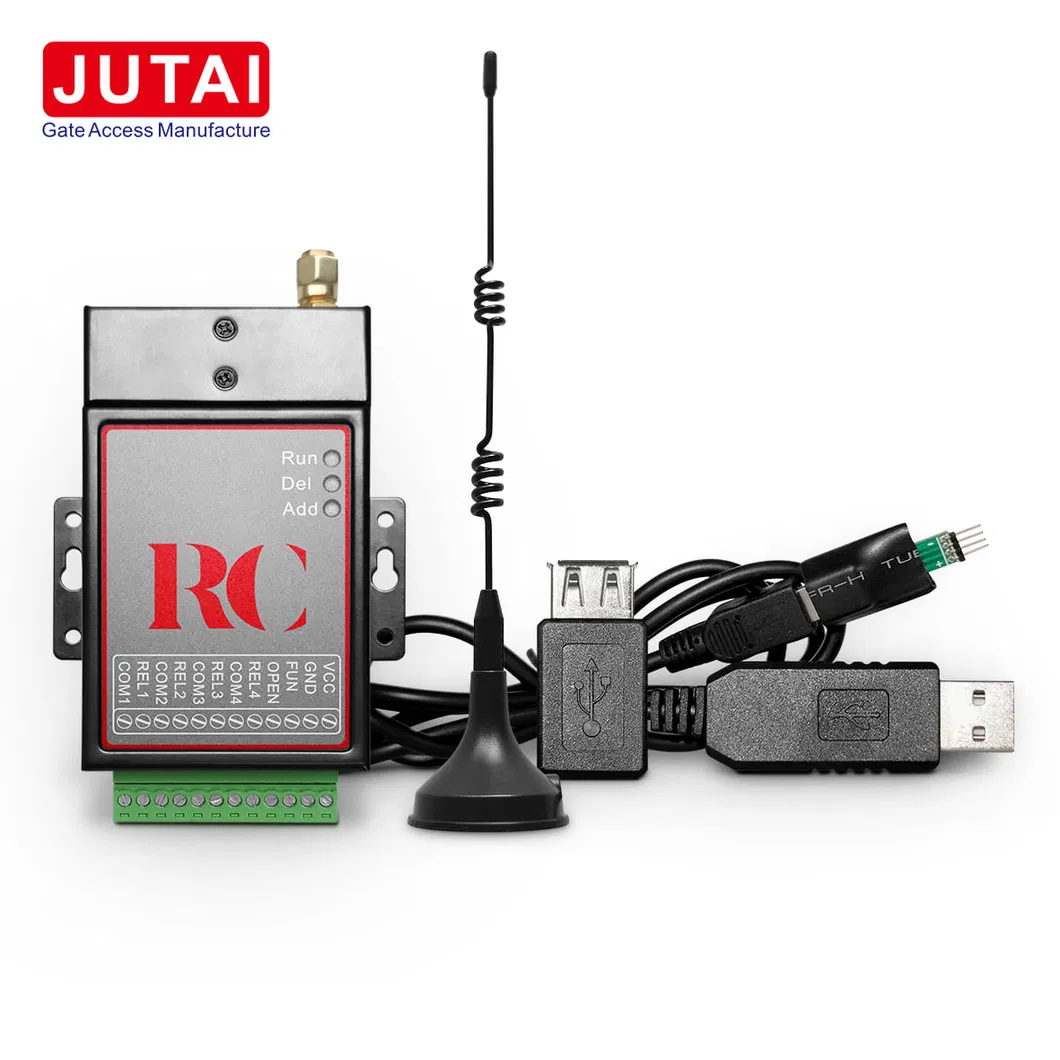

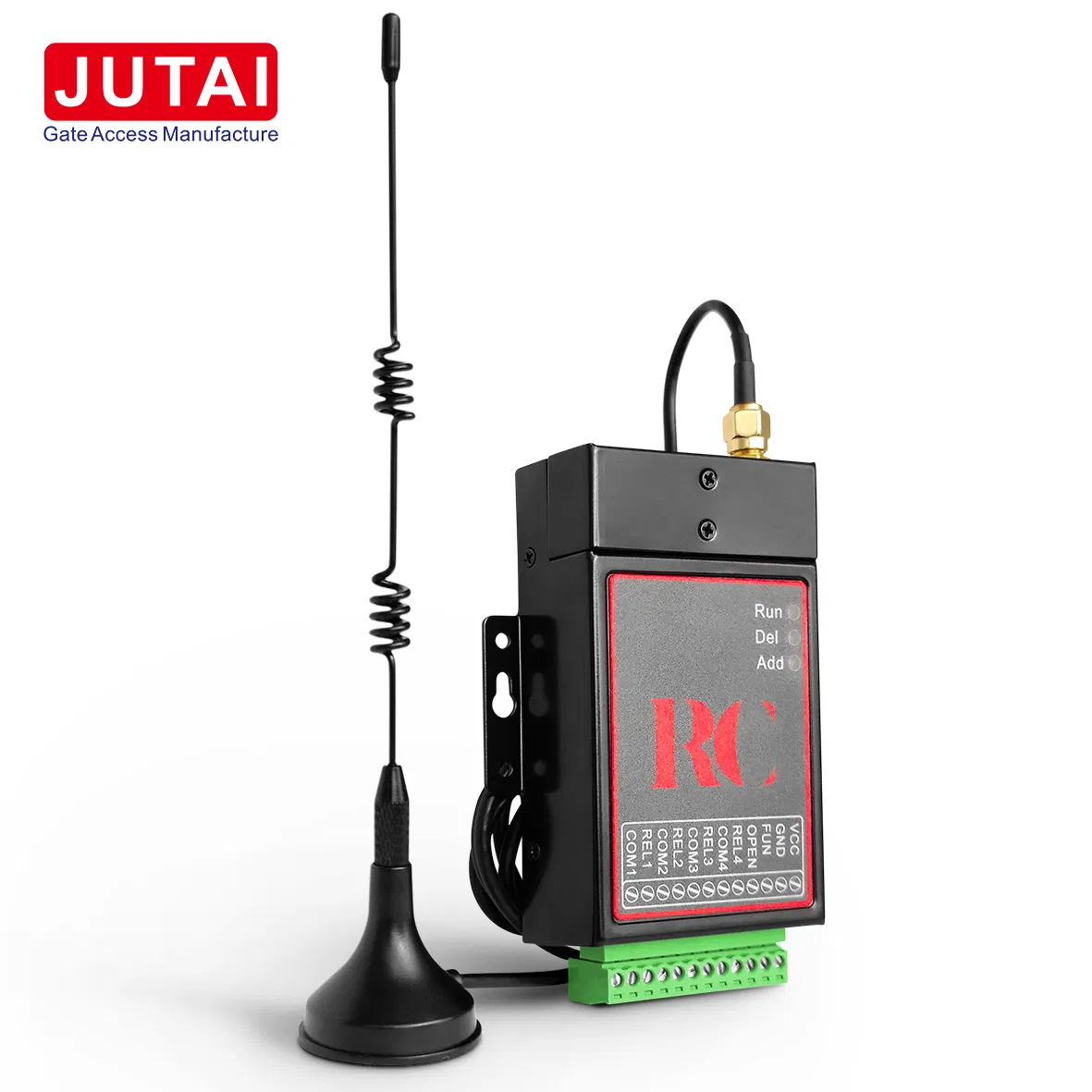

- Internet Control: One-button pairing for internet controllers without complex copying.
Technical Parameters
| Working Voltage | DC24V output |
| Max Output Current | 10A |
| Fuse | AC220 20A |
| Remote Distance | More than 30m |
| Working Temp | -25ºC to +75ºC |
| Max Gate Weight | 1000kg / 2000kg |
| Output Torque | 21N.m |
| Rotation Speed | 12m/min |
| Noise | Less than 50dB |
| Remote Frequency | 433MHz (Encryption & Anti-copy) |

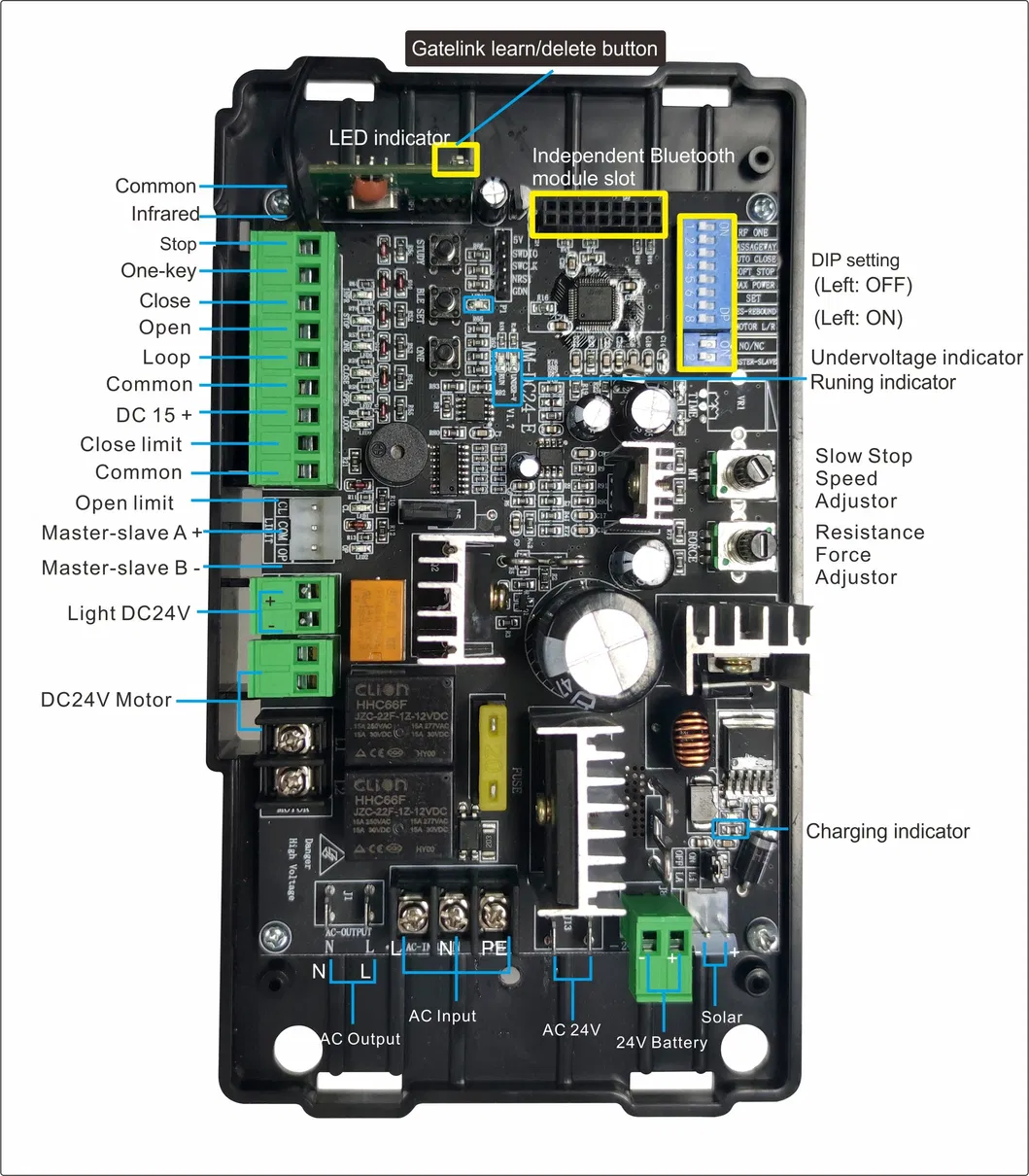

System Configuration & Diagram
Dip Switch Settings
Passageway Mode: Enable or disable the Lock button for specific access control needs.
Slow Stop Adjustment: Use the MT adjustor to fine-tune the speed of the slow stop feature.
Startup Strength: Choose between Soft Start (2s slow speed) or Max Start Speed.
Motor Direction: Easily swap the rotation direction of the gear via dip switch.
Operation & Indicators

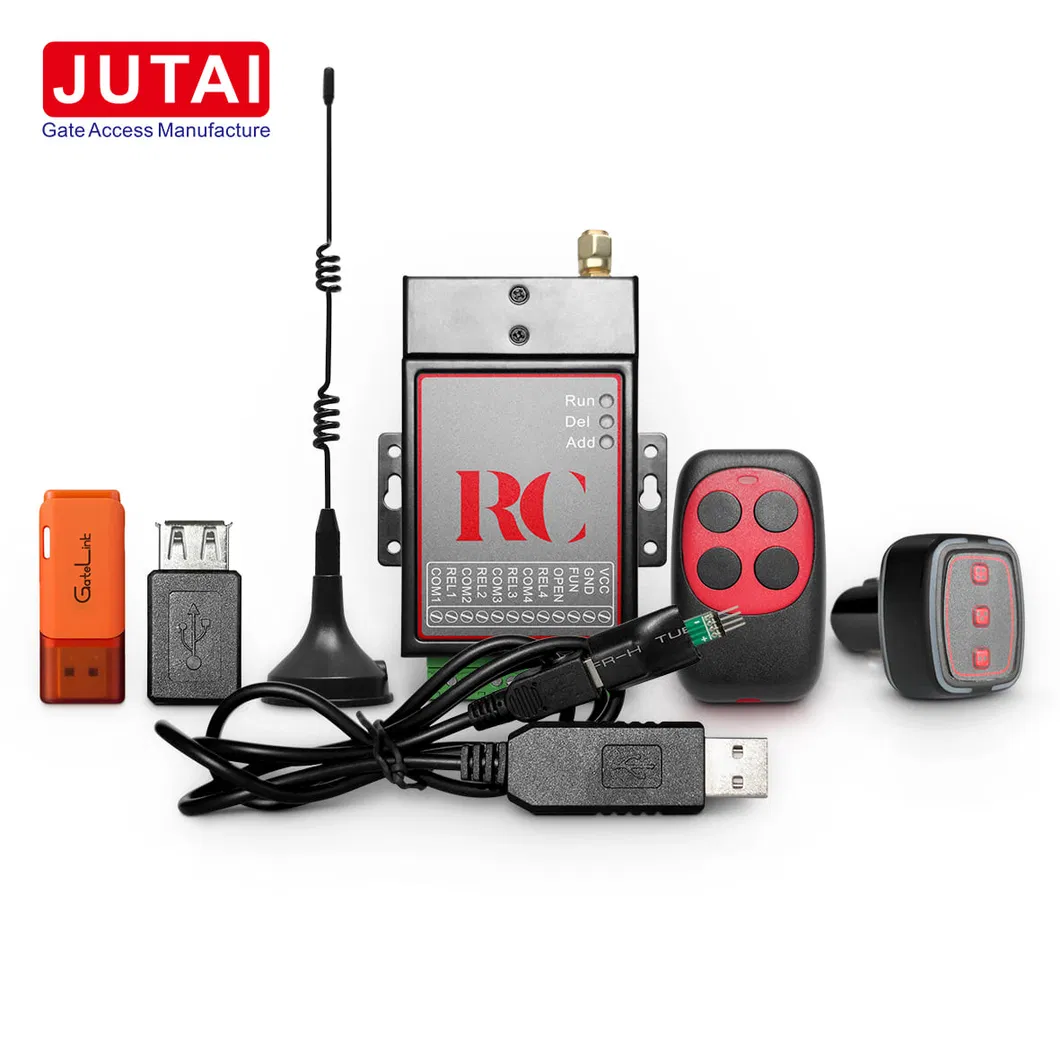

Remote Pairing

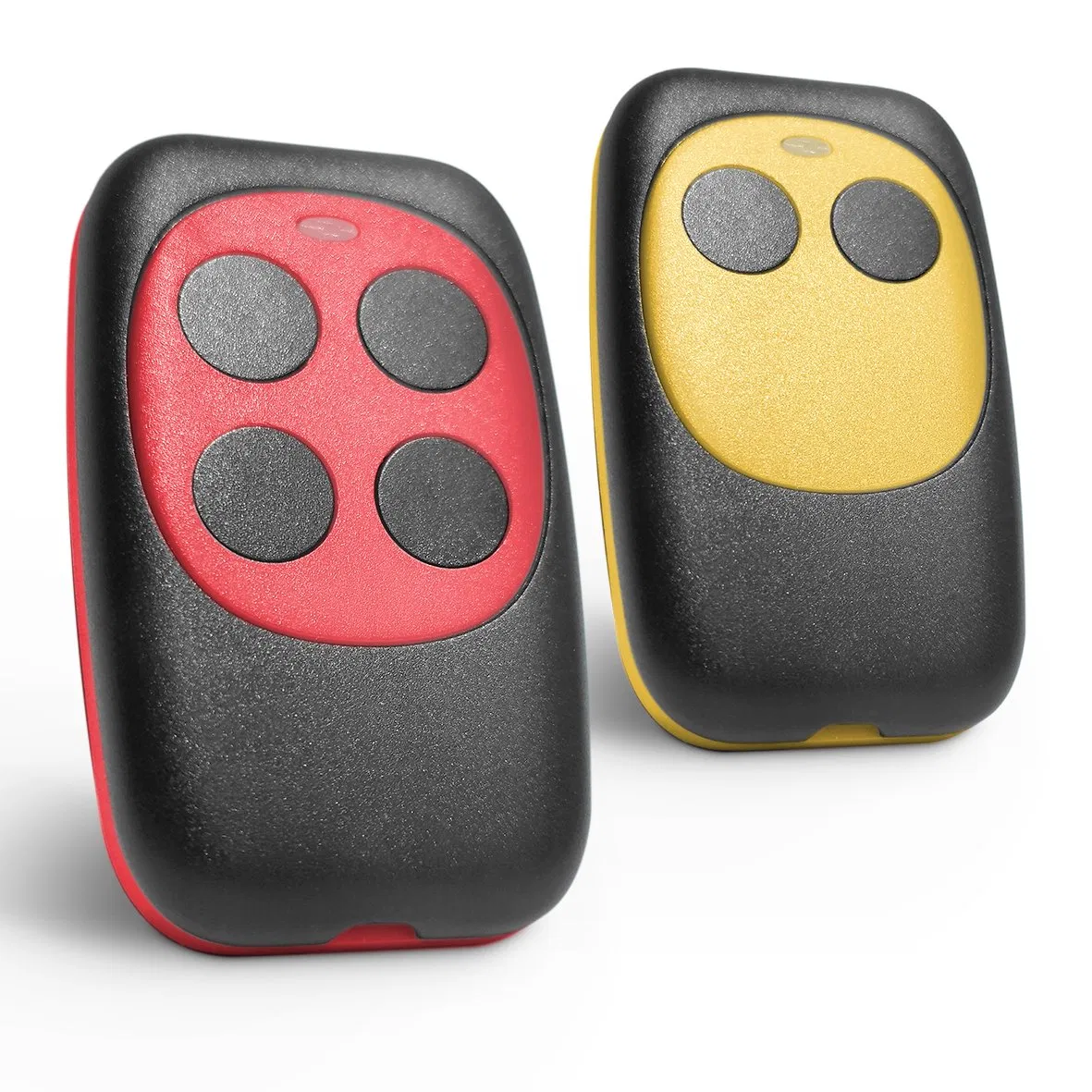

Hold the STUDY button for 1s until a buzz, then press any key on the remote. The system supports up to 120 remotes.
LED Status Guide
- RUN: Flashes during motion (1/s for opening, 5/s for closing).
- UNDER-V: Flashes if battery voltage is below 19V.
- BLE: Indicates Bluetooth binding status.

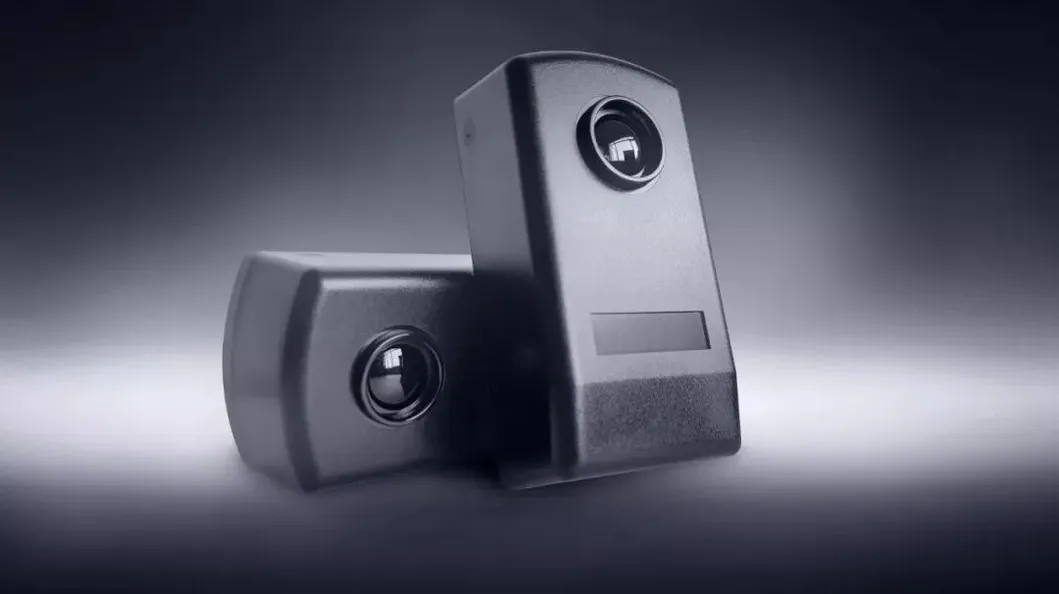

- Photocell/Stop: Red LED lights up when triggered.
Master-Slave Synchronization
For double machine synchronization, connect the A+ and B- interfaces in parallel. Set one motor to Master (ON) and the other to Slave (OFF). The slave motor will mirror the operations of the master motor, including resistance rebound and photocell triggers.
Related Automation Products

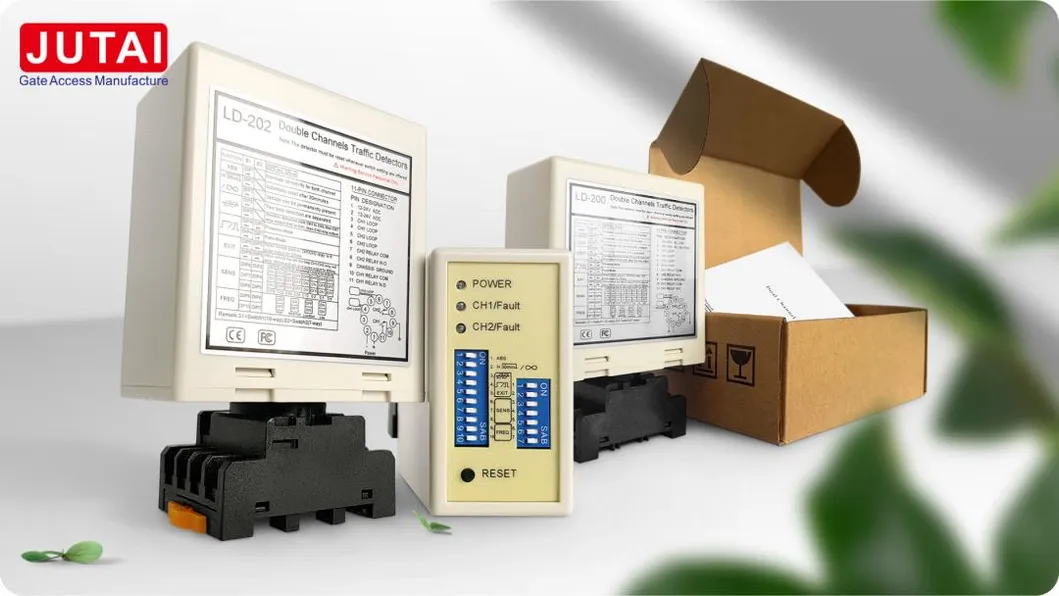

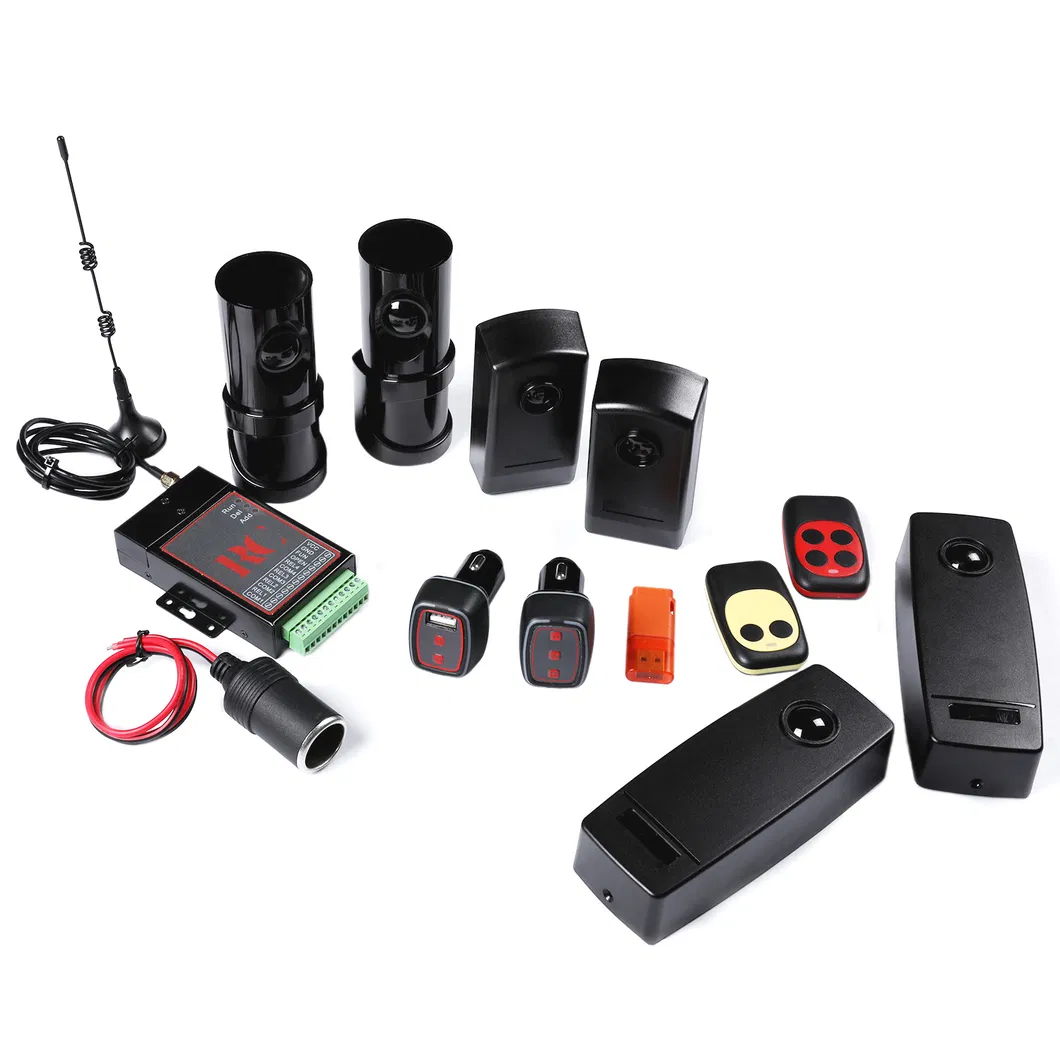

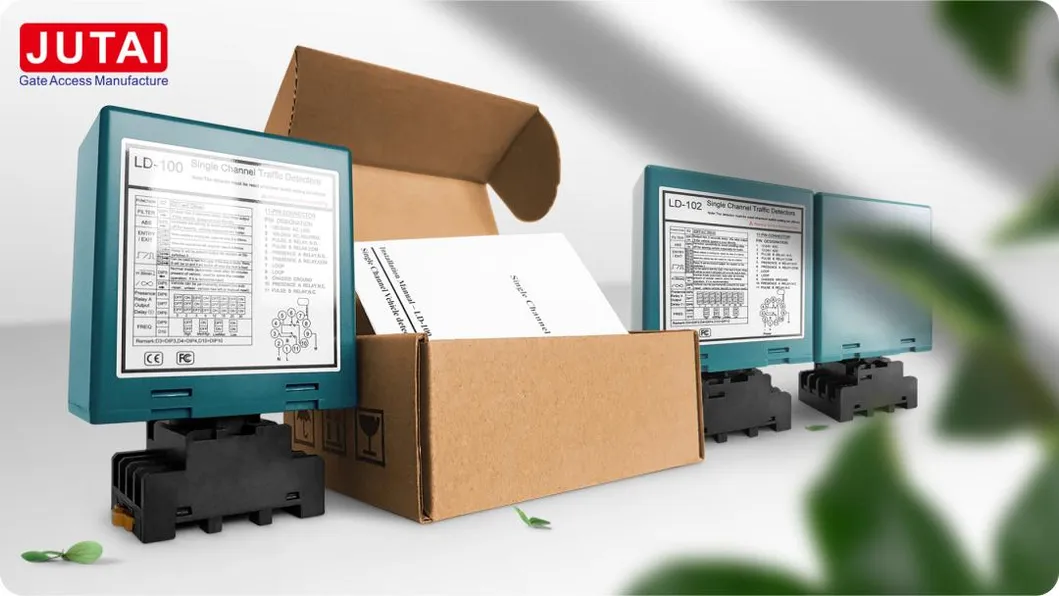

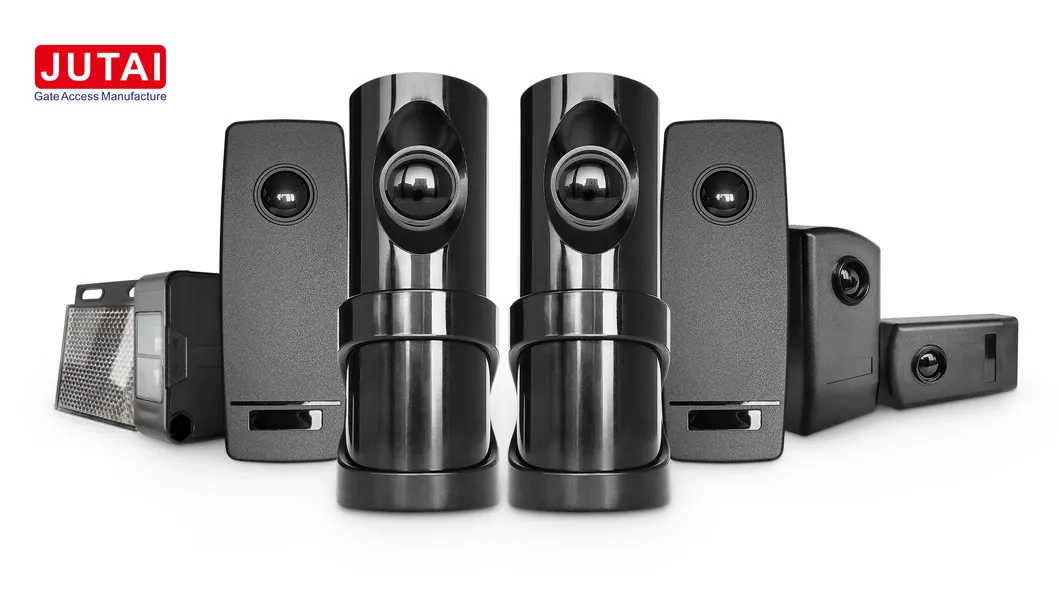

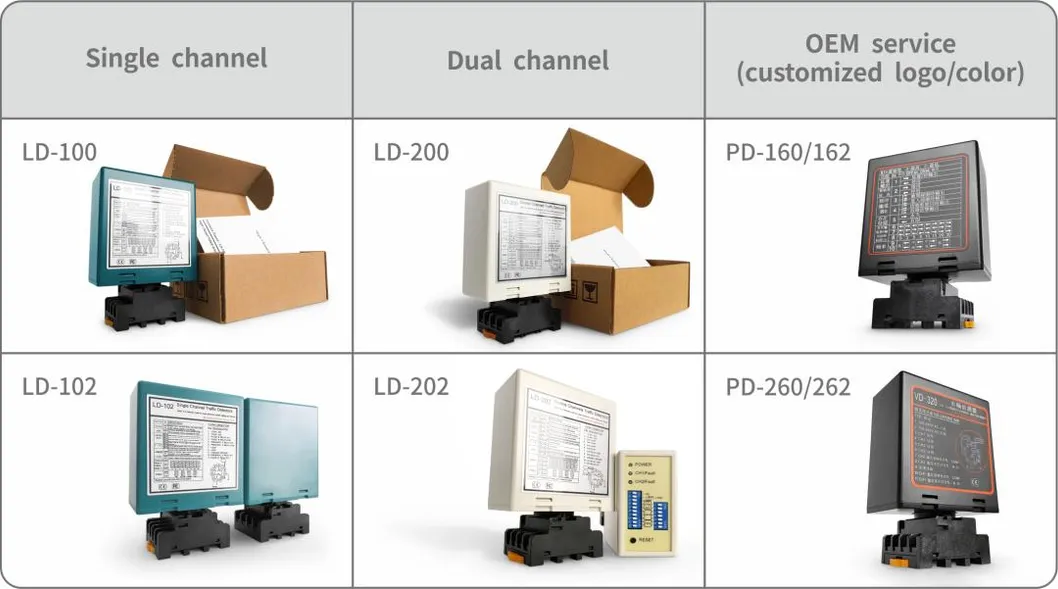

Explore a full range of gate automation systems including loop detectors, photocell beams, safety light curtains, card readers, and traffic lights.
