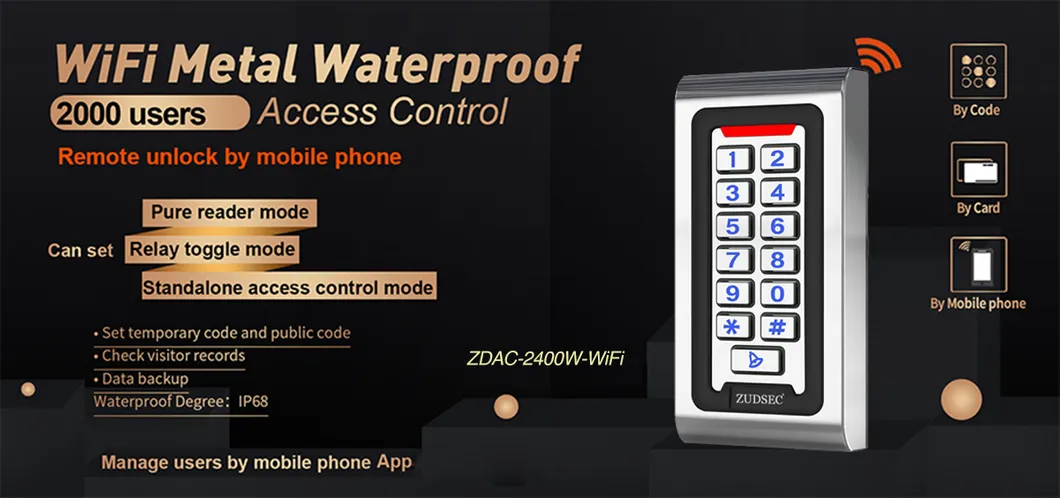

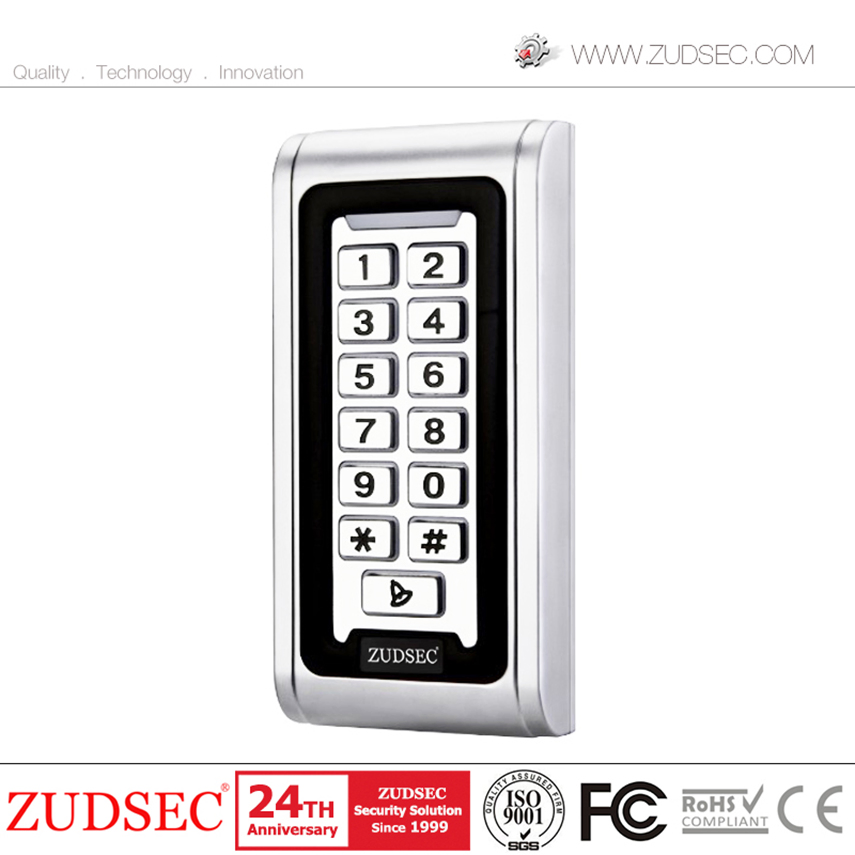

WiFi Smart Tuya New Electric Door Lock Keypad Security Access Control System
Product Description
📊 Basic Information
Model NO.
ZDAC-2400W-WiFi
Technology
32-Bit Technology
Way of Control
Computer Control
Type
One-way Controller
Item
Waterproof WiFi Access Control
Identification Way
Card, Pin, Card & Pin
Card Reading Distance
3-6cm
Type of ID Card
125kHz, Em
Operating Voltage
DC 12-24V
Use Capacity
2000
Waterproof Design
IP68
Material
Metal Case + Metal Keypad
Size
120* 58*20(mm)
📝 Product Description
WiFi Smart Tuya New Electric Door Lock Keypad Security Access Control System
Aluminum alloy structure, Waterproof, fully potted, confirms to IP65/IP68, 125KHz EM and HID card for optional, Multi-function, 12P cable with built in door bell function, operating as slave reader, single door, anti-pass back, etc. Suitable for various occasions.
⭐ Key Features
- Heavy-Duty Design: Aluminium alloy case, waterproof, fully potted, meets high waterproof standards.
- Backlit Keypad: Metal digital backlit keypad (Light modes: Normal ON, Normal OFF, or Human-Approach ON).
- Integrated Doorbell: Built-in door bell button for user convenience.
- Smart Recognition: Built-in 125KHz card reader with Auto-Recognition.
- High Capacity: Supports 2000 users, each with a card and a 4-6 digits password.
- Advanced Security: Support 2-10 cards for entry, anti-pass back, and master card functionality.
- Wiegand Output: Wiegand 26-37 output card number and multiple button output formats.
⚙️ Product Parameters
| Operating Voltage | DC 12-24V; Operating Current ≤35mA |
| Card Reading Distance | 3-6CM |
| Keypad Format | 4-6 digits key press, 4 bits or 8 bits data |
| Card Type | 125KHz, EM / Wiegand 26-37 |
| Temperature | -40ºC to 60ºC |
| Humidity | 0~95% (non-condensing) |
| Product Size | 158.6L x 43W x 21.7D (mm) |
| Weight | 0.5Kg |
📷 Product Gallery
🔗 Related Solutions
❓ Frequently Asked Questions
Q1: Can this access control system be used outdoors?
A: Yes, it features an aluminum alloy structure and is fully potted with an IP68 waterproof rating, making it suitable for outdoor installation in various weather conditions.
Q2: How many users can the device store?
A: The system supports up to 2000 users. Each user can be assigned a card, a 4-6 digit password, or a combination of both.
Q3: Does the device support Tuya WiFi connectivity?
A: Yes, this model is a WiFi Smart Tuya compatible device, allowing for remote management and integration with the Tuya smart ecosystem.

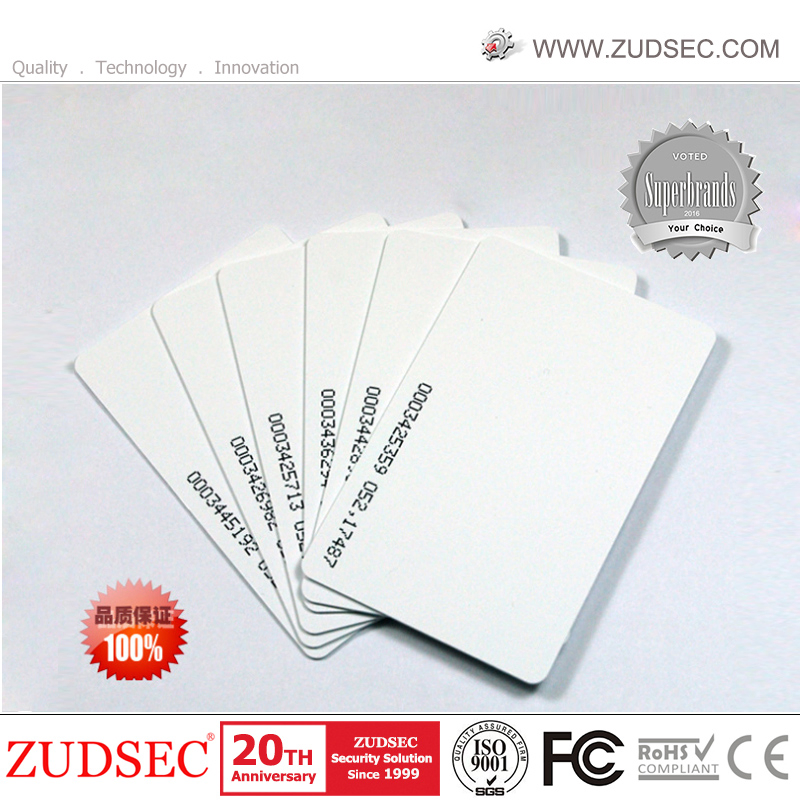

Q4: What types of cards are compatible with the reader?
A: It is equipped with a built-in 125KHz card reader compatible with EM cards. HID card support is also available as an option.
Q5: What is the required operating voltage?
A: The device operates on a wide voltage range of DC 12V to 24V, ensuring compatibility with most standard power supplies.
Q6: Can the keypad backlight be turned off?
A: Yes, the metal digital backlit keypad is adjustable. You can set it to Normal ON, Normal OFF, or Human-Approach ON.
