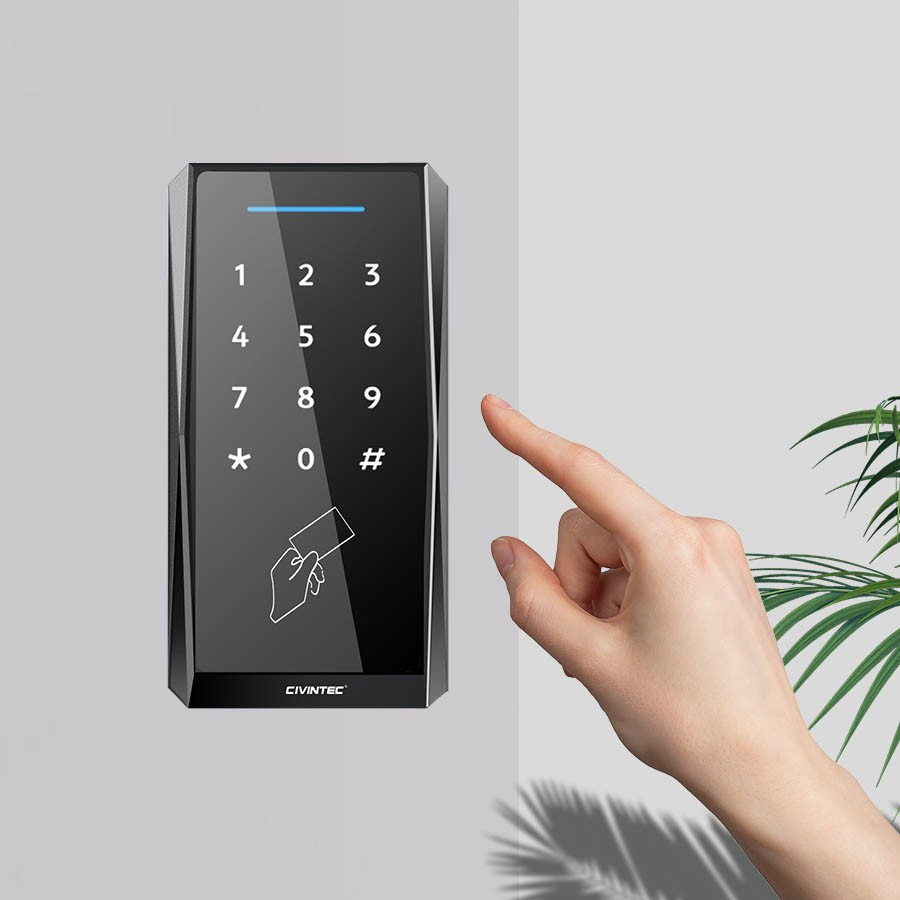

Waterproof Standalone RFID NFC Access Control Keypad for Automatic Door Entry Access Control System
Product Description

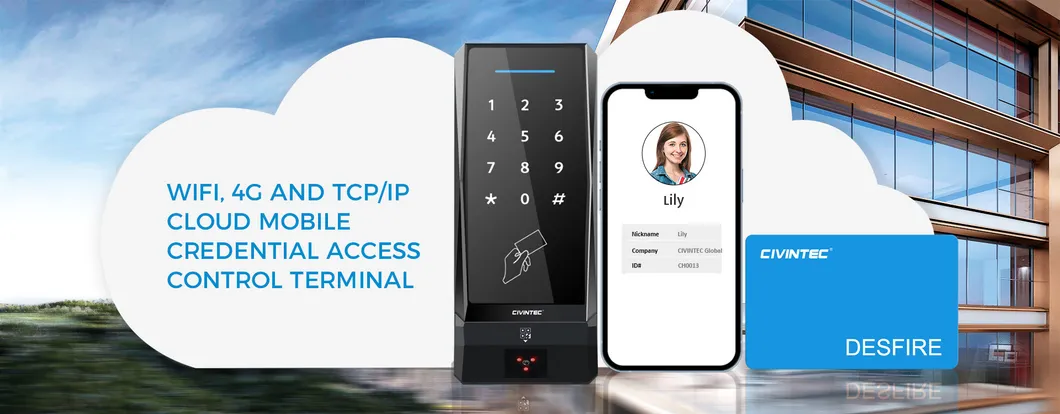

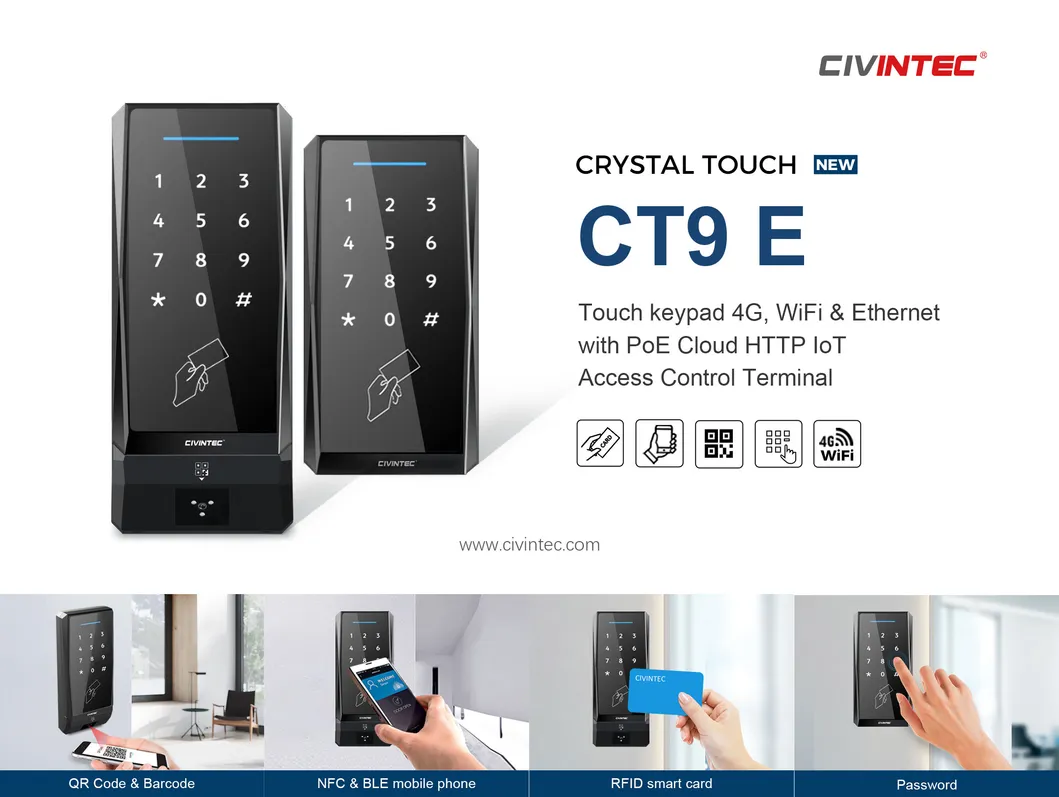

CT9 E is a Linux-based HTTP/HTTPs server centralized terminal with wireless WiFi, 4G, and TCP/IP Ethernet. It is suitable for both LAN and Internet cloud server software communication, featuring an embedded relay to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies: touch keypad, RFID dual 125KHz & 13.56MHz, BLE & NFC mobile access, and QR CODE/barcode scanning via mobile phone.
HTTP Server Centralized Access Control & IOT System
Touch Keypad Reader with Embedded LINUX OS & SDK
+
Embedded WIFI, 4G & TCP/IP Ethernet HTTP/HTTPs
+
Embedded Relay Control for Lock & Facility Control
| Feature Category | CT9 E Specifications |
|---|---|
| RFID Contactless Cards | 125KHz PROx, 125KHz EM, 13.56MHz Mifare® Classic, Ultralight®, Plus, DESFire® EV1/EV2/EV3, NFC tags |
| Mobile Credential | BLE (2.4Ghz), NFC |
| Barcode / QR Scanner | 1D & 2D QR Code, Micro QR code, PDF417, Code 128, Code 39 |
| Communication | TCP/IP (RJ45), 4G, WiFi 2.4GHz, RS485, Wiegand input |
| I/O Ports | Door contact, Exit button, Fire alarm, Tamper switch, 1~2 relay outputs |
| Keypad | 12 digit Touch keypad with backlit |
| User Capacity | Unlimited Online / 10,000 Offline Users |
| Protection | IP65 electric epoxy potted, UV resistant |

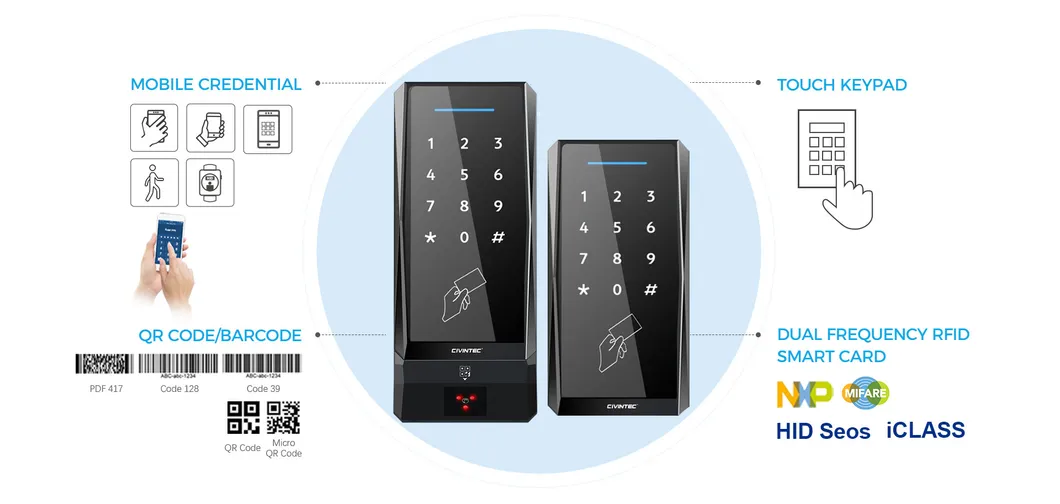

CT9 E incorporates 5-in-1 multiple access technologies, including touch keypad, dual-frequency RFID, mobile access via BLE/NFC, and QR code scanning for efficient visitor management.

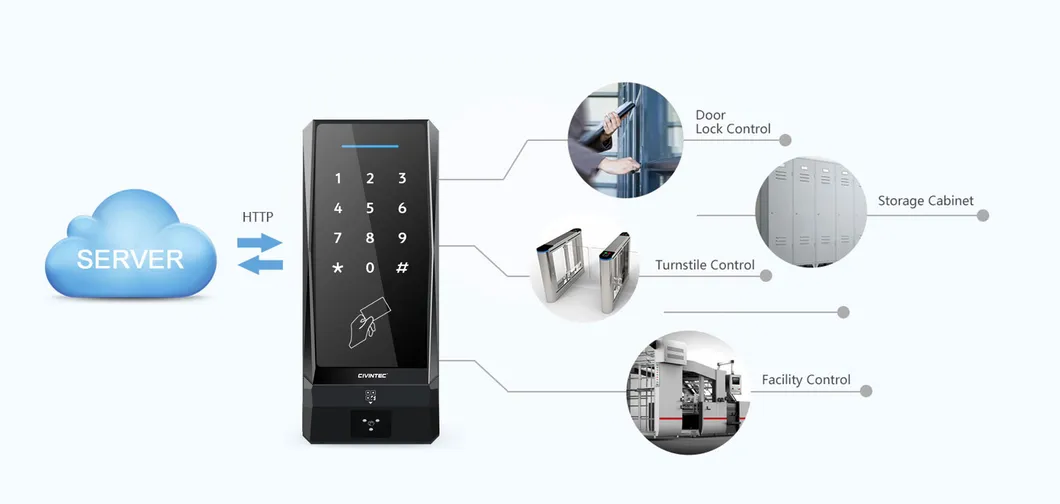

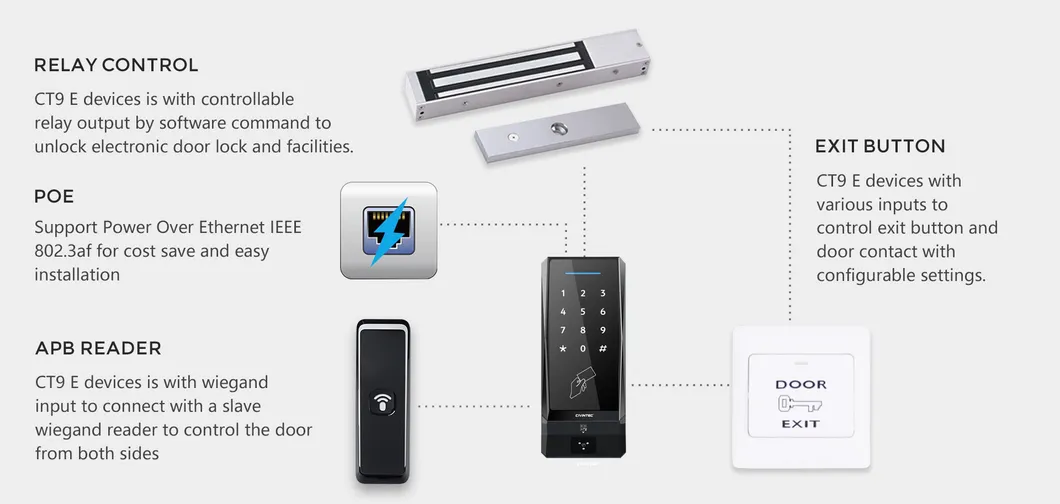

Bi-directional communication via standard HTTP & HTTPs between CT9 E and the server allows for remote control of door locks and various IoT facility management systems.

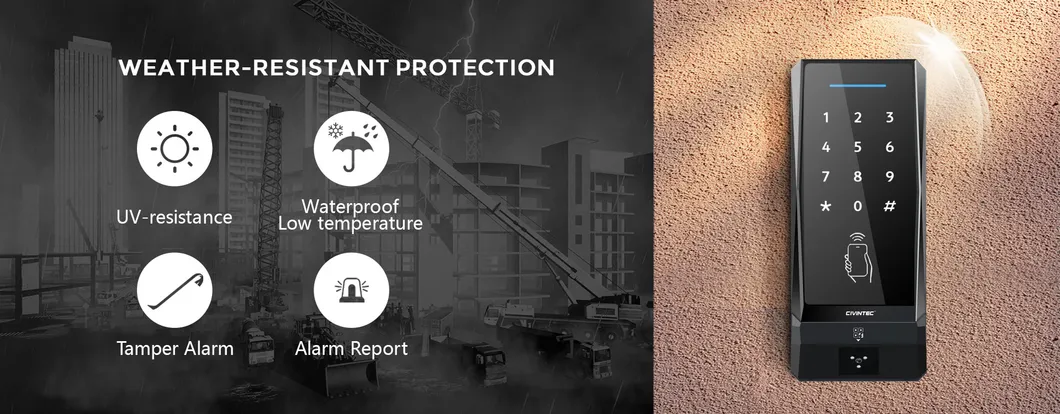

With an IP65 rating, the device is resistant to rain, dust, and strong sunlight, making it ideal for outdoor use and rugged environments.
We offer ODM customization on hardware, housing, firmware, and software. Users can program and display their own logo on the 3.5" touch screen. OEM logo printing on the reader body is also available.
