Product Description
Basic Information

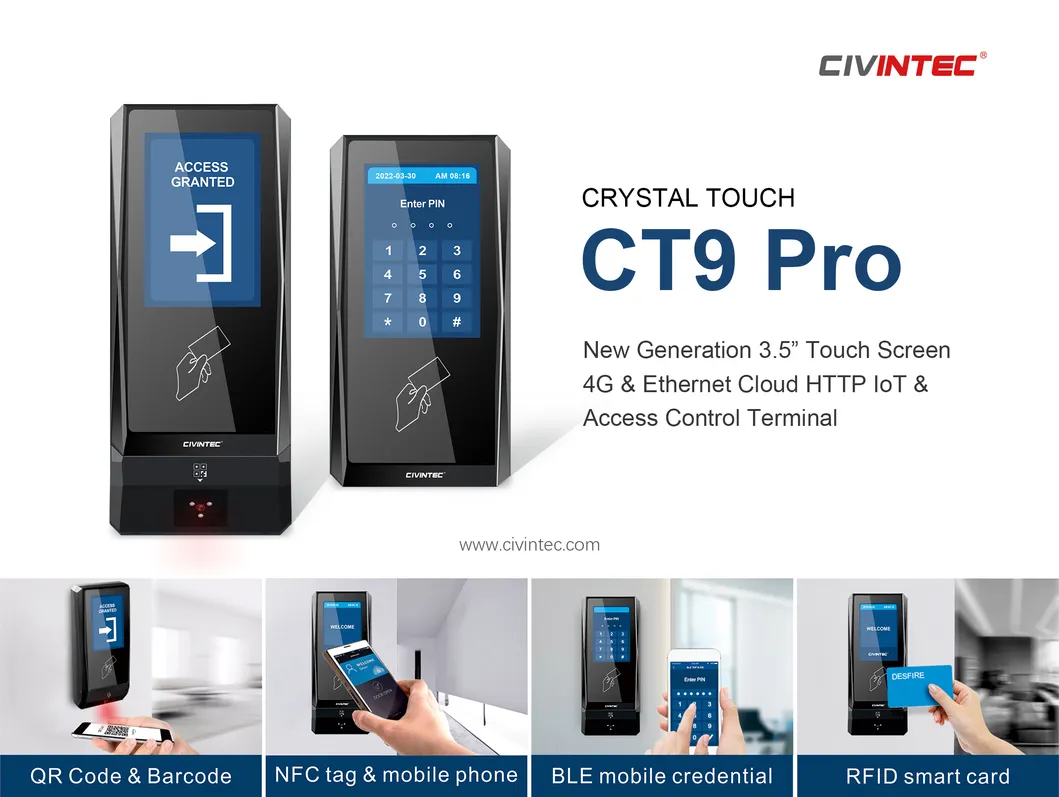

Product Overview

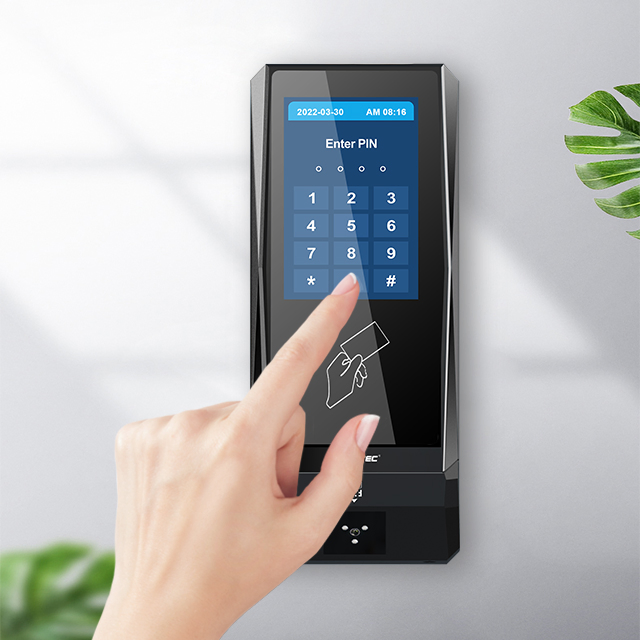

CT9 Pro is Linux based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication, with embedded reply to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, QR CODE/barcode by using mobile phone.
| Display | 3.5" capacitive touch screen |
| QR code | Multiple formats supported (1D & 2D Codes): QR Code, Micro QR code, PDF417, Code 128, Code 39 and most mainstream 1D and 2D barcodes. |
| Mobile ID | BLE, NFC |
| RFID smart card | - EM 125KHz, 13.56MHz ISO14443A Mifare® Classic, Mifare® Plus, DESFire® EV1, EV2, NFC tags (T2T, T4T), ISO14443B - HID Prox and iCLASS®, iCLASS SE/SR® iCLASS Seos® smart cards |
| SAM slot | ISO7816(T=0,T=1) 1 SAM module, more on request |
| Communication interface | 4G, TCP/IP, Wiegand, RS485 protocol OSDP 1&2 |
| Power Supply | 12-30V DC; PoE IEEE 802.3af |
| I/O Port | 1~2 relay outputs Tamper alarm switch, door contact, door exit, Buzzer control |
| Offline Logs | 10,000 users / 50,000 logs (more on request) |
| IP protection | IP65 outdoor/indoor use, UV-resistance |
Product Features

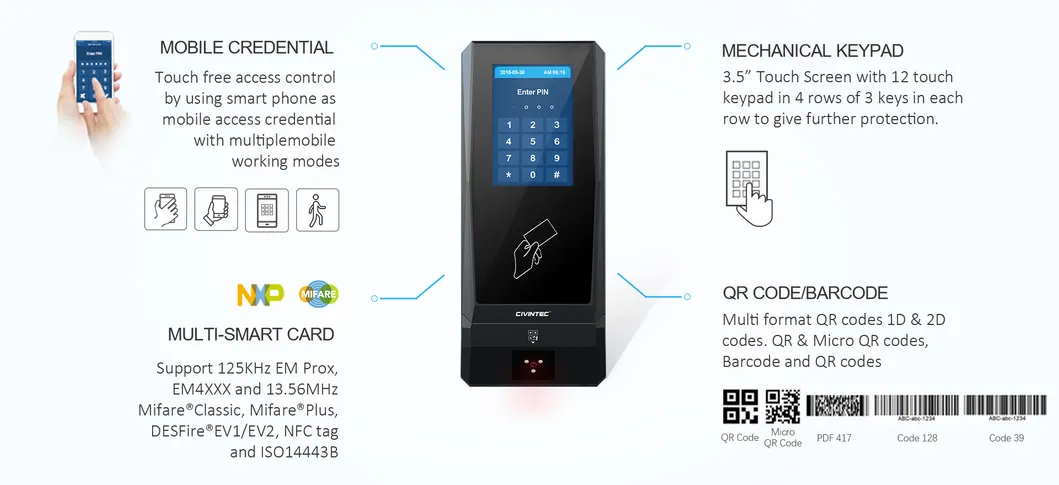

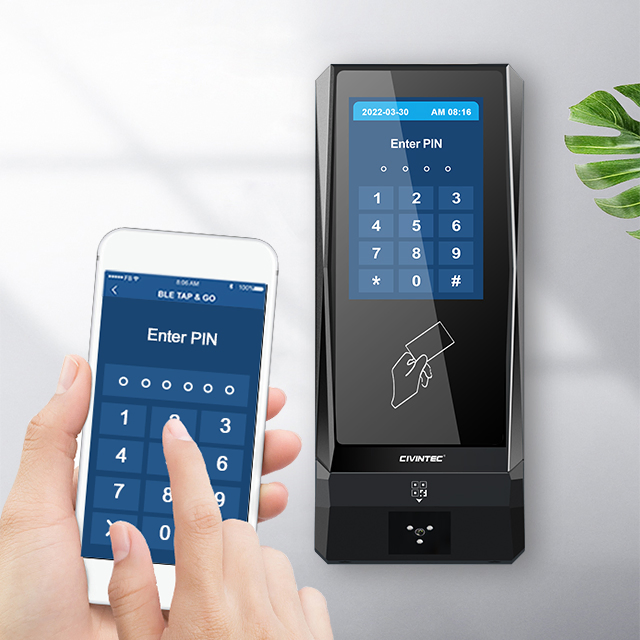

CT9 Pro incorporates with 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, QR CODE/barcode by using mobile phone for visitor access control management.

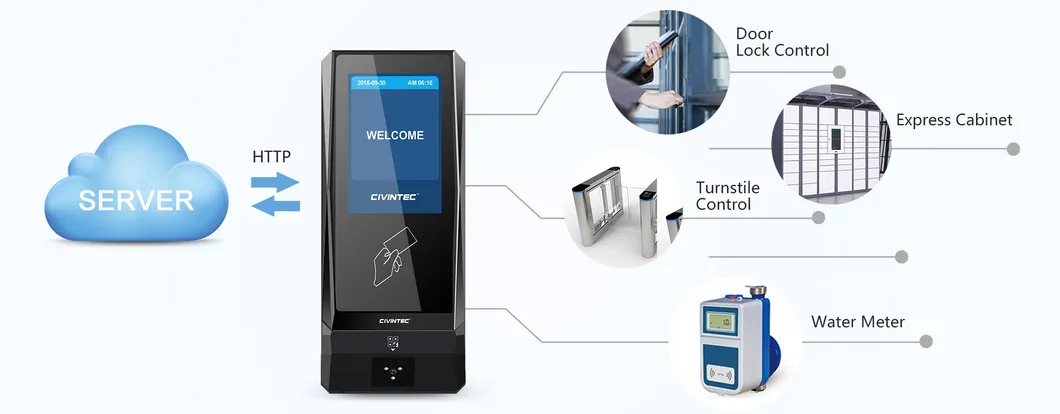

Bio-direction communication via standard HTTP & HTTPs between CT9 Pro and server to remotely control door lock and various IoT facility management.
Crystal Touch CT9 is IP access control door reader remotely controlled by cloud web based software in real time via HTTP or HTTPs encrypted communication. It is with embedded relay output to control door lock.

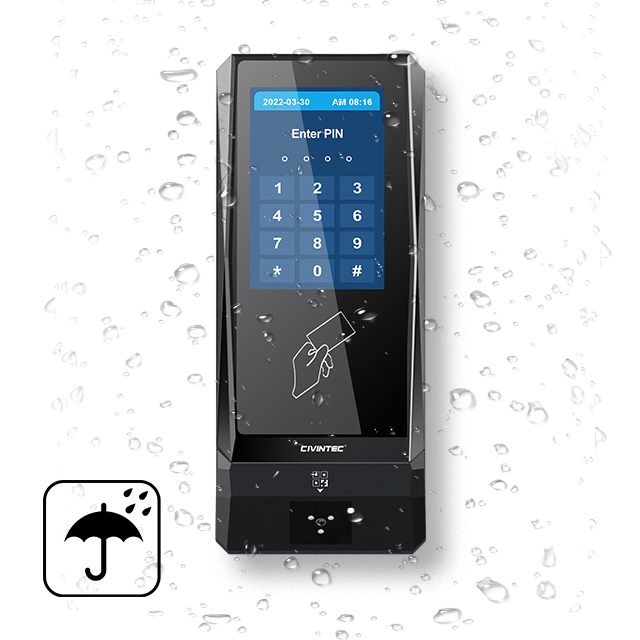

With IP65 ratings, CT9 PRO is weather resistant to rain, dust, strong sunlight, ideal for outdoor use, low temperature various rugged working environments.

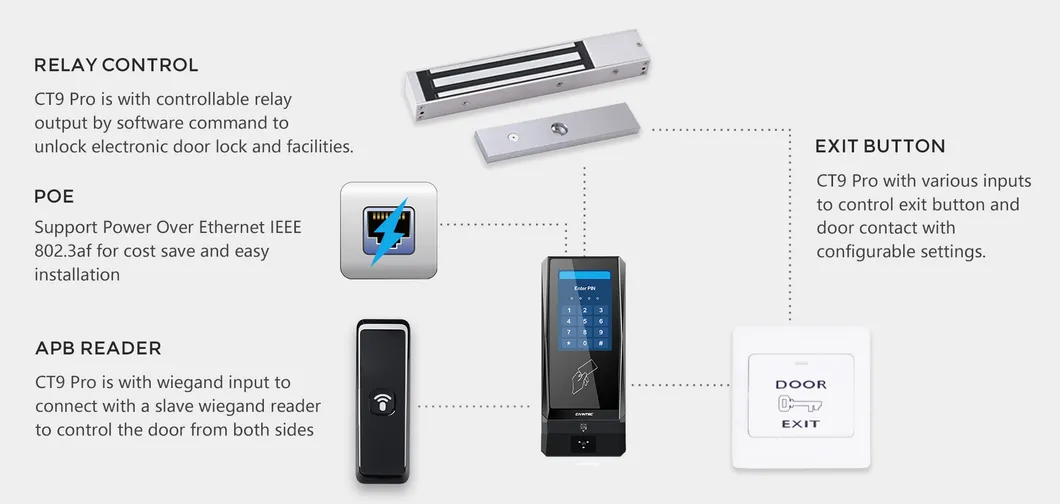

System Configuration
Our Service
We are a leading designer and manufacturer of access control devices, offering ODM customization on hardware, reader housing, firmware, and software design services.
Users can program and display their own LOGO on the 3.5" touch screen. We also offer OEM LOGO printing on the reader body.
