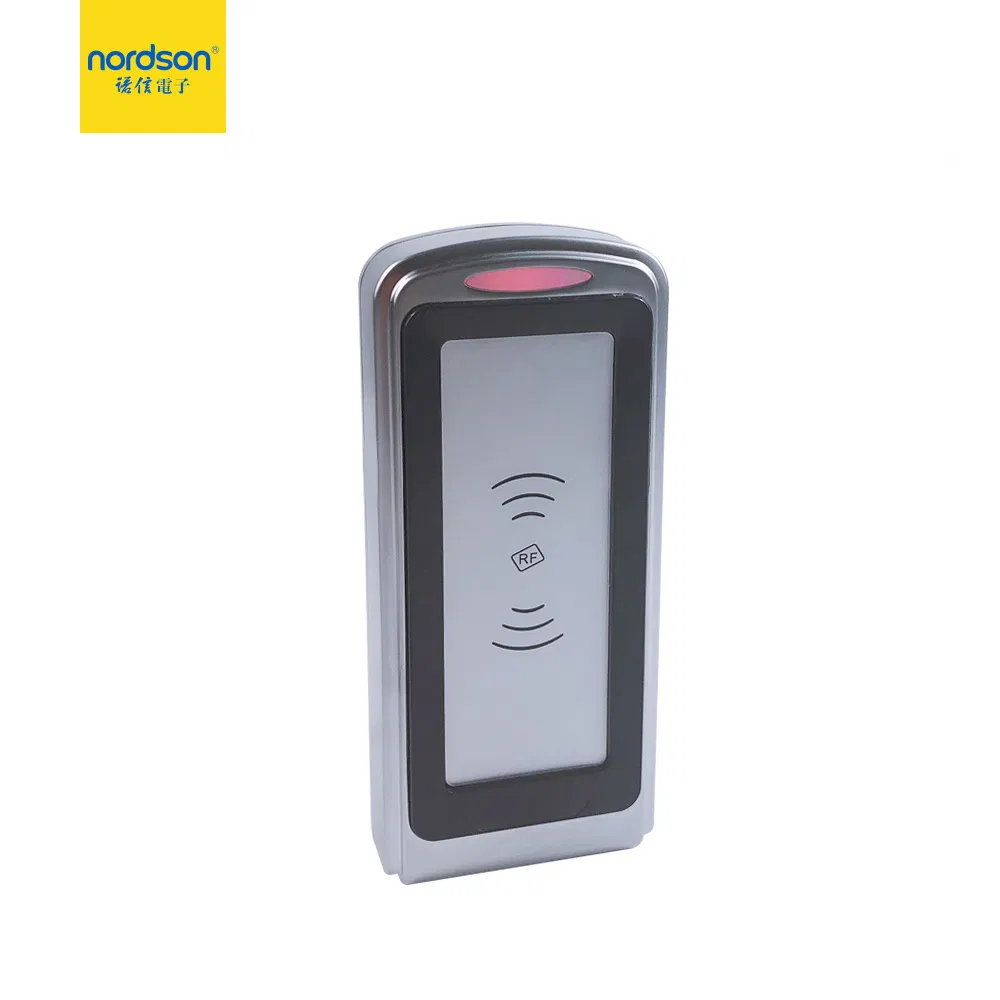

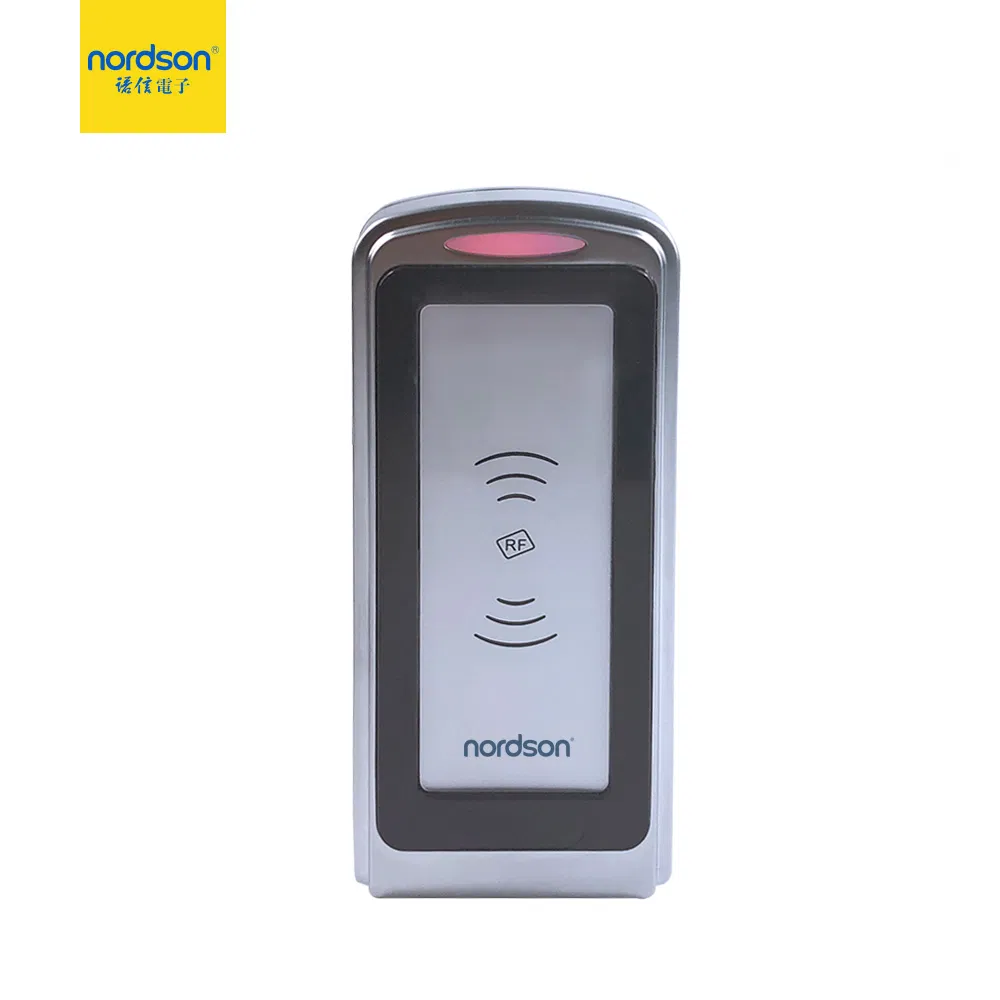

Wiegand 26 Signal RFID Keypad Remote Access Control System with 2000 User Capacity
Product Description
Basic Specifications
Model NO.
NT-108 Card Reader Access Control
Technology
Wg26
Way of Control
Hand Control, Card Control
Communication
Wiegand
Type
Two-way Controller
Opening Mode
Card, Remote Control
Card Type
Em(ID) Card (IC Card Optional)
Storage
2000 User Cards
Waterproof
Conforms to IP65

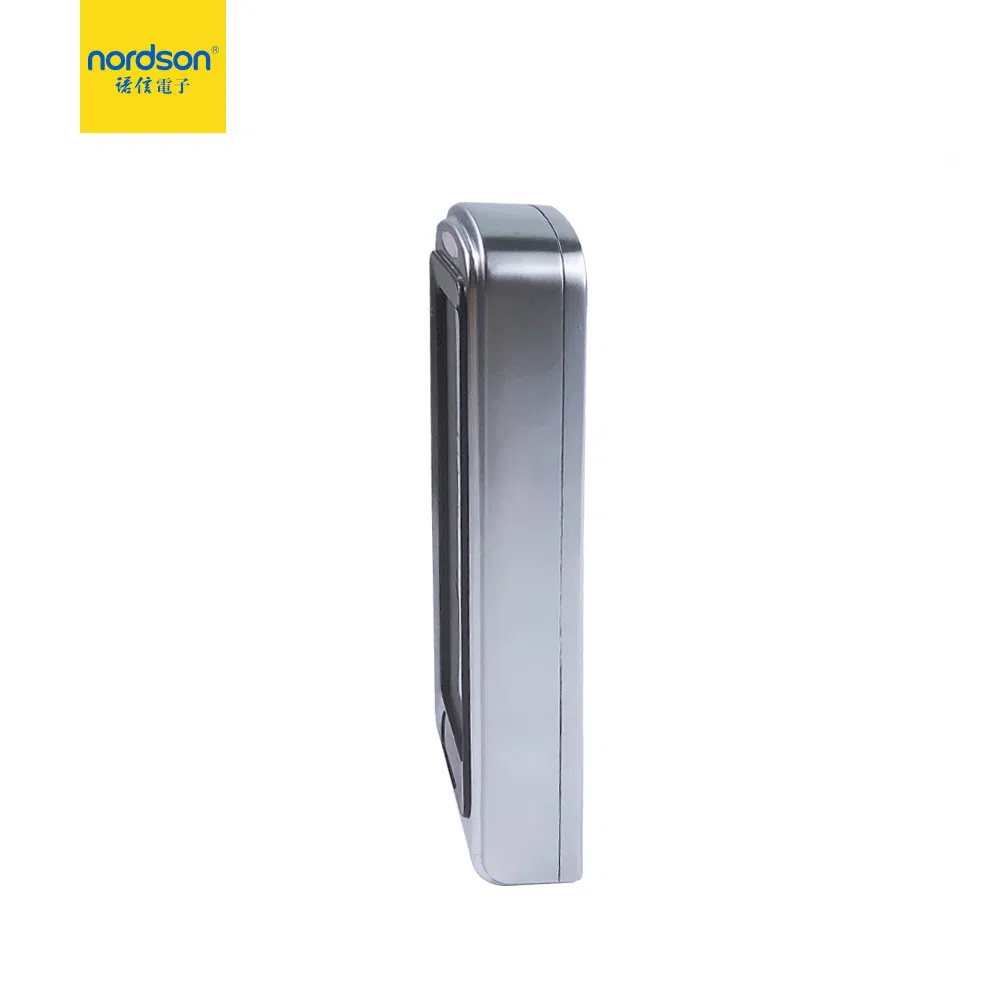

Dimensions
135*58*22mm
Product Presentation
Overview & Functions

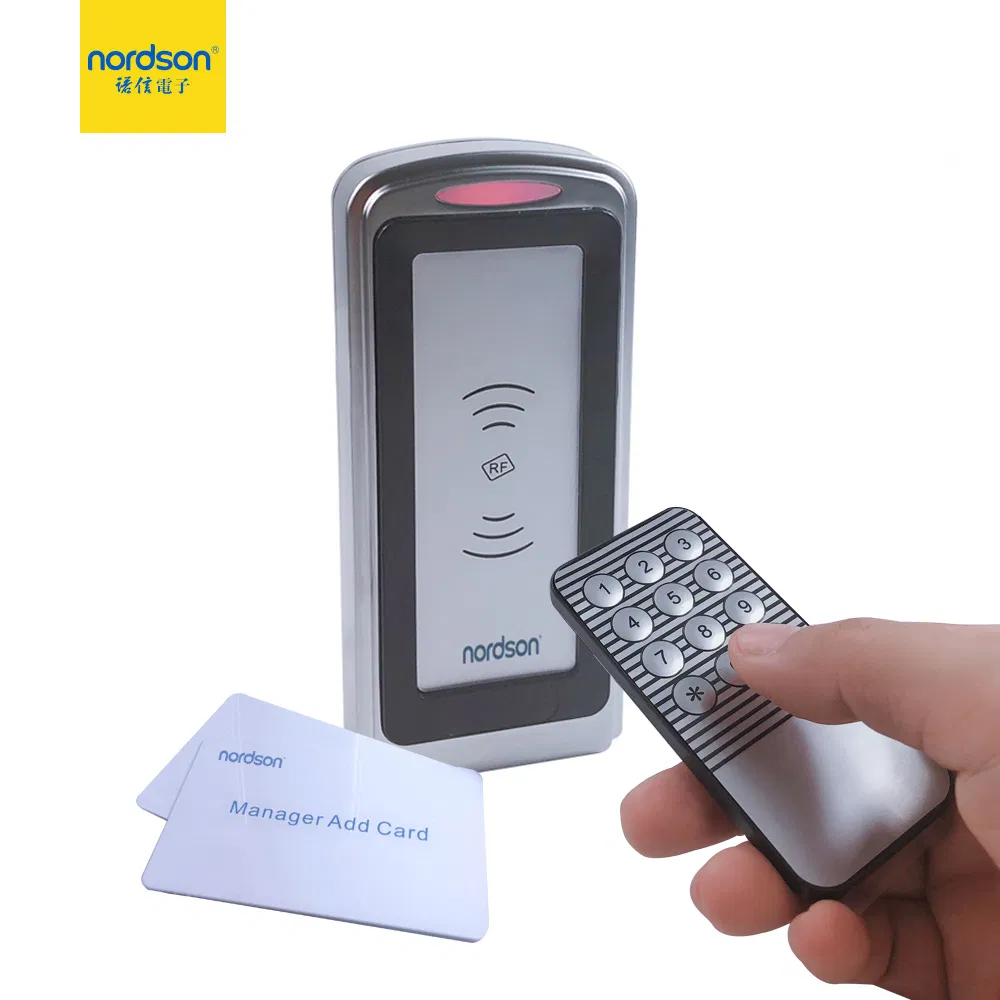

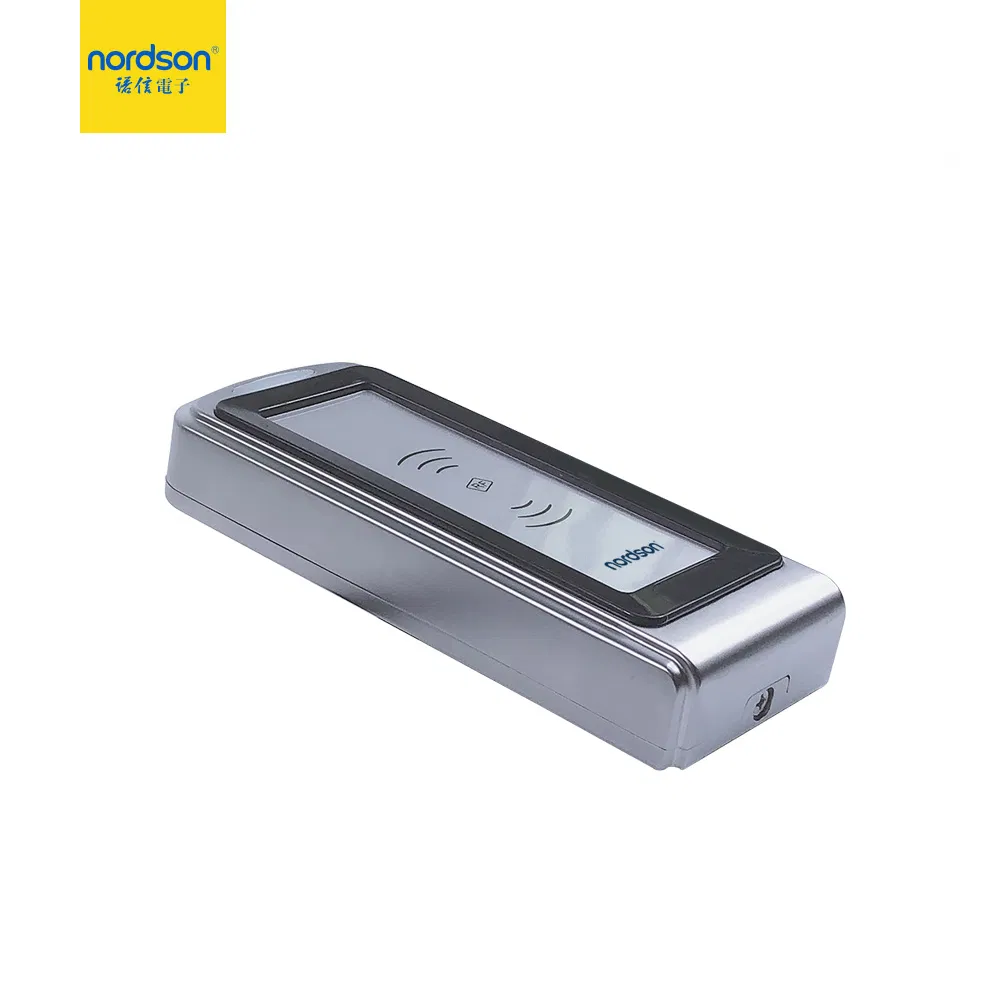

The NT-108 is a specialized one-door RFID card access controller featuring keypad remote control. Designed for efficiency and security, it allows users to program functions and manage user cards via a keypad remote control. With a sleek narrow metal frame and IP65 waterproof rating, it is suitable for both indoor and outdoor environments.

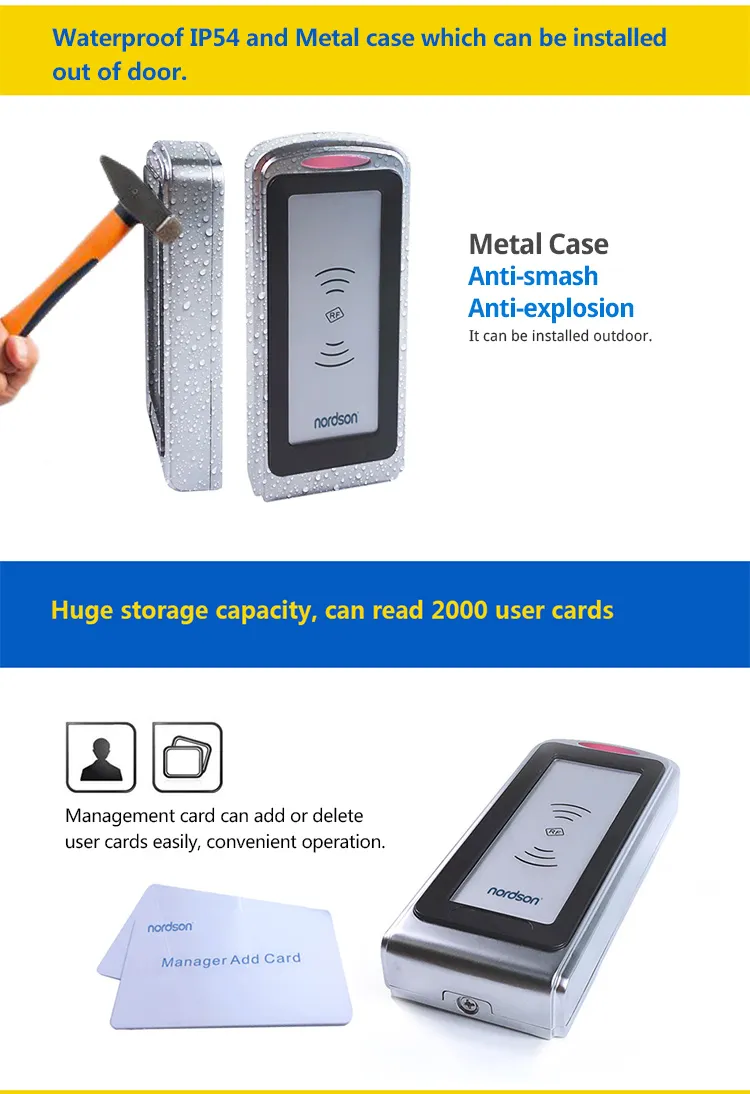

- Durability: Anti-smash metal case with IP65 waterproof rating for all-weather operation.
- Large Capacity: Supports up to 2000 user cards, ideal for public and commercial spaces.

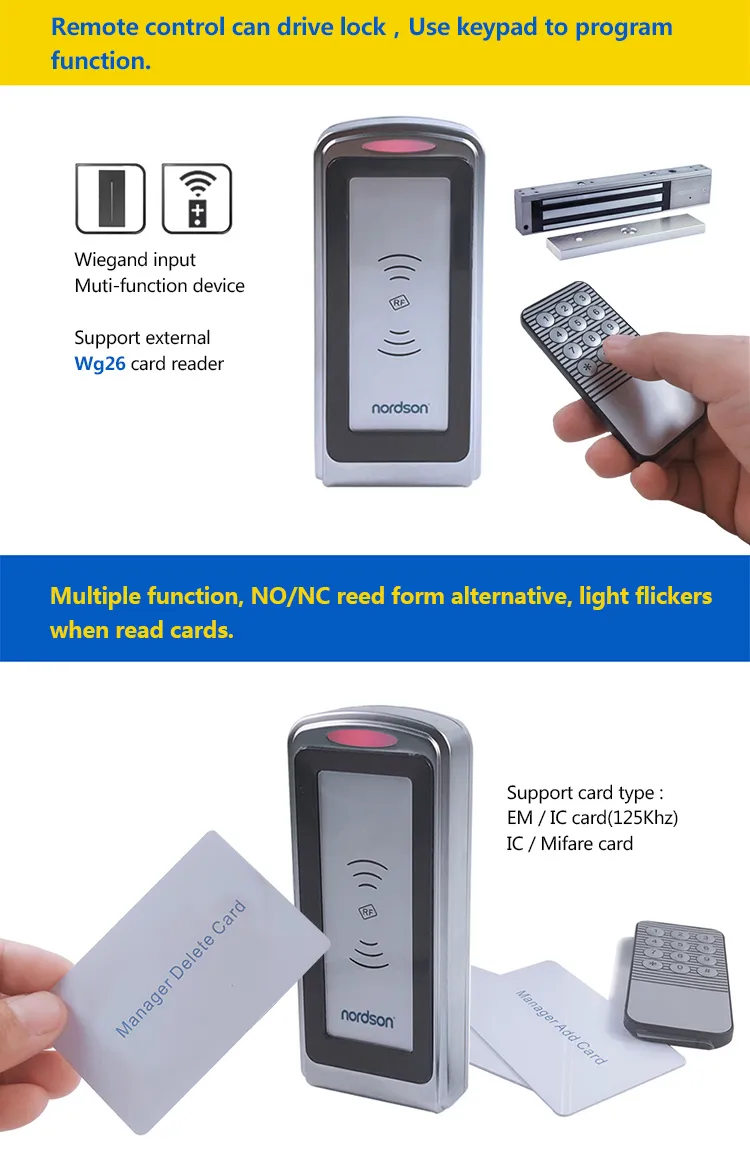

- Remote Management: Easily add or delete user cards using the long-range keypad remote control.
- Universal Compatibility: Supports Wiegand 26 signal input and external card reader connections.
- Flexible Integration: Interface for 3rd party electric locks, exit buttons, and door sensors.
- Versatile Card Support: EM/ID (125Khz) or IC/Mifare (13.56MHz) card options available.

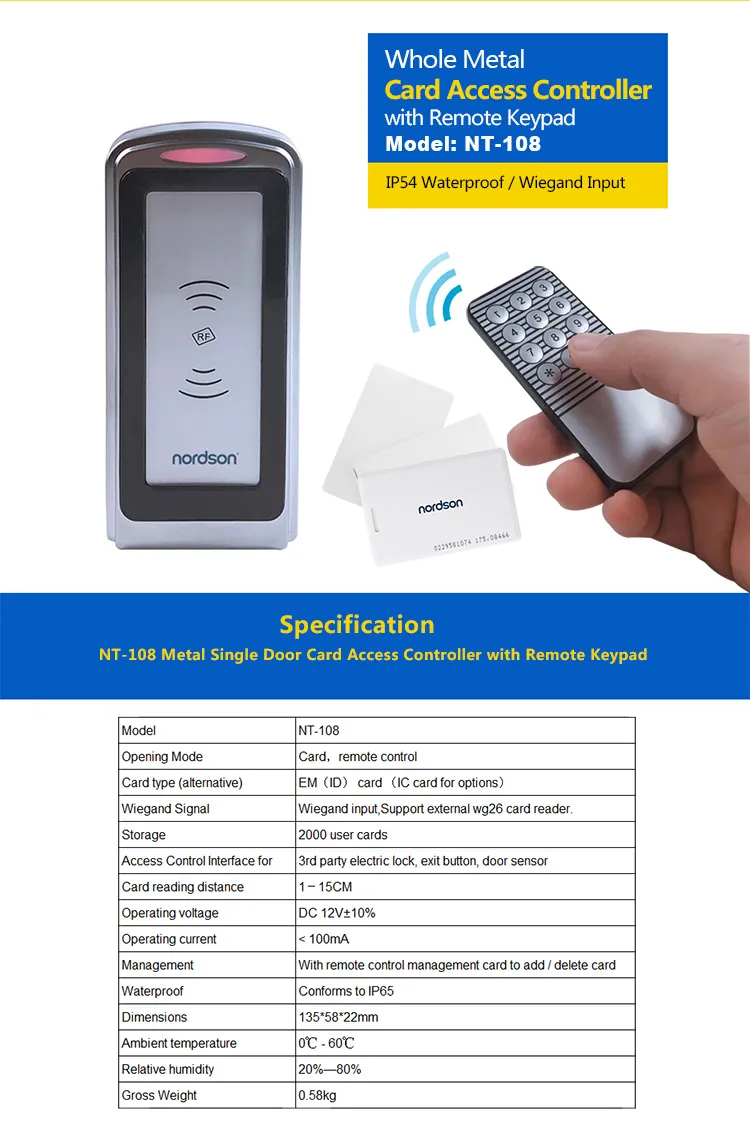

Technical Parameters
| Model | NT-108 |
| Opening Mode | RFID Card / Keypad Remote Control |
| Card Type | EM(ID) Card (IC card optional) |
| Reading Distance | 1 - 15 CM |
| Operating Voltage | DC 12V ± 10% |
| Operating Current | < 100mA |
| Temperature | 0℃ - 60℃ |
| Humidity | 20% - 80% |
| Waterproof Level | IP65 |
| Weight | 0.58kg |
Frequently Asked Questions
Q: How many users can this access control system store?
A: The system has a large storage capacity that can support up to 2000 user cards.
Q: Can it be installed outdoors in the rain?
A: Yes, it features a metal case and is IP65 waterproof rated, making it suitable for outdoor installation.
Q: What types of RFID cards are compatible?
A: It primarily supports EM (ID) cards (125Khz), but IC/Mifare (13.56MHz) card support is available as an option.
Q: How do I add or delete users?
A: You can easily add or delete users using the included keypad remote control for system programming.
Q: Does it support external card readers?
A: Yes, it supports Wiegand 26 signal input, allowing you to connect an external WG26 card reader.
Q: What is the effective card reading range?
A: The proximity card reading distance is between 1cm and 15cm.
