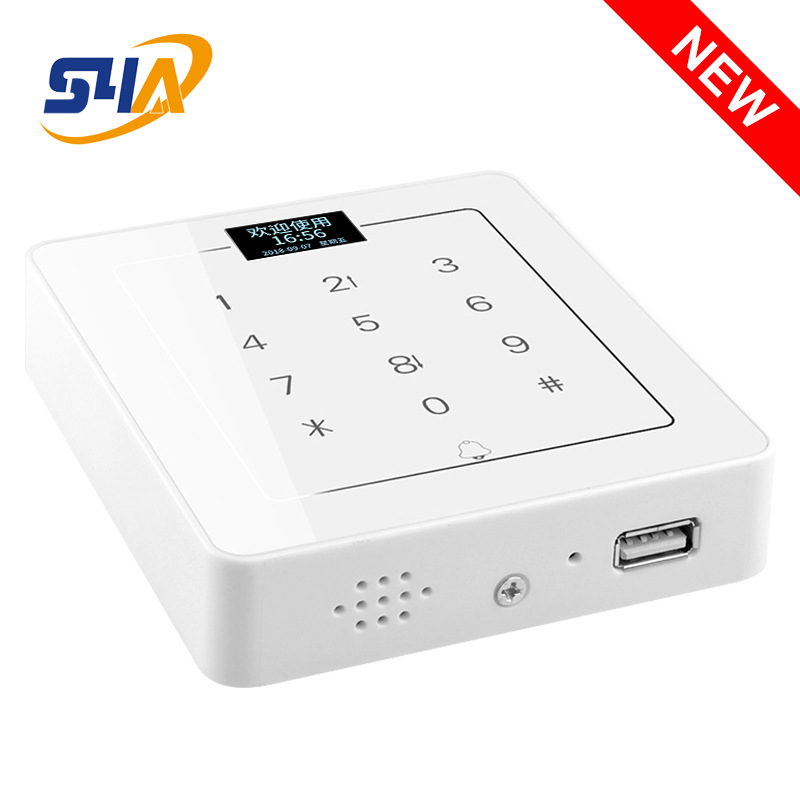

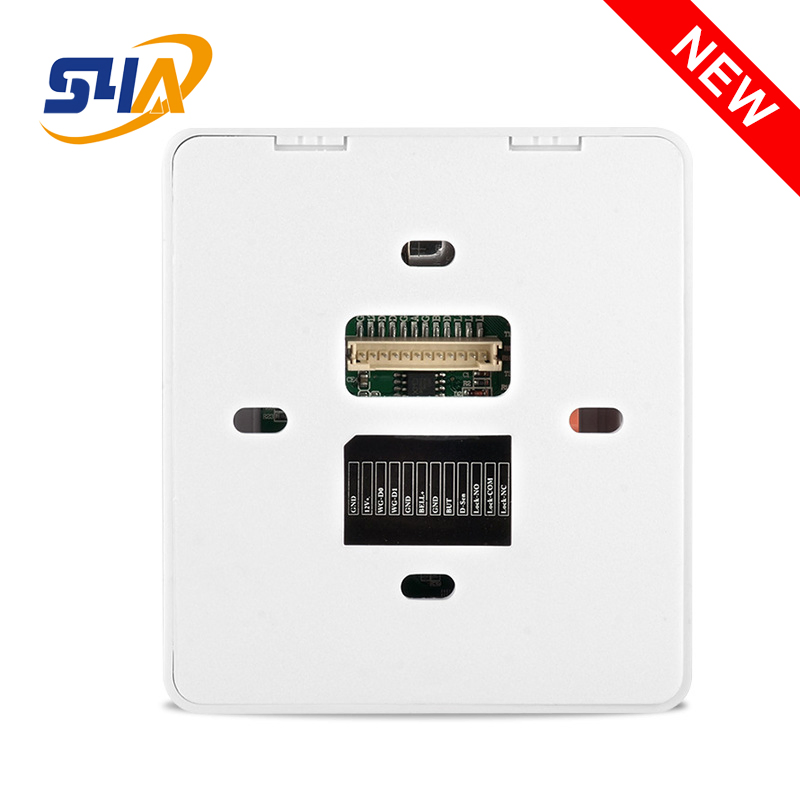

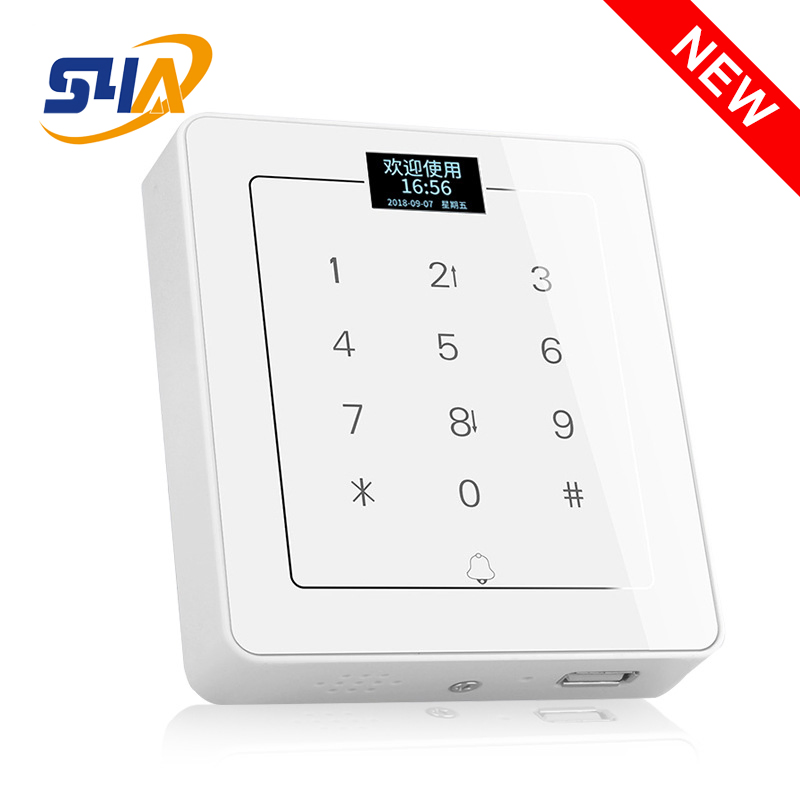

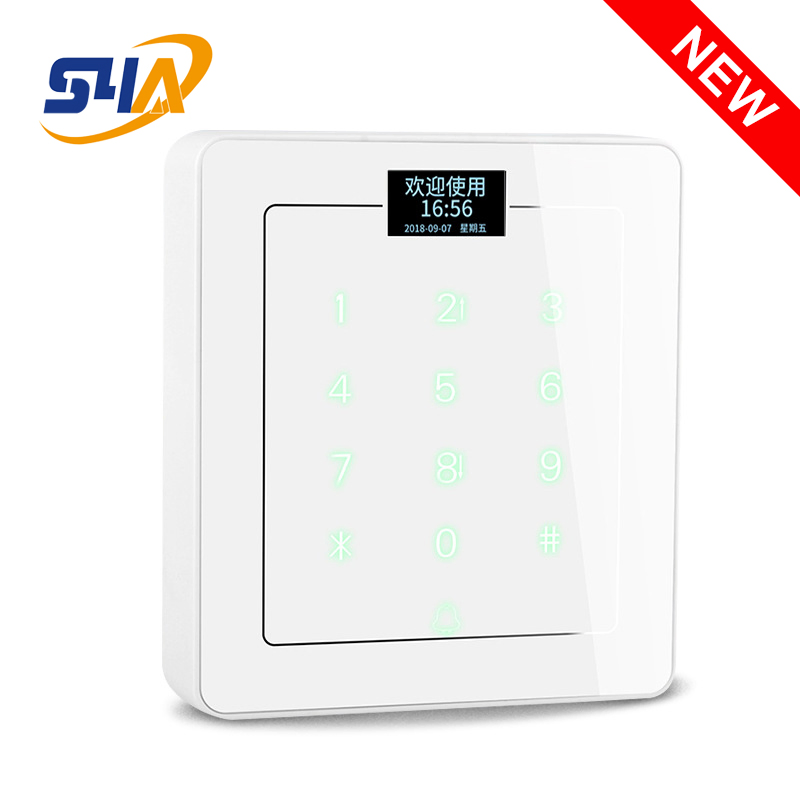

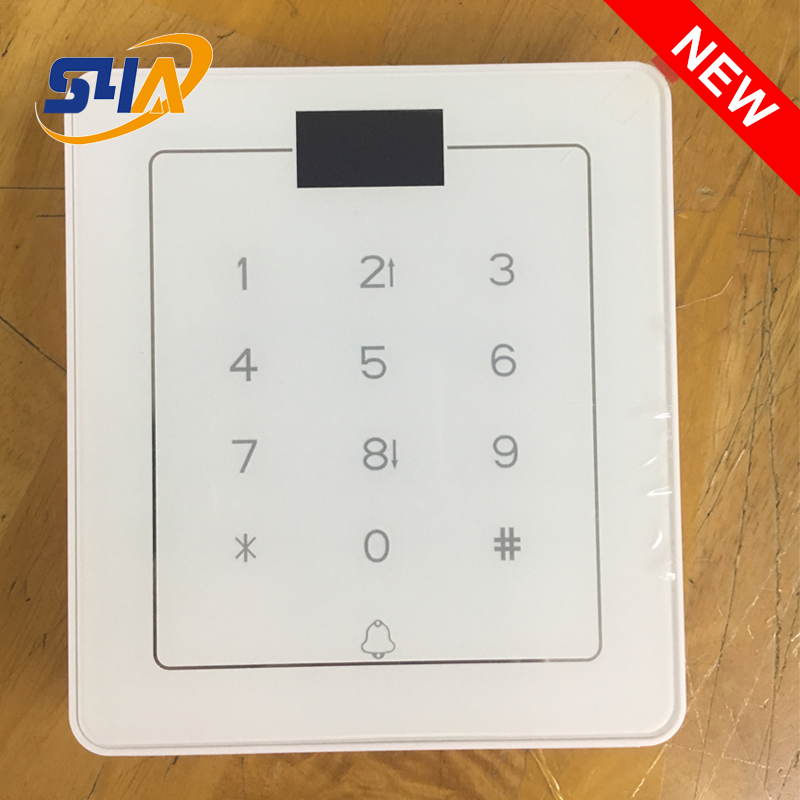

Touch Screen Keypad Door Entry Fashion White Standalone Access Control System
Product Description
Basic Specifications
Model NO.
C800-W
Certification
CE
Type
Touch Screen Access Control
Communication
Wiegand / U-disk
Interface
DC12V
Material
Aluminum Alloy Housing
Card Capacity
1000
Record Capacity
100000
Anti-Tamper
Supported

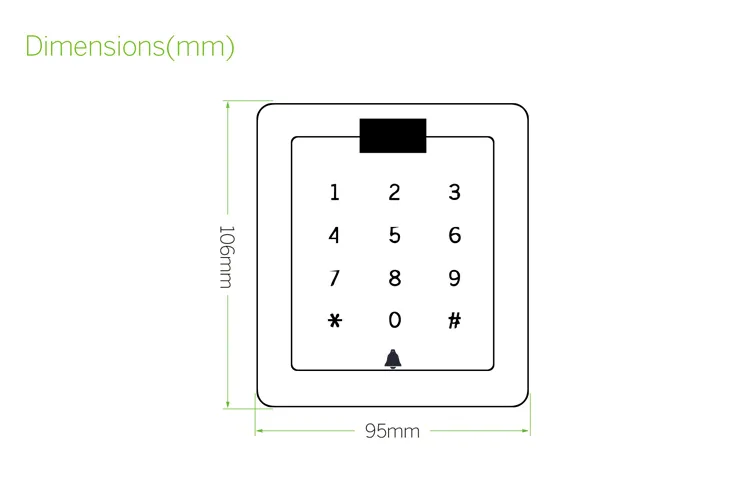

Dimensions
106 x 95 x 22.5mm

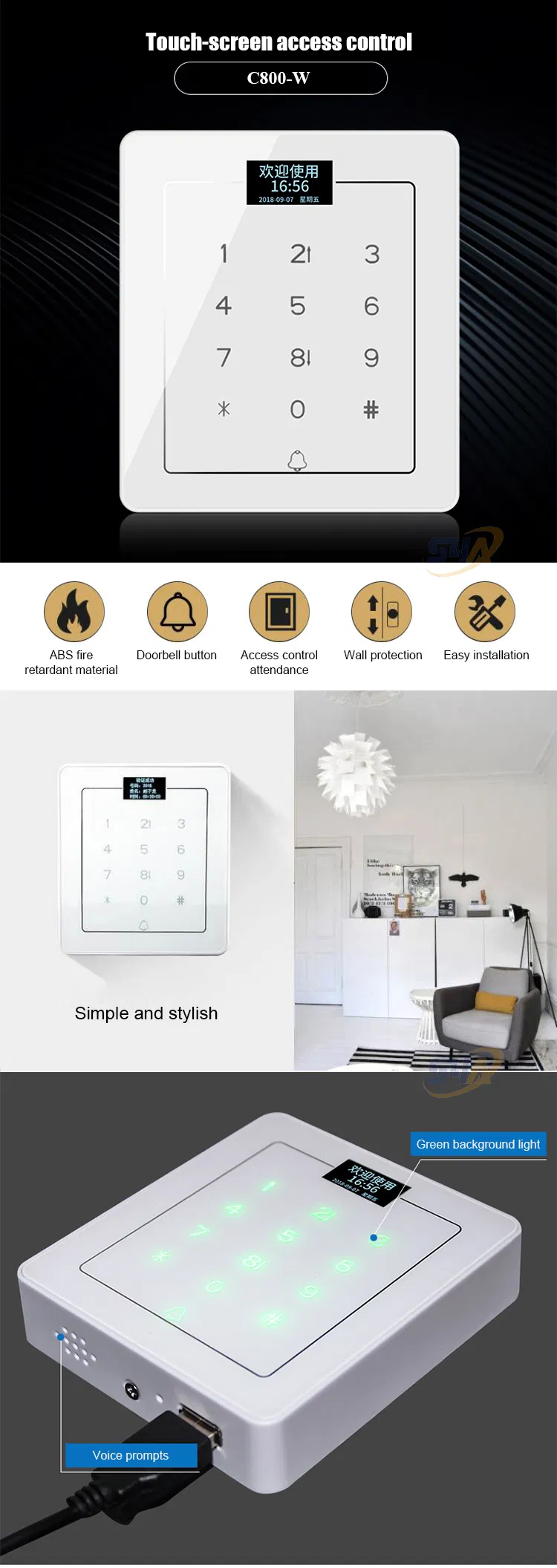

Product Highlights
Touch Screen Keypad Door Entry Fashion White Standalone Access Control System
- ✦MF Card Support: Compatible with 13.56MHz Mifare cards.
- ✦OLED Display: Low power consumption high-clear display.
- ✦Data Management: U-disk support for uploading/downloading user info.
- ✦Attendance Tracking: Self-service Excel reports for easy management.
- ✦Voice Prompts: Supports Chinese and English language guidance.
- ✦Backlight Doorbell: Independent button for easy access in the dark.
Technical Parameters
| Material | Strong aluminum alloy |
| User Card Capacity | 1000 |
| Record Capacity | 100000 |
| Card Frequency | Mifare-13.56MHz |
| Display | OLED low power consumption |
| Waterproof Rate | Non-Waterproof |
| User Password Capacity | 1000 groups |
| Wiegand Protocol | Standard WG26/WG34 |
| Anti-tamper Alarm | Support |
Product Visuals
Frequently Asked Questions
How many users can the C800-W system manage?
The system supports up to 1,000 card users and 1,000 password groups simultaneously.
Can I export attendance records from this device?
Yes, the device supports U-disk data transfer and can generate self-service Excel reports for attendance management.
What type of cards are compatible with this keypad?
This specific model (C800-W MF) is designed for 13.56MHz Mifare (MF) cards.
Is this access control unit suitable for outdoor installation?
No, this model is rated as non-waterproof and is recommended for indoor use or protected environments.

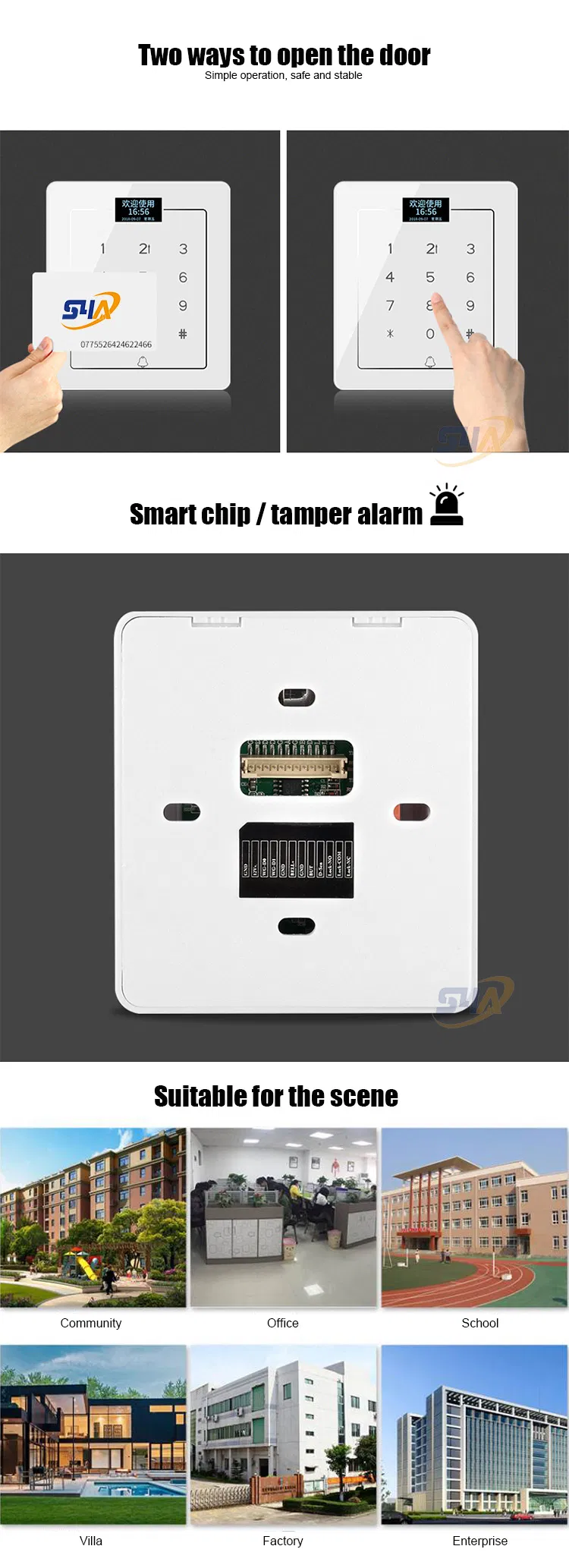

Does the device have an alarm for unauthorized tampering?
Yes, it features a built-in anti-tamper alarm function to enhance security against physical interference.
What languages are supported by the voice prompt?
The system provides voice prompt support in both Chinese and English.
