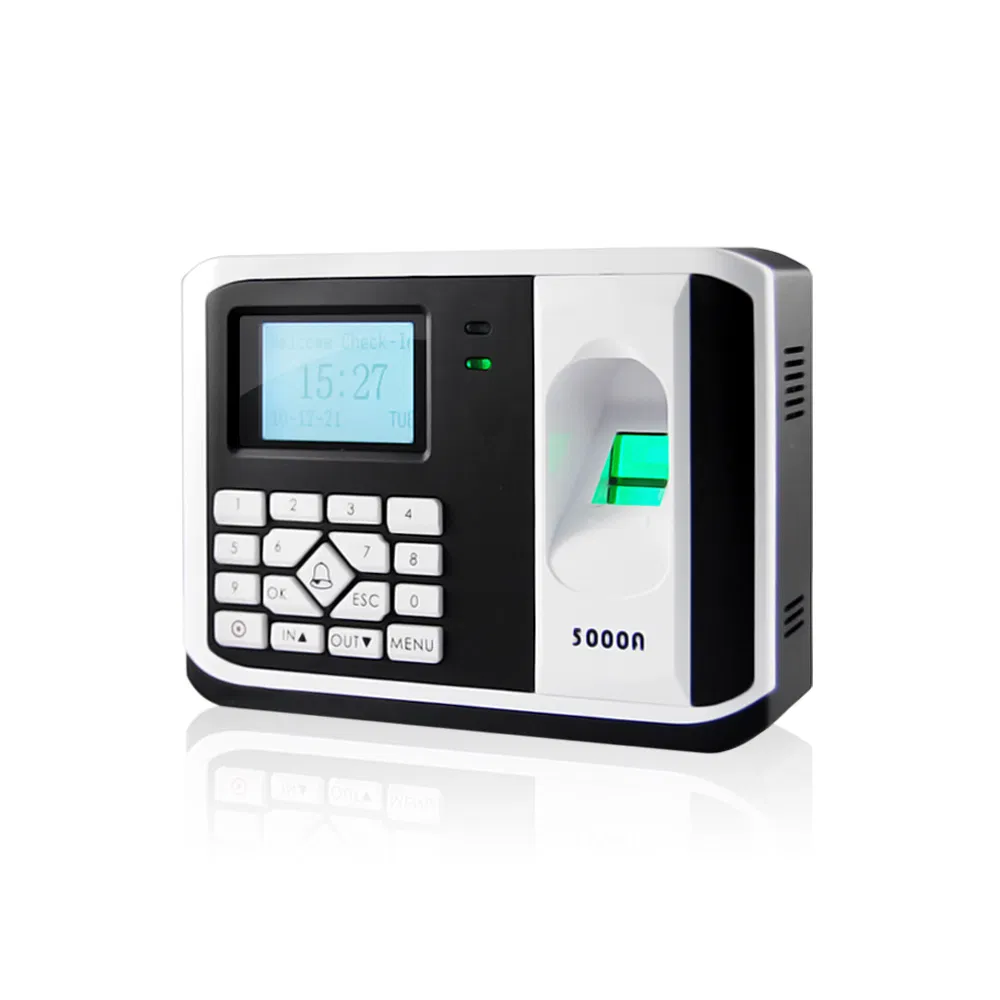

Linux TCP / IP Fingerprint Access Control System with Wired Door Bell Connection, Metal Keypad (5000A)
Product Description
ℹ
Basic Specifications
Model NO.
5000A
Screen
Black and White Screen
Communication Interface
RS485, RS232, USB, TCP/IP
Fingerprint Capacity
4000
Log Capacity
100,000
Attendance Status
Check in, Check out
Package Size
155(L)*110(W)*38(H)mm
Certification
CE, FCC, RoHS, ISO
HS Code
8543709990
📋
Product Description
5000A: Linux System Fingerprint Access Control System With Wiegand function.
The 5000A is a professional access control product combined with high-end fingerprint recognition algorithms, optical sensors, embedded design technology, and specialized software applications. It provides maximum security and value, making it a highly popular security solution.
Key Features
- Composite algorithm system with high speed operating
- Embedded LINUX system, easy to integrate into various systems
- Supports both standalone and network environments
- Built-in access controller, supporting 99 time zones and 5 groups
- 24 hours continuous operation availability
- Data protection during power outages
- Enhanced security with multiplex alarm alert support
⚙
Technical Specifications
| Display/Speaker | Language |
| LCD Display: 4 lines Character white LCD 128*64 Speaker: Voice Prompt |
Multi Language: English, French, Spanish, Arabic, etc. (Over 40 languages available) |
| Capacity | Environment |
| Fingerprint: 4,000 Log: 100,000 |
Temp: 0°C ~ 45°C Humidity: 20% ~ 80% |
| Verification Speed | Accuracy |
| Verification (1:1): ≤0.5s Identification (1:N): ≤1s |
FRR: ≤0.01% FAR: ≤0.0001% |
| Communication | Power & Size |
| TCP/IP, RS232/485, USB Host/Client, Wiegand in/out | Power: 12VDC Size: 155(L)*110(W)*38(H)mm |
🖼
Connection & Details

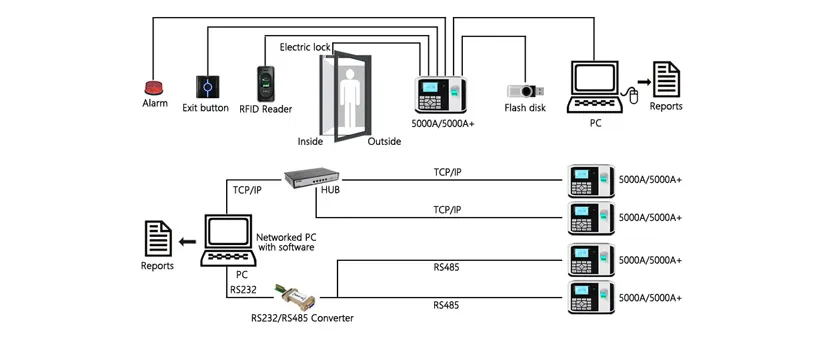

Connection Diagram:

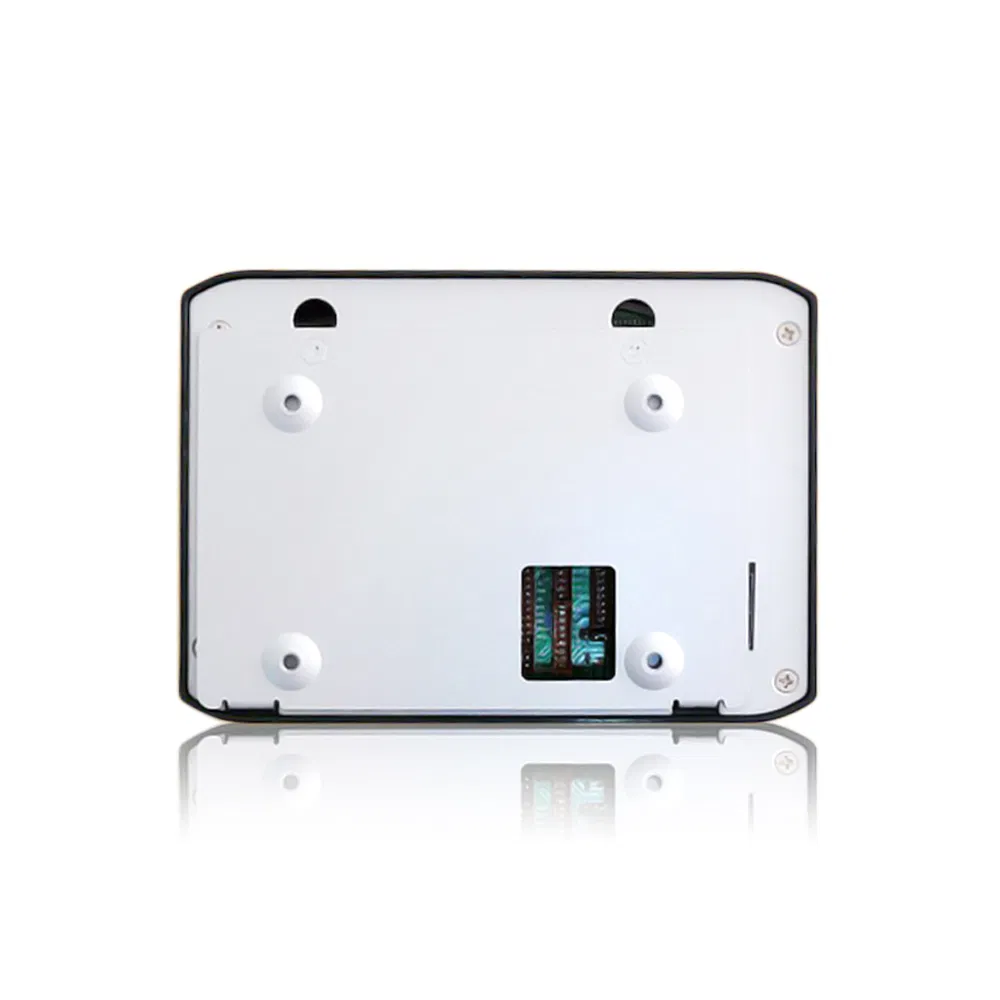

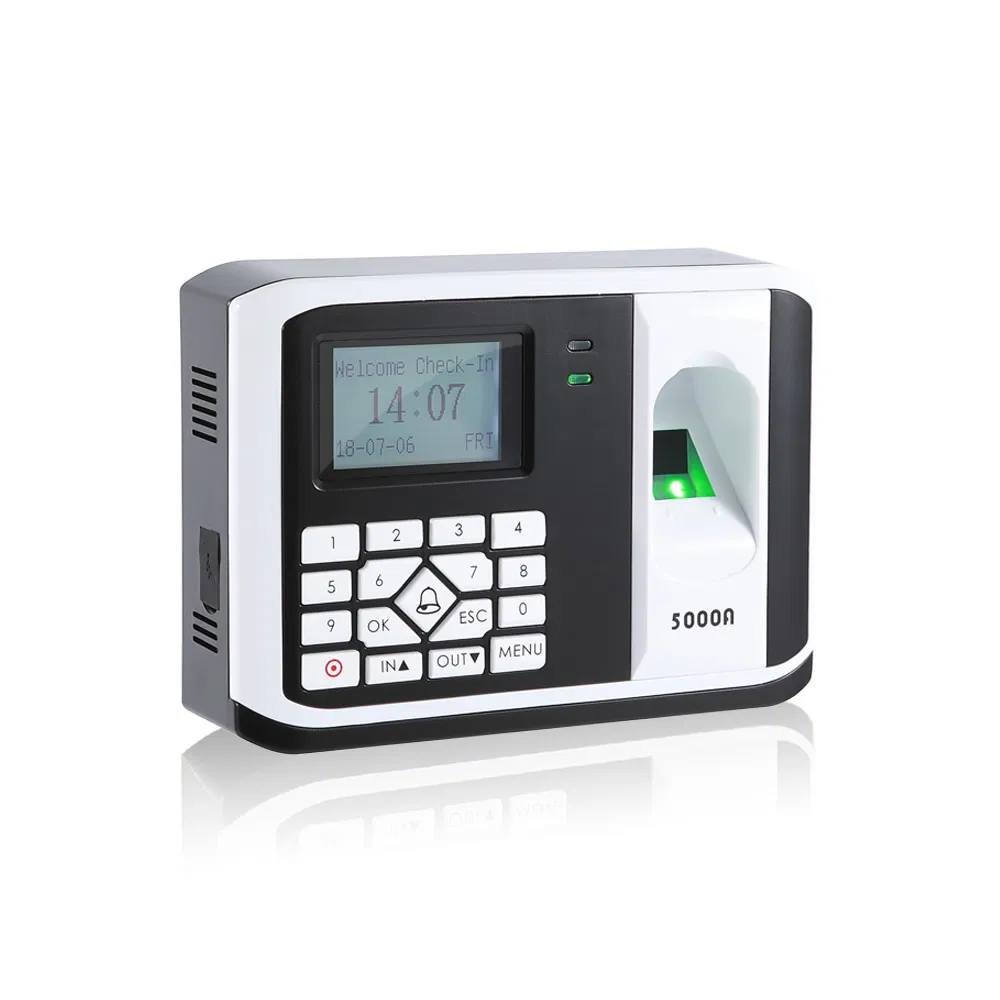

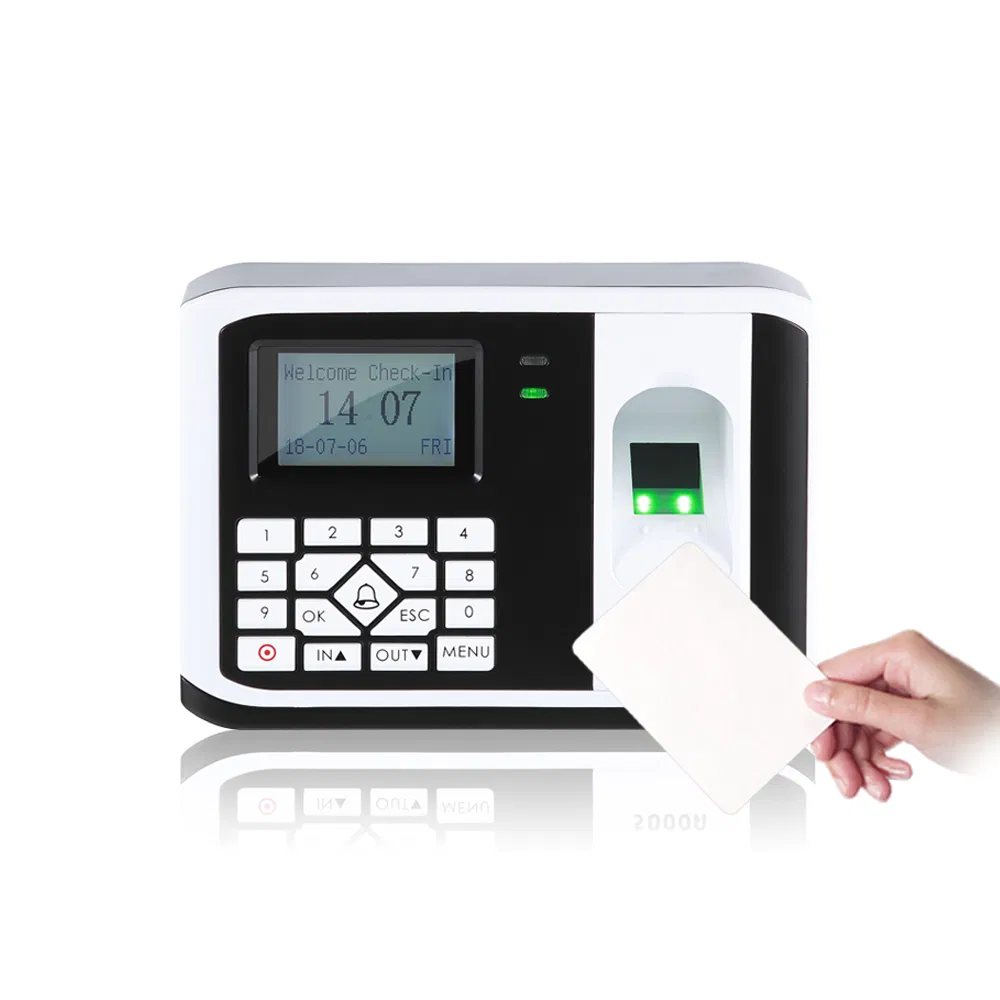

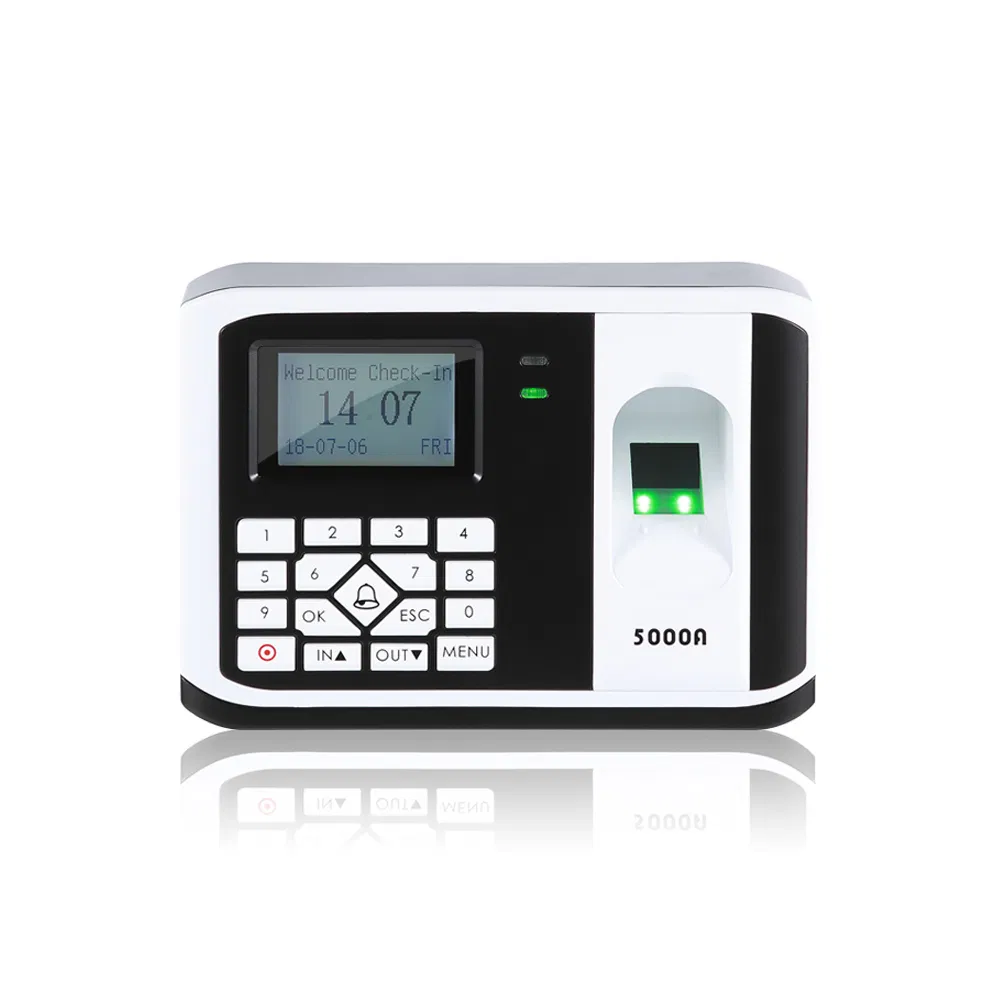

Detailed Images:
❓
Frequently Asked Questions
What is the fingerprint capacity of the 5000A model?
The 5000A model supports up to 4,000 fingerprint templates and can store up to 100,000 transaction logs.
What operating system does this access control system use?
The device runs on an embedded LINUX system, which ensures stability and easy integration with other security platforms.
Can I connect this device to my network?
Yes, it supports multiple communication interfaces including TCP/IP, RS232, RS485, and USB Host/Client for flexible networking.
Does the system lose data if the power goes out?
No, the system is designed to save all data during power outages to ensure no security records are lost.
What types of alarms are supported?
The 5000A includes professional access control features like dismantlement alarms, break-in alarms, and duress alarms for enhanced security.
Are there different versions of the 5000A available?
Yes, there are standard versions, as well as the 5000A+ID (built-in ID reader) and 5000A+MF (built-in IC/Mifare reader) to suit different card identification needs.
