Tuya WiFi Smart Phone APP Remote Management Reader Access Control Touch Keypad Door Access Control System
Product Description
Basic Information
Model NO.
ZDAC-2400W-WiFi
Technology
32-Bit Technology
Way of Control
Computer Control
Type
One-way Controller
Identification
Card, Pin, Card & Pin
Reading Distance
3-6cm
Operating Voltage
DC 12-24V
User Capacity
2000
Waterproof
IP68
Material
Metal Case + Metal Keypad
Size
120* 58*20(mm)
Specification
CE, RoHS

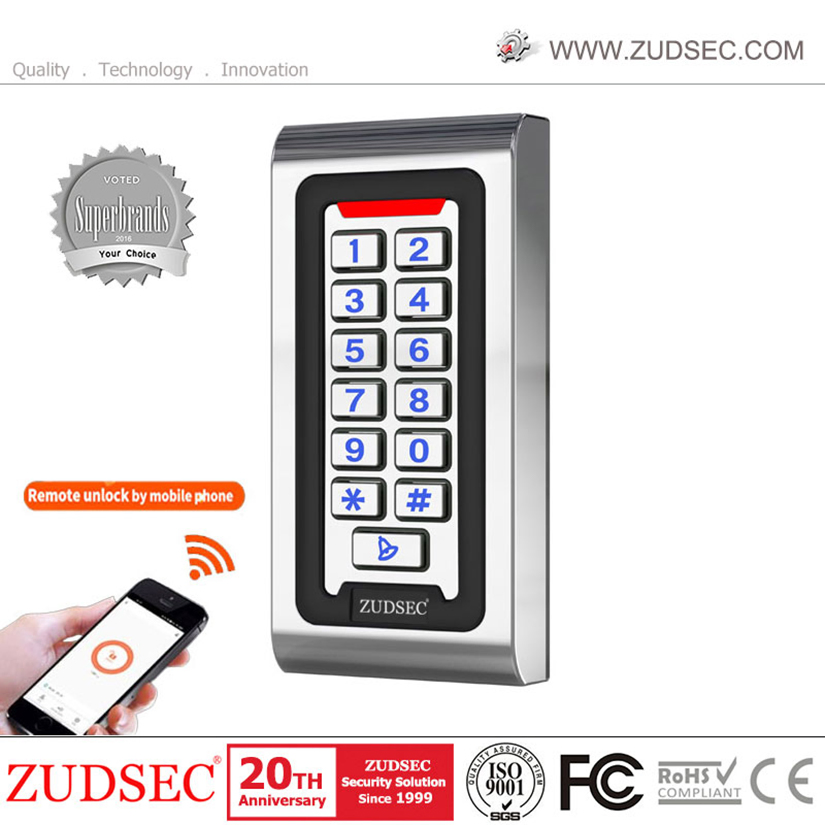

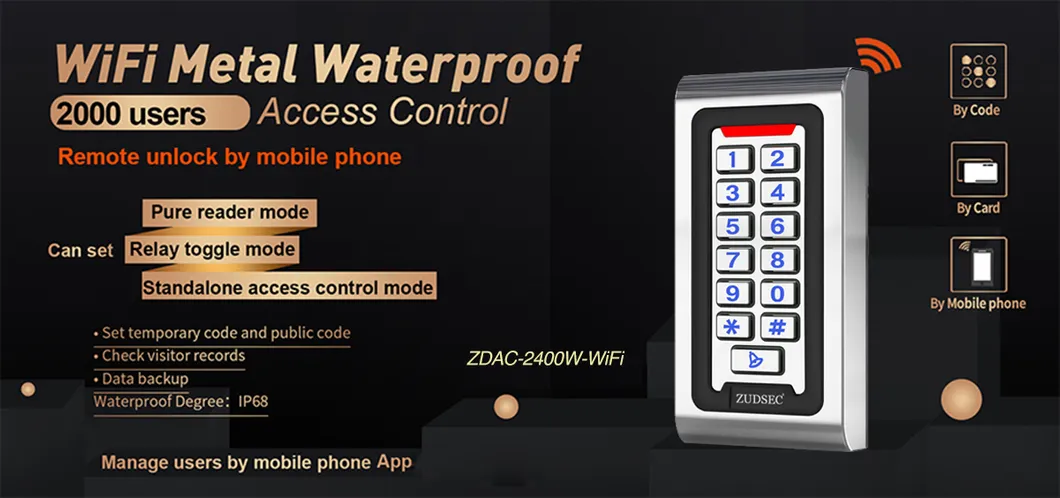

Tuya WiFi Smart Phone APP Remote Management Reader Access Control
Aluminum alloy structure, Waterproof, fully potted, confirms to IP65, 125KHz EM and HID card for optional, Multi-function, 12P cable with built in door bell function, operating as slave reader, single door, anti-pass back, etc. Suitable for various occasions.
Key Features
Waterproof Design: Aluminium alloy case, fully potted, meets IP-65/IP-68 standards.
Backlit Keypad: Metal digital keys with adjustable backlight (Normal ON/OFF or Human-Approach).
High Capacity: Supports up to 2000 users, each with a card and a 4-6 digits password.
Smart Control: Built-in 125KHz card reader with Auto-Recognition and Tuya App support.
Wiegand Interface: Wiegand 26-37 output for flexible integration.
Doorbell Function: Integrated door bell button for visitor convenience.
Technical Specifications
| Operating Voltage | DC 12-24V; Operating Current ≤35mA |
| Card Reading Distance | 3-6CM |
| Keypad Transmit Format | 4-6 digits key press, 4 bits or 8 bits data |
| Type of ID Card | 125KHz, EM |
| Card Transmit Format | Wiegand 26-37 |
| Operating Temperature | -40ºC to 60ºC |
| Operating Humidity | 0~95% (non-condensing) |
| Dimensions & Weight | 158.6L x 43W x 21.7D (mm); 0.5Kg |
Product Gallery
Related Solutions
Frequently Asked Questions
Q1: How many users can this access control system support?
A: The system supports up to 2000 users, each capable of having a unique card and a 4-6 digit password.
Q2: Can I manage the door access remotely?
A: Yes, this model features Tuya WiFi integration, allowing for remote management via a smartphone application.
Q3: Is the device suitable for outdoor installation?
A: Absolutely. It features an aluminum alloy case and is fully potted to meet IP65/IP68 waterproof standards, making it ideal for various weather conditions.
Q4: What type of cards are compatible with this reader?
A: It has a built-in 125KHz card reader compatible with EM and HID cards.
Q5: What is the operating voltage range?
A: The device operates on a wide voltage range of DC 12V to 24V.
Q6: Does the keypad have a backlight for night use?
A: Yes, it features a metal digital backlit keypad. The backlight can be set to Normal ON, Normal OFF, or Human-Approach ON mode.
