Professional & Powerful Network TCP/IP RFID Fingerprint Door Access Control System with Time Attendance Function
Product Description
Basic Information
| Model NO. | ZDTA-30AC |
|---|---|
| Product Name | Fingerprint Access Control System |
| Software System | WIN7 / WIN8 / XP / Vista |
| Communication Mode | TCP/IP, RS485, USB Memory Disk |
| User Capacity | 2,000 Users |
| Records Capacity | 30,000 Events |
| Authentication Method | Fingerprint / RFID Card / Password |
| LCD Screen | 2.4 Inch (320*240) Black & White |
| Fingerprint Sensor | 500dpi (Optical Sensor) |
| Language Support | English, Spanish, French, Korean, Chinese |

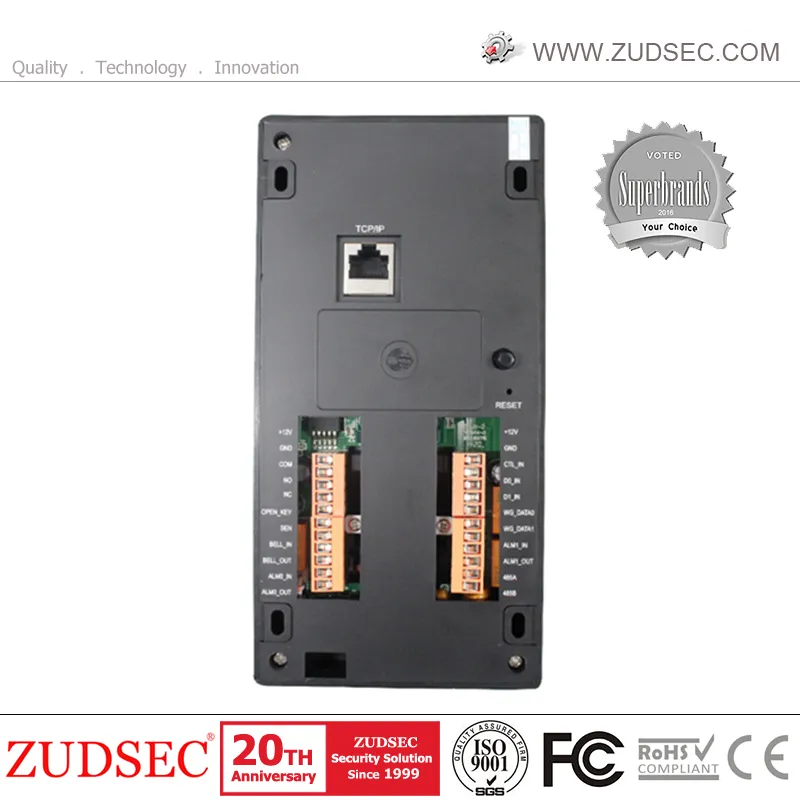

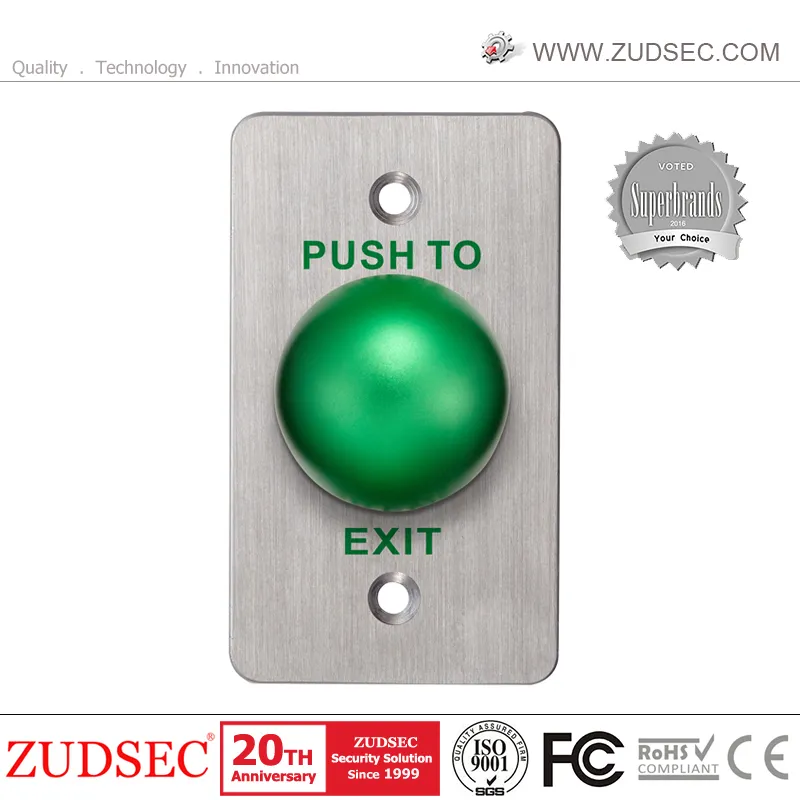

| Access Interface | Wiegand26/34, Door Lock, Siren, Release Button |
| Power | DC 12V/1A |
Product Description
Professional & Powerful Network TCP/IP RFID Fingerprint Door Access Control System

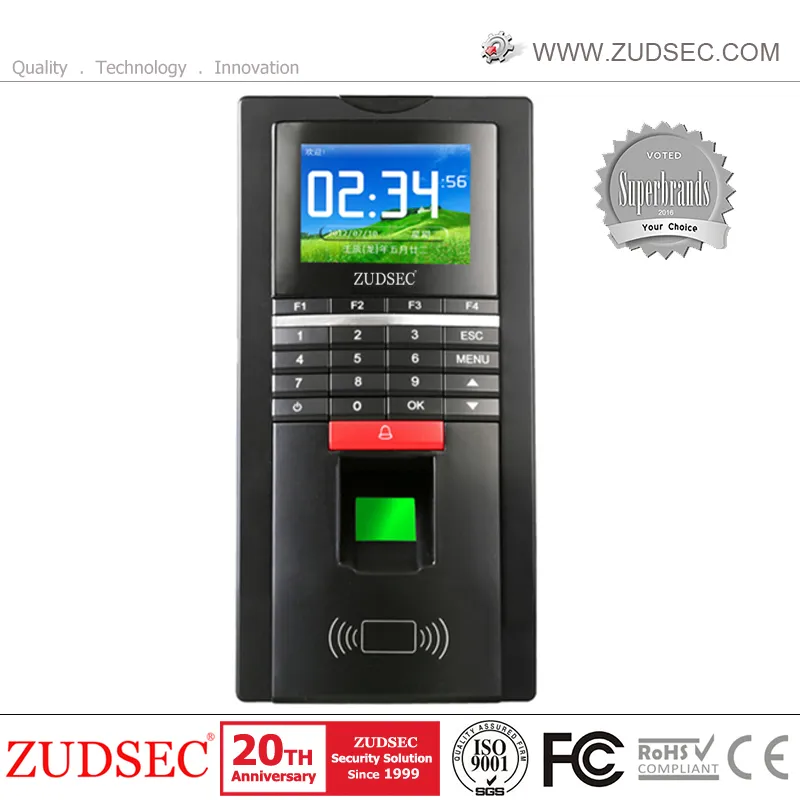

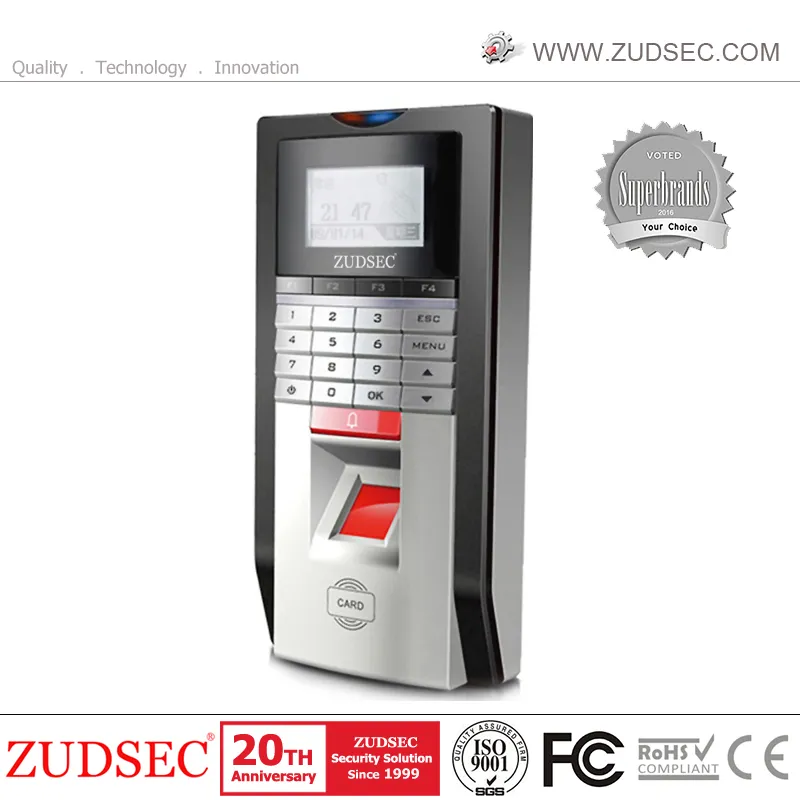

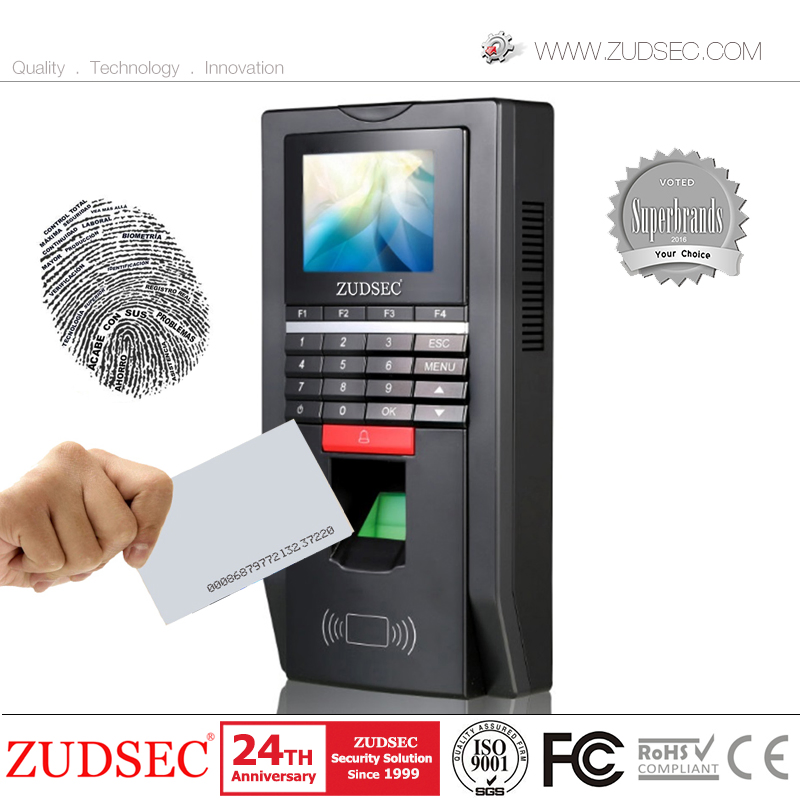

The ZDTA-30AC is an advanced fingerprint access control device with integrated time attendance functionality. Utilizing the world's most sophisticated fingerprint algorithms, it automatically analyzes minute differences in fingerprint patterns to ensure high accuracy and rapid recognition. Supporting multiple verification modes including RFID, Fingerprint, and Password, it provides a secure and flexible solution for various high-security environments.
Key Features
- Strictly follows national security standards for apartments, offices, and factories.
- Supports TCP/IP, RS485, and USB Flash Drive data management.
- Advanced arithmetic for recognition speeds of less than 1 second.
- Built-in ID card sensor (IC card optional) for flexible mix-mode verification.
- Anti-pass back, tamper alarm, and illegal unlock alarm functions.
- Supports multi-language interfaces: English, French, Spanish, etc.
- Professional access control interface: Wiegand, Siren, Door Sensor, and Lock Output.
- Enrolls up to 2,000 fingerprints and stores up to 30,000 logs.
Technical Parameters
| Identification Time | < 1 Second |
|---|---|
| FRR / FAR | < 1% / < 0.0001% |
| Operating Mode | Off-line / On-line |
| Authentication Mode | 1:1, 1:N |
| Environment | Temp: 0ºC-50ºC, Humidity: 80% |
| Terminal Size | 181 * 91 * 36 mm |
| Lock Output | Normal Open / Normal Close |
Product Gallery
Related Solutions
Frequently Asked Questions
A: The system supports up to 2,000 individual users and can store up to 30,000 attendance/access events.
A: Yes, you can use a USB Flash Drive to download attendance records and upload fingerprint data directly from the device.

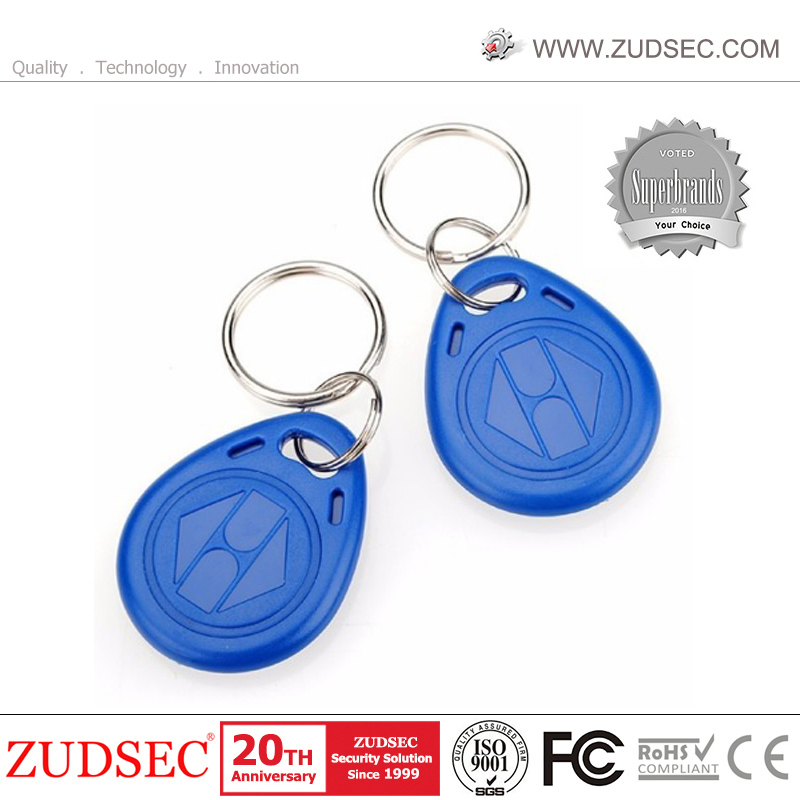

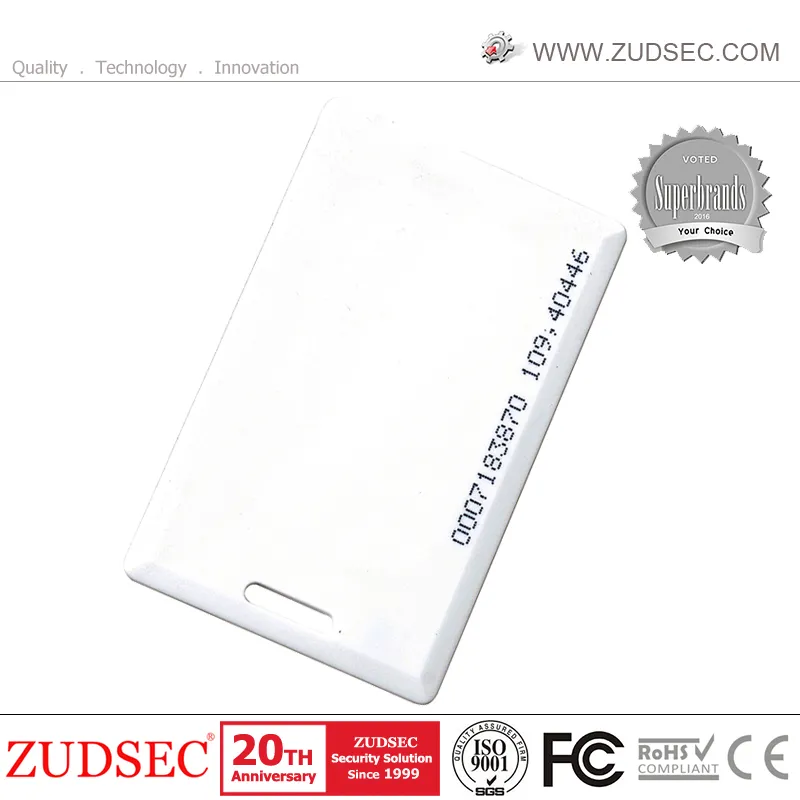

A: The device supports Fingerprint, RFID Card (125Khz standard, Mifare optional), and Password. These can be combined for higher security.
A: Yes, the software and terminal interface support English, Spanish, French, Korean, and Chinese.
A: Absolutely. With features like anti-pass back, multi-level validation, and tamper alarms, it is designed for high-security installations.
A: The device comes with dedicated management software compatible with Windows XP, Win7, Win8, and Win10 (32/64 bit).
