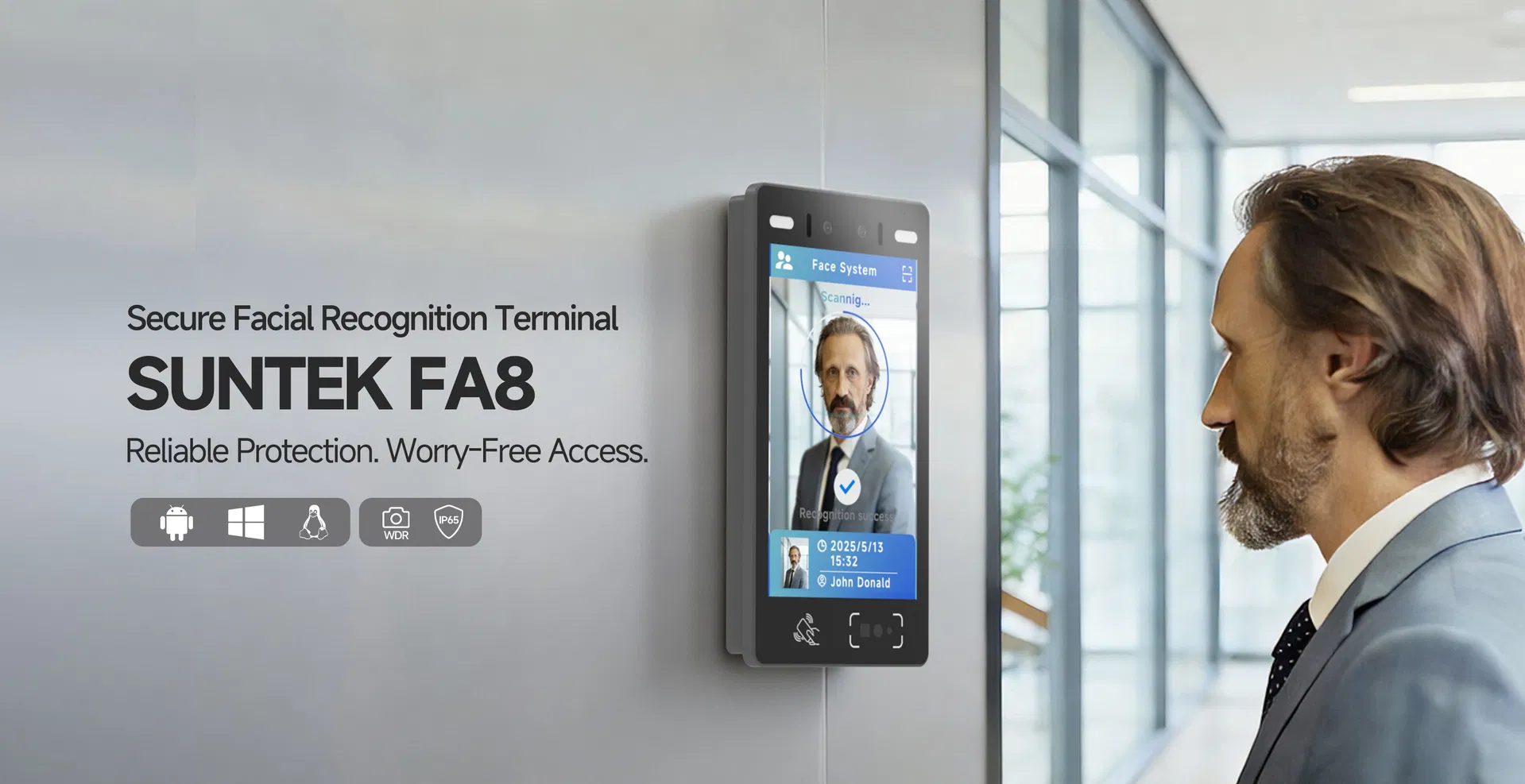

Suntek Large Face Capacity USB Android RFID Card Face Recognition Access Control Security System with Free Sdk
Product Description
Basic Information
Model
FA8
Operation System
Android 14
CPU
Rk3576, Quad-Core, 2.0GHz
Memory
4GB RAM + 64GB ROM
Display
10-Inch (800X1280)
Camera
Dual-Lens Camera (RGB+IR), 2MP+2MP
Facial Capacity
Max up to 30,000 Faces
Liveness Detection
Anti-spoofing for photos, videos, and masks
Power
12V/2A or PoE
IP Rate
IP65 (Screen)
Product Gallery
Technical Specifications
| FA8 Facial Recognition Terminal | |
|---|---|
| OS | Android 14 |
| Processor | Quad-core, 2.0GHz |
| Memory | 4GB RAM + 64GB ROM |
| Display | 8-inch (800x1280) IPS LCD Touchscreen |
| Front Camera | Dual-lens Camera (RGB+IR); 2MP+2MP |
| Communications | WIFI, Bluetooth, Ethernet (Wi-Fi 6 supported) |
| Contactless Reader | ISO14443 Type A/B, NFC |
| Rich Ports | 1xDC, 1xRJ45, 1xUSB, 1xUBOOT, Wiegand In/Out, 1xRs485, 2xGPIO Input, 1xRelay |
| Recognition Speed | <0.2s matching speed |
| Accuracy Rate | >99.99% |
| Environmental | Operating: -20℃ ~ 55℃; Storage: -25℃ ~ 60℃ |
Core Features & Advantages
🛡️

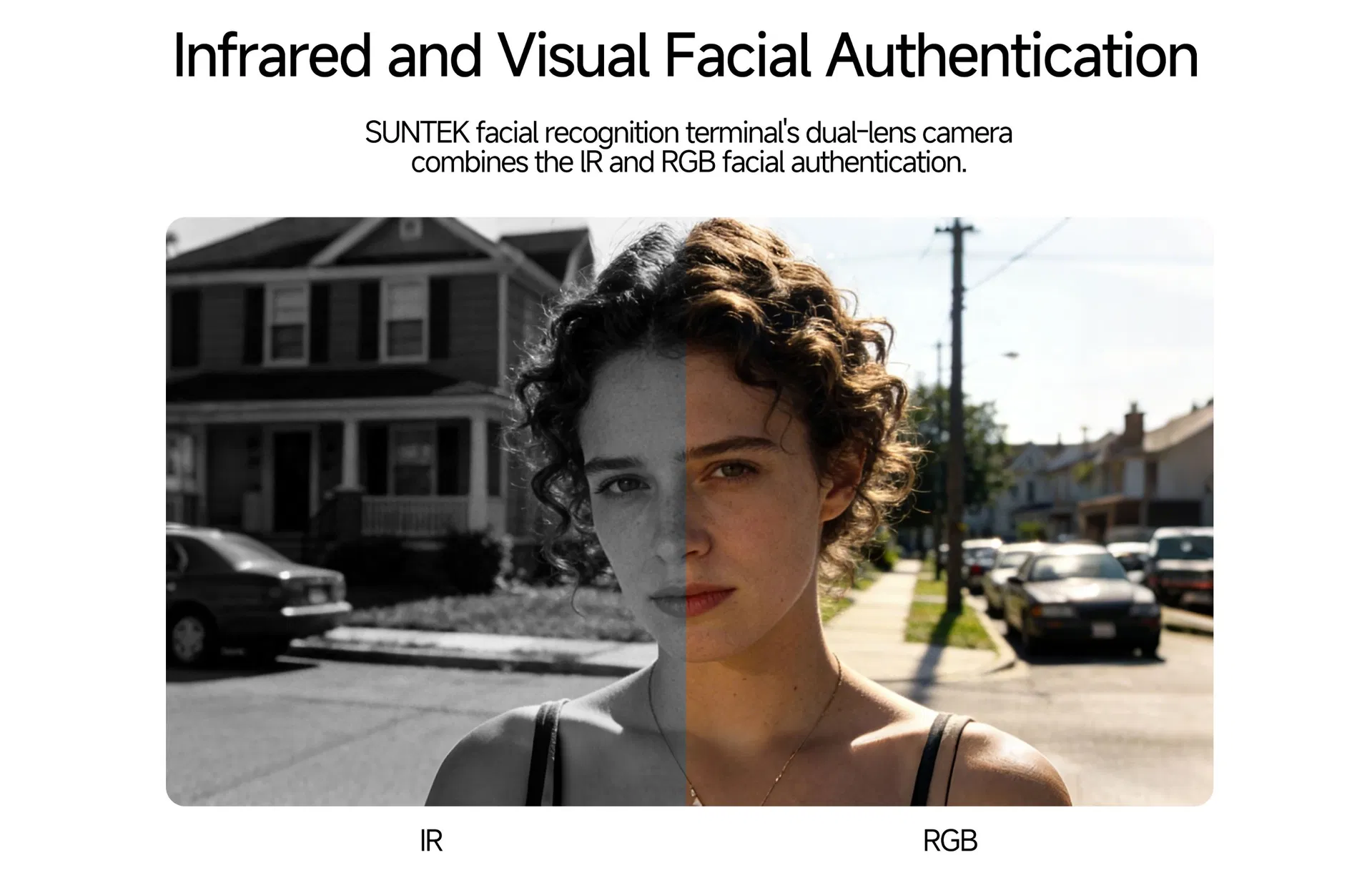

Secure Facial Recognition
The terminal redefines seamless entry management with infrared + RGB dual-lens cameras, providing a critical layer of verification for all-weather accuracy.
⚡
High-Performance Hardware
Powered by an Octa-core processor and 4GB RAM + 64GB ROM, ensuring stable connectivity and lag-free performance even at high-traffic points.
👁️

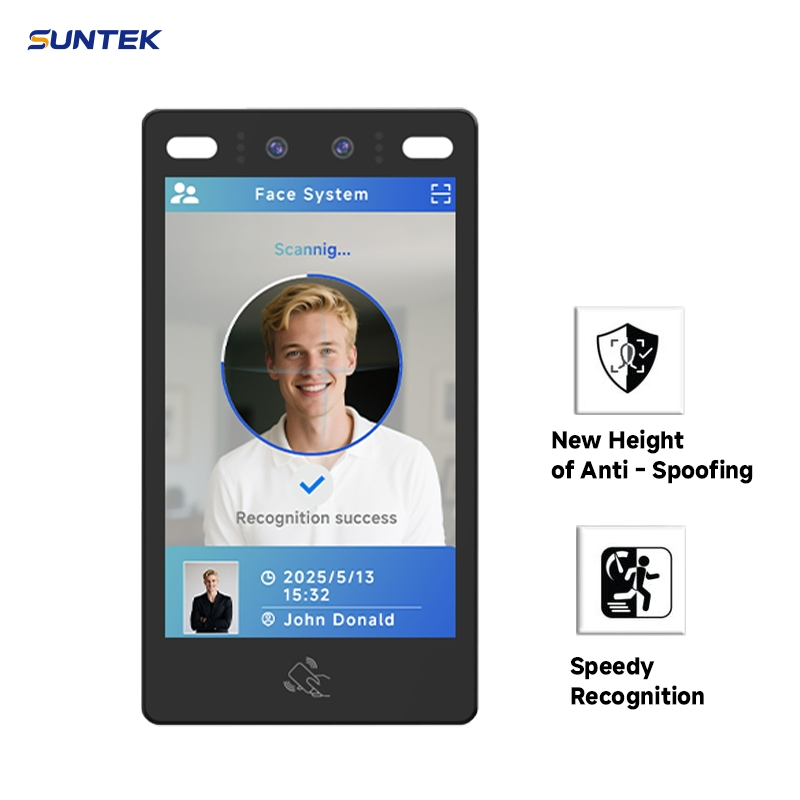

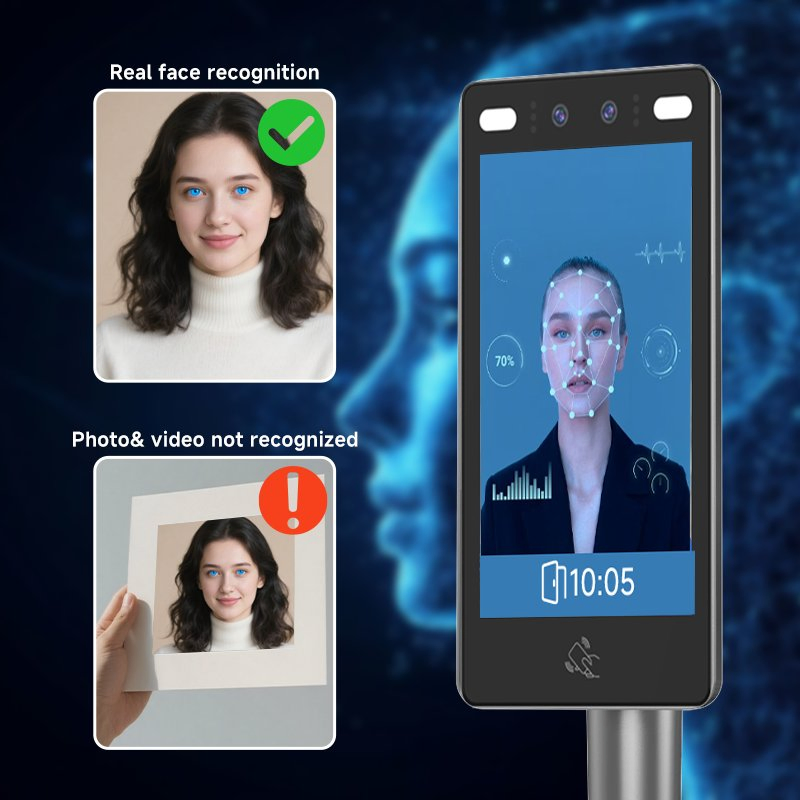

Advanced Liveness Detection
Safeguards against facial spoofing including fake faces, photos, videos, or mask attempts, eliminating unauthorized access risks.
📱

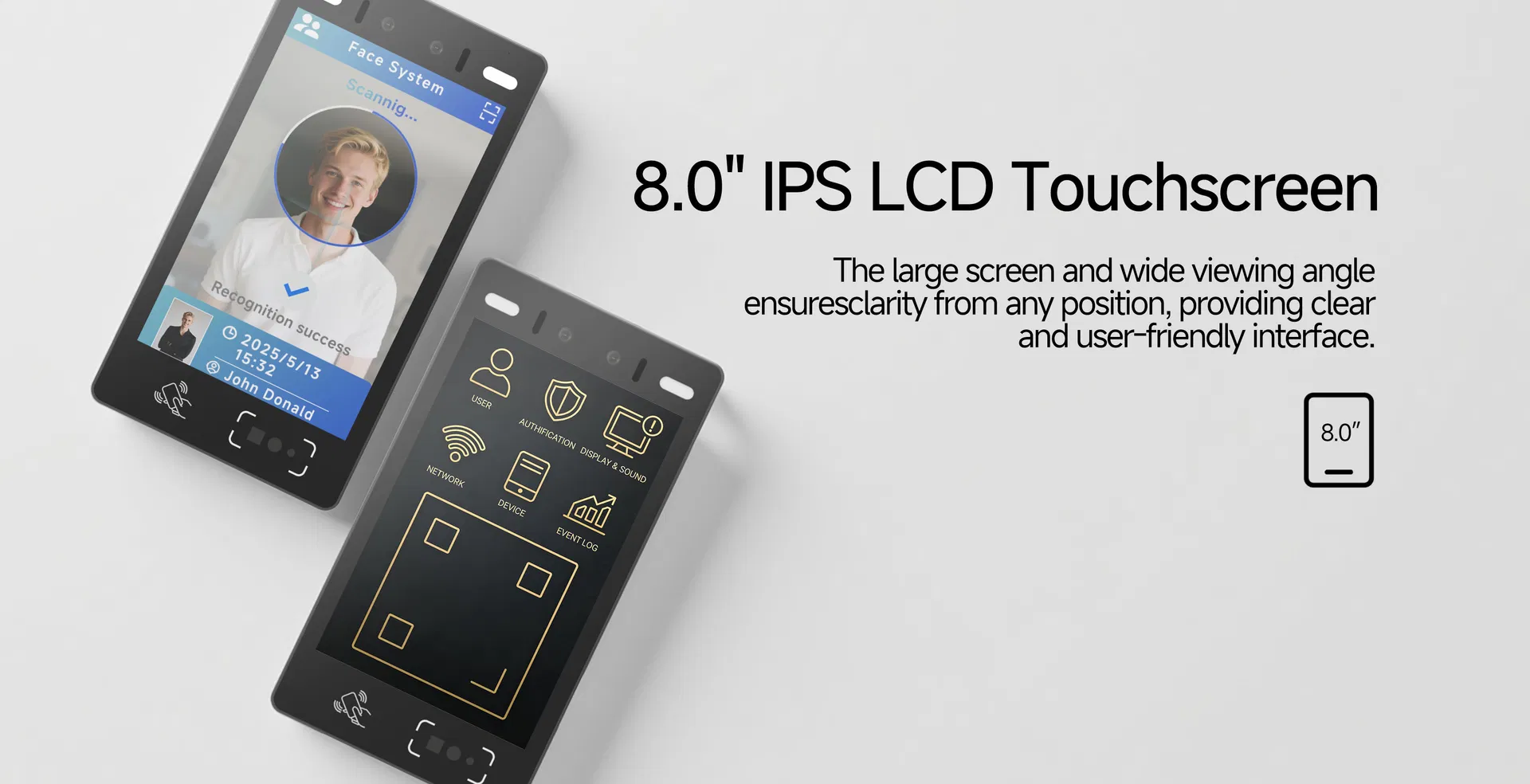

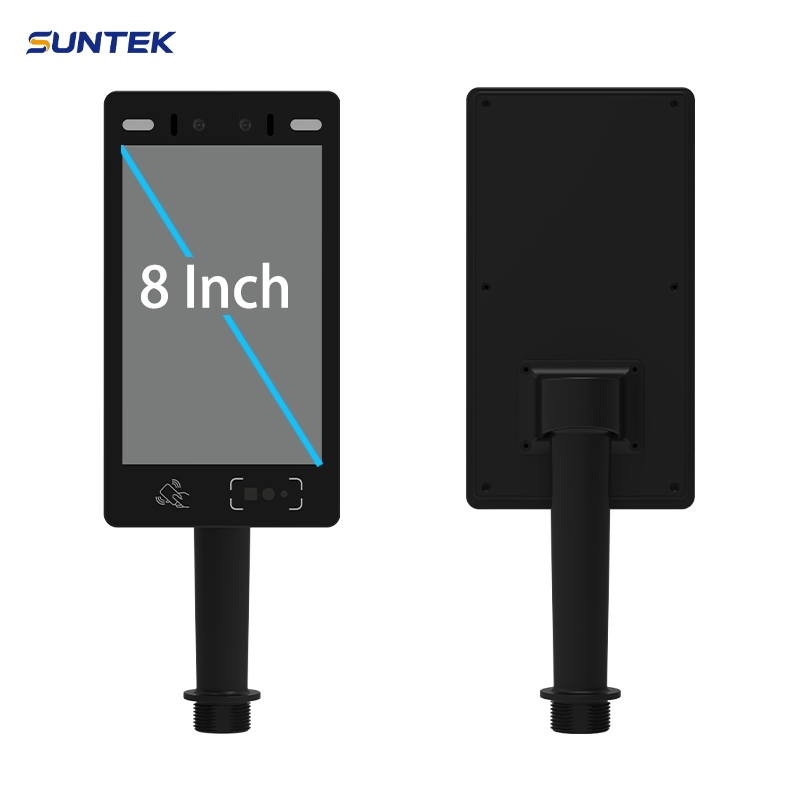

Premium Display
The 8.0" IPS LCD Touchscreen delivers crisp clarity from any angle with an intuitive interface for effortless user interaction.
🌧️
Versatile Deployment
Supports Wall Mounted, Turnstile Mounted, and Flush Mounted options. Optional brackets upgrade the device to IP65 waterproof rating for outdoor use.

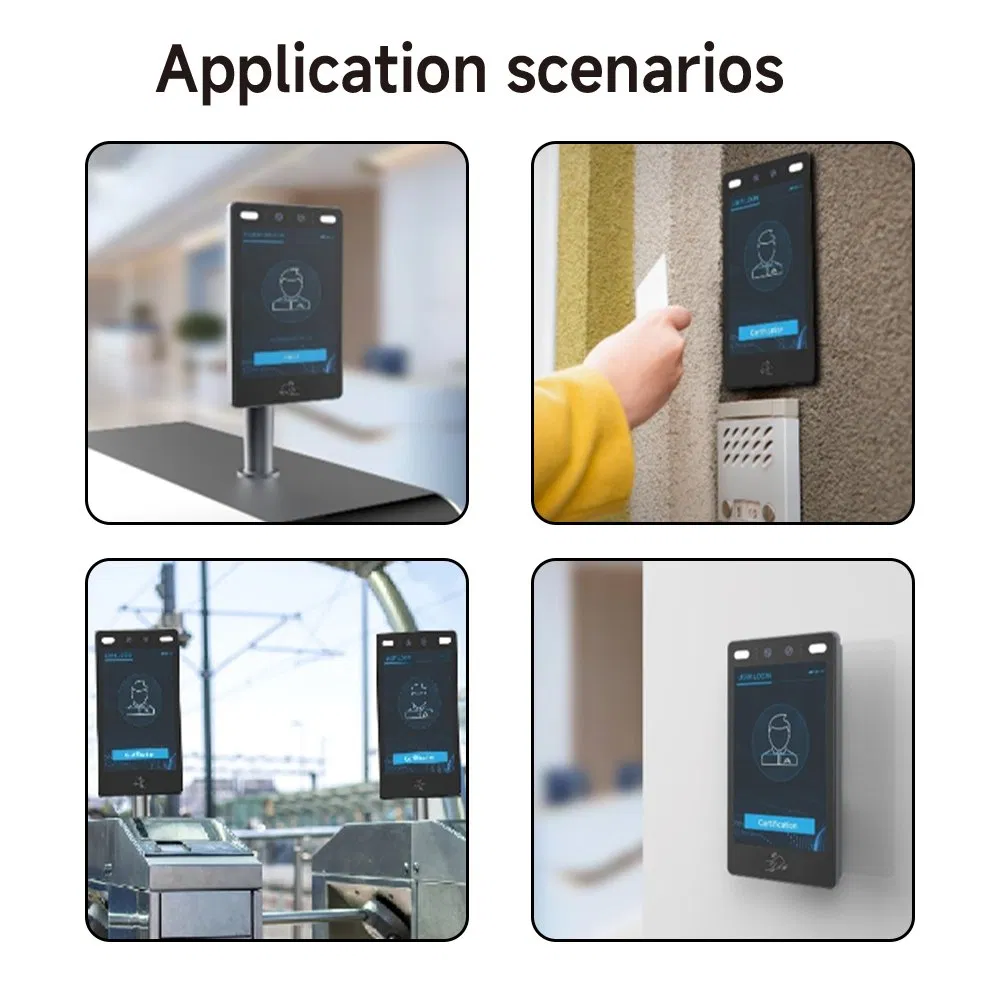

Application Scenarios
• Corporate & Government Offices: Employee entry management and visitor registration.
• High-Security Zones: Data centers, research labs, and restricted areas.
• Healthcare Facilities: Hygienic, touch-free access solutions.
• Transportation Hubs: Large crowd management and public venues.
• Time & Attendance: Accurate employee work hours logging.
Frequently Asked Questions
1. What is the recognition accuracy and speed of the FA8 terminal?
The device boasts an industry-leading accuracy rate of over 99.99% and a blazing-fast matching speed of less than 0.2 seconds, significantly reducing wait times.
2. Can the device be used outdoors in rainy conditions?
Yes. While the standard screen is IP65 rated, using the optional turnstile bracket upgrades the entire assembly to be fully outdoor-ready for all-weather deployment.
3. How does the terminal prevent unauthorized access using photos or videos?
The terminal utilizes advanced liveness detection technology combined with an infrared + RGB dual-lens camera system to detect and block facial spoofing attempts like photos, videos, or masks.
4. What operating system and hardware powers this device?
The terminal runs on Android 14 and is powered by a high-performance Quad-core 2.0GHz processor with 4GB RAM and 64GB ROM for smooth, lag-free operation.

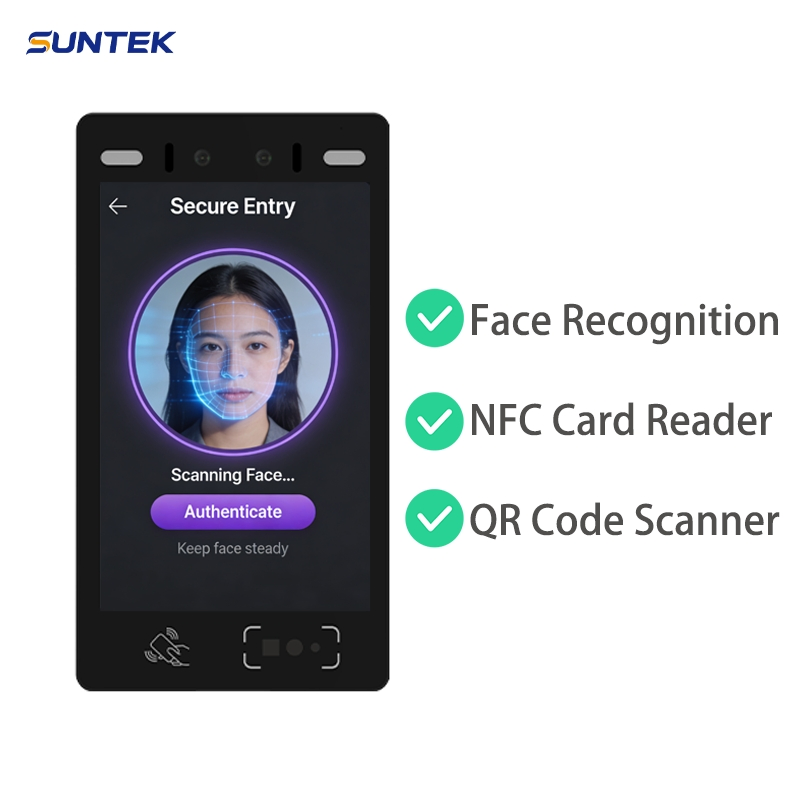

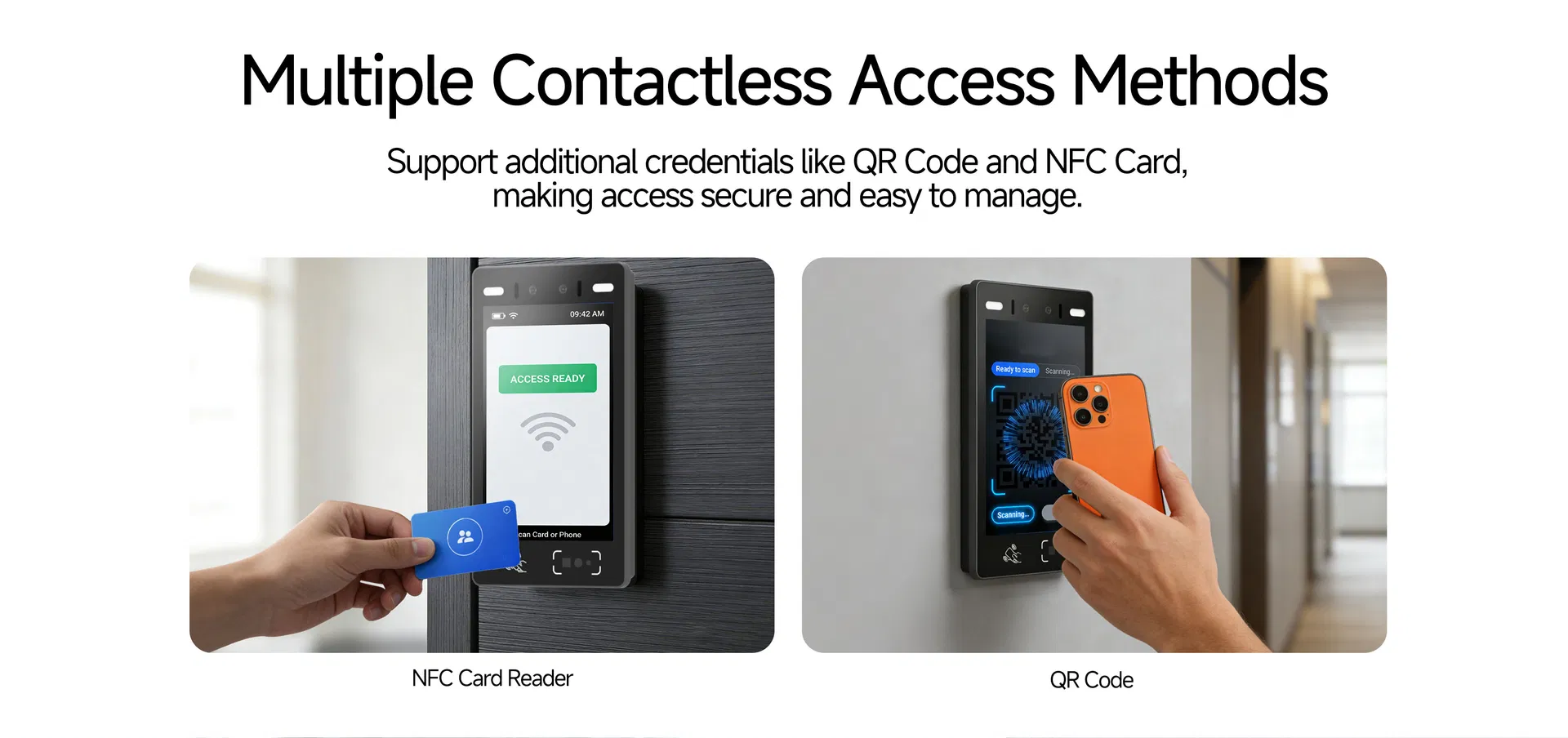

5. Does it support other identification methods besides face recognition?
Yes, it features a contactless card reader supporting ISO14443 Type A/B and MIFARE cards, and can be optionally equipped with a fingerprint reader or QR code scanner.
6. What are the connectivity and integration options?
It supports WiFi, Bluetooth, and Ethernet. For hardware integration, it includes rich ports such as Wiegand Input/Output, RS485, USB, and Relay interfaces.
