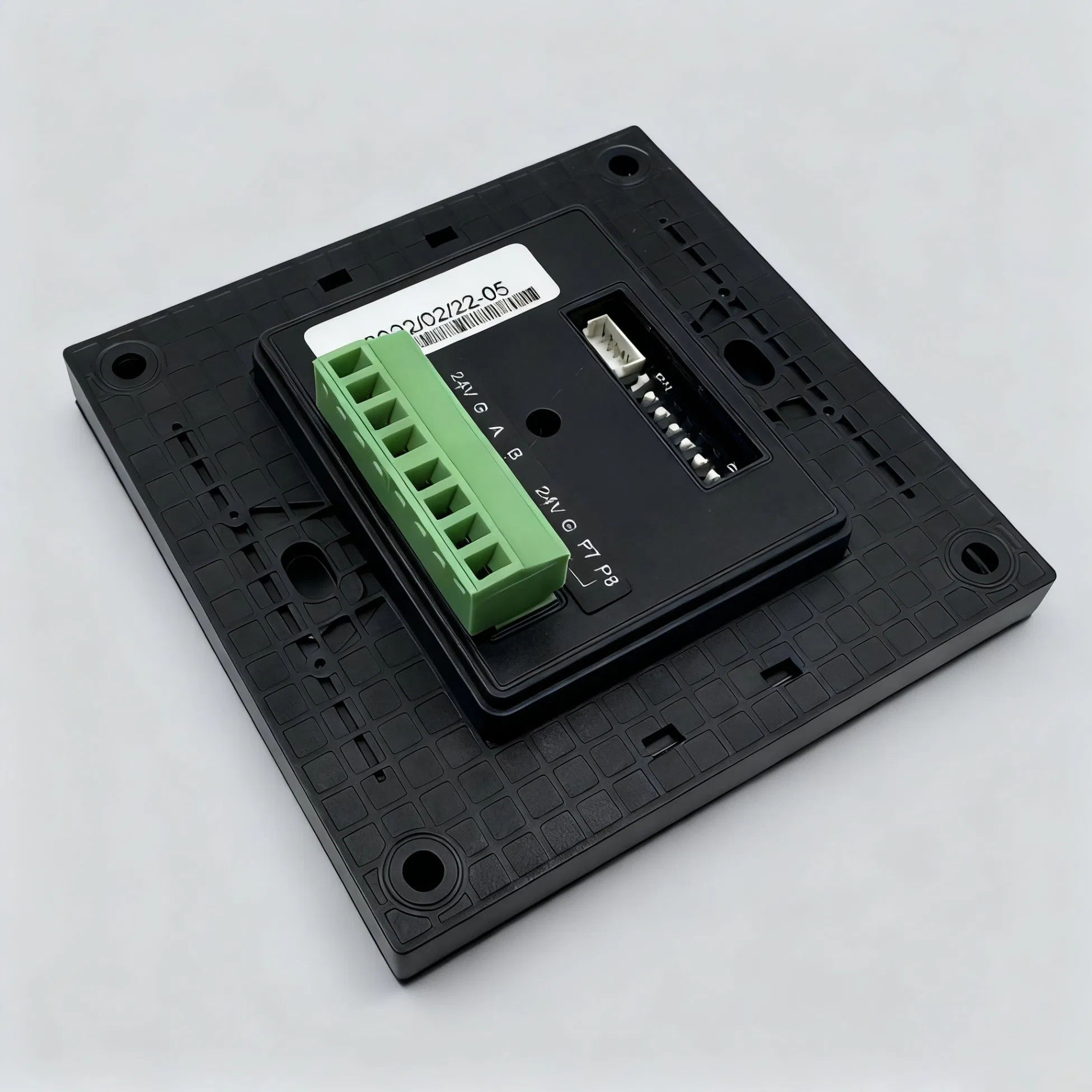

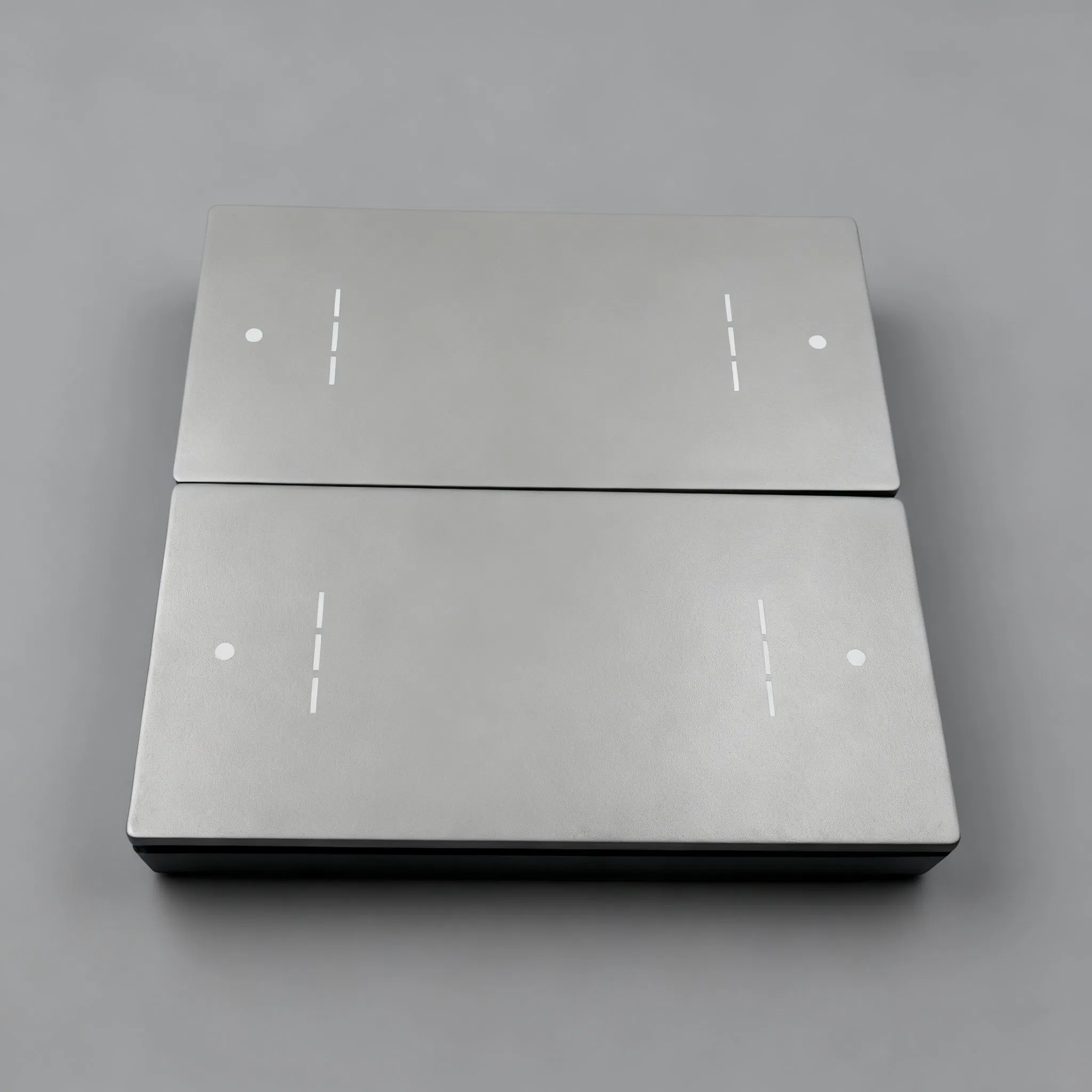

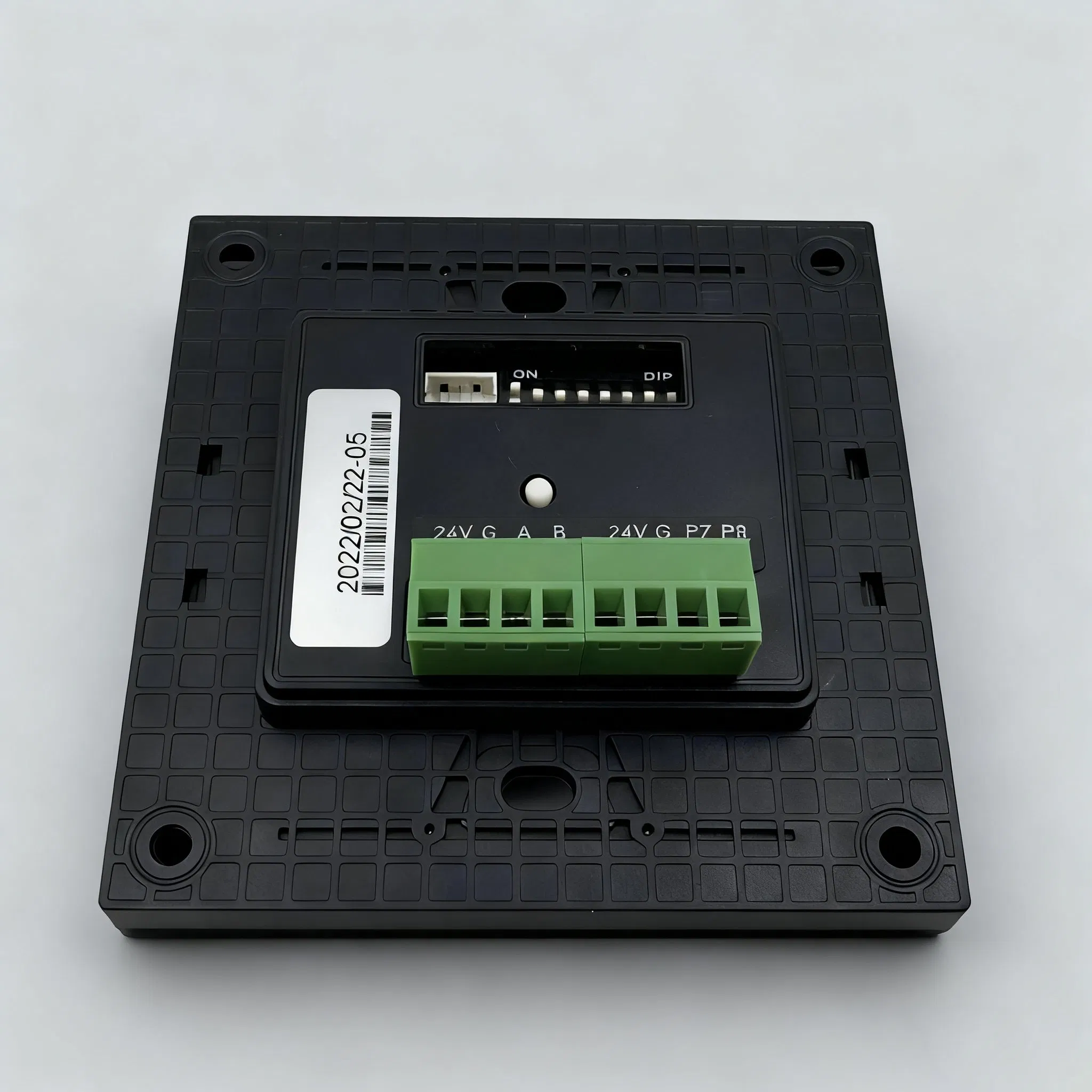

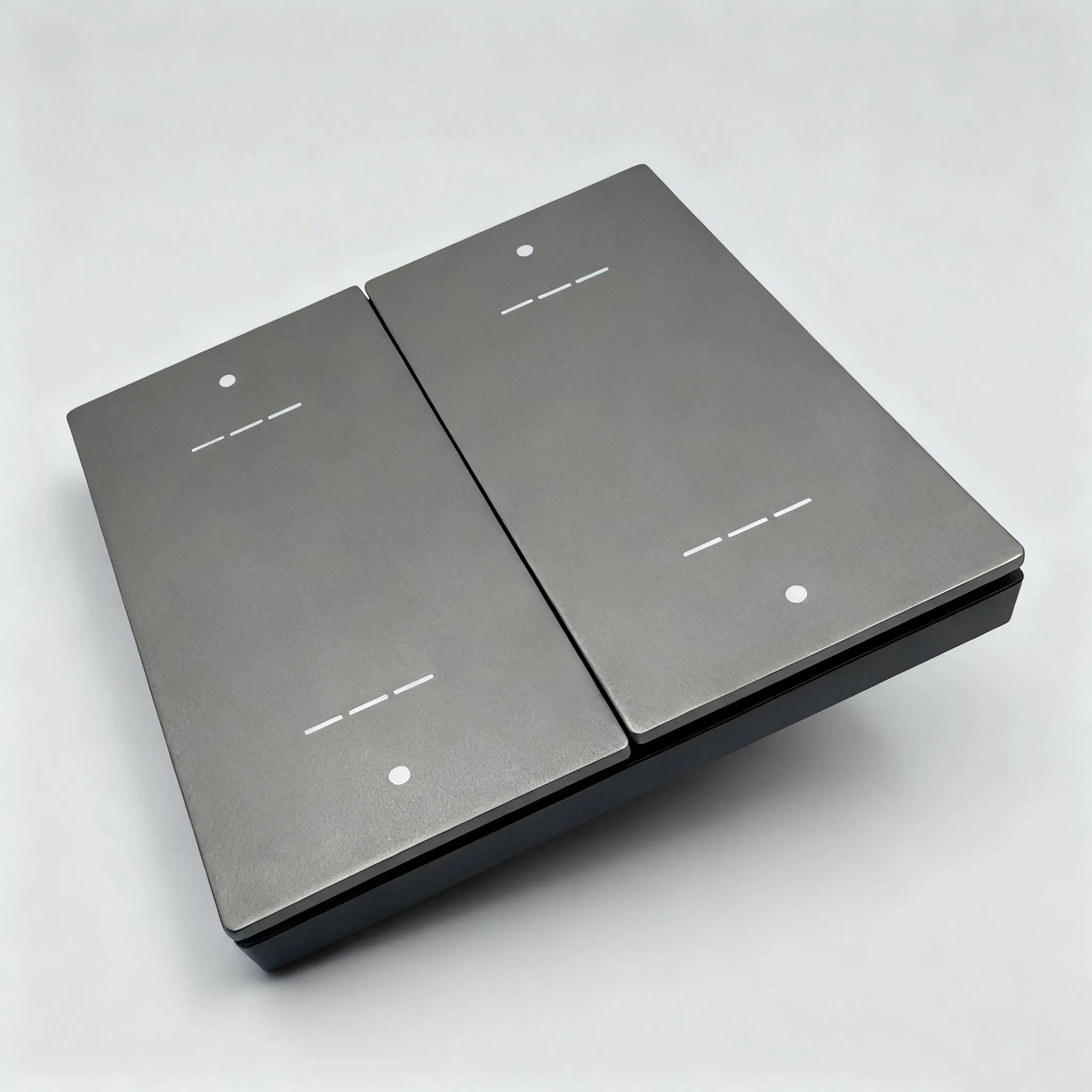

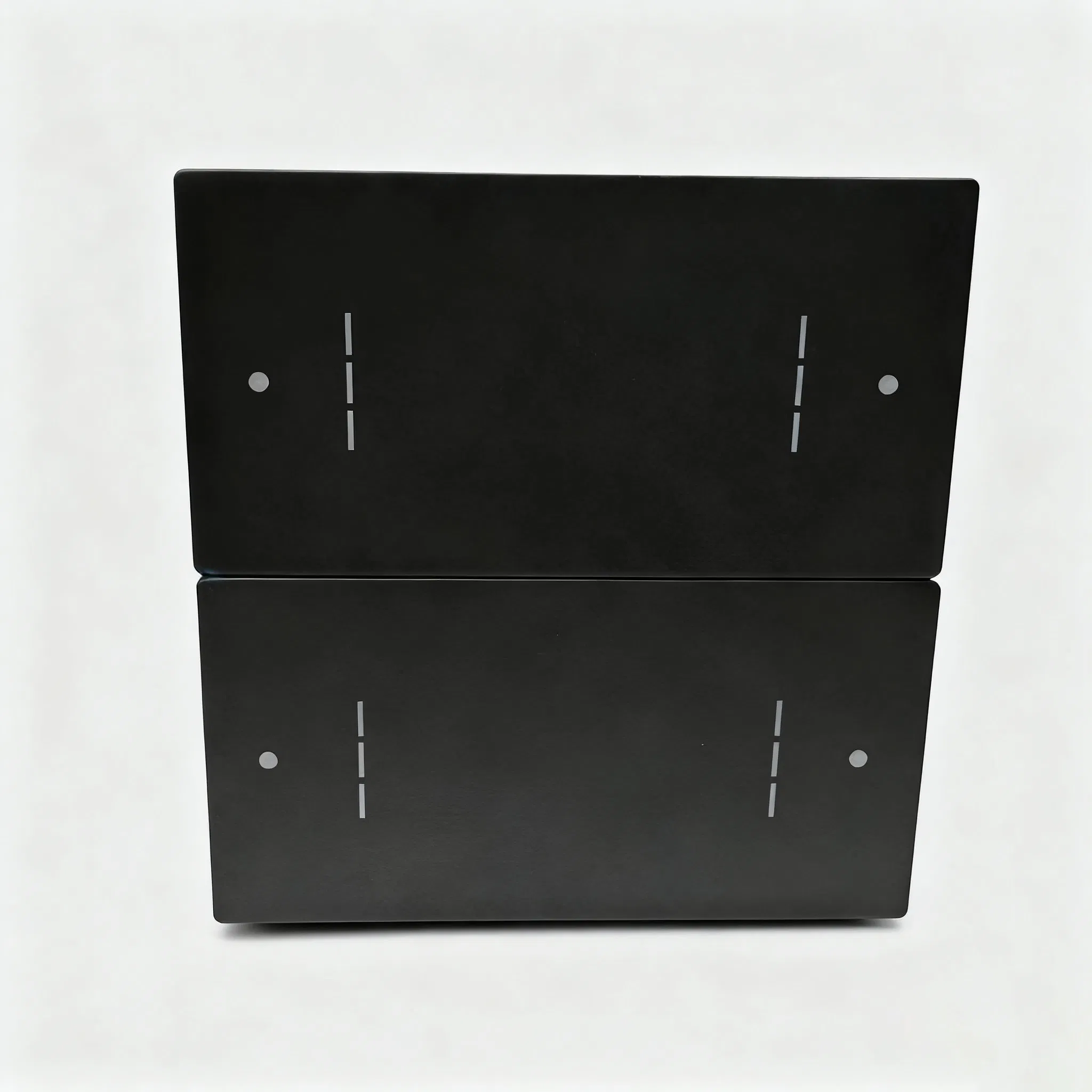

4 Push Button Panel Smart Lights Control Wall Switch for Smart Building Systems
Product Description
Model NO.
VSU-MK1201
Material
Plastic / Metal + ABS + PC
Certification
CE
Bus Voltage
21-30 VDC, Powered by KNX Bus
Bus Current
≤12 mA
Installation
86-Box Installation
Operating Temp
-5°C to +45°C
Weight
0.1kg
Package Size
25.00cm * 20.00cm * 18.00cm
Gross Weight
3.000kg
Lead Time
3 days (1-100 Pcs); Negotiable (>100 Pcs)

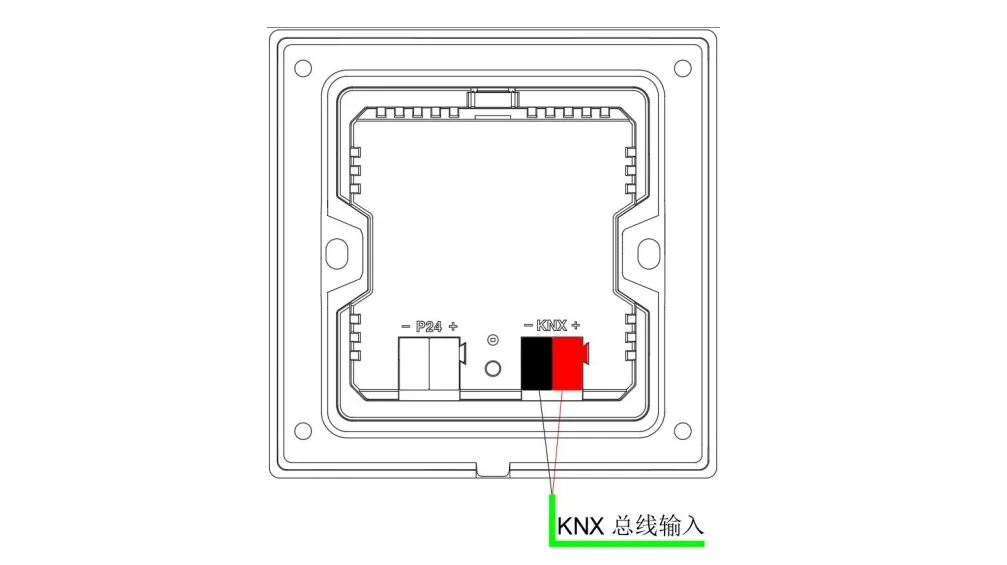

The control panel is designed for building control systems, forming a cohesive system when installed with other bus devices. It offers simple, intuitive operation for controlling switches, dimming, and blinds. Connects to EIB/KNX systems via the EIB bus, utilizing ETS software for configuration.
✦Versatile control for lighting, curtains, and projection screens with long/short press functions.
✦Advanced dimming capabilities including relative and absolute dimming output.
✦8-bit scene control to call pre-set environmental configurations effortlessly.
✦LED indicators with multiple states: normally on, off, or flashing.
✦Interlocking LED grouping and brightness adjustment for status feedback.
✦Smart backlight wake-up and delayed extinguishing triggered by buttons or objects.
| Bus Voltage | 21-30 VDC, KNX bus power supply |
| Bus Current | ≤12mA |
| Bus Power | <360mW |
| Shell Material | Metal + ABS + PC |

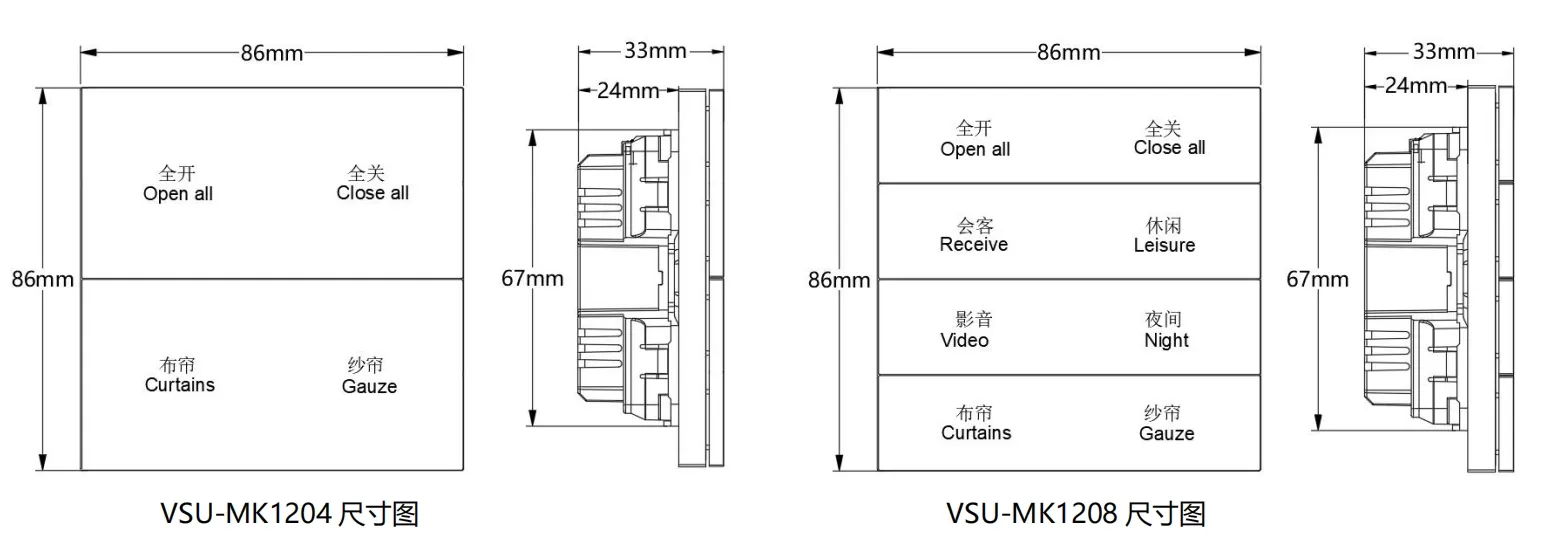

| Size (H x W x D) | 86 x 86 x 33 mm |
| Installation Method | 86 Bottom Box |
| Relative Humidity | Max 90% |
| Auxiliary Voltage | 24VDC |
| Auxiliary Current | ≤27.5mA |
| Auxiliary Power | ≤660mW |
What are the main applications for this control panel?
It is primarily used in building control systems to manage lighting switches, dimming, blinds, and scene modes through the KNX bus system.
Are the products original and quality-tested?
Yes, all products are original. They undergo rigorous testing and meet international standards such as CE certification.
What is the warranty period for this device?
The product comes with a standard warranty period of 90 days after the package has been received.
What is the typical lead time for shipping?
For products in stock, they can usually be shipped within 7 days. Small orders (1-100 pieces) typically take about 3 days.
Can I request a sample for testing before placing a bulk order?
Yes, samples can be requested for testing purposes, though a sample fee may apply.
Does the panel support custom logos or OEM services?
Yes, OEM/ODM services are available, allowing for custom logos and designs on the merchandise.
