Combined Smoke & Heat Smart Fire Alarm System
Product Description
Basic Specifications
Model NO.
AW-AFP100
Usage
Fire
Certification
CE, ISO9001
Alarm Volume
≥90dB (within 1m)
Networking Mode
TCP/IP
Wiring Mode
Bus System (Non-Polarity)
Nature
Addressable
Capacity
250 Devices per Loop
Voltage
220AC Input 50Hz
Display
7" LCD Touchscreen
Installation
Wall Hanging
Origin
China
Introduction

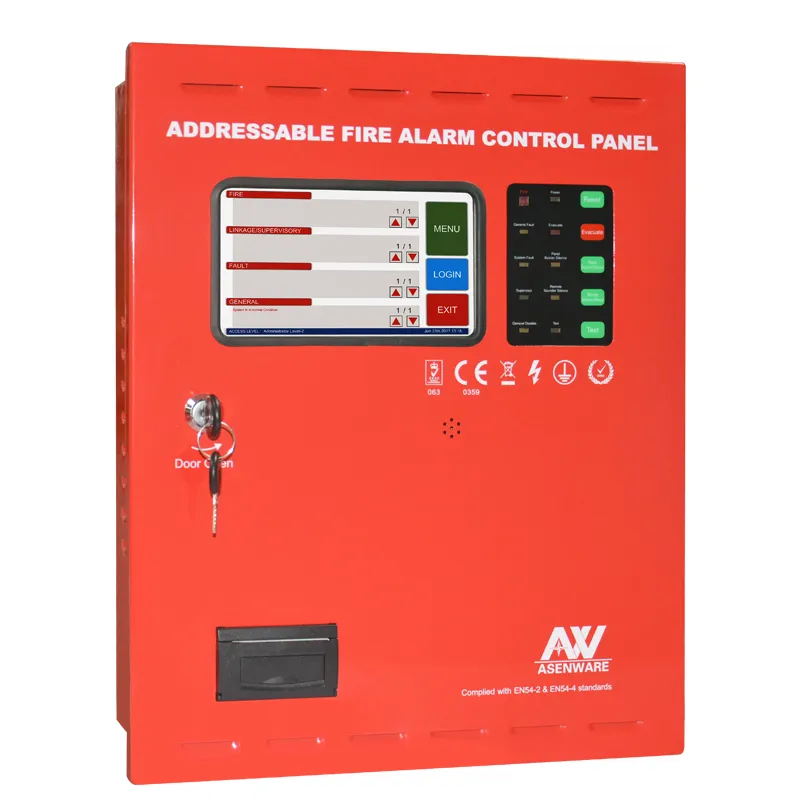

The AW-FP100 Series Fire Alarm Control Panels are intelligent panels designed to suit a wide range of applications. Its user-friendly functionality makes it simple to program and configure devices. The 7" touchscreen display provides real-time information for fire alarms, troubles, supervisory signals, and other related data.
This series can be configured for small building applications with just a few devices, or scaled for large areas and high-rise applications. Simply add additional equipment such as detectors, modules, and other compatible devices to suit the environment. The panel is supplied with an IP30 rated cabinet and fully complies with EN 54-2 and EN 54-4 requirements.
Key System Features
✔ 7" Touchscreen LCD Color Display for intuitive control.
✔ Supports 250 intelligent detectors or modules per loop circuit.
✔ Expandable: Up to 8 Loop Cards can be installed and configured.
✔ 2-Wire cable system for all addressable devices for cost-efficient installation.
✔ Integrated Mini-Printer for real-time event status printing.
✔ Circuits configurable as either Class A or Class B.
✔ Advanced network options: GSM, IP, Cloud, and Mobile App support.
✔ CAN BUS Network System for robust internal communication.
✔ Built-in Earth Fault detection and battery charger.
Available Product Range
➤ Addressable fire alarm system (FP100, 2189, 2100 series)
➤ Conventional fire alarm system (2166 series)
➤ FM200 gas fire suppression system
➤ Emergency light systems
➤ Fire pump systems and fire hose cabinets
Frequently Asked Questions
What is the maximum device capacity of the AW-AFP100?
The AW-AFP100 supports up to 250 addressable detectors or modules per loop. With the ability to install up to 8 loop cards, the system can be scaled significantly for larger projects.
Does the system support remote monitoring?
Yes, the system offers several network options including GSM, IP, Cloud access, and mobile applications, allowing for graphic remote monitor access.
Is the wiring system complex?
No, it utilizes a non-polarity 2-wire bus system for all addressable devices, which simplifies installation and reduces cabling costs.
Which standards does this fire alarm control panel comply with?
The panel is fully compliant with EN 54-2 and EN 54-4 standards and holds CE and ISO9001 certifications.
Can I get a physical record of fire events?
Yes, the control panel includes an integrated mini-printer specifically designed to print the status of events and logs for maintenance and safety records.
What type of display does the panel use?
The panel features a high-resolution 7-inch color touchscreen LCD, which provides a user-friendly interface for configuration and monitoring.
