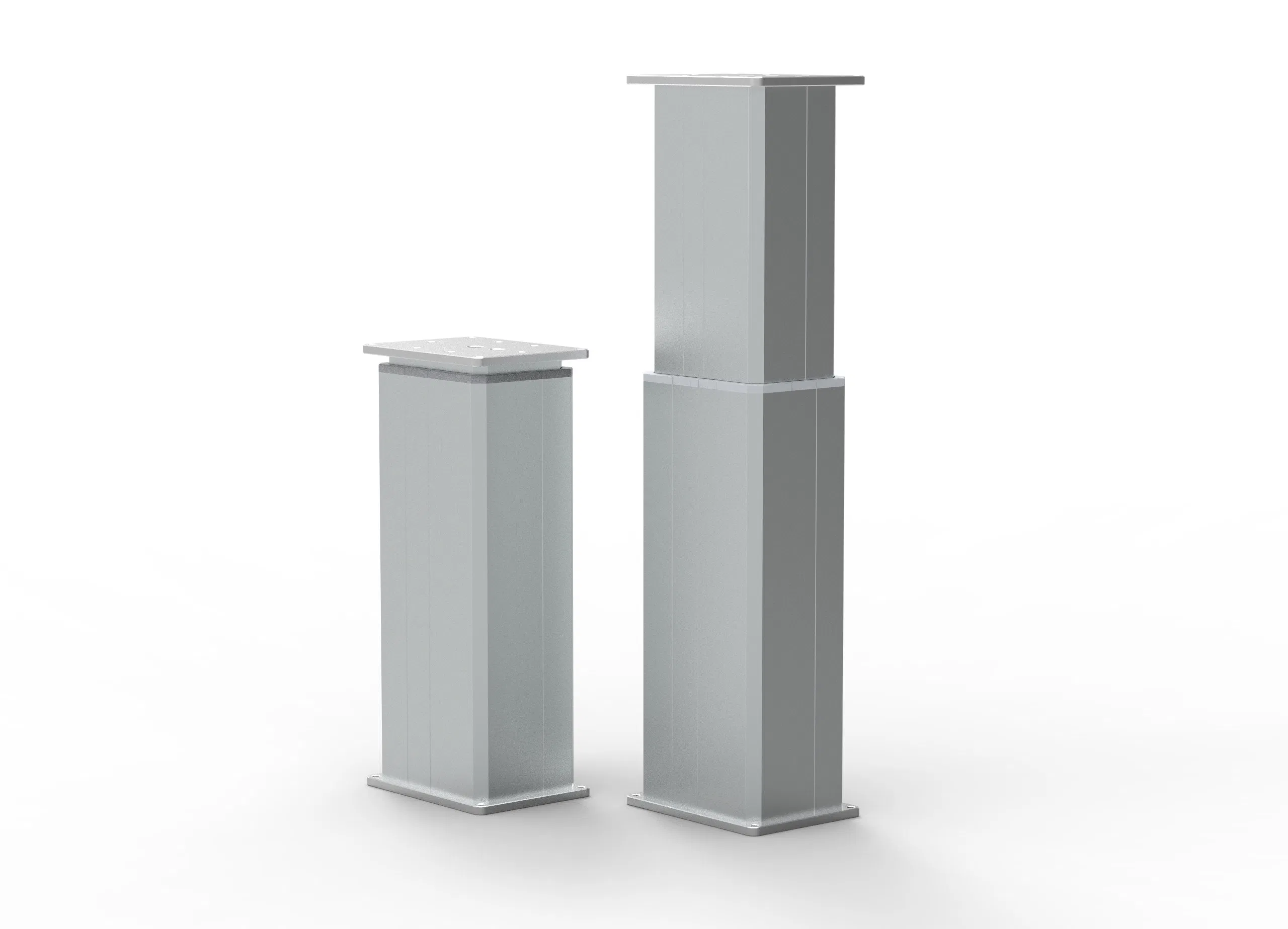

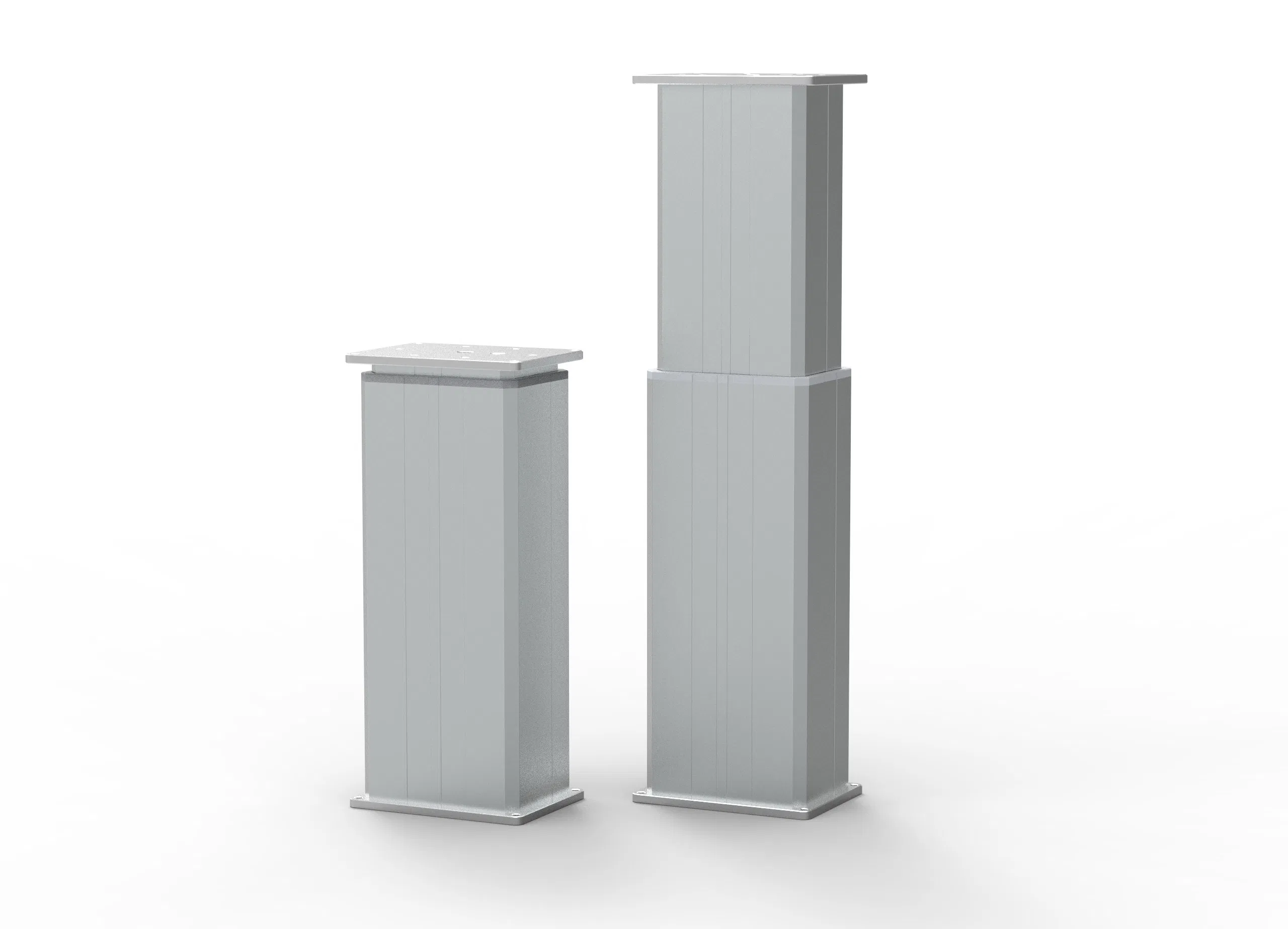

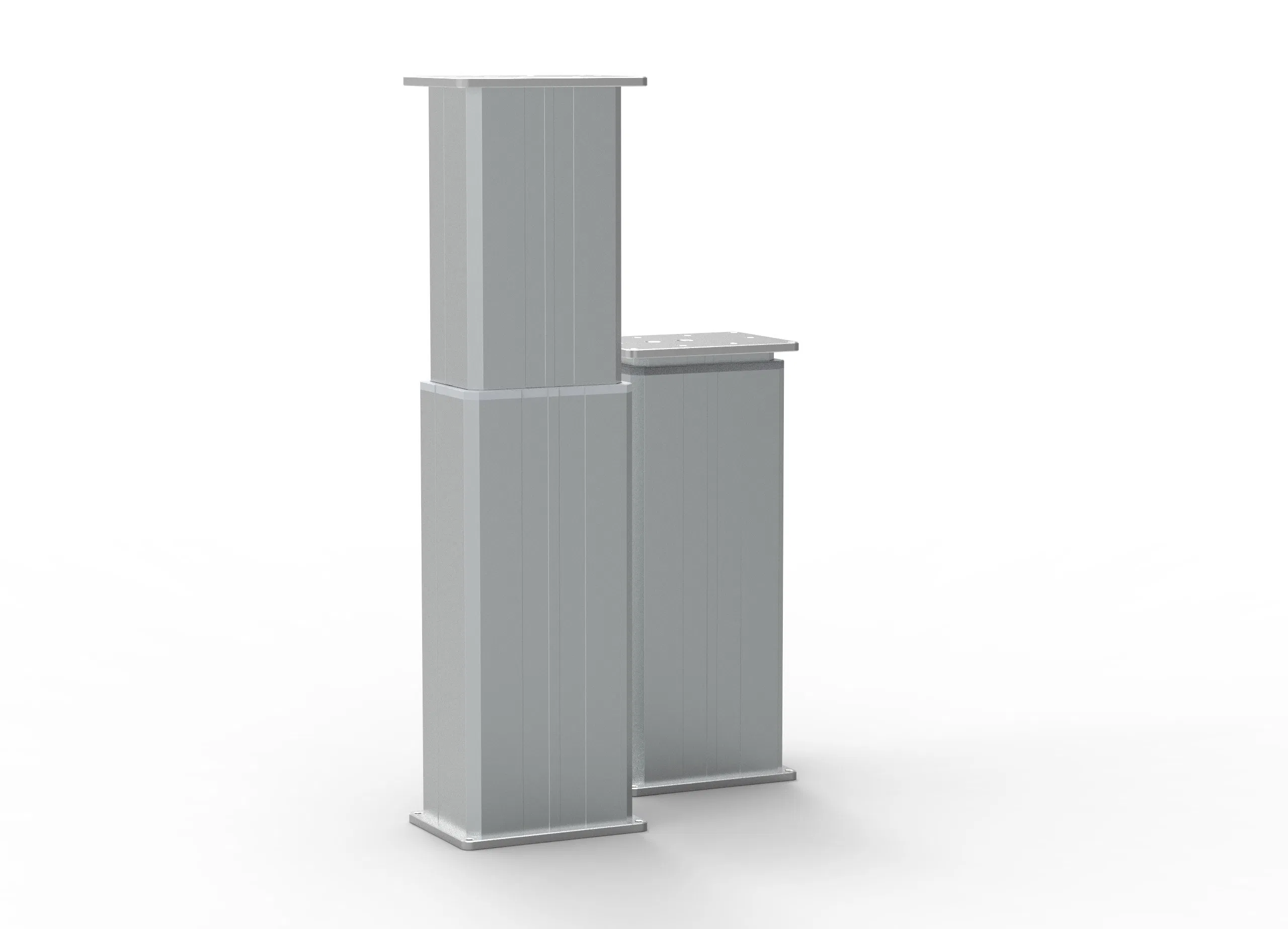

Smart Building Crane Bollard System for Enhanced Security
Product Description
📋
Basic Information
Model NO.
HTA2
Application
Workshop, Shipboard, Warehouse, Building Cranes
Lift Mechanism
Telescoping Lift
Driven Type
DC
Maximum Load
8000N
Maximum Speed
5-100mm/S
Certification
CE, RoHS
Temperature
-45°C to +75°C
🚀
Product Features
HTA2 lifting column is designed for a wide variety of workstation applications such as computer workstations, workbenches, assembly tables, medical equipment lifting platforms, and even kitchen height adjustment. 2 HTA2 lifting columns can improve high synchronization performance and load operation capacity, featuring a powerful design and full-featured office series control box. It can operate as a single system or 2 to 4 lifting columns in parallel depending on the control system.
📸

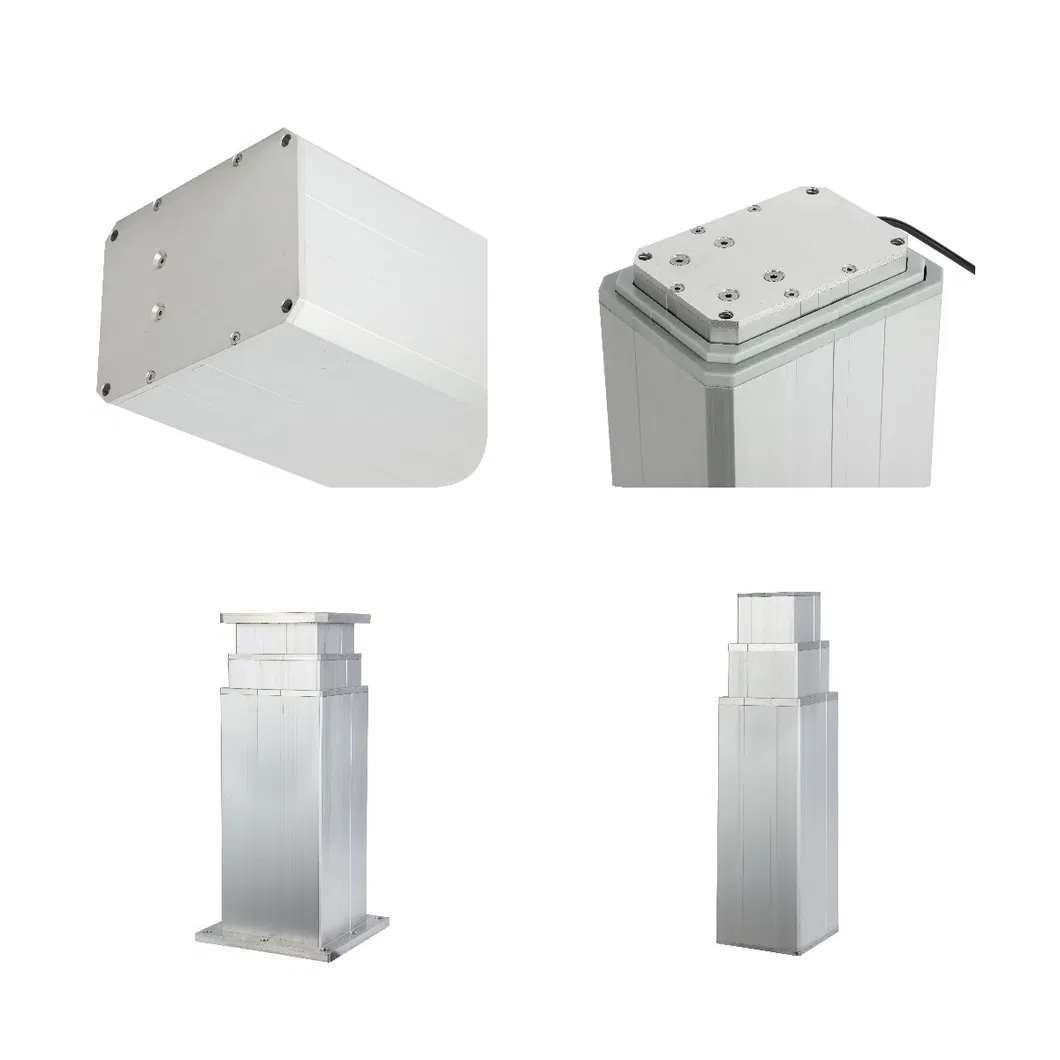

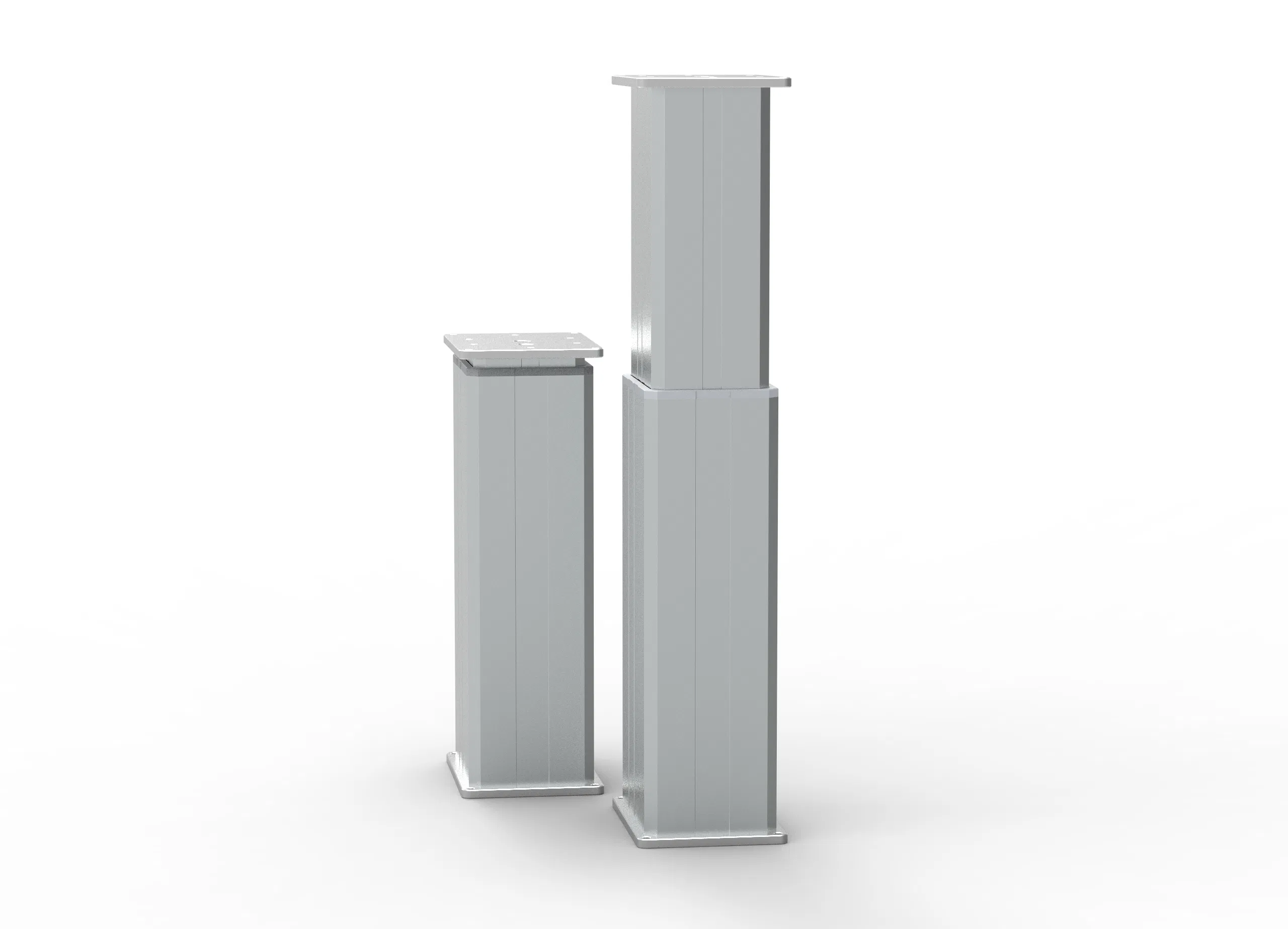

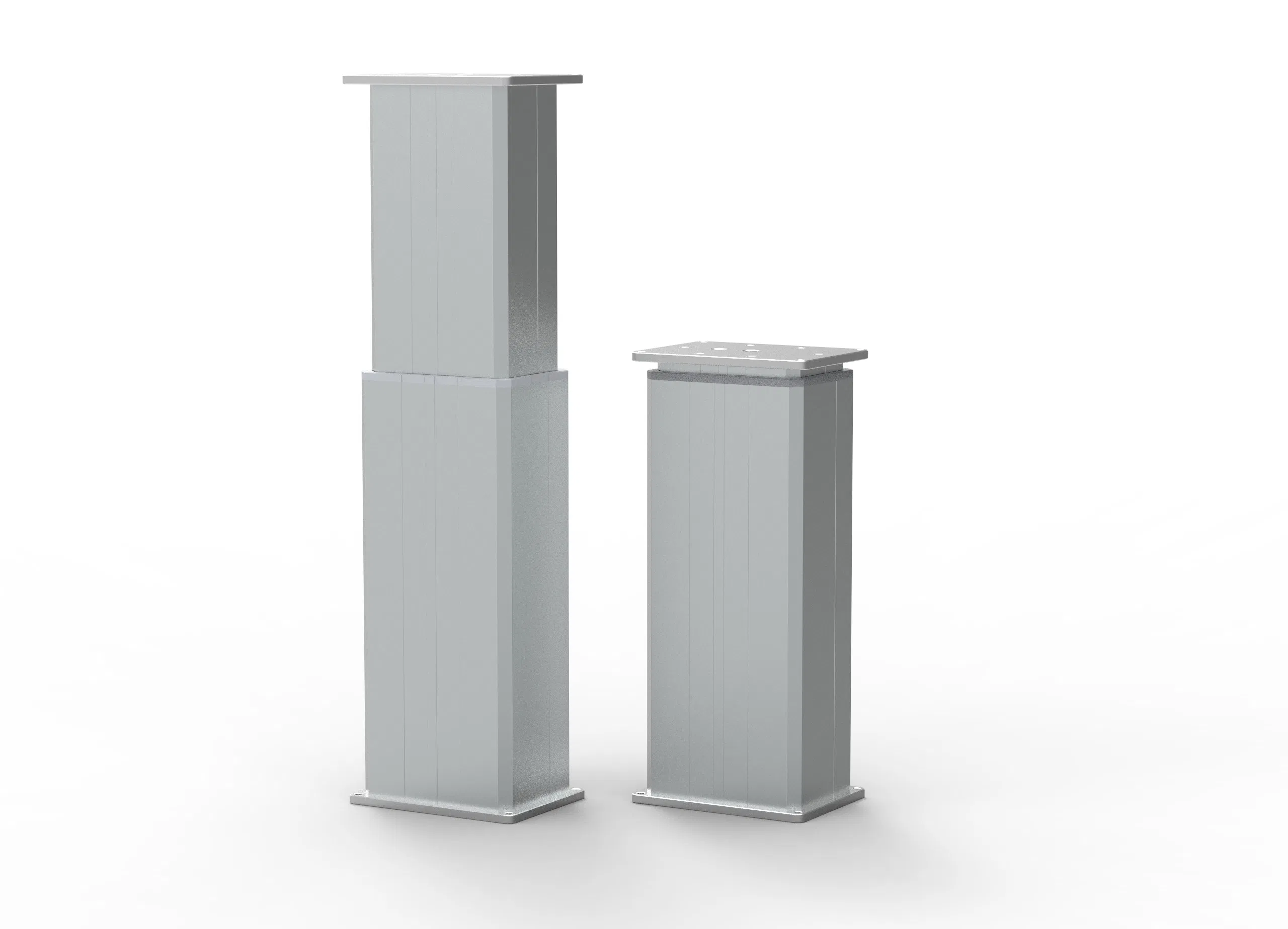

Detailed Photos
⚙️
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Voltage | 12, 24, 48V DC, 220V AC |
| Motor options | DC servo motor, AC servo motor |
| Maximum thrust (pull force) | 8,000N / 4,000N |
| Maximum speed under load | 5-100 mm/s |
| Minimum installation size | Stroke /2 + 200mm |
| Dynamic lateral moment | 1,000Nm |
| Static lateral moment | 1,800Nm |
| Color | Aluminum color, Silver gray |
| Noise Level | 48~52 DB |
| Screw selection | Ball screw, Trapezoidal screw |
📐

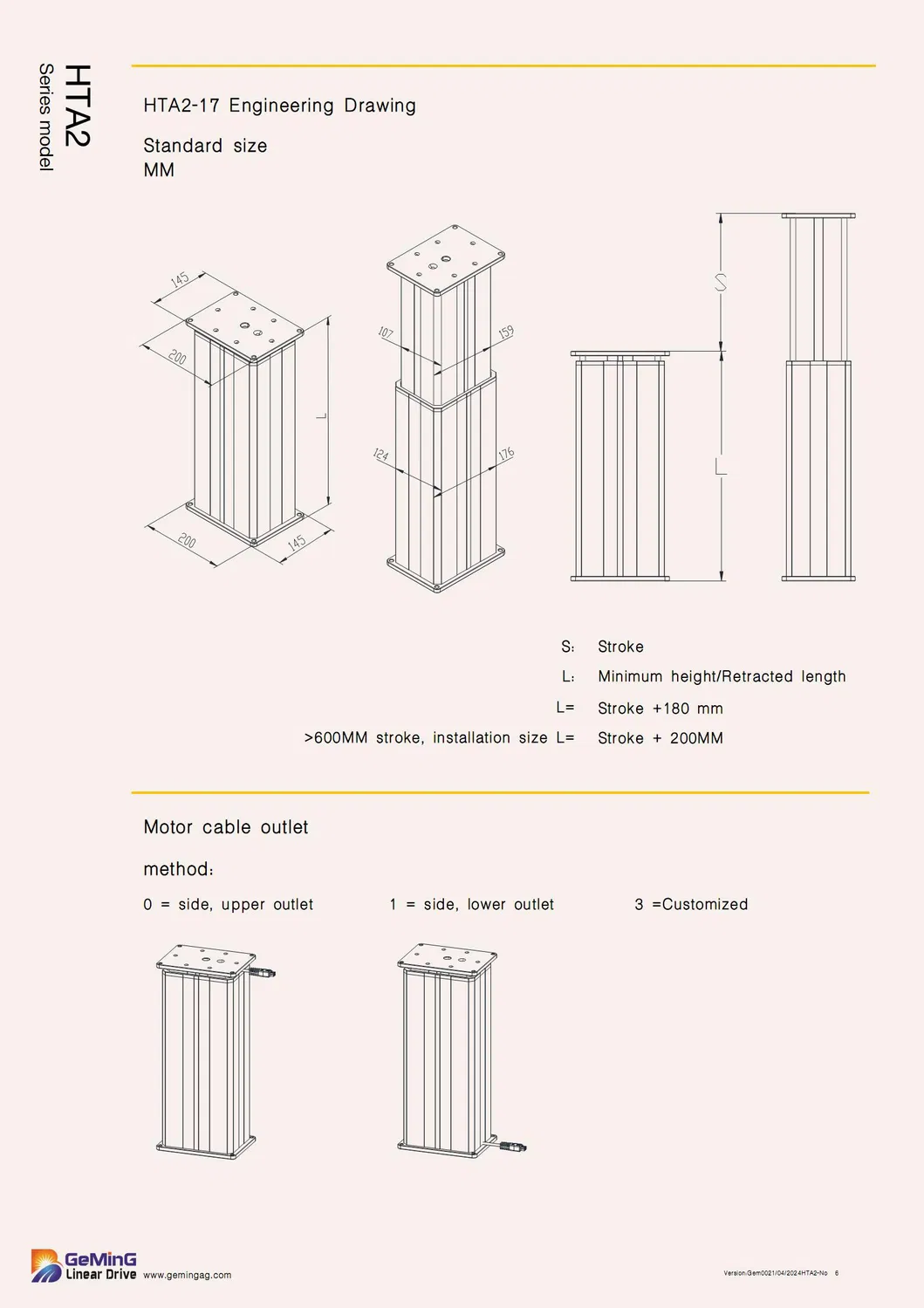

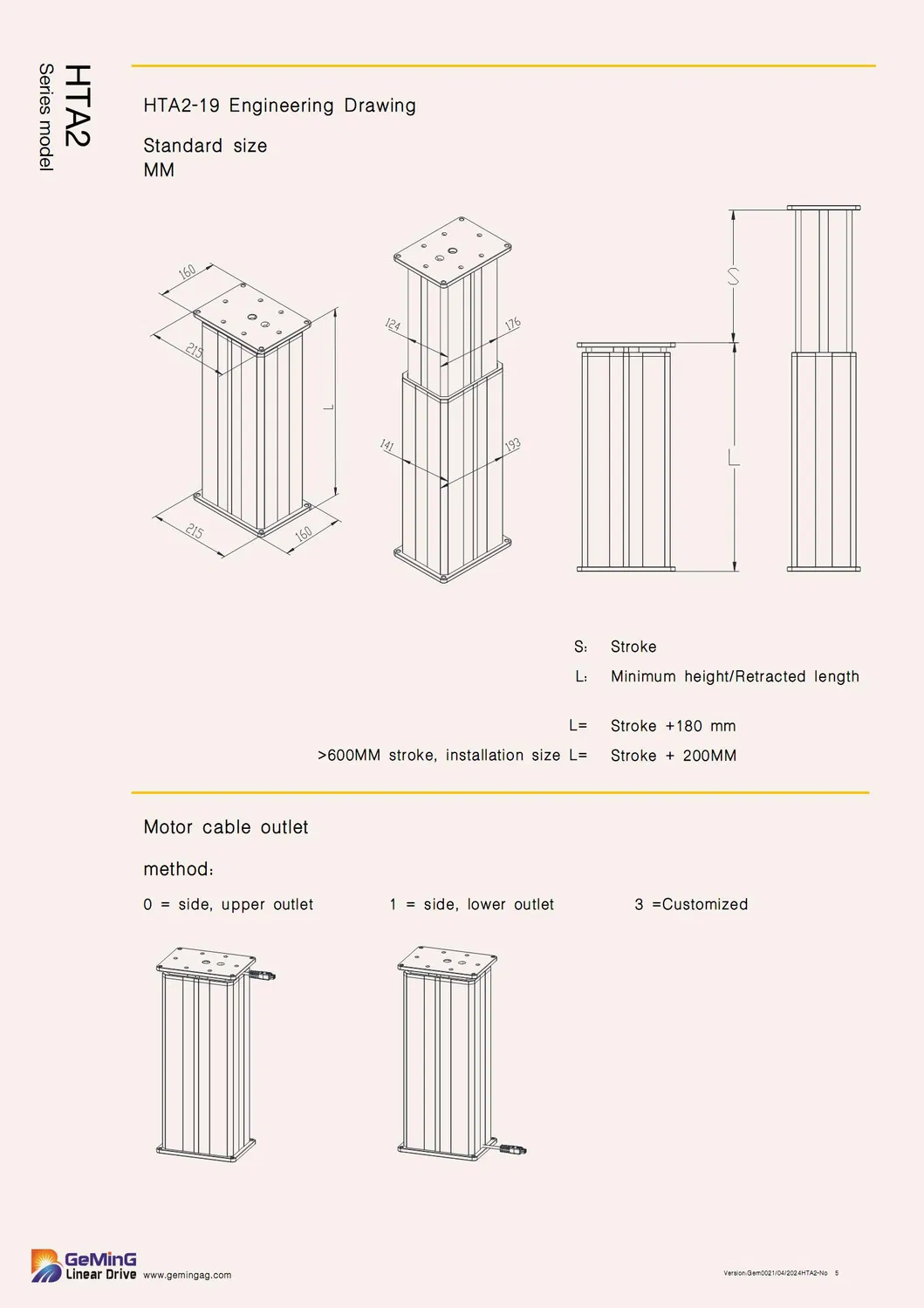

Engineering Drawings
💡

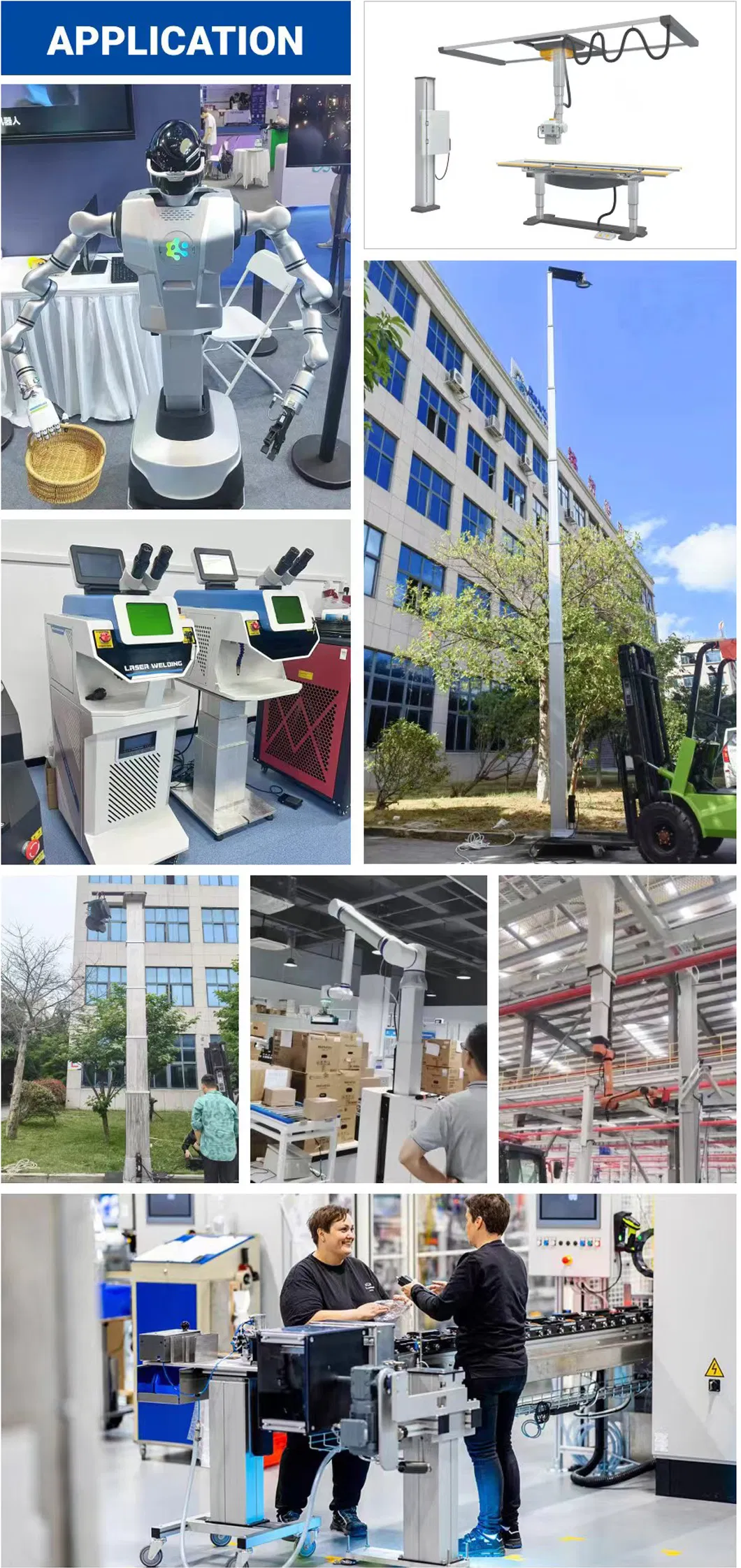

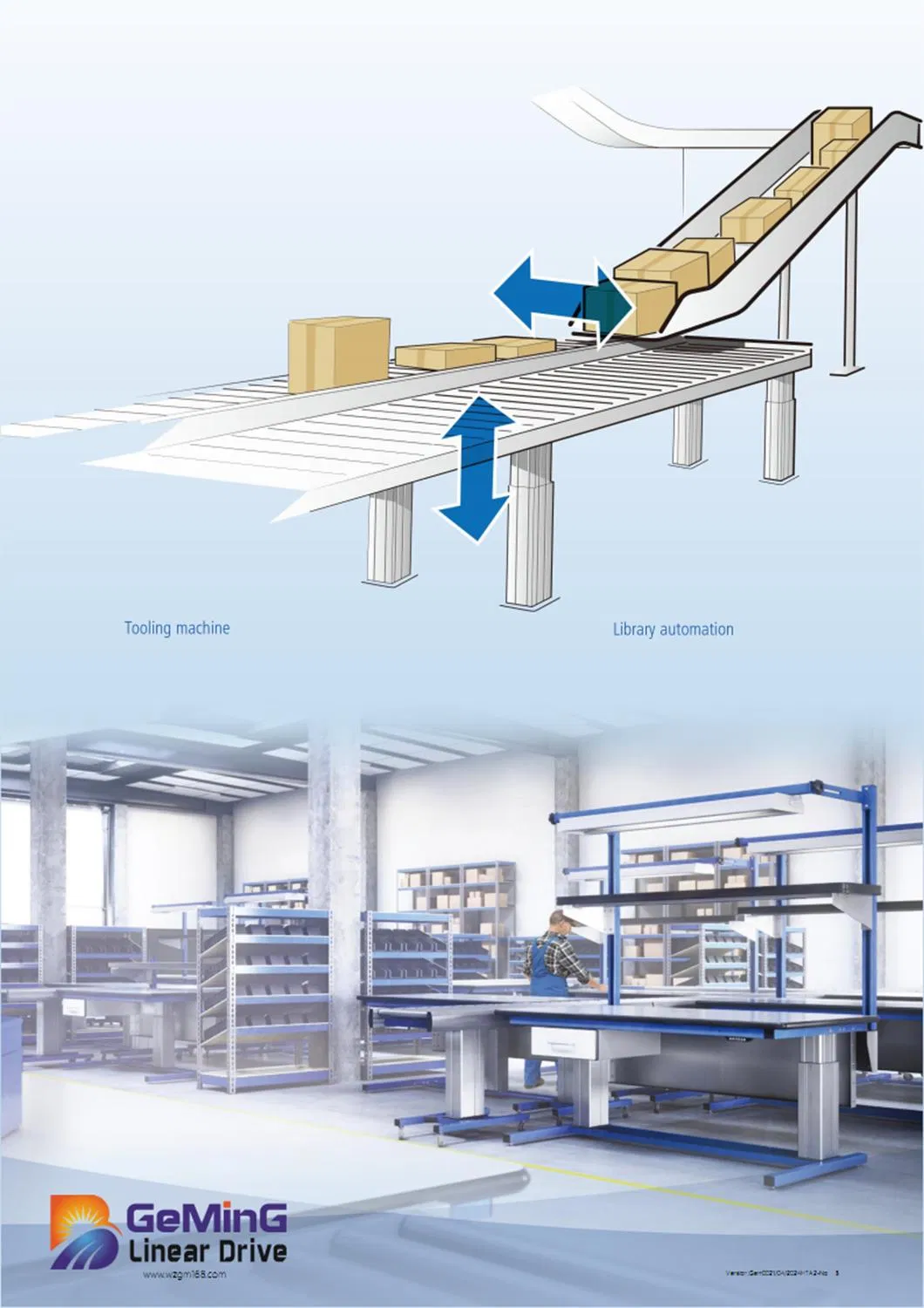

Applications
❓
Frequently Asked Questions
What are the main products available?
We offer a wide range of lifting columns (medical, furniture, ergonomic), linear actuators (industrial, micro), and robotic systems tailored for various motion control needs.
How do I choose a suitable lifting mechanism?
Selection depends on your specific parameters: voltage, speed, stroke, initial/maximum height, load capacity, and noise level requirements. Providing drawings or pictures helps in recommending the best fit.
Can products be customized?
Yes, we provide extensive customization for installation size, shape, motor selection, stroke, and voltage to meet unique project requirements.
Do you offer personalized design services?
We are equipped to design complete actuators, lifting mechanisms, and control systems. While simple customization is often free, complex designs may involve mold development costs.
What is the typical delivery time?
Regular standard products generally take 6-20 days. Customized solutions may take longer depending on the complexity and specific order requirements.
Are the products certified for international use?
Yes, our products comply with ISO9001-2008, CE, and RoHS specifications, ensuring high quality and safety standards for global applications.
