RFID Keypad Standalone Door Access Control System
Product Description
Overview
Model NO.
ZDAC-100T
Technology
32-Bit Technology
Way of Control
Hand Control
Type
One-way Controller
Application
Office Building etc
Color
Black
Function
Door Access Control
Type of ID Card
125kHz, Em
Card Reading Distance
3-6cm
Number of Users
2000
Operating Voltage
DC 12-24V
Material
ABS
Warranty
1 Year
Dimension
116mm X 116mm X 20mm
Production Capacity
100000PCS/Year
Product Description

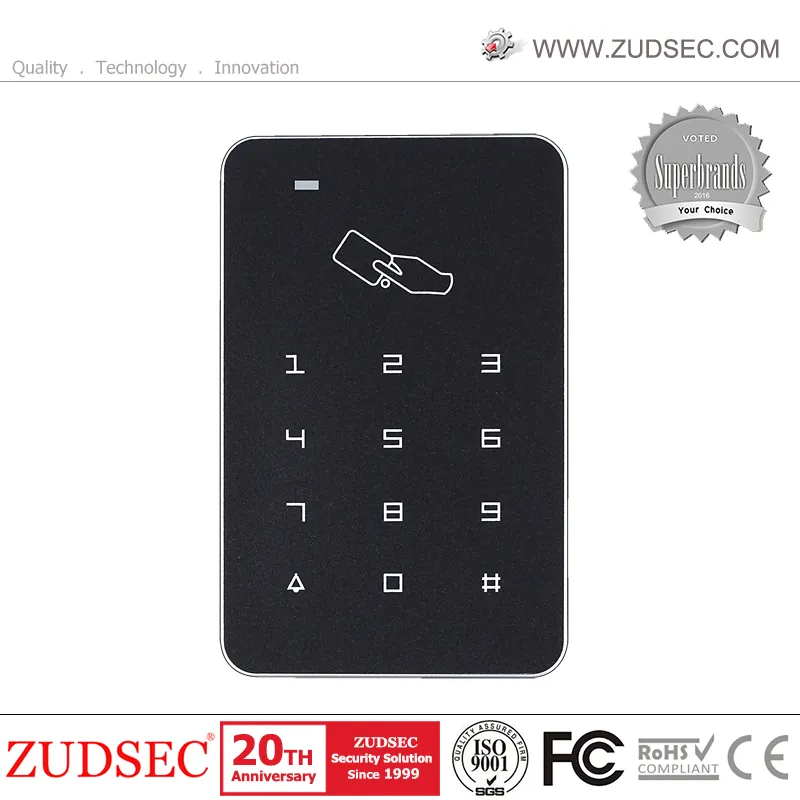

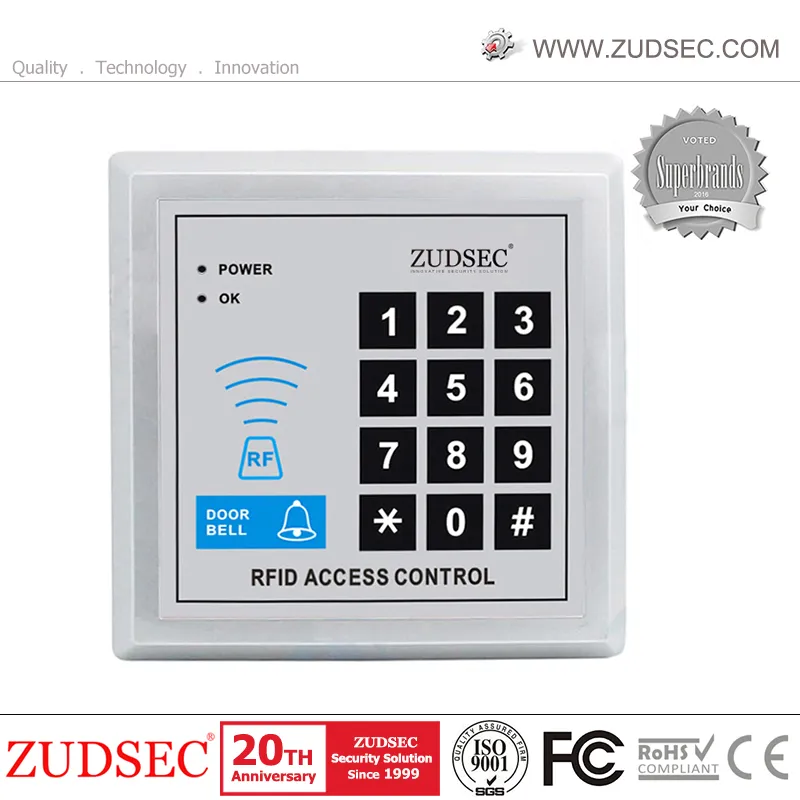

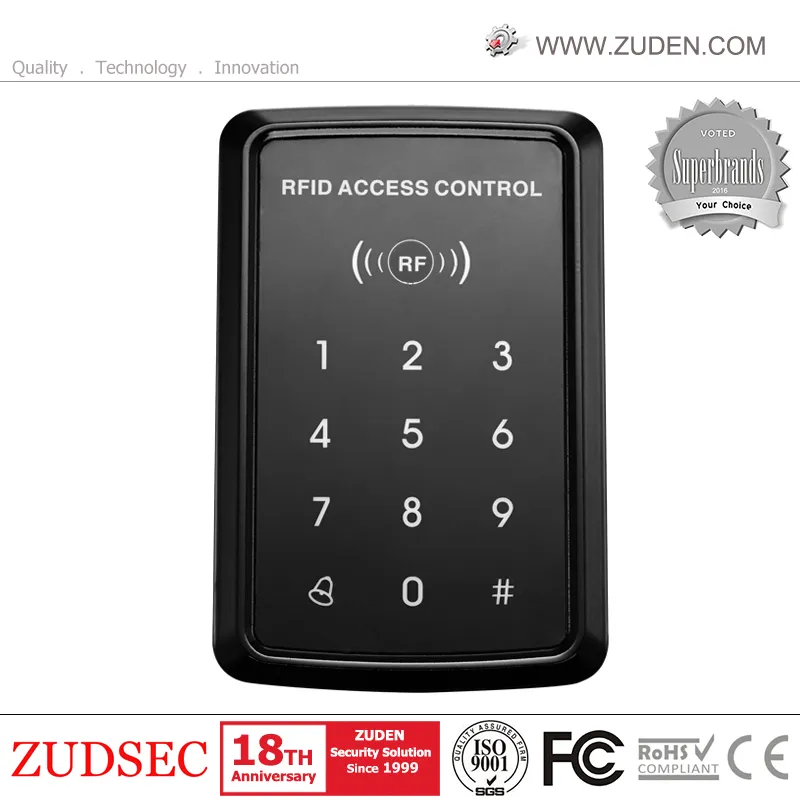

RFID Keypad Standalone Access Control System
Economic Standalone RFID Door Access Control with Touch Panel: This Radio Frequency Identification (RFID) access controller is the 3rd generation controller. With newly added functions it is one of the most advanced standalone access controller. The controller is built on powerful modern Central Processing Unit. It manages up to 1000 card holders, and access mode can be set to Authorized Card Only, Authorized Card or Public PIN and Authorized Card + Personal PIN.

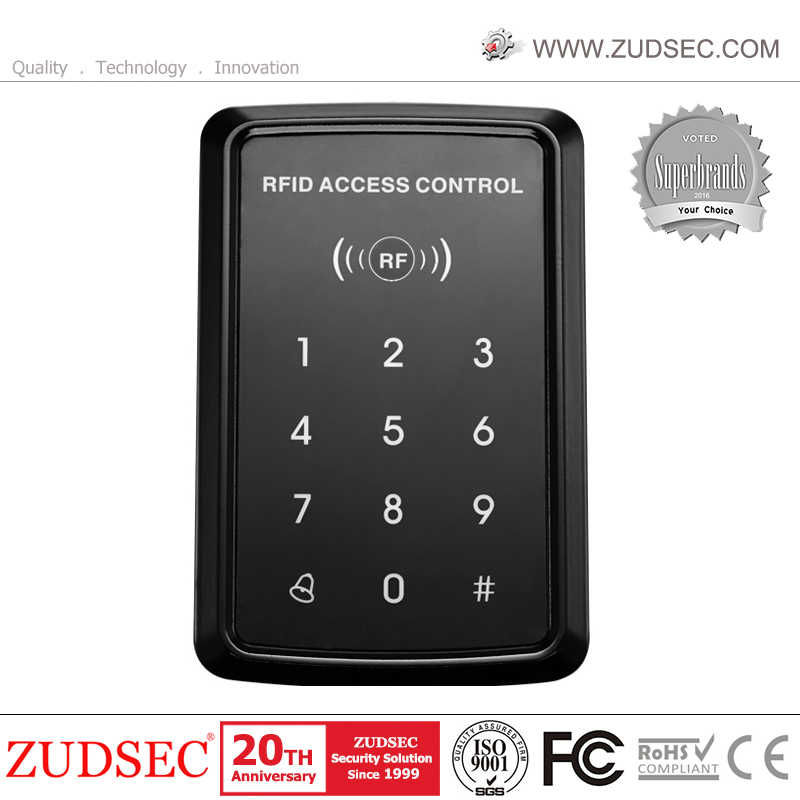

Optional model: ZDAC-100T (Touch panel)
Key Features
Support EM-ID/Password Mode
Build-in access control card reader and keypad Manage
Operating Mode: Proximity Card, Password or Card + Password
Availability capability: 1000 users
Open modes: Card, Card+ PIN, PIN
1 door button Port and 1 doorbell Port
1 Relay output and 1 PUSH (low) output
Anti-tamper function and safely operation mode
Product Specifications
| Parameter | Details |
|---|---|
| Model | ZDAC-100T |
| Capacity | 1000 cards, each with a Personal PIN, one Public PIN |
| Reading Distance | 1~15CM |
| Compatible Cards | EM ID Card or EM compatible cards |
| Relay output | Alarm: 100mA | Lock: 5A |
| Voltage | 12VDC+10%; Current 0.1A |
| Temperature | -20ºC~60ºC |
| Humidity | 20%~90% |
| Dimension | 116mm x 116mm x 20mm |
| Weight | 150g |
Product Visuals

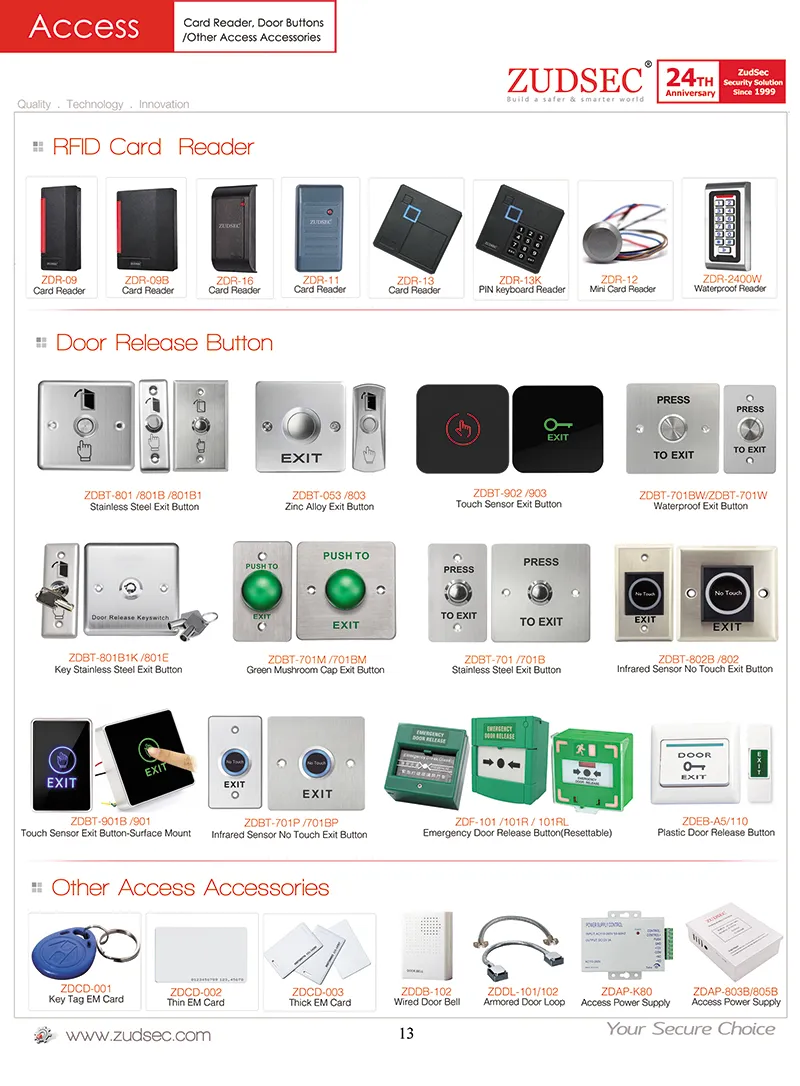

Related Solutions
Frequently Asked Questions
How many users can the ZDAC-100T handle?
The system supports up to 1000 individual card holders, each with their own personal PIN, or up to 2000 users depending on the configuration.
What are the available entry modes?
You can set the access mode to Authorized Card Only, Authorized Card or Public PIN, or a combination of Authorized Card + Personal PIN for higher security.
What type of RFID cards are compatible?
The device is compatible with 125kHz EM ID cards or EM compatible proximity cards.
Does the device include an alarm for tampering?
Yes, it features an anti-tamper function and a safety operation mode to protect against unauthorized physical interference.
Can it be used in outdoor environments?
It operates within a temperature range of -20ºC to 60ºC and humidity levels of 20% to 90%, making it suitable for protected outdoor or indoor installations.
What is the reading range for the RFID cards?
The card reading distance is typically between 1cm and 15cm, providing a quick and convenient access experience.
