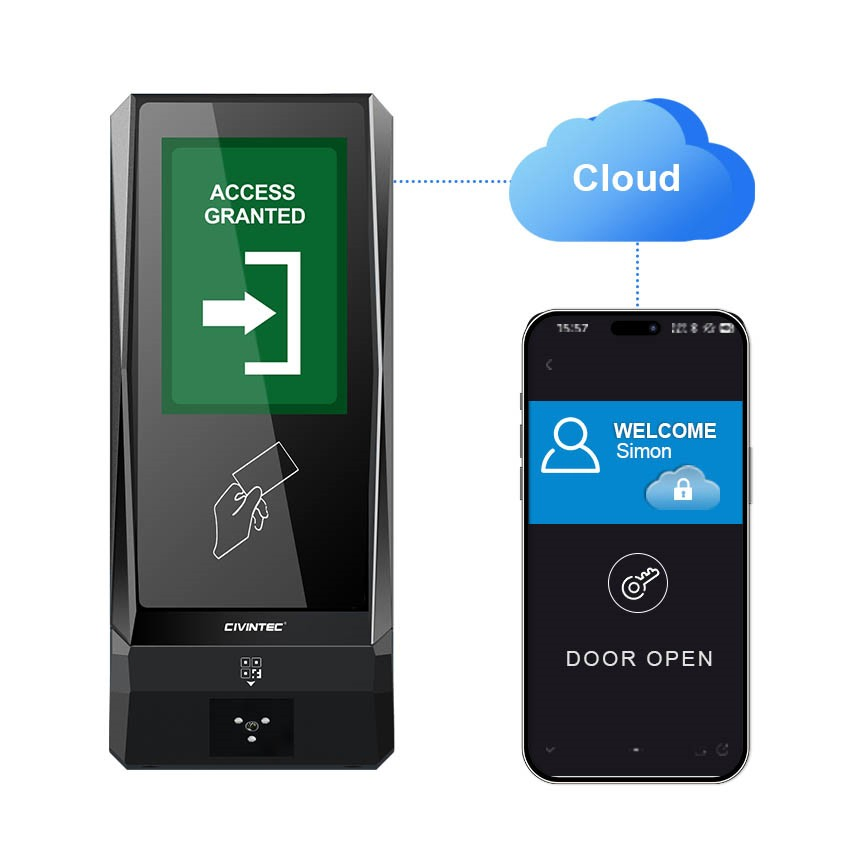

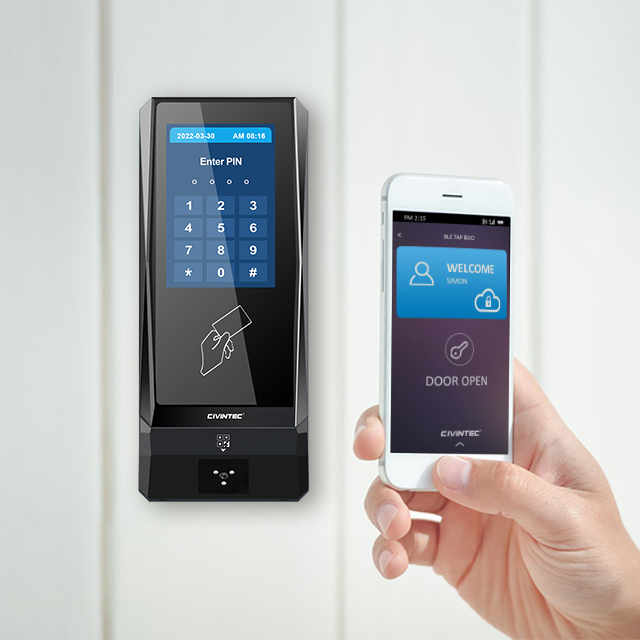

Outdoor Waterproof TCP/IP RFID NFC BLE Auto Entry Access Control Turnstile Door Access Control System
Product Description

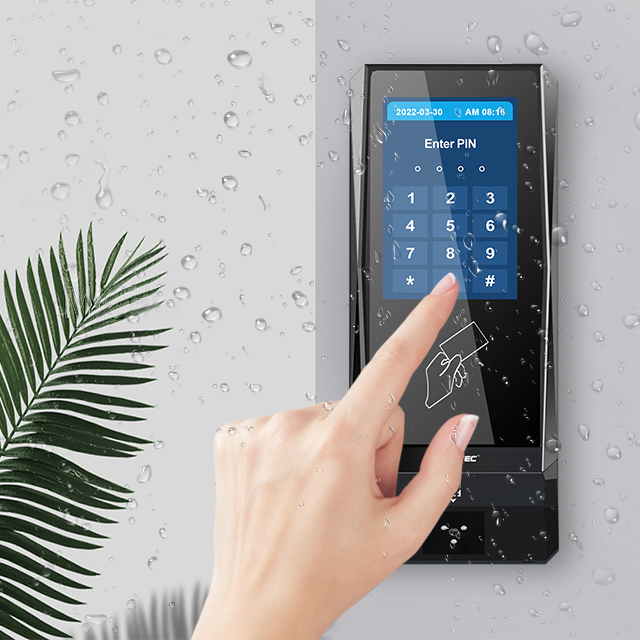

CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication. It features an embedded relay to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, including touch keypad, dual 125KHz & 13.56MHz RFID smart cards, BLE & NFC mobile access, and QR CODE/barcode scanning via mobile phone.
| Display | 3.5" capacitive touch screen |
| QR code | 1D & 2D Codes: QR Code, Micro QR code, PDF417, Code 128, Code 39, etc. |

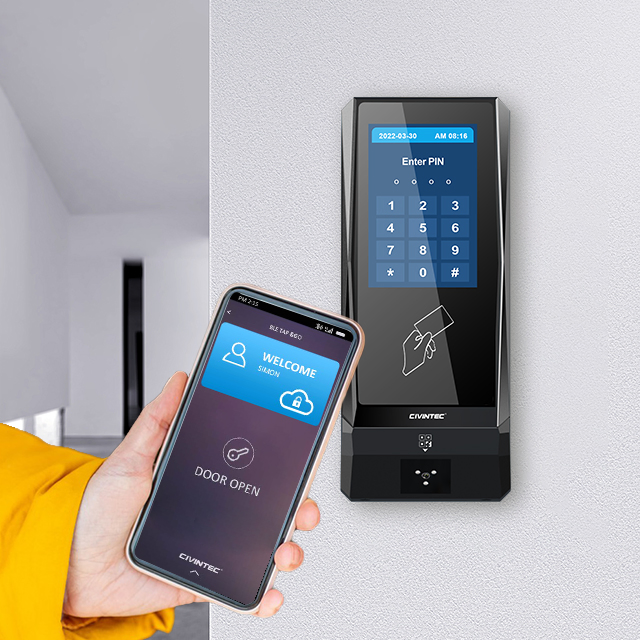

| Mobile ID | BLE, NFC |

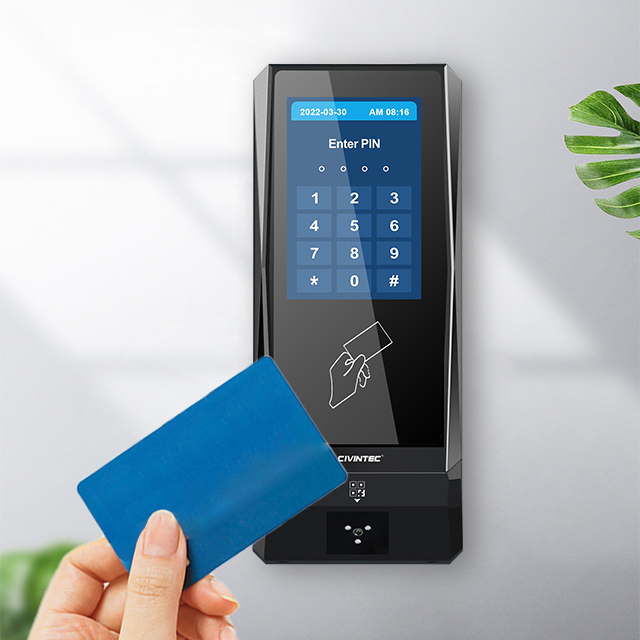

| RFID Smart Card | EM 125KHz, 13.56MHz ISO14443A/B, Mifare, DESFire EV1/EV2, HID Prox/iCLASS |
| Communication | 4G, TCP/IP, Wiegand, RS485 OSDP |

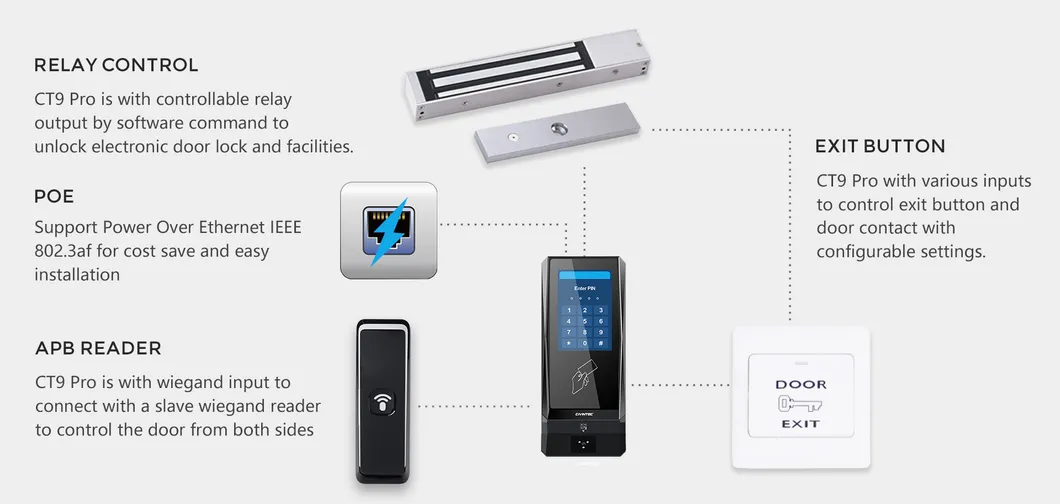

| I/O Port | 1~2 relay outputs, Tamper alarm, door contact, exit button |
| Capacity | 10,000 users / 50,000 logs |
| Protection | IP65 outdoor/indoor use, UV-resistance |

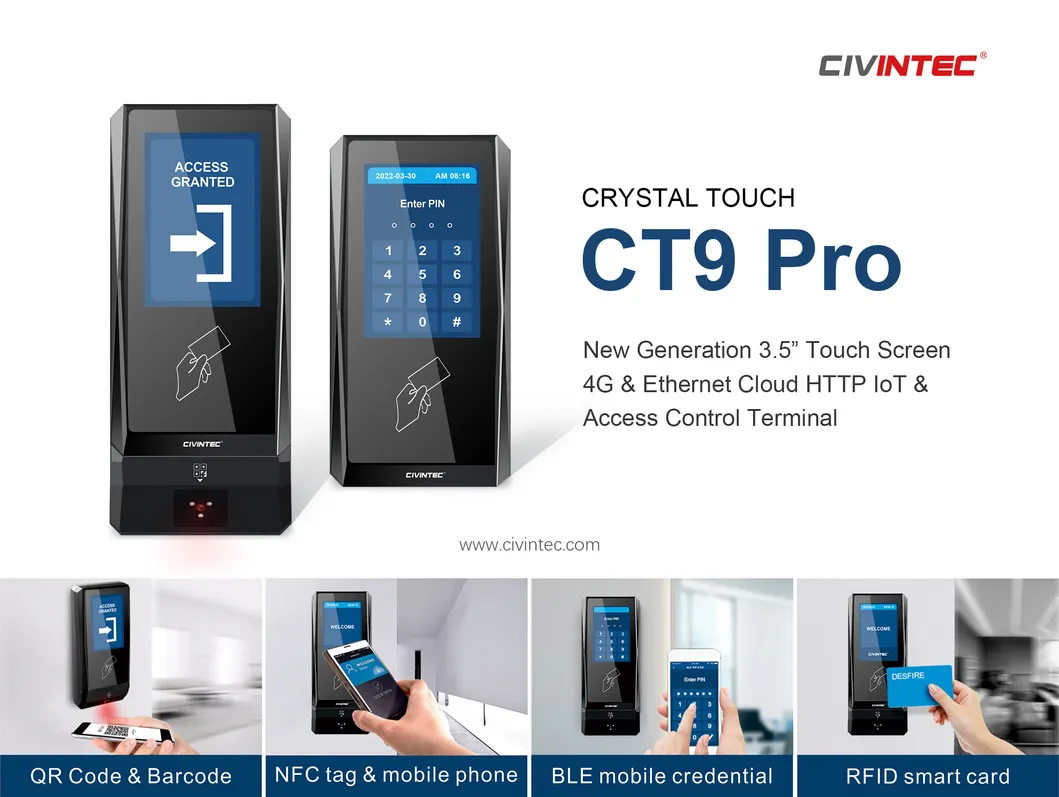

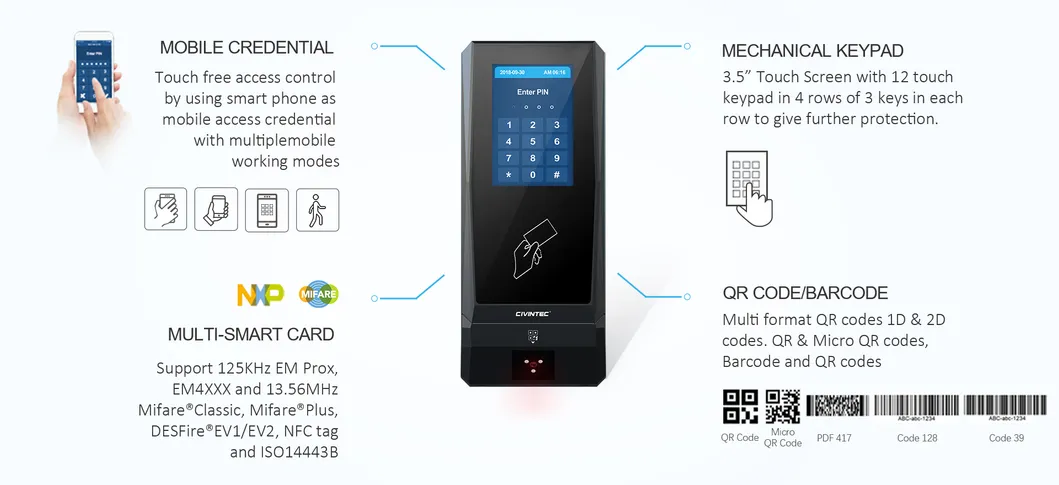

CT9 Pro incorporates 5-in-1 multiple access credential technologies: touch keypad, dual frequency RFID, BLE & NFC mobile access, and QR CODE/barcode scanning for comprehensive visitor management.

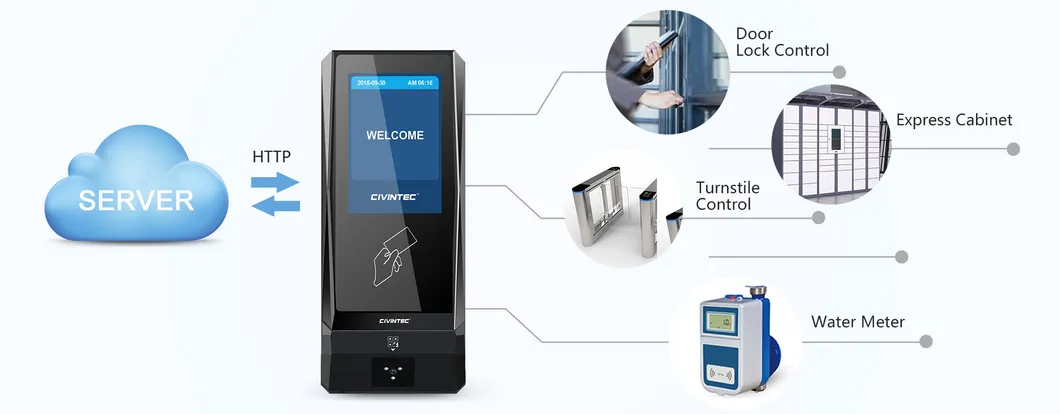

Bi-directional communication via standard HTTP & HTTPs between CT9 Pro and the server allows for remote control of door locks and various IoT facility management tasks.

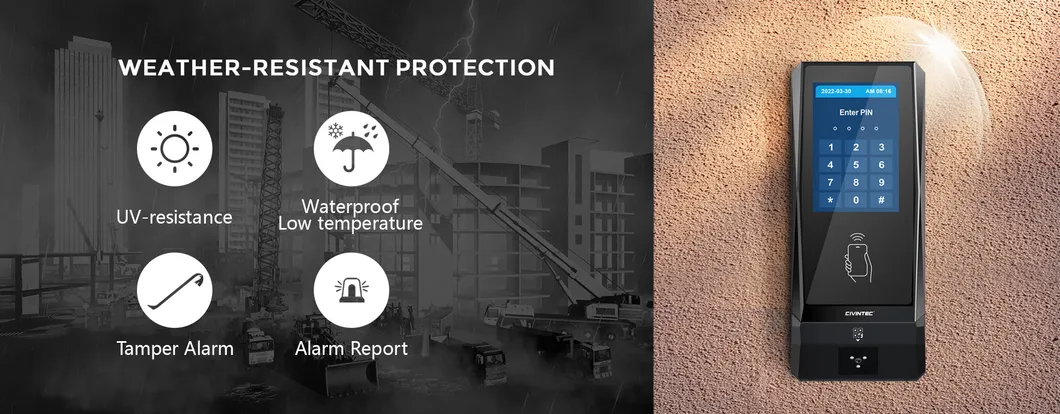

With an IP65 rating, the device is resistant to rain, dust, and strong sunlight. It is ideal for outdoor use and rugged environments with low temperatures.

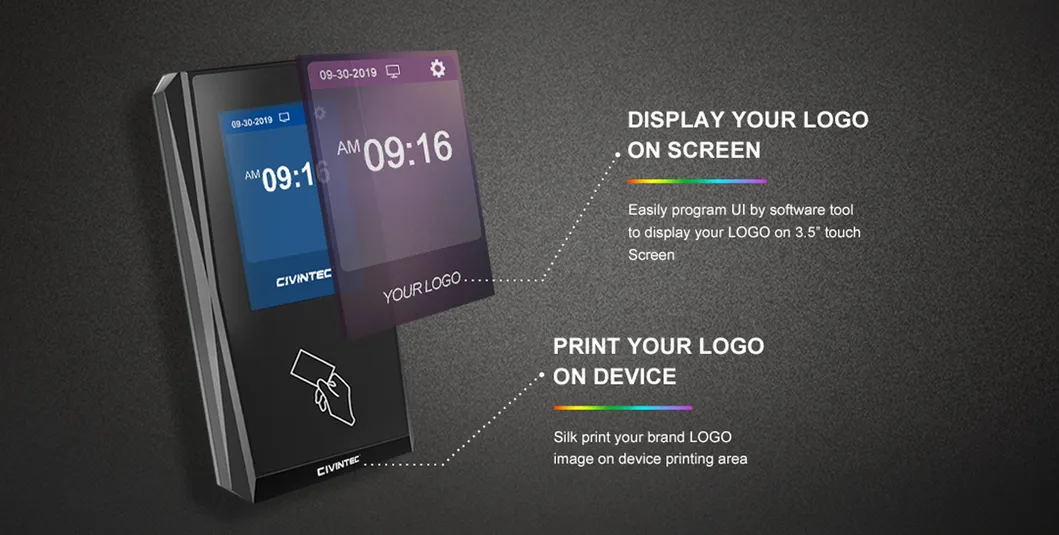

We offer ODM customization on hardware, reader housing, firmware, and software design services. Users can program and display their own logos on the 3.5" touch screen.
