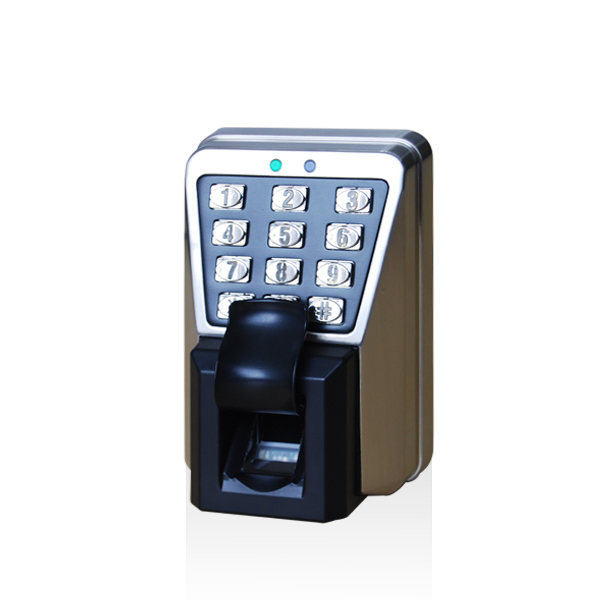

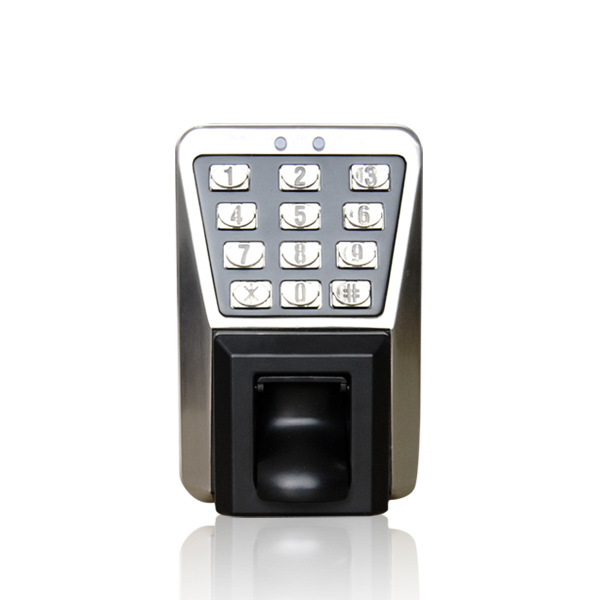

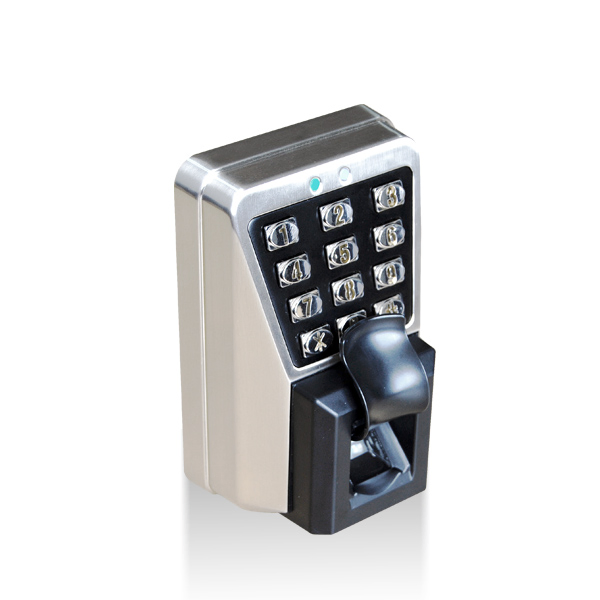

Outdoor Waterproof Fingerprint Access Control System with Keypad and TCP/IP (MA500)
Product Description
Basic Specifications
Model NO.
MA500
Card Capacity
30,000 Card
Logs Capacity
100,000
Power Supply
5V/1.5A
Communications
TCP/IP, RS232/485, Wiegand
Real Weight
1.3kg
Verification Mode
Fingerprint, Password, ID Card
Type
Fingerprint
Specification
CE, FCC, RoHS, ISO
Origin
China
HS Code
8543709990
Production Capacity
6000PCS/Month
Product Description
MA500 is a waterproof fingerprint access control with a time attendance system, featuring a metal cover to ensure high durability. It is equipped with an optical sensor protected by a dedicated cover, making it suitable for demanding environments.
Key Functions
✓
Ability to connect specially designed FR1200 fingerprint slave reader.
✓
Support Anti-pass back to maximize security level.
✓

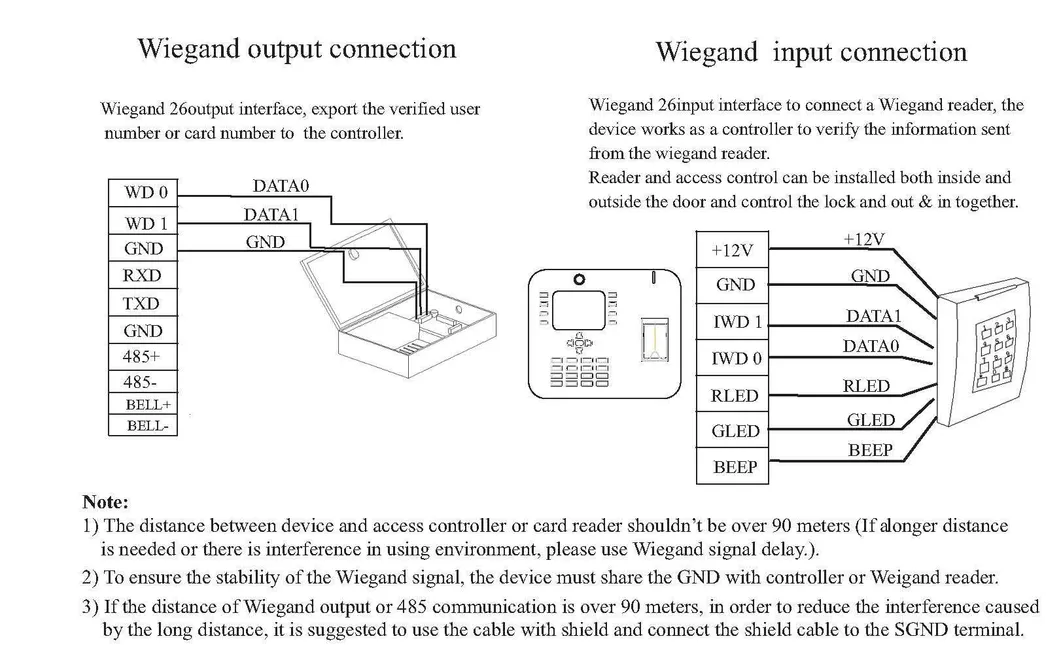

Configurable Wiegand output for easy integration into existing systems.
✓
Various alarms: tamper alarm, door sensor alarm, duress alarm, etc.
✓
Free full SDK available for integration, supports access 3.5 software.
✓
Built-in ID card reader, supports fingerprint and ID card verification.
✓
Waterproof design with IP65 protection, anti-dust and strong seal.
✓
Saves data automatically during power outages.
Product Showcase
Technical Specifications
| Category | Details |
| Access Control Interface | Electric lock, Door sensor, Alarm, Exit button, Wiegand output |
| Language Support | Multi-language: English, French, Spanish, Arabic, etc. (Over 40 languages) |
| Capacity | Fingerprint: 3,000; ID Card: 30,000; Log: 10,000 |
| Environment | Temp: -10 ~ 45°C; Humidity: 10% ~ 90% |
| Verification Speed | 1:1 ≤0.5s; 1:N ≤1s |
| Security Metrics | FRR: ≤0.01%; FAR: ≤0.0001% |
| Authentication Method | Fingerprint, RFID, PIN, FP/RFID/PIN combinations |
| Protection & Size | IP65 Rating; Size: 83(L)*58(W)*125(H)mm |
| Communication | TCP/IP, RS485 |
Frequently Asked Questions
Is the MA500 suitable for outdoor installation?
Yes, the MA500 features a waterproof design with an IP65 protection rating and a strong seal, making it resistant to dust and water.
How many users can the system manage?
The system can store up to 30,000 ID cards and 3,000 fingerprint templates, with a log capacity of 100,000 records.
Does the device lose data if the power goes out?
No, the MA500 is designed to save all data during power outages to ensure security and record integrity.
What types of verification methods are supported?
It supports multiple verification modes including Fingerprint, RFID Card, PIN, and various combinations of these for enhanced security.
Can I integrate this with other access controllers?
Yes, it includes a configurable Wiegand output, allowing it to connect easily with other access controllers or existing security systems.
What communication protocols does the MA500 use?
The device supports TCP/IP and RS485 for network environments, as well as standalone operation.
