Metal Waterproof Keypad RFID Door Access Control System for Home/Office/Apartment Access
Product Description
📋
Basic Information
Model NO.ZDAC-2300
Technology32-Bit Technology
Way of ControlHand Control
Communicationnot Networked
TypeOne-way Controller
ApplicationOffice Building etc
ColorSilver
Card Type125kHz Em ID Cards
Capacity2000 Users
Open-Door Time0~99 Seconds
HousingMetal
Warranty1 Year
🔍
Product Description

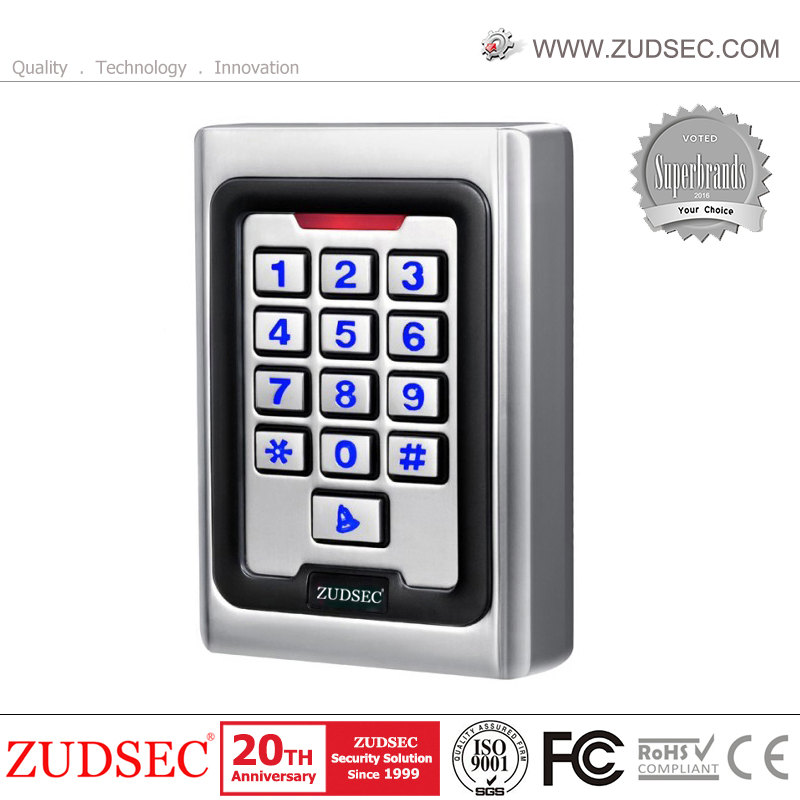

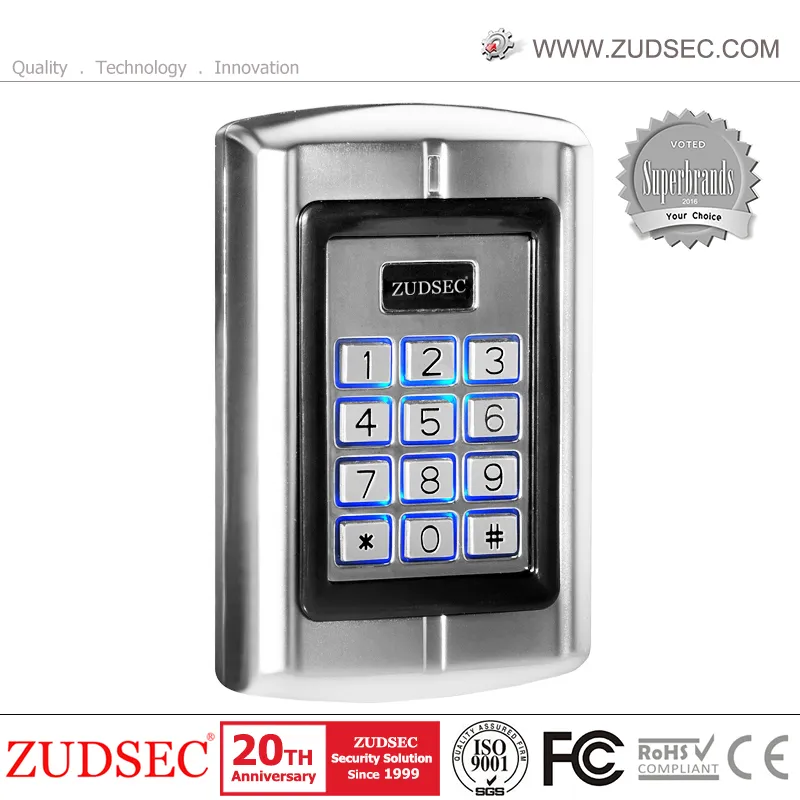

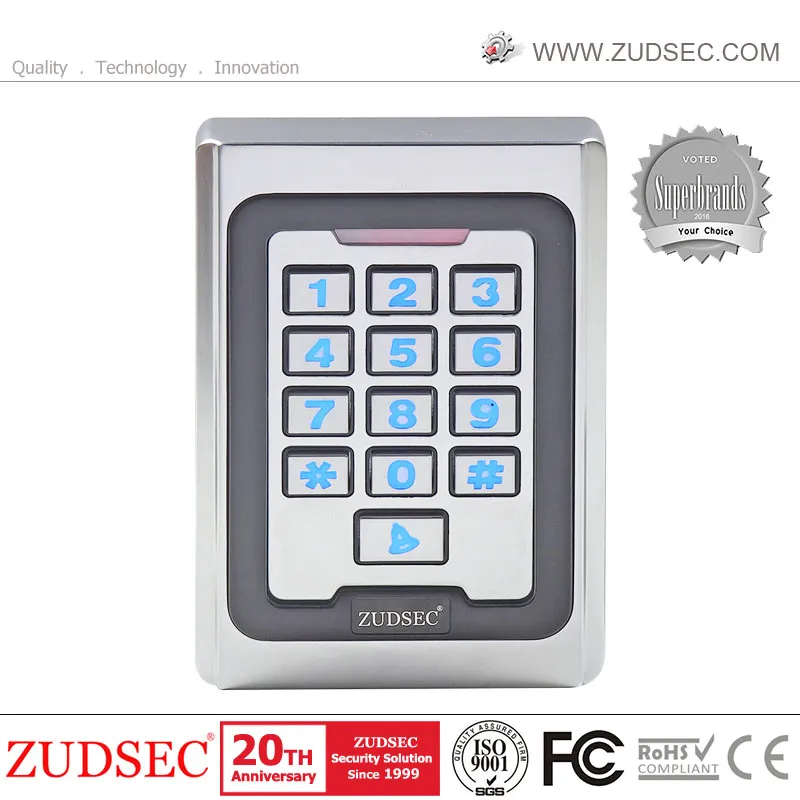

Metal Waterproof Keypad RFID Door Access Control System
Standalone Access Controller - Metal Shell: The ZDAC-2300 is suitable for mounting either indoor or outdoor in harsh environments. Featuring an exquisite design with a non-masking Metal shell, keystroke backlight, and Wiegand output. It supports up to 2000 users via Card, 4-digit PIN, or Card + PIN options, including a built-in Doorbell function. This powerful device is an ideal choice for door access in small shops, domestic households, and commercial or industrial applications such as factories, warehouses, laboratories, and banks.
⭐
Key Features
- Exquisite designs with non-masking Metal shell

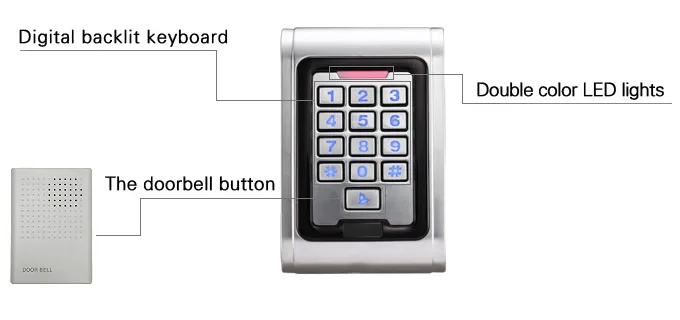

- Keystroke backlight for night use
- Compatible with 125kHz EM ID cards
- WG26 output, can be used as an Access reader
- Capacity: 2000 users
- Access ways: Cards, code, card & code
- With Doorbell key, connects with external doorbells
- Low power: Static current less than 30mA
- Support keypad operating alone, unrelated with card
- Adjustable open-door time: 0~99 seconds
- High-speed search: less than 0.1s
- Short-circuit protect: Automatic closure within 100μS
⚙️
Technical Parameters
| Model | ZDAC-2300 |
| Card Types | EM or EM compatible |
| Operating Voltage | DC 12V±10% |
| User Capacity | 2000 |
| Reading Distance | 3~6cm |
| Active Current | <60mA |
| Idle Current | 25±5 mA |
| Lock Output Load | Max 3A |
| Operating Temperature | -45ºC~60ºC |
| Operating Humidity | 10%- 90% RH |
| Wiegand Interface | Wiegand 26 bit |
| Dimensions | 128mm X 82mm X 28mm |
| Weight | 500g |
🖼️
Product Gallery
🔗

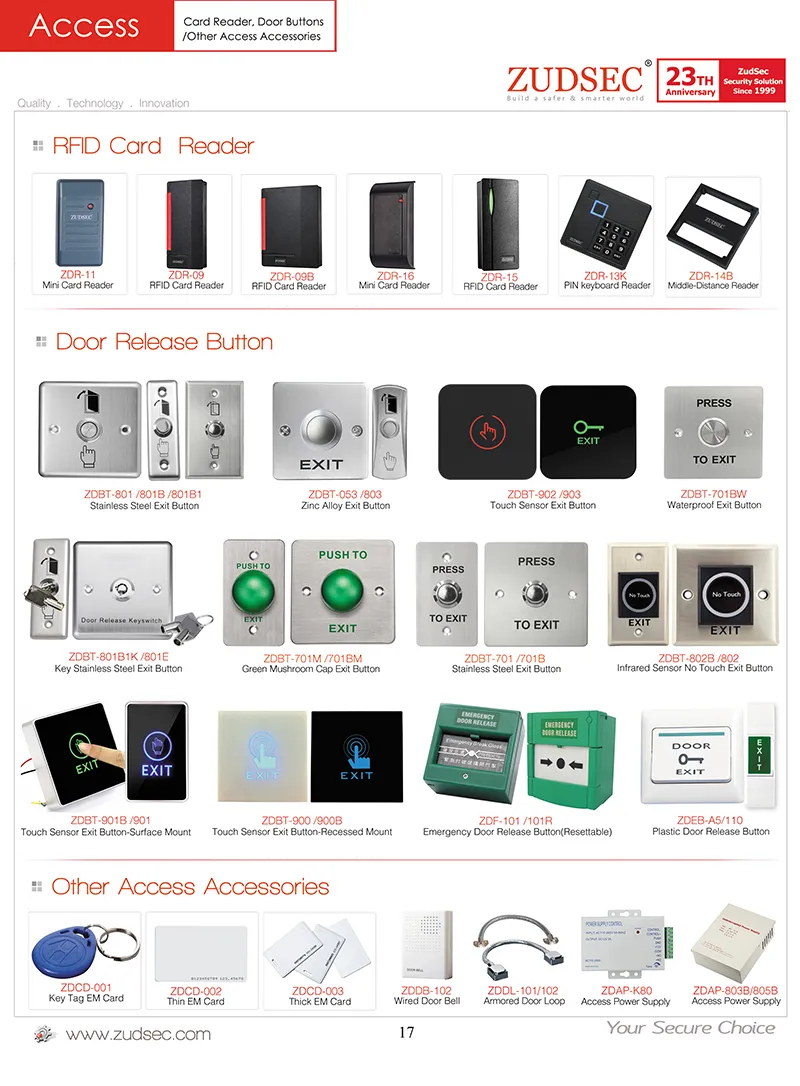

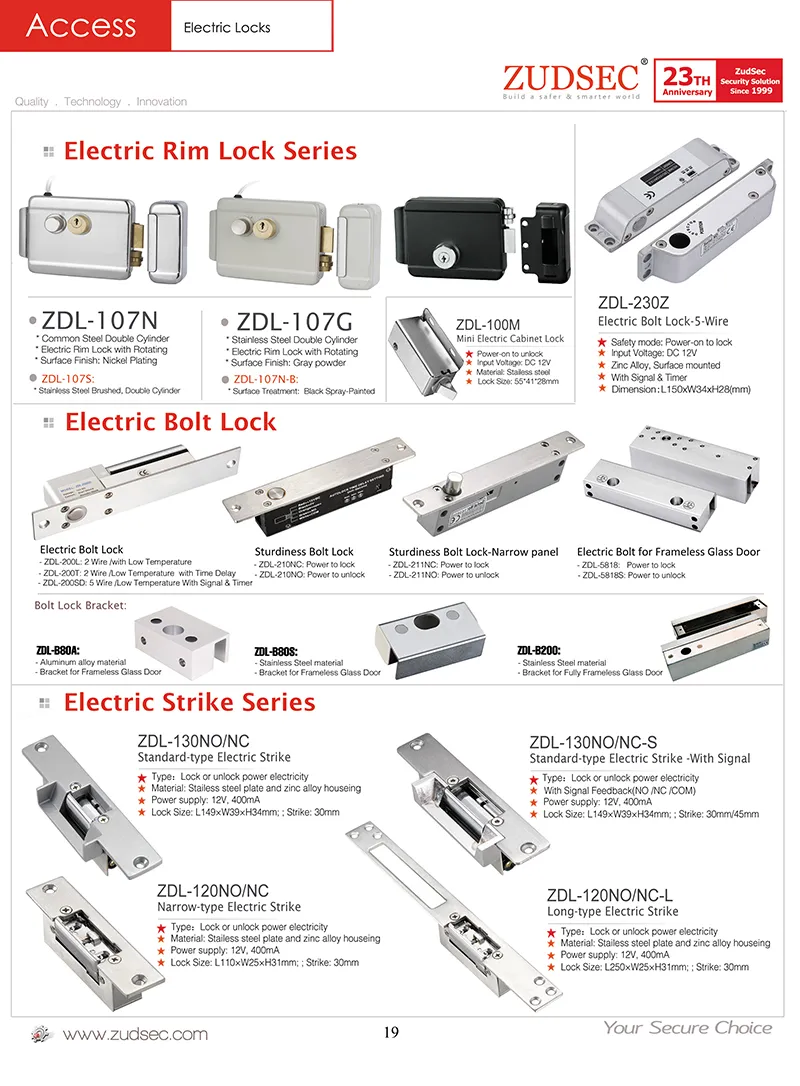

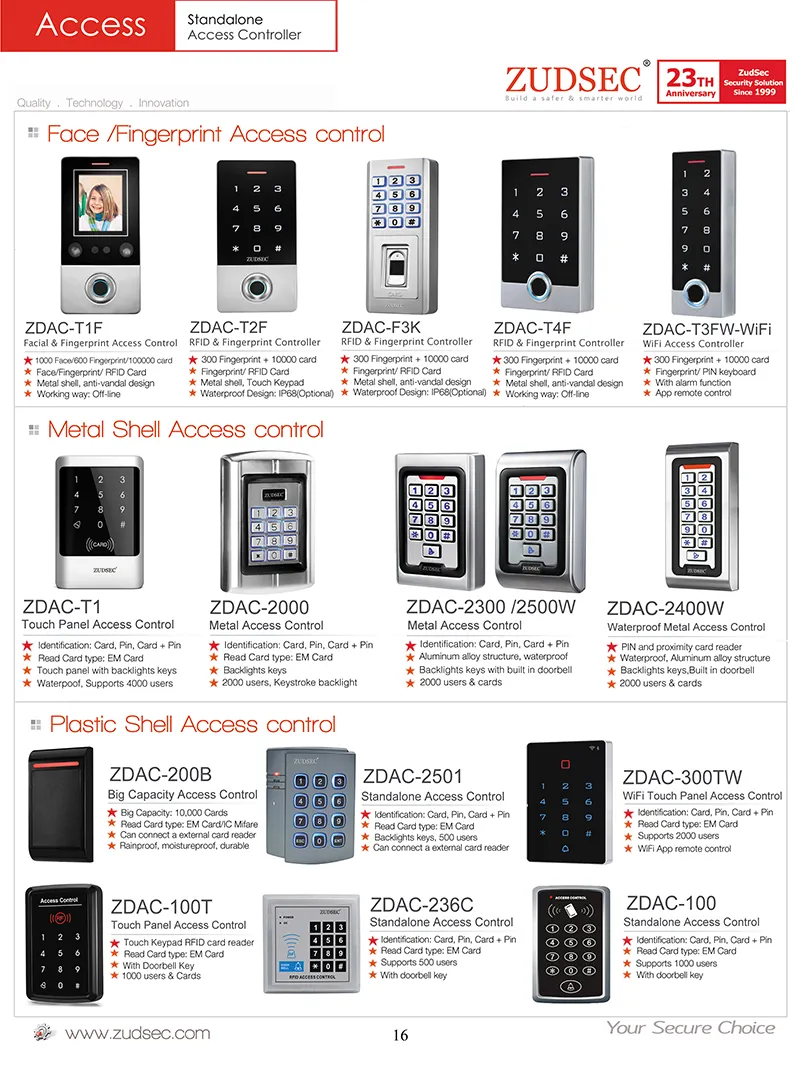

Related Products
❓
Frequently Asked Questions
How many users does the ZDAC-2300 support?
The system has a large capacity that supports up to 2000 users.
What are the supported access methods?
Users can gain access via RFID Card, a 4-digit PIN code, or a combination of both (Card + PIN).
Is the device suitable for outdoor installation?
Yes, the device features a durable metal waterproof shell, making it ideal for both indoor and outdoor use in harsh environments.

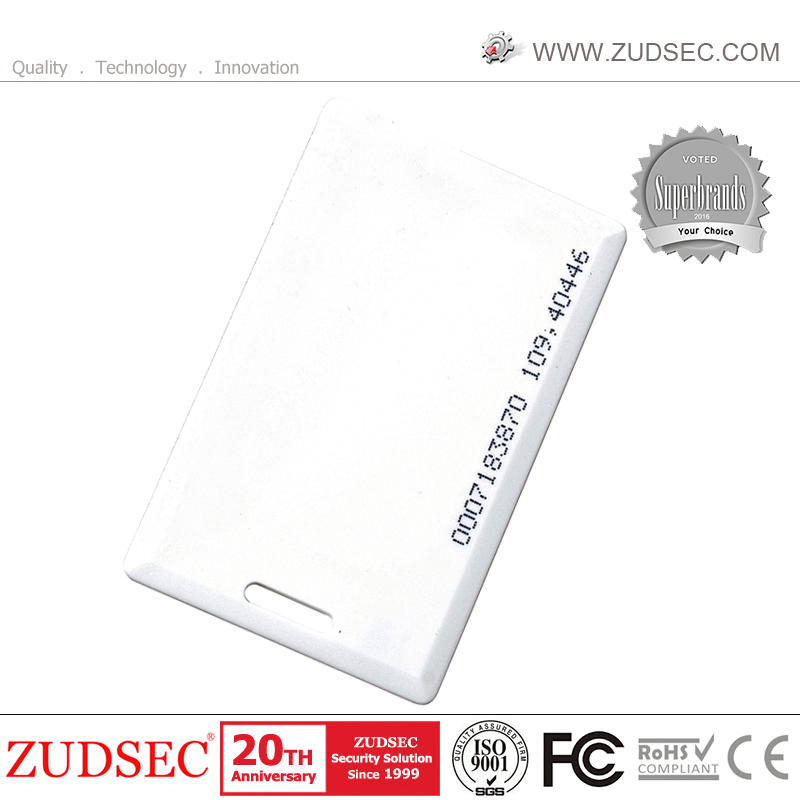

What type of RFID cards are compatible?
It is designed for use with standard 125kHz EM ID cards or compatible EM cards.
Does the keypad have a backlight?
Yes, the keypad includes a keystroke backlight for easy operation in low-light or nighttime conditions.
What safety protections are built-in?
The system includes short-circuit protection, where the output closes automatically within 100μS if a short-circuit is detected.
