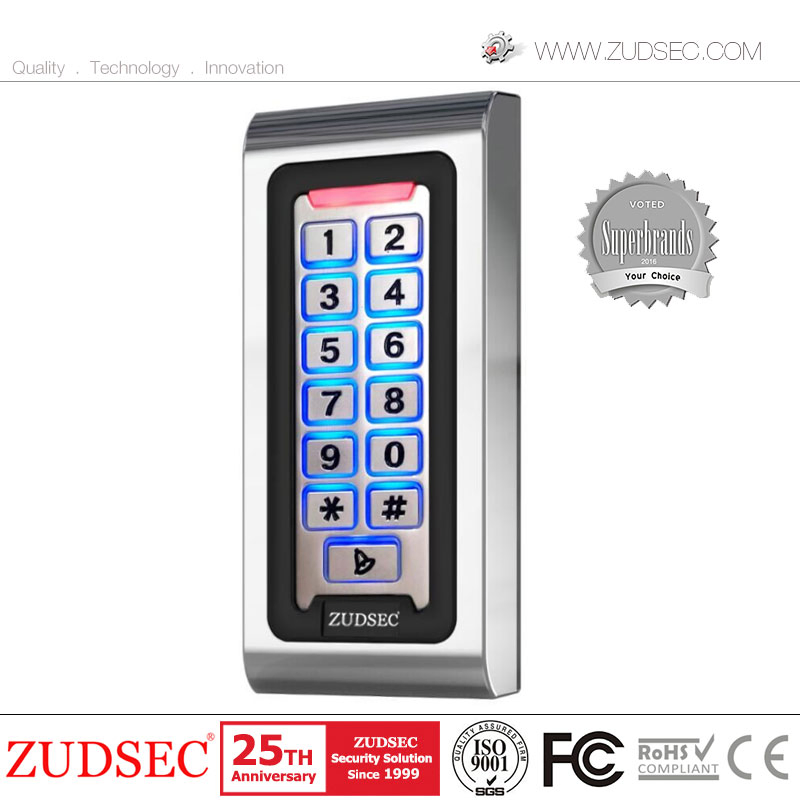

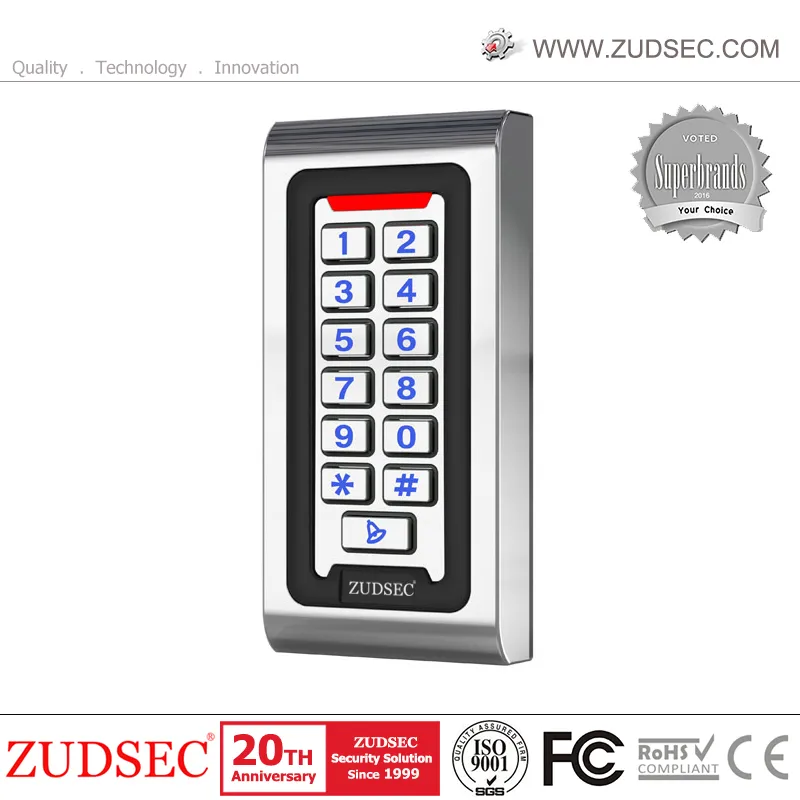

Intelligent Waterproof RFID Access Control System with Keypad
Product Description
Overview & Basic Info
Model NO.
ZDAC-2400W
Technology
32-Bit Technology
Way of Control
Computer Control
Communication
Wiegand
Type
One-way Controller
Operating Voltage
DC 12-24V
Reading Distance
3-6cm
Type of Card
125kHz, EM
Users
2000
Material
Metal
Waterproof
IP65
Dimensions
143mm X 58mm X 25mm
Certificate
CE, RoHS
Warranty
1 Year
Product Description
Intelligent Waterproof RFID Access Control System with Keypad
Standalone Access Controller: Aluminum alloy structure, Waterproof, fully potted, conforms to IP65, 125KHz EM and HID card for optional, Multi-function, 12P cable with built-in door bell function, operating as slave reader, single door, anti-pass back, etc. Suitable for various occasions.
Key Features
- Aluminium alloy case, waterproof, fully potted, meets IP-65 waterproof standard
- Metal digital backlit keypad (Light can be set to Normal ON, Normal OFF, or Human-Approach ON)
- Built-in door bell functionality
- Built-in 125KHz card reader with Auto-Recognition
- Supports 2000 users, each with a card and a 4-6 digits password
- Master card support for easy management
- Record 2000 serial number cards at a time
- Supports 2-10 cards for entry
- Wiegand 26-37 output for card numbers and button entry
Product Parameters
| Operating Voltage | DC 12-24V; Operating Current ≤35mA |
| Reading Distance | 3-6CM |
| Card Type | 125KHz, EM |
| Transmit Format | Wiegand 26-37 |
| Keypad Format | 4-6 digits key press (4 bits or 8 bits data) |
| Temperature | -40ºC to 60ºC |
| Humidity | 0~95% (non-condensing) |
| Size & Weight | 158.6L x 43W x 21.7D (mm); 0.5Kg |
Product Display

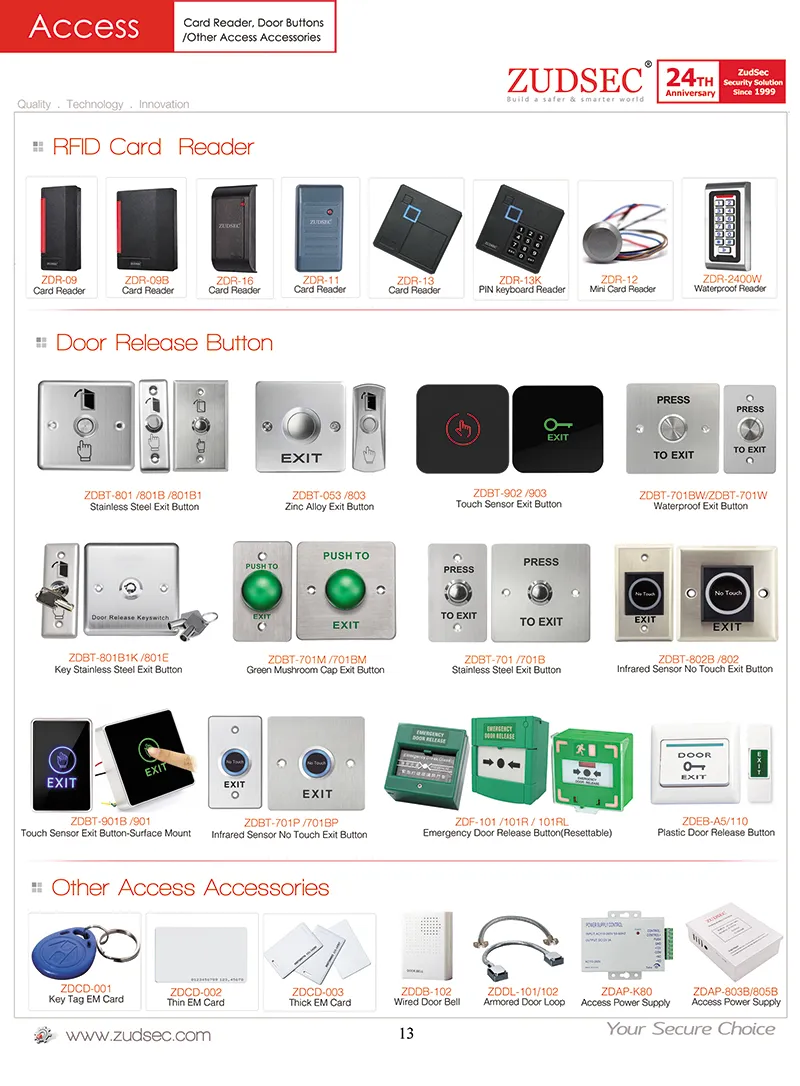

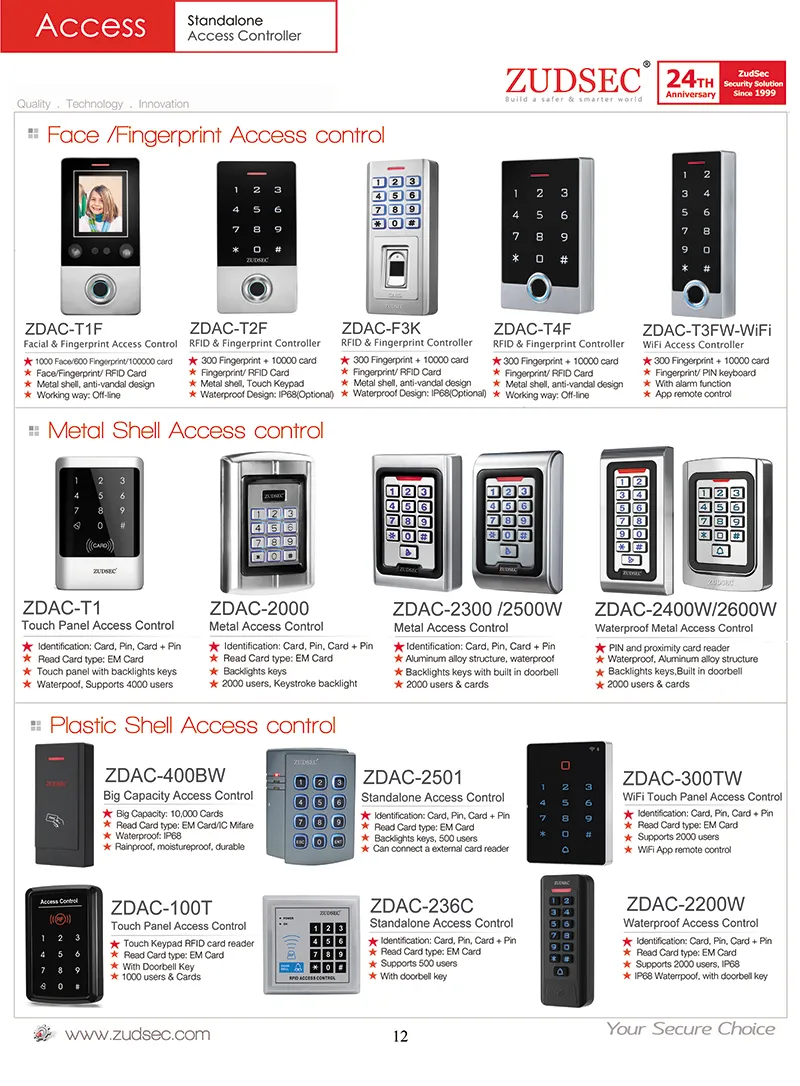

Related Products
Frequently Asked Questions
What is the user capacity of the ZDAC-2400W?
This system supports up to 2000 users, and each user can have their own card and a 4-6 digit password.
Is this access control system suitable for outdoor use?
Yes, it features an aluminum alloy structure that is fully potted and meets the IP65 waterproof standard, making it ideal for various outdoor and indoor environments.
What types of RFID cards are compatible?
The device has a built-in 125KHz card reader compatible with EM cards and optionally HID cards.
Can I use this device as a slave reader?
Yes, it can operate as a standalone controller or as a slave reader via its Wiegand 26-37 output interface.
What is the required operating voltage?
The system operates on a wide voltage range of DC 12V to 24V.
Does the keypad have a backlight for night use?
Yes, it features a metal digital backlit keypad. The backlight can be configured to stay always ON, always OFF, or activate upon human approach.
