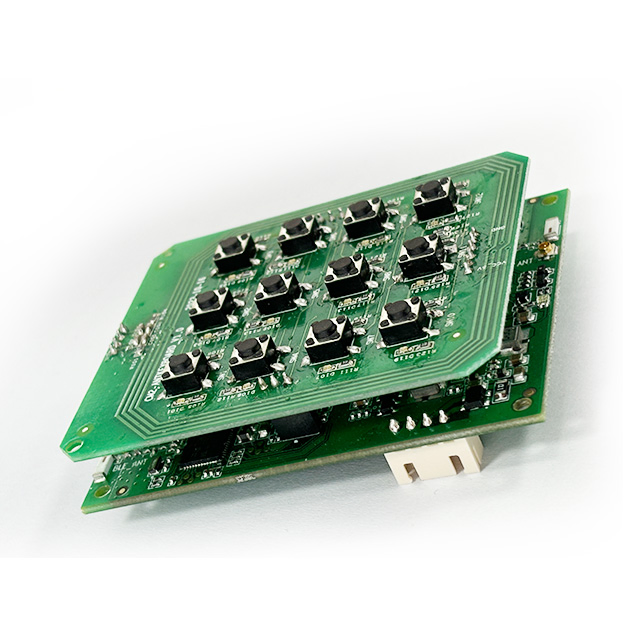

High Security RFID 4 Door Access Control System Access Control Management System
Product Description
Basic Specifications

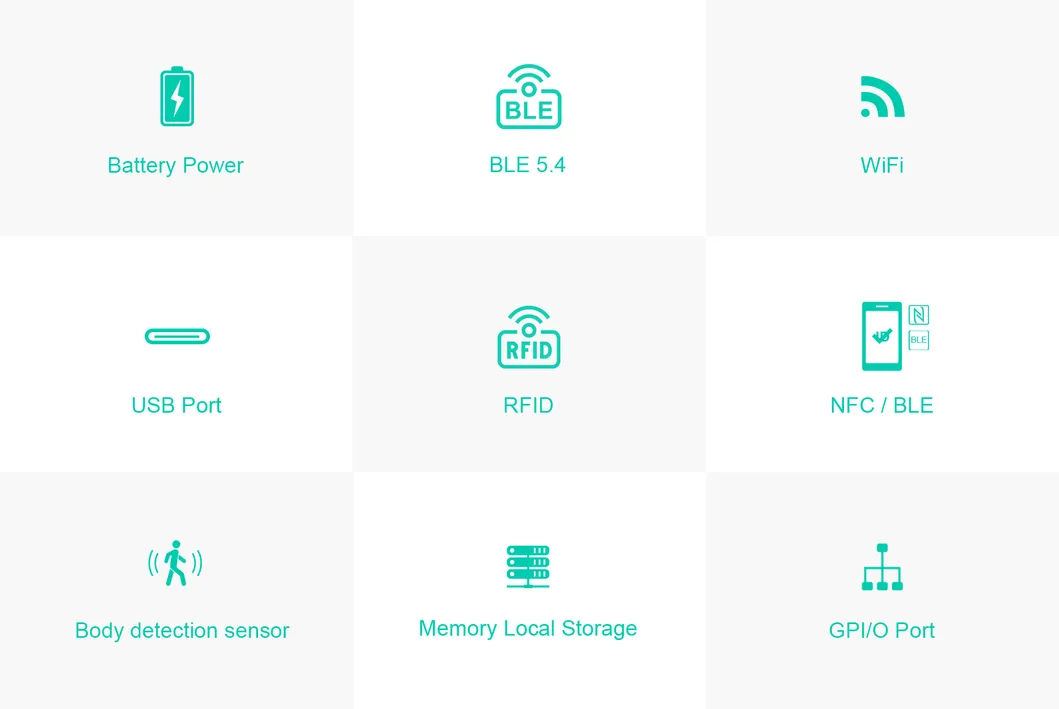

Product Overview

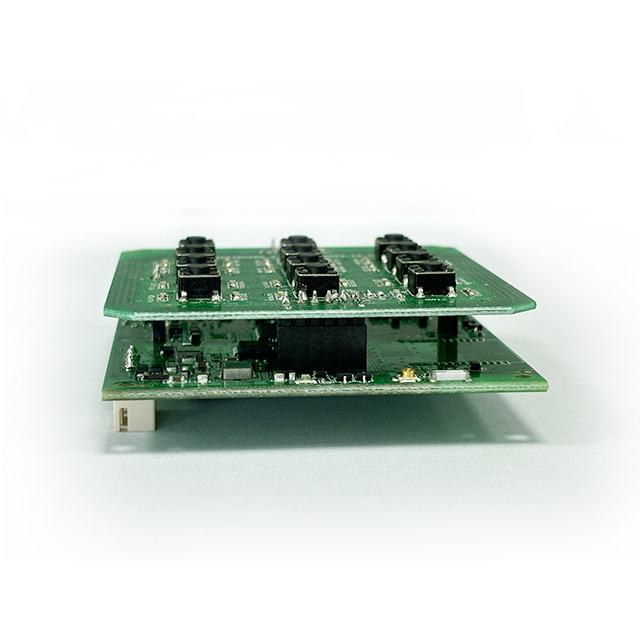

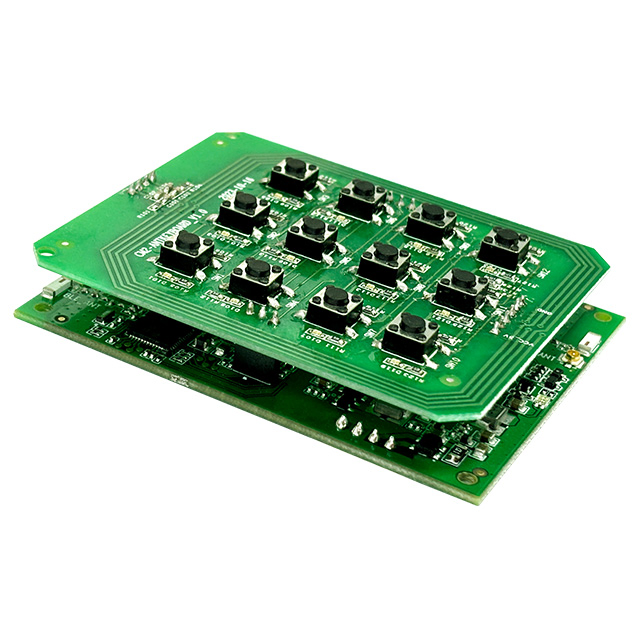

Smart CM3 is the new generation of BLE 5.4 wireless high-performance multi-technology platform. It provides an ultra-low battery-operated power consumption design, which contains the latest wireless interfacing and multiple identification technologies for customized design of access control, wireless electric lock, canteen management, asset tracking and different handheld applications.
Smart CM3 supports almost all RFID 13.56MHz contactless technologies, including DESFire EV1/EV2/EV3. It also supports NFC and BLE Mobile credentials for mobile application. Together with supporting Arm® TrustZone® and securable I/Os features, it meets the high security application requirements.
Thanks to the latest technologies, it meets the Ultra-low power consumption requirement. Smart CM3 powerful platform is highly recommended for both hardware and software customization.
Product Features
Key Advantages
- Support 13.56MHz Desfire EV1/EV2/EV3 and NFC
- Support Arm® TrustZone® for high security
- Rich I/O port for electric lock control
- With memory for local data storage
- Economic solution for battery powered ultra-low power consumption reader

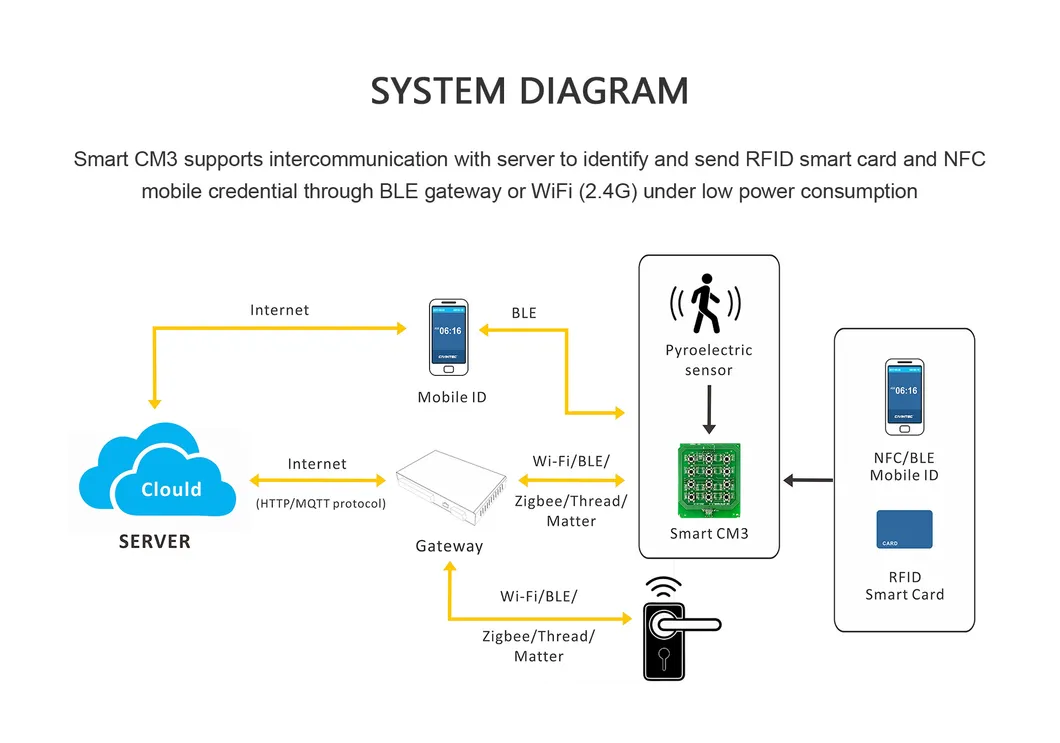

- Supports BLE 5.4 Zigbee, Thread/Matter/MQTT protocol
- Embedded software development capabilities
- Integrated Body detection function
Technical Specifications
| Memory | 4M BYTE |
| Power Supply | - USB - 3V / 4 * battery |
| RFID Standards & Cards | 13.56MHz ISO14443A, ISO15693 and ISO18092 standard - Mifare Classic CSN & Sector - DESfire EV1/EV2/EV3(2k/4k/8k) CSN & Sector - NFC tag, HID iCLASS CSN |
| Secure Interface | - Optional SAM slot ISO7816 T=0, T=1 - Support SAM AV2 for 13.56MHz read/write EAL5+ encryption - Secure IC for MCU communication protection EAL5+ Level |
| Mobile Communication | - NFC mobile phone - BLE 5.3 |

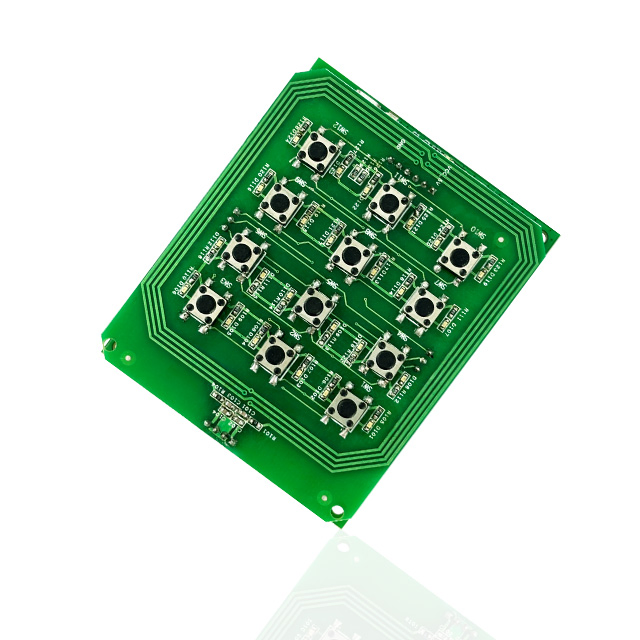

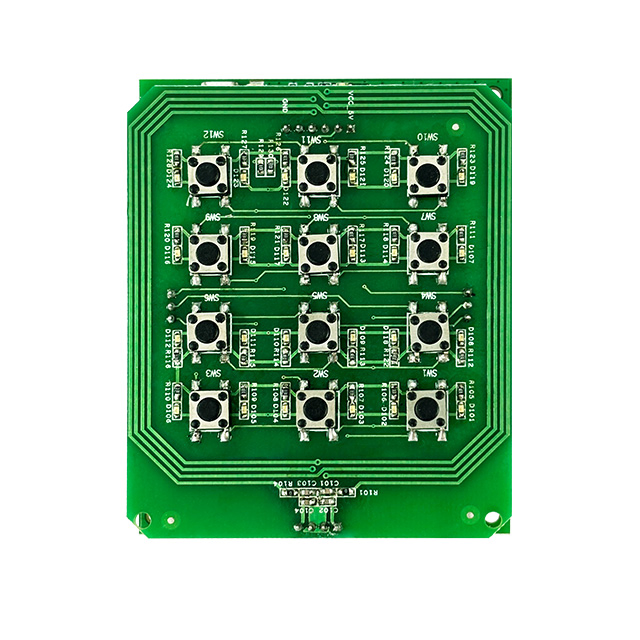

| Keypad | 12 digit mechanical keypad |
| Interfaces | - WiFi, BLE 5.3 (Master & Slave, Beacon, Thread, Zigbee, Mesh), USB |
| Indicators | Buzzer and Bio-color LED |
| Operating Temp. | -20ºC ~ 60ºC |
