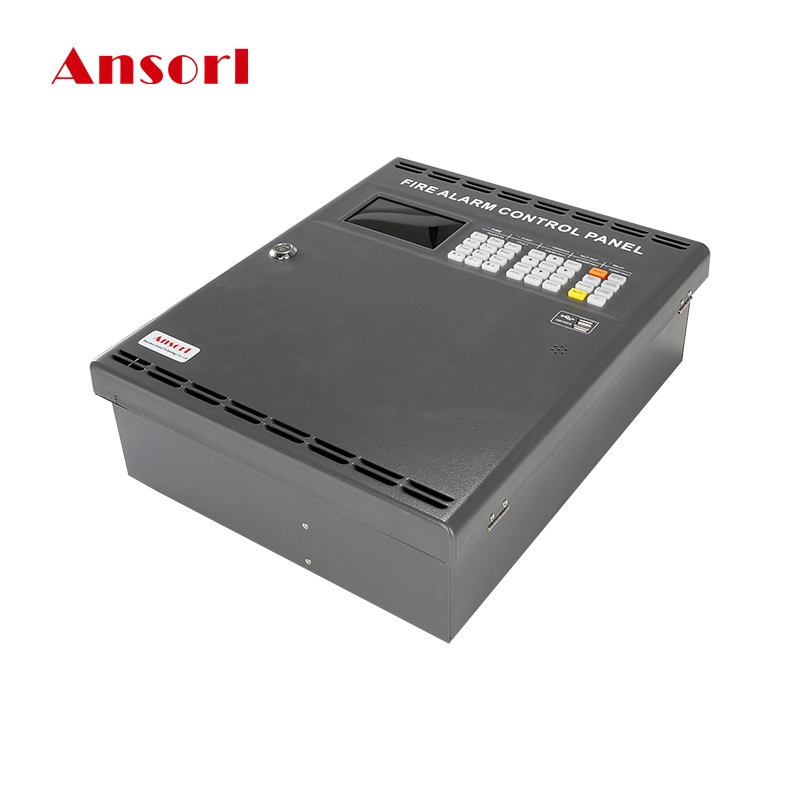

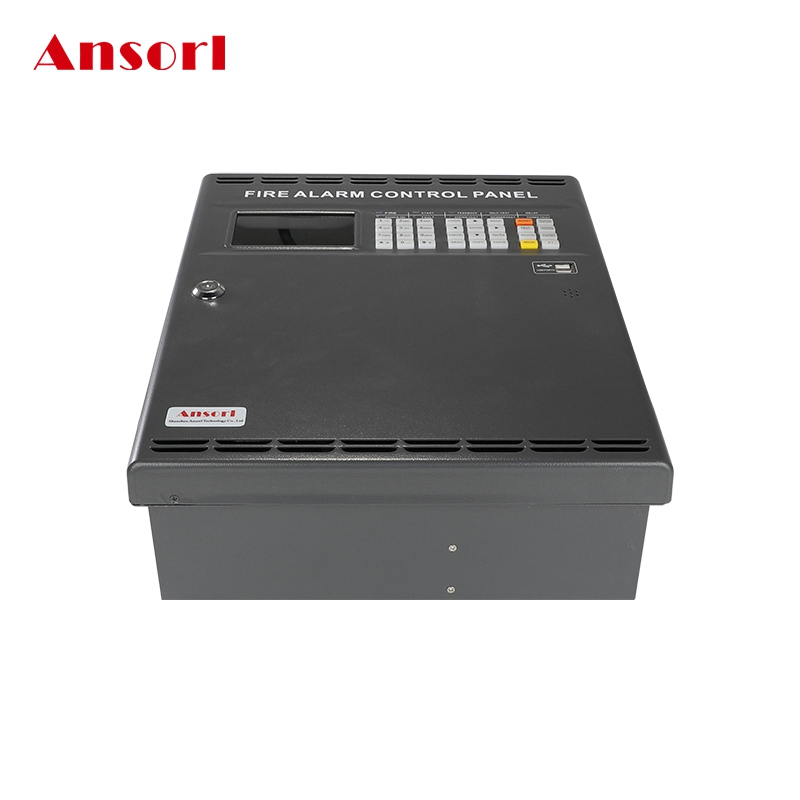

Dubai Approved Burglar Home Smart Fire Alarm Control Systems For Buildings
Product Description
Basic Specifications
Model NO.
AS-MN3010 Series
Certification
CE, ISO, CCC
Alarm Volume
≥90dB (within 1m)
Networking Mode
CAN
Wiring Mode
Bus System
Product Name
Addressable Fire Alarm Control Panel
Main Power
AC 220V±20%/50Hz or DC24V
Backup Power
DC24V Battery Bat12V/5ah
Loop Capacity
100 / 200 / 324 / 648 Points
Display
4.3" LCD Display
Standard
EN54-2 & EN54-4
Origin
China
Product Description

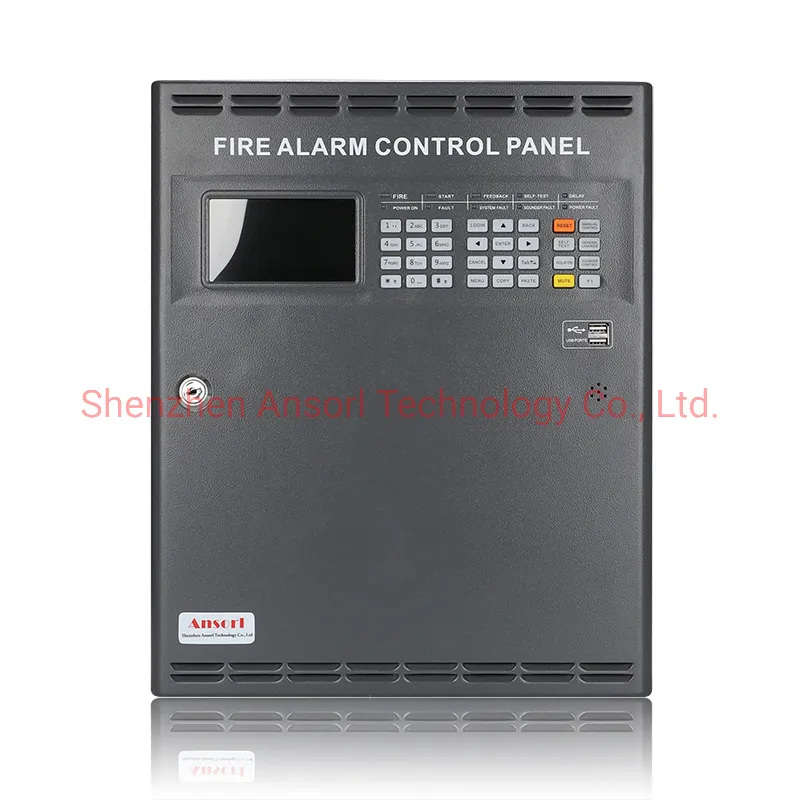

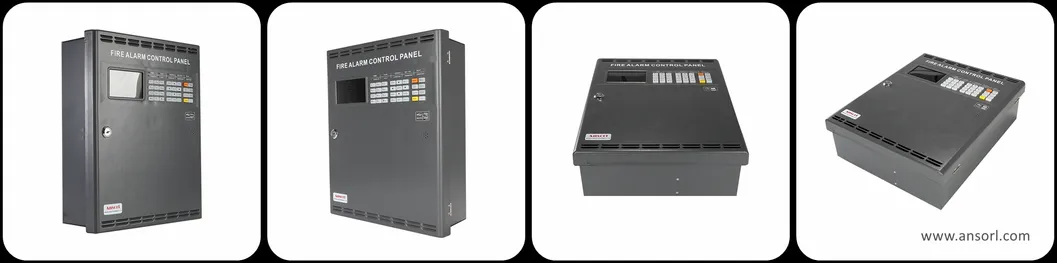

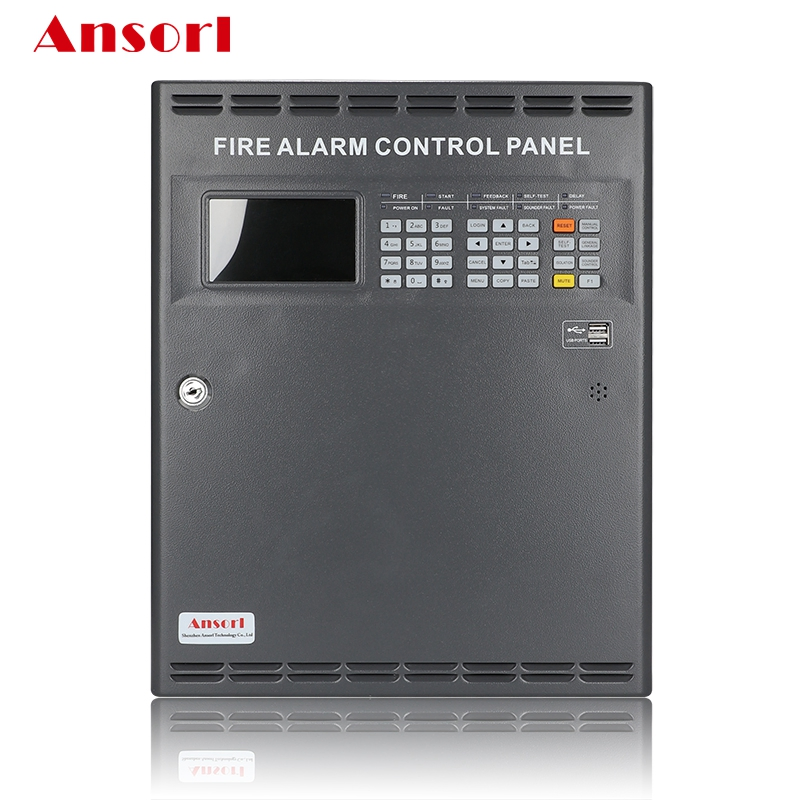

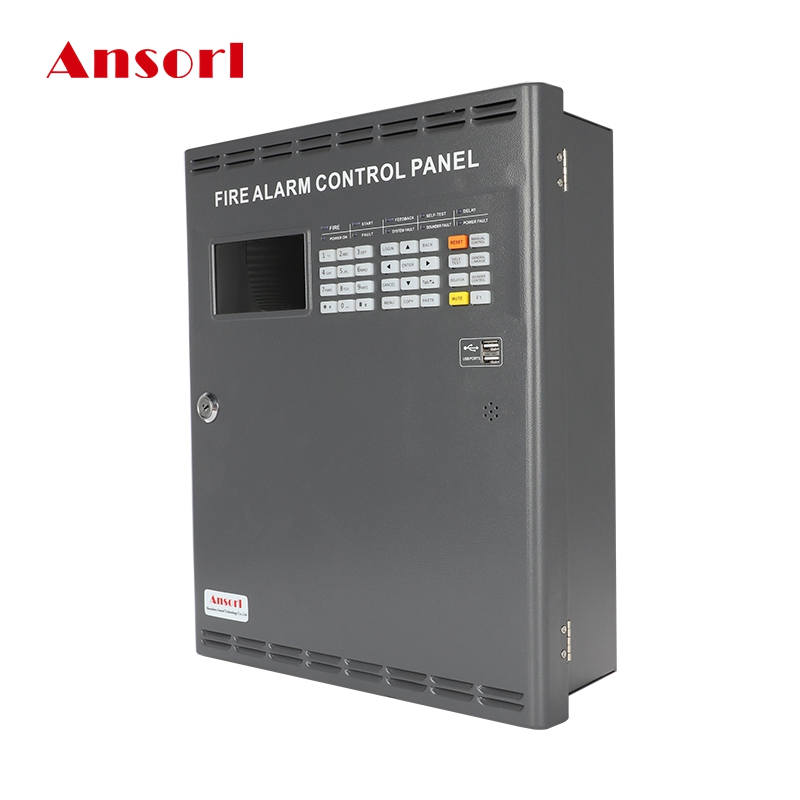

The AS-MN3010 Series fire alarm control panel is a new generation of control unit designed to meet rigorous engineering demands, providing both linkage and control functions. It forms an integrated alarm and linkage control system, perfectly suitable for small and medium-sized applications such as office buildings, residential communities, department stores, gymnasiums, libraries, workshops, and hotels.
Key Features
- High-speed microprocessor for rapid data processing.
- 4.3" LCD display with 430×272 resolution.
- Windows-style menu interface for intuitive operation.
- Supports USB keyboard and mouse for flexible programming.
- Interconnection of up to 20 units (6480 points total).
- Historical record for 1000 fire alarms and operations.
- Modular manual single-point start/stop functions.
- Hierarchy management with multi-level user permissions.
Technical Parameters
| Parameter | Details |
|---|---|
| Ambient Temperature | -10ºC ~ +55ºC |
| Ambient Humidity | ≤95% , no condensation |
| Loop Extension | Up to 16 Loops (AS-9108E) |
| Mini-Printer | Optional |
| USB Interfaces | Yes |
| Network | CAN bus networkable |
| Application | Office, Factory, Warehouse, Apartment, Hotel, Bank, etc. |

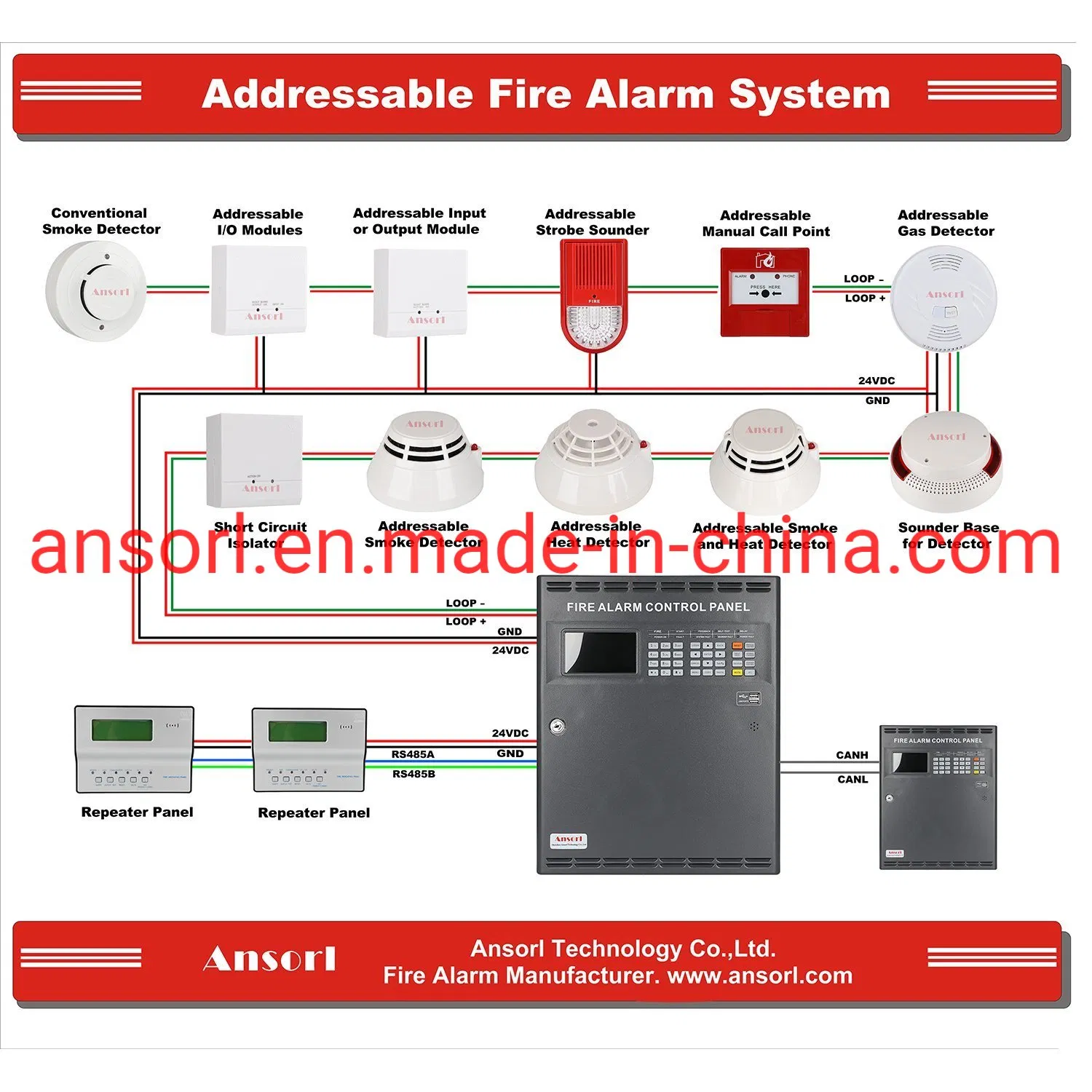

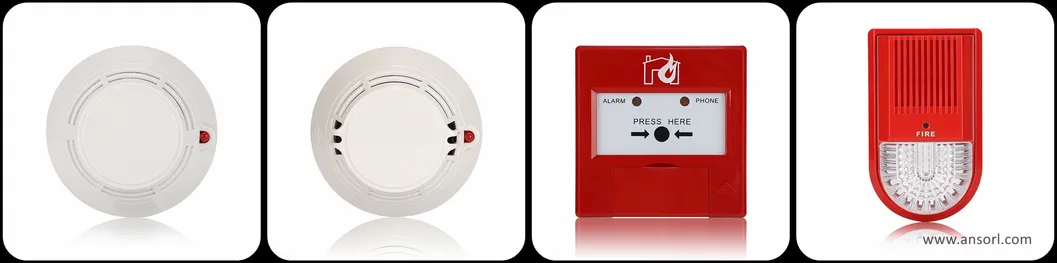

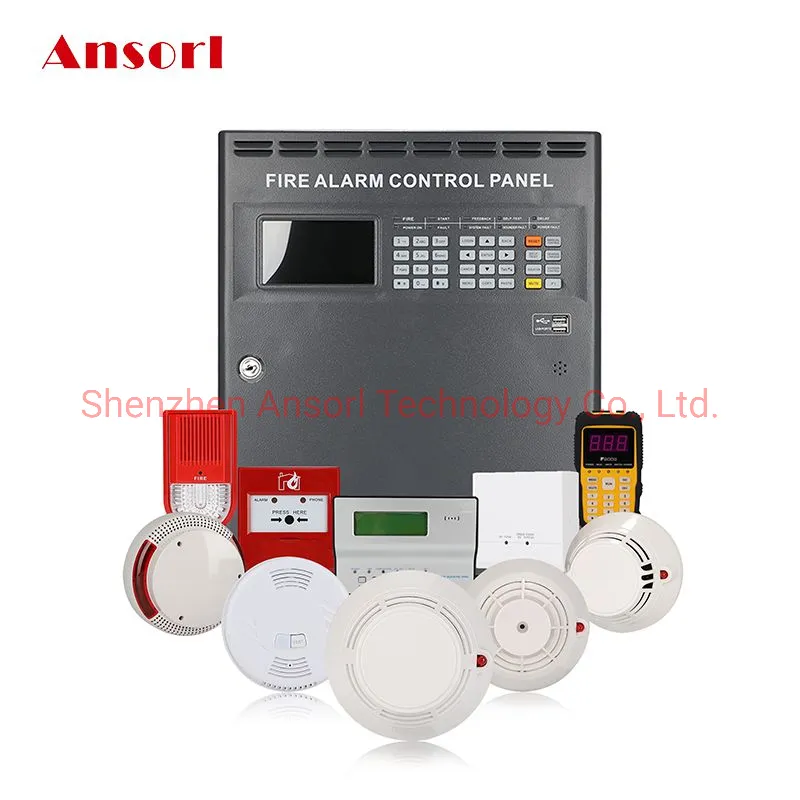

Related Components
AS-9108E: 2-16 Loops Control Panel
AS-ASD102: Addressable Smoke Detector
AS-AHD105: Addressable Heat Detector
AS-AMCP: Manual Call Point
AS-AHS: Addressable Horn Strobe
AS-ART: Repeater Panel

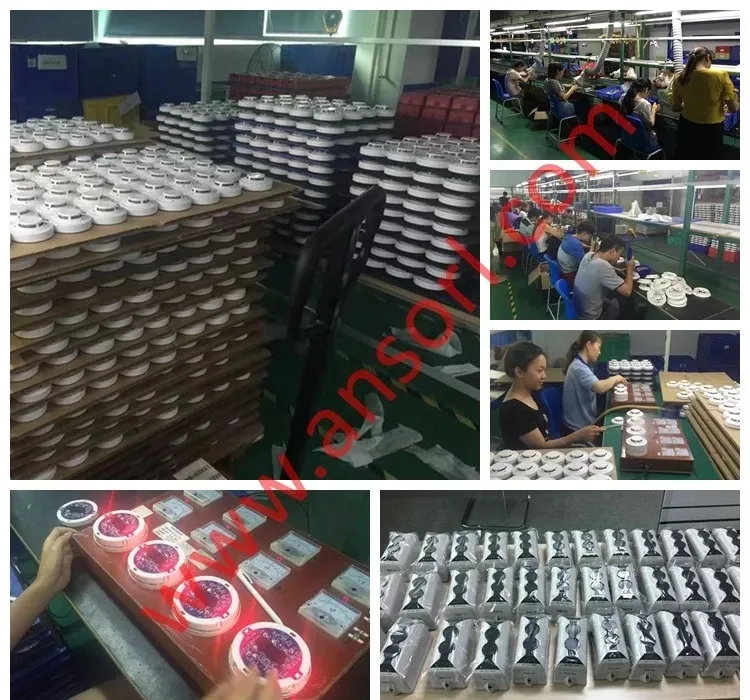

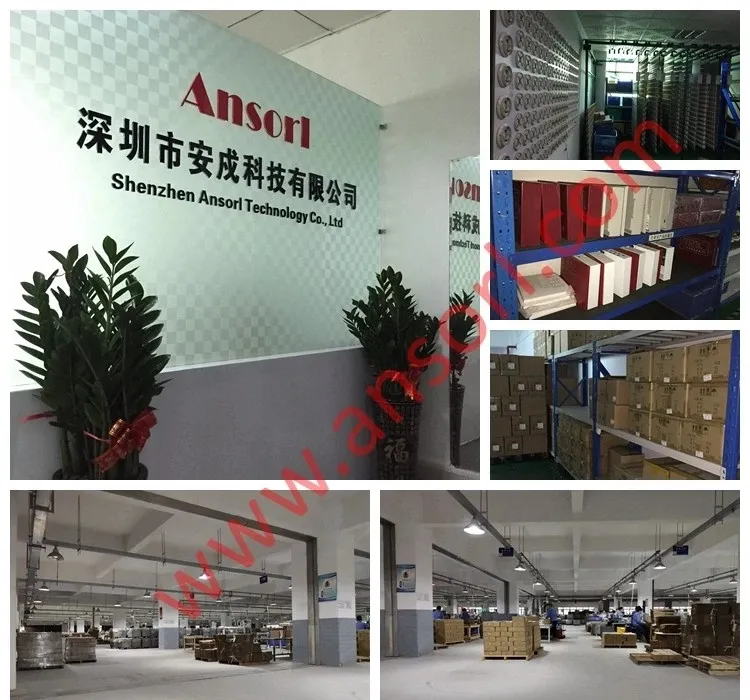

Product & Factory Gallery
Frequently Asked Questions
Are you a manufacturer?
Yes, our factory has more than 10 years of production management experience in the fire alarm industry.
Do you provide samples for testing?
Yes, samples for quality testing are available. Please let us know which models you are interested in.
How do you ensure product quality?
Our QC team is responsible for quality supervision throughout production and inspects all goods before shipment. We hold ISO, CE, and LPCB certifications.
What shipping methods do you use?
We offer shipping via international express (DHL, FedEx, UPS, TNT), as well as by train, truck, air, or sea.
What is the warranty period?
We provide a 12-month warranty. If any items are found to have quality defects, we provide replacement or repair services.
How long is the delivery time?
Standard products typically take 3-8 working days. For customized or bulk orders, it may take more than 15 working days.
