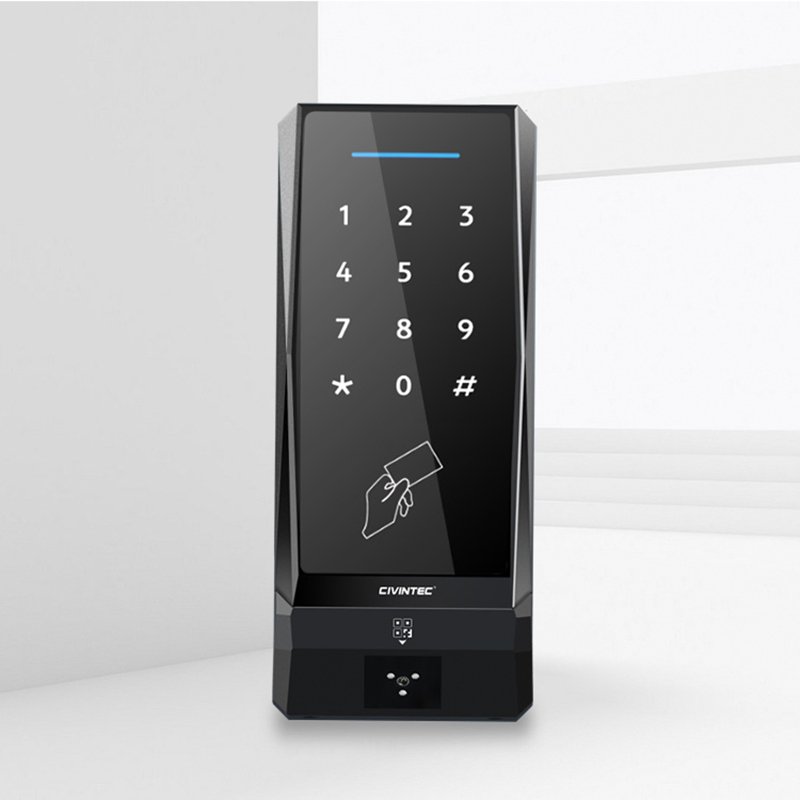

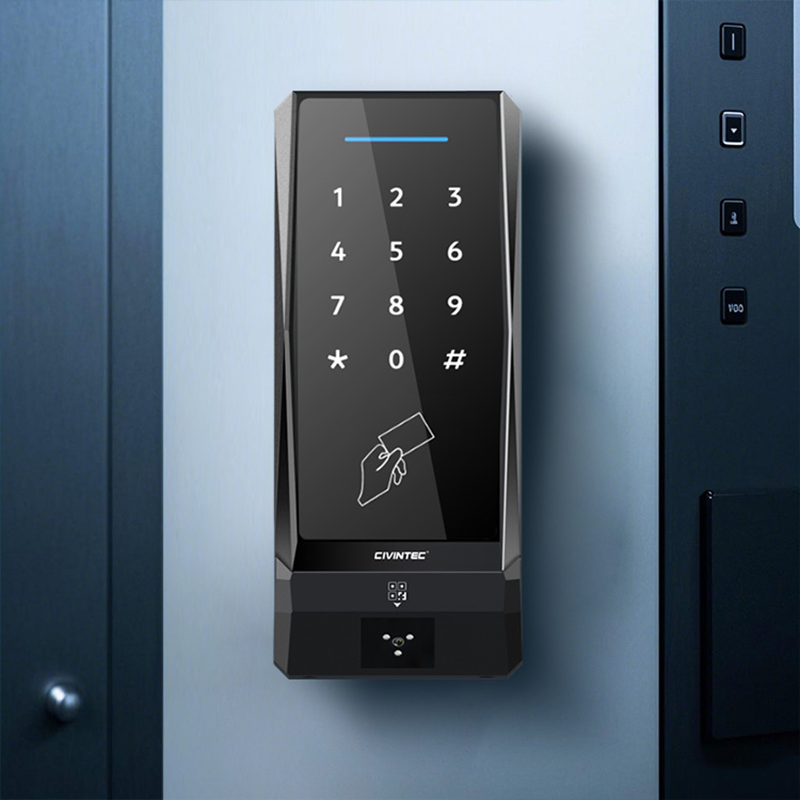

CT9 E Wireless Keypad Access Control System with Blue-Tooth Mobile APP Remote Control Mqtt HTTP API Integration
Product Description

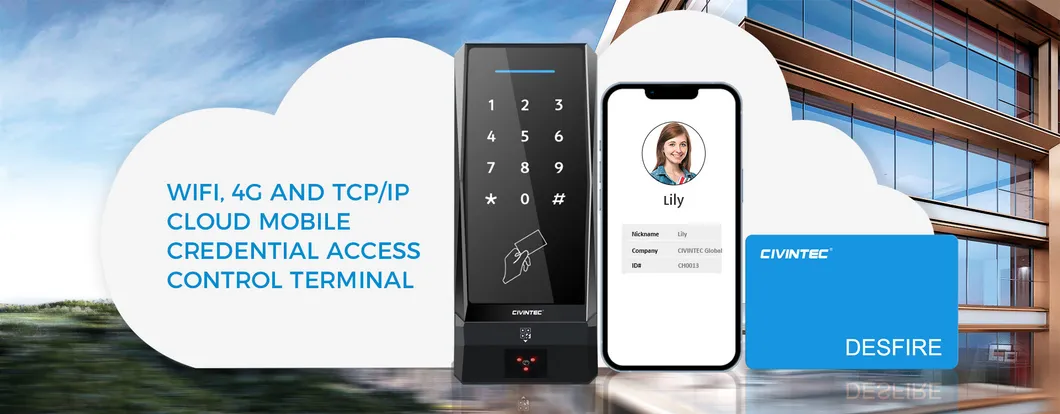

CT9 E is a Linux-based HTTP/HTTPS server centralized terminal with wireless WiFi, 4G, and TCP/IP Ethernet connectivity. It is designed for both LAN and Internet cloud server software communication, featuring an embedded relay to build versatile IoT and security solutions.
It supports 5-in-1 multiple access credential technologies: touch keypad, dual-frequency RFID (125KHz & 13.56MHz), BLE & NFC mobile access, and QR CODE/barcode scanning via smartphone.
| Feature Category | CT9 E Details |
|---|---|
| Identification Technologies | - 125KHz Prox/EM - 13.56MHz Mifare Classic, DESFire EV1/EV2/EV3, NFC Tags |

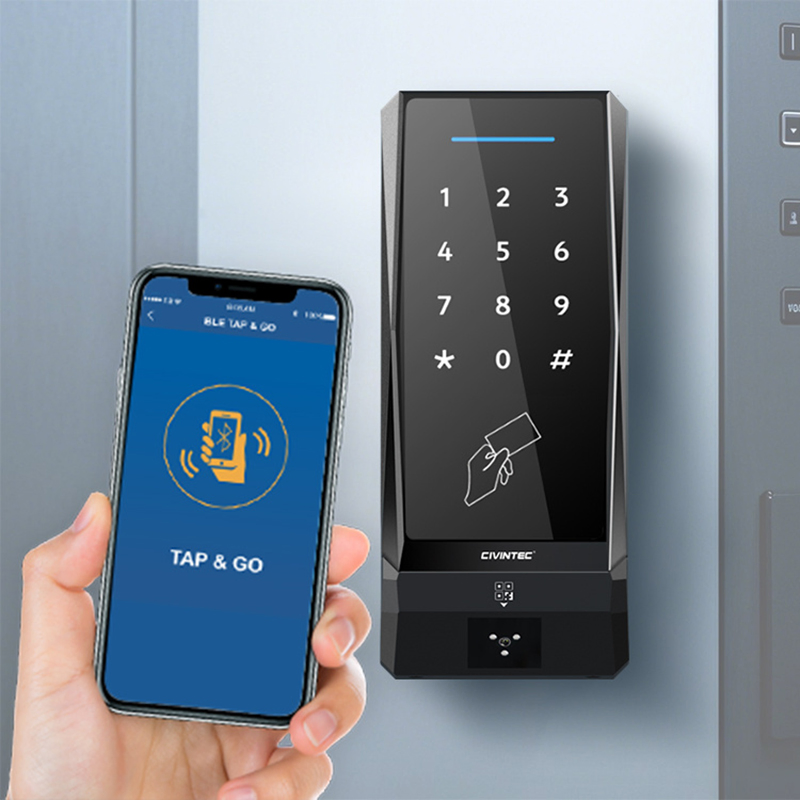

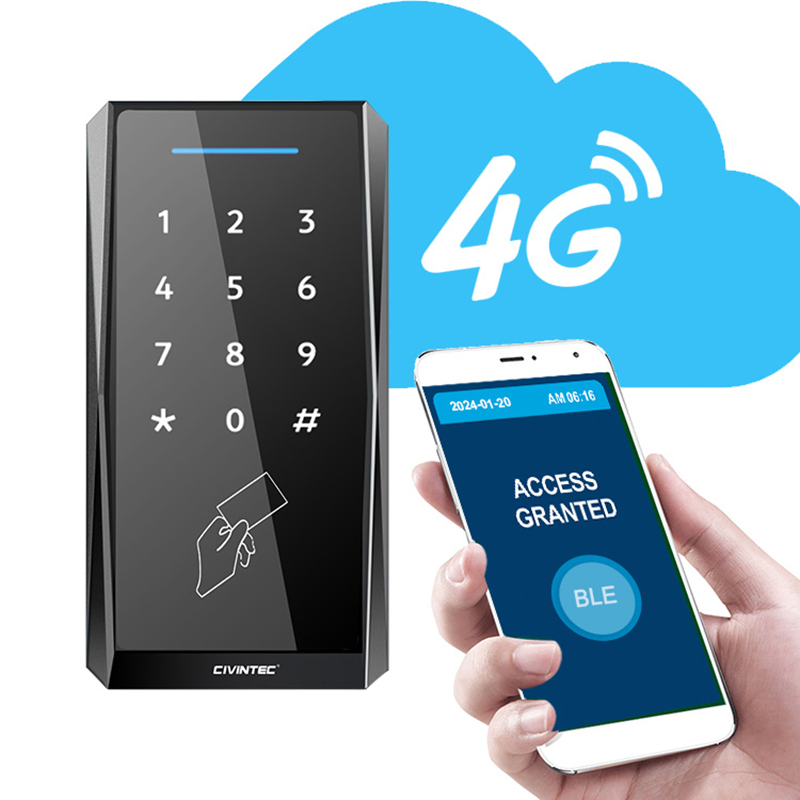

| Mobile Credential | BLE (2.4GHz), NFC |
| Barcode / QR Scanner | 1D & 2D QR Code, Micro QR, PDF417, Code 128, Code 39 |
| Communication | TCP/IP (RJ45), 4G, WiFi 2.4GHz, RS485, Wiegand Input |

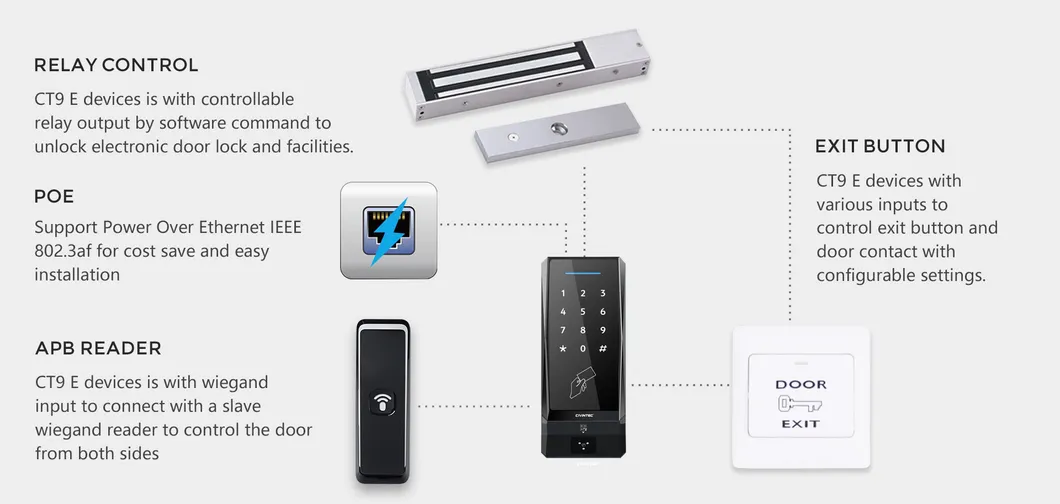

| I/O Ports | Door contact, Door exit, Fire alarm, Tamper switch, 1~2 relay outputs |
| Operating System | LINUX |
| Capacity | Unlimited Online Users / 10,000 Offline Users (50,000 logs) |
| Power Supply | 12~24V DC / PoE IEEE 802.3af |

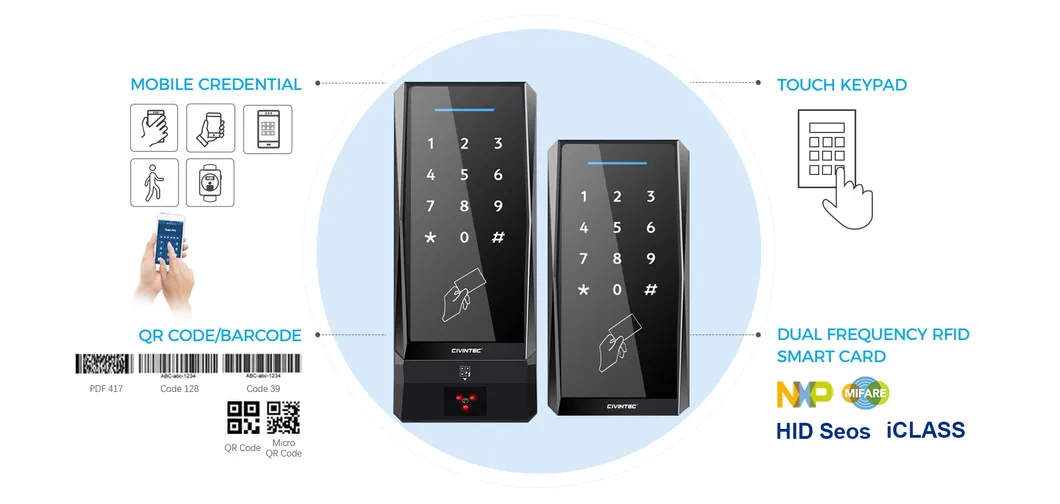

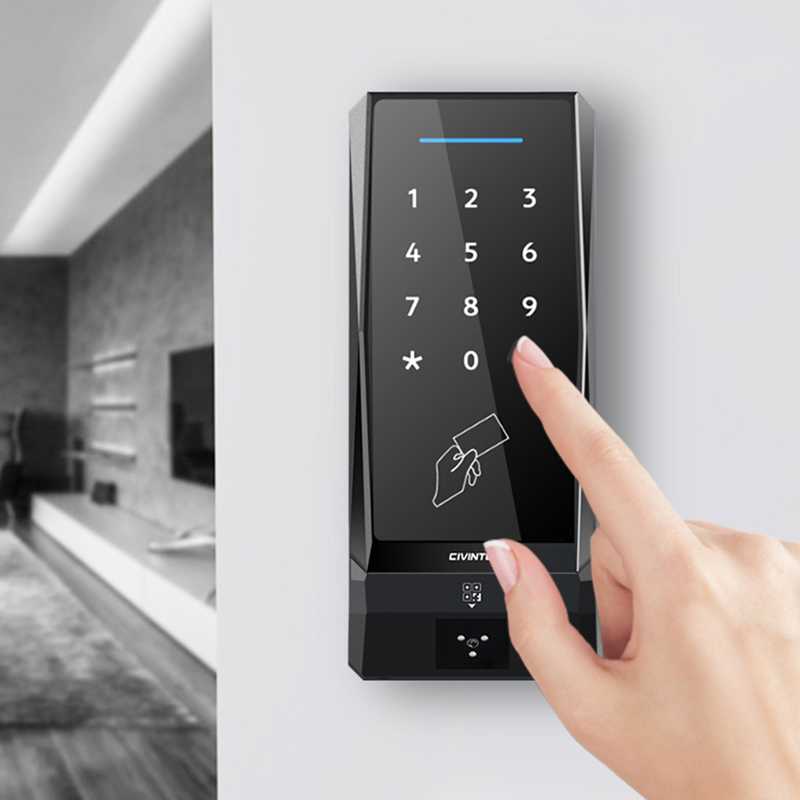

◈ Multiple Access Credentials
The CT9 E incorporates 5-in-1 technology, allowing for seamless management of touch keypad pin codes, RFID cards, mobile BLE/NFC, and visitor QR codes.

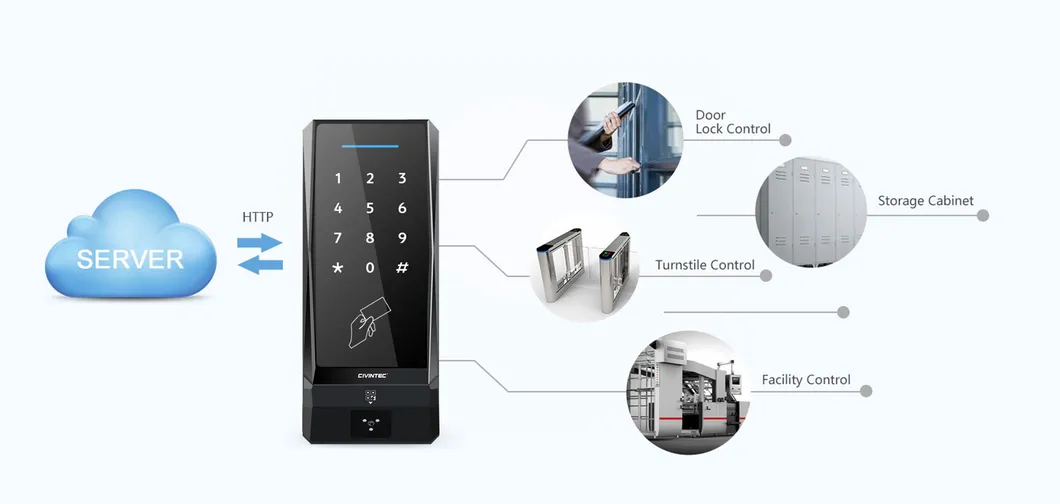

◈ Cloud Server Remote Control
Bi-directional communication via standard HTTP & HTTPS between the CT9 E and the server allows for remote door lock control and facility management.

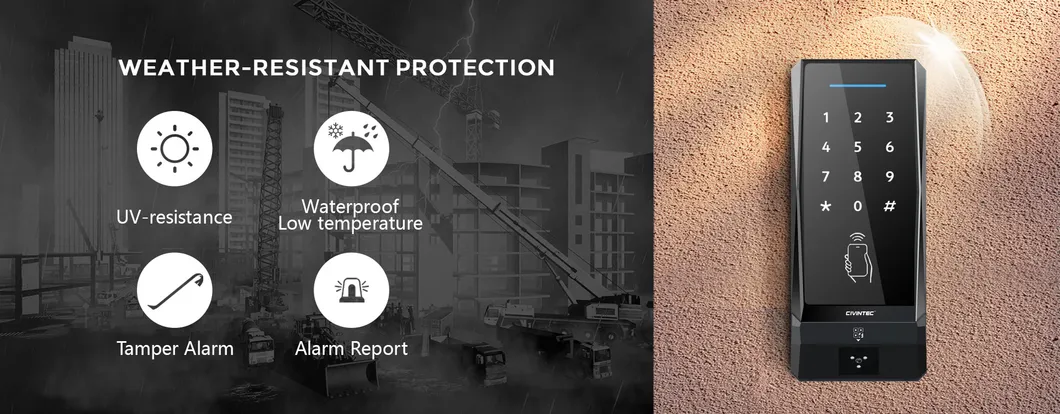

◈ Weather-Resistant Design
With an IP65 rating, the terminal is resistant to rain, dust, and strong sunlight (UV ray resistance), making it ideal for rugged outdoor environments.
