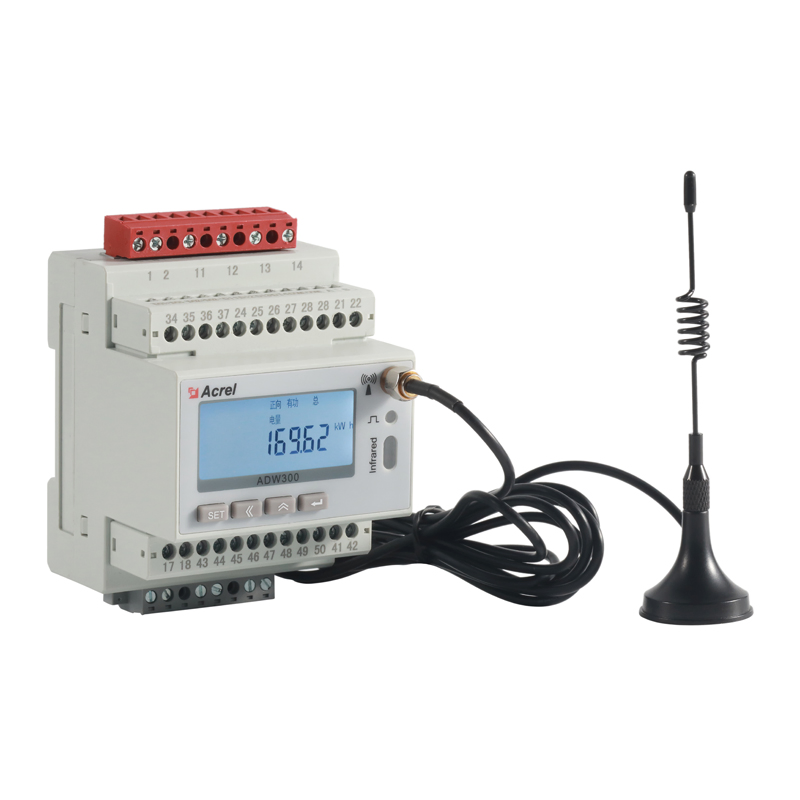

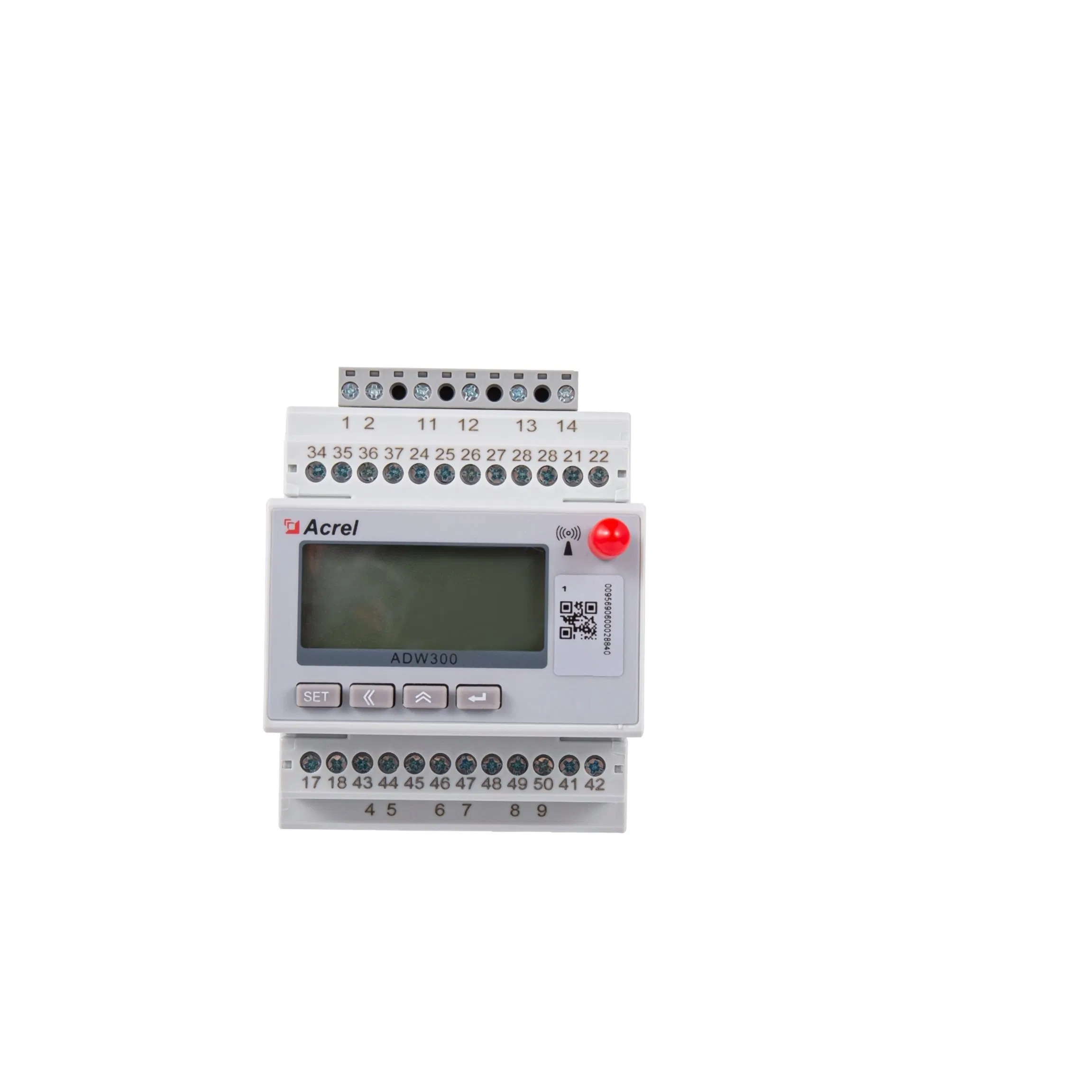

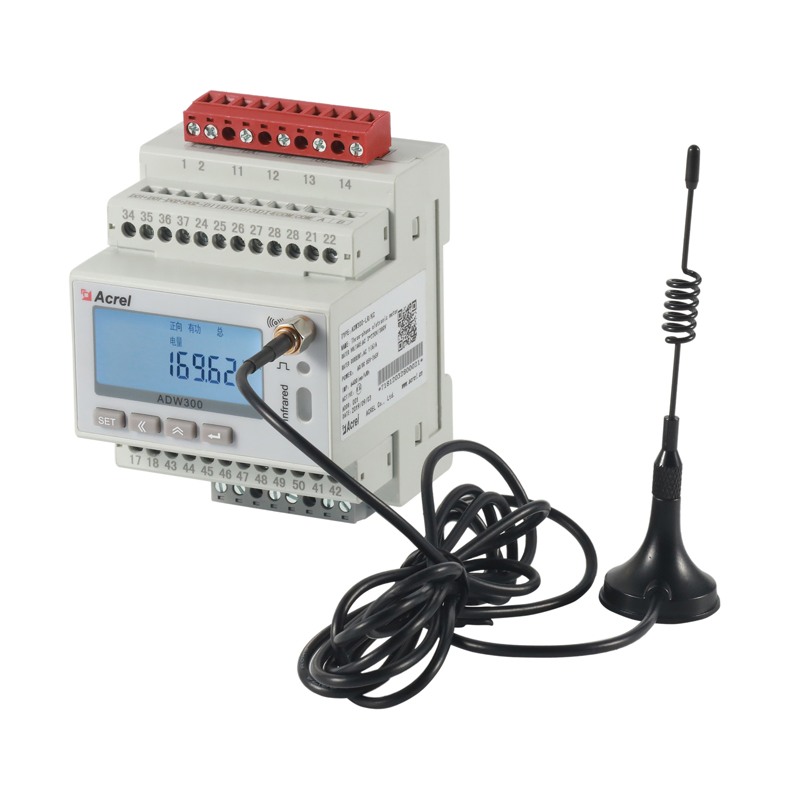

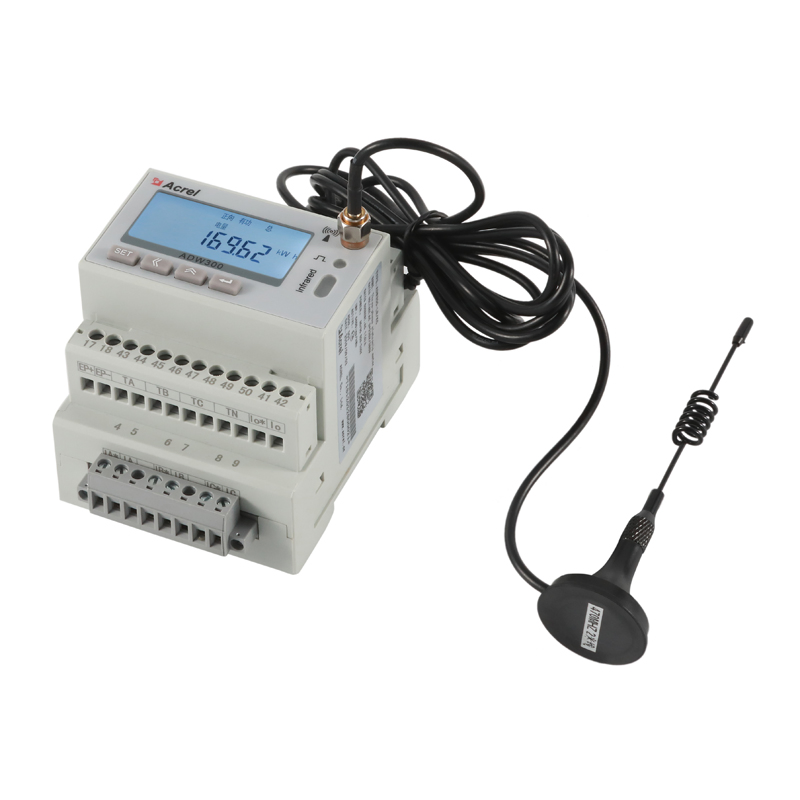

Acrel Adw300-4ghw 4G Wireless Communication for Power Monitoring System
Product Description
📊
Basic Specifications

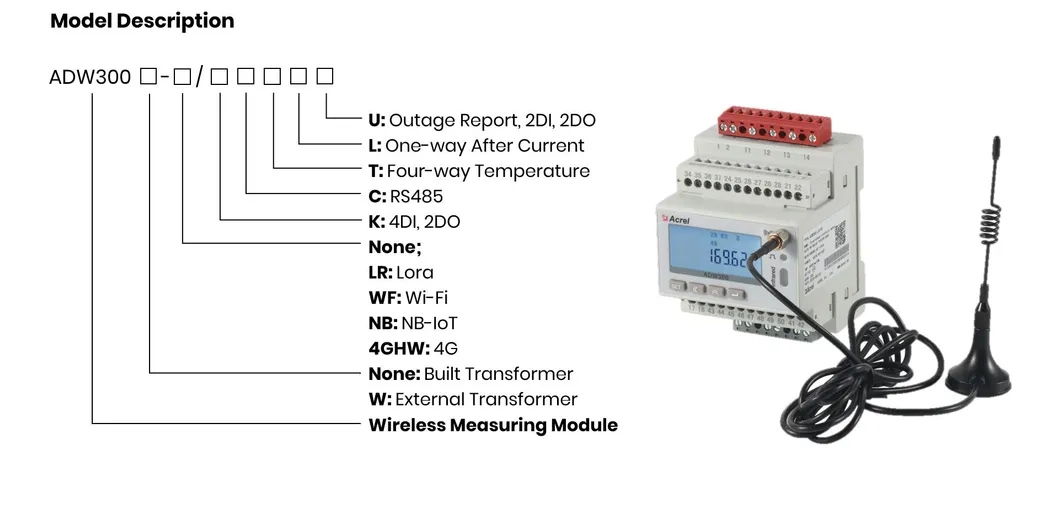

Model NO.
ADW300-4GHW
Usage
Multi-Functional Energy Meter, Watt-Hour Meter, Industrial/Home Use
Electric Equipment
Three-phase Four-wire
Theory
Electronic Meter
Connection
Terminal
Certification
ISO, CE
Accuracy
0.5% (Kwh)
Rated Current
AC 3X1(6)a (Via Cts)
Rated Voltage
Up to AC 3X660~792V L-L
Communication
4G LTE, WiFi, Lora, Lorawan, Nb-IoT, RS485
Harmonic
2~31st and Total Harmonic
Package Size
25.50cm * 16.00cm * 16.00cm
💡
Product Description
ADW300 wireless meter is mainly used to measure three-phase active power in low-voltage network. It has the functions of RS485 communication and 4G/WiFi/LoRa/LoRaWAN/Ethernet wireless communication. It is convenient for users to monitor, collect and manage electricity. It can be flexibly installed in the distribution box to realize the measurement, statistics and analysis of individual electric energy in different regions and loads.
⚙️
Technical Parameters
| Parameter Item | Technical Details | |
|---|---|---|
| Voltage Input | Rated Voltage | 3*57.7/100V, 3*220/380V, 3*380/660V, 3*100V, 3*380V, 3*660V |
| Frequency | 50Hz | |
| Power Waste | Each Phase < 0.5VA | |
| Current Input | Input Current | 3*1(6)A; 3*1(6)A (ADW300W), 3*20(100)A (ADW300W) |
| Start Current | 1‰lb (Class 0.5S), 4‰lb (Class 1) | |
| Power Waste | Each Phase < 1VA | |
| Power Supply | Supply Voltage | AC 85-265V, AC 380V, DC 24V |
| Active Accuracy | Class 0.5S (ADW300), Class 1(ADW300W) | |
| Temp. Accuracy | ±2ºC | |
| Humidity | ≤95% (No Condensation) | |
🛠️
Main Functions
| Function | Description |
|---|---|
| Display | LCD (Field Form), 8 digits |
| Metering | Active Power Metering (Positive and Reverse); Four Quadrant Reactive Power |
| Measurement | U, I, P, Q, S, PF, Hz |
| Harmonic | Total and Fractional Harmonic Content (2-31 times) |
| Temperature | A, B, C, N Four Way Temperature Measurement (Optional) |
| DI/DO | 4DI/2DO (Optional K), 2DI/2DO (Optional U) |
| Alarms | Under/Over Voltage, Under/Over Current, Under/Over Load, etc. |
🏠

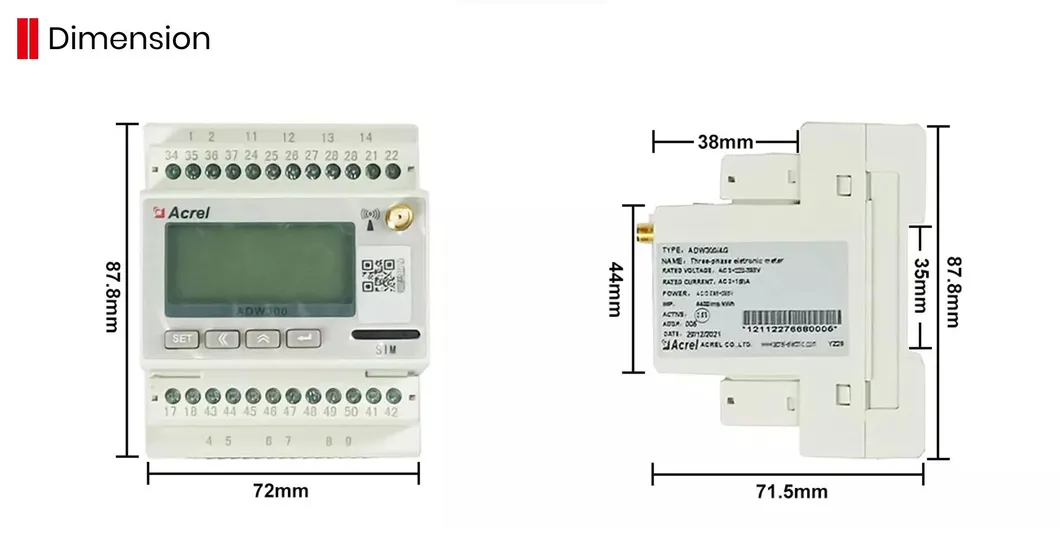

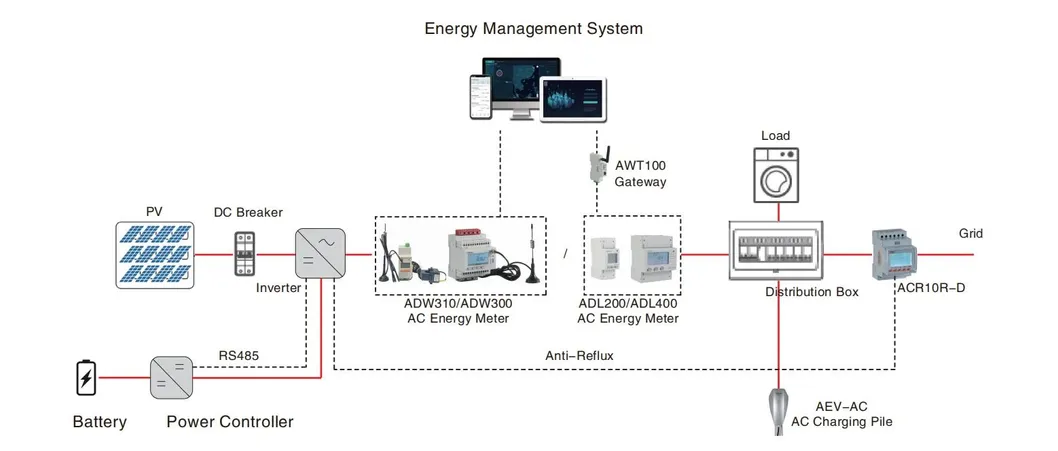

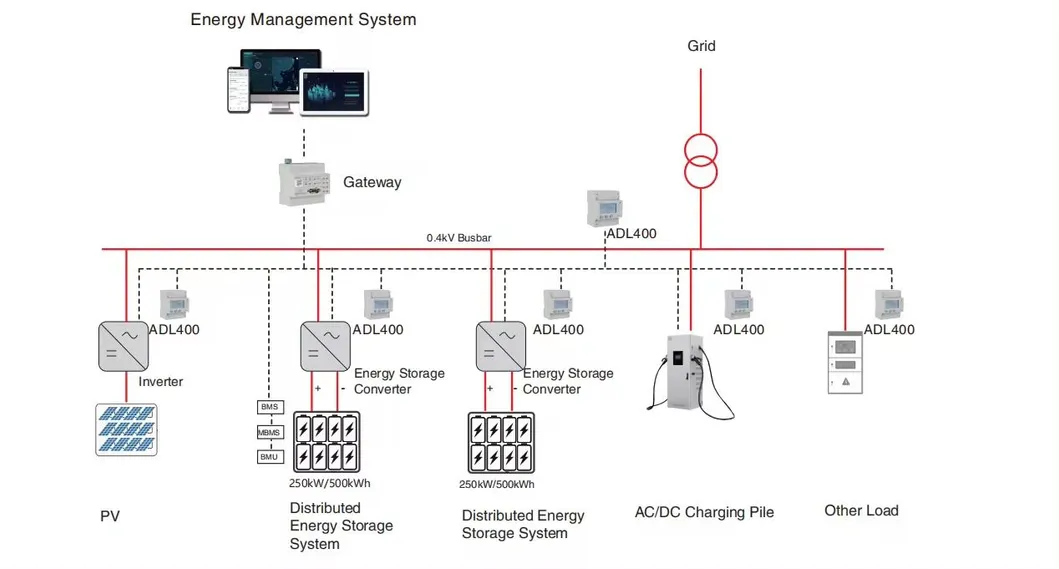

Application Scenarios
❓
Frequently Asked Questions
What's the biggest advantage of ADW300?
ADW300 has its built-in wireless communication module which allow it to realize 4G LTE, WiFi, NB-IoT, LoRa upstream communication without using extra IoT gateways. It is the best option for monitoring 3-phase circuits that are far from each other.
How should I deal with RS485 network communication malfunction?
First, check if the wiring of RS485 communication line is loose or wired incorrectly (like reverse wiring of A, B terminals). Next, inspect if the meter's setting of address, baud rate, and check bit are correct using the keypads.
What if LoRa communication of meters malfunctioned?
Connect the meter to a computer via USB to RS485 converter. Check if the channel and spreading factor (SF) settings match the master station. If settings are correct, use a chuck antenna or relocate the master station closer to reduce interference.
What's the difference between ADW300 and ADW300W?
ADW300 has internal current transformers for secondary connection via CTs. ADW300W uses external current transformers, which simplifies wiring and installation if the site already has existing CTs.
What do the various voltage specs (e.g., 3x220/380V) represent?
Specs like 3*100V are for high voltage systems pairing with PTs. Specs like 3*220/380V are for low voltage systems with direct connection. They also distinguish between 3-phase 3-wire and 3-phase 4-wire configurations.
