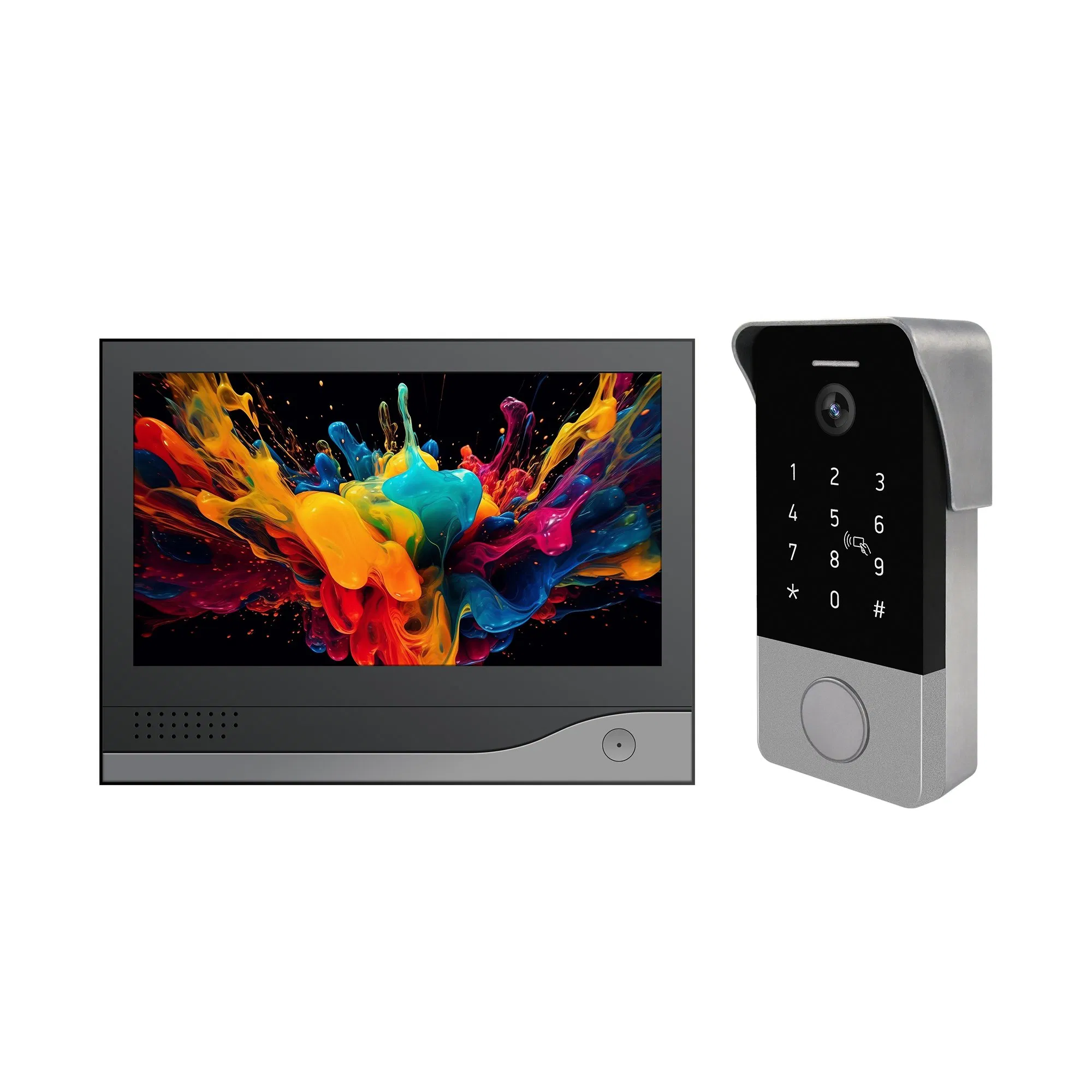

WiFi Video Doorbell Smart Tuya Intercom Kit for RFID Access Control System
Product Description
Model NO.
94743H+94236-1080P-IC
Color
White
Voice Service
With Voice Service
Installation
Surface-Mounted
Certification
RoHS, FCC, CE, Red
Connection
Wire, Cat 5, RJ45, WiFi/IP
Case Material
Metal Case with Vandal Proof
Power Supply
DC15V, 0.8A / AC100-240V
Screen
7 Inch AHD Screen
Camera
2.0MP, 160 Degree
WiFi Video Doorbell Smart Tuya Intercom Kit for RFID Access Control System

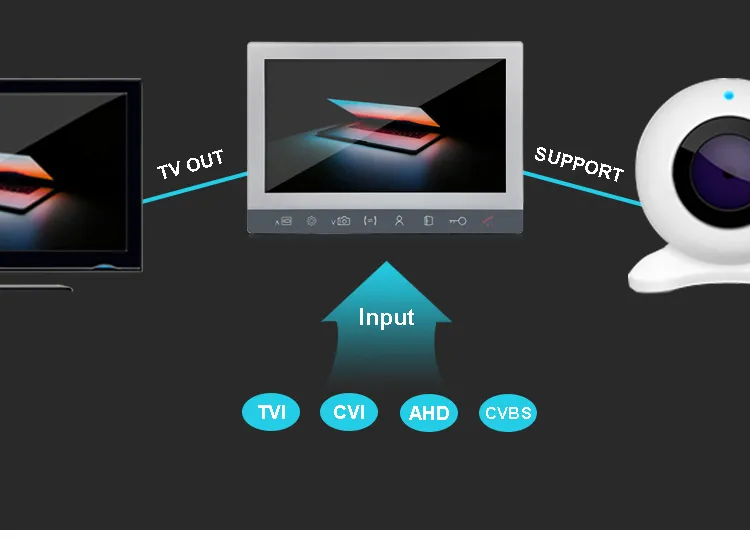

AHD/ TVI/ CVI/ CVBS video input support
Multi-language available for different markets

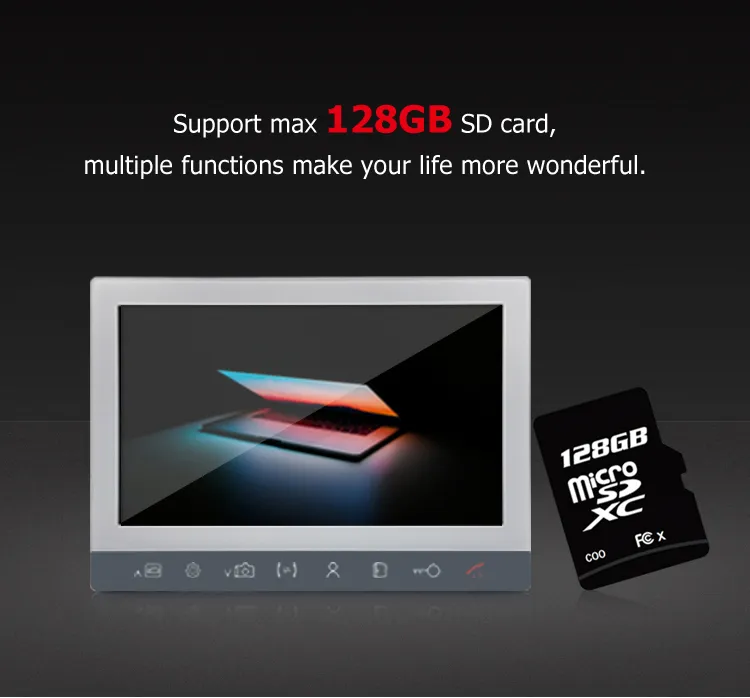

Support max. 128G SD card for storage

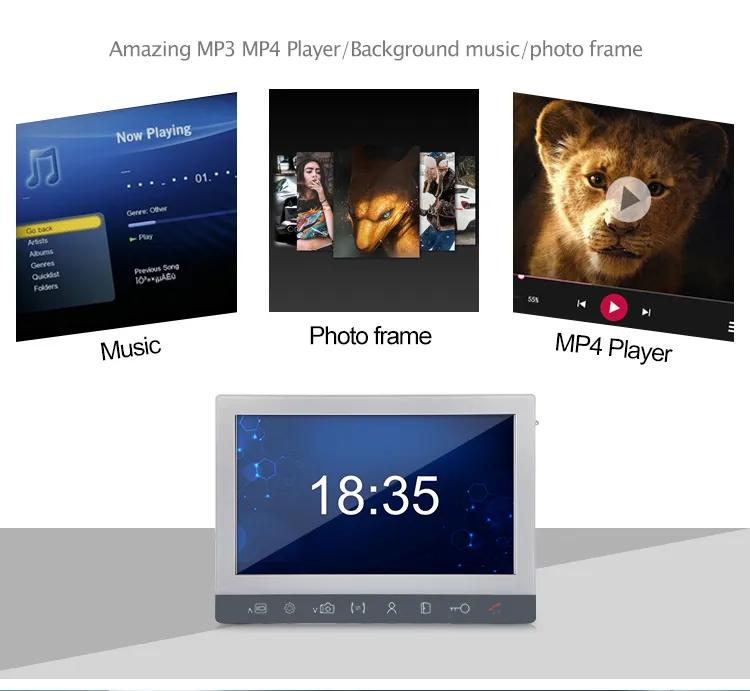

Photo Frame, Clock & Voice Message functions

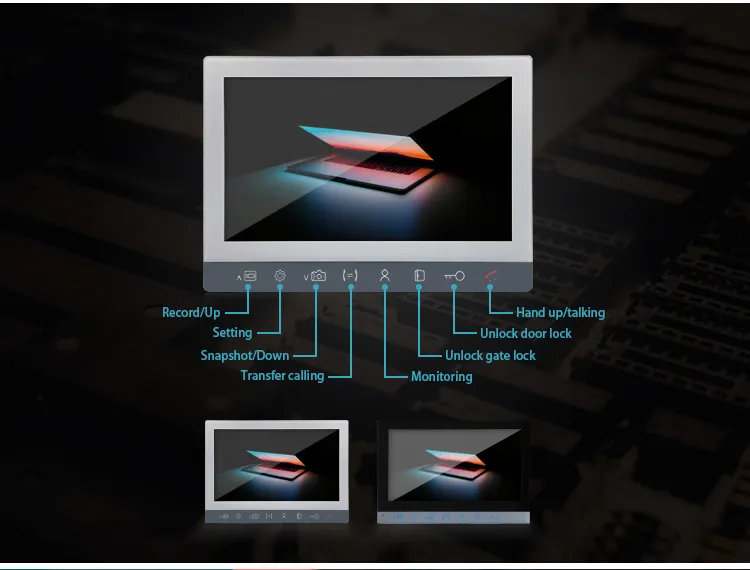

Talking/ Unlock/ Monitoring/ Internal & Transfer calling
Home/ Not at home/ Dormant modes
4CH motion detection (Software based)

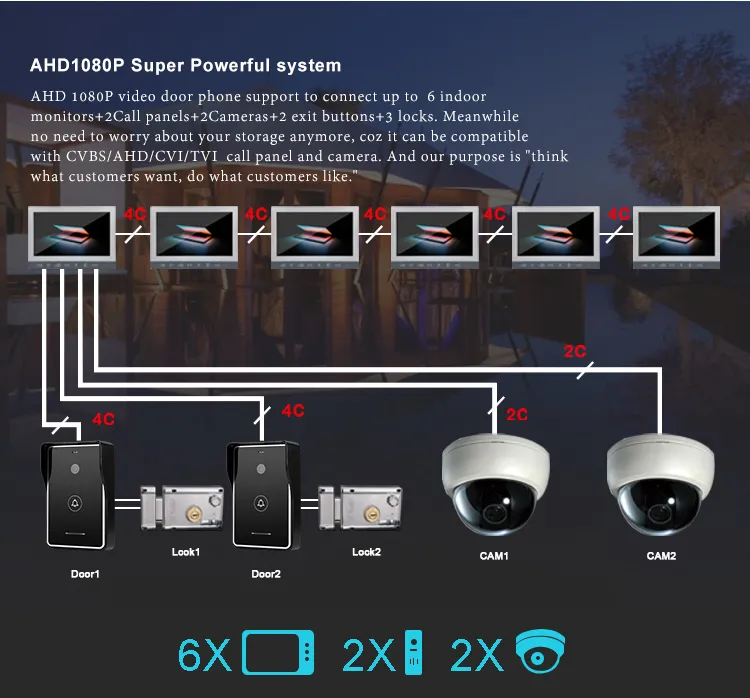

Expandable: Connect up to 2 call panels + 2 Cameras + 6 Monitors + 3 Locks

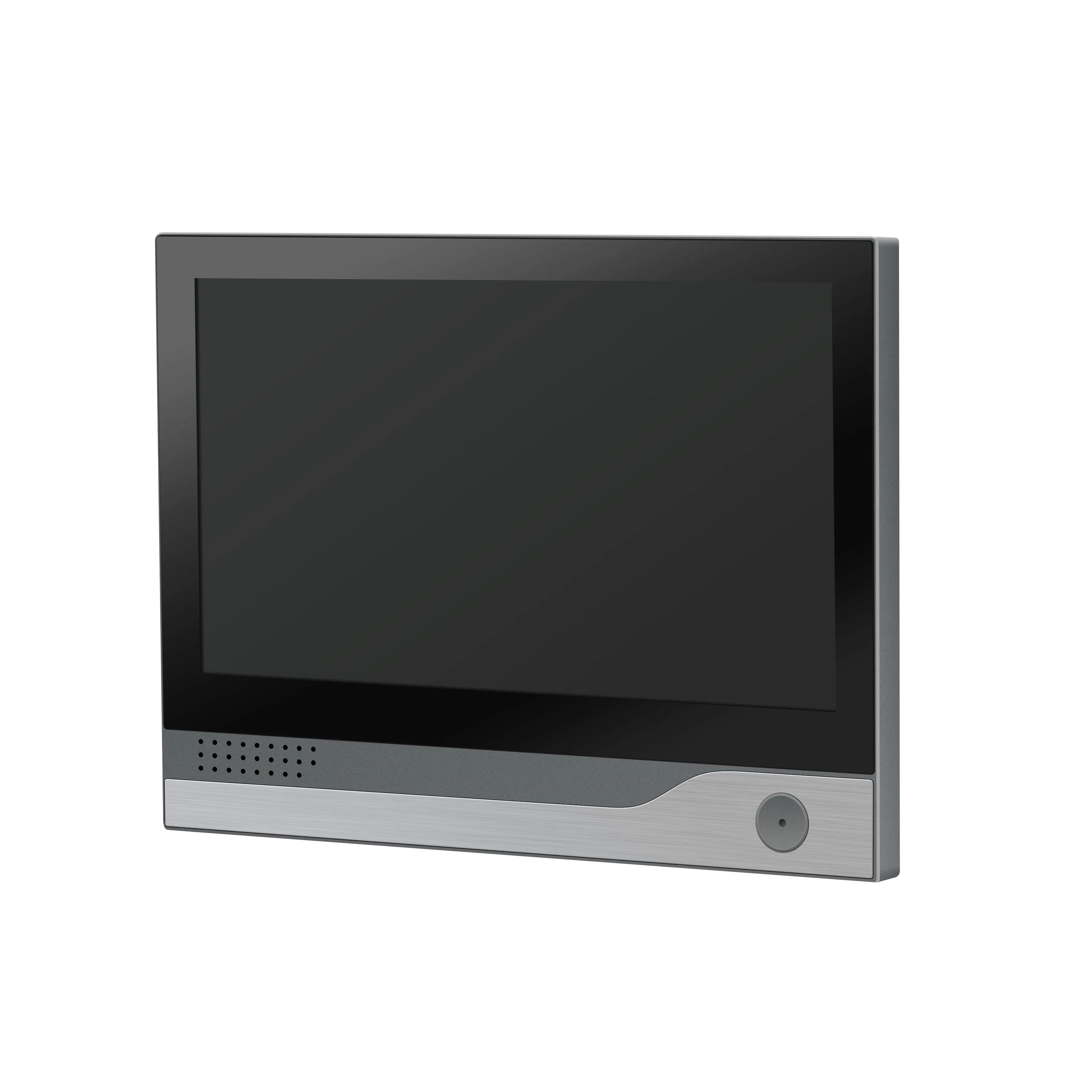

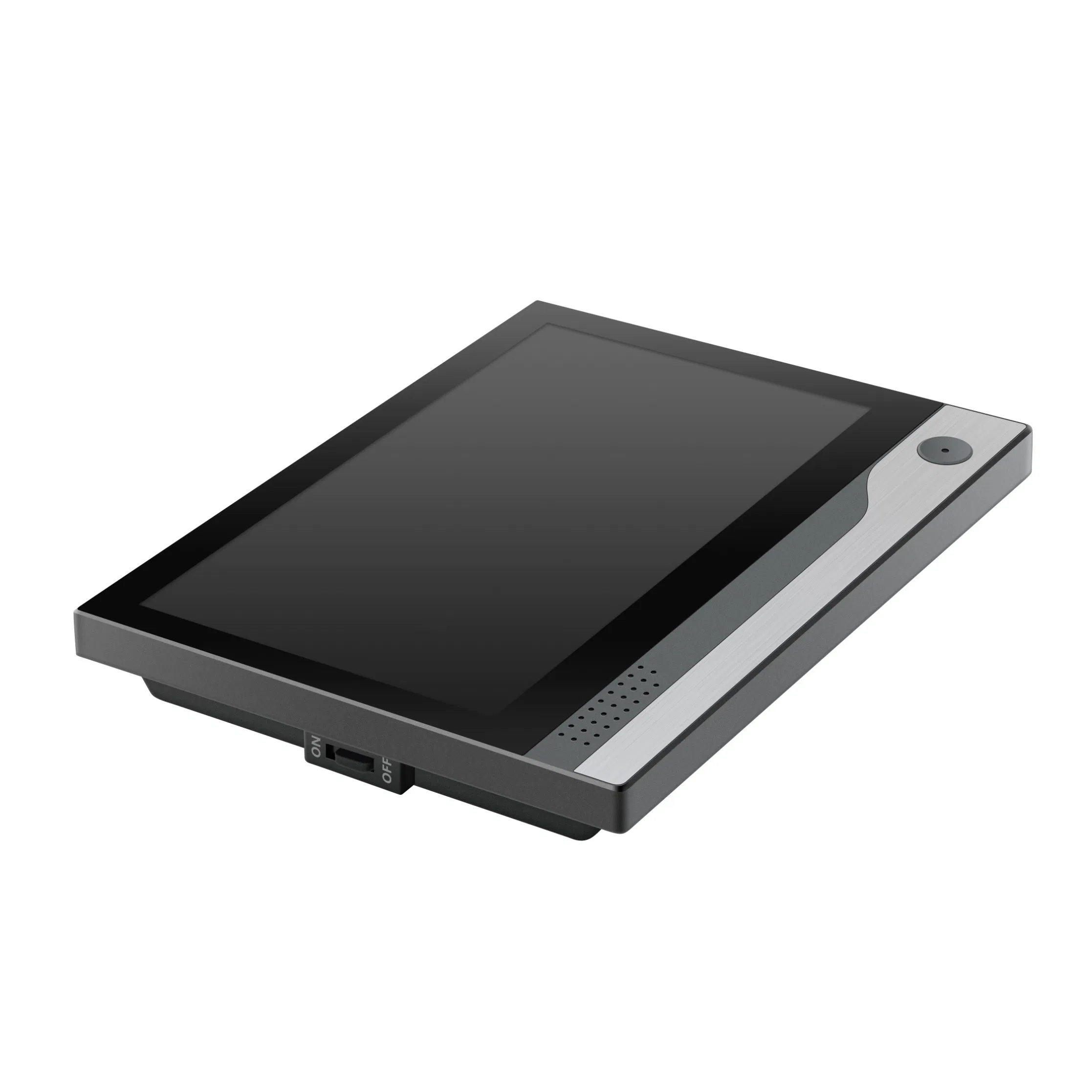

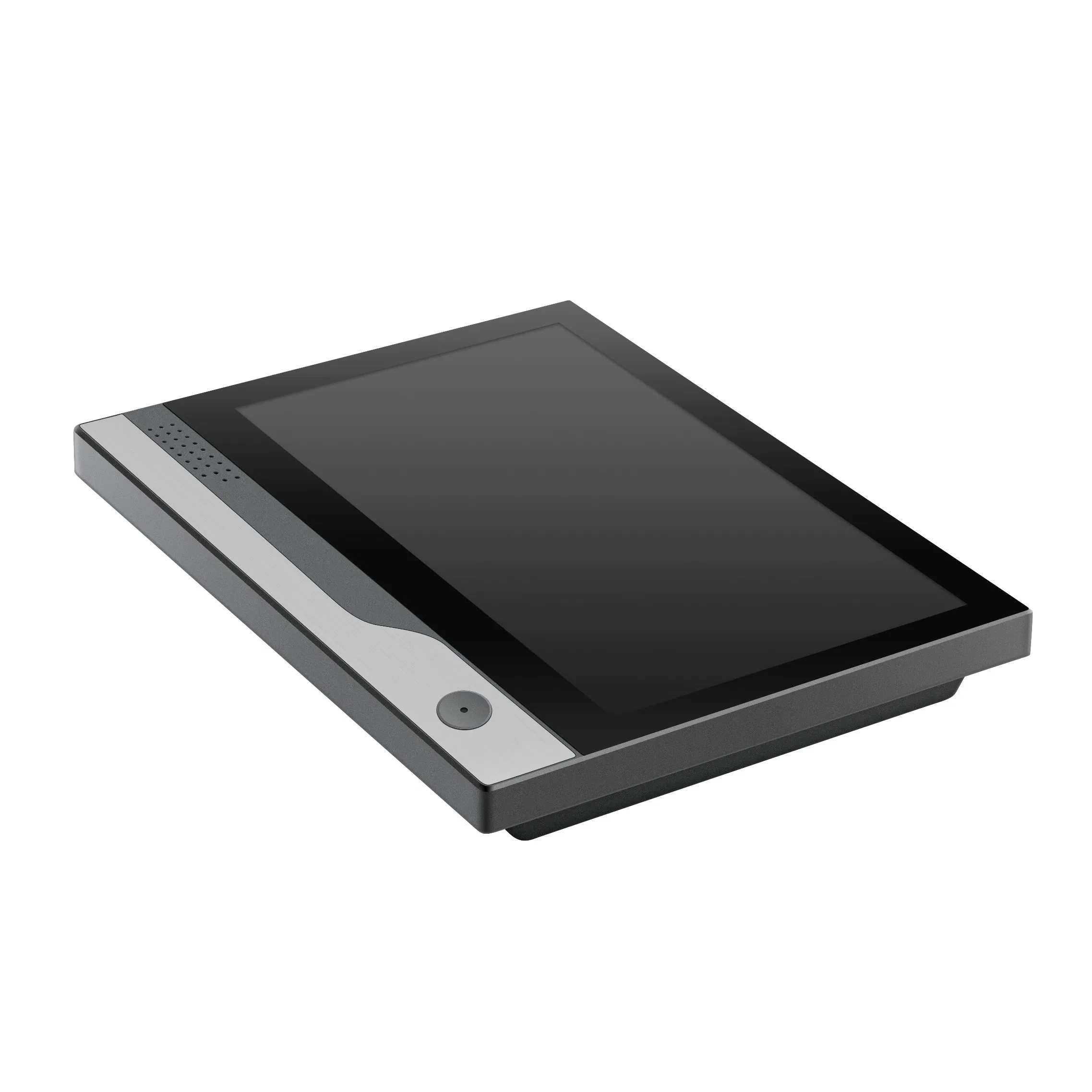

Indoor Monitor Specifications:
Display
7 inch IPS capacitive touch screen
Resolution
1024*600
Size
183*126*19.5 mm
Material
Aluminum (metal) case

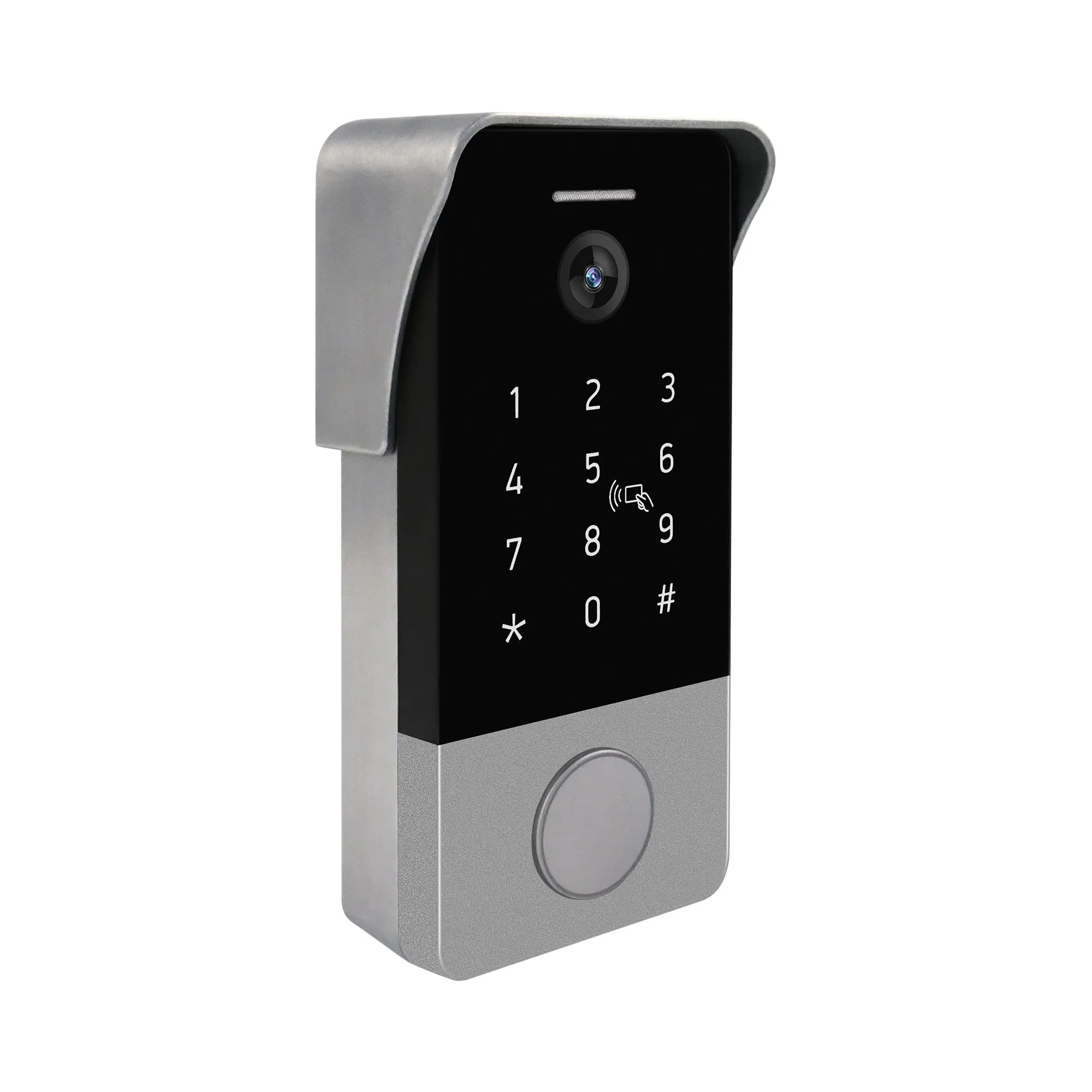

Outdoor Doorbell Features:
Camera Lens
3.2mm, AHD 1080P/2MP
View Angle
148° Wide-Angle with IR Cut
Protection
Waterproof IP65
Access Control
Password & IC Card (200pcs), Fingerprint (100pcs)
All products have passed CE, RoHS, and FCC certificates with a 2-year warranty.
Is it possible to support CVBS Video door phones?
Yes! It can work with 1 AHD Call panel + 1 CVBS call panel + 1 AHD camera + 1 CVBS panel.
Do you have motion detection for video intercom?
Yes! It is handled by software, so there is no need to connect an external PIR sensor. Motion detection works from 1 call panel or 2 cameras.
How to play Music or Movies on the indoor monitor?
Download music or movies from a computer, copy them to an SD card, insert the SD card into the monitor, and select play.
What is the Voice Message function?
When you are not at home and a visitor presses the call panel, after a set time (30s or 120s), the panel will automatically ask the visitor to leave a message. You can check the video message when you return.

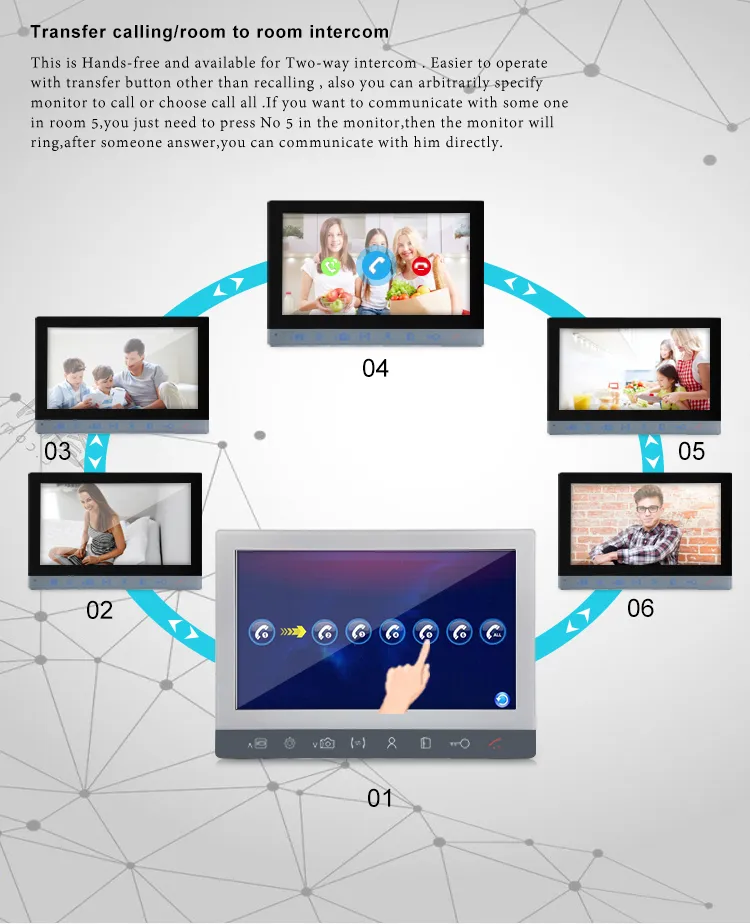

How does the transfer calling work?
Our system supports connecting up to 6 indoor monitors. If one person answers a call but the visitor is looking for someone in another room, the call can be transferred to that specific monitor.
What is the warranty period for this system?
We provide a 24-month (2 years) warranty for all our intercom products.
