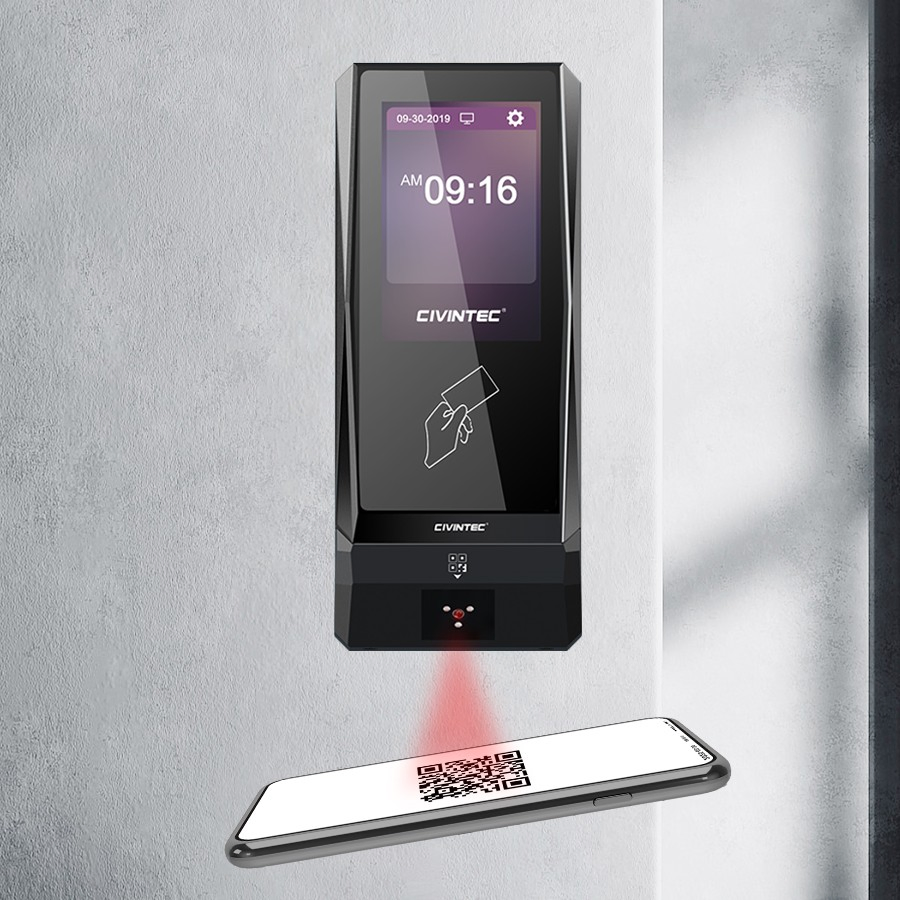

CT9 Waterproof Linux Based WiFi Qr Code Wireless Blue-Tooth Smart Door Lock Access Control System with Sdk
Product Description
Basic Information
Model NO.
CT9 PRO
Reading Distance
10cm-15m
Application
Parking, Hospital, Library, Bank, Office, School, Airport, Gym
Product
Access Control Terminal with Reader
Operating System
Linux OS
Display
3.5" Touch Screen Display
Identification
RFID, NFC, BLE, Pin Code, Optional QR Code
RFID Card
13.56MHz 125kHz
Mobile Credential
NFC, BLE
QR Code
QR Code, Barcode
IP Protection
IP65 Waterproof, UV Resistance
Power
12-24V DC; PoE IEEE 802.3af

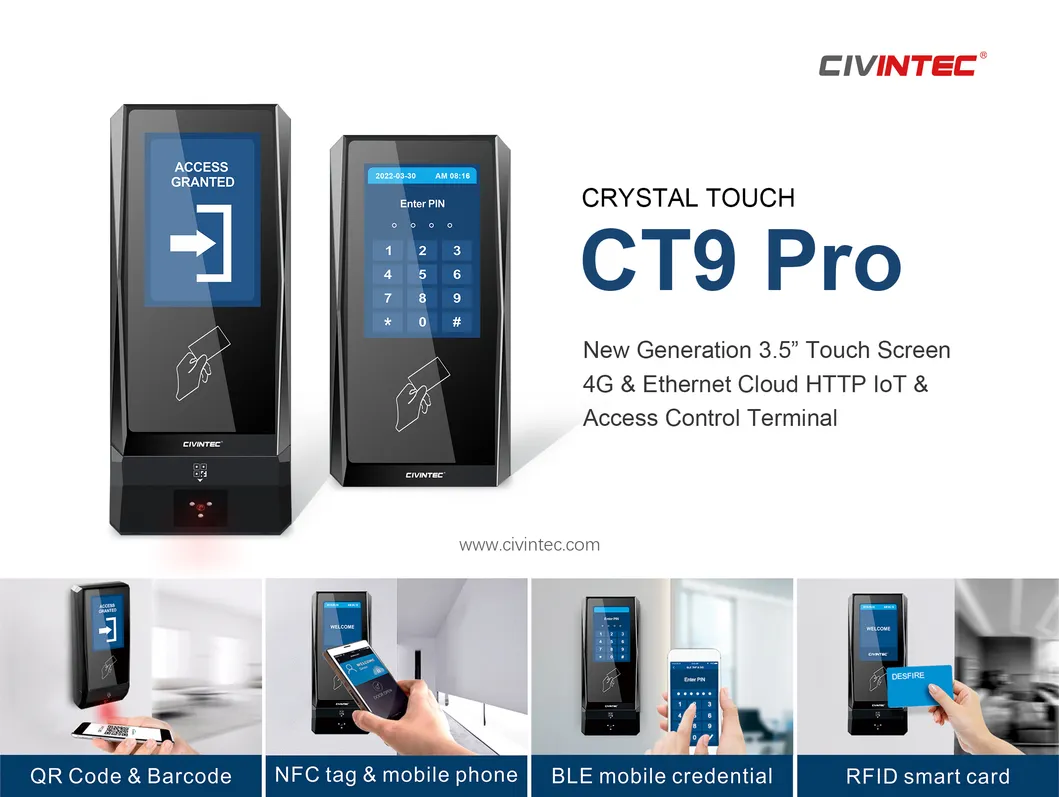

Product Overview
CT9 Pro is a Linux-based HTTP/HTTPS server centralized terminal with wireless 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication. It supports 5-in-1 multiple access credential technologies, featuring a touch keypad, dual RFID (125KHz & 13.56MHz), BLE & NFC mobile access, and QR code/barcode scanning via mobile devices.
| Display | 3.5" capacitive touch screen |
| QR Code | 1D & 2D Codes: QR Code, Micro QR code, PDF417, Code 128, Code 39 and more. |
| Mobile ID | BLE (iOS & Android), NFC (Android) |
| RFID Smart Card | EM 125KHz, 13.56MHz ISO14443A Mifare Classic, DESFire EV1/EV2/EV3, Seos, ISO14443B |
| Communication | 4G, WiFi, TCP/IP, Wiegand, RS485 (OSDP 1&2) |
| I/O Port | 1~2 relay outputs, Tamper alarm, Door contact, Exit button |
| Offline Logs | 10,000 users / 50,000 logs |
| Protection | IP65 outdoor rated, UV-resistance |
Product Features

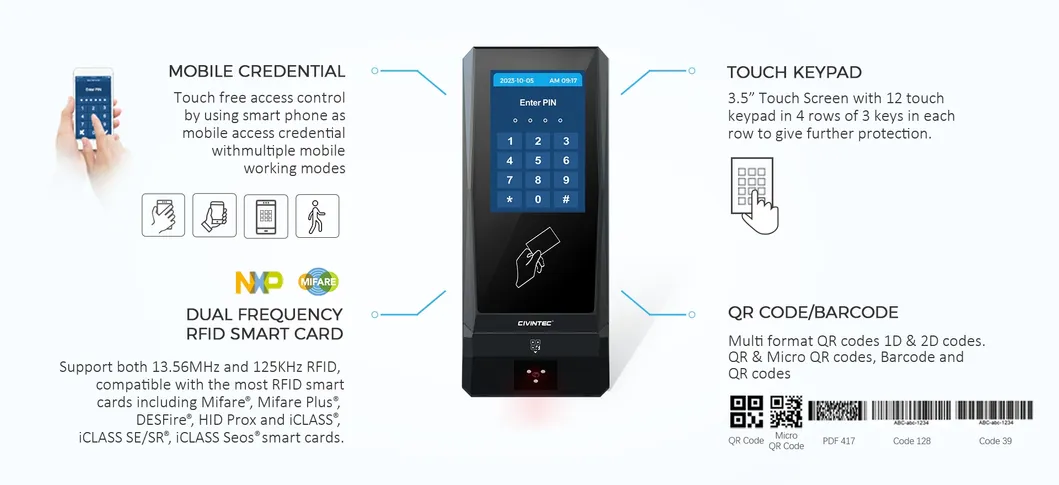

Multiple Access Credentials
CT9 Pro incorporates 5-in-1 multiple access technologies: touch keypad, dual RFID frequencies, BLE & NFC mobile access, and QR code scanning for versatile visitor management.

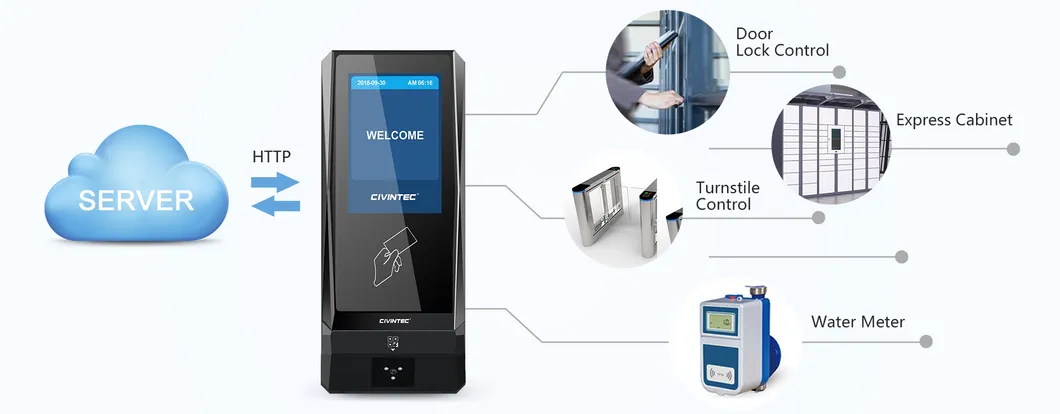

Cloud Server Remote Control
Bi-directional communication via standard HTTP & HTTPS allows the server to remotely control door locks and manage various IoT facilities in real-time.

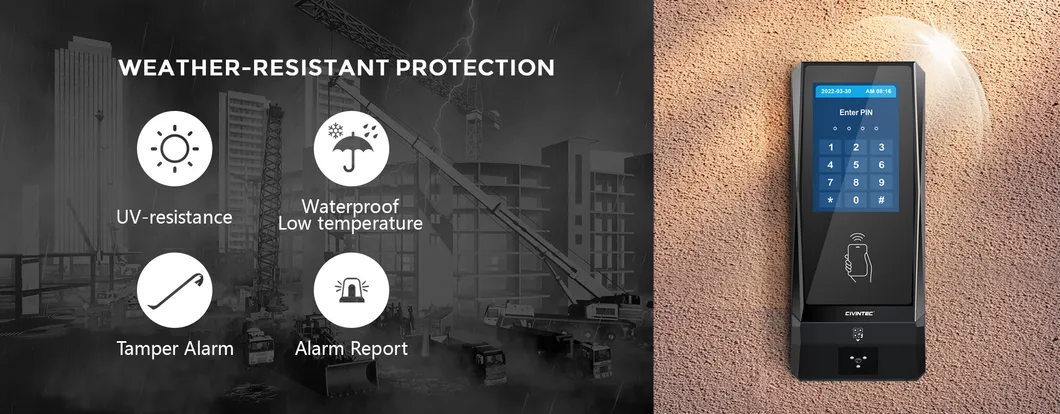

Weather-Resistant Protection
Rated IP65, the CT9 PRO is resistant to rain, dust, and strong sunlight. It is ideal for outdoor installations and rugged environments with low temperatures.

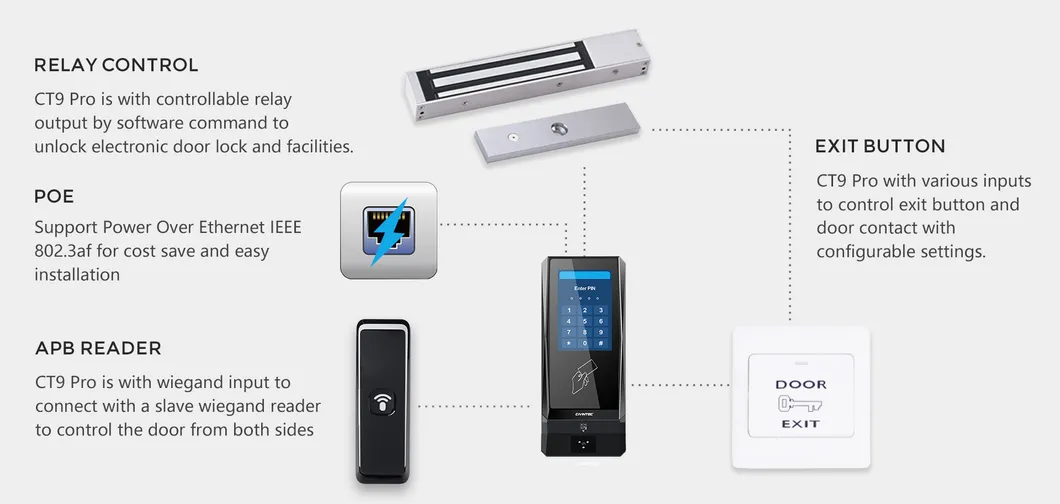

System Configuration

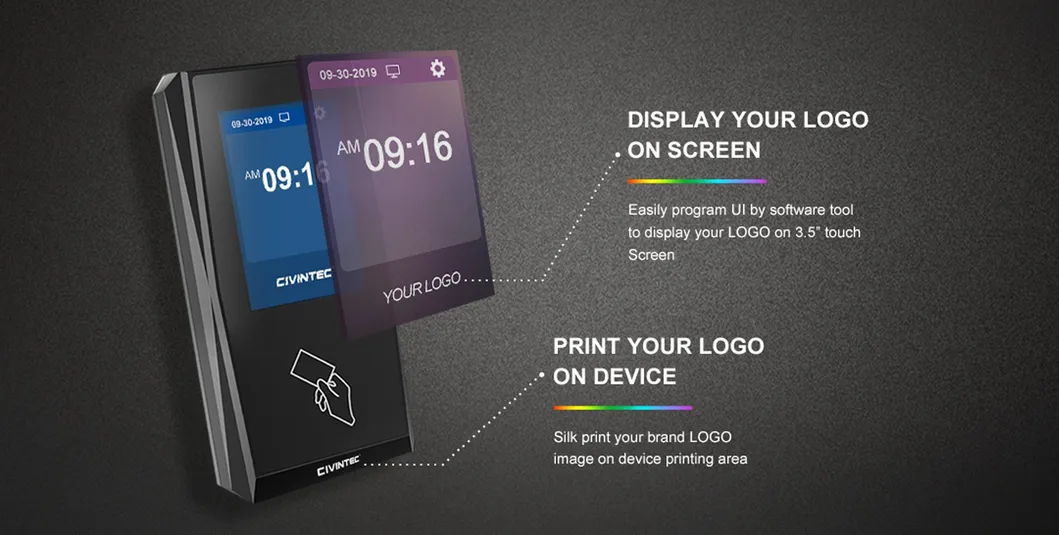

Customization Services
We offer ODM customization for hardware, housing, firmware, and software design. Users can program and display their own logo on the 3.5" touch screen.
Related Products
Frequently Asked Questions
Q1: What access credentials does the CT9 PRO support?
The CT9 PRO supports 5-in-1 credentials including RFID (125KHz & 13.56MHz), mobile NFC, BLE, Touch PIN codes, and QR Code/Barcodes.
Q2: Is the device suitable for outdoor installation?
Yes, it features an IP65 waterproof rating and UV resistance, making it ideal for rain, dust, and strong sunlight environments.
Q3: Does the CT9 PRO support Power over Ethernet (PoE)?
Yes, it supports PoE IEEE 802.3af, allowing both power and data to be delivered over a single Ethernet cable.
Q4: Can it integrate with cloud-based software?
Absolutely. It uses standard HTTP/HTTPS protocols for bi-directional communication with cloud servers for real-time management.
Q5: What is the maximum log capacity for offline use?
The terminal can store up to 10,000 users and 50,000 event logs offline, with options for more upon request.
Q6: What operating system does the terminal use?
The CT9 PRO runs on a stable and secure Linux-based operating system.
