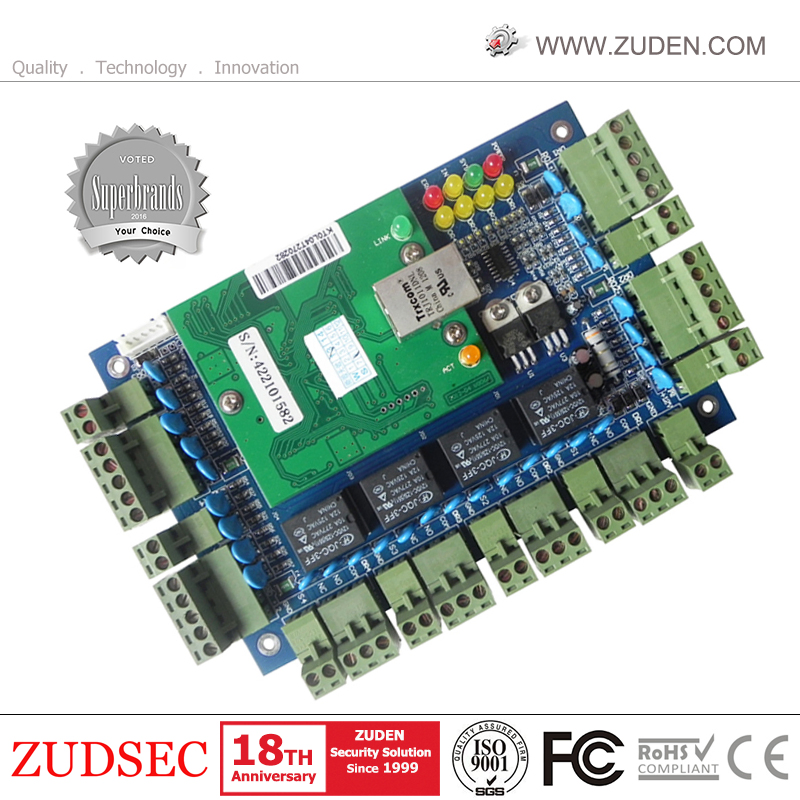

4-Door Facial Recognition Metal Smart Card Fingerprint Biometric RFID Door Access Control System
Product Description
📋 Basic Specifications
Model NO.
ZD8004 -TCP/IP
Technology
32-Bit Technology
Control Way
Computer Control
Communication
TCP/IP 10m/100m Adaptive
Type
Two-way Controller
Relay Quantity
4 PCS
Reader Quantity
4 PCS
Power Consumption
Less Than 100mA
Reader Input
Wiegand 26
User Capacity
20,000 Users
Event Buffers
100,000 Offline Records
Warranty
1 Year
📖 Product Overview
TCP/IP Smart Card Fingerprint Biometric RFID Door Access Control System
The Professional Smart Card Access Controller adopts a 32-bit CPU and international advanced Hi-Speed operation circuit levels combined with superior mass memory storage technology. This 13th-generation product is built on extensive project experience, ensuring safety and reliability. It features user-friendly multi-language software that requires no professional knowledge for fast installation. Open data communication protocols allow for seamless system integration and top-tier technical support.
This management system integrates and optimizes automated access control for diverse client needs, including premises access control and visitor management.
⭐ Key Features
Conventional Functions
Offline operation; real-time supervision; photo display; mass storage; flexible user privilege setup; remote unlocking; multi-user supervision; quick setting; convenient checking and query; printable reports (Excel export); card+password unlocking; alarm for long time unclosing or invalid card swiping; first card unlocking; alarm for illegal break-in; timed unlocking; e-map.
Professional Functions
Interface locking; intimidation alarm; integrated fire control; anti-passback and anti-tail; interlocking; multi-card unlocking; emergency double locking; indoor population checking; validation-based unlocking.
All-in-One Management
Normal and multi-shift time attendance management; fixed ration dining management; meeting attendance management; online patrol management; security alarm management.
📊 Technical Parameters
| Parameter | Single Door Panel | 2-Door Panel | 4-Door Panel |
|---|---|---|---|
| Model | ZD8001-TCP/IP | ZD8002-TCP/IP | ZD8004-TCP/IP |
| Doors Controlled | One Door | Two Doors | Four Doors |
| Relay Qty | 1 pc | 2 pcs | 4 pcs |
| Reader Qty | 2 Readers | 4 Readers | 4 Readers |
| PCB Size | 160mm * 106mm | 160mm * 106mm | 218mm * 106mm |

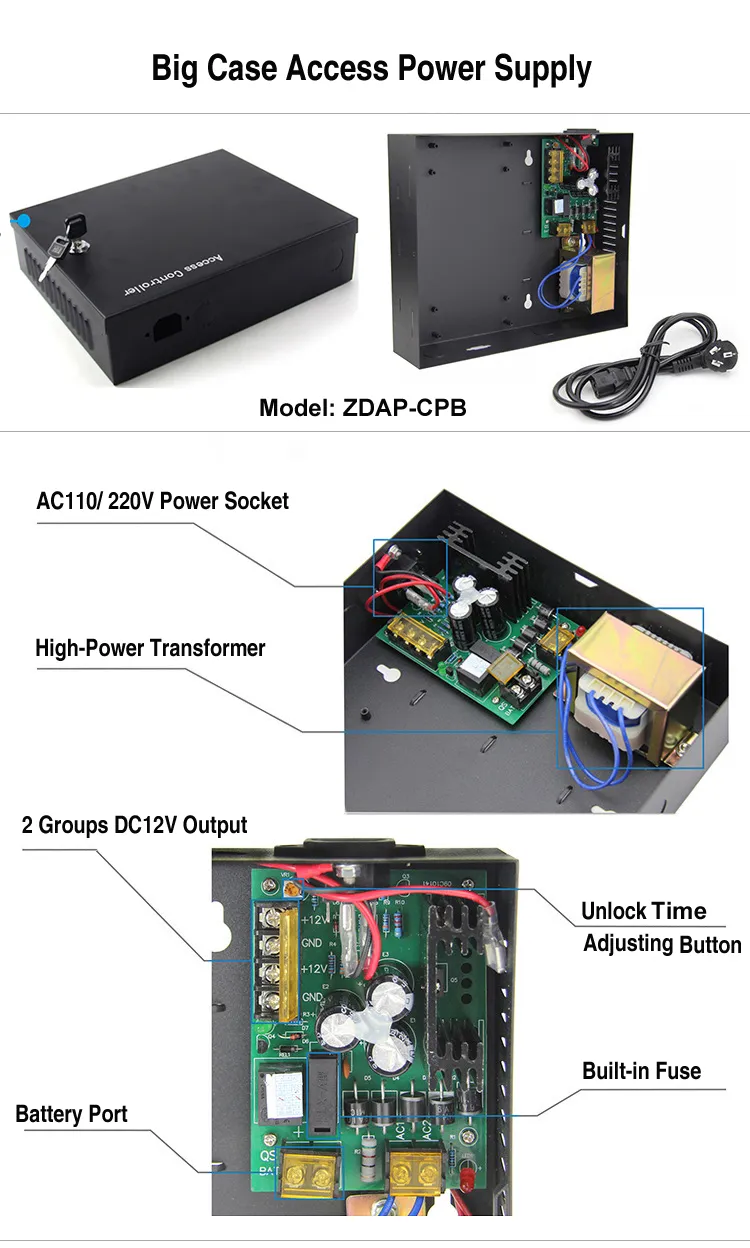

| Power Supply | 12VDC 4-7A | ||
| User Capacity | 20,000 Users | ||
| Event Buffers | 100,000 Offline Buffers | ||

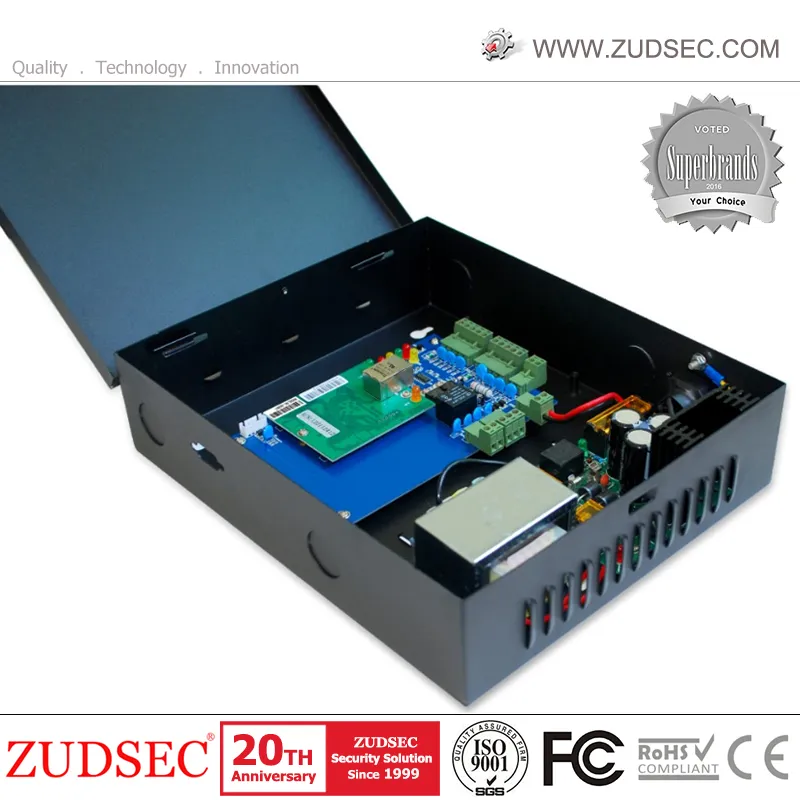

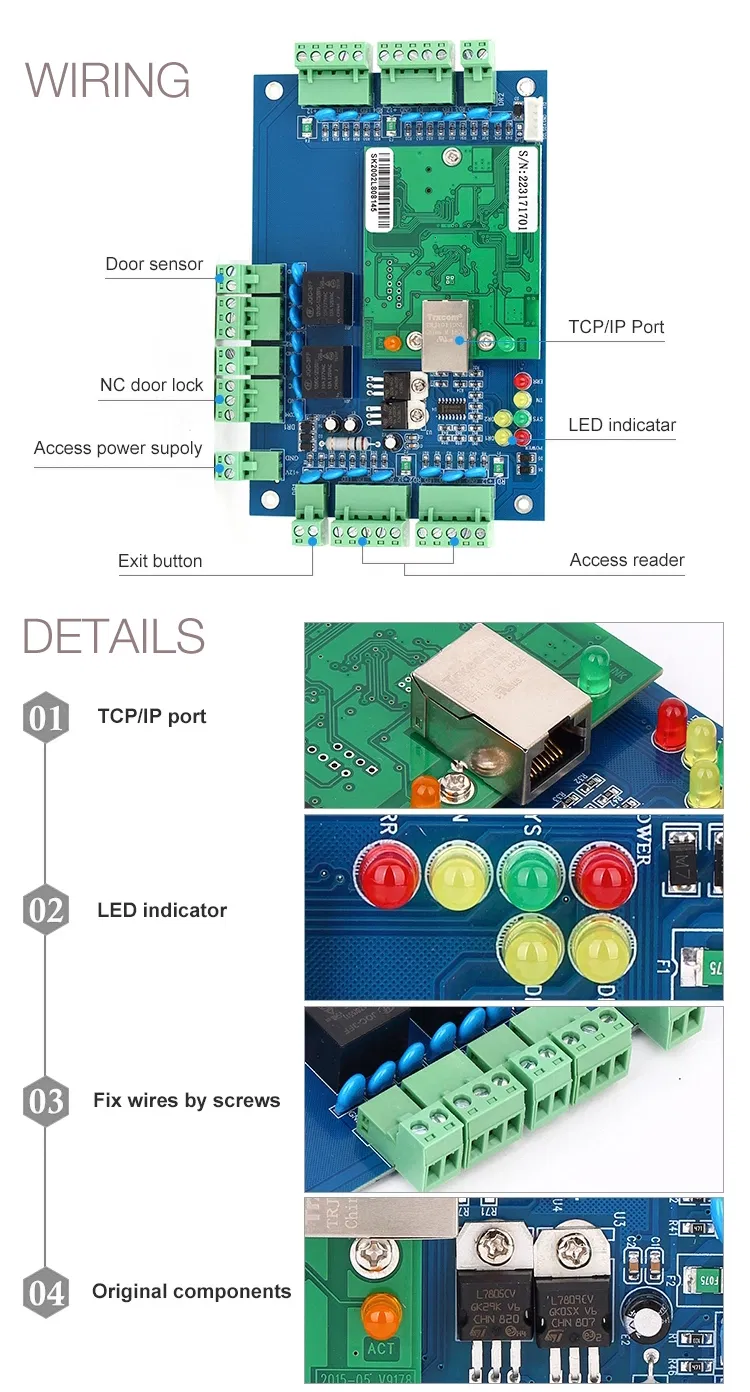

📷 Product Display

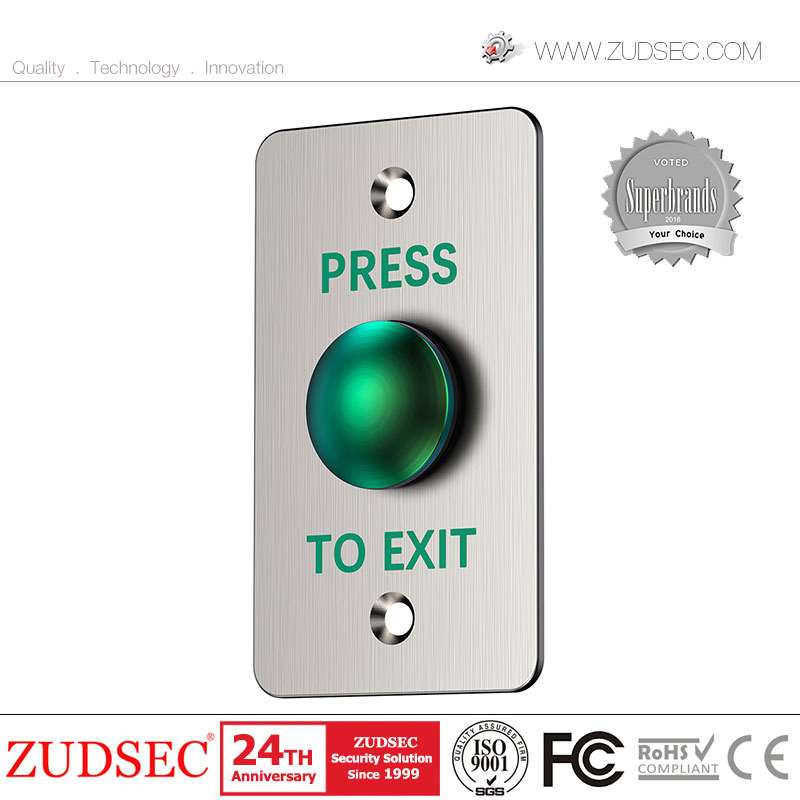

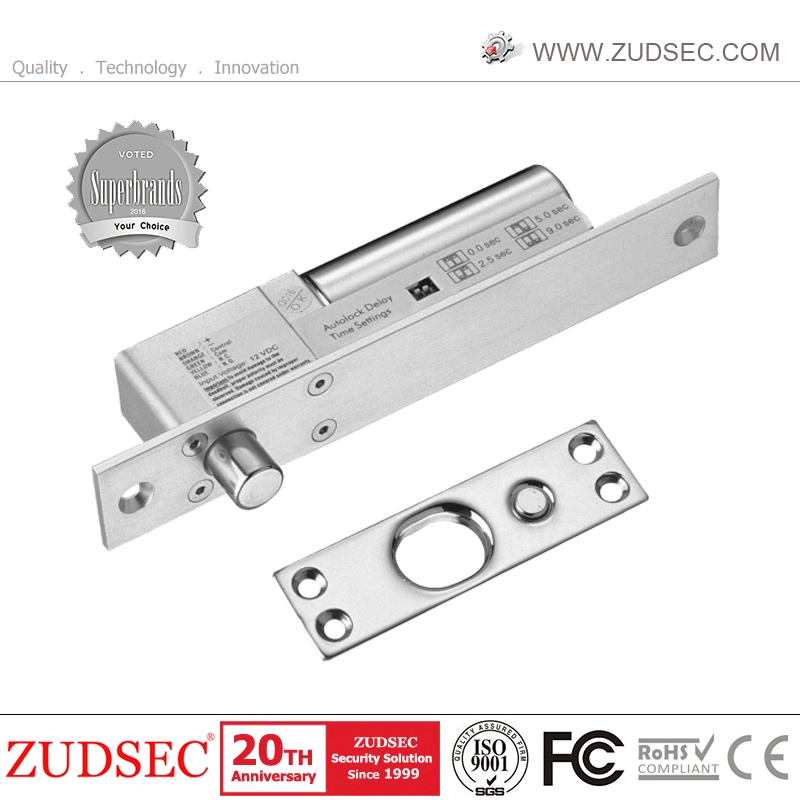

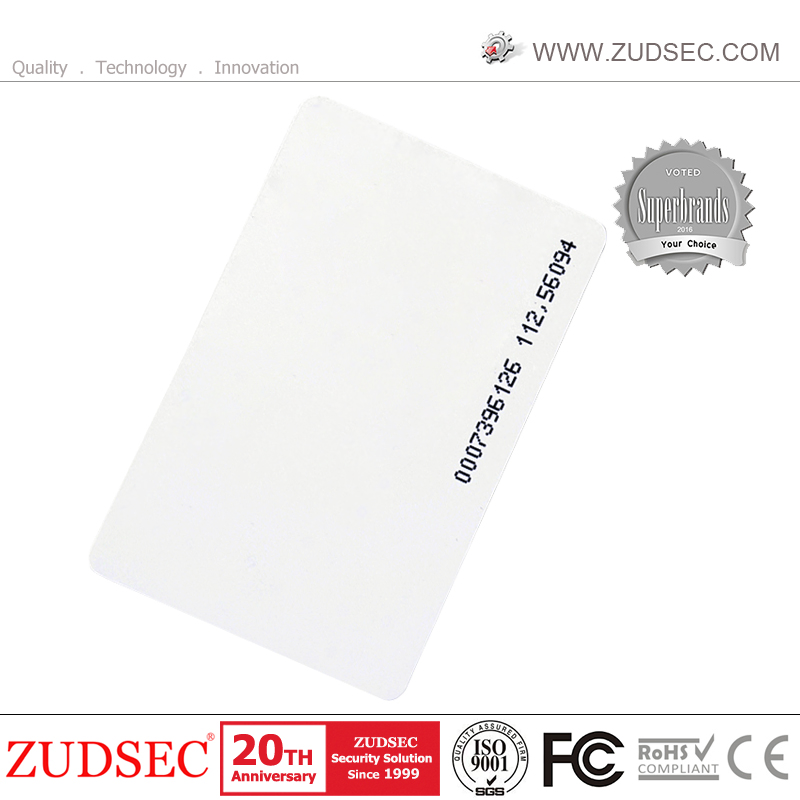

📦 Related Components
❓ Frequently Asked Questions
What is the communication method for this control panel?
The system uses TCP/IP 10M/100M adaptive communication for fast and reliable data transfer over networks.
How many users and events can the controller store?
The controller supports up to 20,000 users and can store 100,000 event buffers in its offline memory.

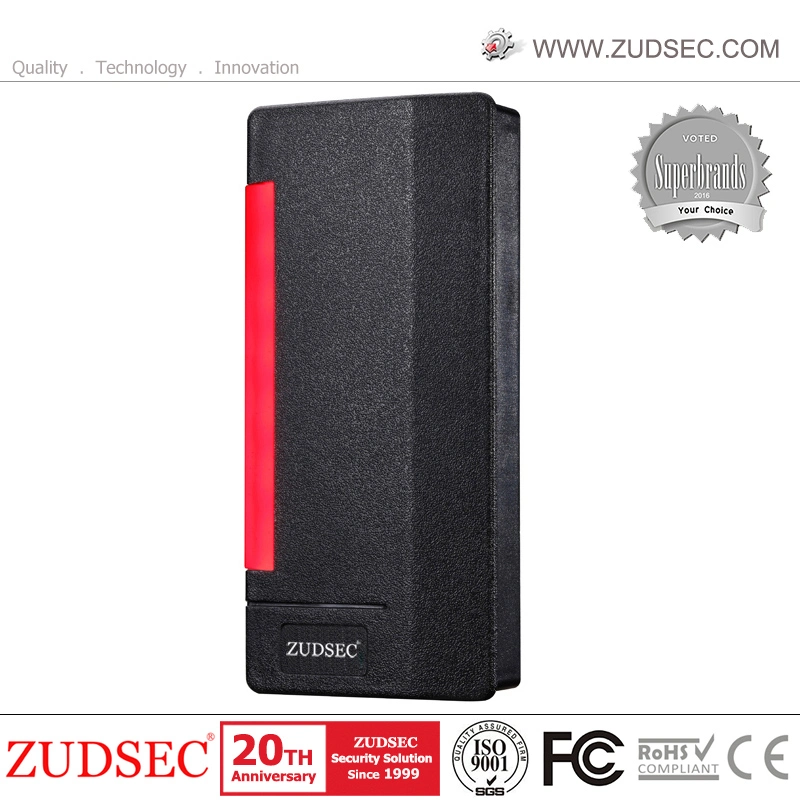

Which card reader protocols are compatible with this system?
It supports the Wiegand 26 protocol, making it compatible with various readers including HID, EM, Mifare one, and Motorola.
Does the system lose data during a power failure?
No, the system utilizes High-Speed Memory storage technology, ensuring that records are never lost during power interruptions.
Can I manage the system remotely?
Yes, the system supports professional functions like remote unlocking, real-time supervision, and multi-user supervision via software.
What is the maximum distance between the reader and the controller?
The maximum distance is 100 meters, though 80 meters is the suggested distance for optimal performance.
