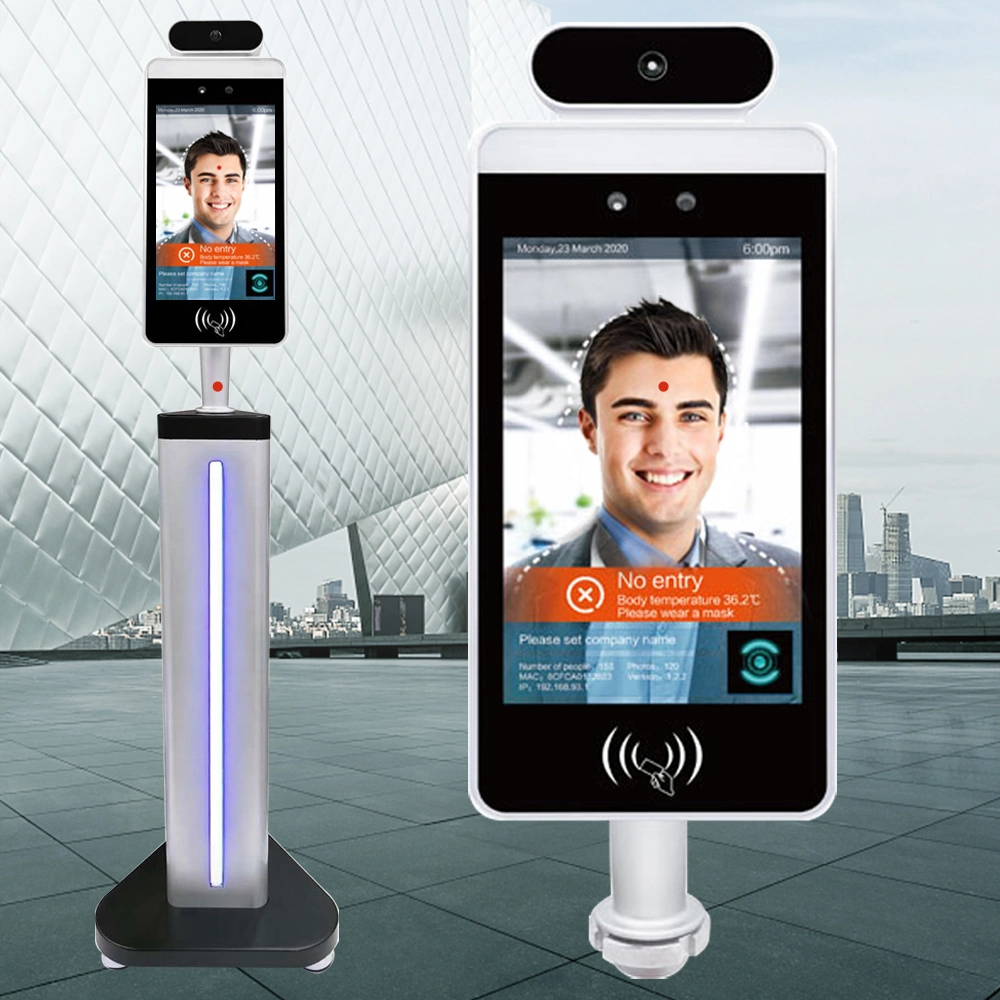

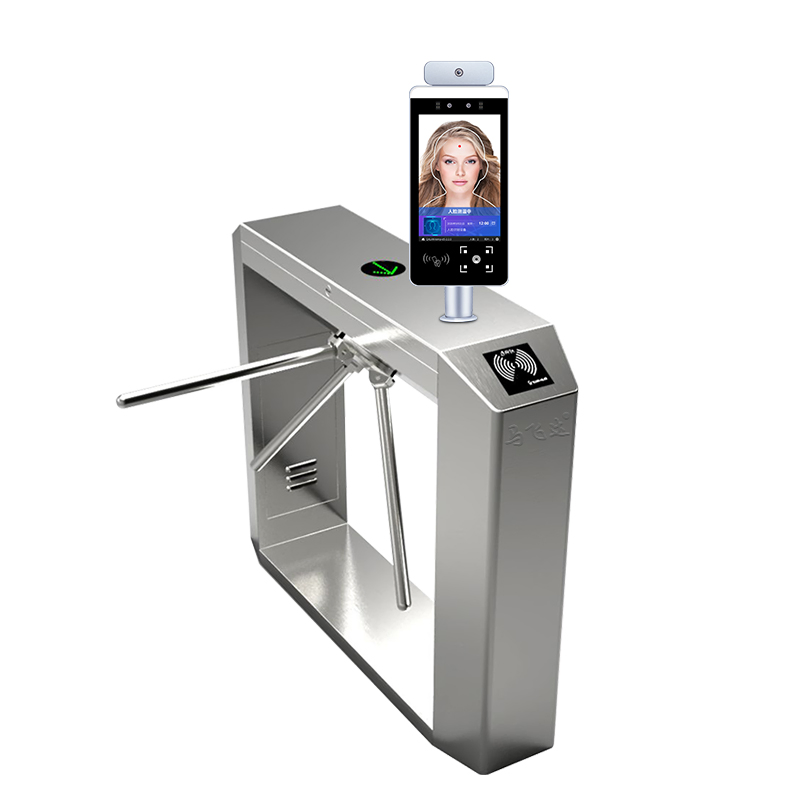

Security Smart Ai Thermal Scanning Device 8 Inch Face Recognition Turnstile Gate Tripod Door Access Control System
Product Description
📊 Basic Specifications
Model NO.
AKA7C
System
Linux
Facial Capacity
10,000 Users
CPU
RV1109 2 Core 1.5GHz
Recognition Time
Less Than 300ms
Recognition Distance
0.5 - 2m
Storage
RAM 1GB / Data 8GB
Material
Aluminum Alloy
Interface
RS485, USB, TCP/IP, Wiegand
Resolution
600*1024
🔍 Product Details

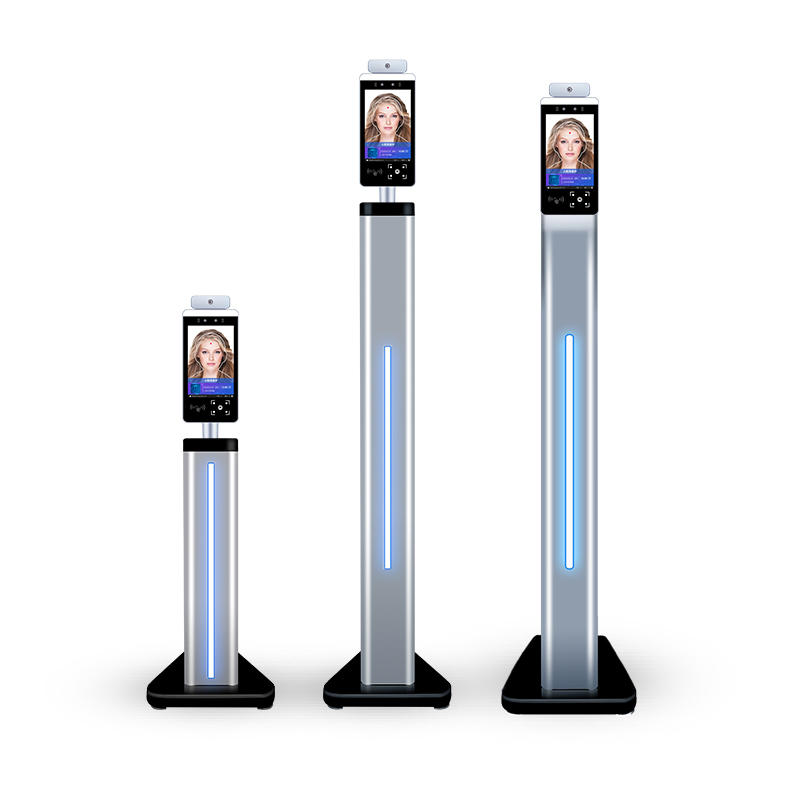

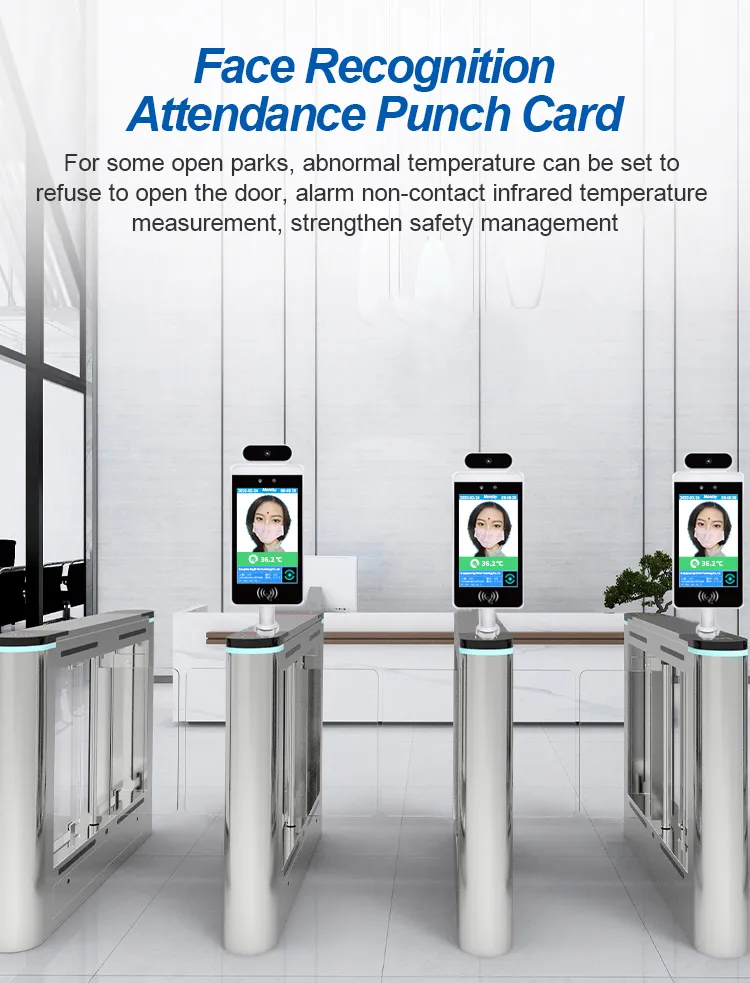

| Environment & Build | Installation Scenarios | Wall-mounted, Gate/Turnstile Installation |
| Working Temp/Humidity | -15ºC to 55ºC, <90% RH | |
| Protection Level | IP55 | |
| Body Size | 246*21.5*123mm | |

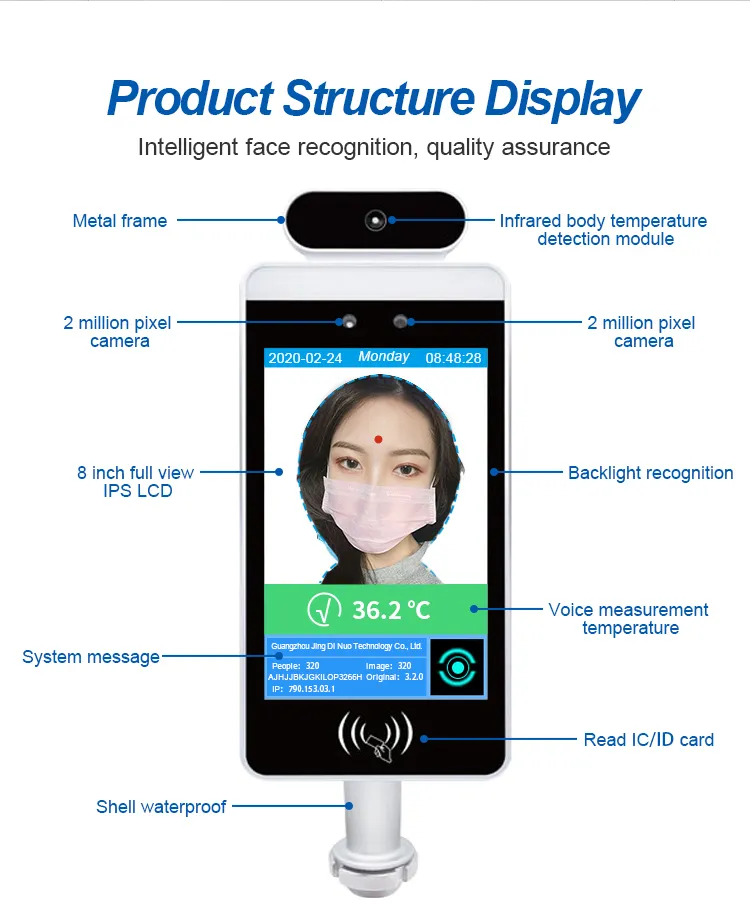

| Hardware Info | Display | 7-inch HD IPS LCD Screen (600*1024) |

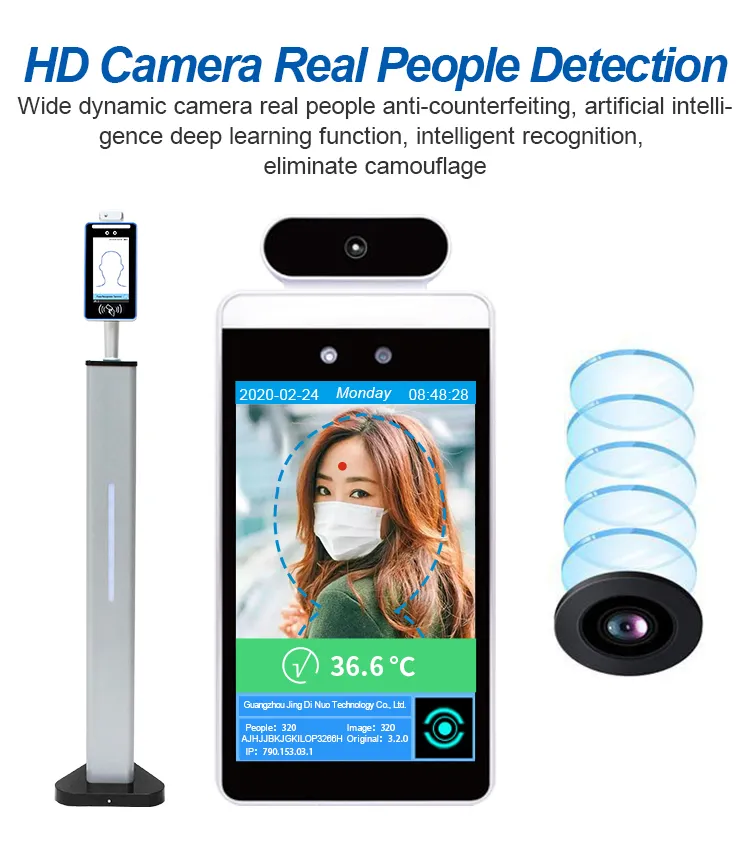

| Camera | 200W Binocular Live Camera (Wide Dynamic Support) | |
| Fill Light | Three-color & Infrared Fill Light | |
| Speaker | 1-way built-in speaker | |
| Connectivity | Support WIFI (Optional) | |
| Performance | Accuracy Rate | 99.70% |
| Card Recognition | Optional IC/ID card swiping module (USB/Serial) | |

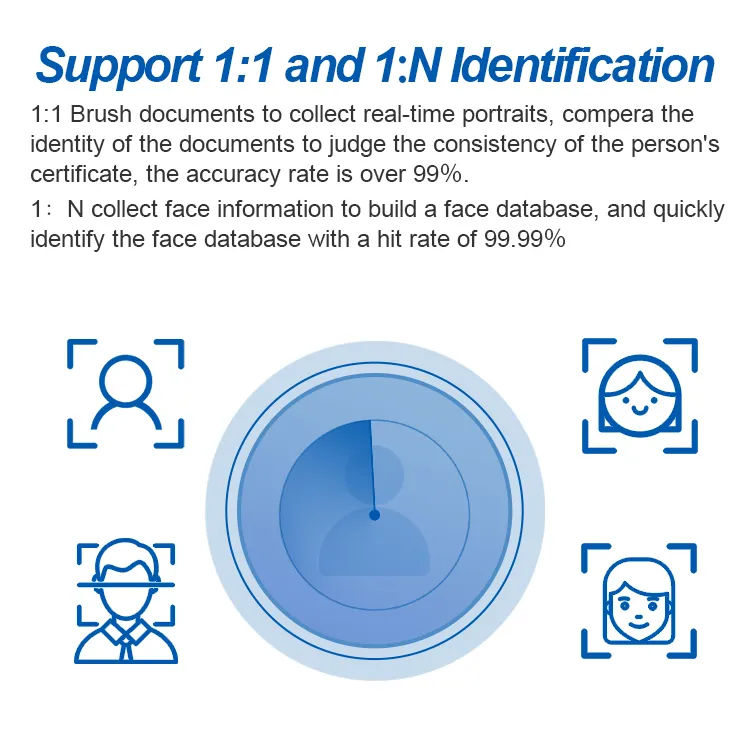

| Face Library | 1: N, N <= 20,000 faces |

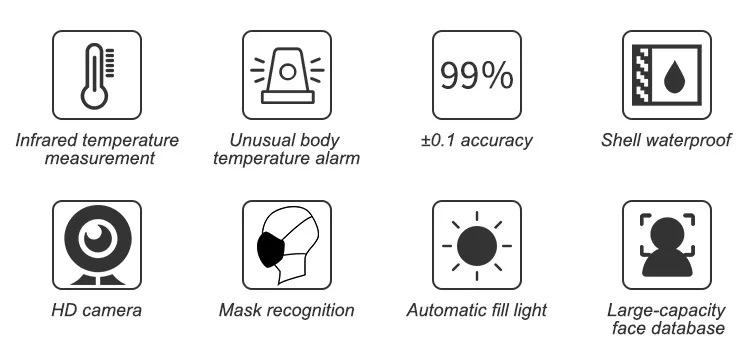

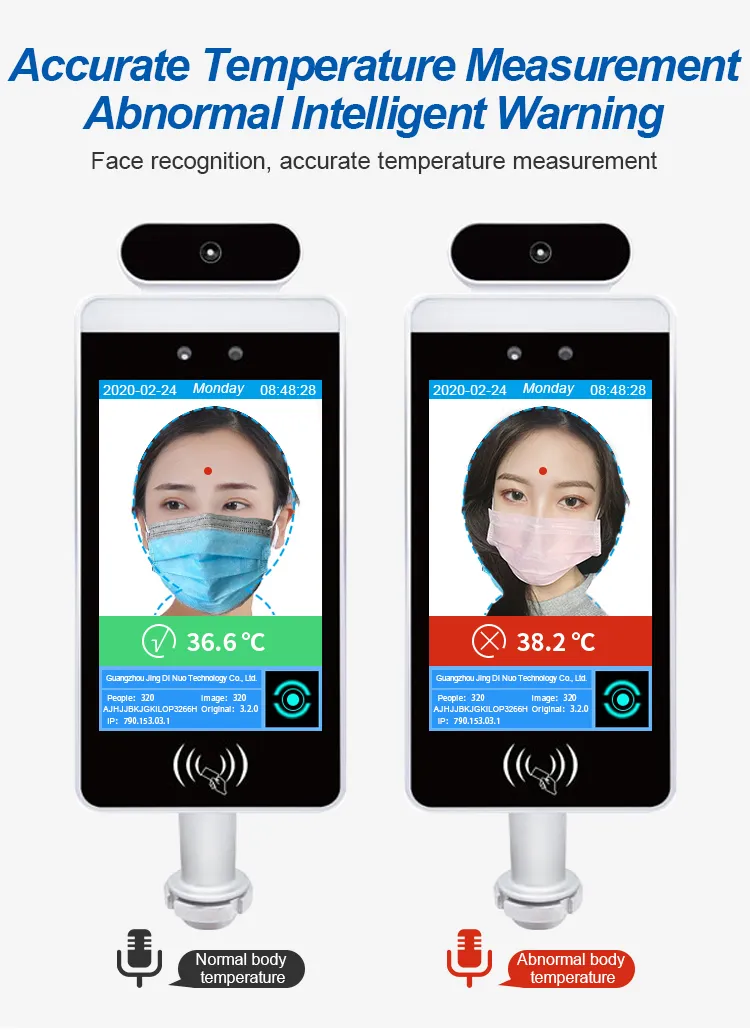

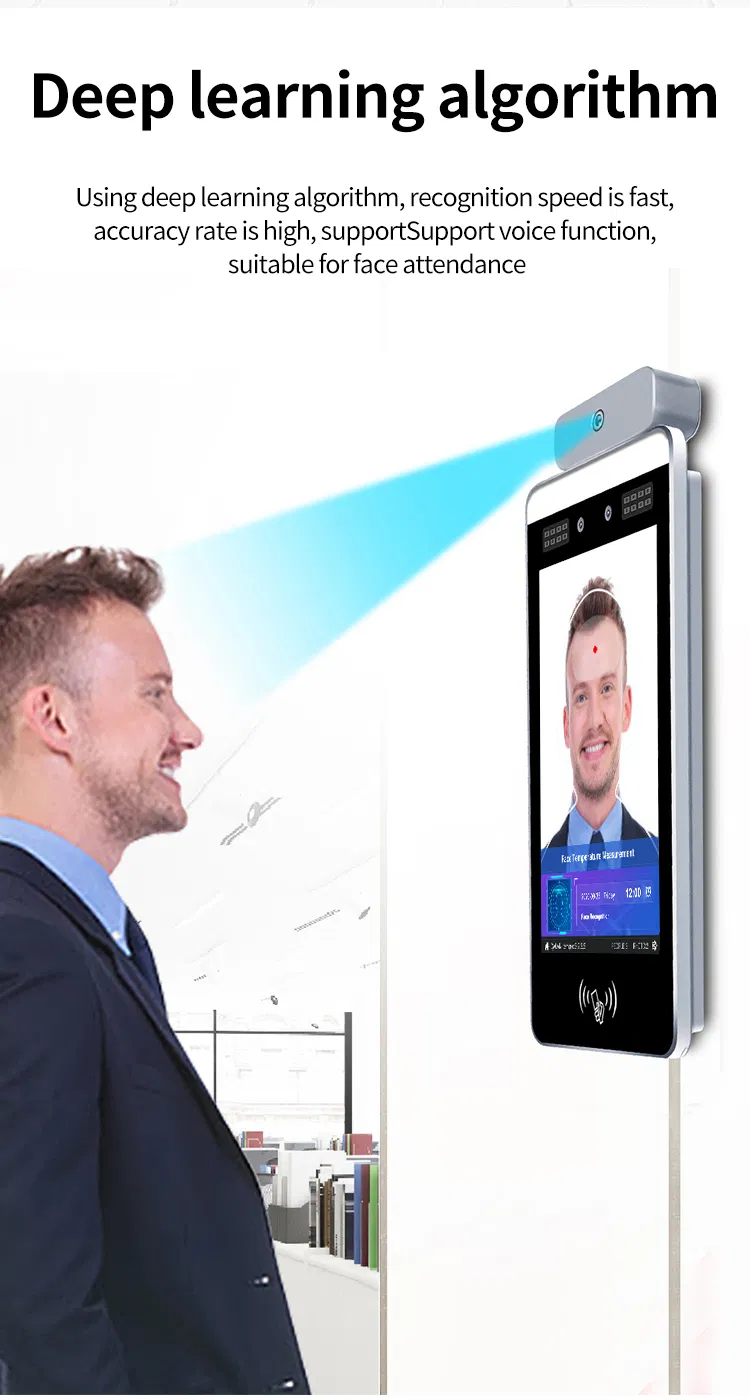

📸 Gallery & Features
❓ Frequently Asked Questions
How fast is the face recognition process?
The device features an ultra-fast recognition time of less than 300ms, ensuring smooth access without delays.

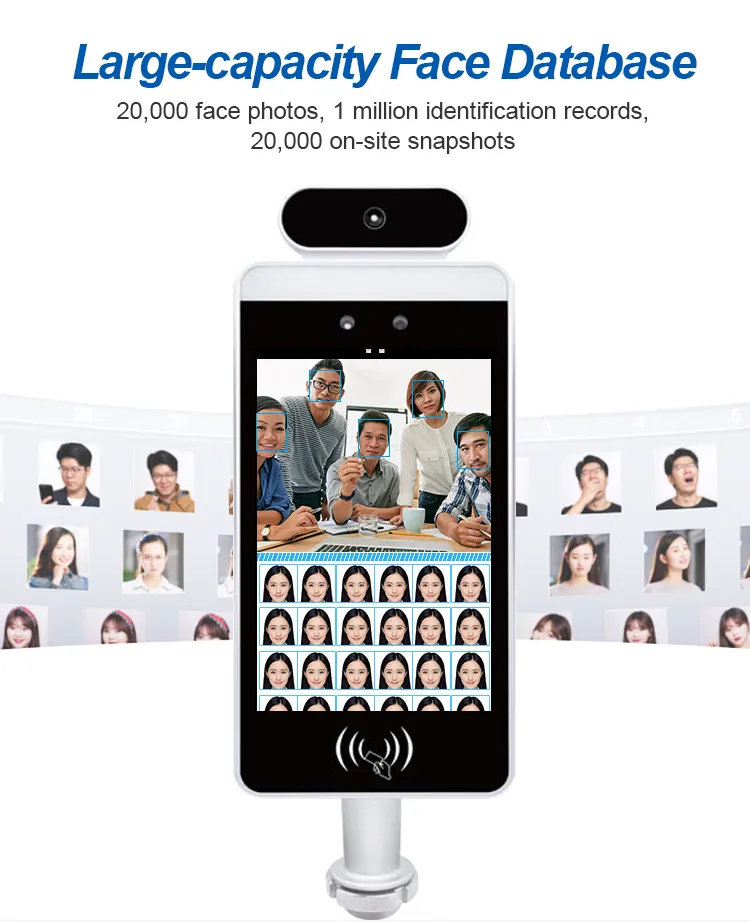

What is the maximum capacity of the face library?
The system supports up to 20,000 faces in its library for 1:N recognition, making it suitable for large enterprises and public spaces.

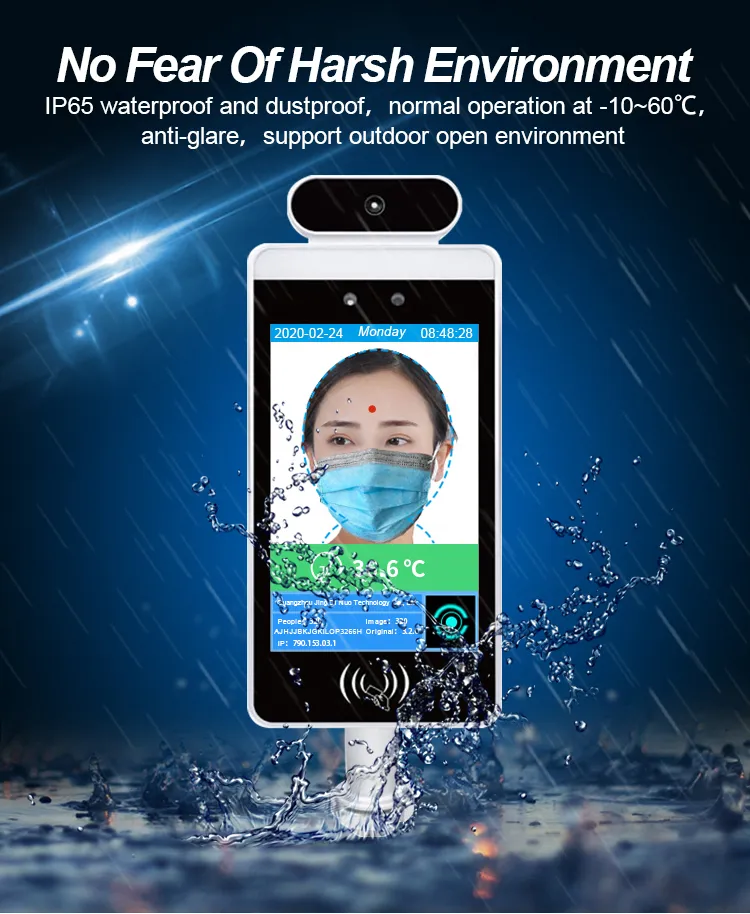

Can the device work in outdoor environments?
Yes, it has an IP55 protection level and is designed to operate in temperatures ranging from -15ºC to 55ºC.

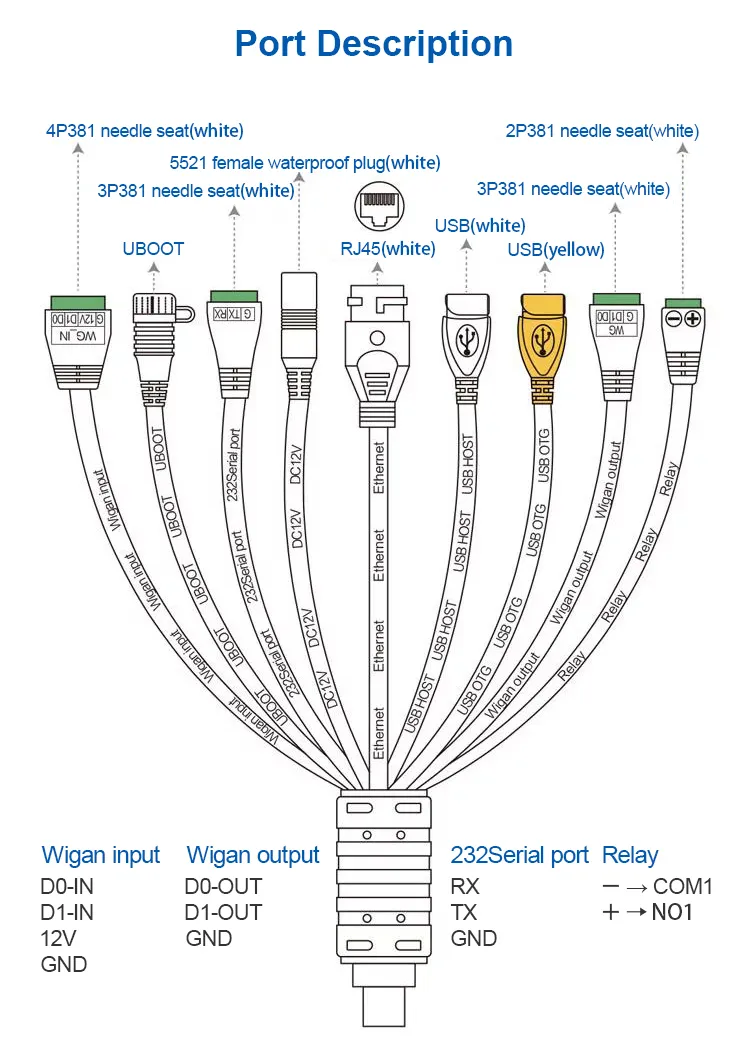

What communication interfaces are supported?
The device provides multiple connectivity options including RS485, USB, TCP/IP, and Wiegand interfaces.
Does it support card access in addition to face recognition?
Yes, it supports optional IC/ID card swiping modules and USB card readers for multi-factor authentication.
What is the optimal recognition distance for the camera?
The 200W binocular live camera recognizes faces effectively at a distance between 0.5 and 2 meters.
