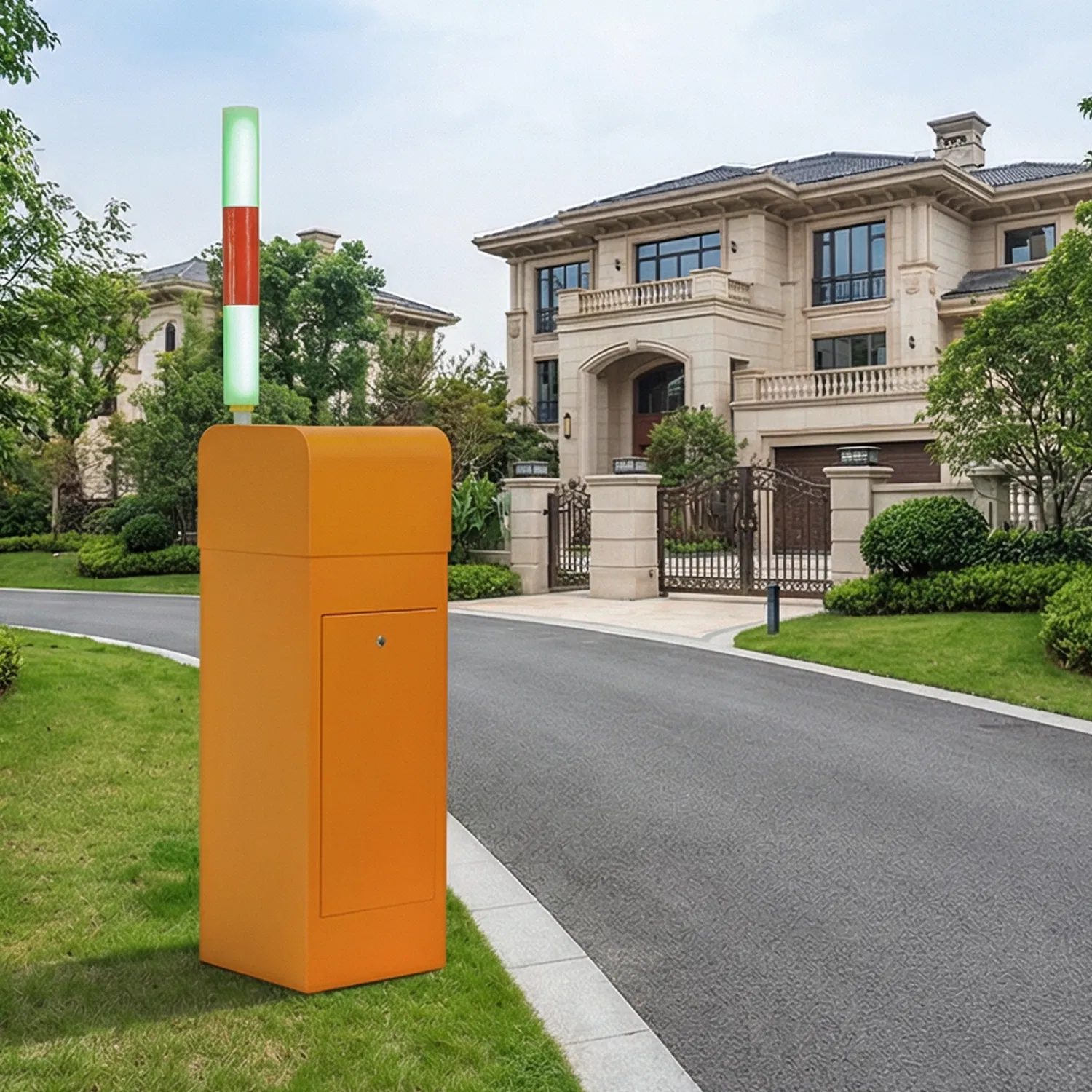

Advanced Boom Barrier Access Control System for Smart Parking Management
Product Description
Basic Product Information
Model NO.
SJS-PD003A
Position
Vehicle Fence
Material
Steel
Function
Obstruction
Post Fixation
Expansion Bolts
Degree of Distortion
Rigid Barrier
Dimensions
35cm*35cm*107cm
Supply Voltage
AC220V or AC110V
Output Power
80W
Service Life
5,000,000 Times
Origin
China
Capacity
10,000 PC/Year
High Speed Barrier Gate (SJS-PD Series)
A high-speed AC torque motor offers compact size, lightness, fast response & stability. Enables rapid rod lifting, quickest at 0.9s. Safety design with adjustable left/right directions for versatile use. Built-in encoder ensures precision, longevity & easy setup.
1
High-speed AC torque motor: High-performance core ensuring stable, powerful output for maximum efficiency.
2
Compact & Lightweight: Optimized equipment structure for easy installation.
3
Fast Response: Immediate motor response to commands with low vibration and noise.
4
Rapid Operation: High-speed rod lifting with a maximum speed of 0.9s.
5
Adjustable Direction: Left and right directions are adjustable to adapt to various application scenarios.
6
Arm Options: Supports Straight, Articulated, Fence, or Telescopic arms with LED indicators.
All products can be customized!

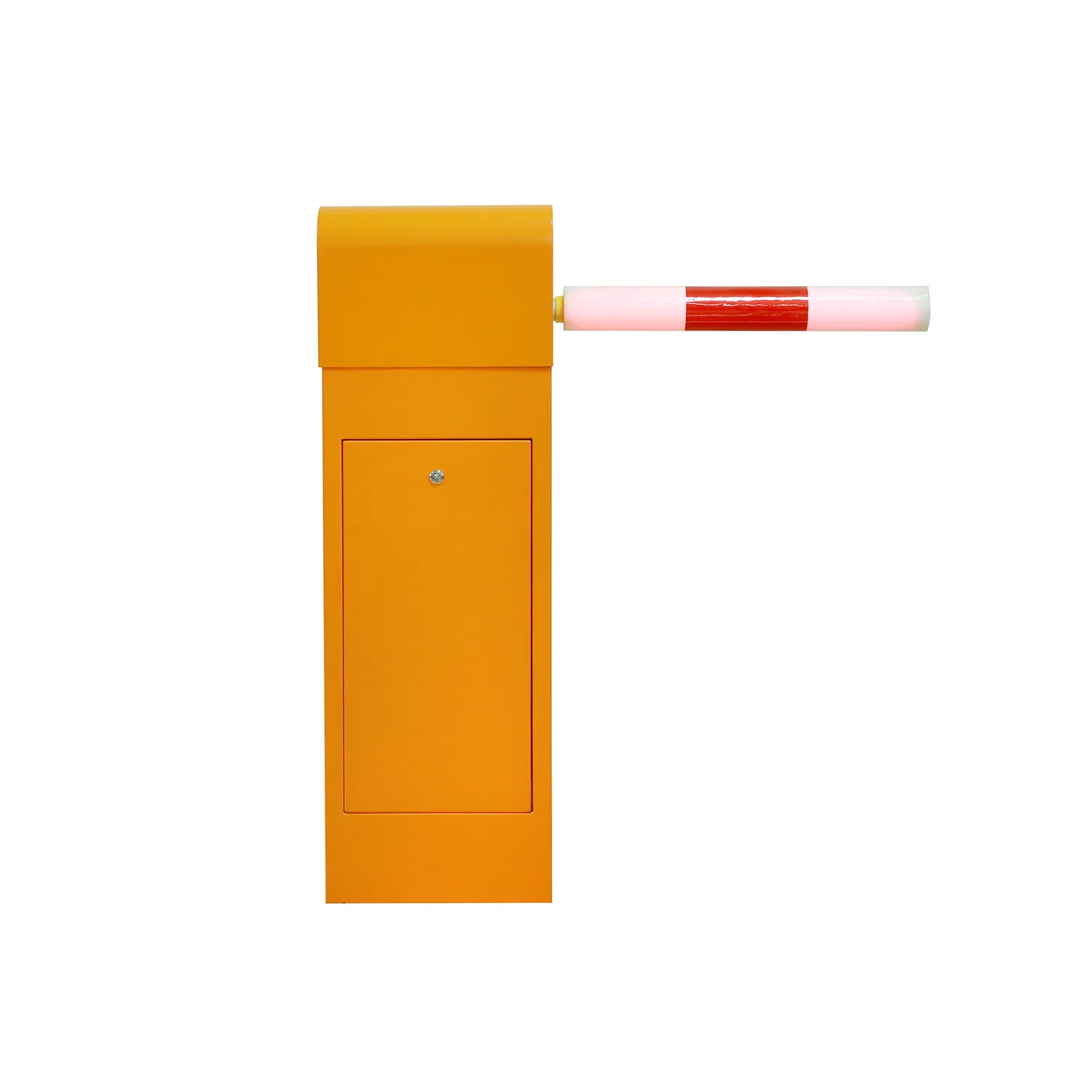

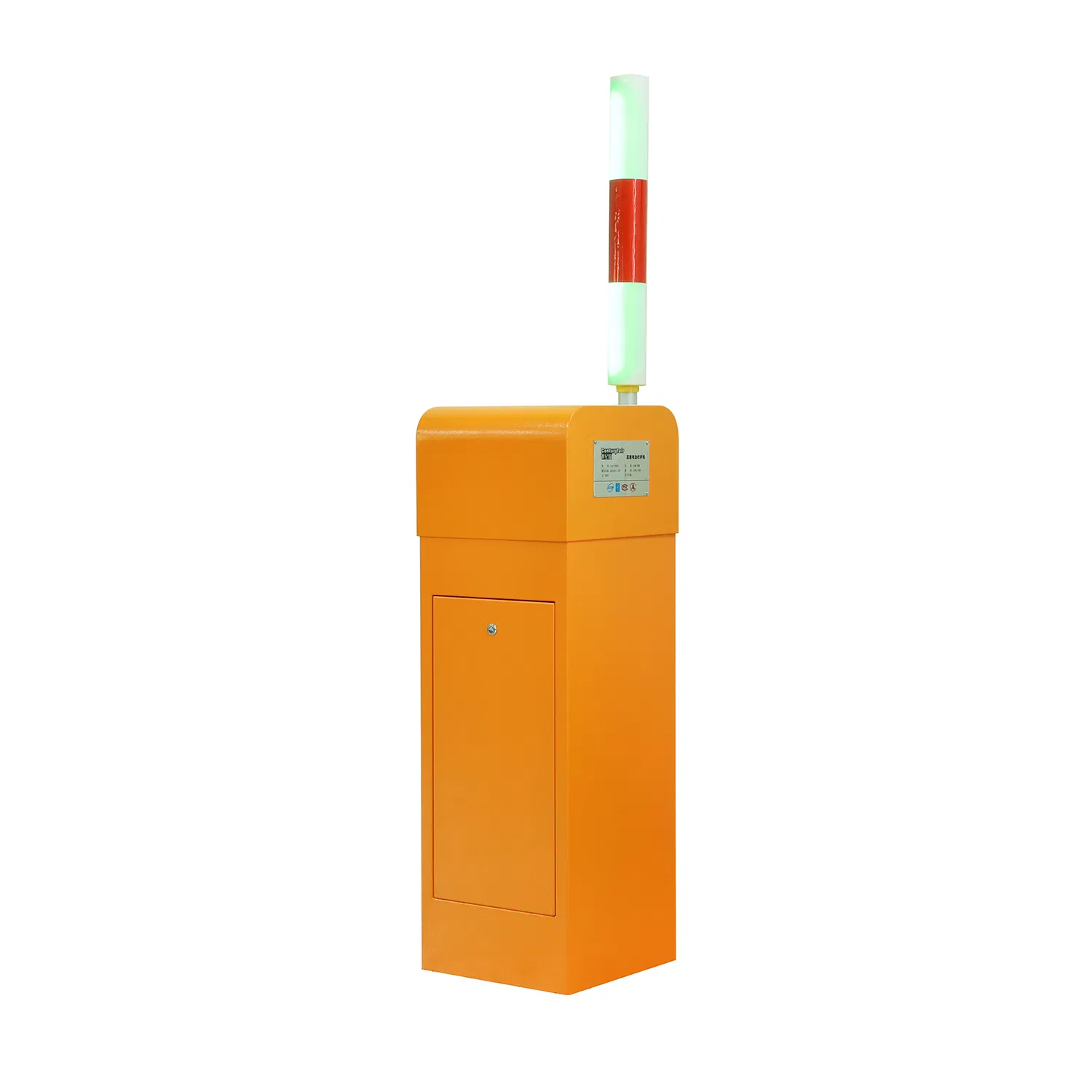

45-degree right side view

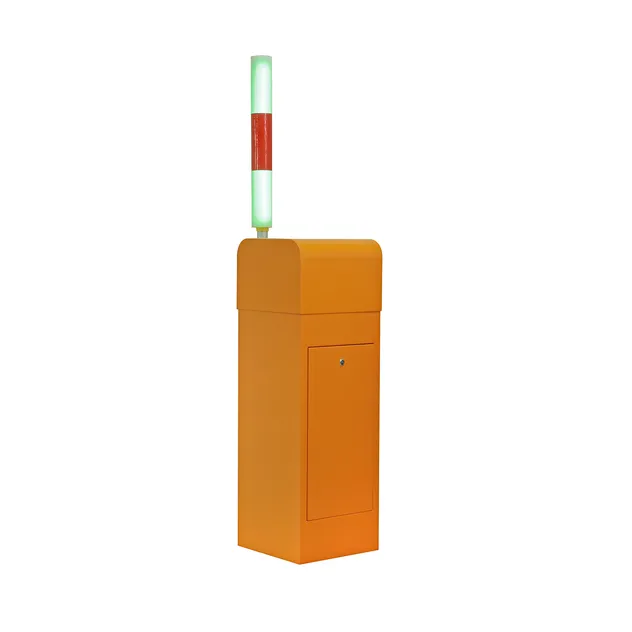

45-degree left side view

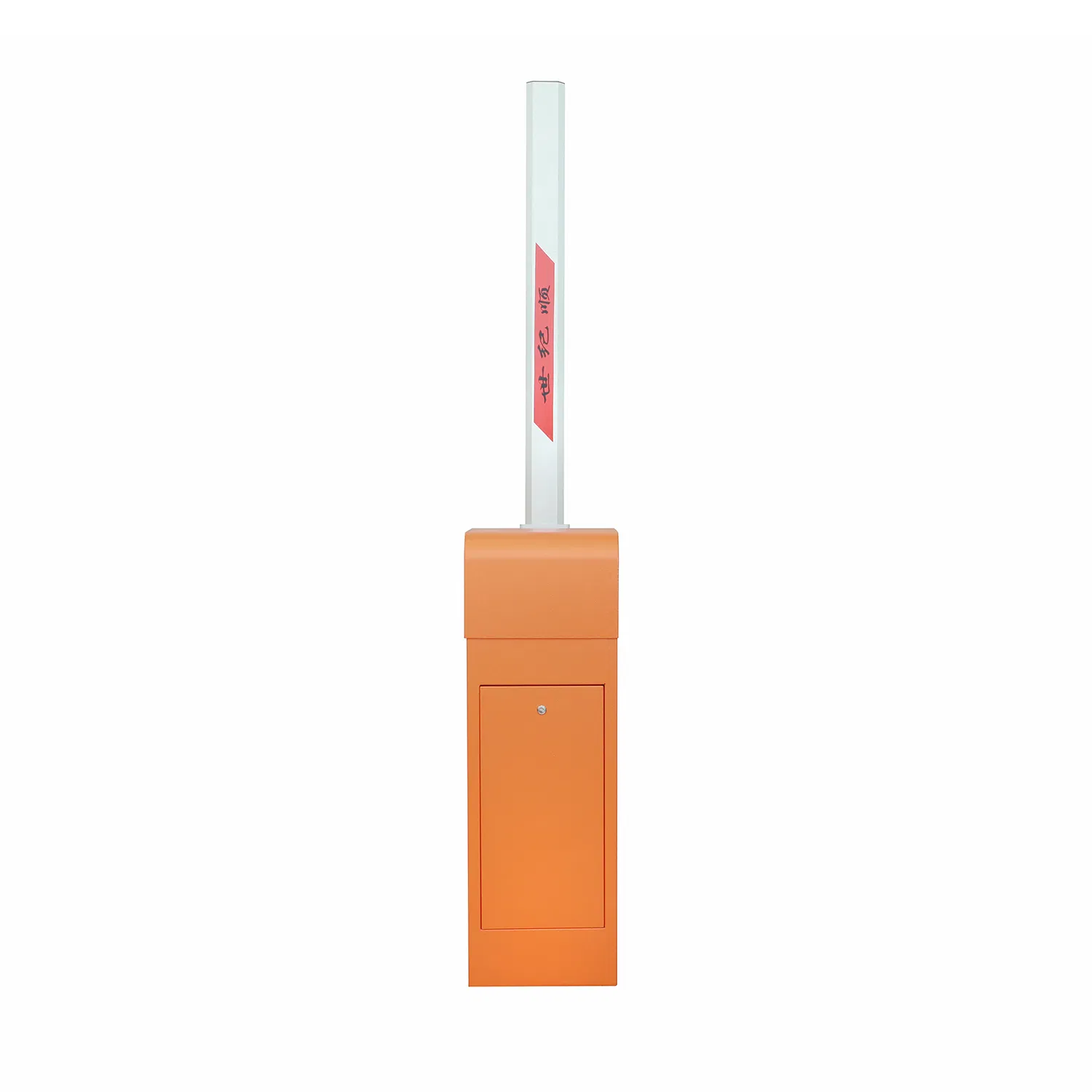

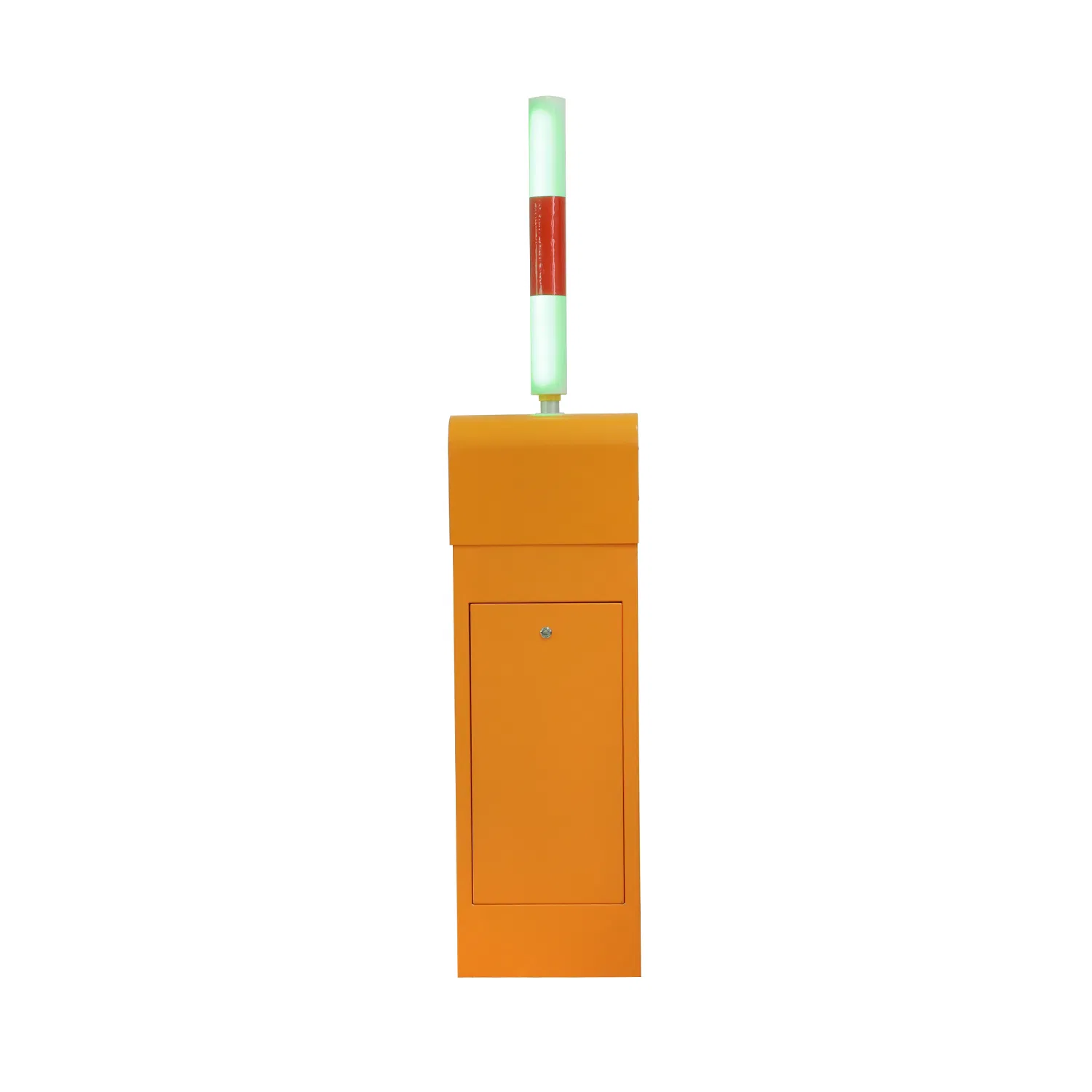

Front elevation
Technical Specifications
| Supply Voltage | AC220V+/-10% or AC110V |
| Power Frequency | 50/60Hz |
| Output Power | 80W |
| Rated Speed | 1500r/min |
| Rated Torque | 35N*m |
| Standard Lever Length | 3 - 6m |
| Rising/Falling Time | 0.3s - 6s |
| Protection Class | IP55 |
| Temperature Range | -40℃ to +75℃ |
| Remote Control Distance | ≤50m |
After Sales Service
Standard Warranty: 12 months.
Training: On-site (negotiable) or remote operation/maintenance training.
Frequently Asked Questions

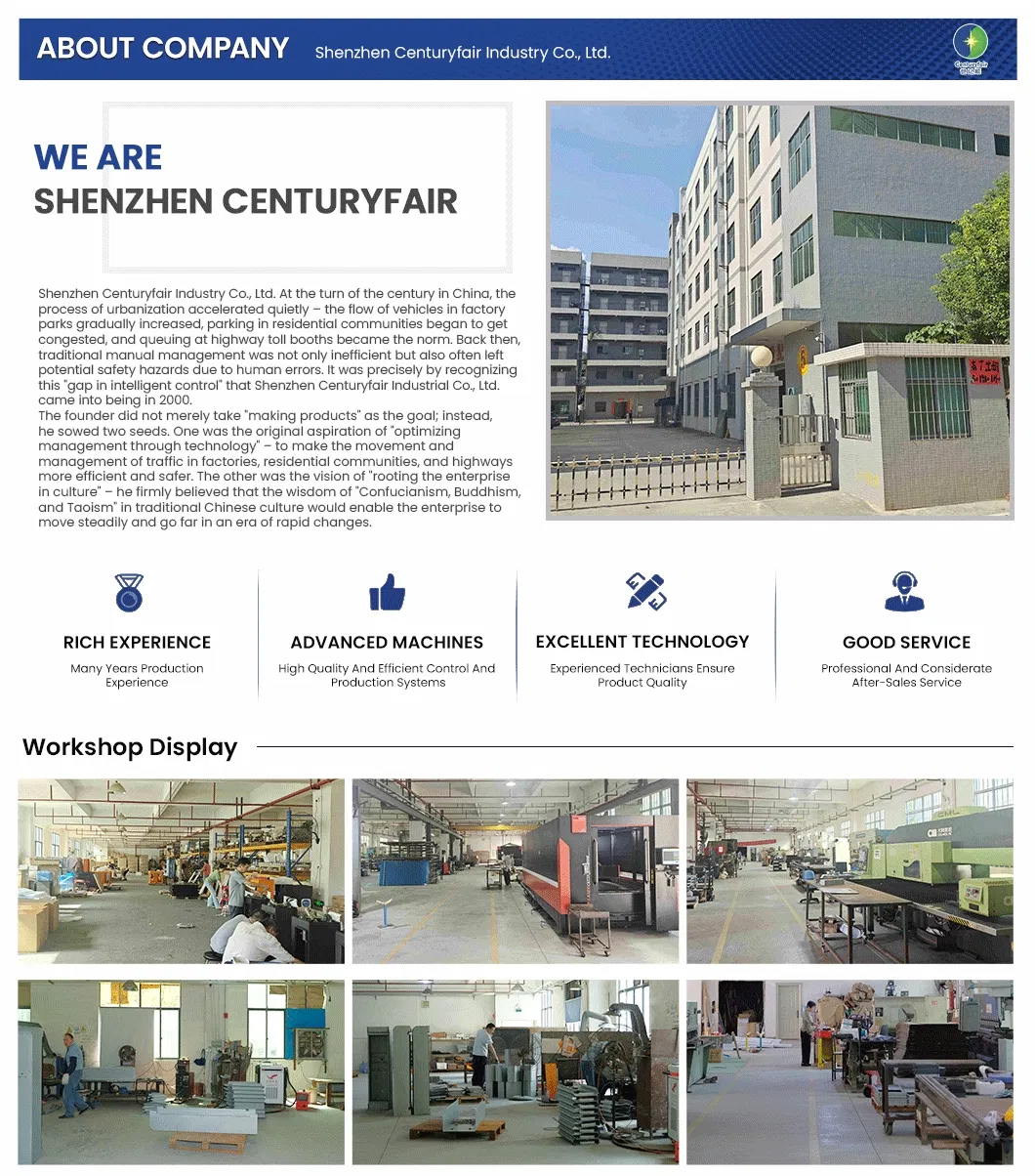

When was the company founded and why?
Founded in 2000 to resolve urban inefficiencies through advanced smart control systems.
What is the core philosophy behind the products?
The integration of "Technology + Cultural Values" to ensure balanced and reliable management solutions.
What specific products are available for export?

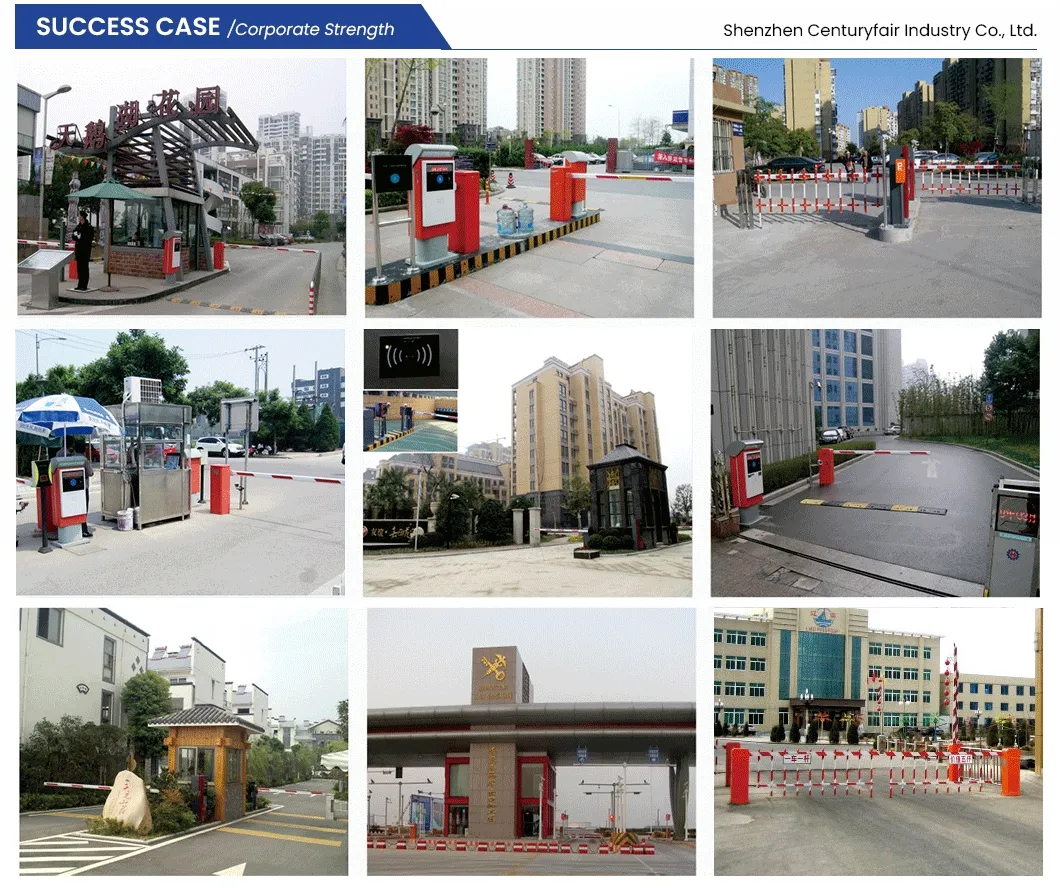

We offer a wide range of Barrier Gates, Turnstiles, and ETC High-Speed Barrier Gates, providing custom solutions in over 20 countries.
What are the technical strengths of these barrier gates?
Significant R&D investment, including rigorous testing like 1,200 wind resistance tests, ensuring ISO/CE quality standards.
How is the technical team's expertise maintained?
High team retention, with 80% of employees having over 10 years of experience, supported by mentor programs and a focus on expertise.
What is the mission slogan for these solutions?
Parking with Know-How, controlling without woe.
