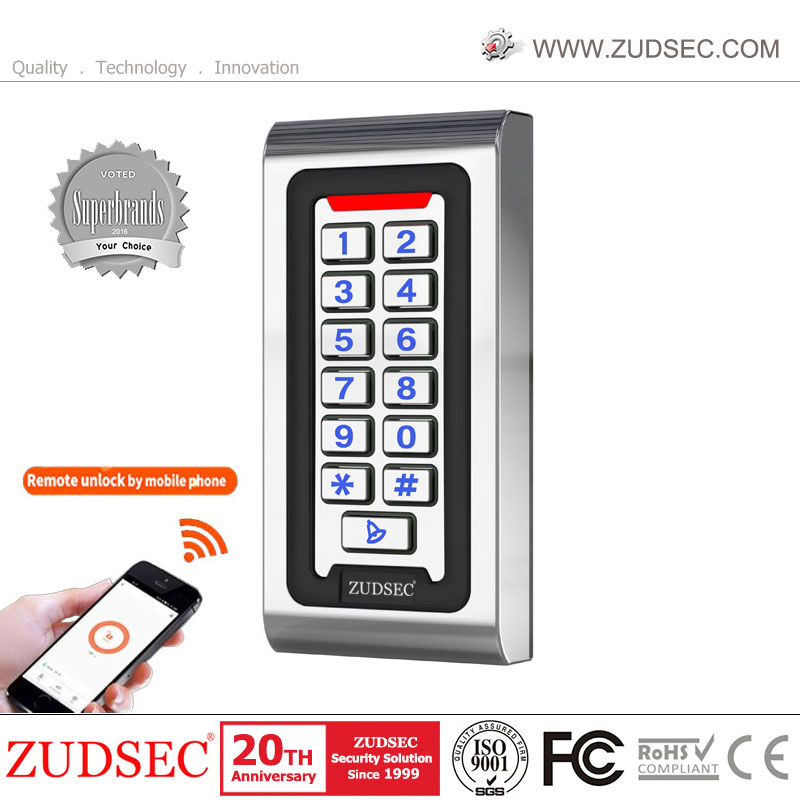

Waterproof Metal Keypad RFID Card Door Standalone Smart WiFi Access Control System with Tuya APP
Product Description
Model NO.
ZDAC-2400W-WiFi
Technology
32-Bit Technology
Way of Control
Computer Control
Type
One-way Controller
Item
Waterproof WiFi Access Control
Identification
Card, Pin, Card & Pin
Reading Distance
3-6cm
Card Type
125kHz, EM
Operating Voltage
DC 12-24V
User Capacity
2000
Waterproof
IP68
Material
Metal Case + Metal Keypad
Size
120* 58*20(mm)
HS Code
853110

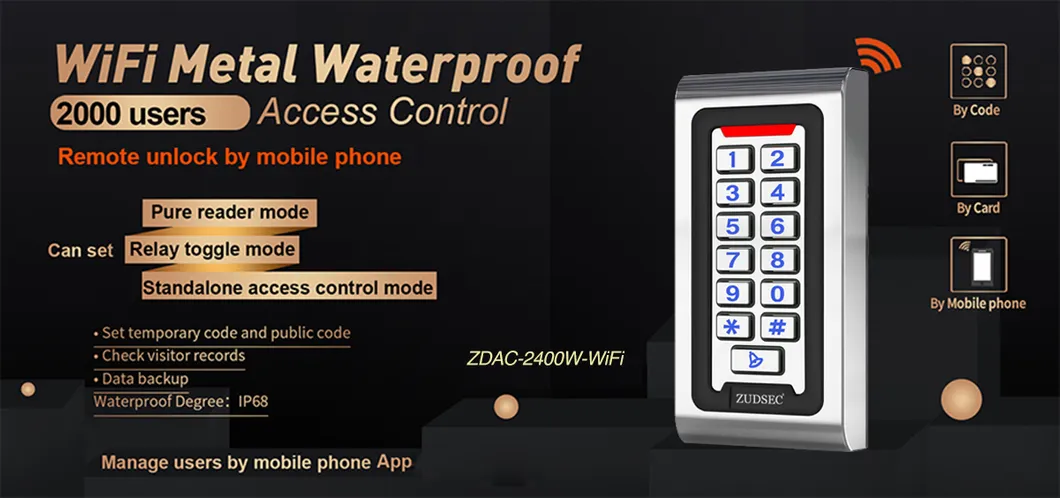

IP68 Waterproof Metal Keypad RFID Card Door Standalone Smart WiFi Access Control System with Tuya APP
Aluminum alloy structure, Waterproof, fully potted, confirms to IP65, 125KHz EM and HID card for optional, Multi-function, 12P cable with built in door bell function, operating as slave reader, single door, anti-pass back, etc. Suitable for various occasions.
- Aluminium alloy case, waterproof, fully potted, meets IP-65 waterproof standard
- Metal digital backlit keypad (Backlight modes: Normal ON, Normal OFF, or Human-Approach ON)
- Built-in door bell function
- Built-in 125KHz card reader with Auto-Recognition
- Supports up to 2000 users, each with a card and a 4-6 digits password
- Master card support for easy management
- Batch enrollment: 2000 serial number cards can be recorded at a time
- Multi-card access support (2-10 cards to entry)
- Relay control to open, 1A
- Wiegand 26-37 output for card numbers and button entering multiple output
| Operating Voltage | DC 12-24V; Operating Current ≤35mA |
| Card Reading Distance | 3-6CM |
| Keypad Transmit Format | 4-6 digits key press, 4 bits or 8 bits data |
| Type of ID Card | 125KHz, EM |
| Card Transmit Format | Wiegand 26-37 |
| Operating Temperature | -40ºC to 60ºC |
| Operating Humidity | 0~95% (non-condensing) |
| Product Dimensions | 158.6L x 43W x 21.7D (mm) |
| Weight | 0.5Kg |
Is this access control system waterproof?
Yes, the device features an IP68 waterproof rating with a fully potted aluminium alloy case, making it suitable for outdoor installation in various weather conditions.
How many users can the system support?
The system supports up to 2,000 users. Each user can be assigned an RFID card, a 4-6 digit password, or a combination of both.
Does it support smartphone app control?
Yes, this is a Smart WiFi version that integrates with the Tuya APP, allowing you to manage access remotely via your smartphone.
What types of cards are compatible with the reader?
The built-in reader is compatible with 125KHz EM cards. HID card support is also available as an optional feature.
What is the required operating voltage?
The device operates on a wide voltage range of DC 12V to 24V, providing flexibility for different power supply setups.
Can it be used as a slave reader?
Yes, the device supports Wiegand 26-37 output, allowing it to function as a slave reader connected to an external controller.
