Waterproof Standalone Keypad RFID Card Commercial Access Control System with RJ45 WiFi 4G SIM Card Slot
Product Description
📋 Basic Information
Model No:CT9 E
Reading Distance:10cm-15m
OS:Linux OS
Identification:RFID, NFC, BLE, Pin Code
Interface:4G, WiFi, TCP/IP, RS485, Wiegand
Protection:IP65 Waterproof, UV Resistance
Power:12-24V DC; PoE IEEE 802.3af
Application:Parking, Hospital, Library, Bank, Store

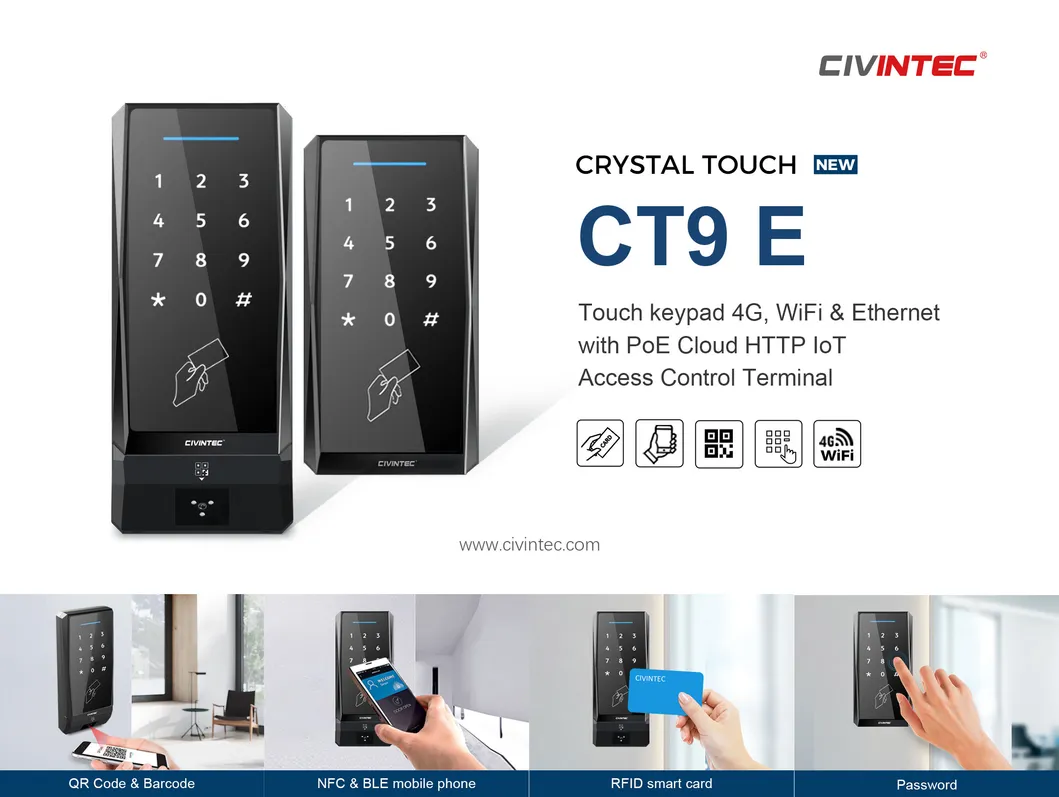

🔍 Product Overview
CT9 E is a Linux-based HTTP/HTTPs server centralized terminal with wireless WiFi, 4G, and TCP/IP Ethernet. It is suitable for both LAN and Internet cloud server software communication, with an embedded relay to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies: touch keypad, dual 125KHz & 13.56MHz RFID, BLE & NFC mobile access, and QR CODE/barcode via smartphone.
⚙️ Technical Specifications
| CT9 E SPECIFICATIONS | |
|---|---|
| RFID Cards | 125KHz PROx, EM; 13.56MHz Mifare® Classic, Ultralight®, Plus, DESFire® EV1/EV2/EV3, NFC tags |
| Mobile Credential | BLE (2.4Ghz), NFC |
| Barcode / QR | 1D & 2D QR Code, Micro QR, PDF417, Code 128, Code 39 |
| Communication | TCP/IP (RJ45), 4G, WiFi 2.4GHz, RS485, Wiegand Input |
| Keypad | 12-digit Touch keypad with backlit |
| User Capacity | Unlimited Online / 10,000 Offline |
| I/O Ports | Door contact, Exit button, Fire alarm, Tamper switch, 1~2 relay outputs |
⭐ Key Features

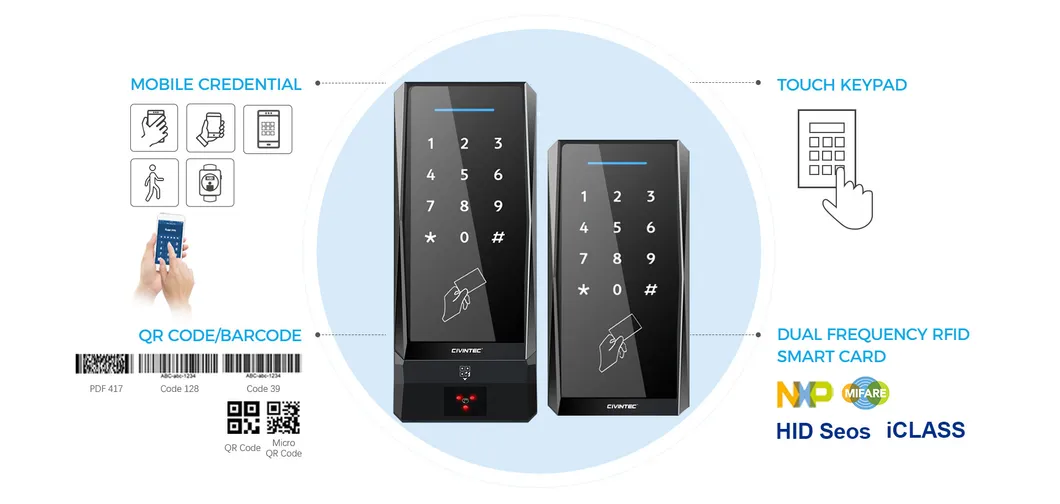

1 Multiple Access Credentials
Incorporates 5-in-1 technology including touch keypad, RFID smart cards, mobile access (BLE & NFC), and QR codes for efficient visitor management.

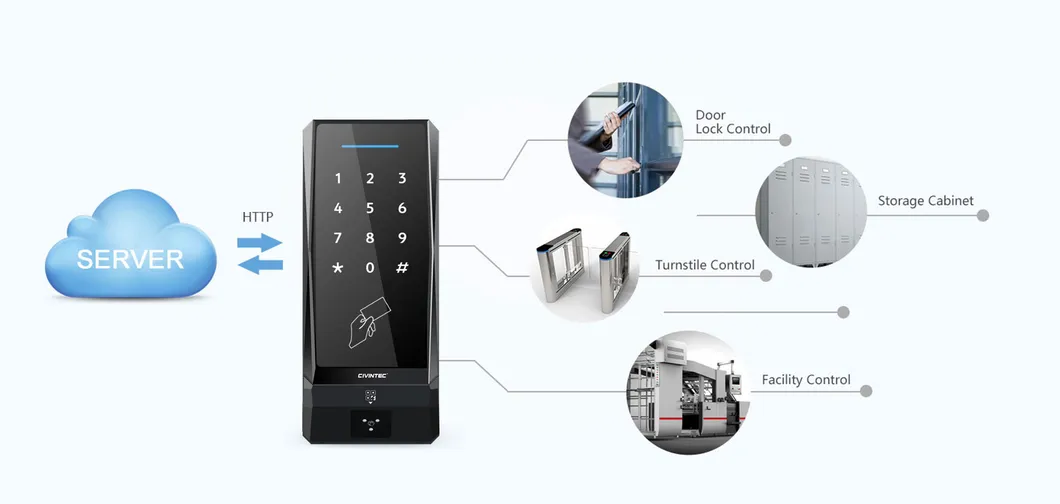

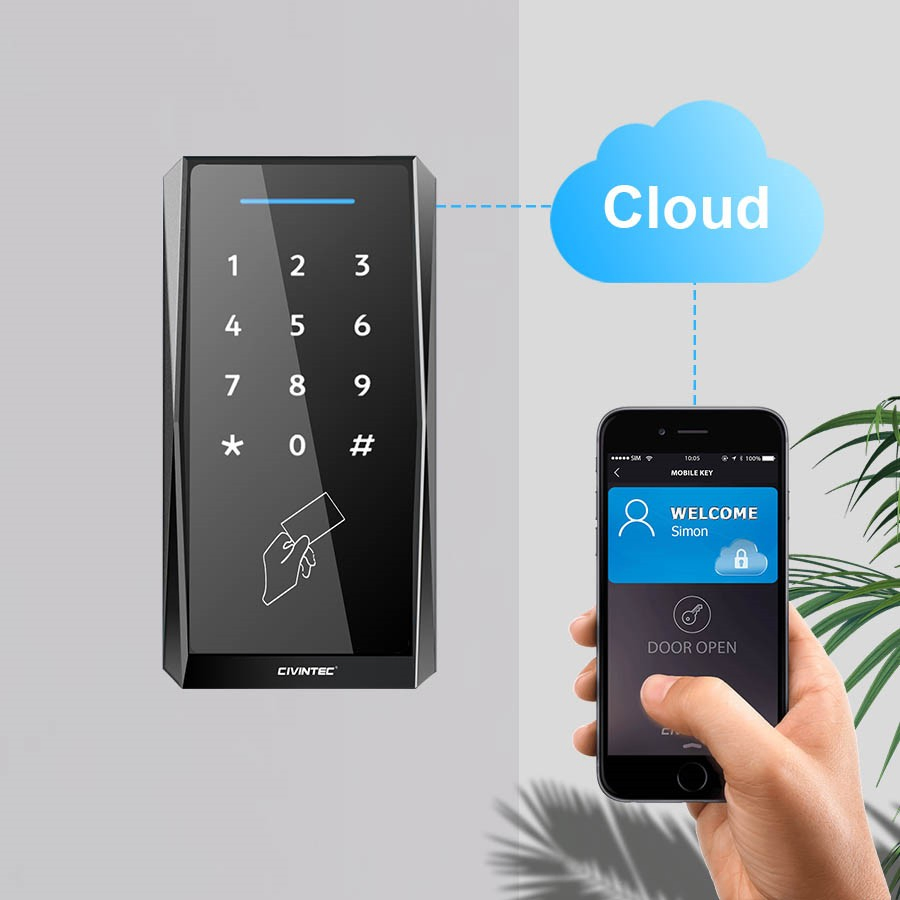

2 Cloud Server Remote Control
Bi-directional communication via standard HTTP & HTTPs for remote door lock control and IoT facility management.

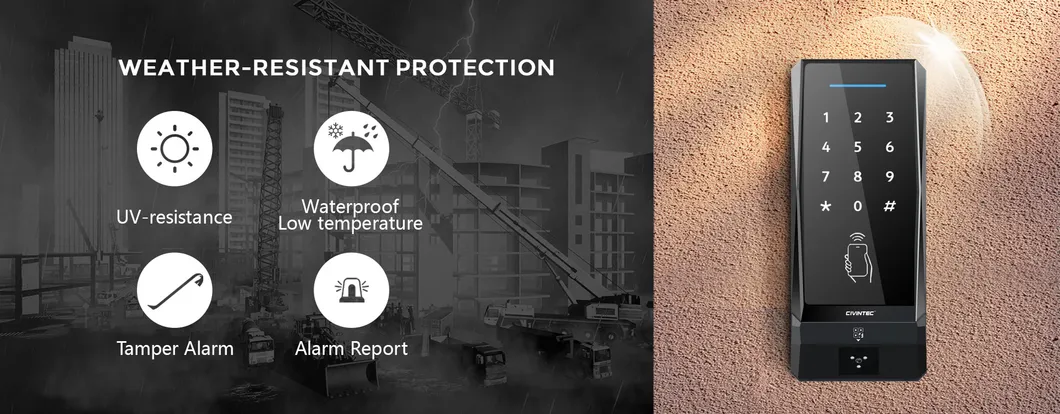

3 Weather-Resistant Protection
With an IP65 rating, the device is resistant to rain, dust, and strong sunlight, making it ideal for outdoor use and rugged environments.

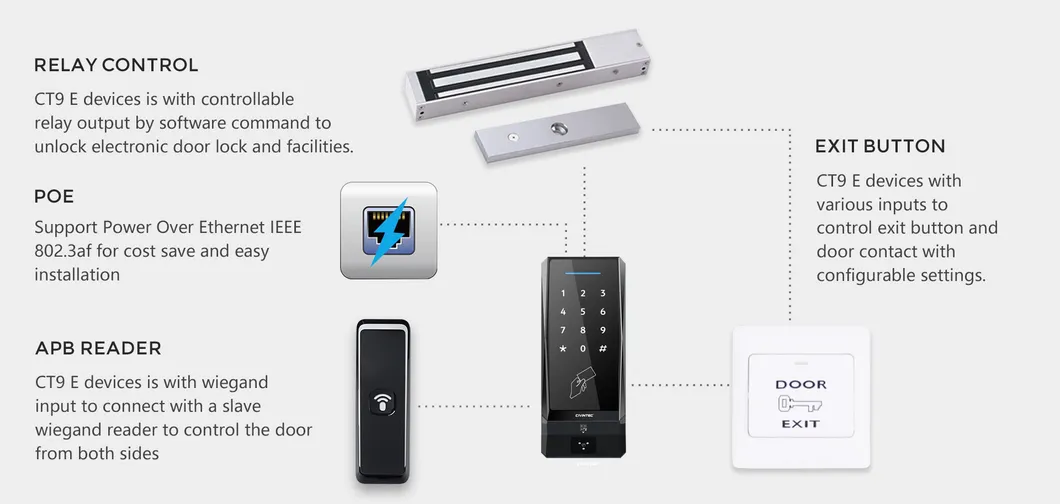

🔗 System Configuration
🛠️ Support & Services
We offer customization for hardware, housing, and firmware. Users can program and display custom logos on the 3.5" touch screen.
📂 Related Products
❓ Frequently Asked Questions
Q1: What identification technologies does the CT9 E support?
A: It supports a 5-in-1 credential system including RFID (125KHz & 13.56MHz), Mobile Access via BLE and NFC, QR Code/Barcodes, and a Touch PIN code.
Q2: Can this terminal be used for outdoor installations?
A: Yes, it features an IP65 protection rating, making it waterproof and resistant to UV rays, ideal for outdoor and rugged environments.
Q3: Does the device support Power over Ethernet (PoE)?
A: Yes, it supports PoE IEEE 802.3af, allowing for power and data transmission over a single cable.
Q4: How many users can the CT9 E handle in offline mode?
A: The terminal supports up to 10,000 users and 50,000 event logs in offline mode. When connected to a server online, the user capacity is unlimited.
Q5: What are the communication options for cloud integration?
A: It offers multiple communication interfaces including 4G LTE, WiFi 2.4GHz, and TCP/IP (RJ45) Ethernet using HTTP/HTTPs protocols.
Q6: Is it possible to customize the display?
A: Yes, the device features a touch screen that allows for custom programming and the display of your own brand logo.
