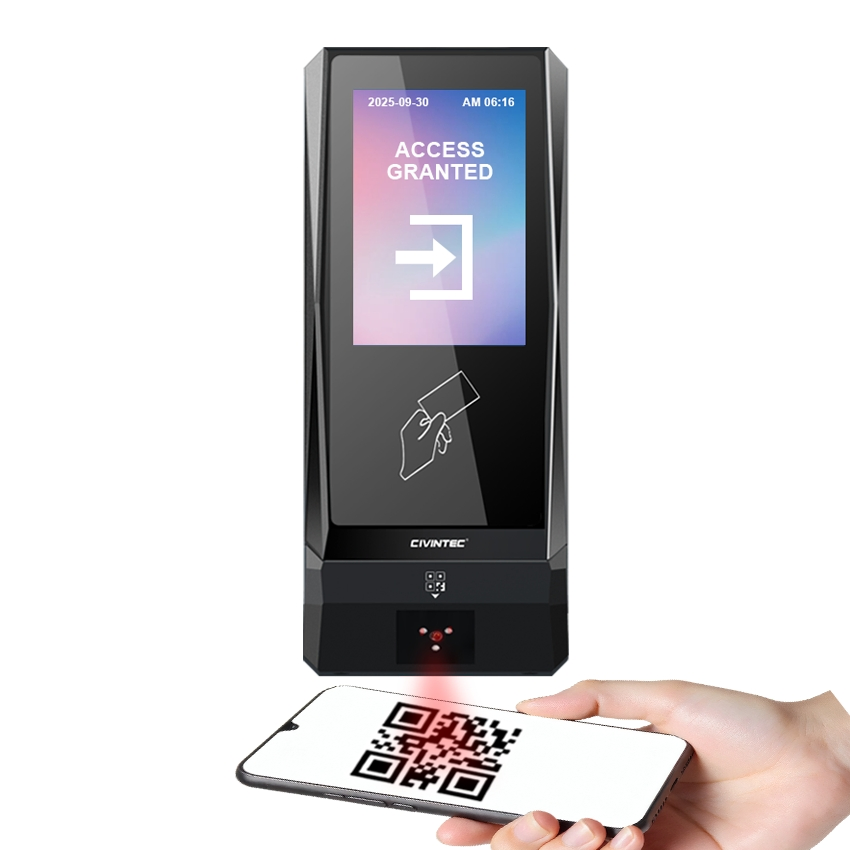

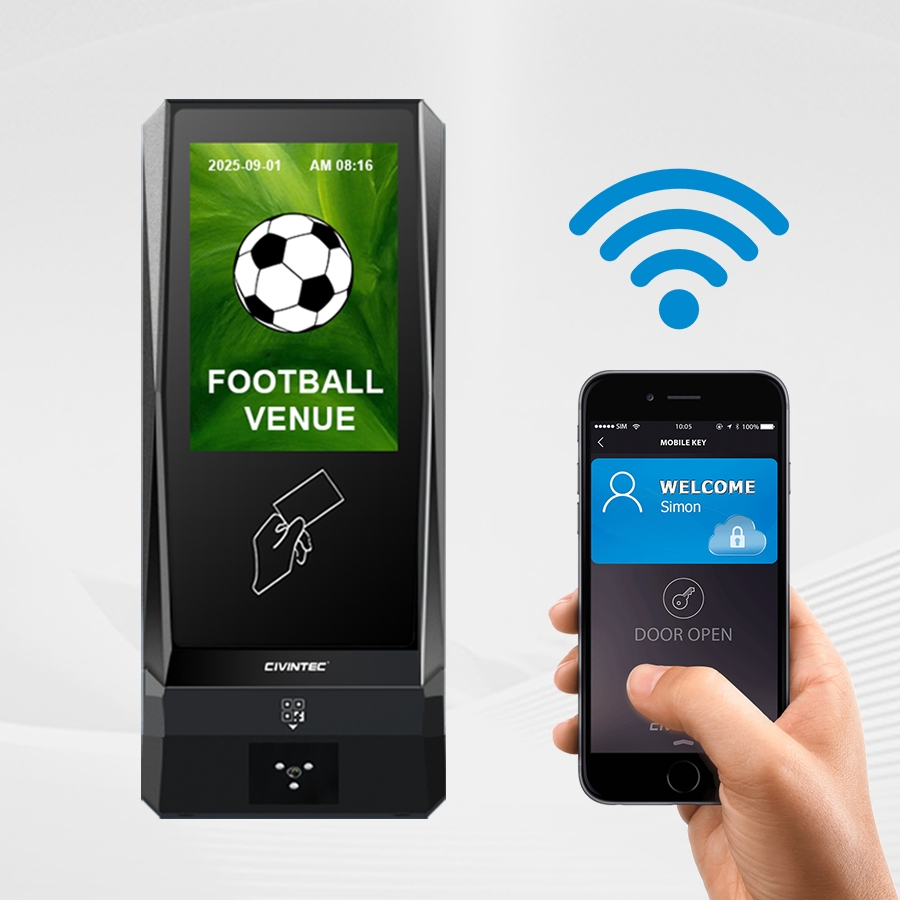

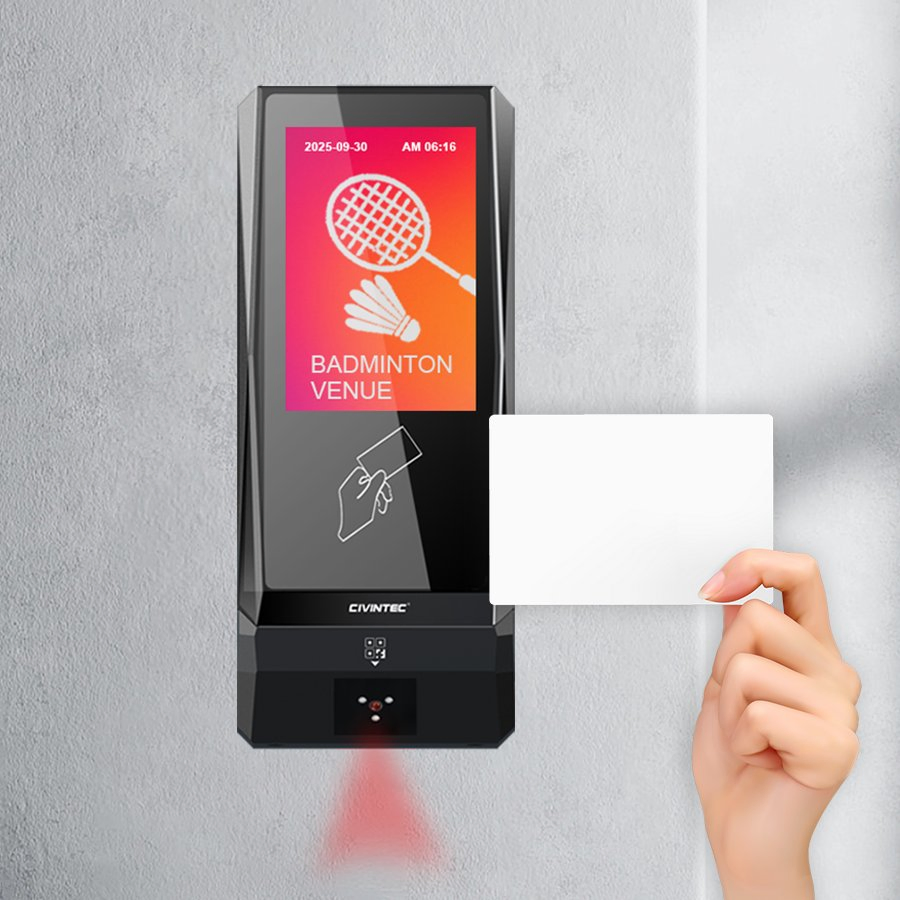

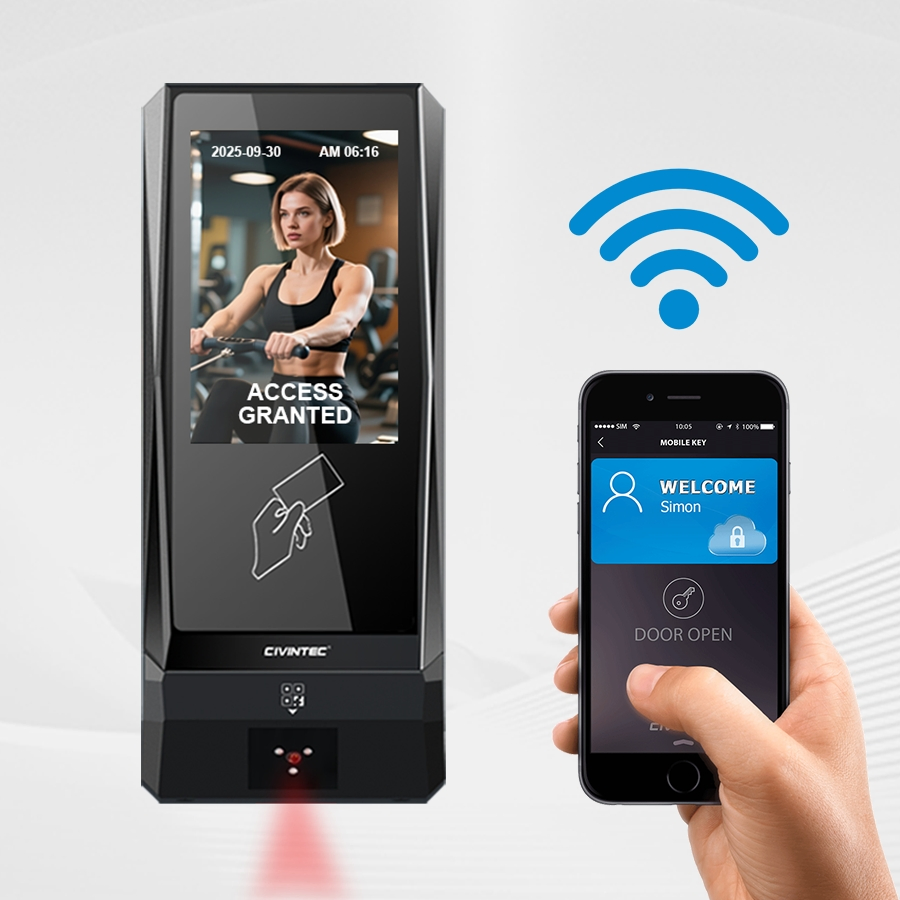

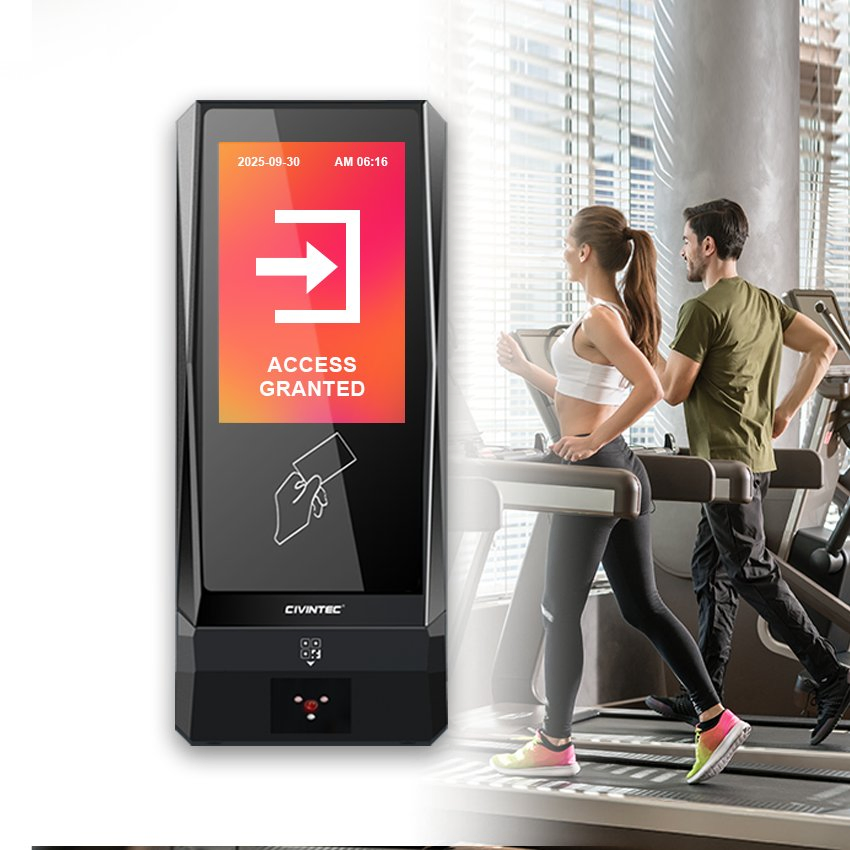

CT9 IP65 Wireless Blue-Tooth Access Control Device NFC RFID Card Entry System for Fitness Room Gym
Product Description
📋 Basic Specifications
| Model NO. | CT9 PRO |
| Reading Distance | 10cm-15m |
| Application | Parking, Hospital, Library, Company, Bank, Store, Office, Factory, School, Data Center, Airport, Gym |
| Product | Access Control Terminal with Reader |
| Operating System | Linux OS |
| Display | 3.5" Touch Screen Display |
| Identification | RFID, NFC, BLE, Pin Code, Optional QR Code |
| RFID Card | 13.56MHz 125kHz |
| Mobile Credential | NFC, BLE |
| I/O Port | 1~2 Relay, Tamper alarm switch, Door contact, Exit button |
| Interfaces | 4G, WiFi, TCP/IP, RS485 OSDP, Wiegand |
| IP Protection | IP65 Waterproof, UV Resistance |
| Power | 12-24V DC; PoE IEEE 802.3af |

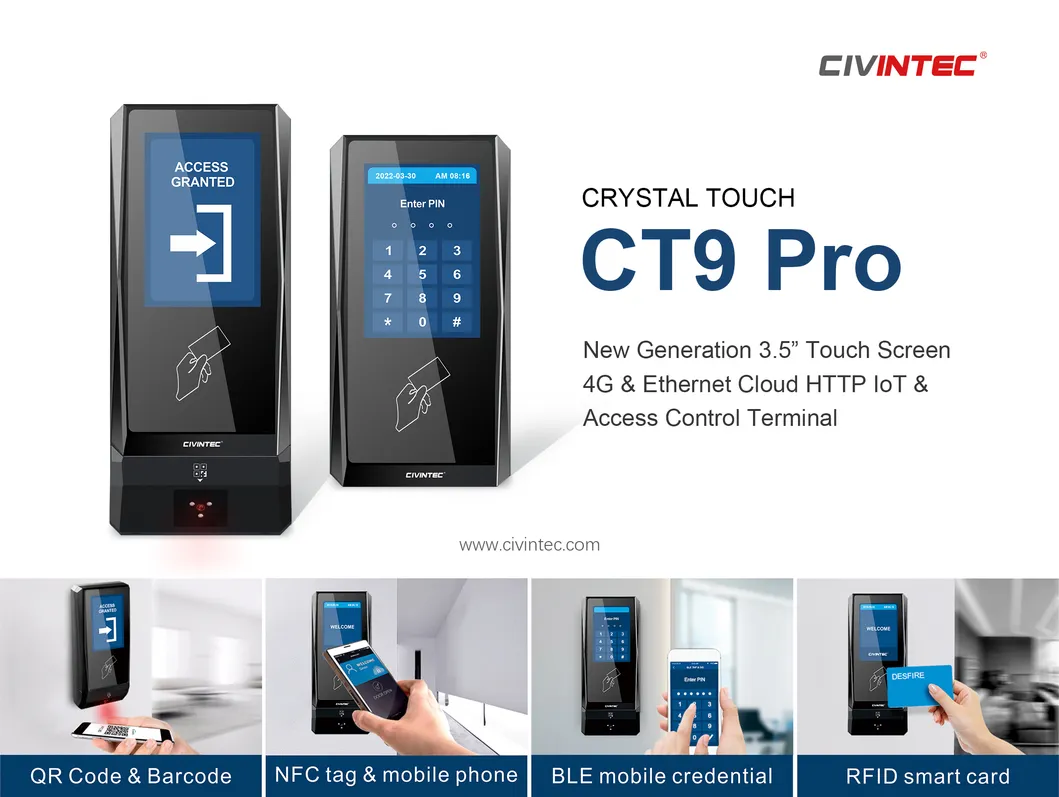

🔍 Product Overview
CT9 Pro is a Linux-based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication. It features an embedded relay to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, and QR CODE / barcode scanning via mobile phone.
🚀 Key Features

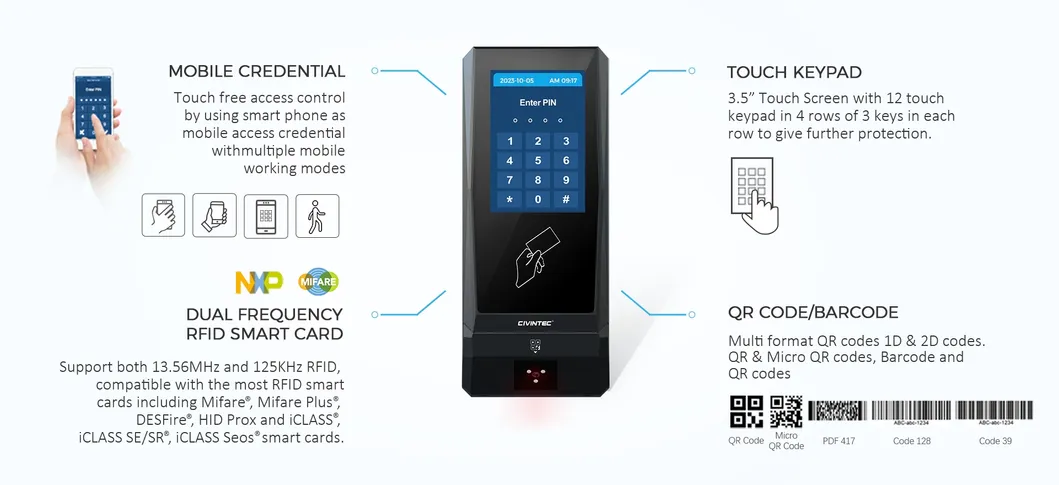

Multiple Access Credentials
Incorporates 5-in-1 technologies: touch keypad, dual-frequency RFID (125KHz & 13.56MHz), BLE & NFC mobile access, and QR code/barcode scanning for comprehensive visitor management.

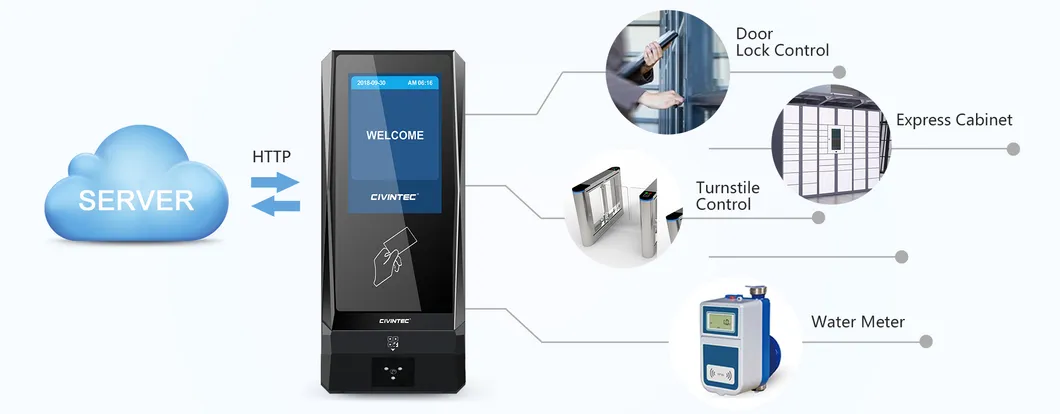

Cloud Server Remote Control
Bi-directional communication via standard HTTP & HTTPs protocols allows for remote door control and advanced IoT facility management.

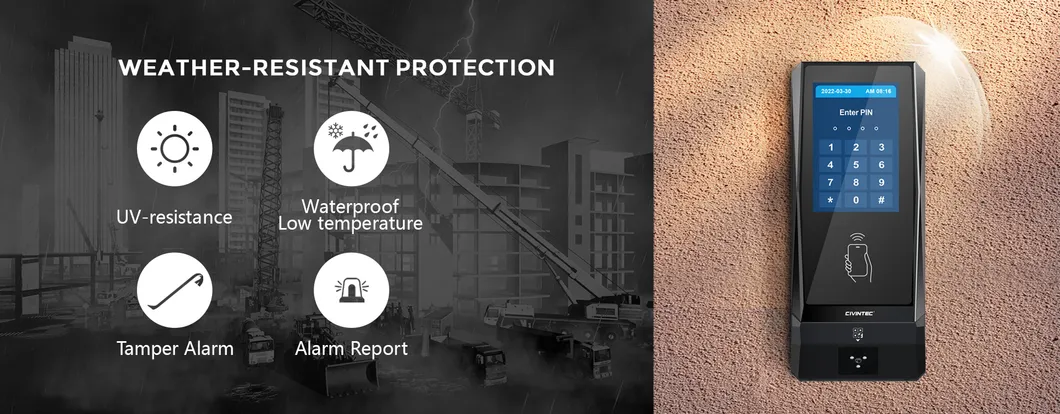

Weather-Resistant Durability
With an IP65 rating, the terminal is resistant to rain, dust, and strong sunlight, making it ideal for outdoor use and rugged environments.

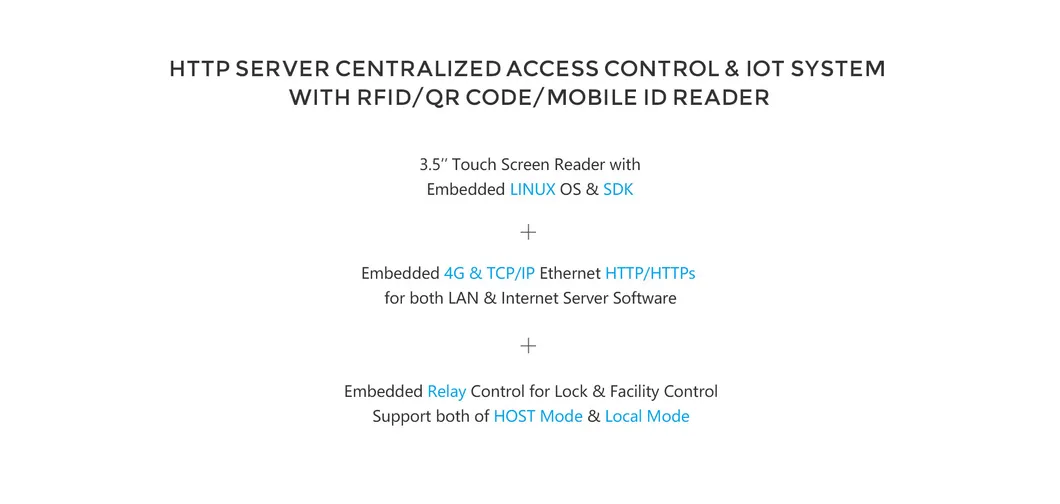

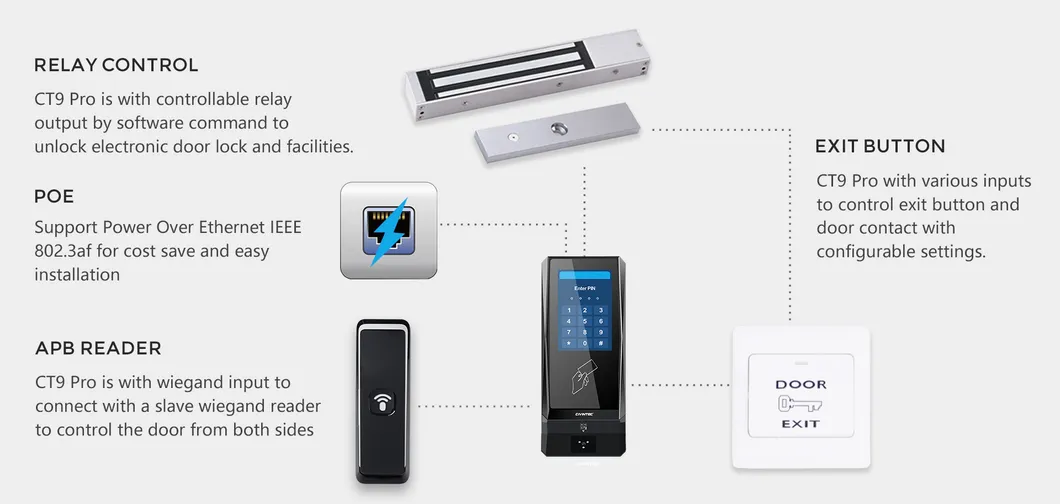

⚙️ System Configuration

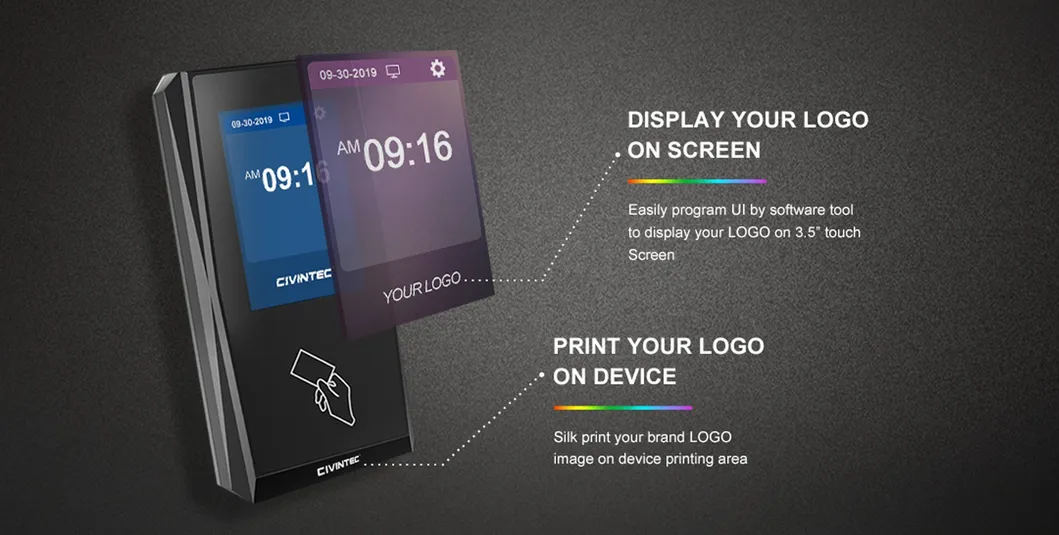

🛠️ Professional Customization
We provide extensive customization options for hardware, housing, firmware, and software. Users can program and display their own logos on the 3.5" touch screen, and OEM logo printing is available for the reader body.
📦 Related Solutions
❓ Frequently Asked Questions
1. What access credentials does the CT9 Pro support?
The CT9 Pro supports 5-in-1 credentials including touch PIN code, RFID (125KHz & 13.56MHz), Mobile NFC, BLE, and QR code/barcode scanning.
2. Is this device suitable for outdoor installation?
Yes, it features an IP65 waterproof rating and UV resistance, making it suitable for both indoor and outdoor environments.
3. Does it support Power over Ethernet (PoE)?
Yes, the device is compatible with PoE IEEE 802.3af, as well as a standard 12-24V DC power supply.
4. Can I customize the display with my own company logo?
Absolutely. The 3.5" touch screen allows for free programming and display of custom logos.
5. What communication interfaces are available?
It supports 4G, WiFi, TCP/IP, Wiegand, and RS485 (OSDP 1 & 2 protocols).
6. How many users can the device store in offline mode?
The standard capacity is 10,000 users and 50,000 event logs, with more available upon request.
