Shenzhen Face Recognition IC Card Reader Swing Barrier Gate Facial Recognition Door Access Control System
Product Description
⚙️ Basic Information
Model NO.
AKA7C
System
Linux
CPU
RV1109 2 Core 1.5GHz
Facial Capacity
10000 / 20000 (1:N)
Camera
200W Binocular Live Camera
Recognition Time
Less Than 300ms
Interface
RS485, USB, TCP/IP, Wiegand
Material
Aluminum Alloy
⚡
High Speed
<300ms Recognition
🛡️
Protection
IP55 Rated
🖥️
Display
7-inch IPS Screen
👥
Capacity
Up to 20,000 Faces
📝 Technical Specifications
| Hardware & Performance Details | |
|---|---|

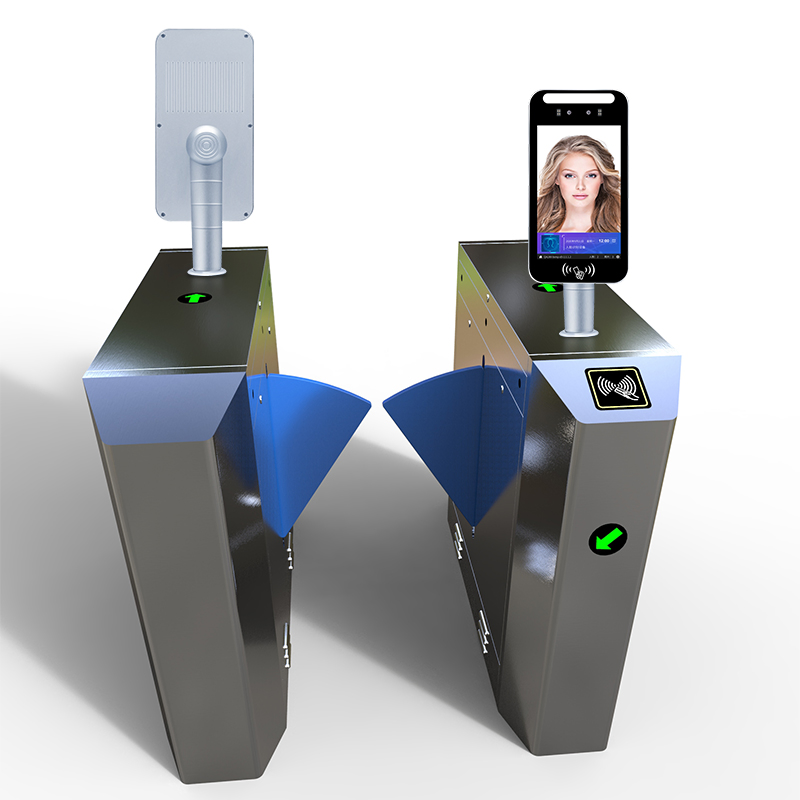

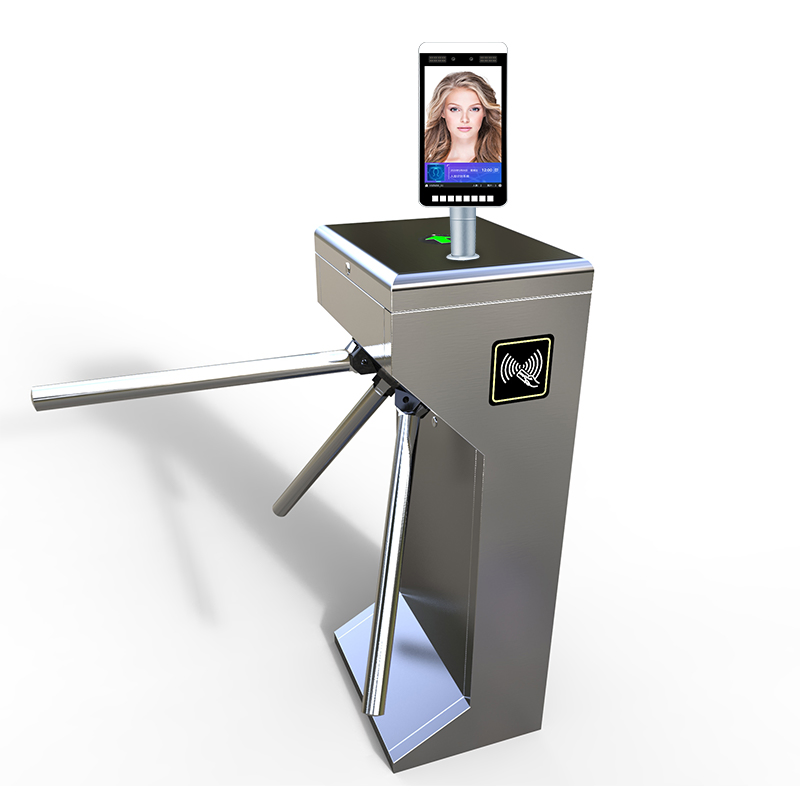

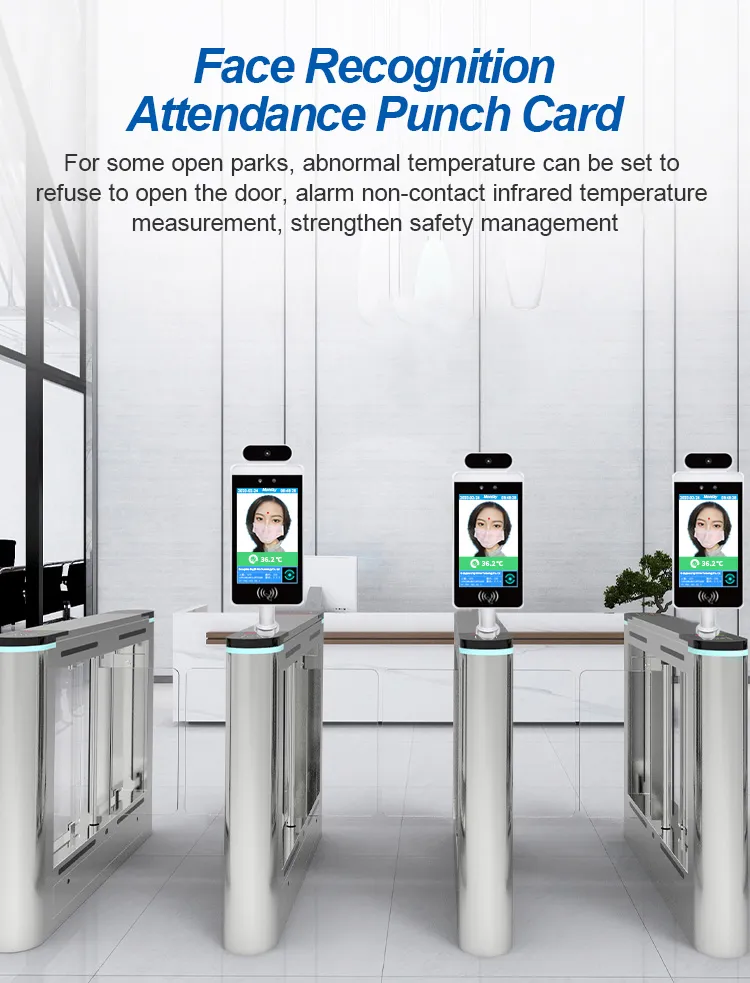

| Installation Scenarios | Wall-mounted installation, gate installation |
| Working Environment | -15ºC to 55ºC, <90% RH |
| Protection Level | IP55 |

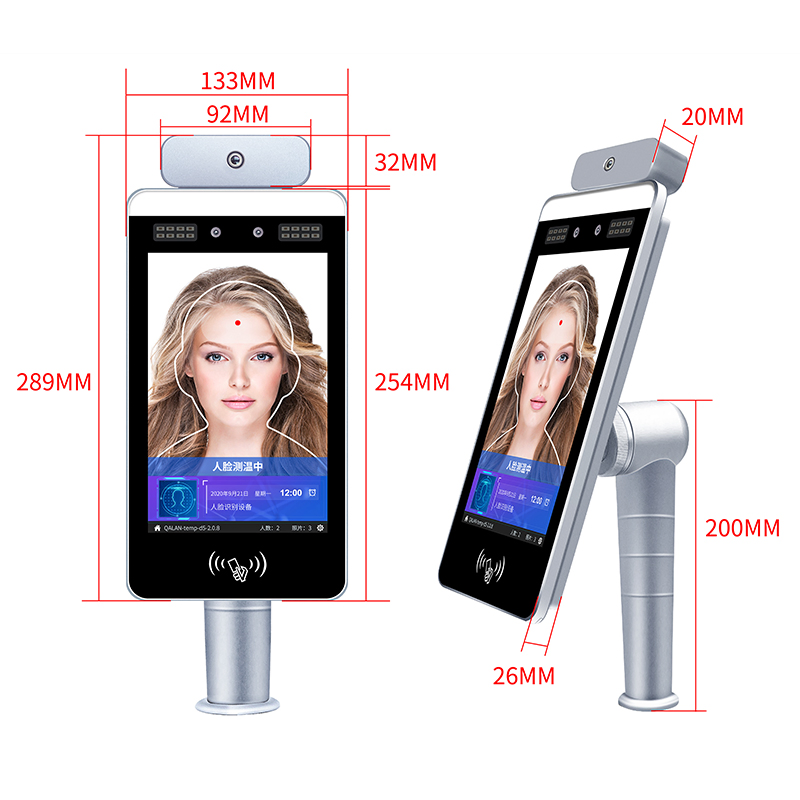

| Body Size | 246*21.5*123mm |
| Storage | RAM 1GB, Data Storage 8GB |
| Display Resolution | 7-inch IPS LCD, 600*1024 |
| Recognition Distance | 0.5 - 2 Meters |
| Accuracy Rate | 99.70% |
| Fill Light | Three-color fill light & Infrared fill light |
| Card Recognition | Optional IC/ID card swiping module |

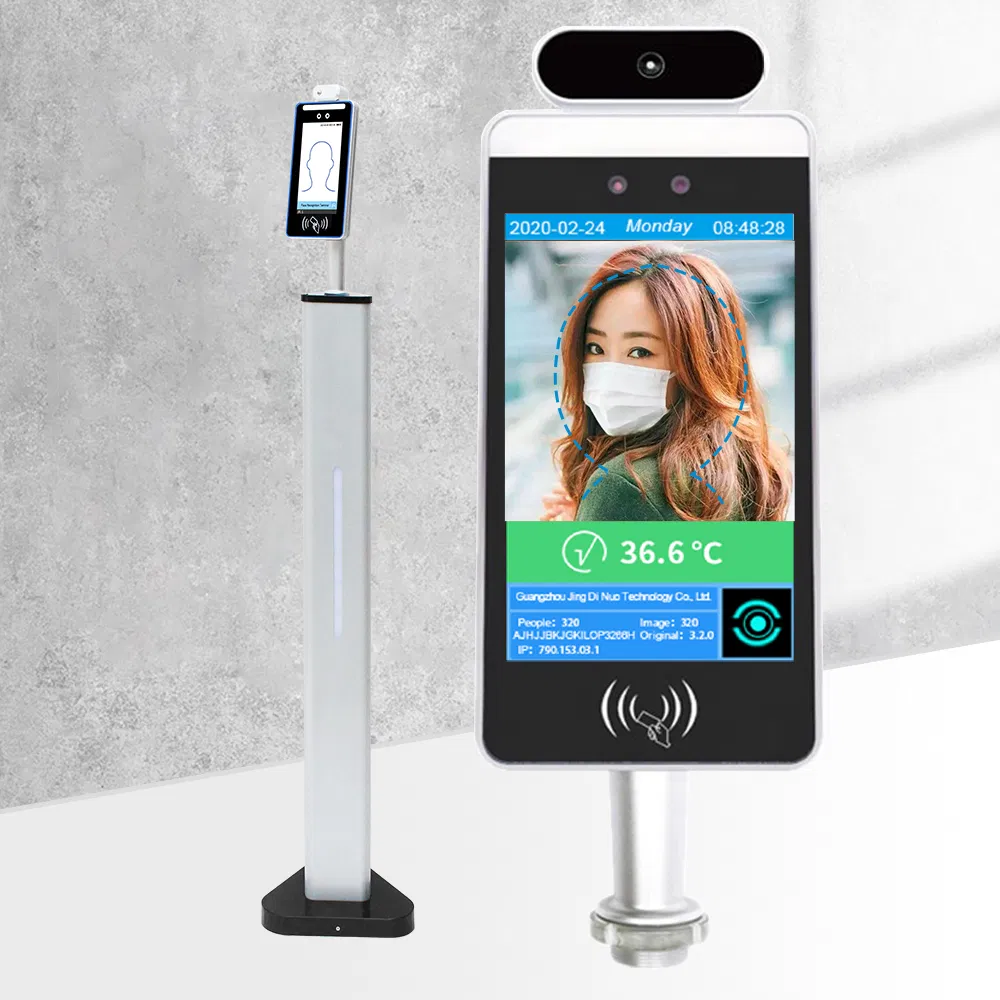

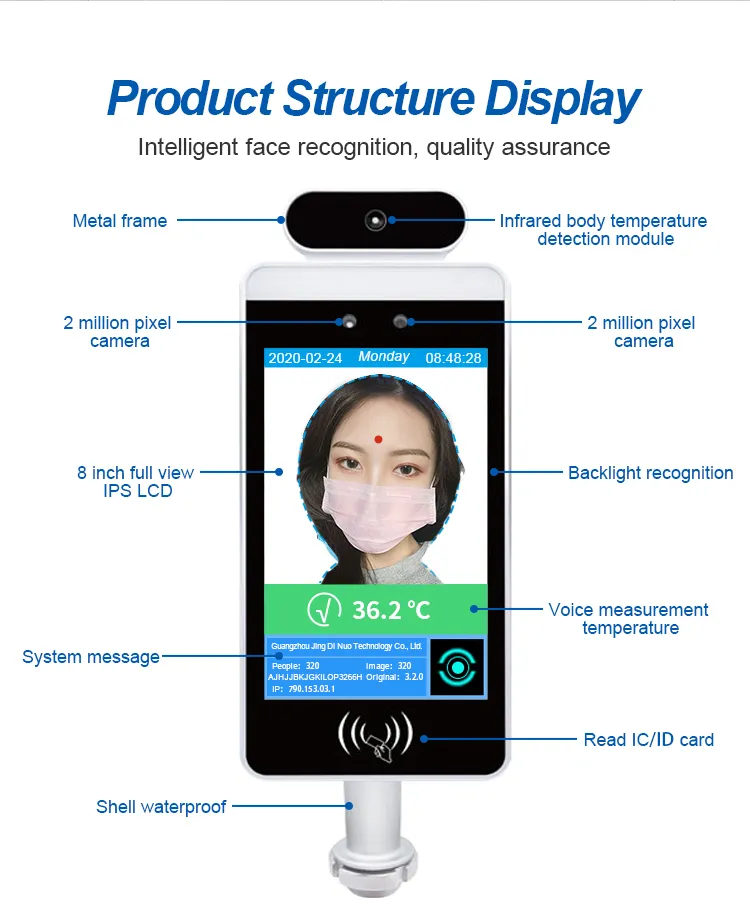

🖼️ Product Showcase
❓ Frequently Asked Questions
How fast is the facial recognition process?
The system is highly efficient, with a recognition time of less than 300ms, ensuring smooth and rapid access.

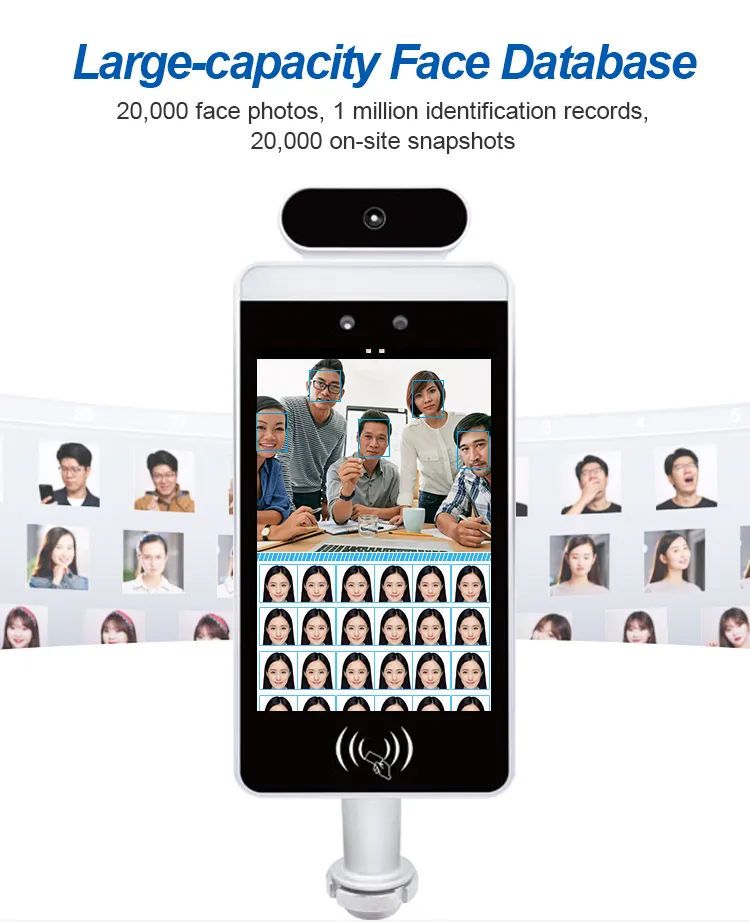

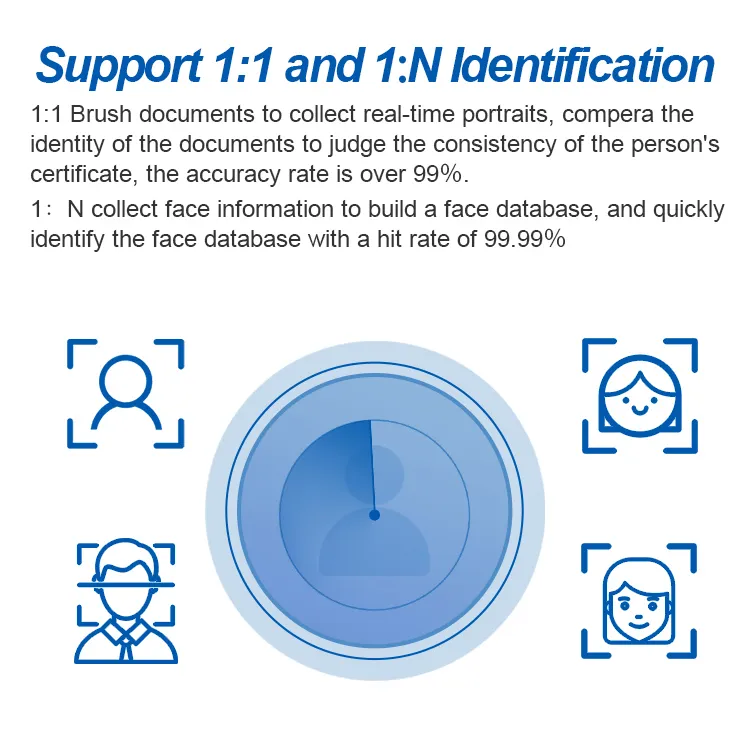

What is the maximum face library capacity?
The device supports a large face library capacity of up to 20,000 users for 1:N recognition.

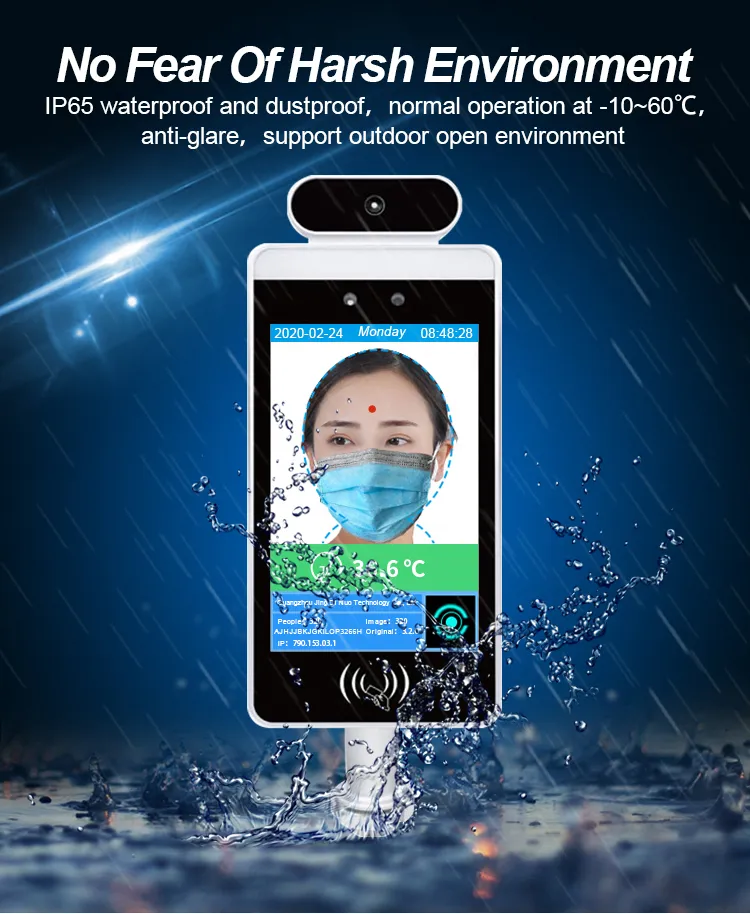

Can this device be installed outdoors?
Yes, it features an IP55 protection level and can operate in temperatures ranging from -15ºC to 55ºC, making it suitable for various environments.
Does the system support card swiping?
Yes, it supports optional IC/ID card recognition modules via USB or serial interface for multi-factor authentication.
What type of camera technology is used?

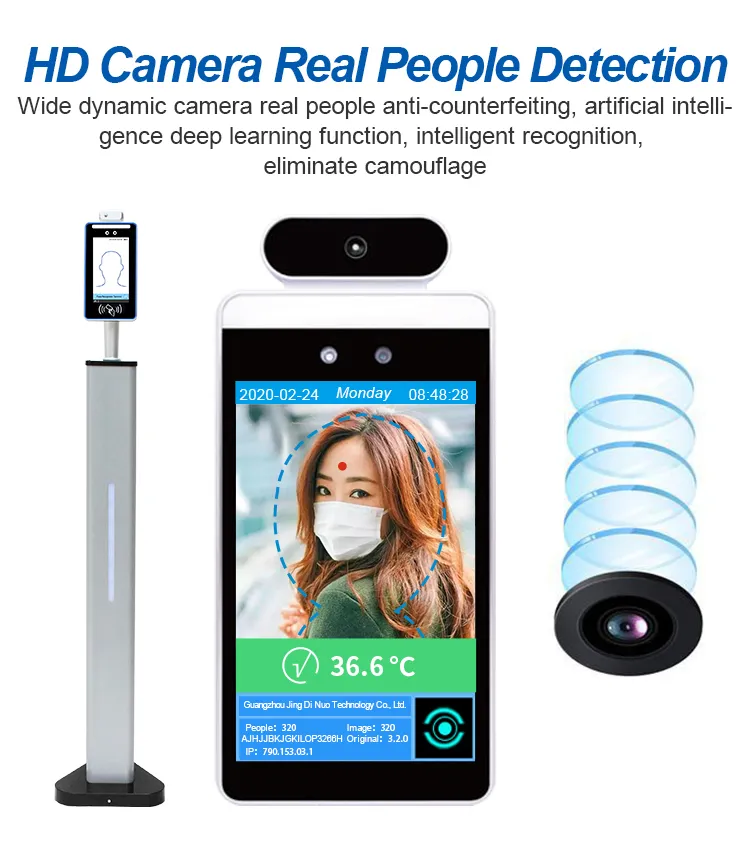

It utilizes a 200W binocular live camera system, which provides high-accuracy recognition and supports wide dynamic range (WDR).

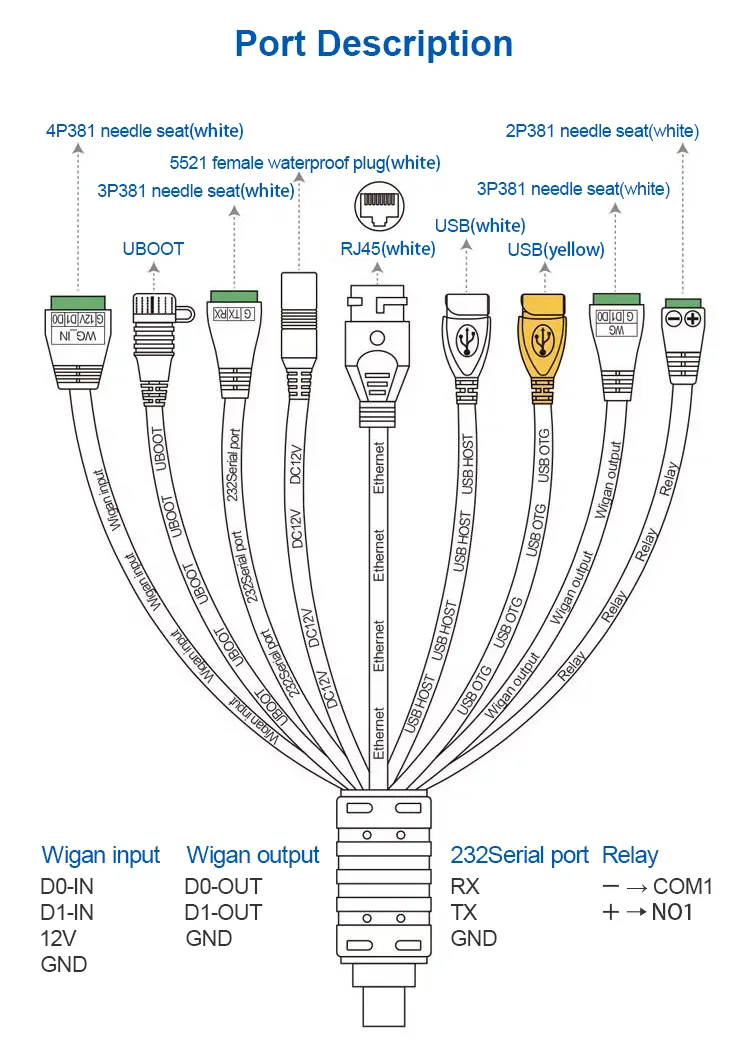

What are the available communication interfaces?
The system is versatile, supporting RS485, USB, TCP/IP, and Wiegand interfaces for easy integration with existing security systems.
