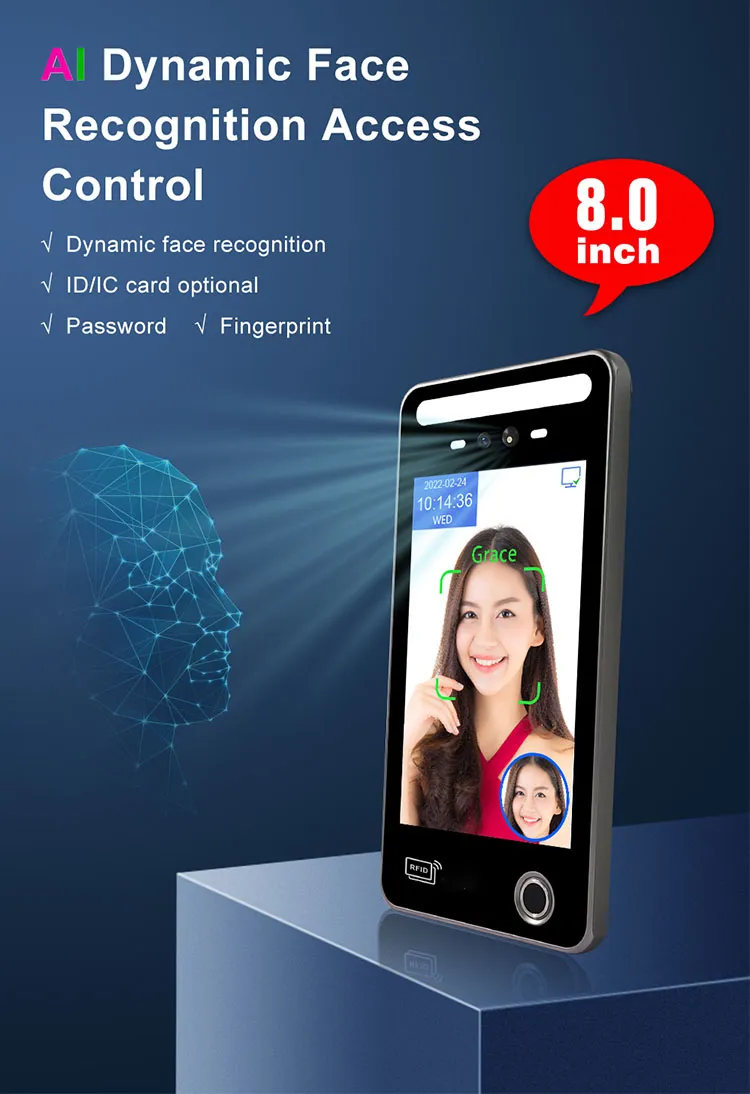

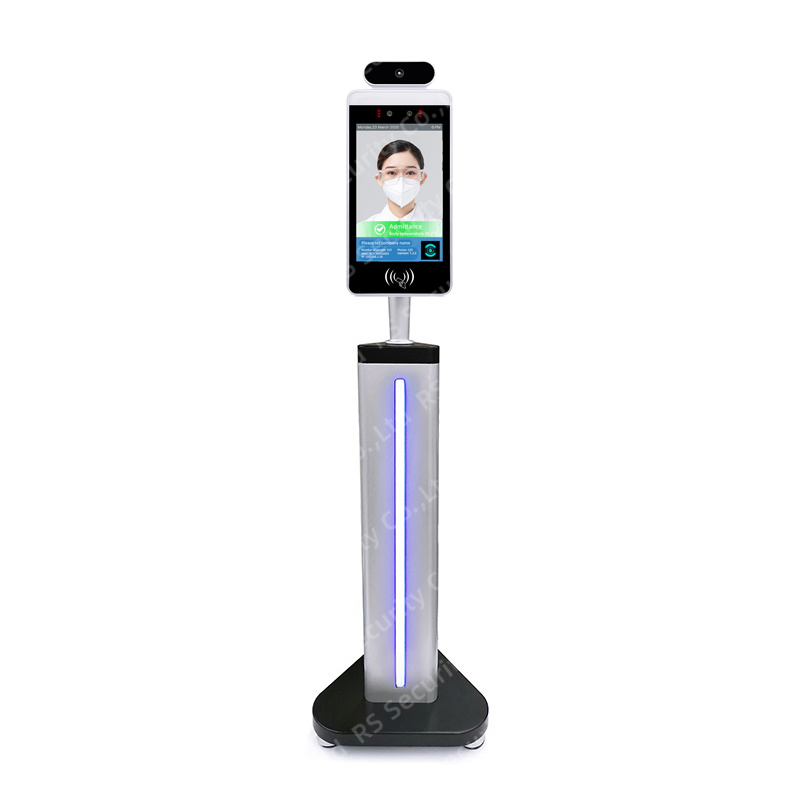

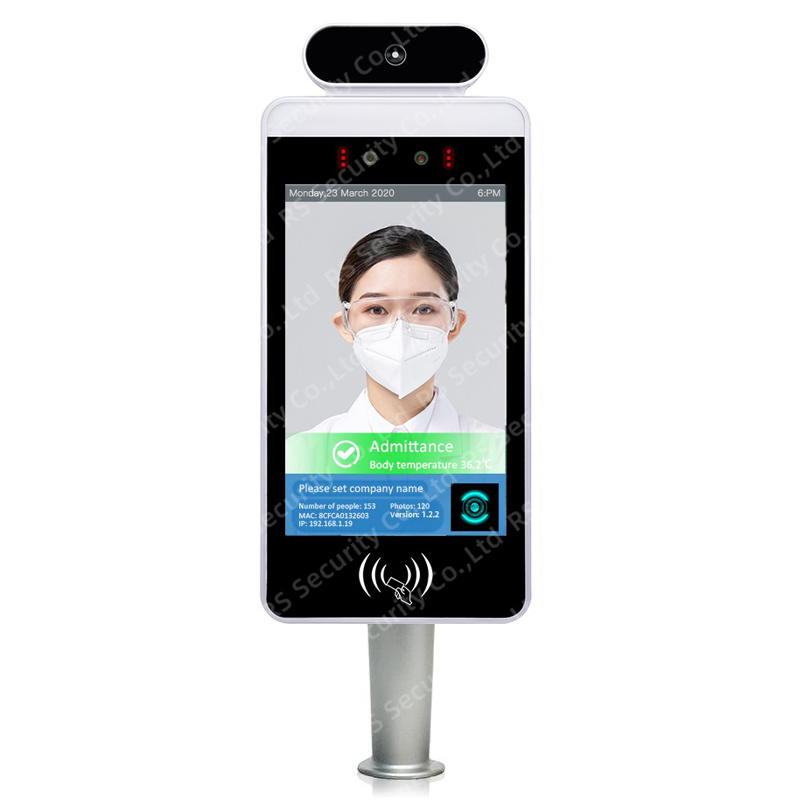

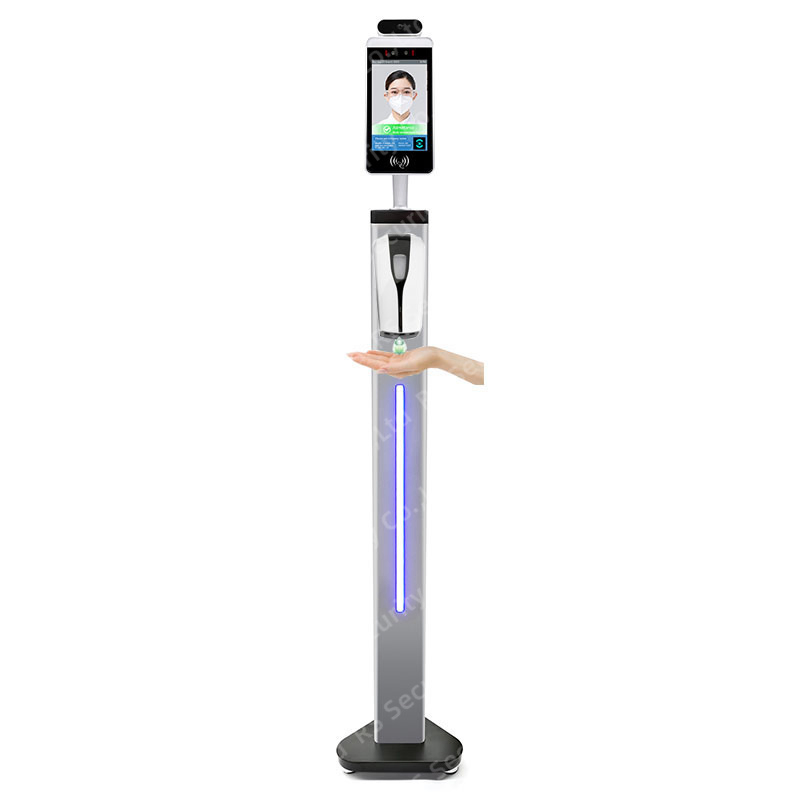

Biometric Iris Scanner Face Facial Recognition Fingerprint Card Access Control System with Temperature Scanner (hm001)
Product Description
i
Overview
20000 Face Capacity USB Android RFID Card Face Recognition Access Control Security System with Sdk
Face recognition is a kind of biometric identification technology based on human facial feature information. Using video cameras to collect images, it automatically detects and tracks human faces to perform facial recognition, also known as portrait recognition.
Face recognition is a kind of biometric identification technology based on human facial feature information. Using video cameras to collect images, it automatically detects and tracks human faces to perform facial recognition, also known as portrait recognition.
Model NO.
RS 8001E1
Clock
With Clock
Voice Service
With Voice Service
Facial Capacity
1200
Communication
RS485, RS232, USB, TCP/IP
Type
Card
Usage
Access Controller
HS Code
85308000
Capacity
1000 PCS/Month
⚙
Product Parameters
| Product Name | Temperature Face Recognition |
| Model | RS 8001E1 |
| Screen | 8.0 Inch, HD 800*1280, Capacitive Touch Screen |
| Operation system | LINUX3.10 |
| CPU, NPU | 1.2G Dual-Core ARM Cortex-A7, 1200G (1.2T) |
| Binocular camera | 200W Colorful WDR + 200W Infrared live camera |
| Verification | Face recognition, password, 1D/IC card (optional) |
| Recognition Distance | 0.5~2.5 meters (0.5~1.5 meters with live face recognition on) |
| Capacity | Face: 50,000 / Card: 50,000 / Password: 50,000 |
| Power supply | DC 12V, 2A |
| Network | TCP/IP, Support CIS LAN, Wifi (optional) |

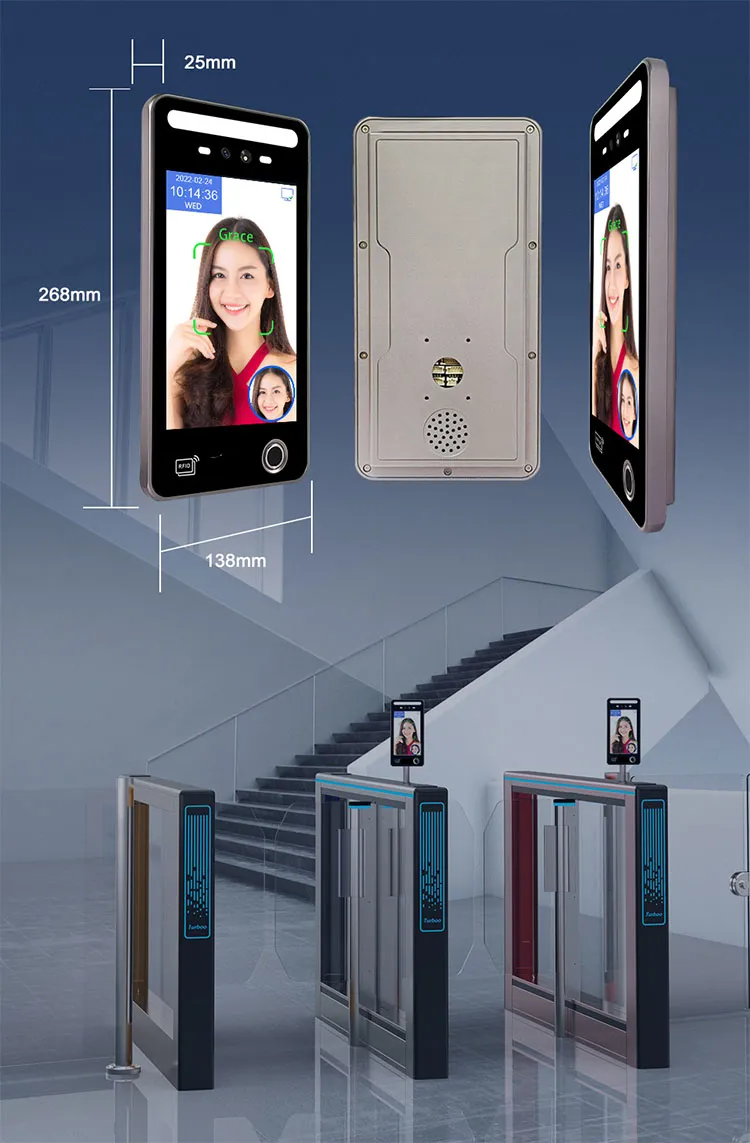

| Dimension | 265x132.6x20mm |
| Face recognition time | <0.2s |
| Magnetic door | Support |
| WG | 1 set WG In, out |
★
Function
- ✔ Works in Dark, Back Light, and Strong Light environments.
- ✔ Supports multiple people recognition simultaneously.
- ✔ Multi-verification: Face, Fingerprint, IC/ID card, and Password.
- ✔ Supports secondary development with provided SDK package.

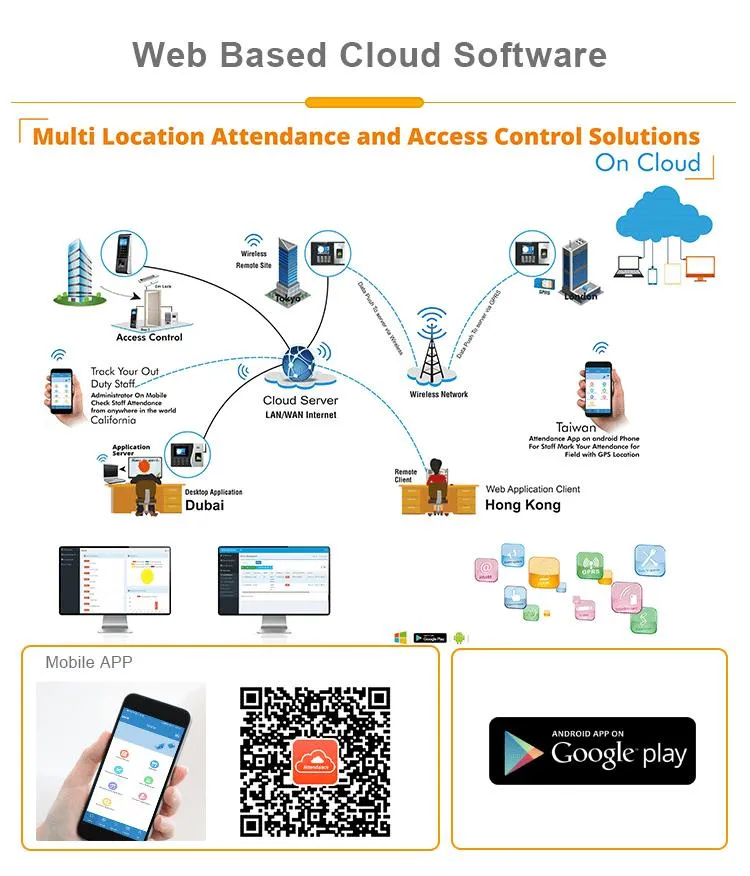

- ✔ Local and Cloud system software availability.
- ✔ 3 Recognition Distance Modes: Long(2.5m)/Middle(1.5m)/Short(0.5m).

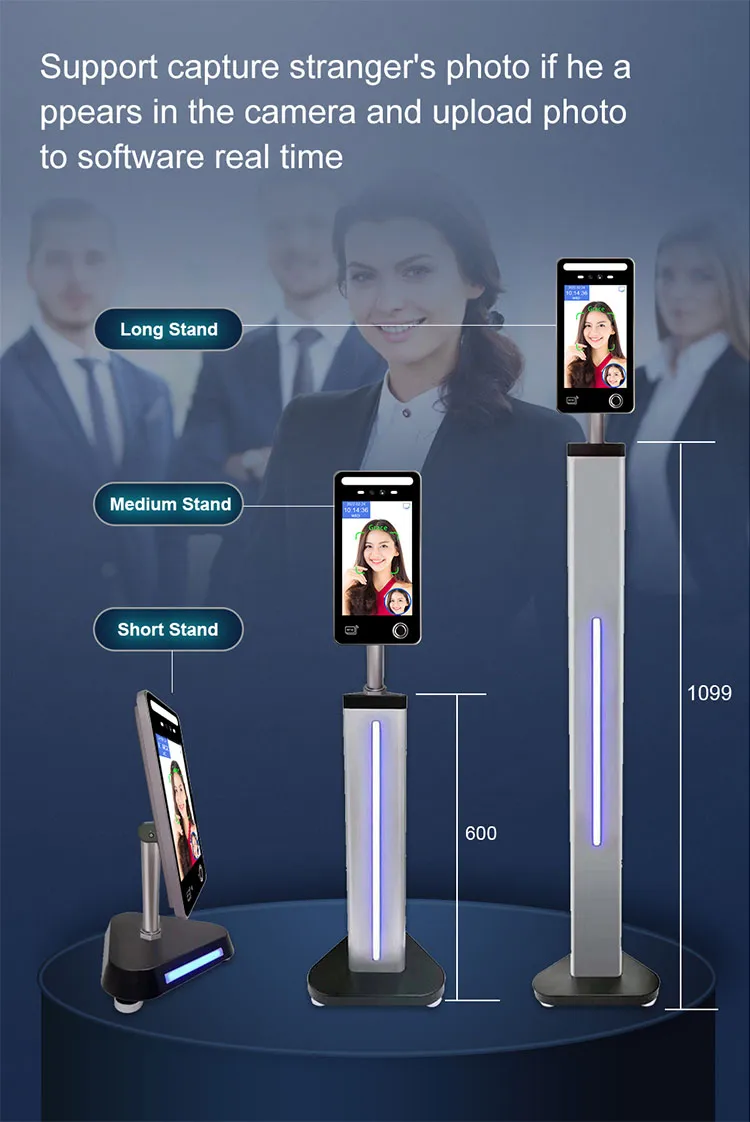

- ✔ Stranger Mode: Capturing and recording unauthorized individuals.
- ✔ Free Time Attendance and Access Control System.
- ✔ Customized Logo and Screen Saver support.
- ✔ Integrated Mask Detection functionality.
📷
Detailed Photos
?
Frequently Asked Questions
What is the maximum face recognition capacity of this system?
The system supports up to 50,000 faces, cards, and passwords, making it suitable for large-scale enterprise environments.
How fast does the facial recognition process take?
The recognition speed is exceptionally fast, taking less than 0.2 seconds to verify and grant access.
Can the device function in low-light or dark environments?
Yes, it features a binocular camera system (Colorful WDR + Infrared) that allows it to work effectively in dark, back-lit, and strong light conditions.
Does the system support mask detection?
Yes, the system includes integrated mask detection functionality to comply with health and safety protocols.
What communication interfaces are supported for networking?
The device supports TCP/IP for LAN communication as standard, with optional Wifi support and RS485/RS232/USB interfaces.
Is there a software provided for attendance tracking?
Yes, we provide both local software and cloud-based system software for free time attendance and access control management.
