Cloud Entry Door Security System with TCP/IP Interface 4G WiFi Network RFID NFC/BLE Mobile Credential Access Control Card Reader
Product Description
Basic Information
Product Overview

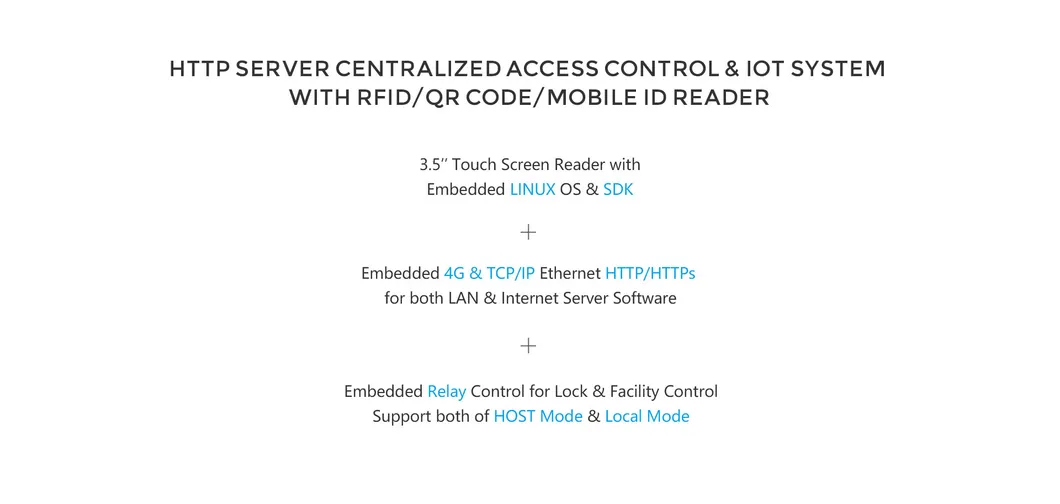

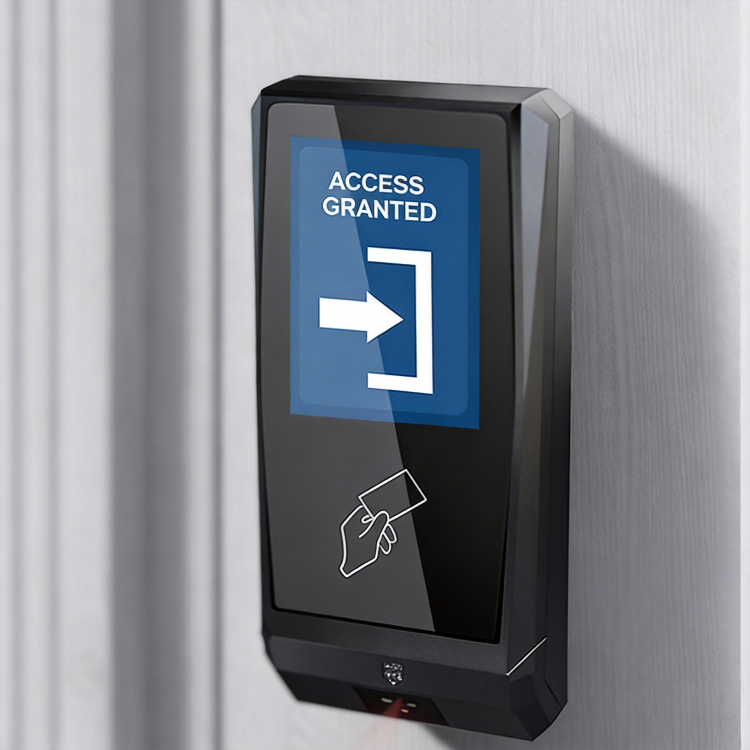

CT9 Pro is a Linux-based HTTP/HTTPS server centralized terminal featuring wireless 4G and TCP/IP Ethernet. It is designed for both LAN and Internet cloud server communication, with embedded relays to build versatile IoT and security solutions.
| Feature | Specification |
|---|---|
| Display | 3.5" capacitive touch screen |
| QR code | 1D & 2D Codes: QR Code, Micro QR, PDF417, Code 128, etc. |
| Mobile ID | BLE, NFC |
| RFID Smart Card | 125KHz EM, 13.56MHz Mifare Classic, Plus, DESFire EV1/EV2, HID Prox/iCLASS |
| Communication | 4G, TCP/IP, Wiegand, RS485 OSDP 1&2 |
| Power Supply | 12-30V DC; PoE IEEE 802.3af |
| I/O Port | 1~2 relay outputs, Tamper alarm, door contact, exit button |
| User Capacity | 10,000 users / 50,000 logs |
| Protection | IP65 outdoor/indoor use, UV-resistance |
Product Features

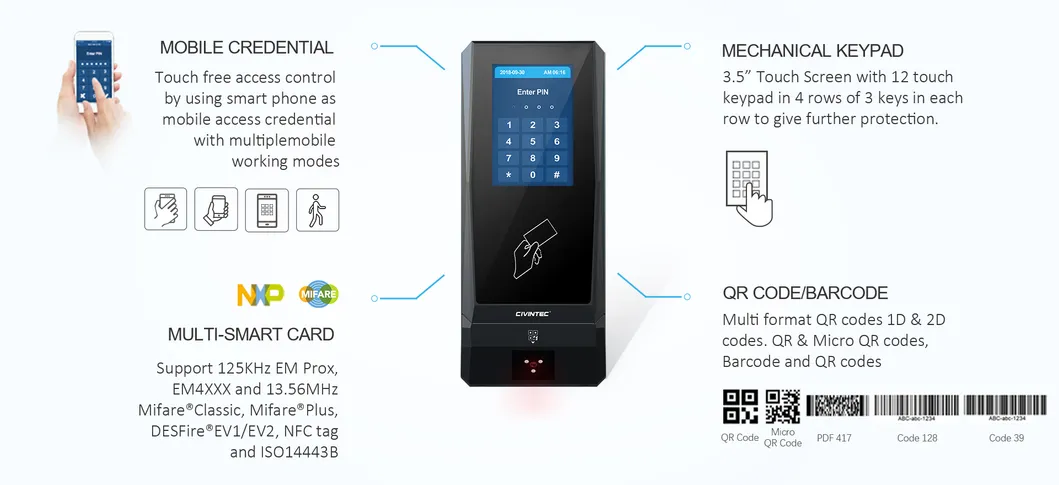

1Multiple Access Credentials

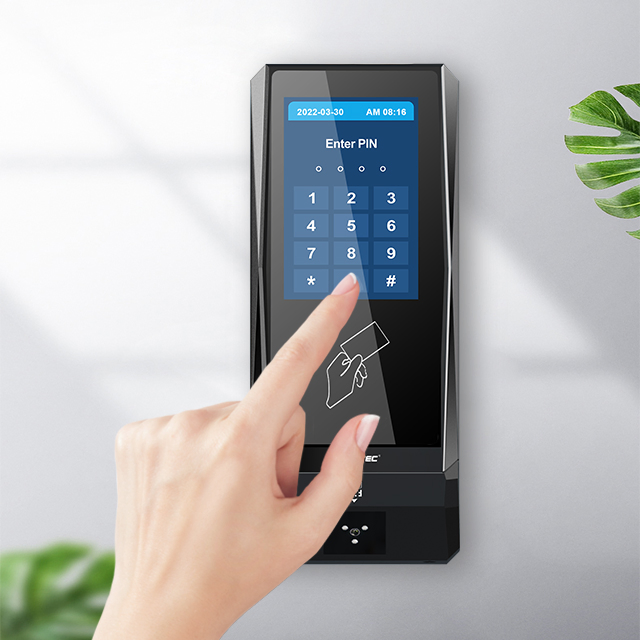

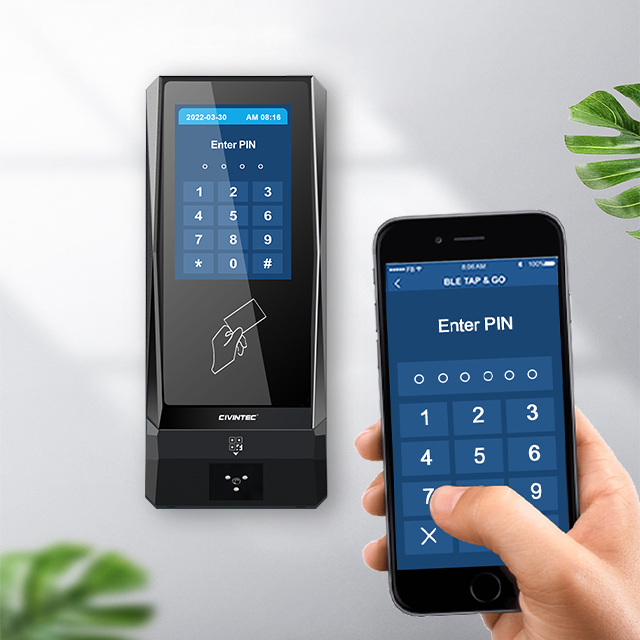

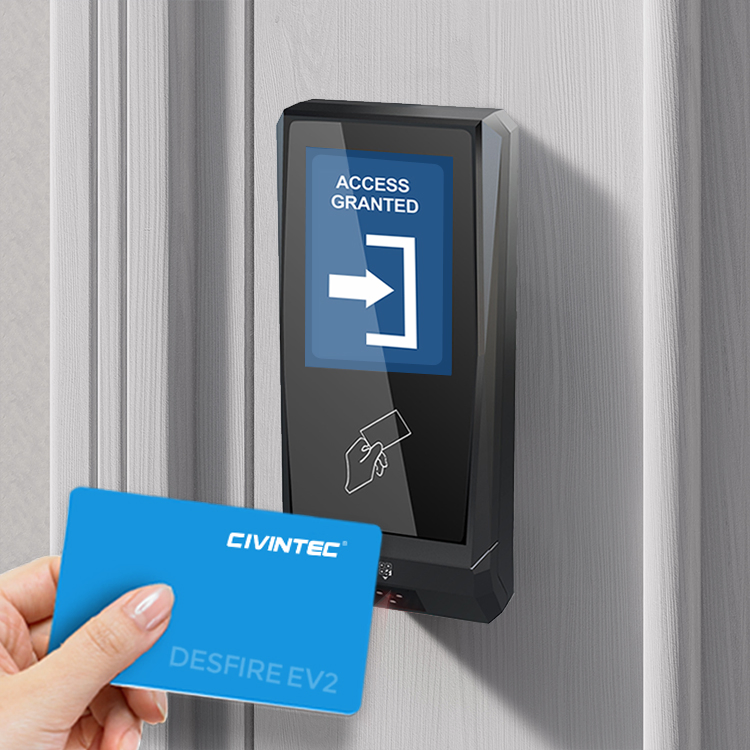

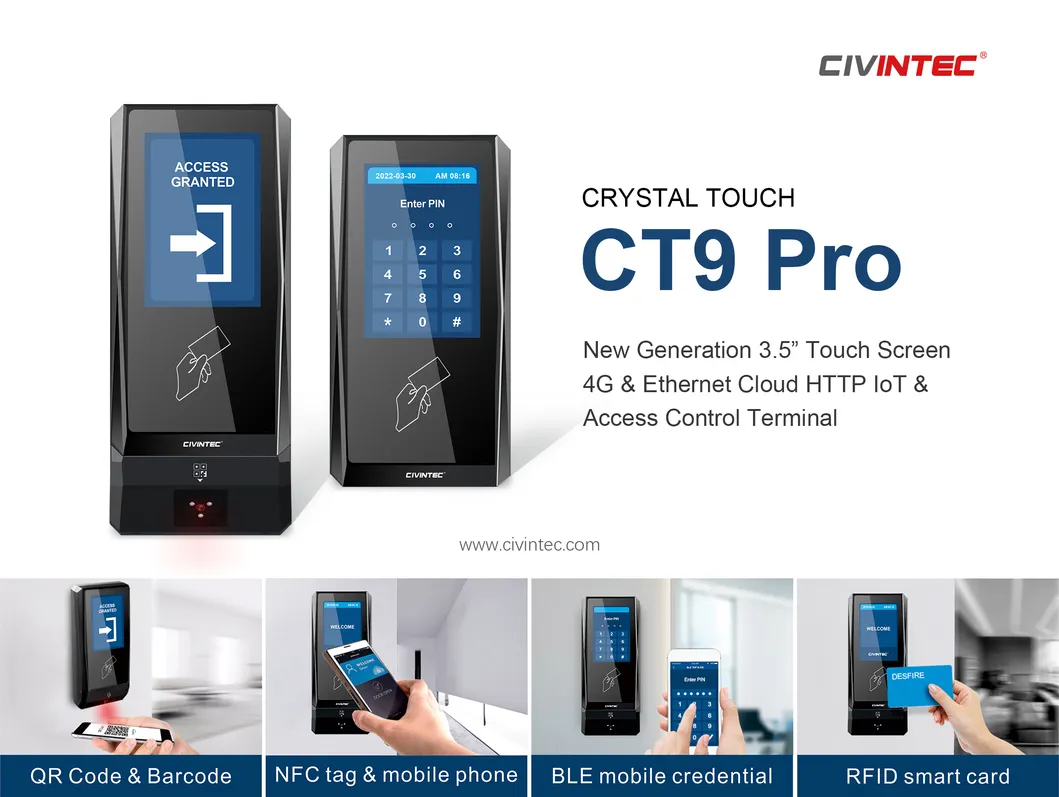

CT9 Pro incorporates 5-in-1 access technologies: touch keypad, dual RFID (125KHz & 13.56MHz), BLE & NFC mobile access, and QR CODE/barcode scanning for modern visitor management.

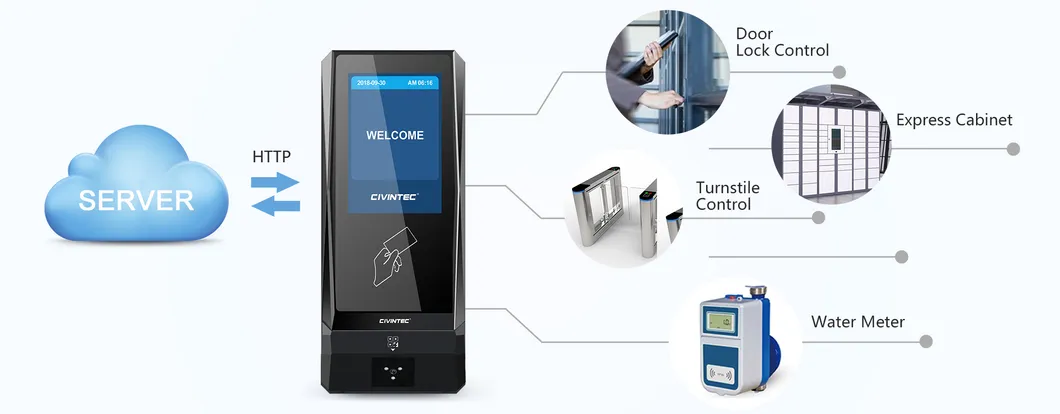

2Cloud Server Remote Control
Bi-directional communication via standard HTTP & HTTPS between the terminal and server allows for remote control of door locks and various IoT facility management tasks.

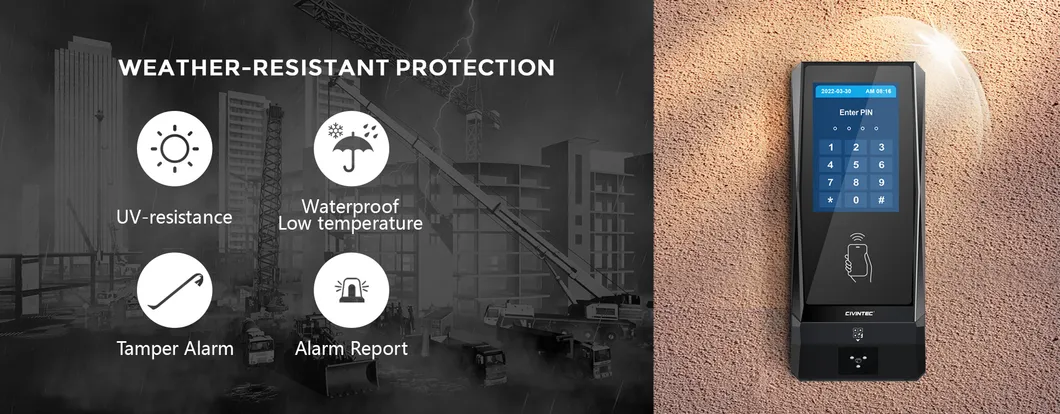

3Weather-Resistant Protection
With an IP65 rating, the terminal is resistant to rain, dust, and strong sunlight, making it ideal for outdoor installation and rugged working environments.

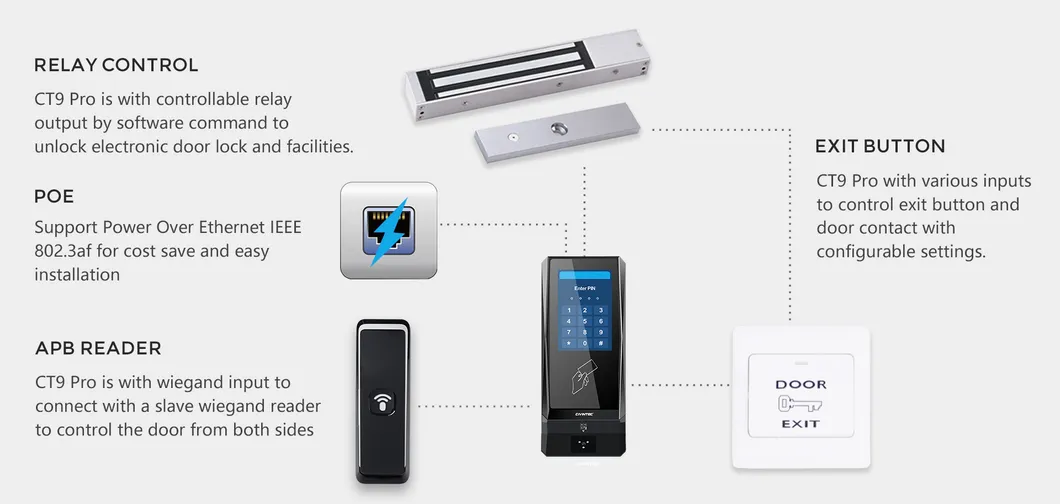

System Configuration
Services & Customization
Leading designer and manufacturer of access control devices, offering ODM customization on hardware, housing, firmware, and software design.
Related Products
Frequently Asked Questions

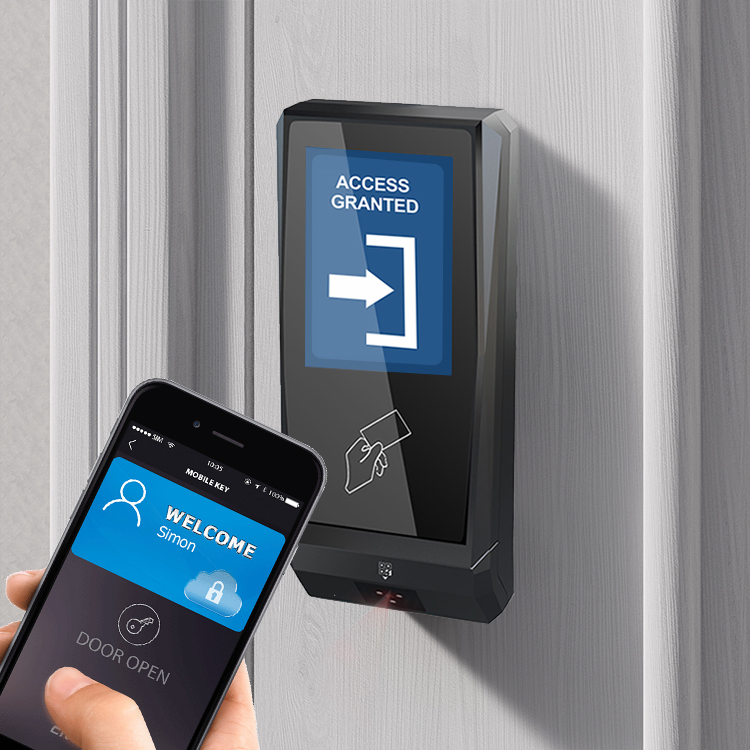

A1: The CT9 Pro supports both BLE (Bluetooth Low Energy) and NFC (Near Field Communication) for mobile phone-based access.
A2: Yes, the device has an IP65 rating, meaning it is weather-resistant against rain, dust, and UV exposure, suitable for outdoor use.
A3: It uses standard HTTP and HTTPS protocols for encrypted bi-directional communication with centralized cloud servers.
A4: Yes, it supports PoE IEEE 802.3af, allowing for both data and power through a single Ethernet cable.
A5: The standard configuration supports up to 10,000 users and 50,000 event logs, with more available upon request.
A6: Yes, users can program and display their own logo on the 3.5-inch touch screen, and OEM logo printing on the body is also available.
