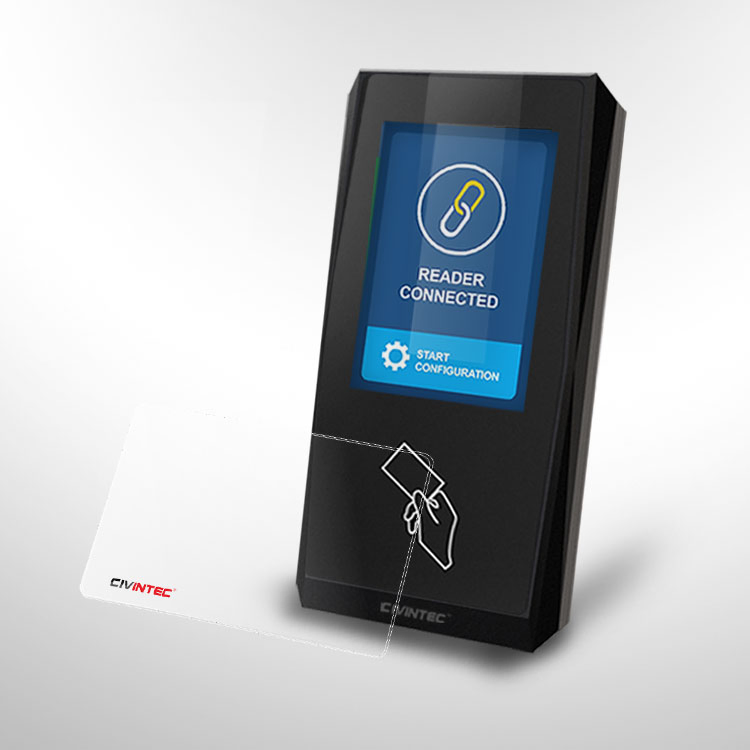

3.5" Linux IP Proximity RFID NFC Smart Card Reader for Multi Room Access Control System with Sdk Software Customizable
Product Description

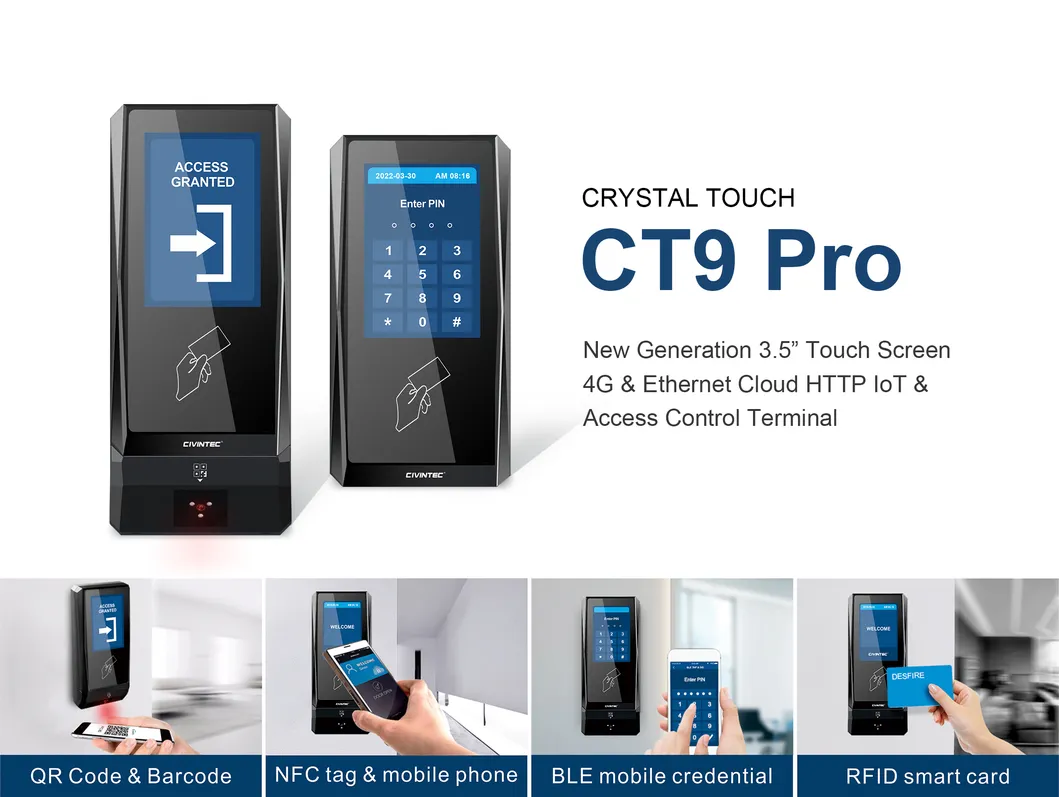

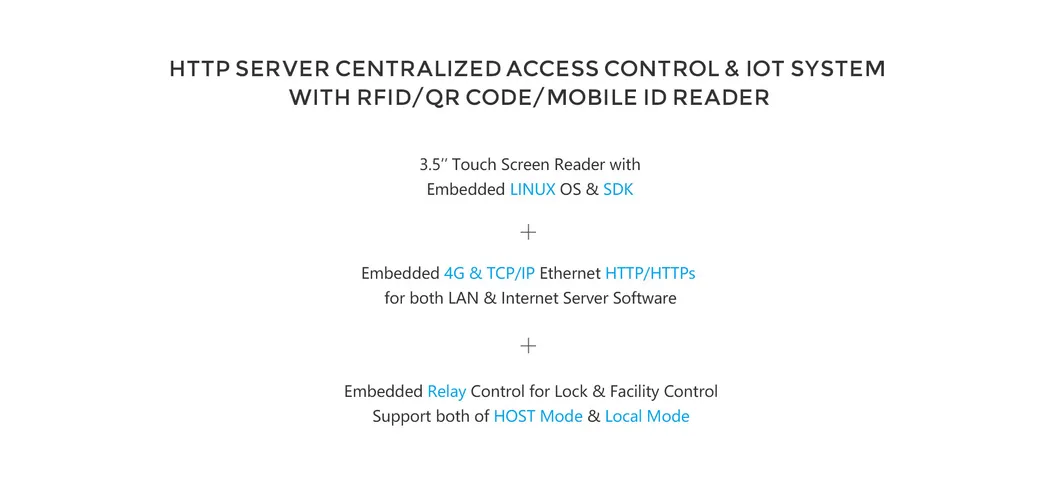

CT9 Pro is Linux based HTTP/HTTPs server centralized terminal with wireless 4G and TCP/IP Ethernet suitable for both LAN and Internet cloud server software communication, with embedded reply to build versatile IoT and security solutions. It supports 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, QR CODE/barcode by using mobile phone.
| Display | 3.5" capacitive touch screen |
| QR code | Multiple formats supported (1D & 2D Codes): QR Code, Micro QR code, PDF417, Code 128, Code 39 and most mainstream barcodes. |
| Mobile ID | BLE, NFC |

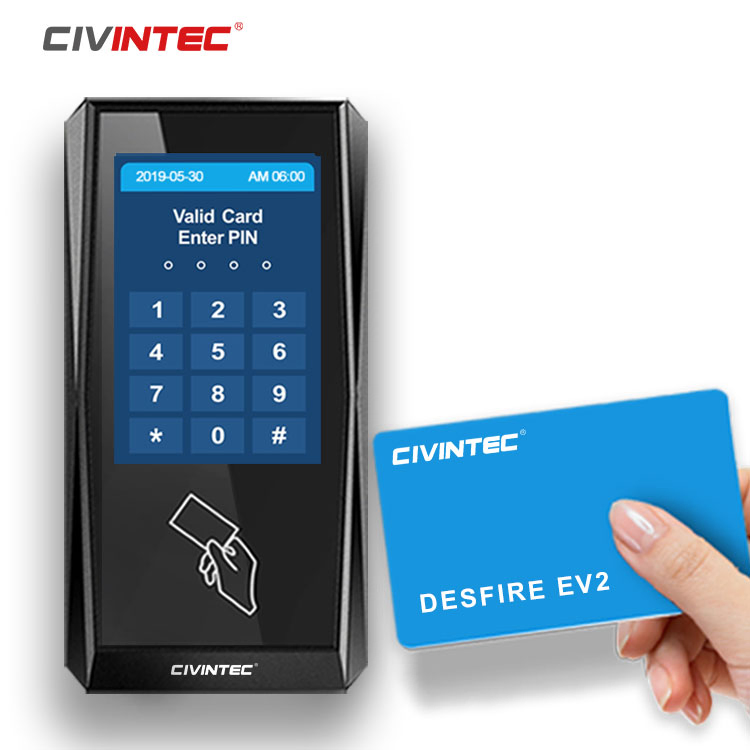

| RFID smart card | EM 125KHz, 13.56MHz ISO14443A Mifare Classic, Mifare Plus, DESFire EV1, EV2, NFC tags (T2T, T4T), ISO14443B |
| SAM slot | ISO7816(T=0,T=1) 1 SAM module |
| Communication | 4G, TCP/IP, Wiegand, RS485 protocol OSDP 1&2 |
| Power Supply | 12-30V DC; PoE IEEE 802.3af |

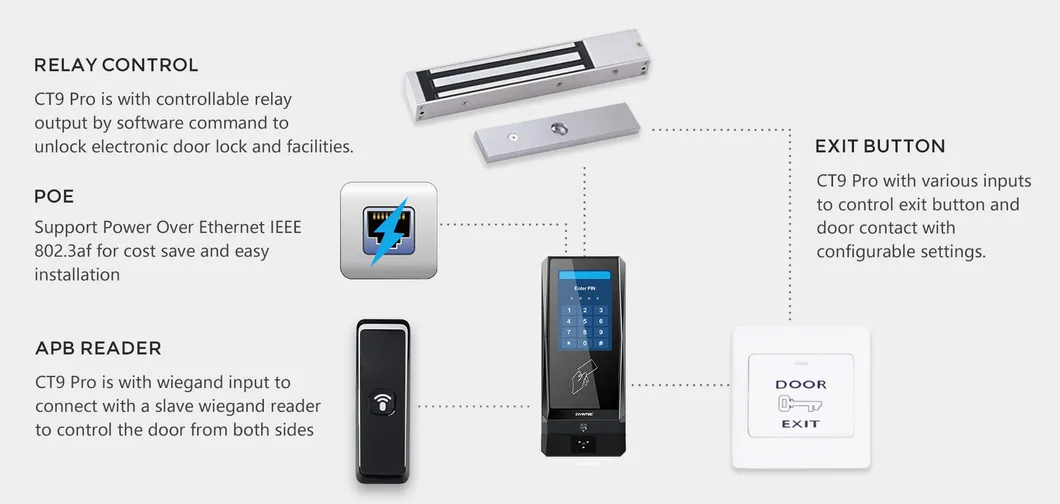

| I/O Port | Relay output, Tamper alarm switch, door contact, door exit, Buzzer control |
| Capacity | 10,000 users / 50,000 logs |
| IP protection | IP65 outdoor/indoor use |

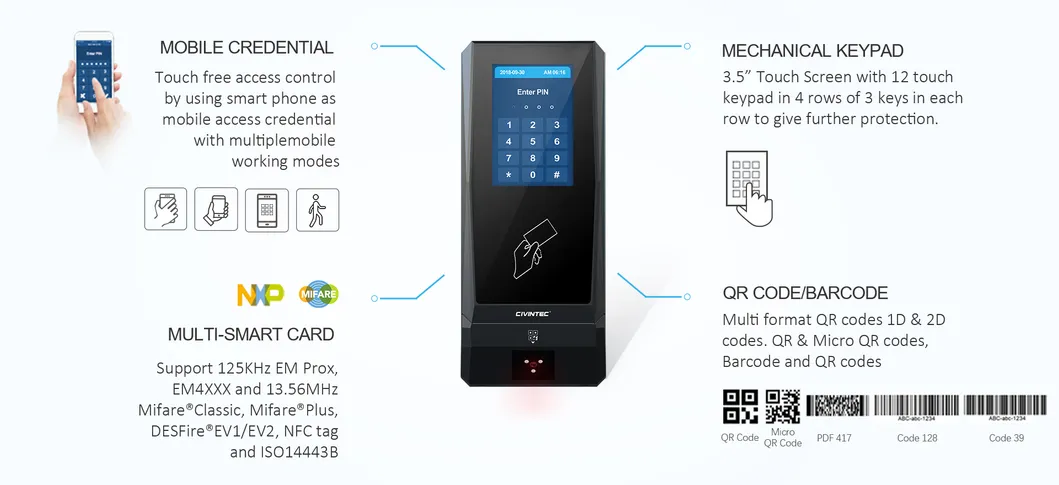

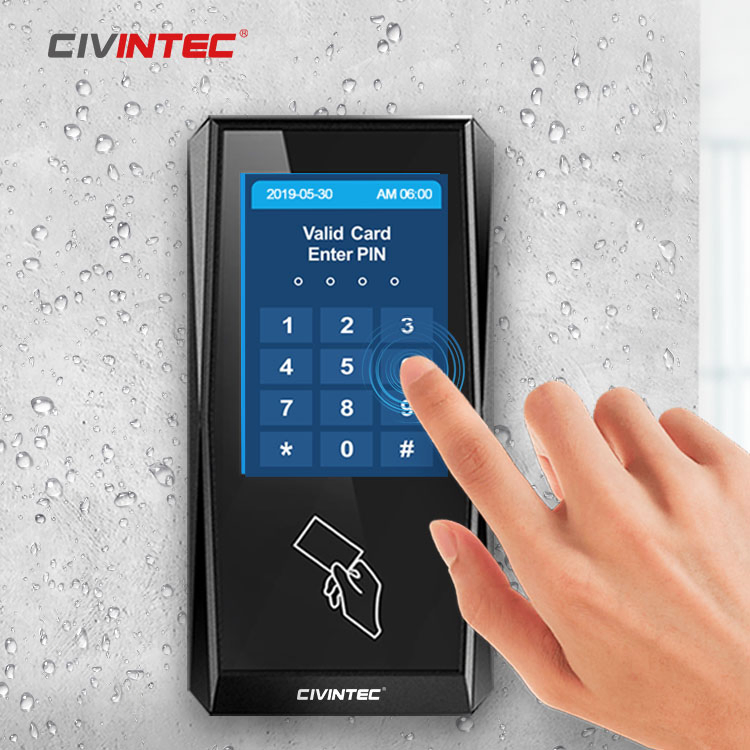

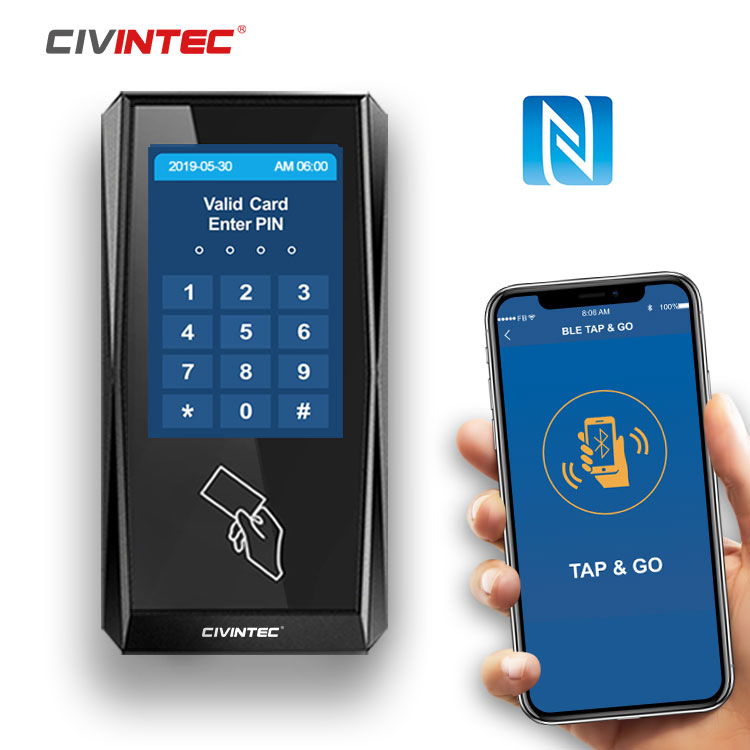

CT9 Pro incorporates with 5-in-1 multiple access credential technologies, touch keypad, RFID dual 125KHz & 13.56MHz smart cards, BLE & NFC mobile access, QR CODE/barcode by using mobile phone for visitor access control management.

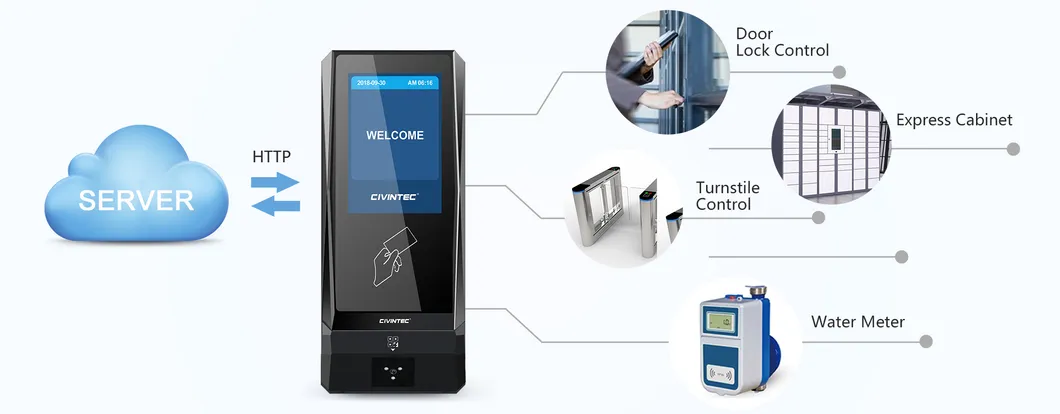

Bio-direction communication via standard HTTP & HTTPs between CT9 Pro and server to remotely control door lock and various IoT facility management.

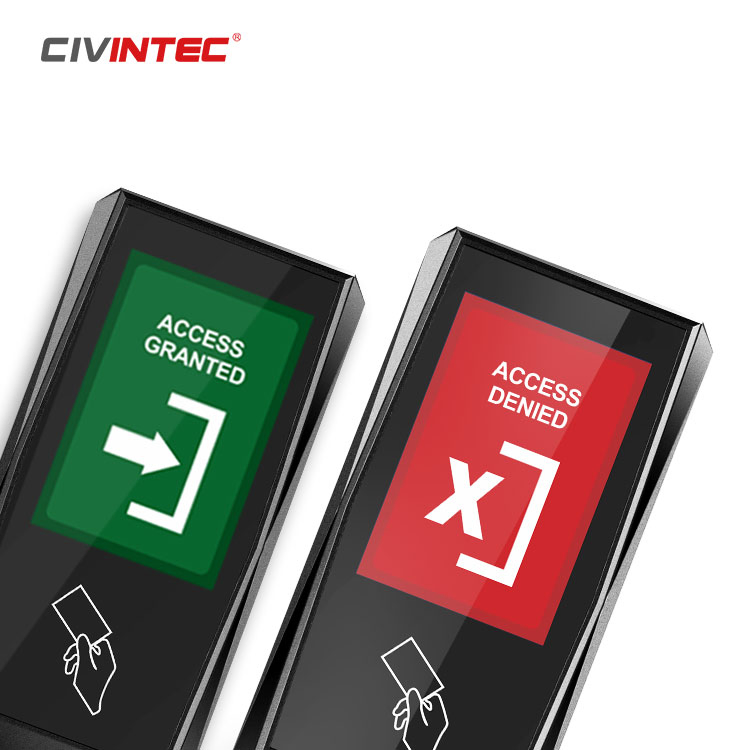

Crystal Touch CT9 is IP access control door reader remotely controlled by cloud web based software in real time. It is with embedded relay output to control door lock as ACCESS DENIED or ACCESS GRANTED. It can also control facility to build IoT solutions.

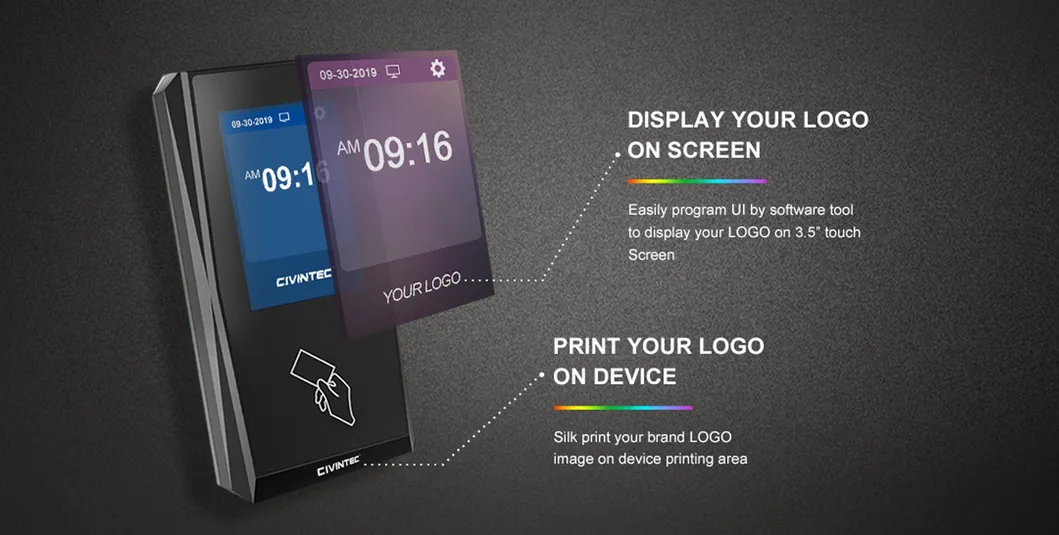

Professional ODM customization on both hardware, reader housing, firmware and software design service is available. Users can program and display their own logo on the 3.5" touch screen.
