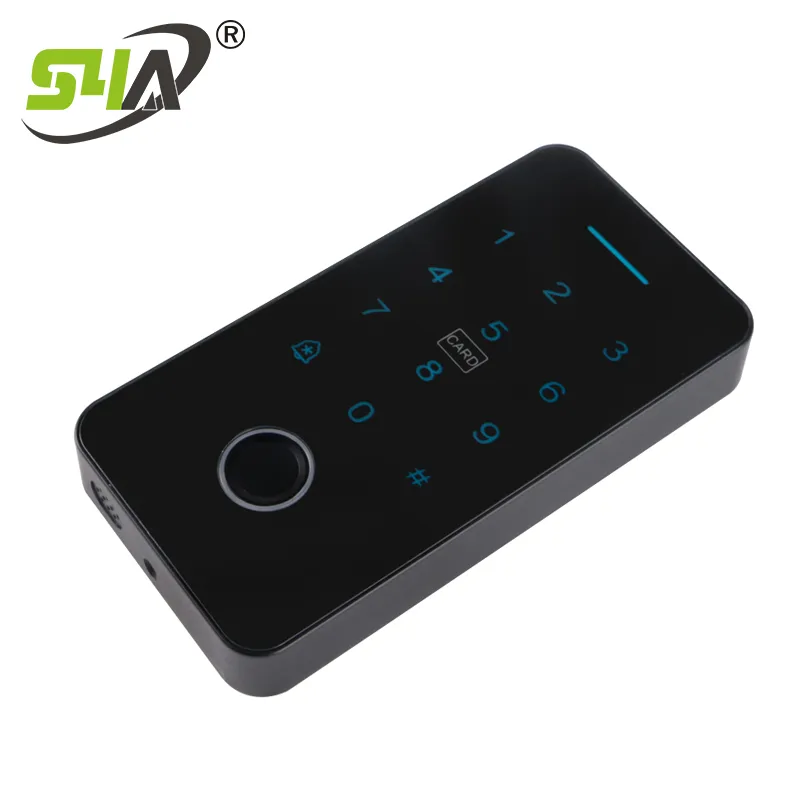

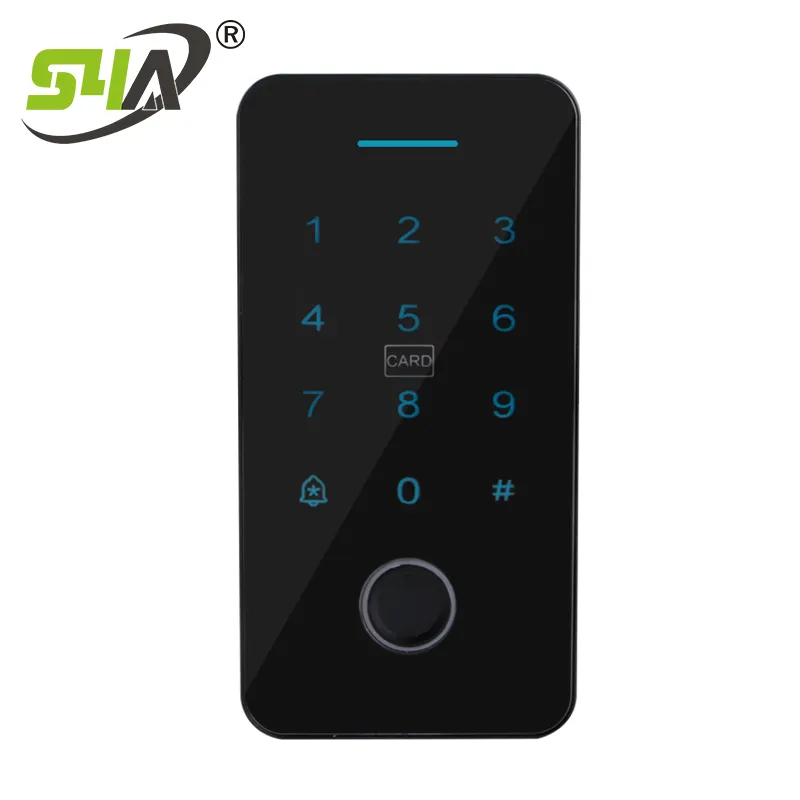

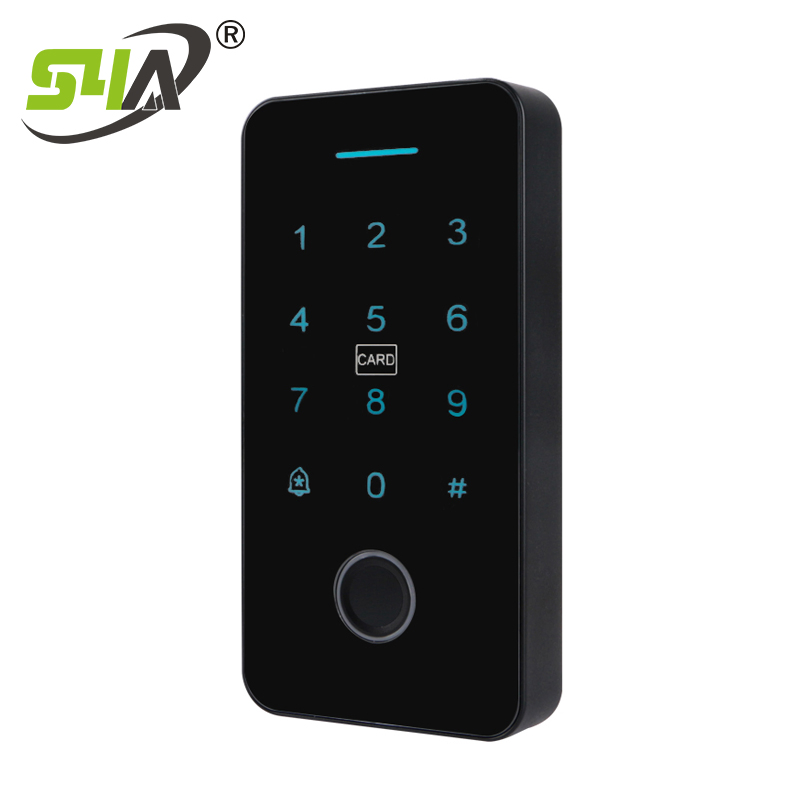

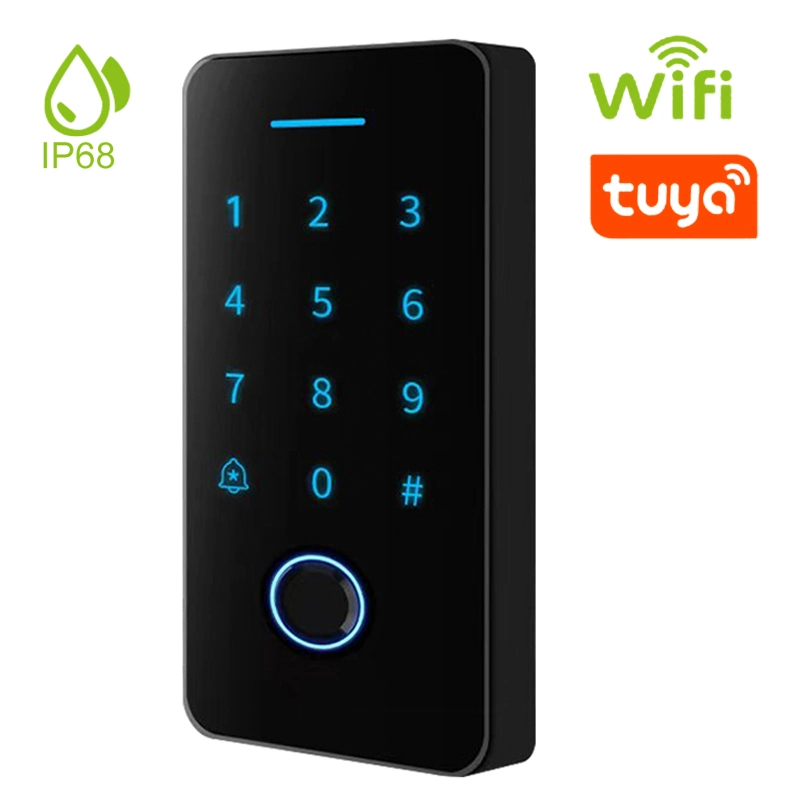

Tuya Smart WiFi Access Control Systems with Em & IC Card-Touch Keypad and Fingerprint
Product Description
Model NO.
F100
Color
Black
Communication
Wg26 or Wg34 Input/Output
Fingerprint Capacity
100
Card Type
EM / IC (Mf)
Static Electricity
≤30mA
Reading Range
3-6cm
Electric Lock Output
≤3A
Humidity
10% to 90%
Dimensions
117*71*22mm
Production Capacity
20000 pieces Per Month
Tuya Smart WiFi Access Control Systems with EM and IC Card-Touch Keypad and Fingerprint
The device is a standalone access control and proximity card reader which supports EM & IC card types. It builds-in STC microprocessor, with strong anti-interference ability, high security and reliability, powerful function and convenient operation. It's widely used in high-end buildings, residential communities and other public places.
✓
Ultra-low Power: Standby current is less than 30mA
✓
Wiegand Interface: WG26 or WG34 input and output
✓
Fast Searching: Less than 0.1s after reading card
✓
Backlight Keypad: Operate easily at night
✓
Access Ways: Card, Pin code, Fingerprint, Card & Pin code
✓
User Management: Delete lost cards via keyboard; users can change codes independently
| Product Parameter | Description |
|---|---|
| Product Name | Touch Screen WiFi Standalone Access Controller |
| Working Voltage | DC12V±10% |
| Ambient Temperature | -45ºC~60ºC |
| Short-circuit Protect | ≤100μS |
| Door Opening Time | 0-99s (Adjustable) |
| Unit Weight | 0.35kg |
| Carton Size | 114*75*16(cm) |
Does this device support mobile app control?
Yes, this model features Tuya Smart WiFi integration, allowing for remote management and access control via your smartphone.
What types of cards can be used with the F100?
The F100 is a dual-frequency reader that supports both 125KHz EM cards and 13.56MHz IC (Mf) cards.
Can I install this access controller outdoors?
The device operates in temperatures from -45ºC to 60ºC and humidity up to 90%. However, it is recommended to provide cover if installed in direct rain to ensure longevity.
How many fingerprints can the system store?
The system has a dedicated capacity for up to 100 unique fingerprint templates.
What happens if a user loses their access card?
The lost card can be easily deleted using the device's keypad by entering the specific card number, ensuring your premises remain secure.
Is the keypad visible in the dark?
Yes, the device features a backlight keypad, making it easy to operate and enter PIN codes during nighttime or in low-light environments.
