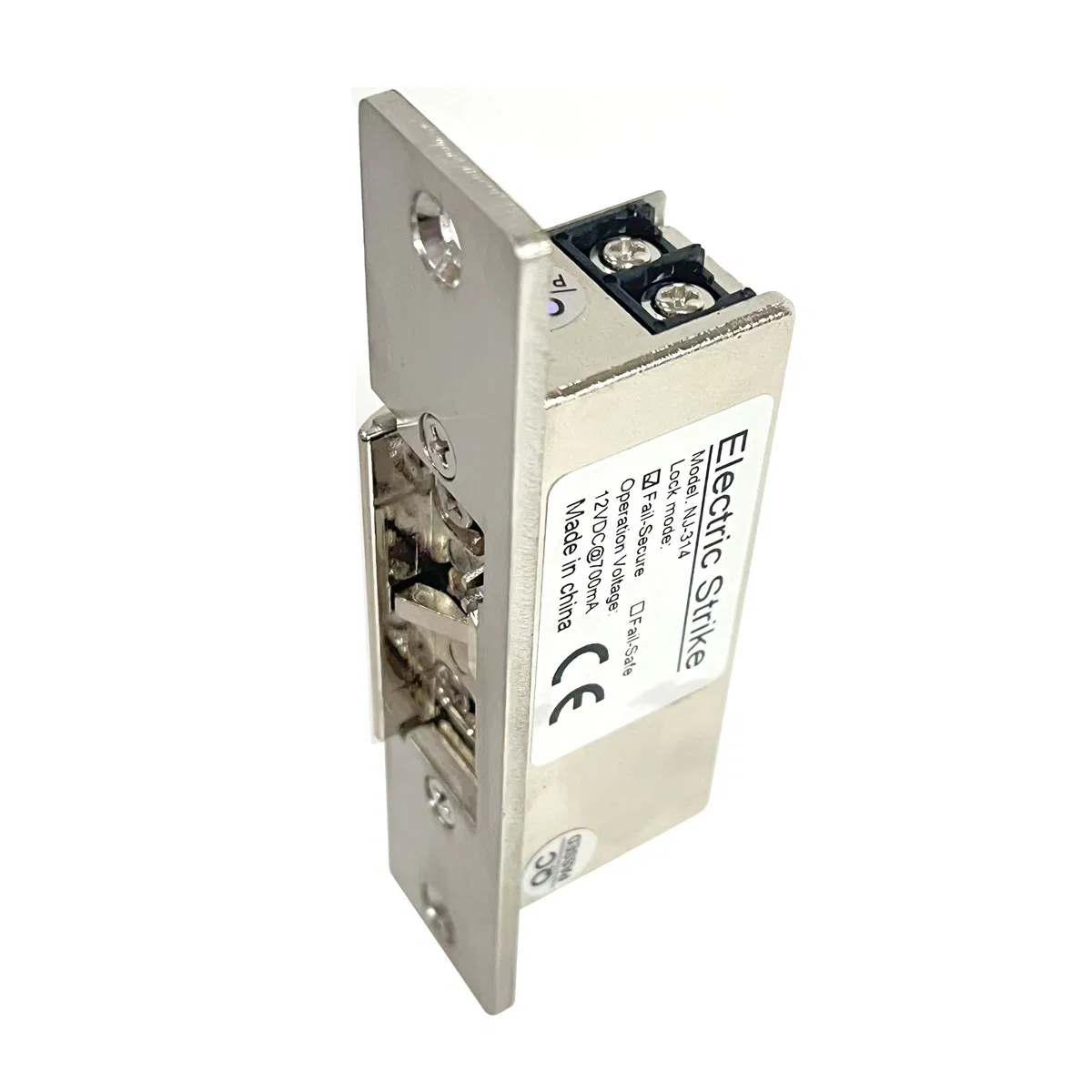

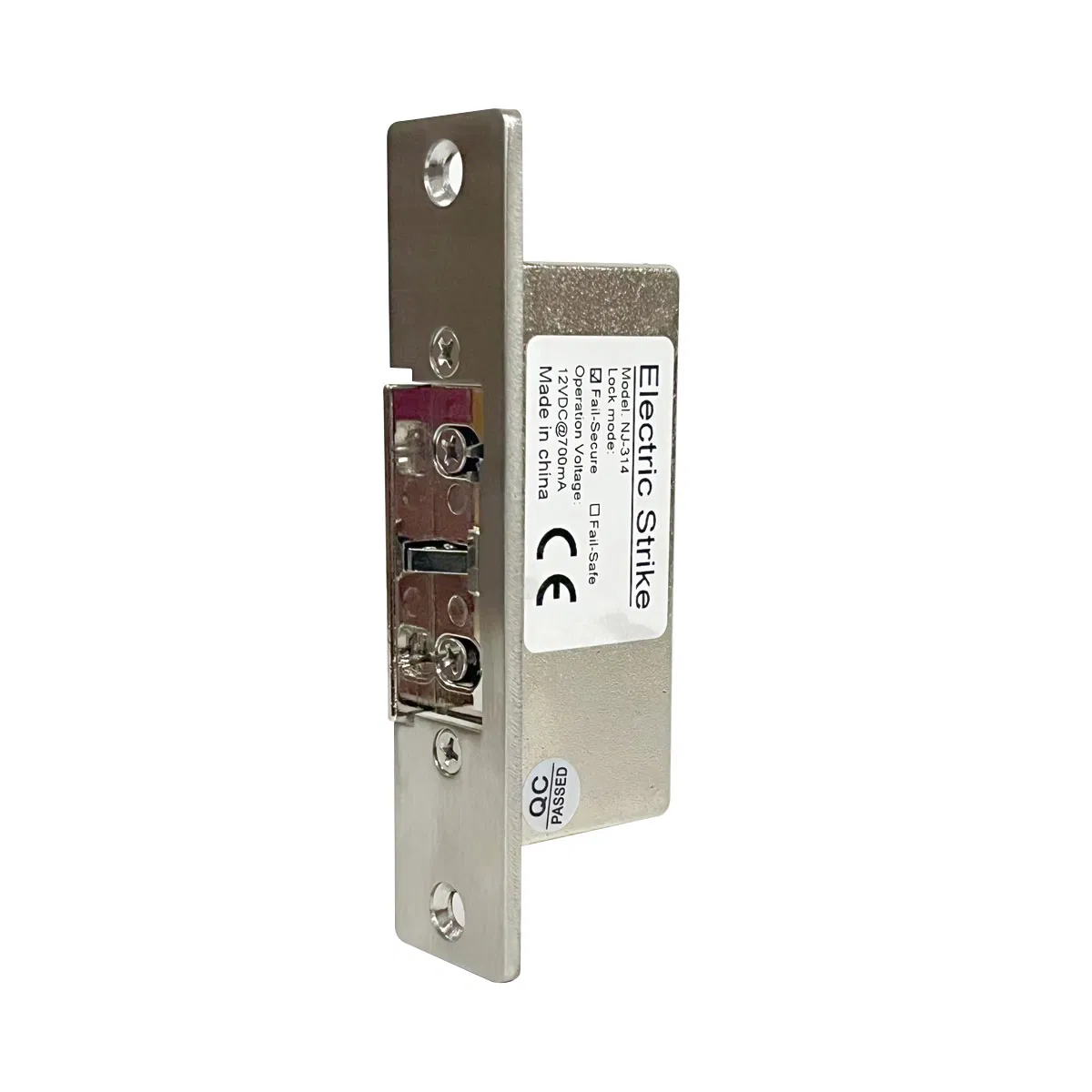

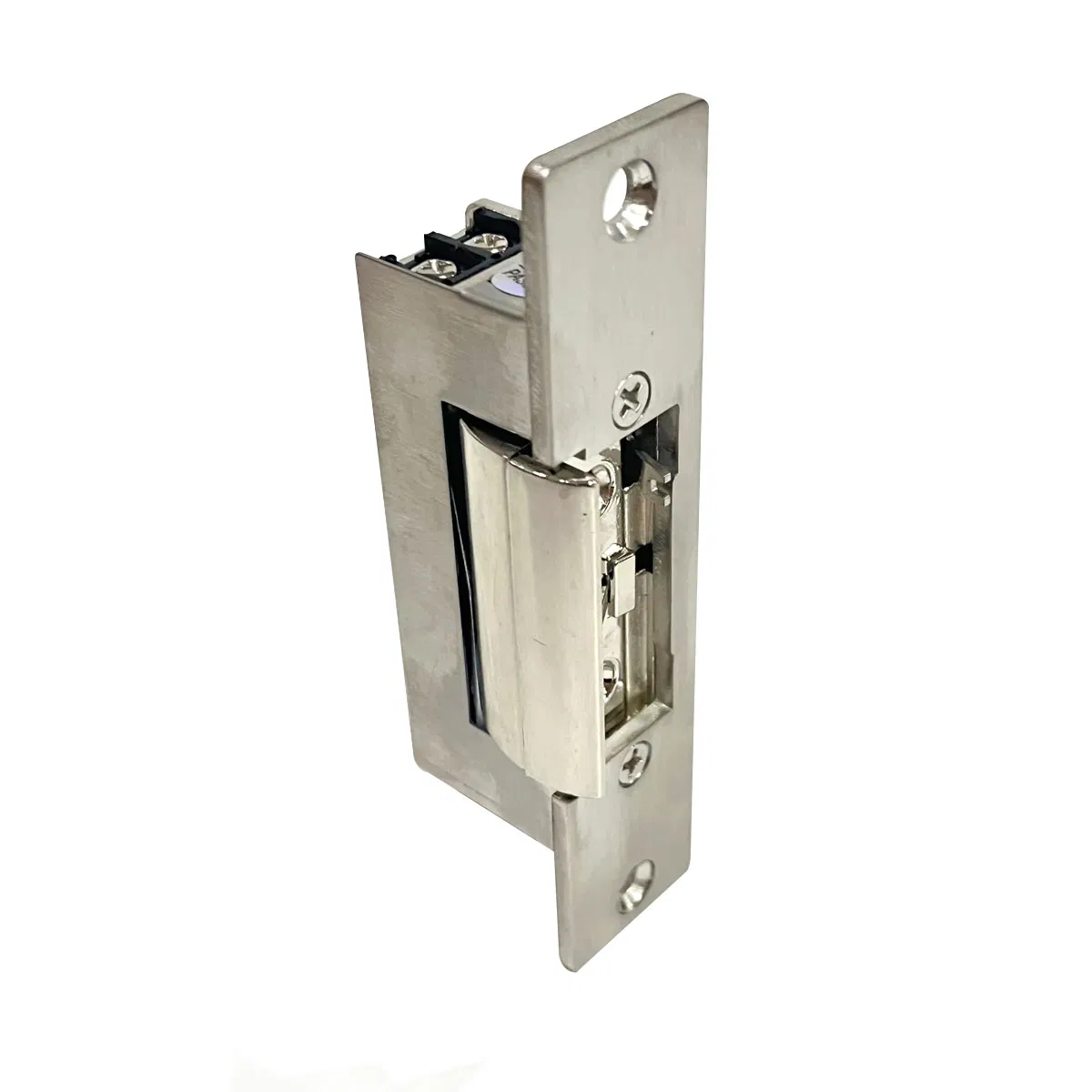

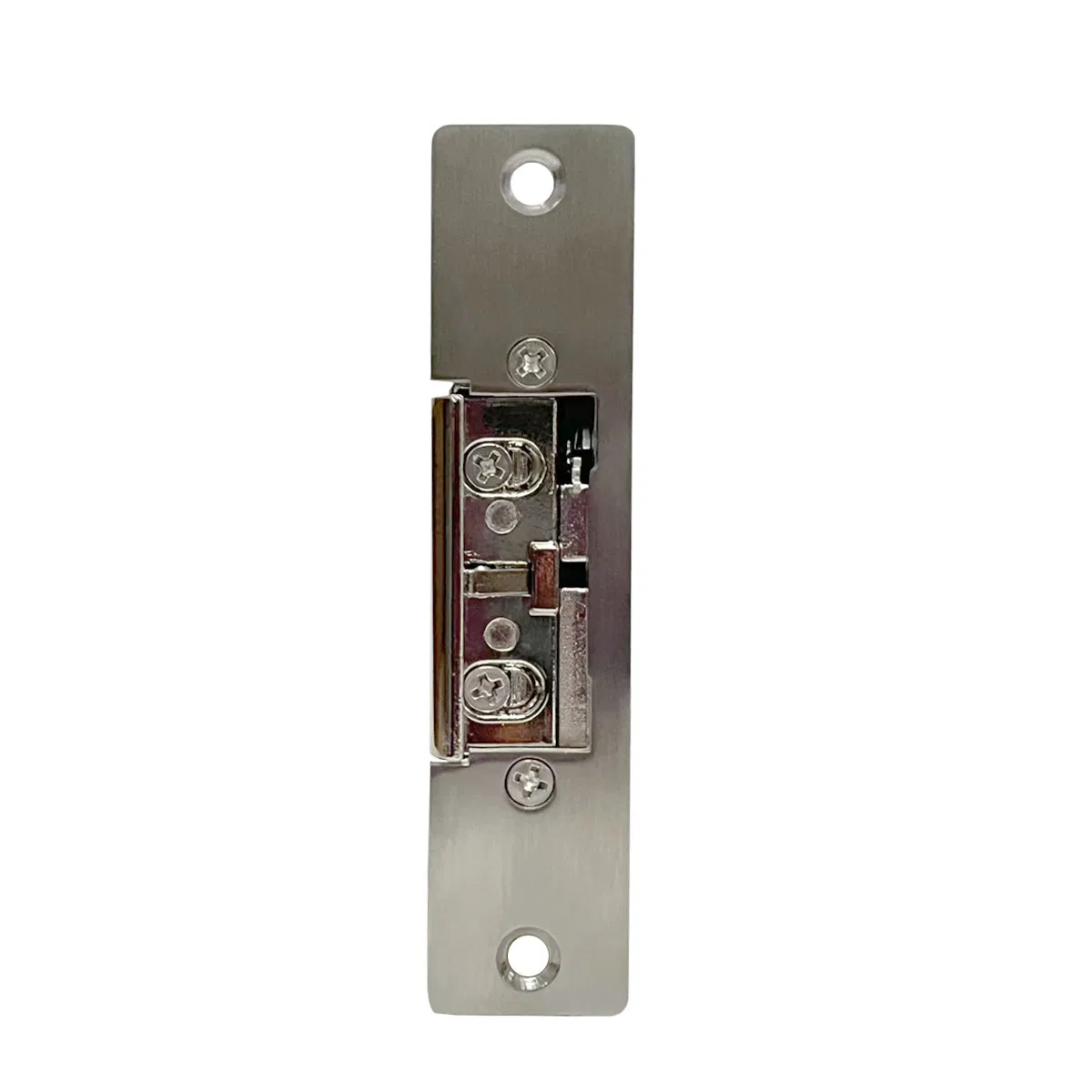

Ten-Year Lifespan Adjustable Lock-Tongue Security European 12V Electronic Lock Strike Door Lock
Product Description

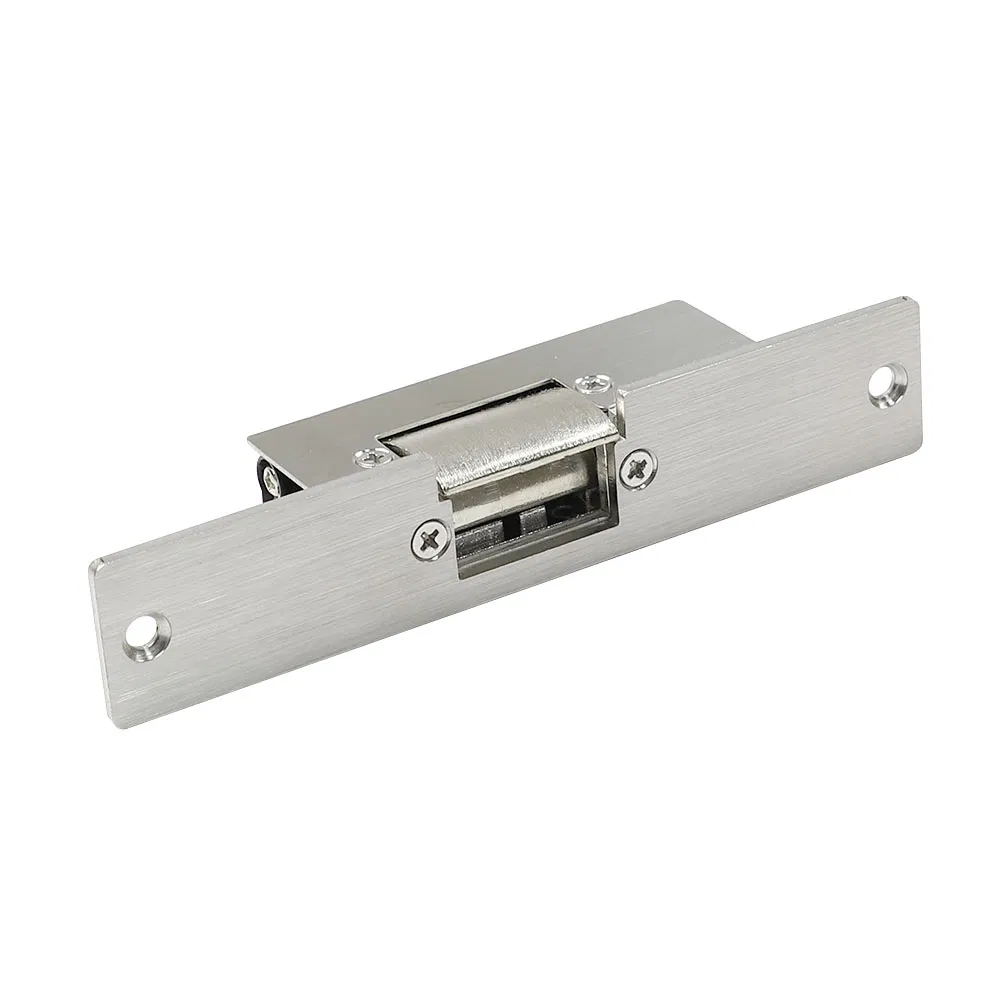

European Standard Electronic Strike Lock
The NJ-314 is a high-security European standard electric strike lock featuring an adjustable mode for both Fail-Locked and Fail-Unlocked settings. Operating via magnetic force generated by an electromagnetic field, it provides robust locking and unlocking capabilities with integrated short-circuit protection.
🛡️

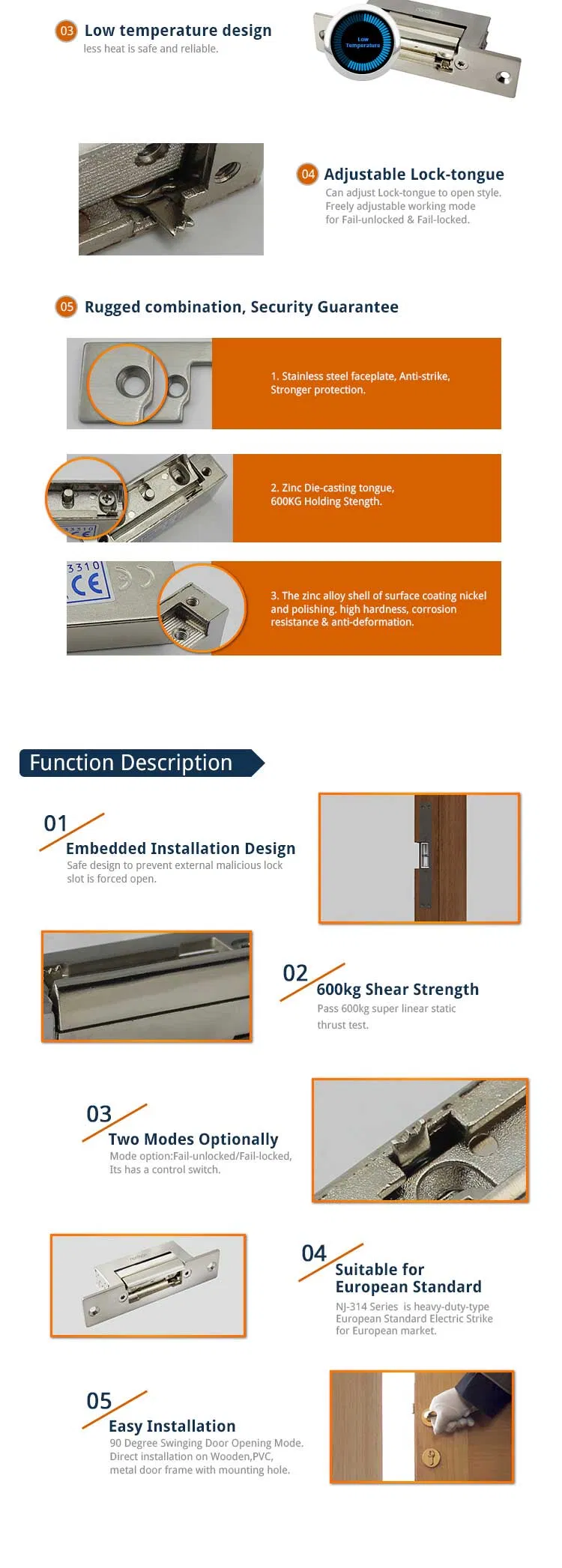

Dual Modes
Power-to-open & Power-to-lock adjustable
⚙️
Material
High-quality aluminum for anti-deformation
💪
Strength
1000lbs (500kg) shear strength
Product Presentation
Technical Specifications
| Model NO. | NJ-314 electronic strike lock |
| Working Principle | Electronically Controlled Lock |
| Function | Fail-Safe, Fail-Secure (Adjustable) |
| Shear Strength | 1000lbs (500kg) |
| Rated Operating Voltage | DC 12V |
| Standby Current | 650mA |
| Face Plate Material | High Aluminum |
| Suitable for | European Standard Narrow Wooden, Aluminum, Glass, Metal & Fireproof Doors |
| Surface Temp | Low Temperature |
| Ambient Temperature | -10°C - +55°C |

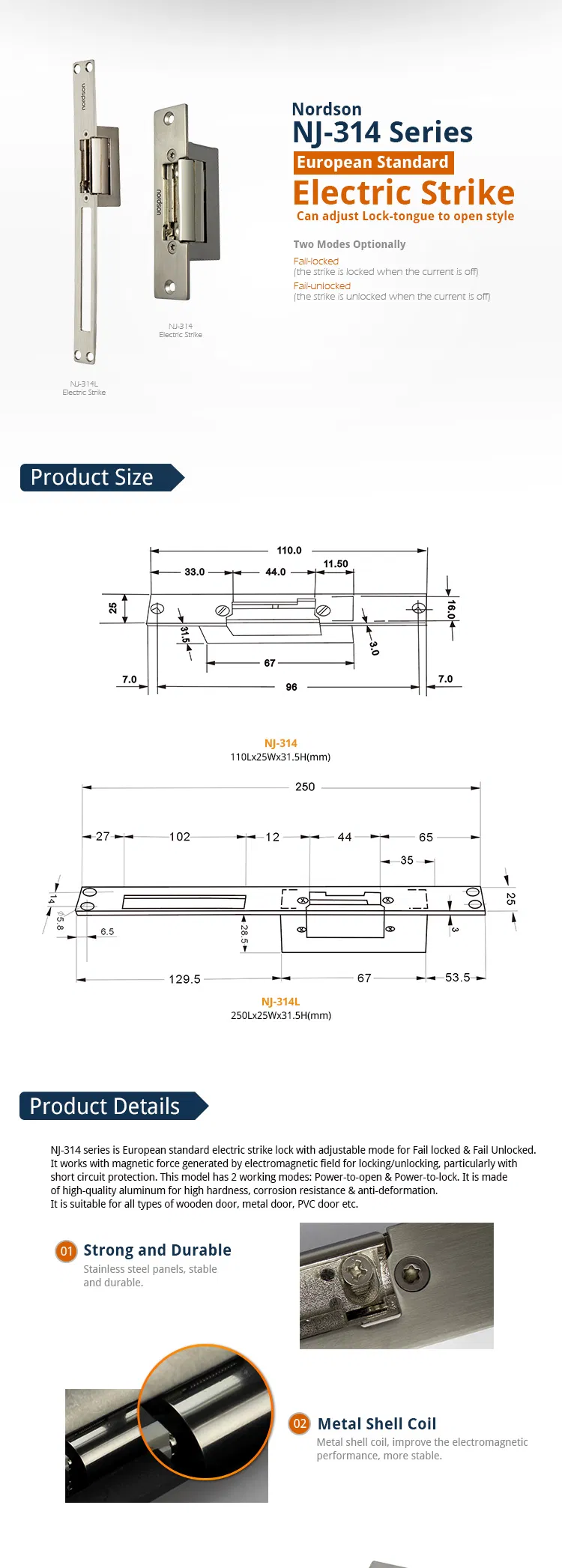

| Dimensions (L x W x D) | 110L * 25W * 31.5H (mm) |
| Certification | RoHS, CE, SGS, GMP |

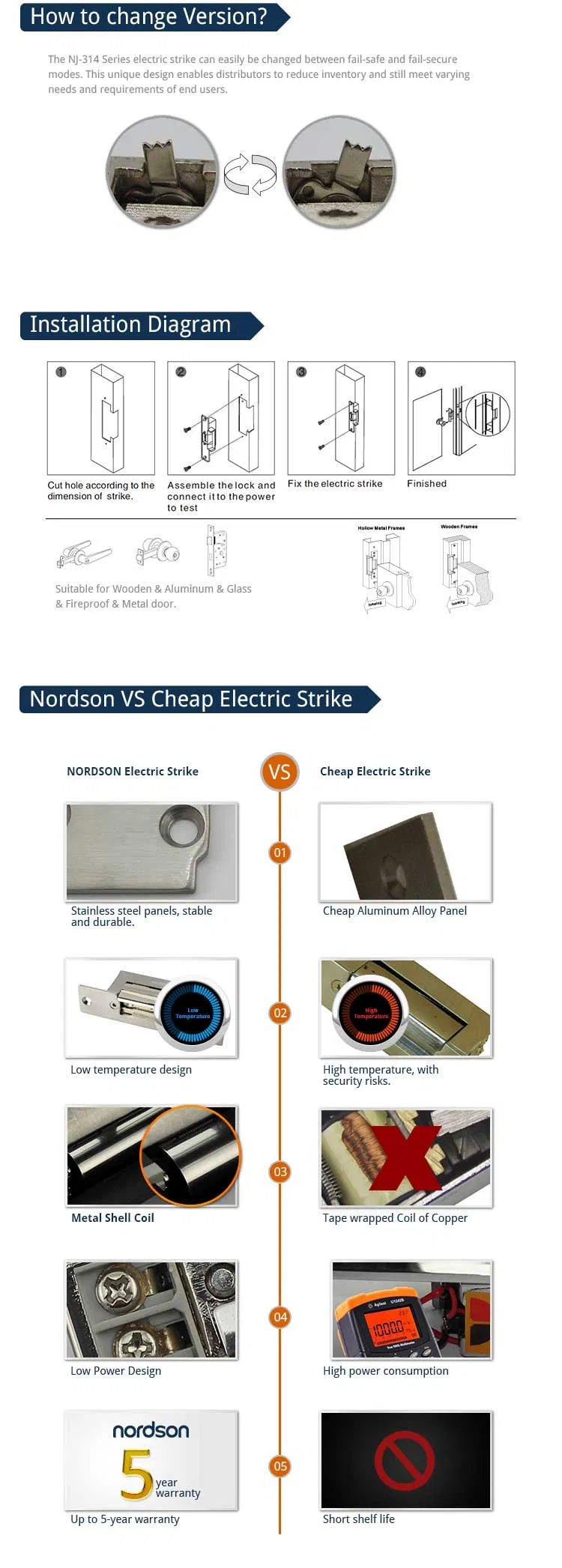

Installation & Details
Packaging & Warranty
Packaging: Neutral Packing. Size: 33.00cm * 41.00cm * 25.00cm. Gross Weight: 19.850kg.
Warranty Policy:
- 3 Years: For electromagnetic locks, electric bolts, and electric strikes.
- 1 Year: For exit buttons, brackets, and power supplies.
Note: Warranty covers non-human factor product quality issues.
Frequently Asked Questions
Can this lock be switched between Fail-Safe and Fail-Secure?
Yes, the NJ-314 features an adjustable lock-tongue that allows you to switch between Fail-Unlocked (Fail-Safe) and Fail-Locked (Fail-Secure) modes based on your security requirements.
What types of doors is this strike lock compatible with?
It is designed for European standard narrow frames and is suitable for wooden, aluminum, glass, metal, and fireproof doors.
What is the holding force or shear strength of this lock?
This electric strike lock has a shear strength of 1000lbs, which is equivalent to approximately 500kg of pressure.
What are the power requirements?
The lock operates on a rated voltage of DC 12V with a standby current of 650mA.
Does the lock generate high heat during operation?
No, the NJ-314 is designed to maintain a low surface temperature during operation, ensuring safety and longevity.
What certifications does this product hold?
The product is fully compliant with CE, RoHS, SGS, and GMP standards, ensuring it meets international safety and quality regulations.
