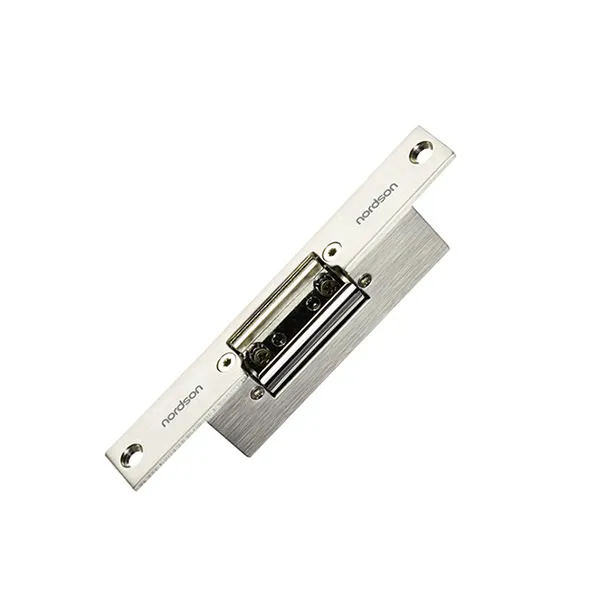

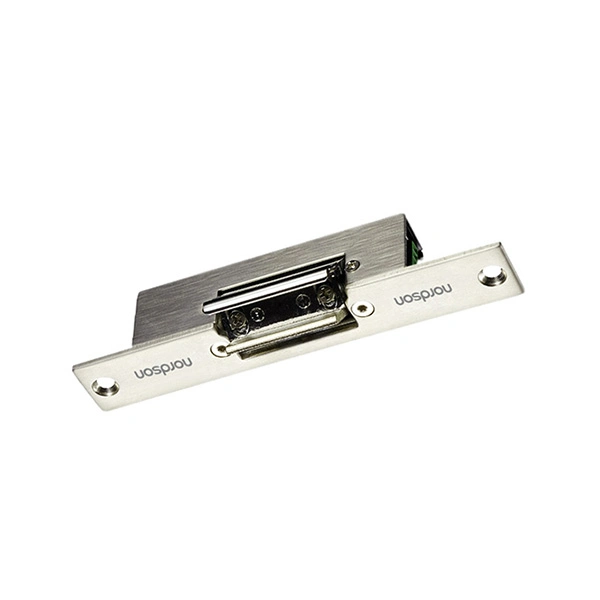

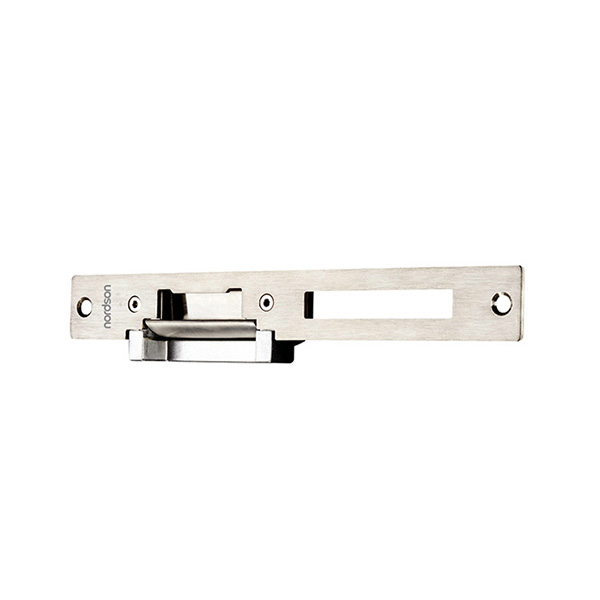

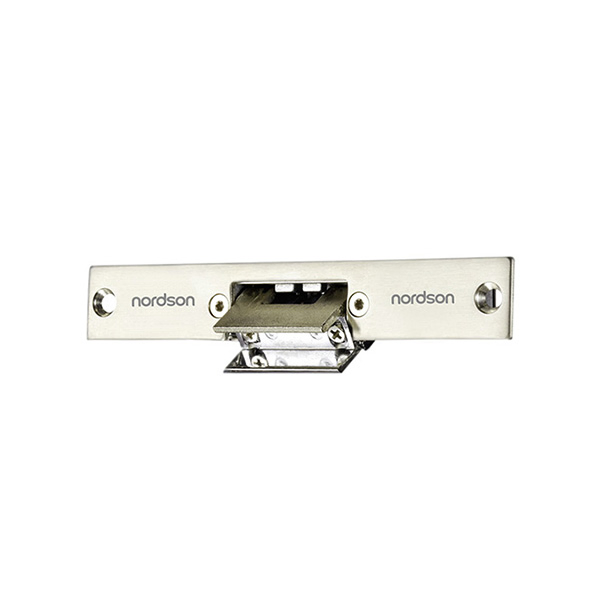

Power to Lock Glass Door Electric Strike Lock with Short Circuit
Product Description
This Electric Strike for Glass Door is designed particularly for frameless glass doors. It works with magnetic force generated by electromagnetic field for locking and unlocking, featuring specialized short circuit protection. Made of high-quality Zinc alloy, it offers exceptional hardness, corrosion resistance, and anti-deformation properties.
✔
Fail-Safe Mode
Power-to-lock security
Power-to-lock security
✔
High Strength
1000Lbs (500-600kg) holding strength
1000Lbs (500-600kg) holding strength
✔
Durable Material
High-grade Zinc Die-Casting
High-grade Zinc Die-Casting
| Model | NJ-313-1 Glass door Electric Strike Lock |
| Working Principle | Electronically Controlled Lock |
| Operating Voltage | DC 12V |
| Standby Current | 200mA (Typical) |
| Lock Size | 250L*25W*31.5H (mm) |
| Suitable For | 12-15mm Frameless Glass Doors |
| Surface Temperature | Low Temperature Design |
| Operating Temp | -10°C to +55°C |
| Certifications | CE, RoHS, CCC, SGS |
| Application | Enterprise, Supermarket, Campus, Hospital, Hotel, Public Passage |
Quality Assurance
Quality Control is integrated throughout the entire assembly line, from initial component selection to final testing and packaging. We utilize the most qualified electronic components and adopt premium materials to ensure every product meets international quality standards.
Package Size: 45.00cm * 31.00cm * 30.00cm
Gross Weight: 18.100kg (Bulk)
Delivery: 3-14 days after payment confirmation
1. Is this lock suitable for all glass doors?
This specific model is designed for frameless glass doors with a thickness between 12mm and 15mm.
2. What does "Fail-Safe" mean for this lock?
Fail-Safe (Power-to-lock) means the door is locked when power is applied and automatically unlocks when power is removed, ensuring safety during emergencies.
3. What is the holding strength of the NJ-313 series?
It provides a robust holding strength of approximately 1000Lbs (500-600kg), making it suitable for high-security applications.
4. Can it operate in extreme weather conditions?
The lock is designed to operate reliably within an ambient temperature range of -10°C to +55°C.
5. Does the lock get hot during continuous operation?
No, this model features a low-temperature design to ensure the surface remains cool even during long periods of being powered on.
6. What voltage is required for installation?
The lock operates on a standard DC 12V power supply with a typical standby current of 200mA.
