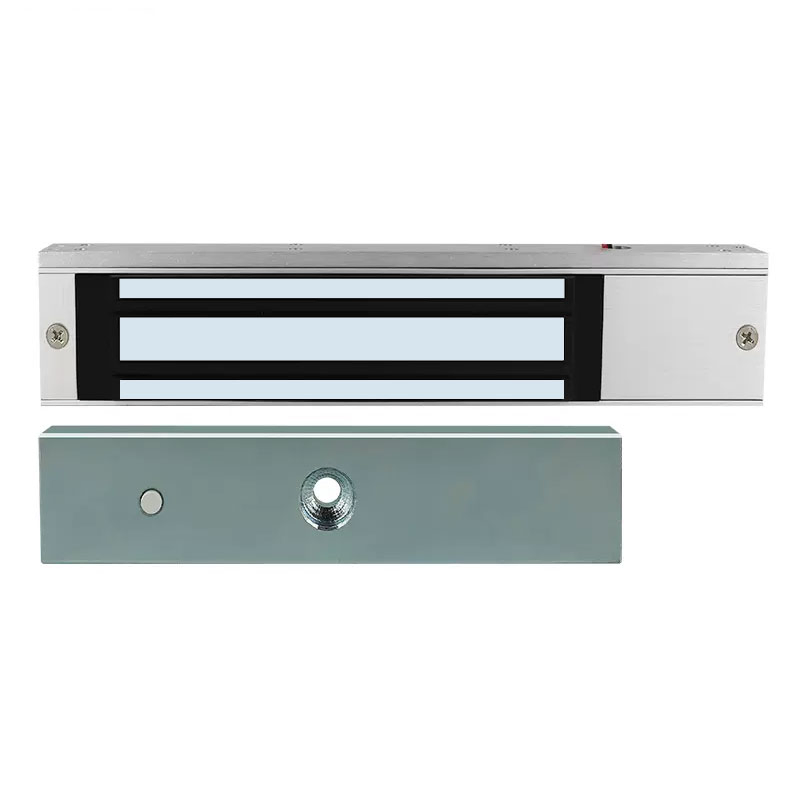

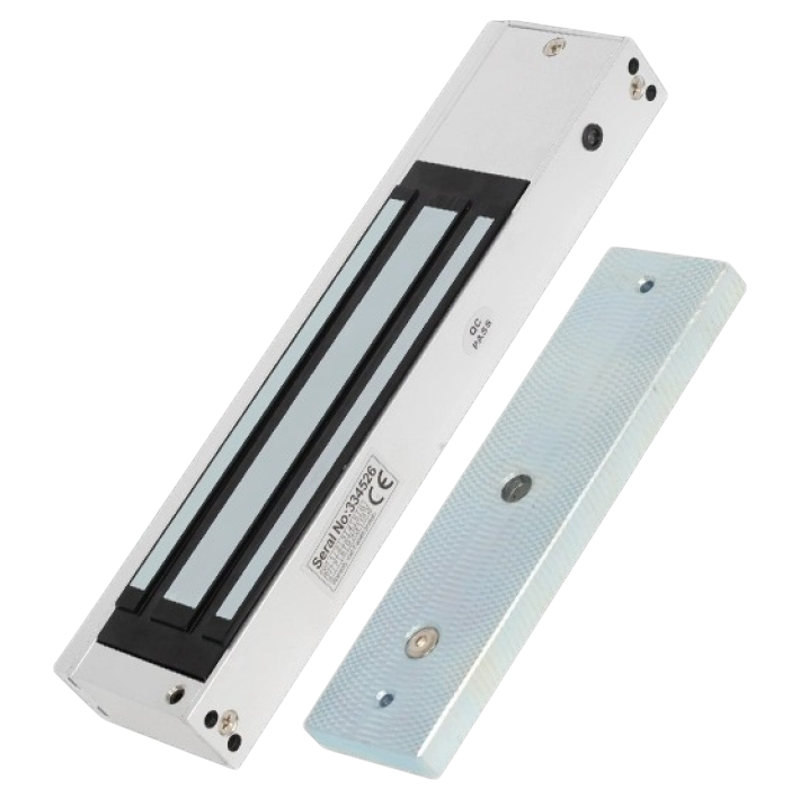

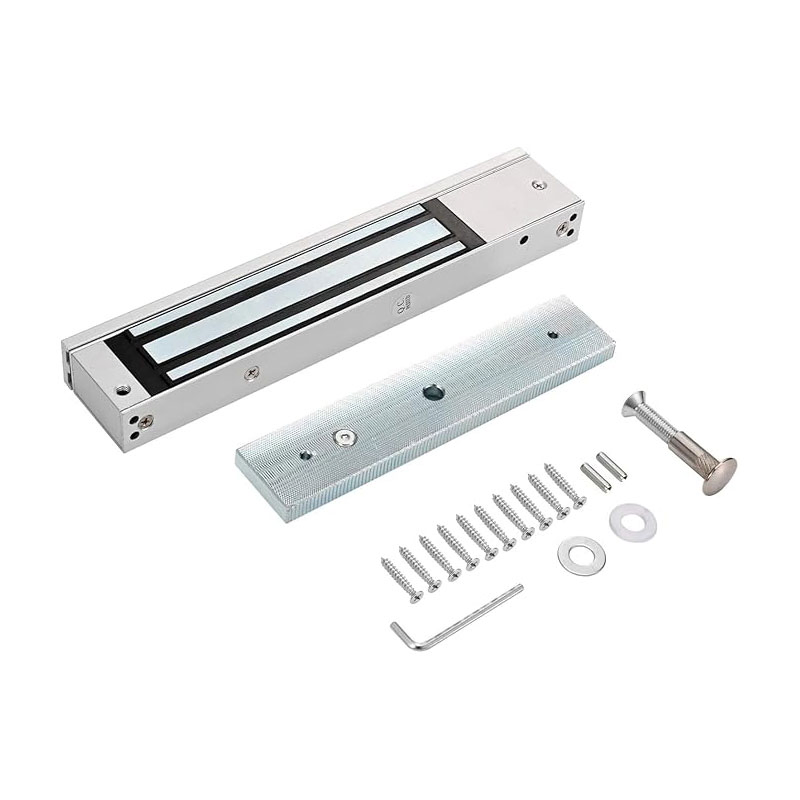

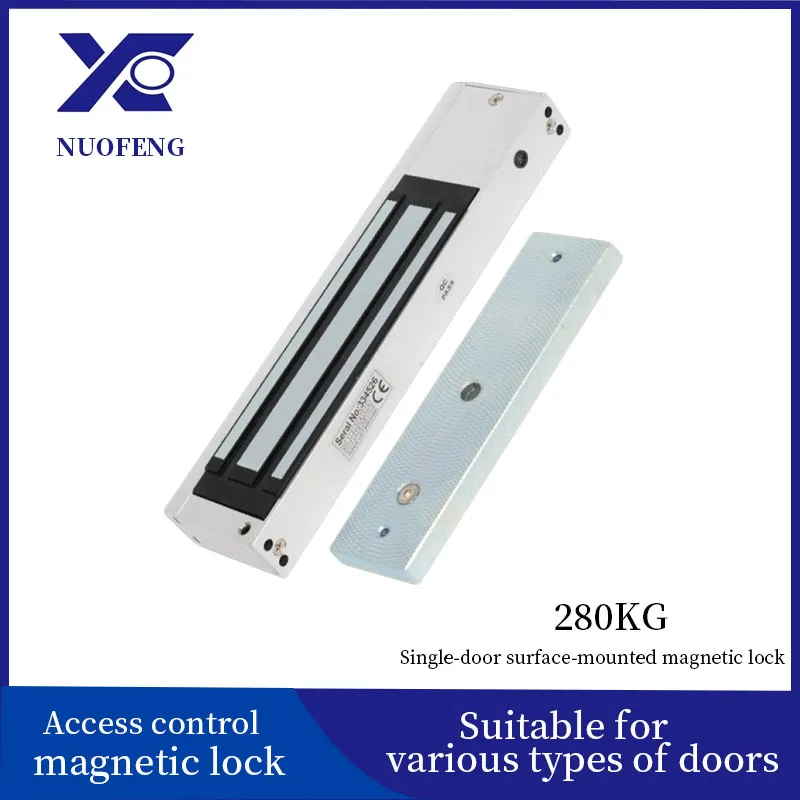

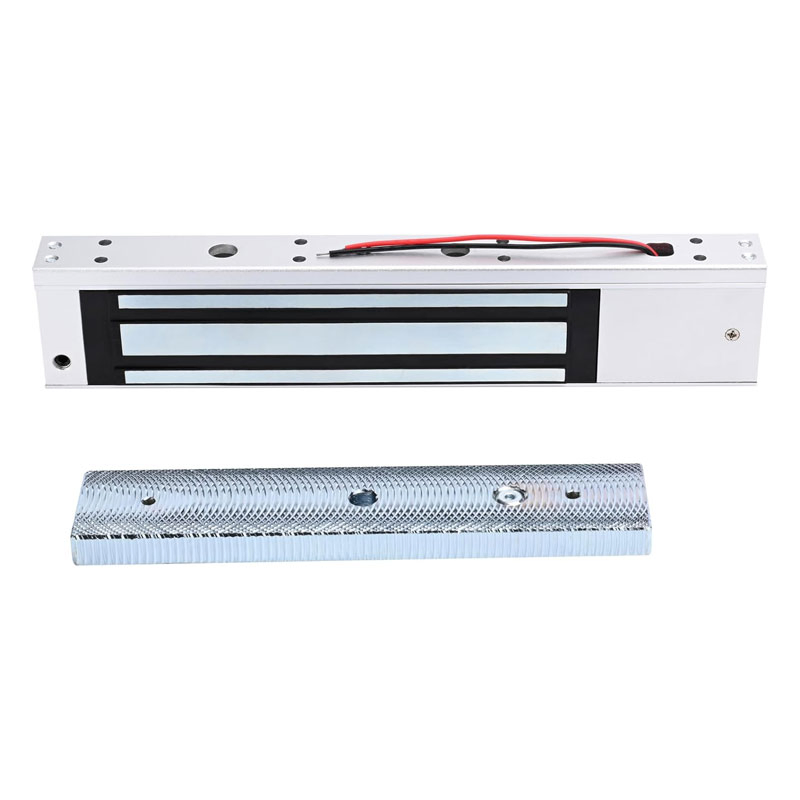

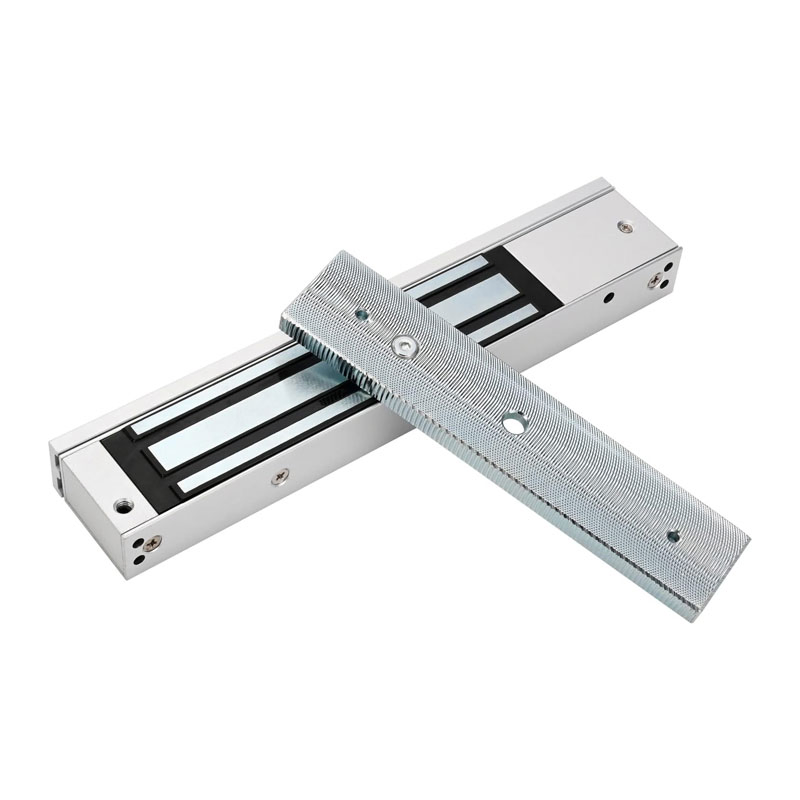

Electromagnetic Lock Handle Electric Door Strike for Security Lock 12V Lock
Product Description
Material: Aluminum Alloy
Type: Electronic / European Style
Shape: Rectangle
Anti-theft Standard: A
Input Voltage: DC12V / DC24V
Operating Current: 12V 500mA / 24V 250mA
Maximum Tension: 280kg (600lbs) ±10%
Temperature Range: -30℃ ~ +66℃
Humidity: 0 ~ 95%
| Category | Specification | Details |
|---|---|---|
| Basic Info | Product Model | Heavy-Duty Magnetic Lock |
| Holding Force | Capacity | 280KG (617LBS) |
| Components | Lock Body | Anodized aluminum shell, high-tensile |
| Electrical | Operating Voltage | DC12V (480mA) / DC24V (240mA) |
| Electrical | Status Detection | NO/NC/COM dry contact output |
| Environment | Operating Temp | -10℃ ~ 55℃ (-14℉ ~ 131℉) |
| Dimensions | Lock Body Size | 238mm × 47mm × 28mm |
| Performance | Working Life | ≥500,000 cycles |
Right Elevation
Left Elevation

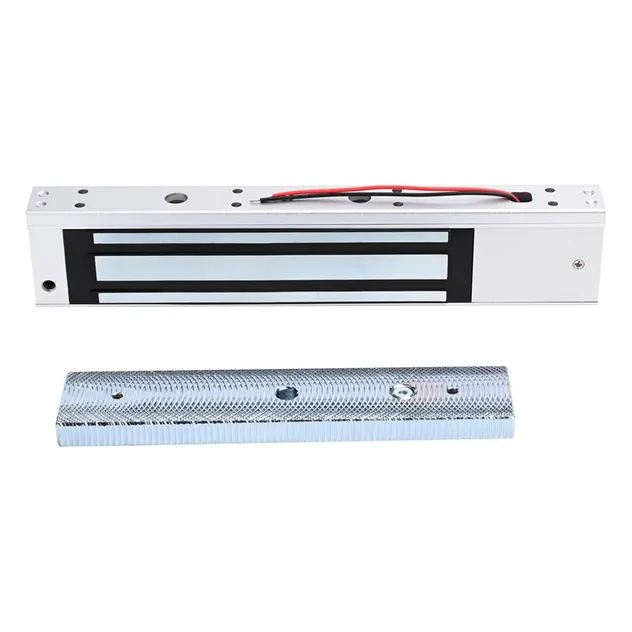

Front Elevation
1. Warranty Period: 2-year limited warranty from the date of original purchase.
2. Coverage: Free repair or replacement for defective products caused by material defects or manufacturing errors under normal use.
3. Non-Warranty: Damages caused by improper installation, misuse, neglect, unauthorized modification, or natural disasters.
4. Claim Process: Provide order information and product photos for verification. Solutions are typically provided within 2 working days.
We are a professional high-tech enterprise dedicated to the R&D, production, and sales of intelligent access control and security products. Our core product line centers on heavy-duty magnetic locks, access control panels, and electric strikes. Adopting advanced production technology and strict quality control systems, all products comply with international standards such as CE and RoHS.
