Fail-Unlocked Heavy-Duty-Type ANSI Standard American Glass Door Electric Strike Lock
Product Description
📊
Basic Info
Model NO.
NJ-320B glass door electric strike lock
Style
Modern
Shape
Cubiod
Anti-theft Standard
A
Part
Lock
Backset
No Size Limit
Usage
Household Door Locks, Bedroom, Channel Lock
Shear Strength
1600lbs(800kg)
Rated Operating Voltage
DC 12V
Face Place Material
Stainless Steel
Dimensions
124Lx32Wx36H(mm)
Certification
CE/RoHS-Mark
📝
Product Description

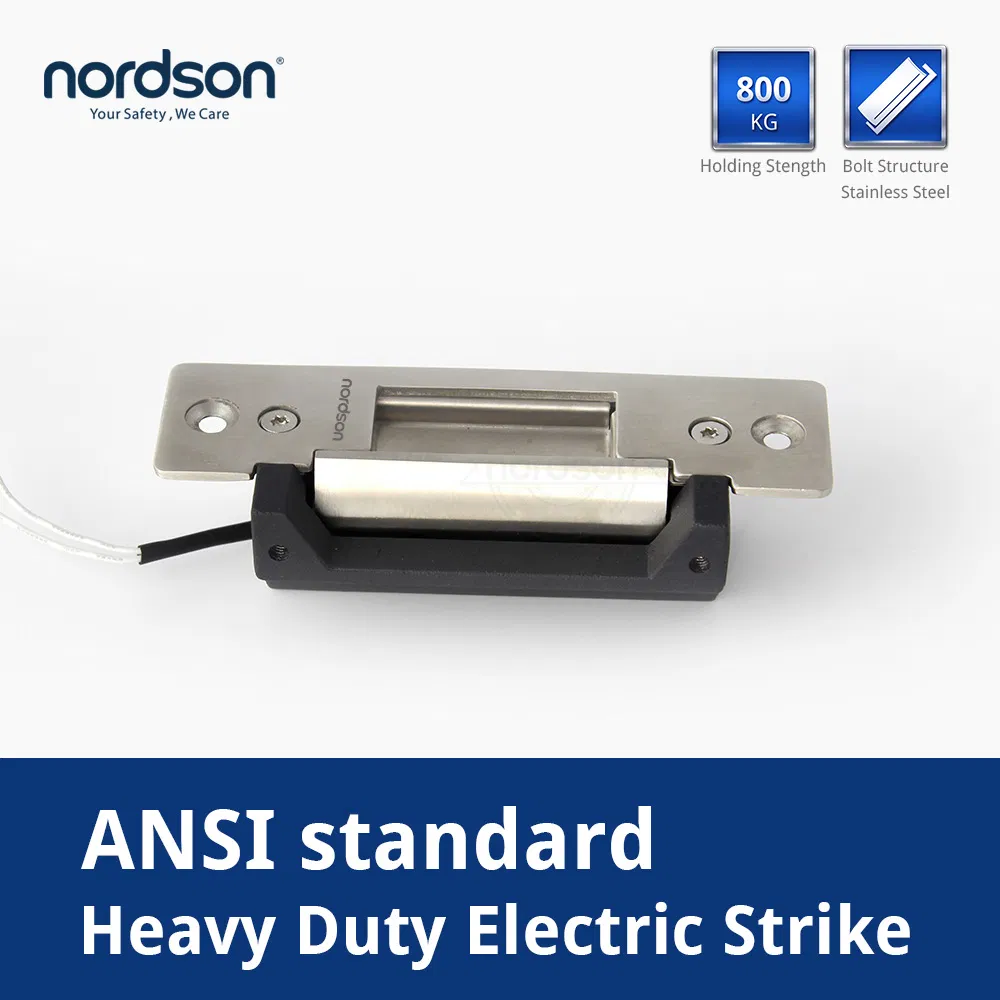

Fail-Unlocked Heavy-Duty-Type ANSI Standard American glass door electric strike lock
Overview:
NJ-320B is heavy-duty-type ANSI standard American Electric Strikes with magnetic force generated by electromagnetic field for locking/unlocking, particularly with short circuit protection. This model has 2 working modes: Power-to-open & Power-to-lock. It is made of high-quality stainless steel for high hardness, corrosion resistance & anti-deformation. It is suitable for all types of wooden door, metal door, PVC door etc.
⚙️ Functions:
- Pass 1600lbs super linear static thrust test
- Mode option: Fail-unlocked/Fail-locked
- Suitable for ANSI standard for US Market
- Direct installation on Wooden, PVC, metal door frame with mounting hole
- Pass test of high temperature aging 100,000 times

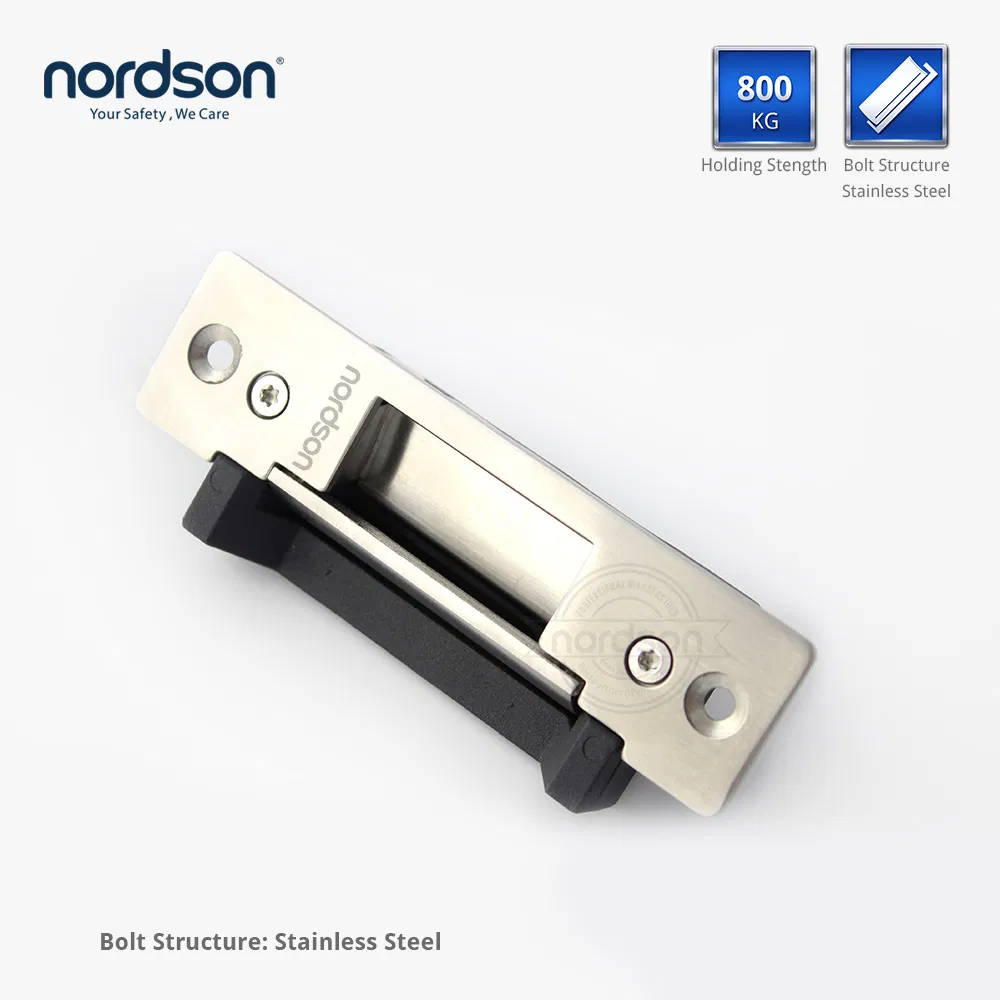

- Made of high-quality stainless steel for high hardness, corrosion resistance & anti-deformation
- Strike trough 15mm deep, Widely used with all kinds of mechanical lock.
- CE Certificate & MA Certificate approved
📋
Specifications
| Version | NJ-320A: Fail-locked / NJ-320B: Fail-unlocked |

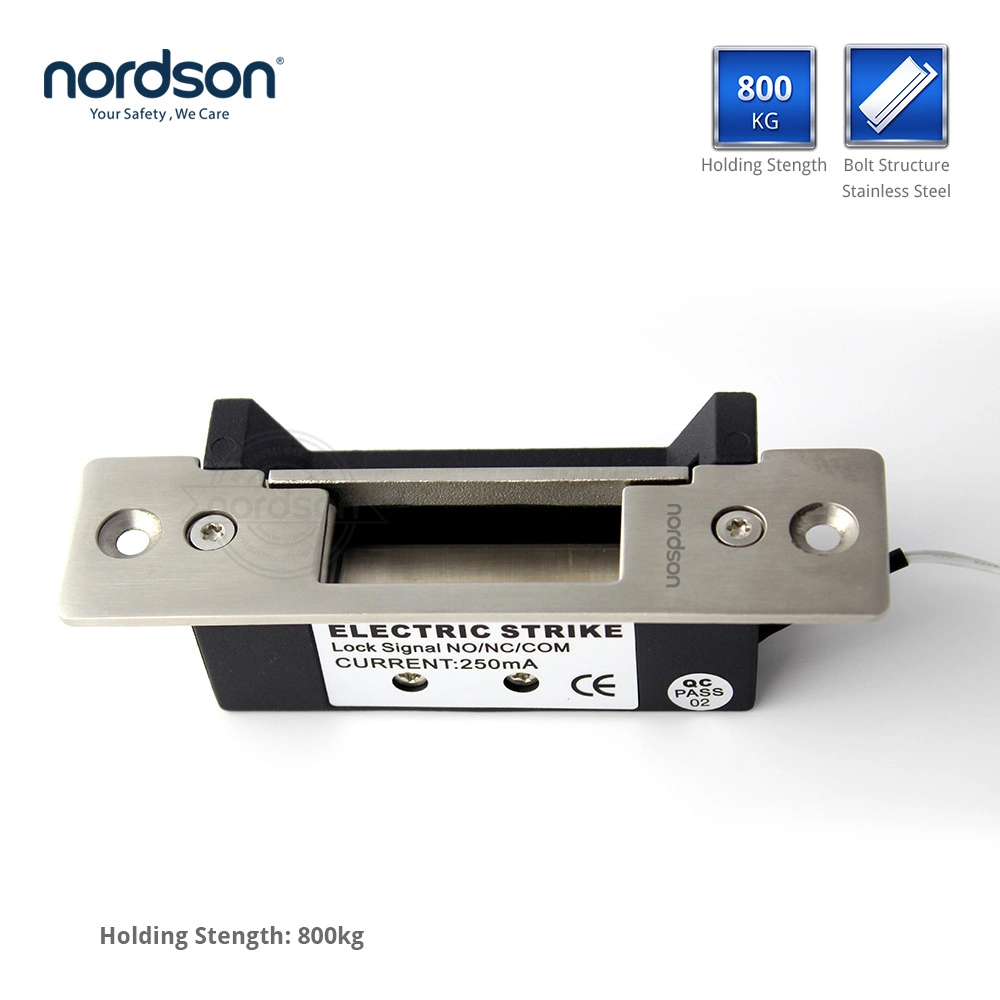

| Shear strength | 1600Lbs(800kg) |
| Rated Operating Voltage | DC 12V |

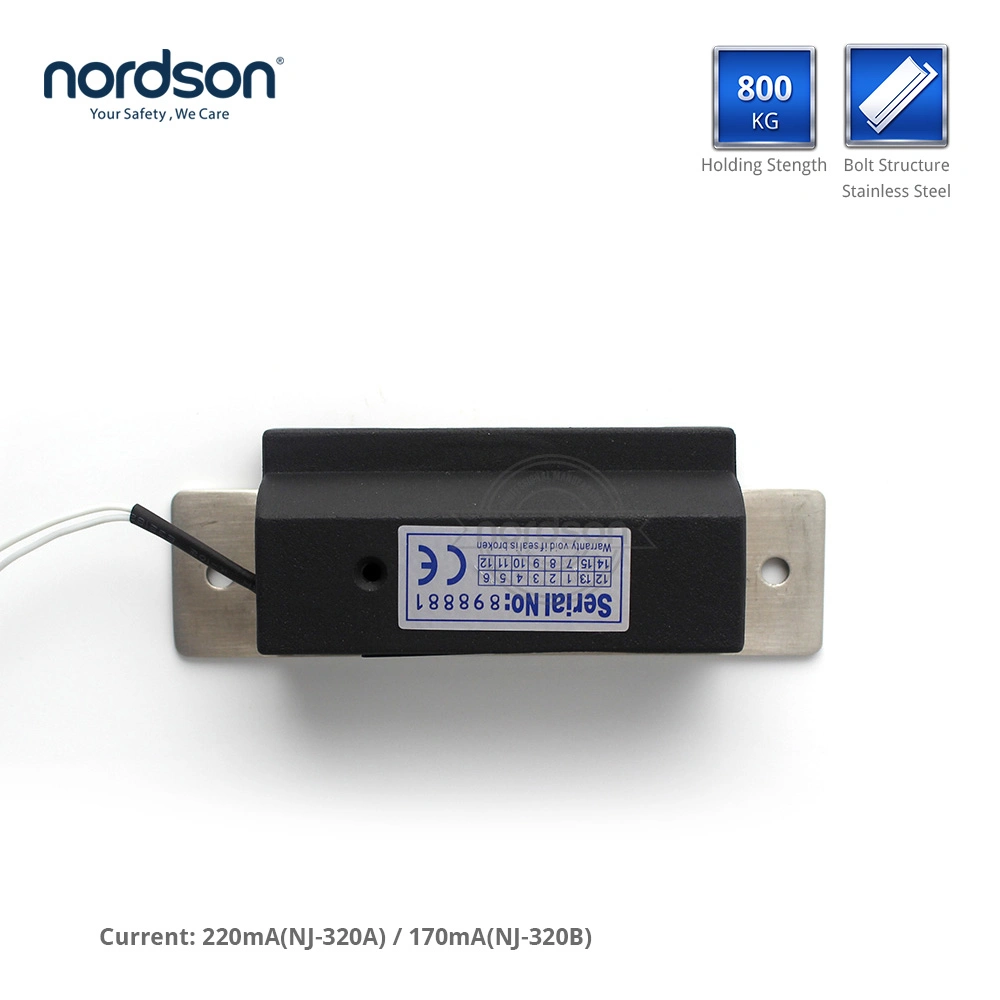

| Standby Current | 220mA |
| Face place material | Stainless Steel |
| Surface Temp | Low Temperature |
| Ambient temperature | -10°C - +55°C |
| Suitable for | Wooden, Aluminum, Glass, Fireproof & Metal door |

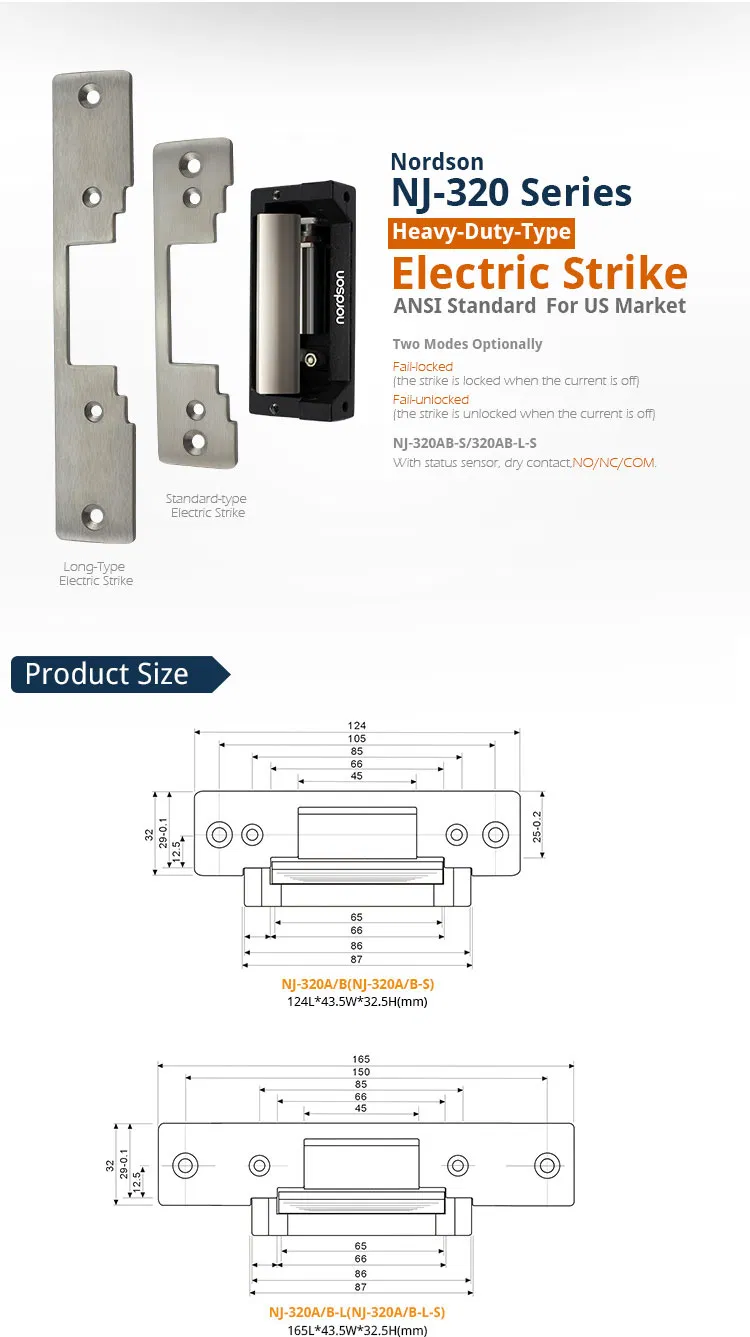

| Dimensions | 124L*32W*36H(mm) |
| Weight | 0.38kg |
🖼️
Product Gallery
❓
Frequently Asked Questions
Q1: What is the maximum holding force (shear strength) of this lock?
A: This electric strike lock has passed the 1600lbs (800kg) super linear static thrust test, ensuring heavy-duty security.
Q2: Can I use this lock on a glass door with a metal frame?
A: Yes, it is suitable for various door types including wooden, aluminum, glass, fireproof, and metal doors.

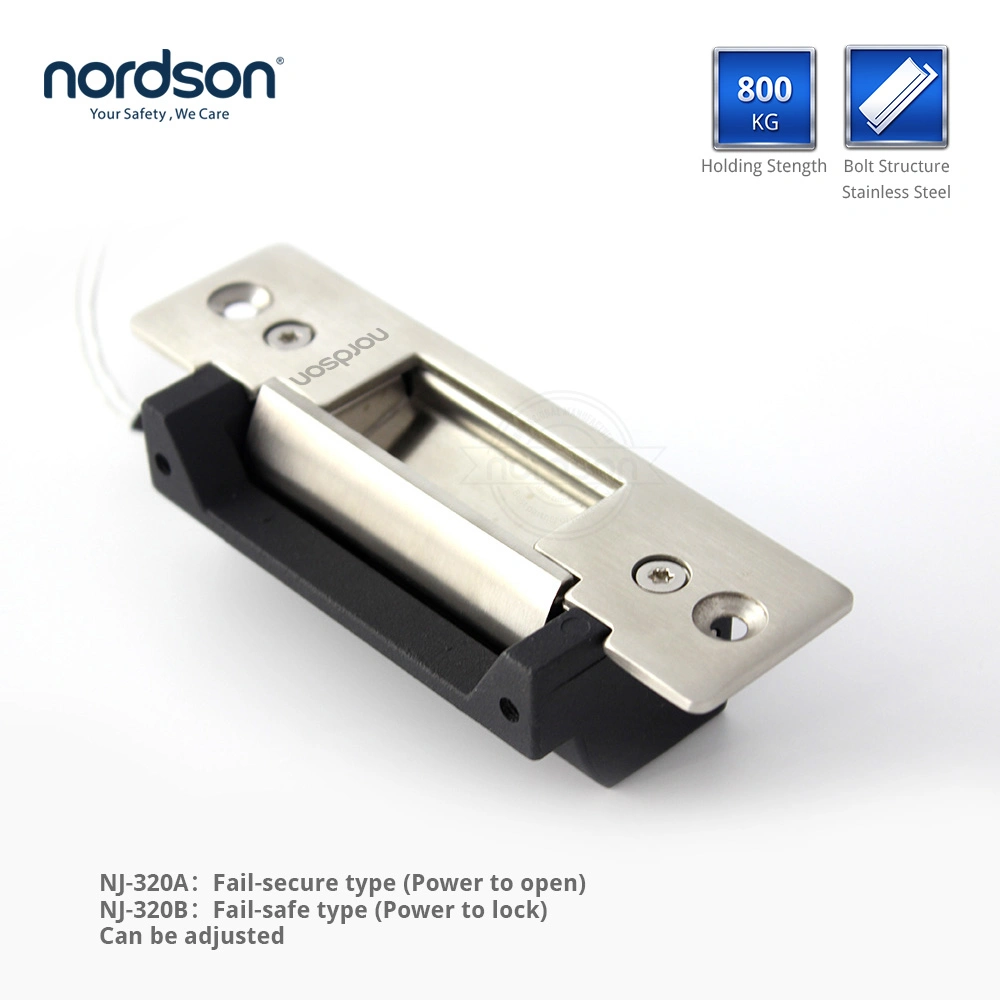

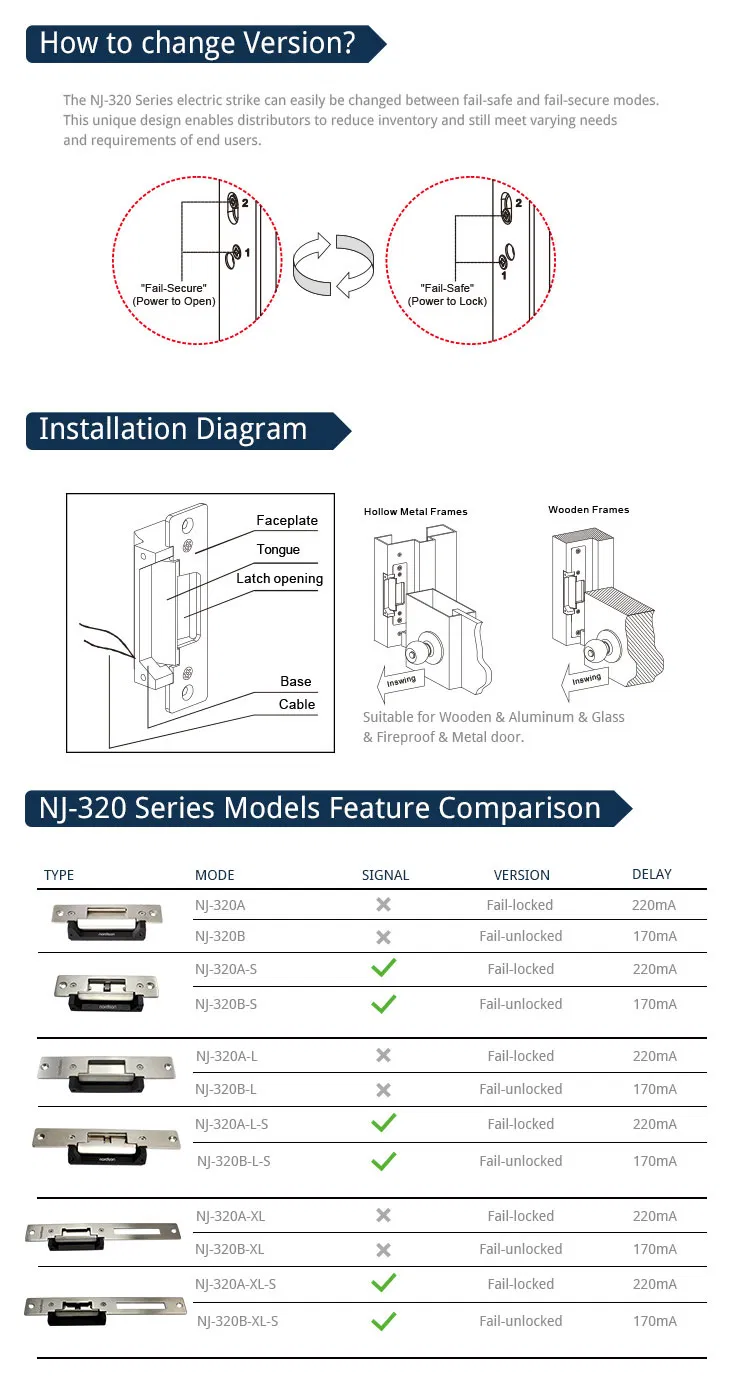

Q3: What is the difference between NJ-320A and NJ-320B versions?
A: NJ-320A is Fail-locked (remains locked when power is off), while NJ-320B is Fail-unlocked (unlocks when power is off).
Q4: What are the power requirements for this electric strike?
A: It operates on a rated voltage of DC 12V with a standby current of approximately 220mA.
Q5: Is this lock resistant to corrosion?
A: Yes, it is made of high-quality stainless steel, providing high hardness, corrosion resistance, and anti-deformation properties.
Q6: Does it have any safety certifications?
A: Yes, the product is CE marked and RoHS compliant, meeting international building standards.
