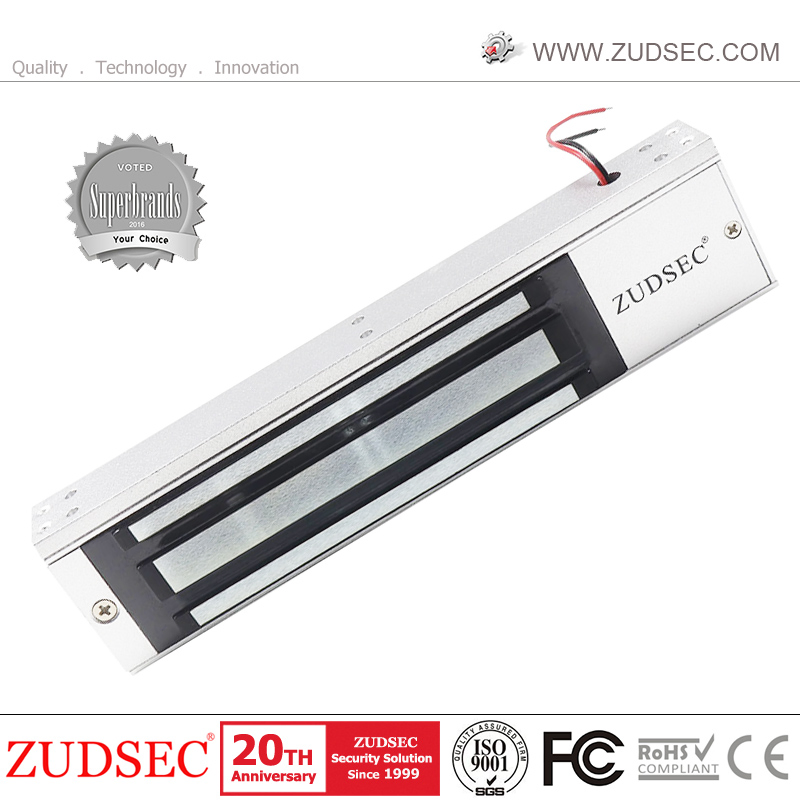

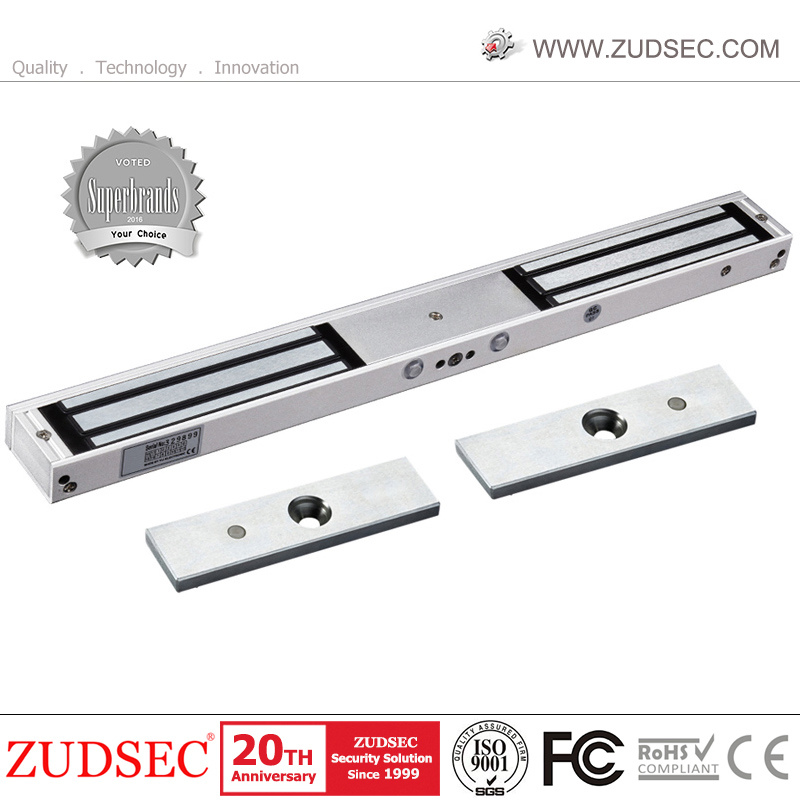

CE Electronic Electric Waterproof Double Door Cabinet Strike Bolt Rim Shear Electromagnetic Magnetic Lock with Signal Feedback/Time Delay /Buzzer Alarm
Product Description
📍 Basic Information
Model NO.
ZDL-280ST
Type
Electromagnetic Lock
Working Principle
Electronically Controlled Lock
Function
Fail-Safe
Voltage
12V or 24VDC
Signal Output
NO / NC / COM
Delay Setting
0~20s Adjustable
Holding Force
180kg - 500kg Optional
Applications: Public Passage, Enterprise, Supermarket, Campus, Hospital, Parking, Warehouse, Hotel, Garage, Community. Suitable for Wooden, Glass, Metal, and Fireproof doors.
📝 Product Description

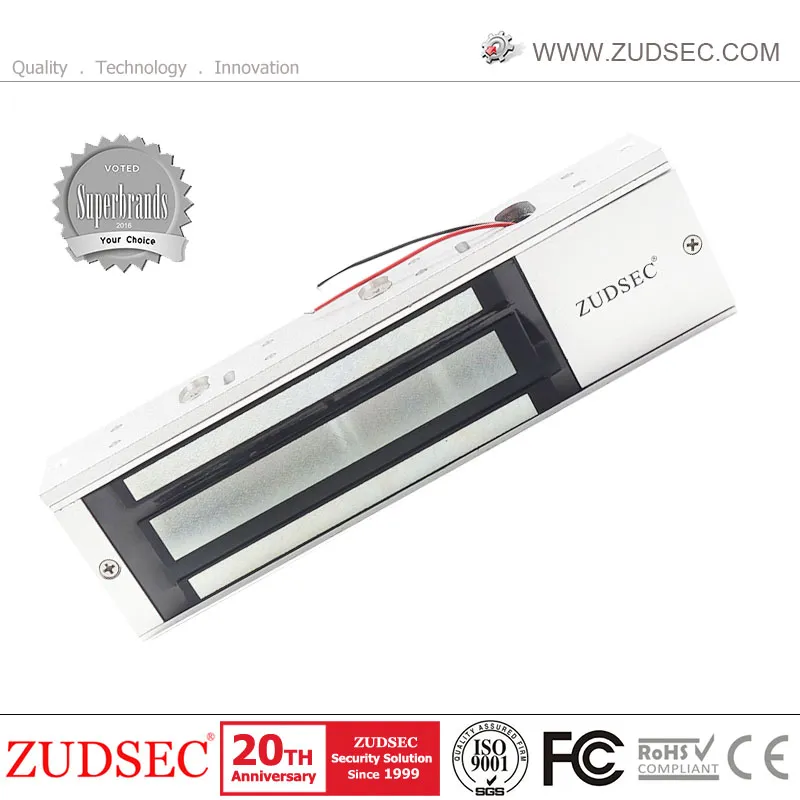

Electric Waterproof Electromagnetic Lock with Signal Feedback & Time Delay
Our magnetic lock series offers comprehensive security solutions with integrated door state detection and adjustable delay settings. Designed for high-reliability environments, these locks ensure safety through a fail-safe mechanism.
🔹 "S" Series (Signal Output)
- 5 Wires with door state detection (NO/NC/COM)
- Models: ZDL-180S, 280S, 350S, 500S
🔹 "T" Series (Time Delay)
- 4 Wires with 0-20 seconds adjustable delay
- Models: ZDL-280T, 350T, 500T
🔹 "ST" Series (Signal + Time)
- 5 Wires with Signal Output + Time Delay
- Models: ZDL-280ST, 350ST, 500ST
⭐ Key Features

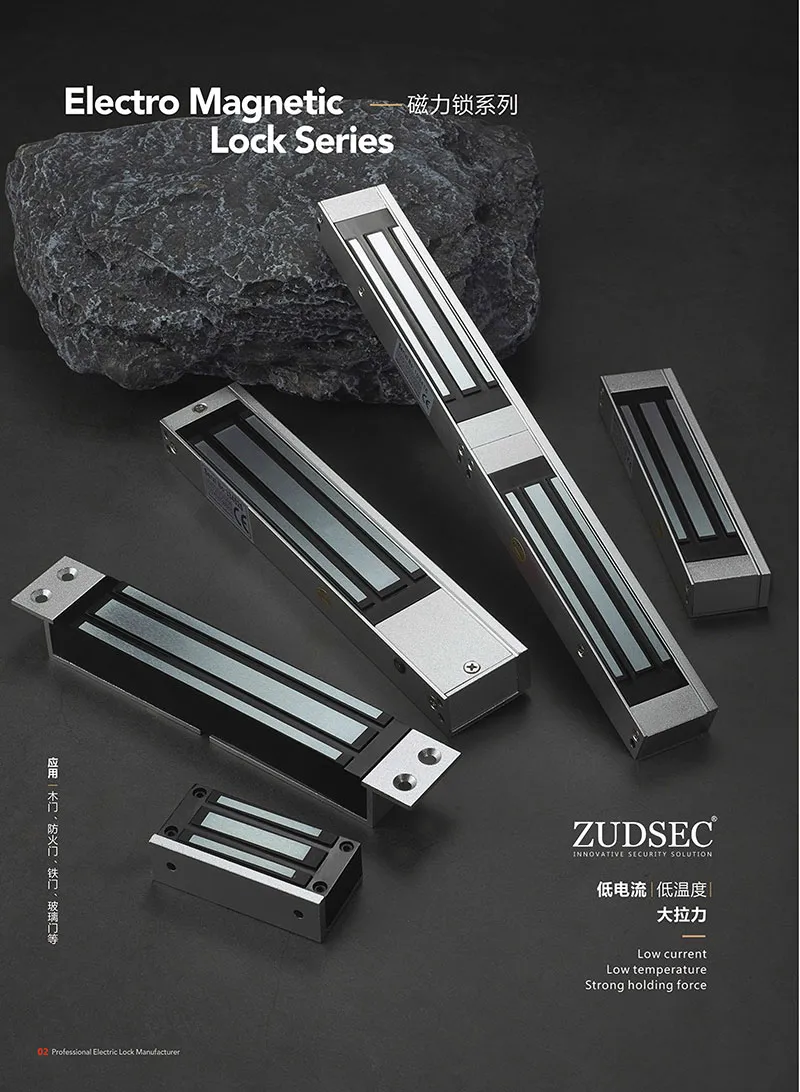

- Multiple Holding Forces: Available in 180Kgs(300Lbs), 280kgs(600Lbs), 350Kgs(800Lbs), and 500Kgs(1200Lbs).
- Real-time Monitoring: Door state detection signal output (NO/NC/COM) for entrance switch state monitoring.
- Adjustable Locking Delay: Built-in timer allows 0-20 seconds delay settings.
- Status Display: Bi-color LED indicates opening and closing status.
- Fail-Safe Security: Power-on to lock, Power-off to open, ensuring safety during emergencies.
- High-Quality Material: Housing made of Anodized Aluminum; Magnetic and Armature finished with Zinc.
📊 Technical Specifications
| Parameter | Details |
|---|---|
| Voltage | 12V or 24VDC (Customizable) |
| Power Consumption | 12V/320mA - 500mA depending on model |
| Signal Output | NO/NC/COM (NO when locking, NC when unlocking) |
| LED Indicator | Red (Unlock), Green (Lock) |
| Operating Temperature | -10°C ~ +55°C (14-131F) |
| Suitable Humidity | 0 ~ 90% |
📦 Model Dimensions
ZDL-180: 168×38×23mm (Body) | Weight: 0.95Kgs
ZDL-280: 250×48×27mm (Body) | Weight: 1.9Kgs
ZDL-350: 240×56×29mm (Body) | Weight: 2.1Kgs
ZDL-500: 265×73×41mm (Body) | Weight: 4.3Kgs
🖼️ Product Gallery
🔗 Related Products
❓ Frequently Asked Questions
What is a "Fail-Safe" lock?
A fail-safe lock is designed to unlock automatically when power is removed. This ensures that in the event of a power outage or fire alarm, doors will open to allow safe egress.
How does the time delay function work?
The "T" and "ST" models include an adjustable timer (0-20 seconds). Once the door is closed, you can set a specific delay before the magnet re-activates and locks the door.
Can I monitor the door status remotely?
Yes, models with the "S" suffix (Signal Output) provide NO/NC/COM wiring, which can be connected to access control systems or alarms to monitor whether the door is currently locked or unlocked.
Which holding force should I choose?
The choice depends on the door type. 180kg is suitable for small cabinets or light doors; 280kg is standard for office doors; while 350kg and 500kg are recommended for heavy-duty or high-security commercial doors.
What door materials are these locks compatible with?
These electromagnetic locks are highly versatile and can be installed on wooden doors, glass doors (with U-brackets), metal doors, and fireproof doors.
Does the lock support 24V DC systems?
Yes, the locks are designed to support both 12V and 24V DC power inputs, making them compatible with most standard security power supplies.
